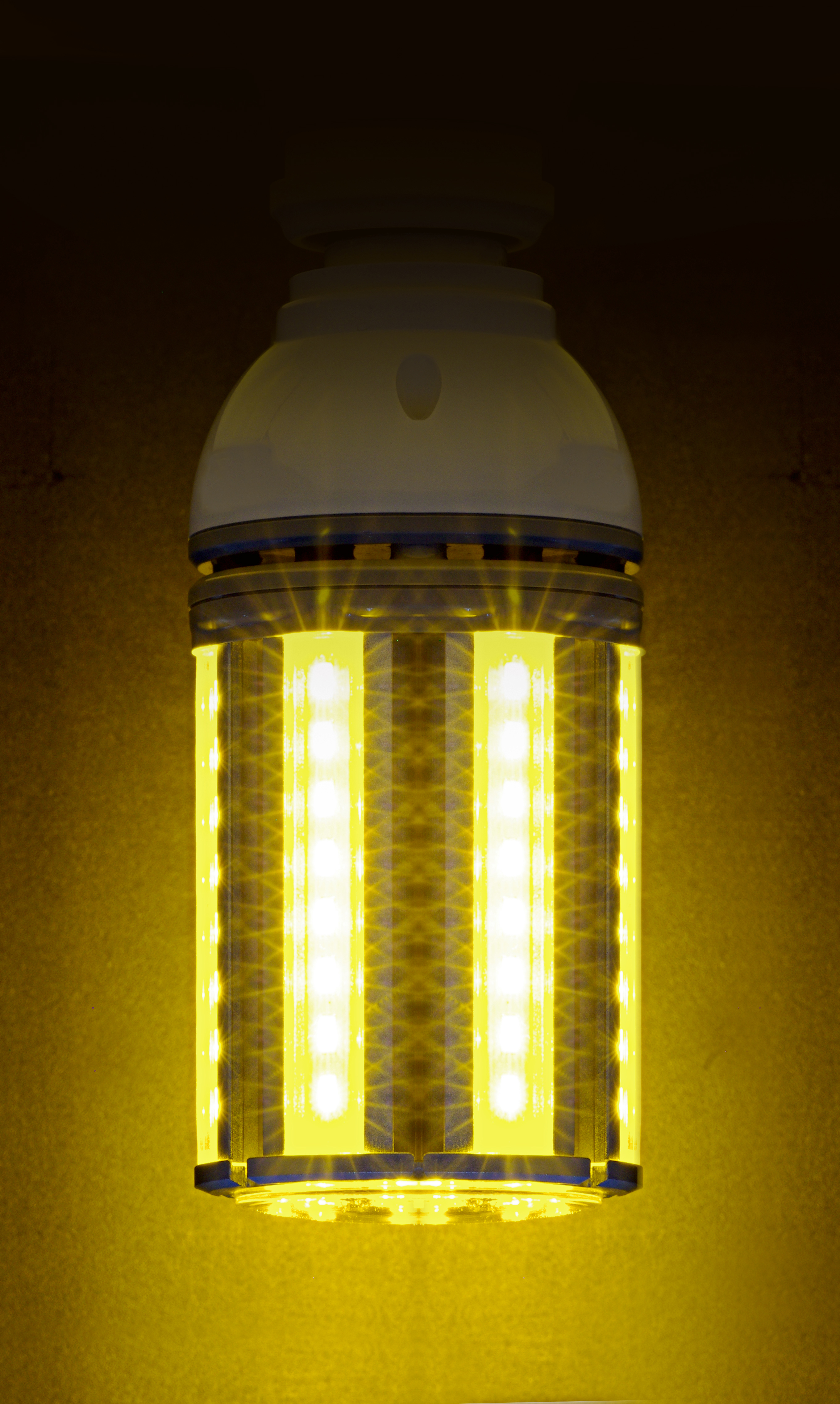

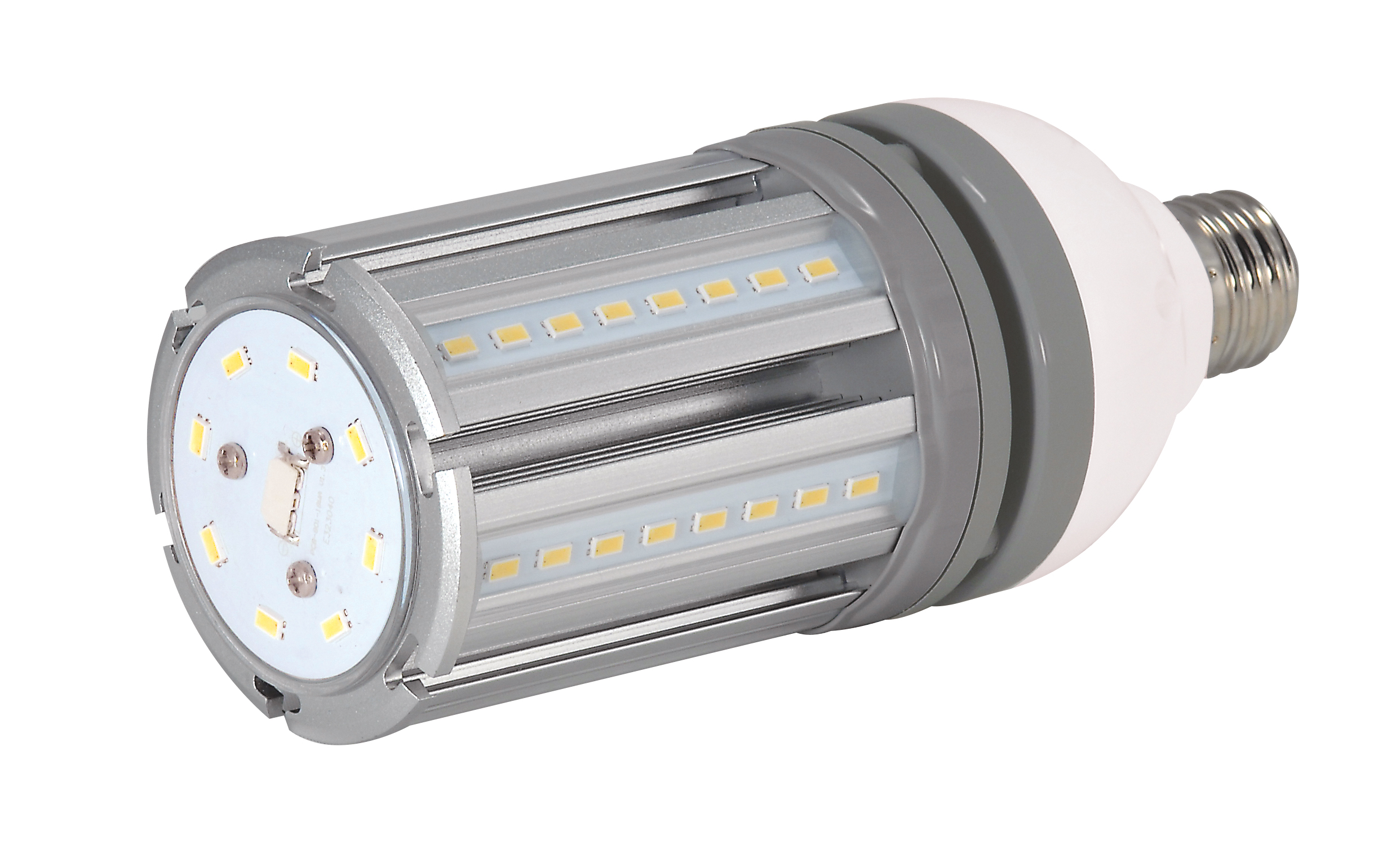

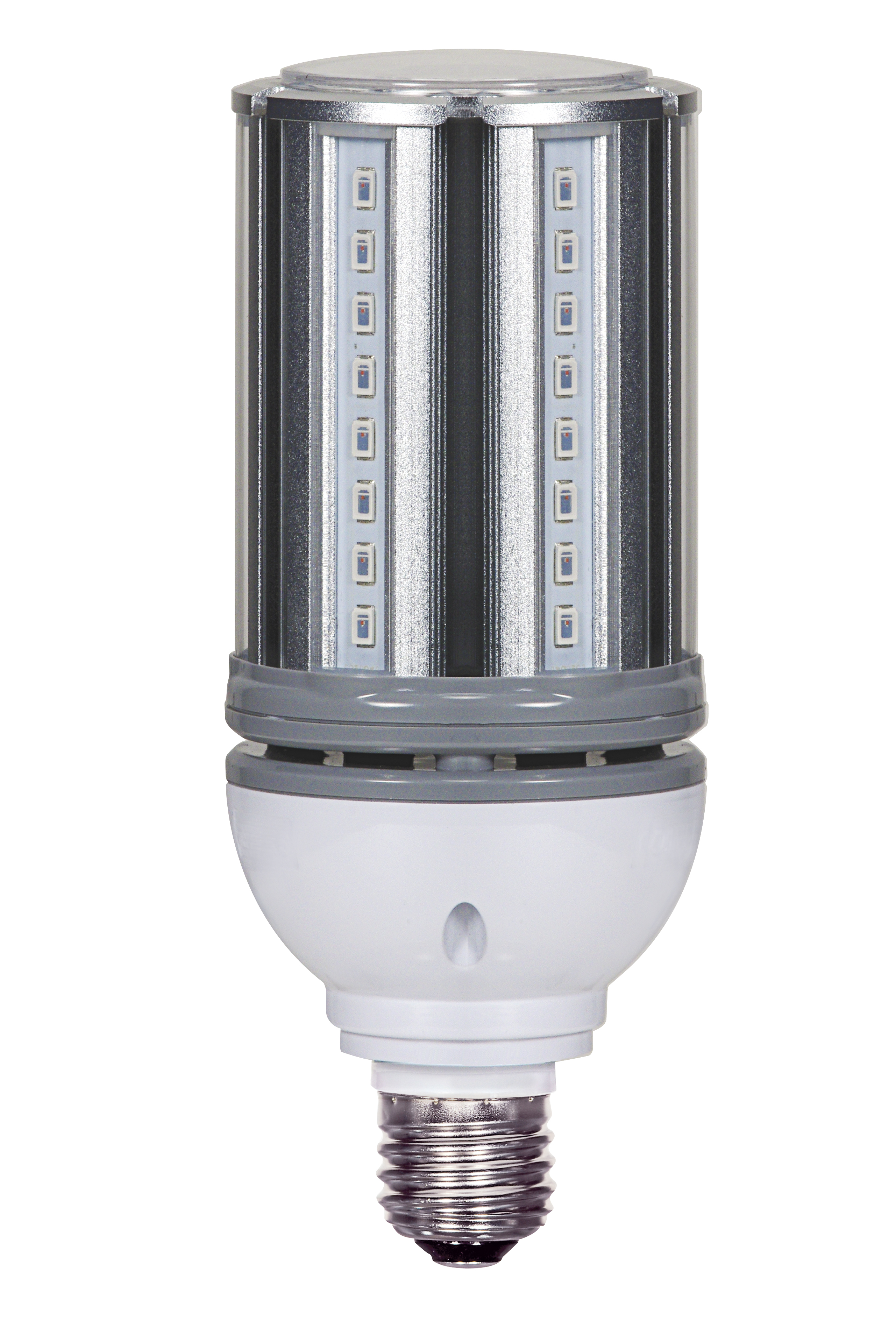

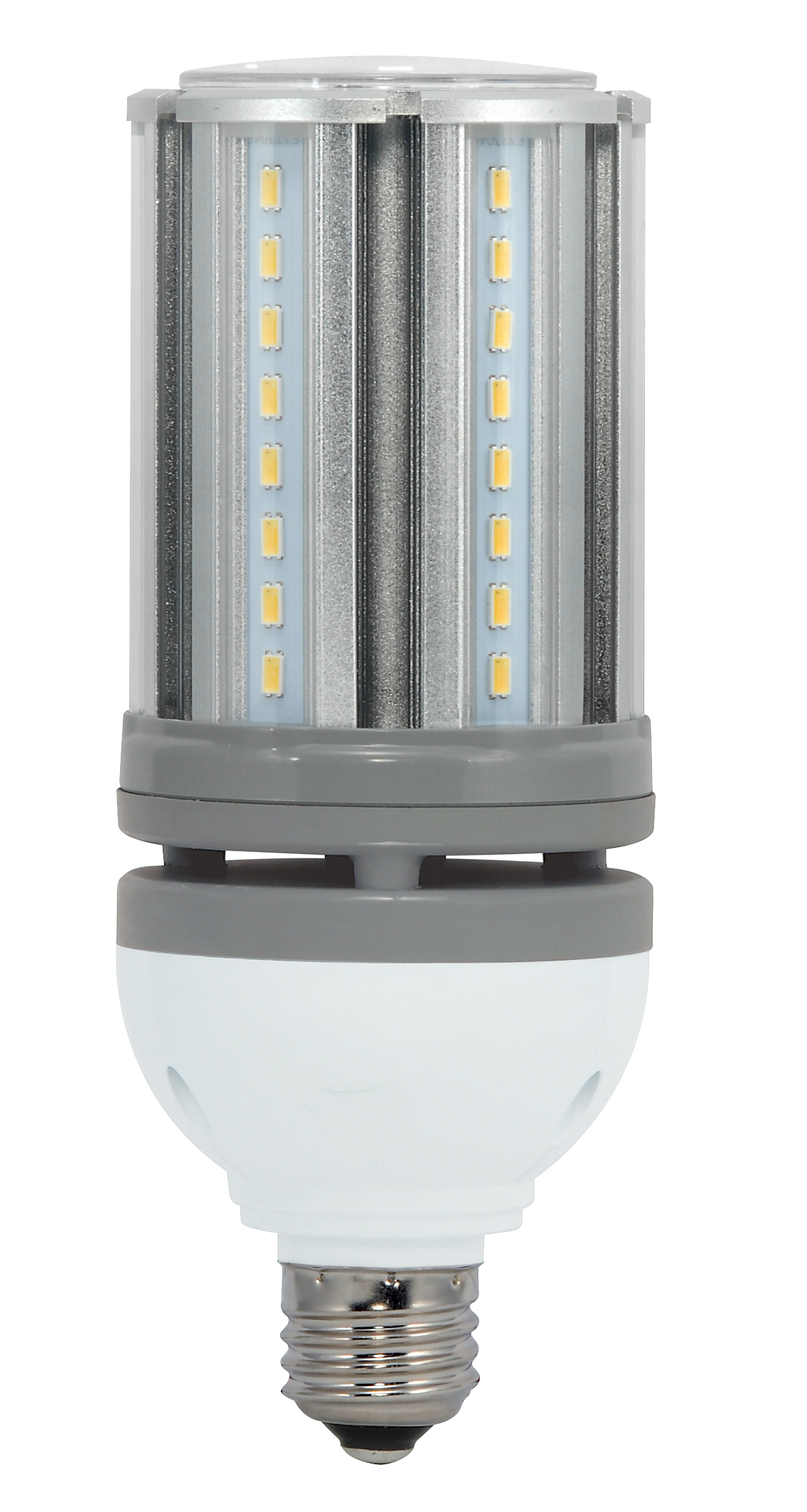

18W/LED/HID/AMBER/100-277V E26 - S9678
18W/LED/HID/AMBER/100-277V E26 - S9678
18W/LED/HID/AMBER/100-277V E26 - S9678
18W/LED/HID/AMBER/100-277V E26 - S9678
S9678

18W/LED/HID/AMBER/100-277V E26

  • 18 Watt LED HID Replacement
  • Amber 585nm
  • Medium base
  • 100-277 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S9678 SpecificationsS9678 Photometrics.iesHi-Pro LED High lumen, omni-directional lamps for industrial and commercial applications
Tools
Lighting Layout Analysis For S9678
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
18 Watt LED HID Replacement; Amber 585nm; Medium base; 100-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Lamp FilamentLED
MaterialAluminum / Plastic
Fixture TypeCorncob
StatusActive
StyleContemporary
Most Current GenerationS13137
Working VoltageAC 90-305V
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Additional InfoAmber color - 585nm
Amps0.180-0.065A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Minimum Compartment SizeLength: 8.5 in. Width: 6 in. Depth: 6 in.
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent70W
Electrical
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
CRI80+
Operating Frequency50-60Hz
Operating Temp-20C (-4F) to +65C (+149F)
HID Equivalent70W
Lumens1100L
Volts120V-277V
Watts18W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhiteGrey
ANSI BaseE26
Lamp TypeCorncob
MOD Lamps2.75
MOL6.88
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923096785
Case Cube1.8843
Case Height18.5
Case Length15.16
Case Quantity24
Case UPC10045923096782
Case Weight29.0
Case Width11.61
EA Cube0.051
EA Height7.71
EA Length3.38
EA Quantity1
EA Weight1.04
EA Width3.38
Inner Cube0.7733
Inner Height8.5
Inner Length14.37
Inner Quantity12
Inner UPC20045923096789
Inner Weight13.56
Inner Width10.94
Pack TypeBox
Web Length6.88
Web Width2.75
