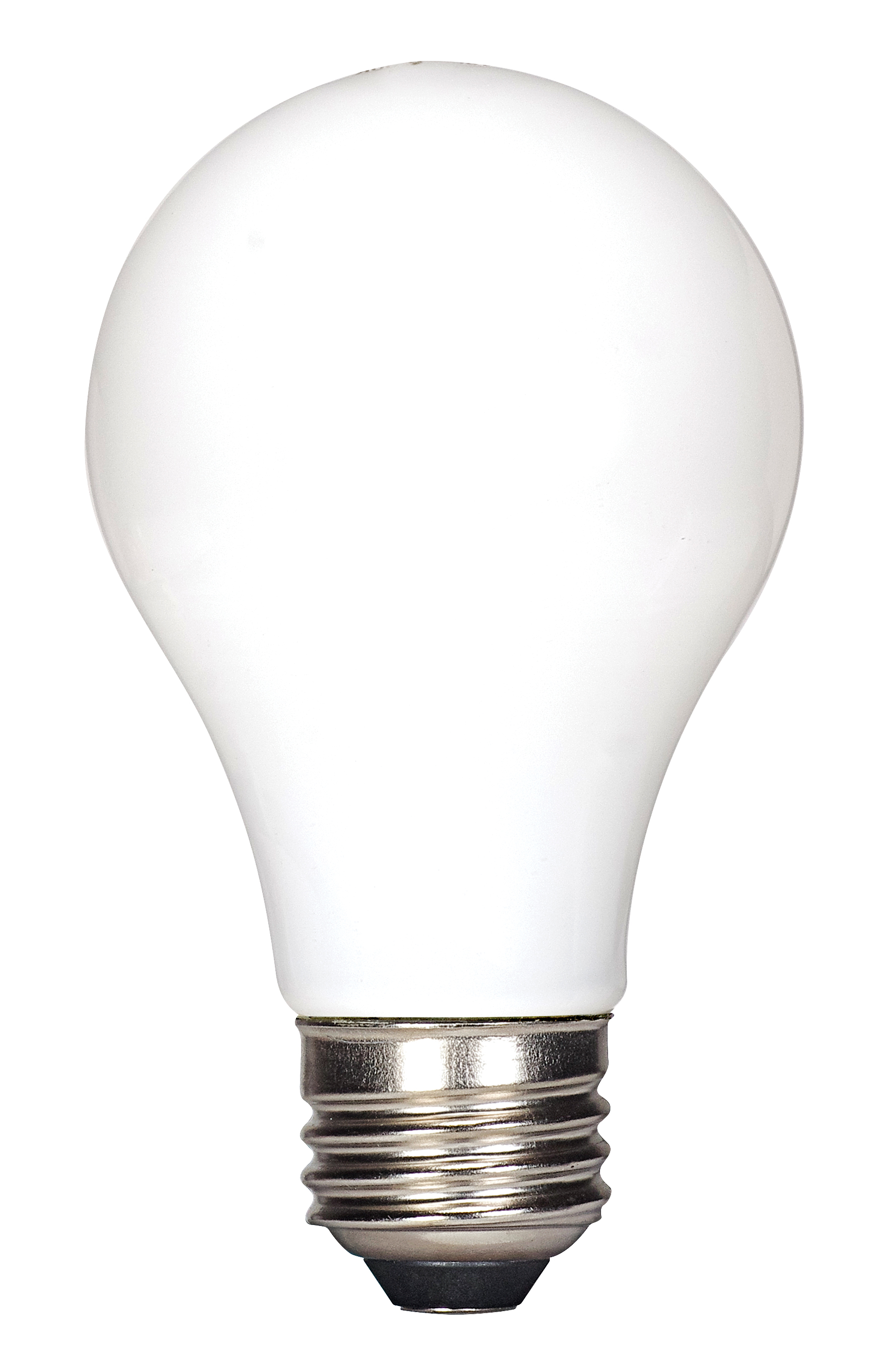

6.5A19/SW/LED/E26/27K/120V - S9825
S9825

6.5A19/SW/LED/E26/27K/120V

Discontinued - Suggested Replacement: S12419
  • 6.5 Watt A19 LED
  • Soft white finish
  • Medium base
  • 2700K
  • 720 Lumens
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3

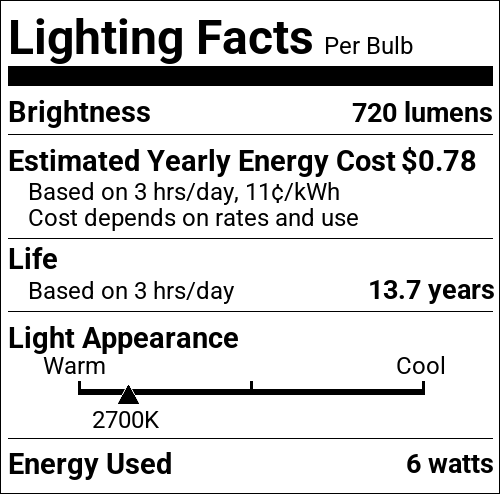

S9825 SpecificationsS9825 Photometrics.iesS9825 Lighting Facts Label
Tools
Lighting Layout Analysis For S9825
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
6.5 Watt A19 LED; Soft white finish; Medium base; 2700K; 720 Lumens; 120 Volt
Products Specs
General
CompanySATCO
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.054A
Has CameraNo
IOT EnabledNo
Lens FinishSoft White
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-20C (-4F) to +45C (+113F)
Lumens720L
Volts120v
Watts6.5W
Physical
Lamp BaseMedium
FinishSoft White
ANSI BaseE26
Lamp TypeA19
MOD Lamps2.38
MOL4.13
Additional Info
Warranty2-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923098253
Case Cube0.7769
Case Height6.69
Case Length17.05
Case Quantity24
Case UPC10045923098250
Case Weight4.4
Case Width11.77
EA Cube0.0199
EA Height4.83
EA Length2.67
EA Quantity1
EA Weight0.25
EA Width2.67
Inner Cube0.1432
Inner Height5.51
Inner Length8.15
Inner Quantity6
Inner UPC20045923098257
Inner Weight1.57
Inner Width5.51
Pack TypeBox
Web Length4.13
Web Width2.38
