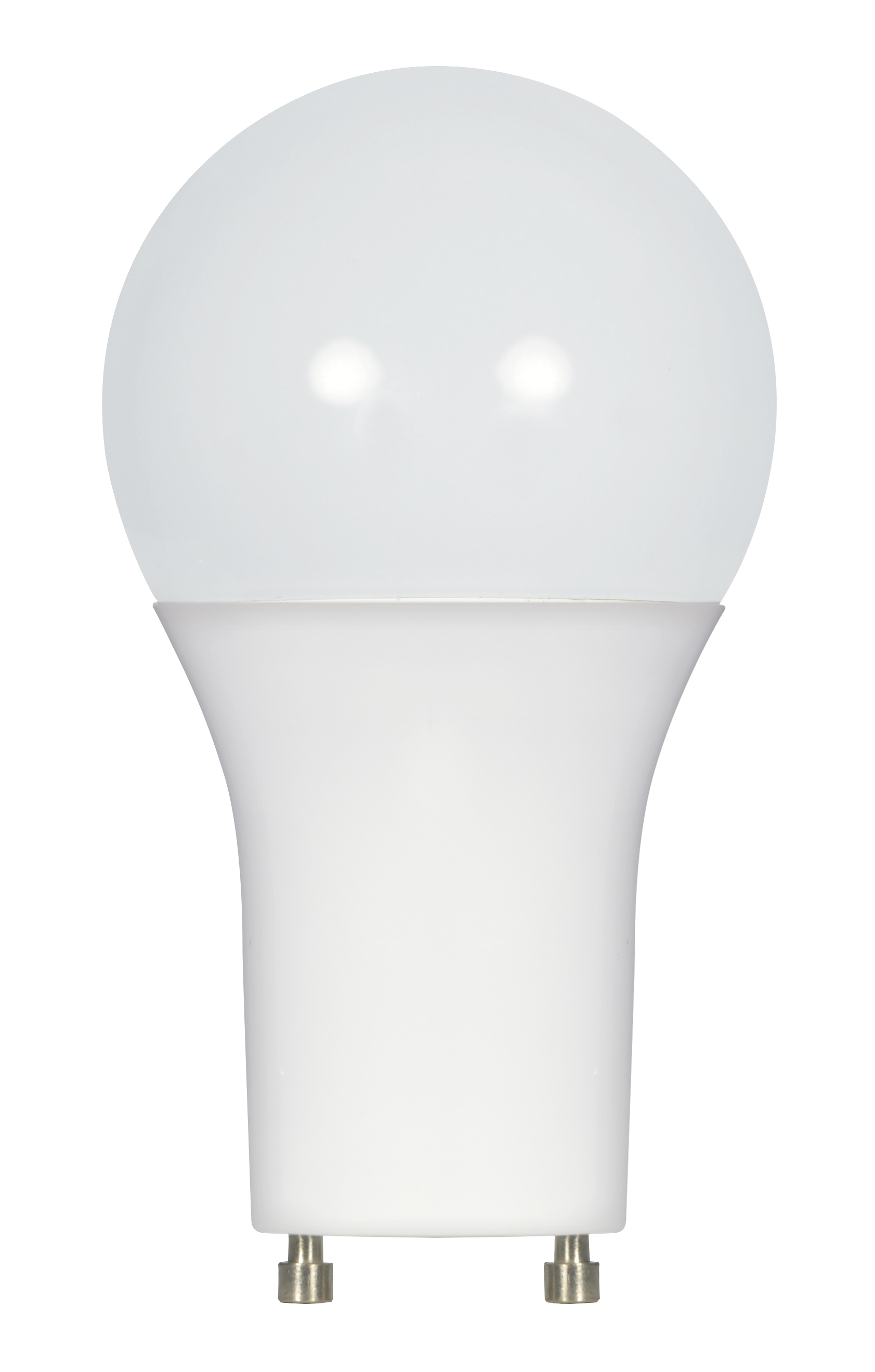

9.5A19/OMNI/220/LED/40K/GU24 - S9842
S9842

9.5A19/OMNI/220/LED/40K/GU24

Discontinued - Suggested Replacement: S29842
  • 9.5 watt
  • A19 LED
  • 4000K
  • GU24 base
  • 220' beam spread
  • 120 volts
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S9842 SpecificationsMulti-directional LED A19 lamps
Tools
Lighting Layout Analysis For S9842
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9.5 watt; A19 LED; 4000K; GU24 base; 220' beam spread; 120 volts
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.079A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempCool White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-4F to +113F (-20C to +45C)
Lumens800L
Volts120v
Watts9.5W
Physical
Lamp BaseBi Pin GU24
FinishFrost
Housing ColorWhite
ANSI BaseGU24
Lamp TypeA19
MOD Lamps2.38
MOL4.19
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
CA T20 Compliant SubstituteS8482
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923098420
Case Cube0.8754
Case Height12.05
Case Length13.98
Case Quantity24
Case UPC10045923098427
Case Weight6.0
Case Width8.98
EA Cube0.0237
EA Height5.12
EA Length3.07
EA Quantity1
EA Weight0.2
EA Width2.6
Inner Cube0.172
Inner Height5.47
Inner Length8.31
Inner Quantity6
Inner UPC20045923098424
Inner Weight1.37
Inner Width6.54
Pack TypeBox
Web Length4.19
Web Width2.38
