| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 4.88 |
| Dimmable Text | Forward Phase or Reverse Phase or Phase Selectable |
| Material | Aluminum |

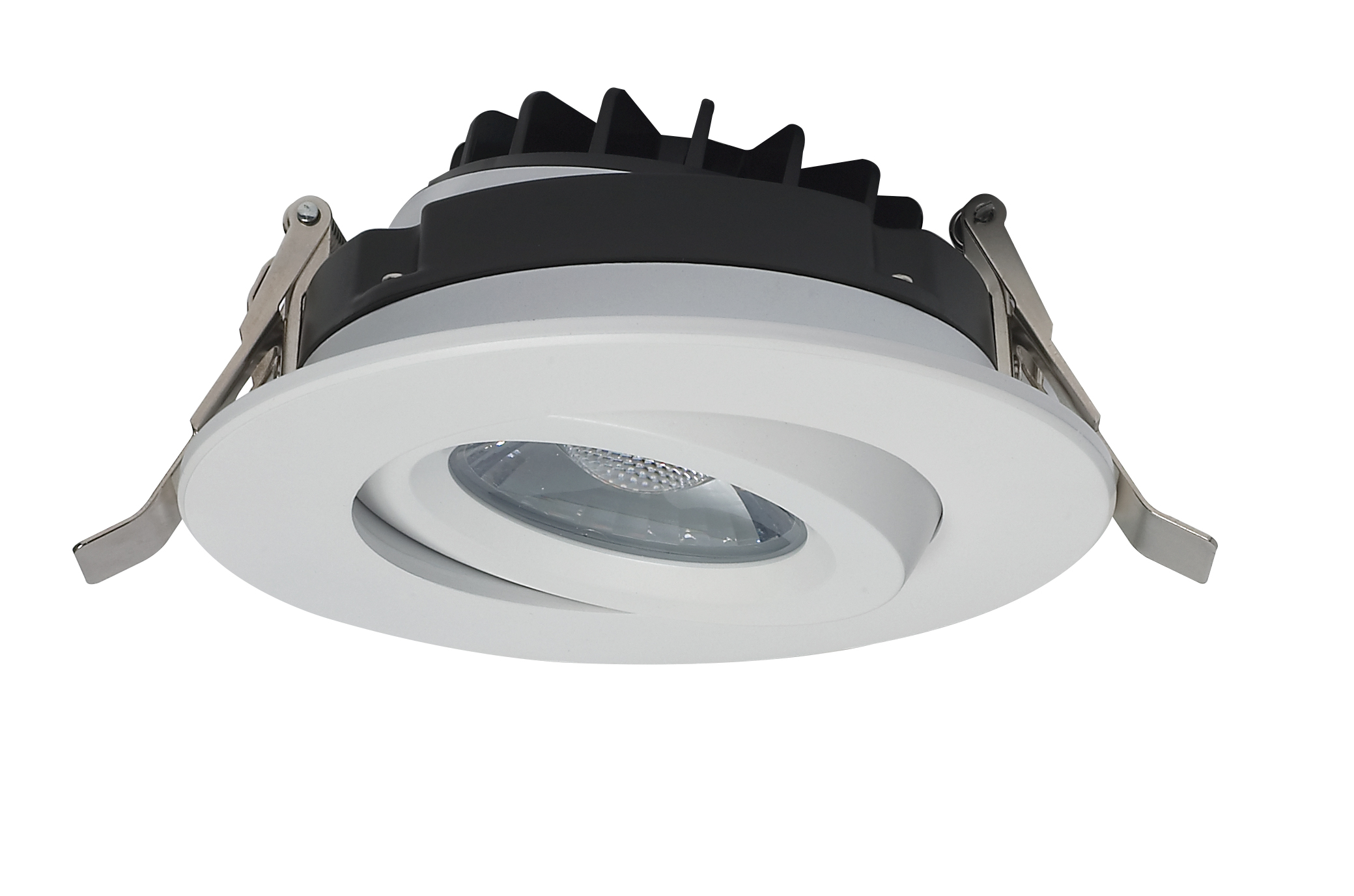

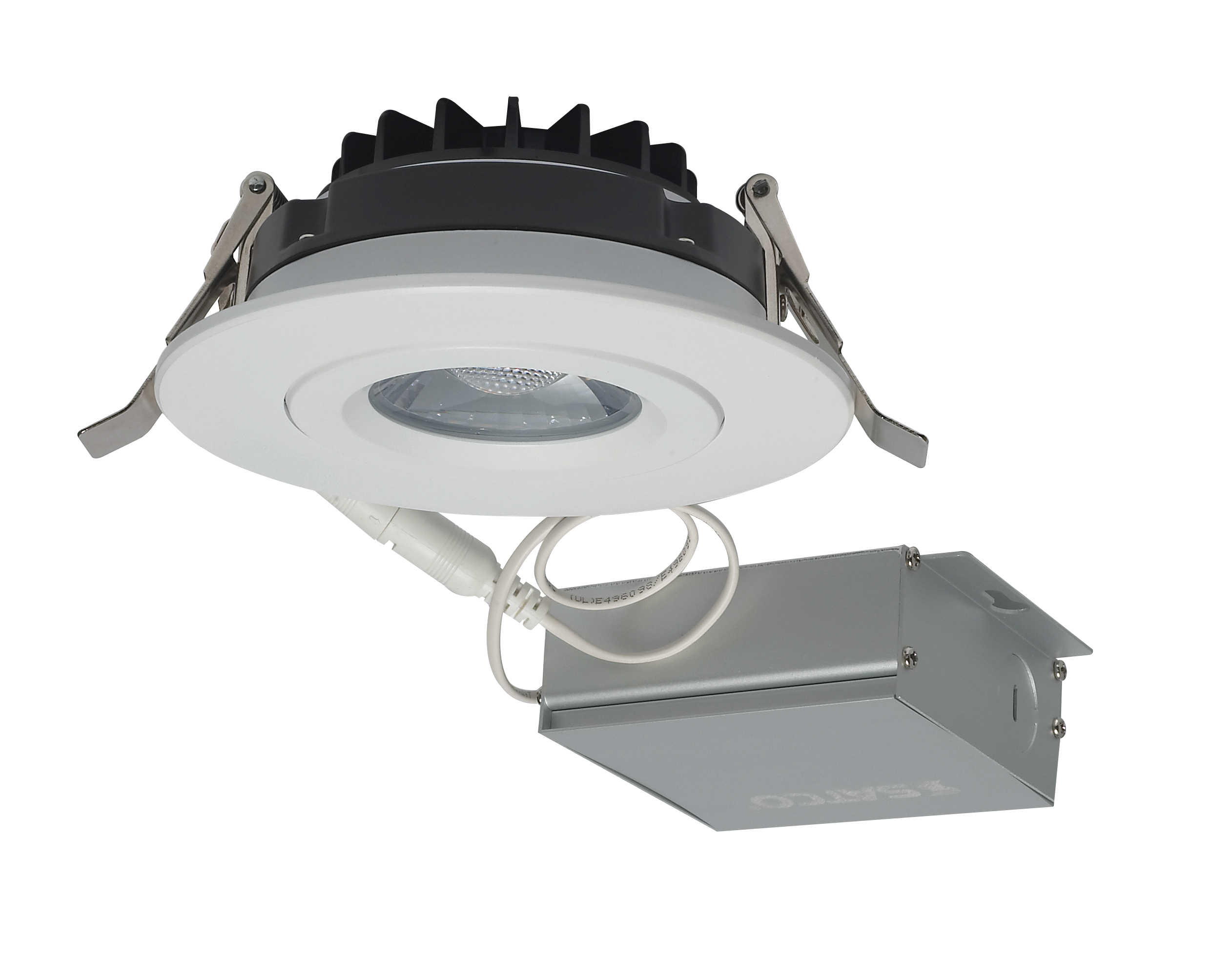

| Fixture Type | Remote Driver LED Downlight |
| Product Notes | Aiming Angle: 30dg |
| Status | Discontinued |
| Style | Utility |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |

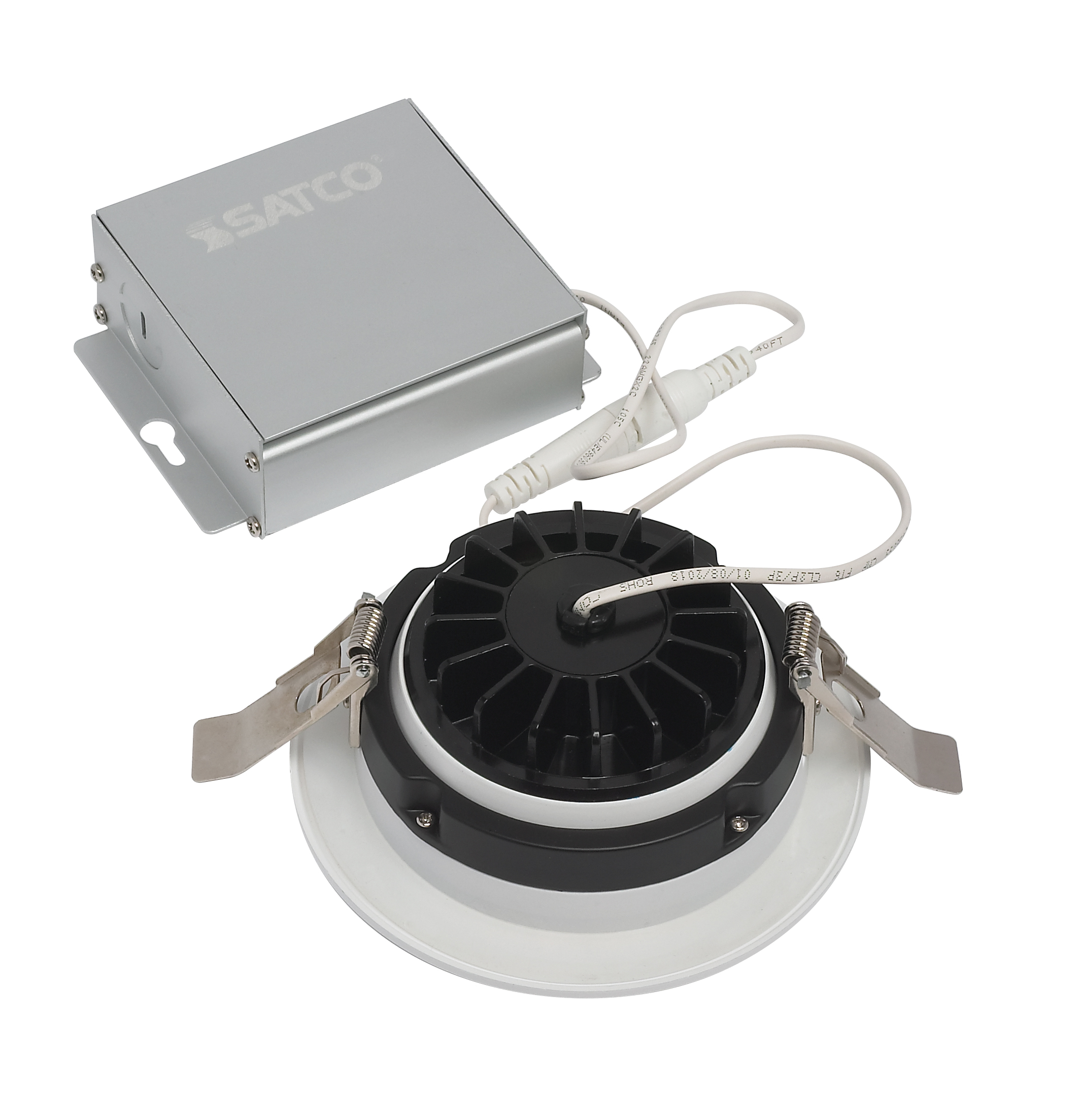

| Additional Info | Integrated j-box for direct wire installation |
| Amps | 0.100A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Power Factor | 0.98 |
| SDS Class | LED_Lamp |
| Sloped Ceiling Compatible | Yes |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 75W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 40 |
| Color Temp | Warm White |
| CRI | 90+ |
| Dimming Type | 120V only, Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 850L |
| Volts | 120v |
| Watts | 12W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|---|
| Installation Notes | **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973) |
| Air Tight | Yes |
|---|---|
| CA Prop 65 | Lead |
| FCC Compliant | Yes |
| IC Rated | Yes |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| California Ban | California T24 Listed |
| UL Application | Ceiling |
| DLC Approved | No |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | Yes |
| UPC | 045923116186 |
|---|---|
| Case Cube | 0.9059 |
| Case Height | 11.77 |
| Case Length | 22.24 |
| Case Quantity | 12 |
| Case UPC | 10045923116183 |
| Case Weight | 20.83 |
| Case Width | 5.98 |
| EA Cube | 0.0595 |
| EA Height | 5.39 |
| EA Length | 5.39 |
| EA Quantity | 1 |
| EA Weight | 1.48 |
| EA Width | 3.54 |
| Pack Type | Box |
| Web Height | 2.0 |
| Web Width | 4.88 |
