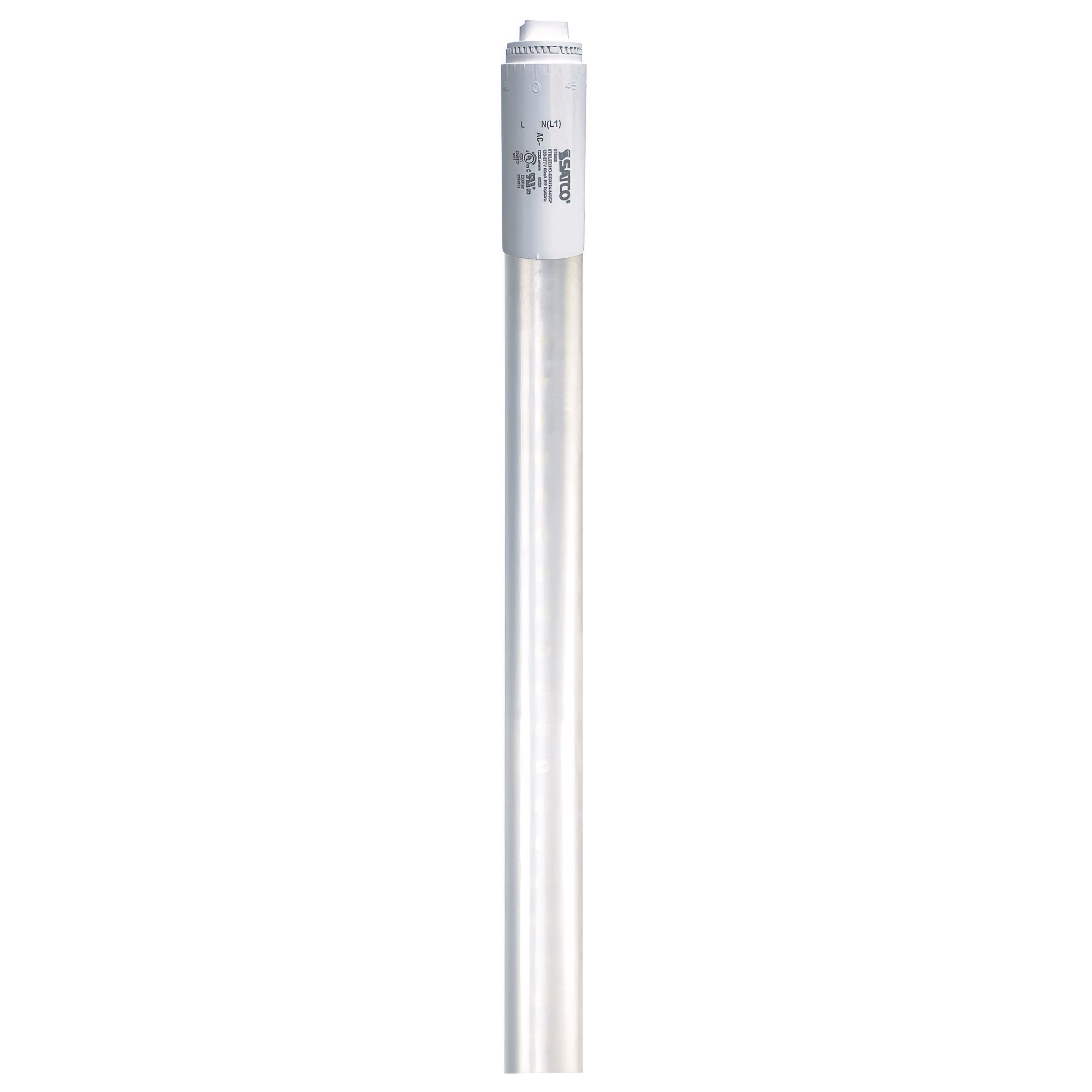

12T8/LED/HO-SIGN/36-865/BP - S16403
S16403

12T8/LED/HO-SIGN/36-865/BP

Discontinued - Suggested Replacement: S16433
  • 12 Watt T8 LED
  • 6500K
  • 1500 Lumens
  • 120-277 Volt
  • Type B
  • Single Ended
  • Ballast Bypass
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S16403 SpecificationsS16403 Photometrics.iesS16403 Instructions.pdf
Tools
Lighting Layout Analysis For S16403
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
12 Watt T8 LED; 6500K; 1500 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialPlastic
Fixture TypeLinear
StatusDiscontinued
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.100-0.043A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Nominal Length36.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv45W
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)6500K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempDaylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
Lumens1500L
Volts120V-277V
Watts12W
Physical
Lamp BaseRecessed Double Contact HO/VHO
FinishFrost
ANSI BaseR17d
Lamp TypeT8
MOD Lamps1.0
MOL33.88
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures. No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified, ETLus - Sanitation Recognized Component
California BanLawful for sale
UL ApplicationTubes
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923164033
Case Cube0.7749
Case Height4.92
Case Length36.0
Case Quantity10
Case UPC10045923164030
Case Weight6.6
Case Width7.56
EA Cube0.0205
EA Height1.0
EA Length35.43
EA Quantity1
EA Weight0.66
EA Width1.0
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeEgg Crate
Web Length33.88
Web Width1.0
