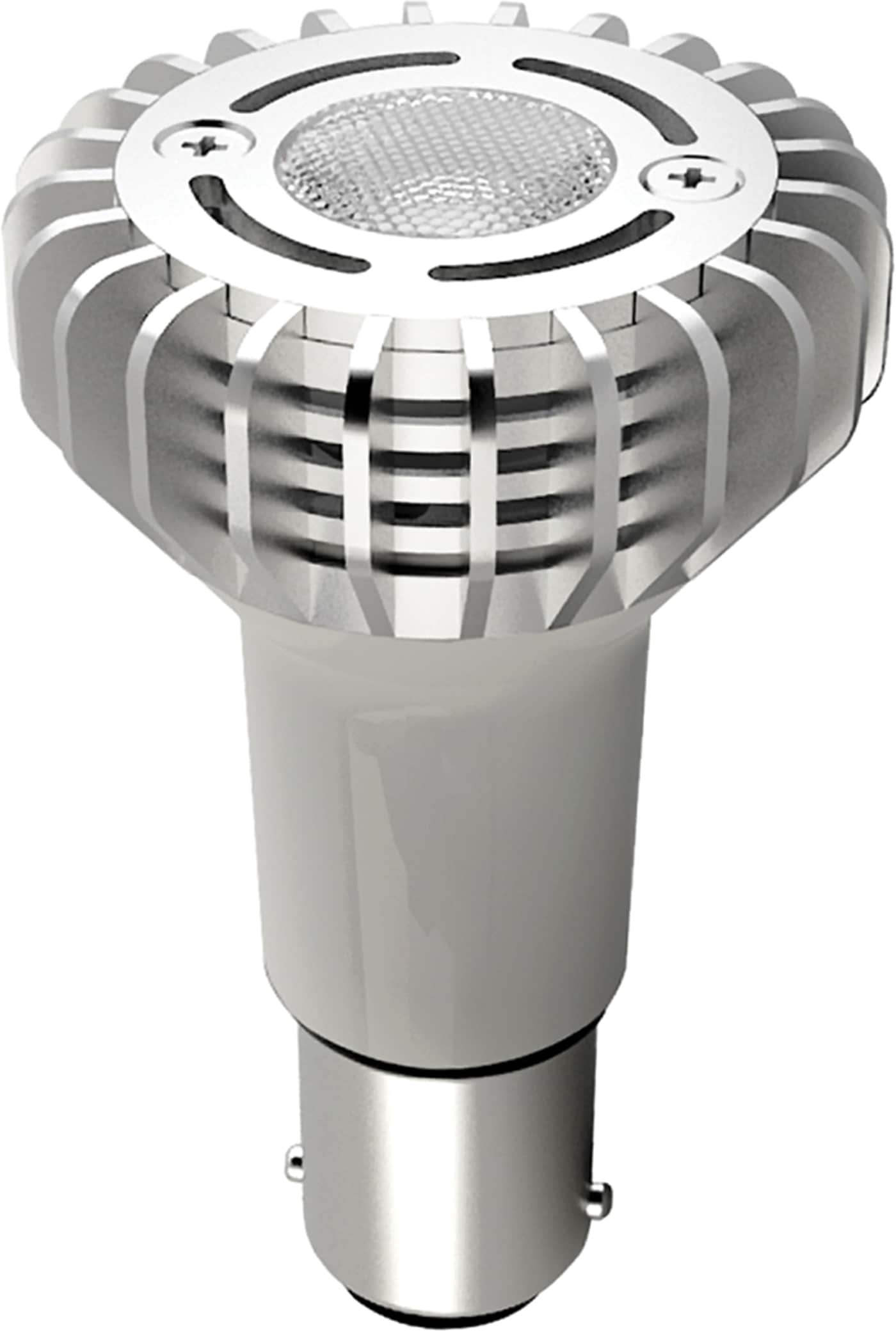

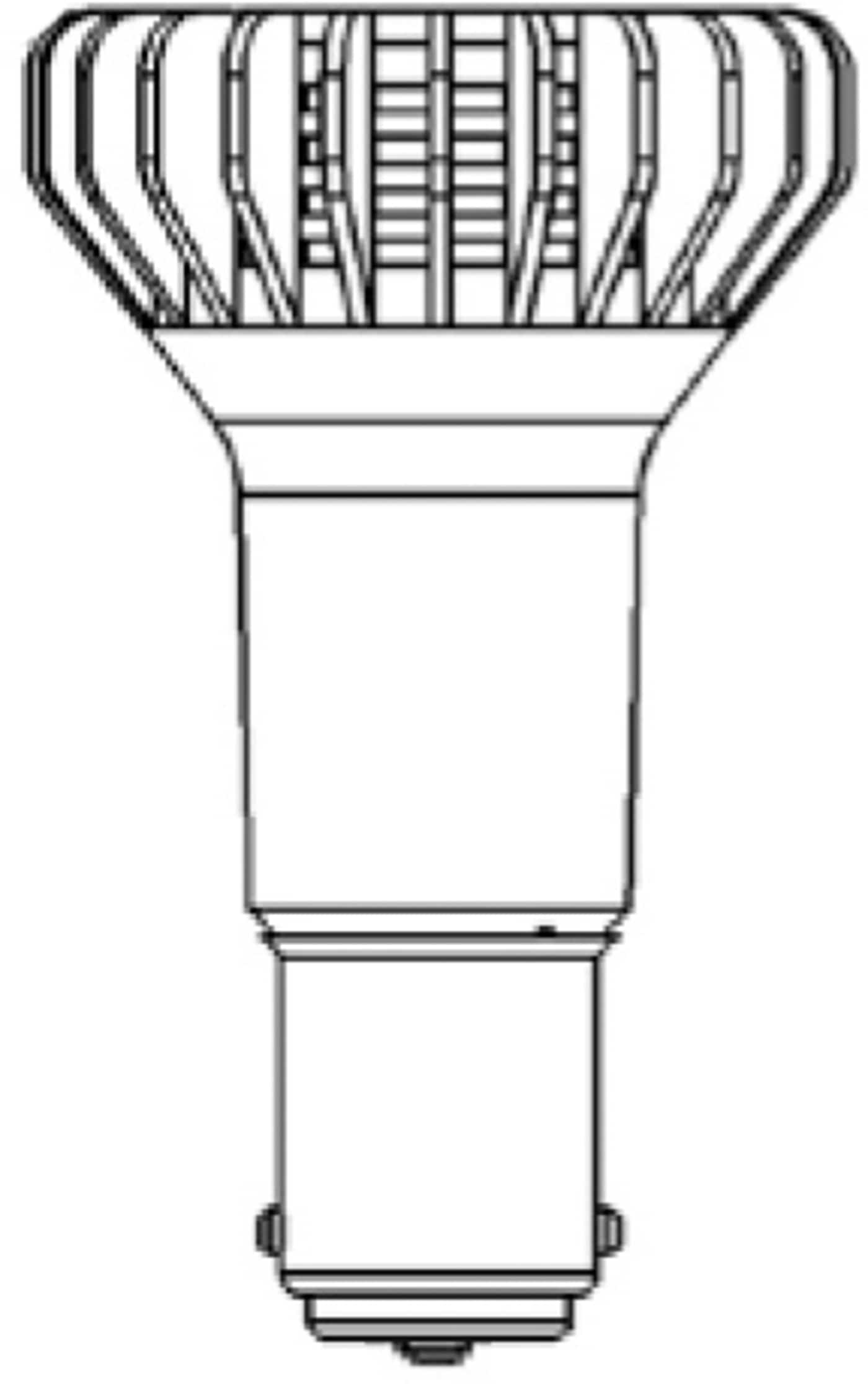

3WLED/1383/ELEVATOR/12V AC/DC - S9004
3WLED/1383/ELEVATOR/12V AC/DC - S9004
S9004

3WLED/1383/ELEVATOR/12V AC/DC

Discontinued - Suggested Replacement: S29004
  • 3 Watt
  • R12 LED
  • 3000K
  • 40 deg. Beam Angle
  • Bayonet Single Contact Base
  • 12 Volt
hours_rated^30k^2
beam_angle^40^2
fcc_compliant^true^3
rohs_compliant^y^3
S9004 SpecificationsS9004 Photometrics.ies3W LED elevator/1383 lamp
Tools
Lighting Layout Analysis For S9004
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
3 Watt; R12 LED; 3000K; 40 deg. Beam Angle; Bayonet Single Contact Base; 12 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeMiniature
StatusObsolete
Working Voltage12V AC/DC
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.250A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent20W
Electrical
CCT (Kelvin Temp)3000K
DimmableNon-Dimmable
Hours Rated30000
Beam Angle (degree)40
Color TempWarm White
CRI80+
Operating Temp-20C (-4F) to +45C (+113F)
Lumens120L
Volts12V
Watts3W
Physical
Lamp BaseBayonet Single Contact
FinishFrost
Housing ColorSilver
ANSI BaseBA15s
Lamp TypeR12
MOD Lamps1.5
MOL2.5
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
ROHS CompliantYes
Safety ListingNot Applicable
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923090042
Case Cube4.5258
Case Height16.8
Case Length26.3
Case Quantity48
Case UPC10045923090049
Case Weight5.96
Case Width17.7
EA Cube0.0049
EA Height3.19
EA Length1.63
EA Quantity1
EA Weight0.08
EA Width1.63
Inner Cube0.8602
Inner Height7.4
Inner Length16.2
Inner Quantity12
Inner UPC20045923090046
Inner Weight1.29
Inner Width12.4
Pack TypeBox
Web Length2.5
Web Width1.5
