| Company | SATCO |
|---|---|
| Bulb Included | Integrated |
| Diameter | 5.0 |
| Dimmable Text | Forward Phase or Reverse Phase or Phase Selectable |

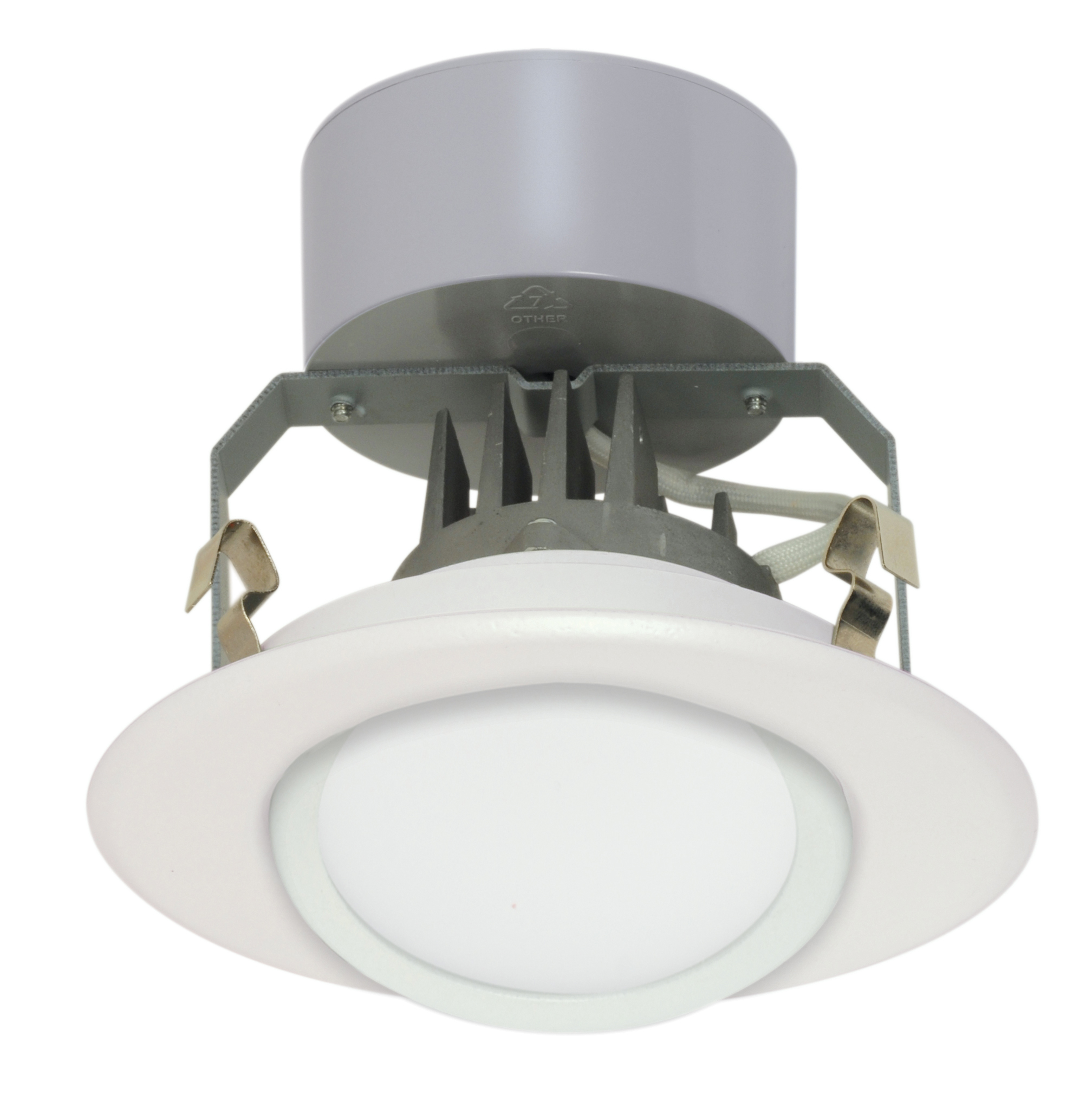

| Fixture Type | Downlight Retrofit |
| Status | Obsolete |
| Style | Contemporary |
| CCT Selectable | No |
| Wattage Selectable | No |
| Can Size | 4 in. |
| Finish Family | White |
| Additional Info | The dimming control will depend on the Driver or transformer that is been used, as an example if a magnetic Tramformer is being used it will require an LV dimmer (for example Lutron DVLV-600P-WH) if an Electronic transformer is being used it will require an ELV dimmer (Lutron DVELV-300P-WH). |
| Amps | 0.583A |
| Has Camera | No |
| IOT Enabled | No |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 40W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 35000 |
| Beam Angle (degree) | 90 |
| Color Temp | Warm White |
| CRI | 90+ |
| Dimming Type | 120V only, Phase cut |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 432L |
| Volts | 12V |
| Watts | 7W |
| Lamp Base | Miniature 2 Pin Round Adapter |
|---|---|
| Finish | WHITE |
| ANSI Base | Bi-Pin Adapter |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| FCC Compliant | Yes |
| ROHS Compliant | Yes |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923091292 |
|---|---|
| Case Cube | 1.4498 |
| Case Height | 13.85 |
| Case Length | 13.6 |
| Case Quantity | 12 |
| Case UPC | 10045923091299 |
| Case Weight | 3.05 |
| Case Width | 13.3 |
| EA Cube | 0.102 |
| EA Height | 6.46 |
| EA Length | 6.3 |
| EA Quantity | 1 |
| EA Weight | 0.23 |
| EA Width | 4.33 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Height | 4.0 |
| Web Width | 5.0 |
