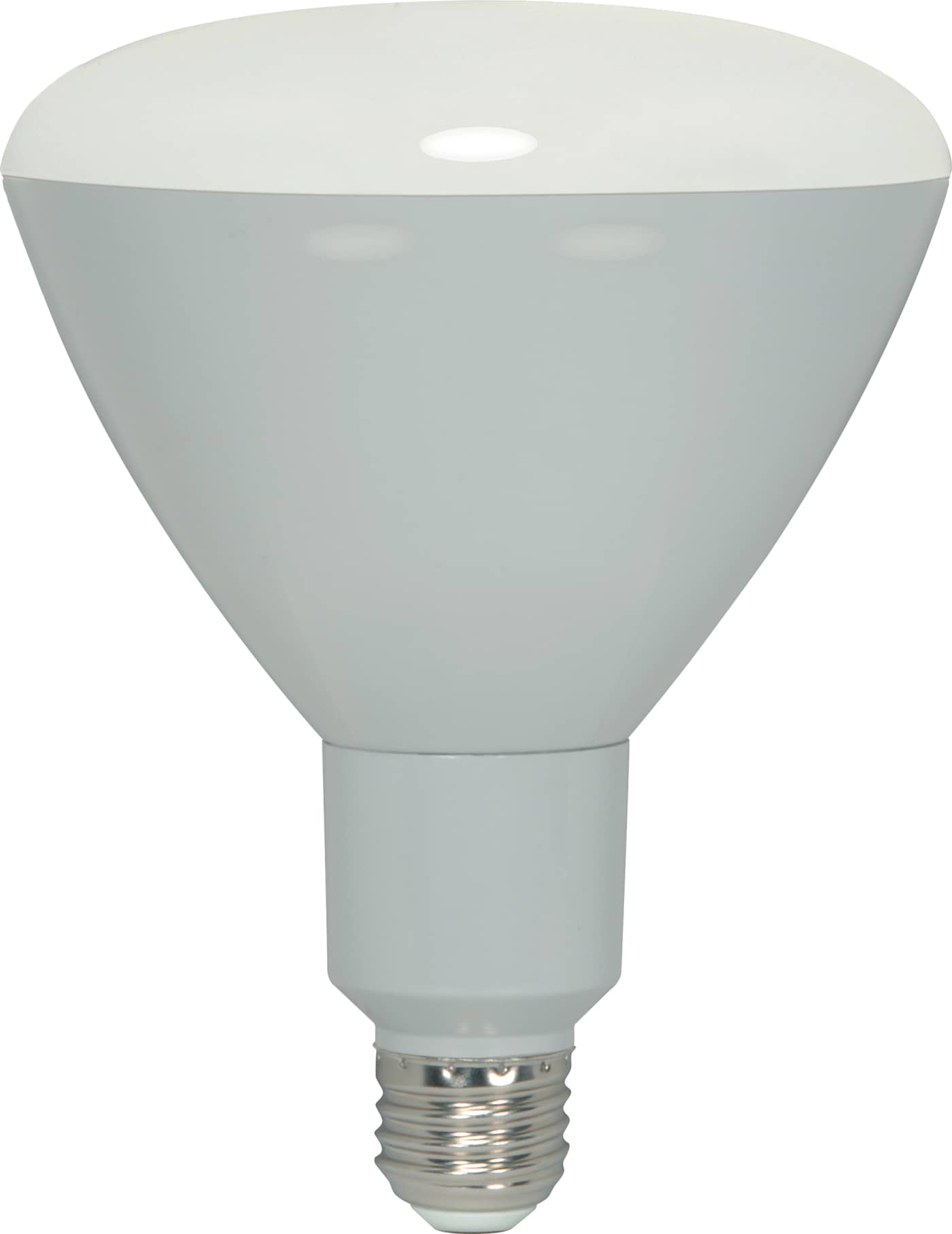

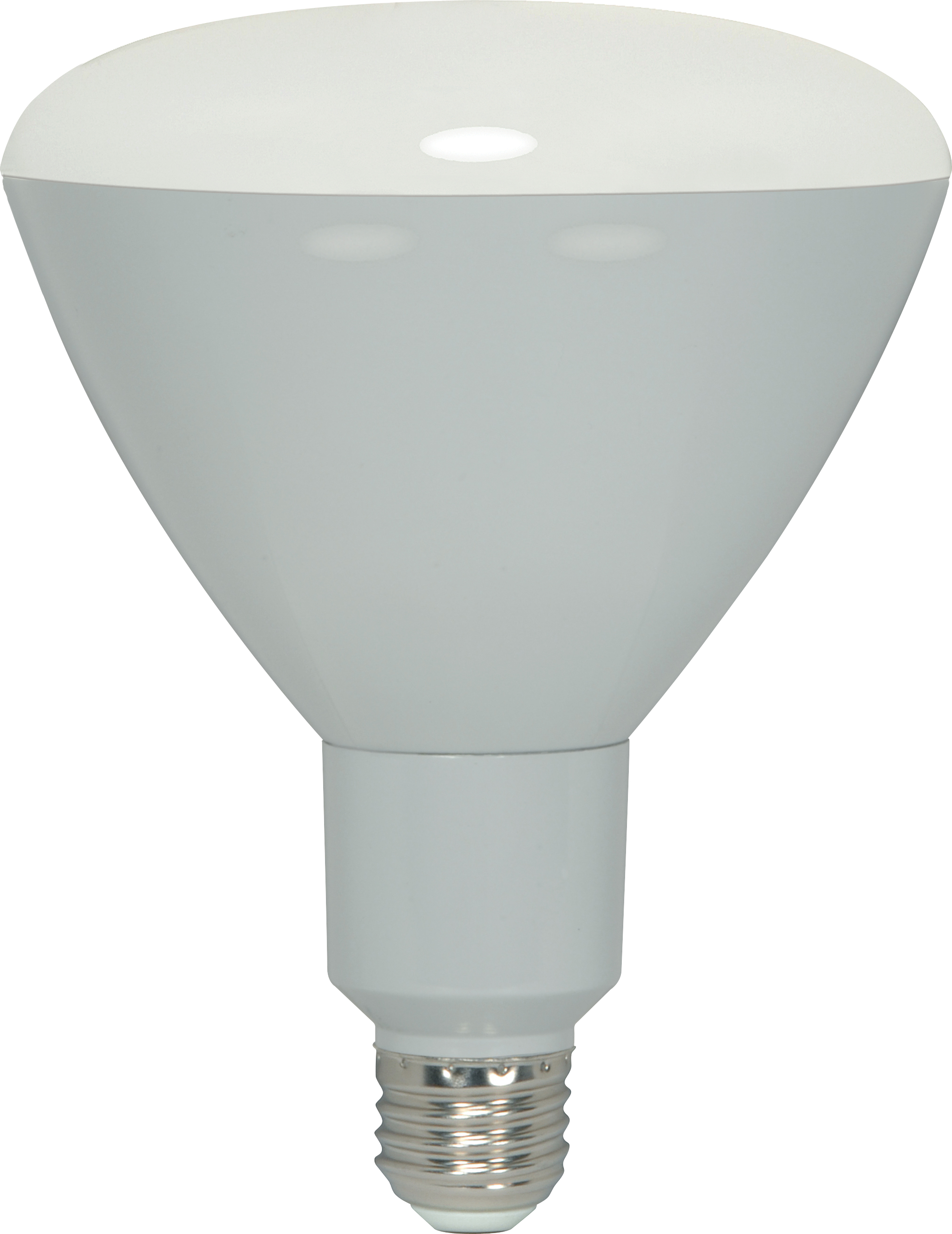

17BR40/LED/4000K/1280L/120V/D - S9182
S9182

17BR40/LED/4000K/1280L/120V/D

Discontinued - Suggested Replacement: S9640
  • Discontinued - 17 watt
  • LED BR40
  • 4000K
  • 103' beam spread
  • Medium base
  • 120 volts
  • dimmable
dimmable^dimmable^2
hours_rated^25k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S9182 SpecificationsIntroducing the new and improved Satco 12W & 17W R40 DittoS9182 Lighting Facts Label
Description
Description
Discontinued - 17 watt; LED BR40; 4000K; 103' beam spread; Medium base; 120 volts; dimmable
Products Specs
General
CompanySATCO
Candle Power500.0
Dimmable TextForward Phase
Lamp FilamentLED
MaterialAluminum / Plastic
Fixture TypeReflector
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.142A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPlastic (PS)
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent85W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)103
Color TempCool White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1280L
Volts120v
Watts17W
Physical
Lamp BaseMedium
FinishFrost
Housing ColorGray
ANSI BaseE26
Lamp TypeBR40
MOD Lamps5.0
MOL6.5
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
ROHS CompliantYes
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
Packaging
UPC045923091827
Case Cube1.7518
Case Height8.27
Case Length22.13
Case Quantity12
Case UPC10045923091824
Case Weight11.42
Case Width16.54
EA Cube0.1033
EA Height6.81
EA Length5.12
EA Quantity1
EA Weight0.78
EA Width5.12
Inner Cube0.7029
Inner Height7.2
Inner Length15.87
Inner Quantity6
Inner UPC20045923091821
Inner Weight5.2
Inner Width10.63
Pack TypeBox
Web Length6.5
Web Width5.0
