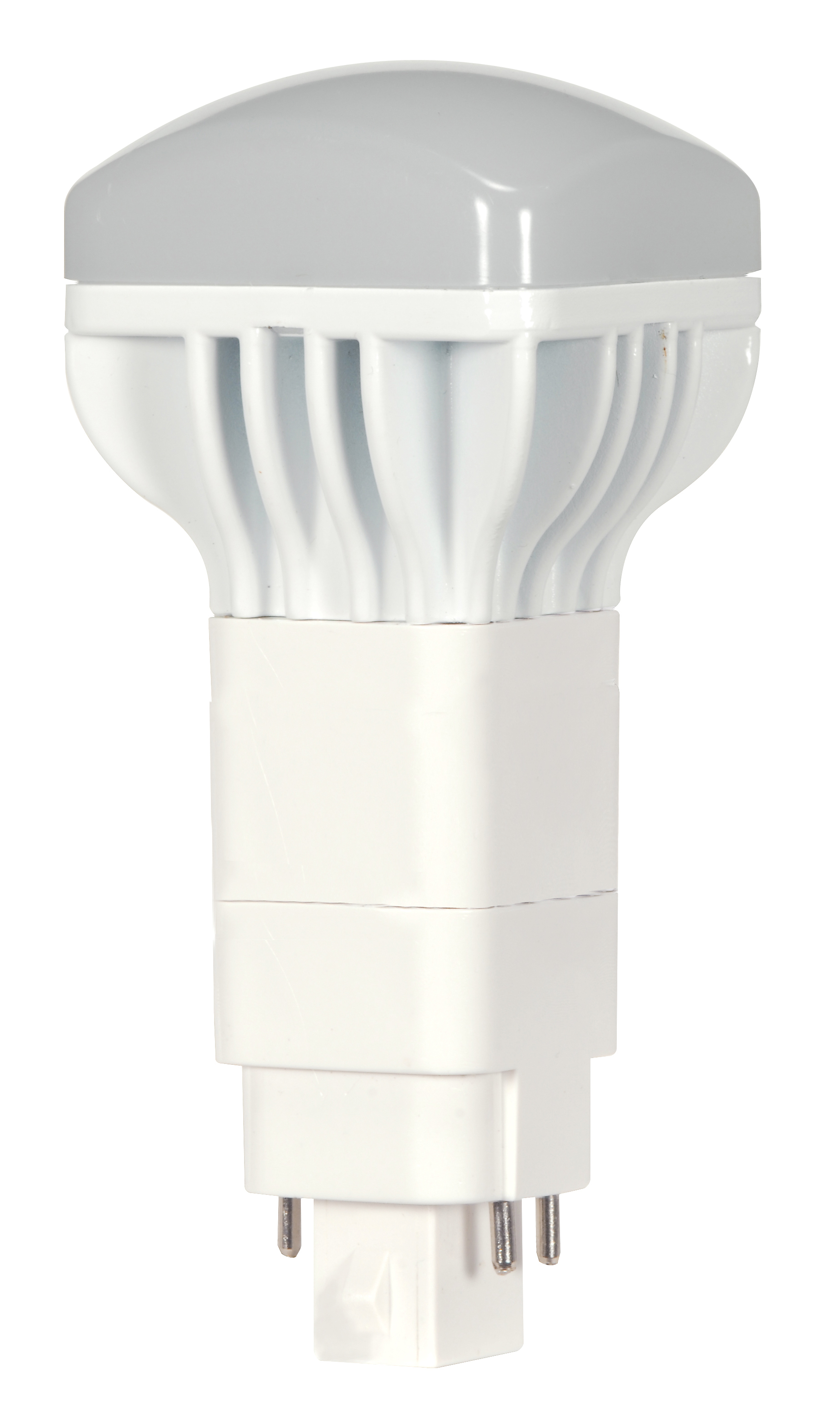

13W/VL/LED/CFL/850/4P - S9307
S9307

13W/VL/LED/CFL/850/4P

Discontinued
  • 13 Watt LED PL 4-PIN
  • 5000K
  • 950 Lumens
  • G24q base
  • 50000 Average rated hours
  • 120 Deg. Beam Angle
  • 120-277 Volt
location_rating^damp^1
dimmable^dimmable^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S9307 SpecificationsS9307 Ballast Compatibility Chart.pdfS9307 Dimming Ballast Compatibility Chart.pdf
Description
Description
13 Watt LED PL 4-PIN; 5000K; 950 Lumens; G24q base; 50000 Average rated hours; 120 Deg. Beam Angle; 120-277 Volt
Products Specs
General
CompanySATCO
Ballasting RequirementsDimmable only with a Compatible Dimmable Ballast (See Ballast Compatibility Chart); Direct Replacement-for use on Electronic ballasts with no rewiring required
Dimmable TextOnly in Type A mode; Check Ballast MFG for Dimmer Compatibility
Lamp FilamentLED
Fixture TypePL
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoReplaces 18, 26, 32, and 42 watt CFL-s; No re-wiring needed; Instant on to full brightness / no flickering; Vertical Operation; Up to 70% energy saving
Amps0.108-0.047A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv28W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNatural Light
CRI80+
Dimming TypeCheck Ballast MFG for Dimmer Compatibility, Only in Type A mode
Operating Temp-20C (-4F) to +45C (+113F)
Lumens950L
Volts120V-277V
Watts13W
Physical
Lamp BaseG24q (4-Pin)
FinishFrost
Housing ColorWhite
ANSI BaseG24q
Lamp TypePL
MOD Lamps2.13
MOL4.63
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923093074
Case Cube1.2458
Case Height33.5
Case Length12.6
Case Quantity50
Case UPC10045923093071
Case Weight18.26
Case Width5.1
EA Cube0.0102
EA Height2.11
EA Length4.65
EA Quantity1
EA Weight0.33
EA Width1.79
Pack TypeBox
Web Length4.63
Web Width2.13
