Discontinued – Suggested Replacement: S49990

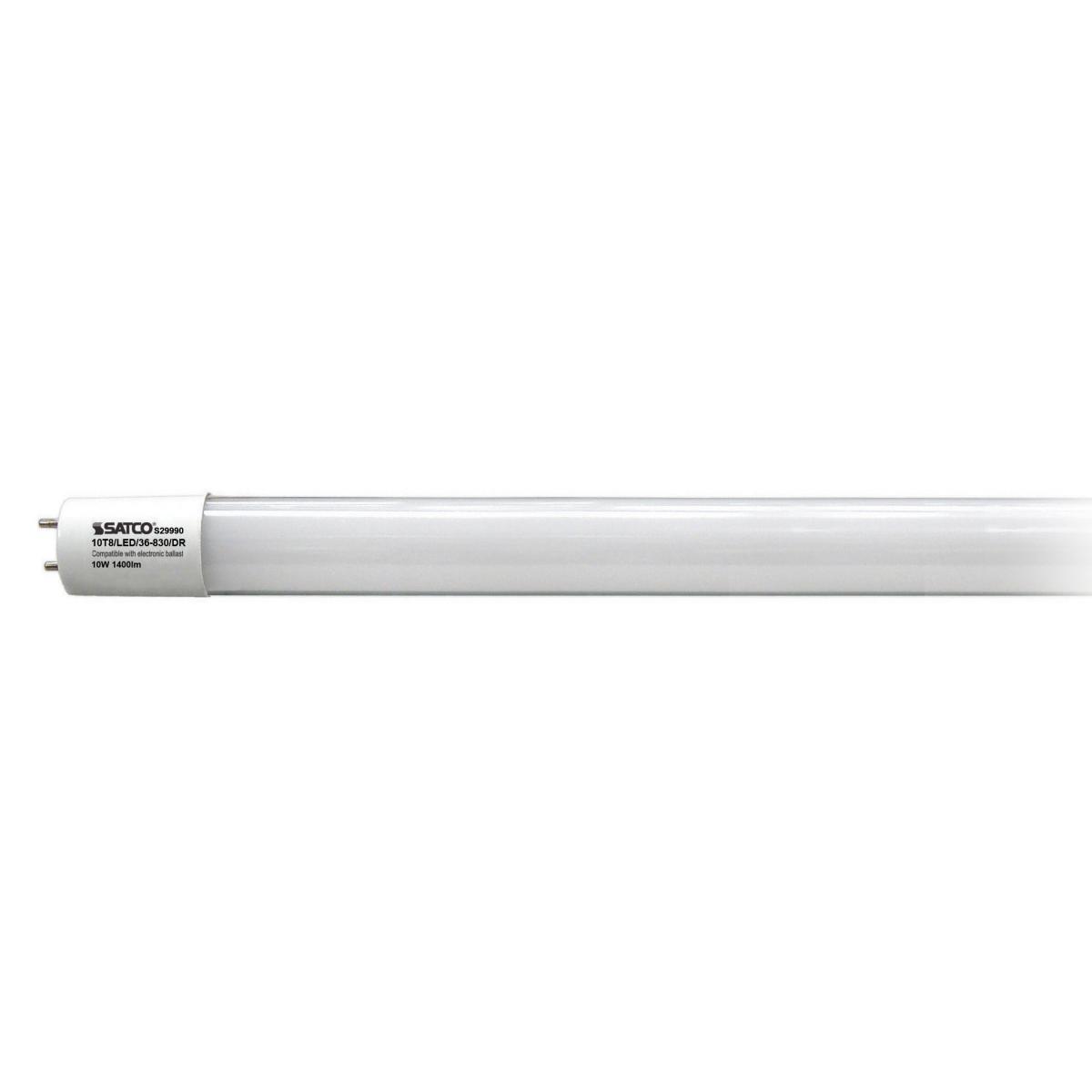

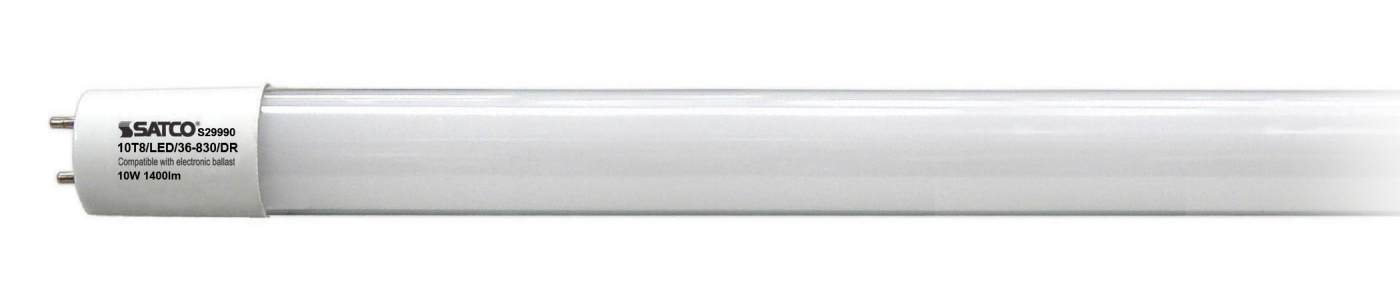

S29990 10T8/LED/36-830/DR

S29990

10T8/LED/36-830/DR

10 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1400 Lumens; Type A; Ballast dependent


Lights

S29990

10T8/LED/36-830/DR

10 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 1400 Lumens; Type A; Ballast dependent

Specifications

General
StatusDiscontinued
SubstituteS49990
Watts10W
Incandescent Equivalent40W
Fluorescent Equivalent25W
Ballast TypeType A
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
Nominal Length36
FinishGloss White
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1400L
Beam Spread220
DimmableNon-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts10W
Incandescent Equivalent40W
Fluorescent Equivalent25W
Ballasting RequirementsBallast required
Ballast TypeType A
CCT (Kelvin)3000K
TemperatureWarm White
CRI82
Lumens1400L
Beam Spread220
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL36
MOD1
Nominal Length36
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishGloss White
Lens FinishGloss White
Additional Information
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedYes
SDS SheetLED Lamp
Packaging
Each UPC045923299902
Each Quantity1
Each Length (in.)35.40
Each Width (in.)1.18
Each Height (in.)1.18
Each Weight (lb.)1.43
Each Cube (CuFt.)0.0285
Pack TypeSleeve
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923299909
Case Quantity10
Case Length (in.)37.00
Case Width (in.)6.30
Case Height (in.)3.00
Case Weight (lb.)4.63
Case Cube (CuFt.)0.4047
×
×

Ballast Compatibility

Name Type View
T8 LED Chart Q LED T8 View
×
