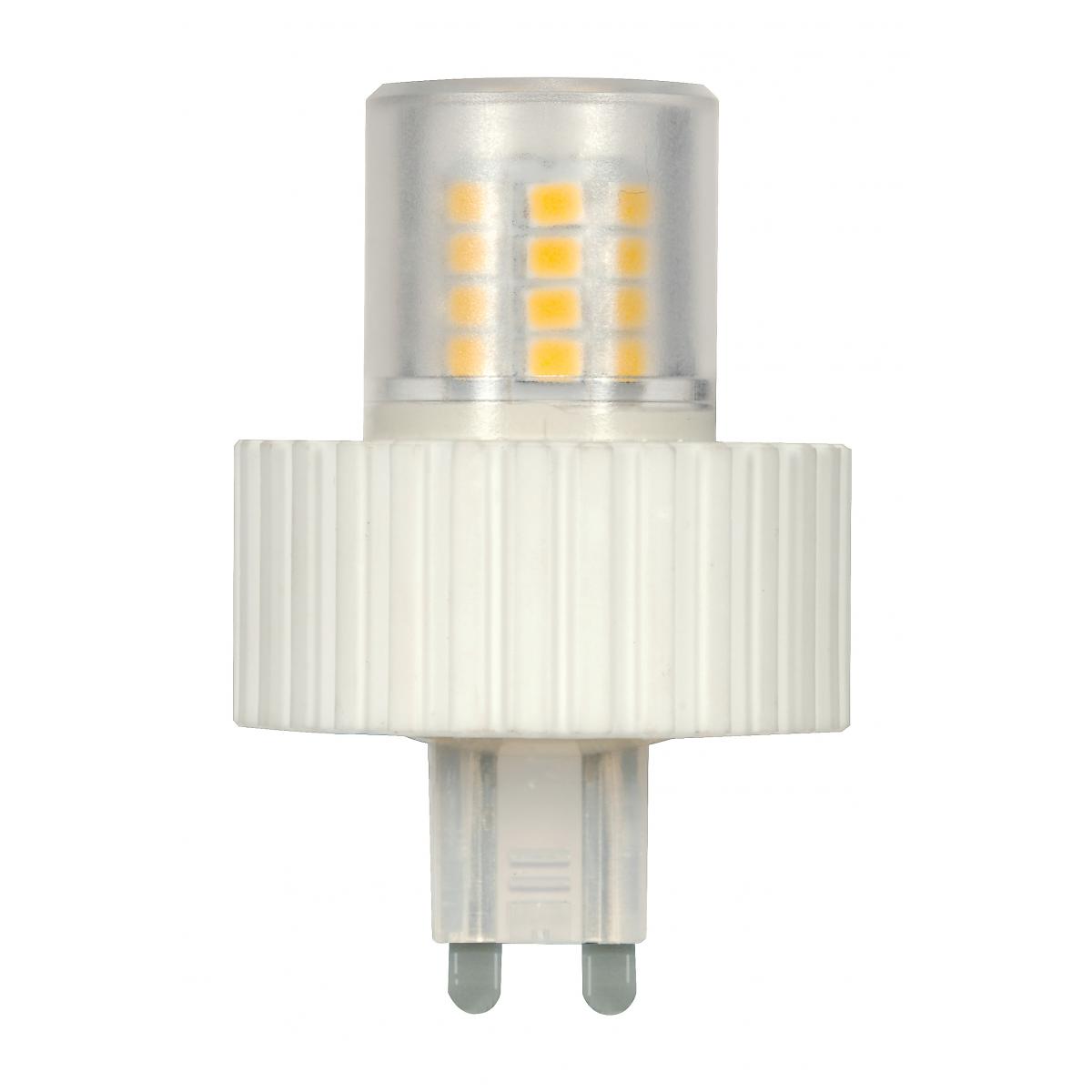

S9226 LED 5.0W G9 450L 3000K

S9226

LED 5.0W G9 450L 3000K

5 Watt; T4 Repl. LED; 3000K; G9 base; 360 deg. Beam Angle; 120 Volt


Lights

S9226

LED 5.0W G9 450L 3000K

5 Watt; T4 Repl. LED; 3000K; G9 base; 360 deg. Beam Angle; 120 Volt

Specifications

General
StatusDiscontinued
Watts5W
Incandescent Equivalent40W
Volts120V
ShapeT4
BaseG9 Double Loop
ANSI BaseG9
FinishClear
CCT (Kelvin)3000K
TemperatureWarm White
CRI80+
Lumens450L
Beam Spread360
DimmableNon-Dimmable
Hours Rated15000
Product CategoryMiniature
Lamp TypeMiniature
TechnologyLED
Electrical
Watts5W
Incandescent Equivalent40W
Volts120V
CCT (Kelvin)3000K
TemperatureWarm White
CRI80+
Lumens450L
Beam Spread360
DimmableNon-Dimmable
Hours Rated15000
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL2.38
MOD1.56
ShapeT4
BaseG9 Double Loop
ANSI BaseG9
FinishClear
Housing ColorWhite
Weight (lb.)0.15
Additional Information
Installation NotesNot for use in vapor tight fixtures. Not for use in totally enclosed fixtures
Warranty2-Years
Compliance
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923092268
Each Quantity1
Each Length (in.)1.58
Each Width (in.)1.58
Each Height (in.)2.56
Each Weight (lb.)0.14
Each Cube (CuFt.)0.0037
Pack TypeBox
Inner UPC20045923092262
Inner Quantity20
Inner Length (in.)8.86
Inner Width (in.)3.54
Inner Height (in.)5.91
Inner Weight (lb.)3.00
Inner Cube (CuFt.)0.1073
Case UPC10045923092265
Case Quantity100
Case Length (in.)18.90
Case Width (in.)9.45
Case Height (in.)6.69
Case Weight (lb.)15.64
Case Cube (CuFt.)0.6915
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
