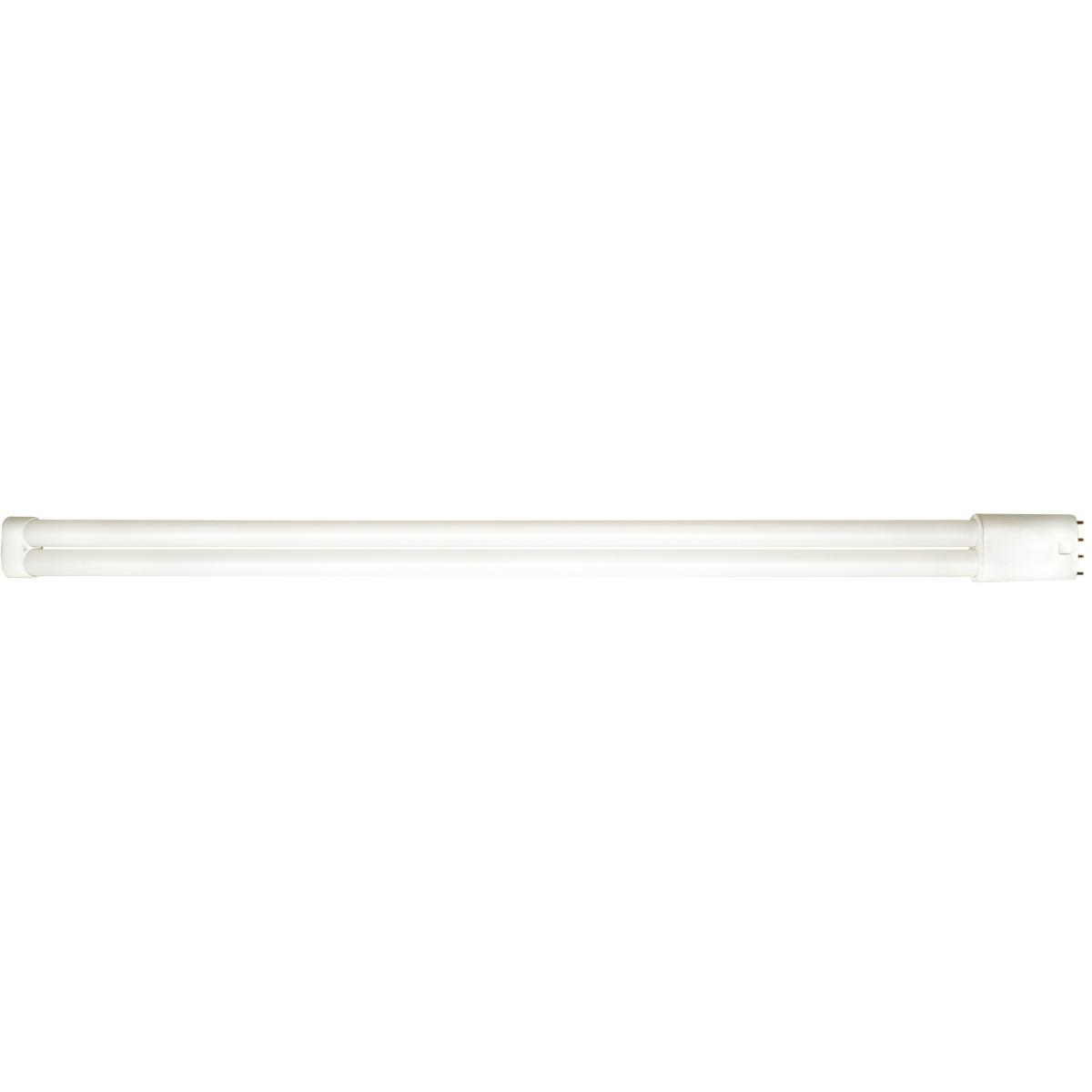

S9730 23PLL/LED/835/DR

S9730

23PLL/LED/835/DR

23 Watt PLL LED direct replacement; 2G11 base; 2600 Lumens; Ballast Dependent


Lights

S9730

23PLL/LED/835/DR

23 Watt PLL LED direct replacement; 2G11 base; 2600 Lumens; Ballast Dependent

Specifications

General
StatusDiscontinued
Watts23W
Fluorescent Equivalent40W
VoltsBallast Dependent
Ballast TypeType A
ShapeT5
Base2G11
ANSI Base2G11
FinishFrost
CCT (Kelvin)3500K
TemperatureNeutral White
CRI80+
Lumens2600L
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Product CategoryPL
Lamp TypePL
Operating PositionUniversal
TechnologyLED
Electrical
Watts23W
Fluorescent Equivalent40W
VoltsBallast Dependent
Ballasting RequirementsMay not be compatible with all rapid start ballasts; Direct Replacement-for use on Instant Startand Rapid Start ballasts with no rewiring required
Ballast TypeType A
CCT (Kelvin)3500K
TemperatureNeutral White
CRI80+
Lumens2600L
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Operating PositionUniversal
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL22.5
MOD1.75
ShapeT5
Base2G11
ANSI Base2G11
FinishFrost
Housing ColorWhite
Weight (lb.)0.36
Additional Information
Installation NotesNot for use in vapor tight fixtures.
Warranty5-Years
Compliance
Safety ListingcULus
Location RatingDamp
DLC ApprovedNo
NSF ApprovedYes
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923097300
Each Quantity1
Each Length (in.)22.91
Each Width (in.)1.81
Each Height (in.)1.10
Each Weight (lb.)0.53
Each Cube (CuFt.)0.0264
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923097307
Case Quantity10
Case Length (in.)23.62
Case Width (in.)6.50
Case Height (in.)4.33
Case Weight (lb.)4.18
Case Cube (CuFt.)0.3847
×
×

Ballast Compatibility

Name Type View
Emergency Ballast IOTA PL-L View
PL-L LED 2G11 PL-L View
×

Precautions

No precautions available at this time.

×
