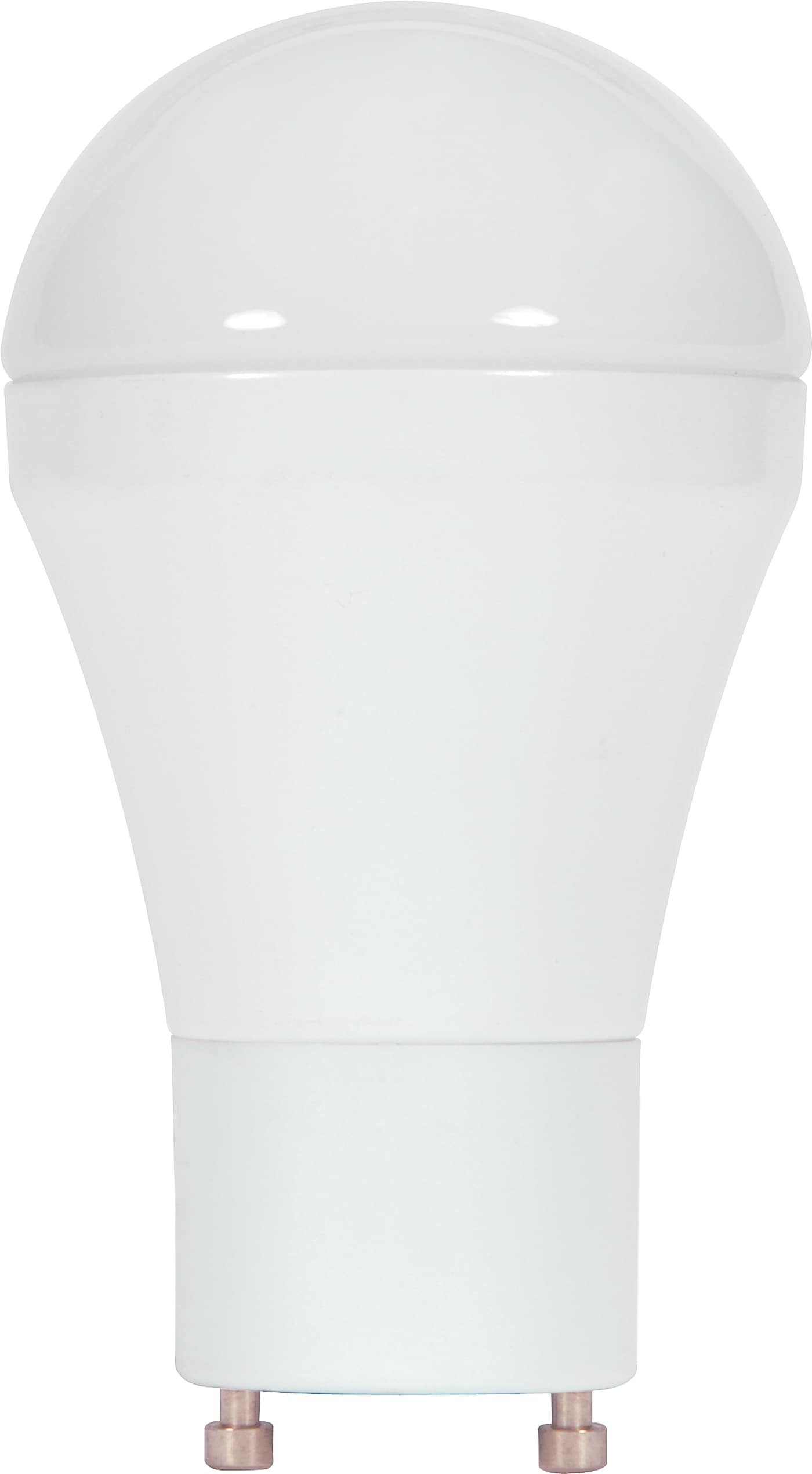

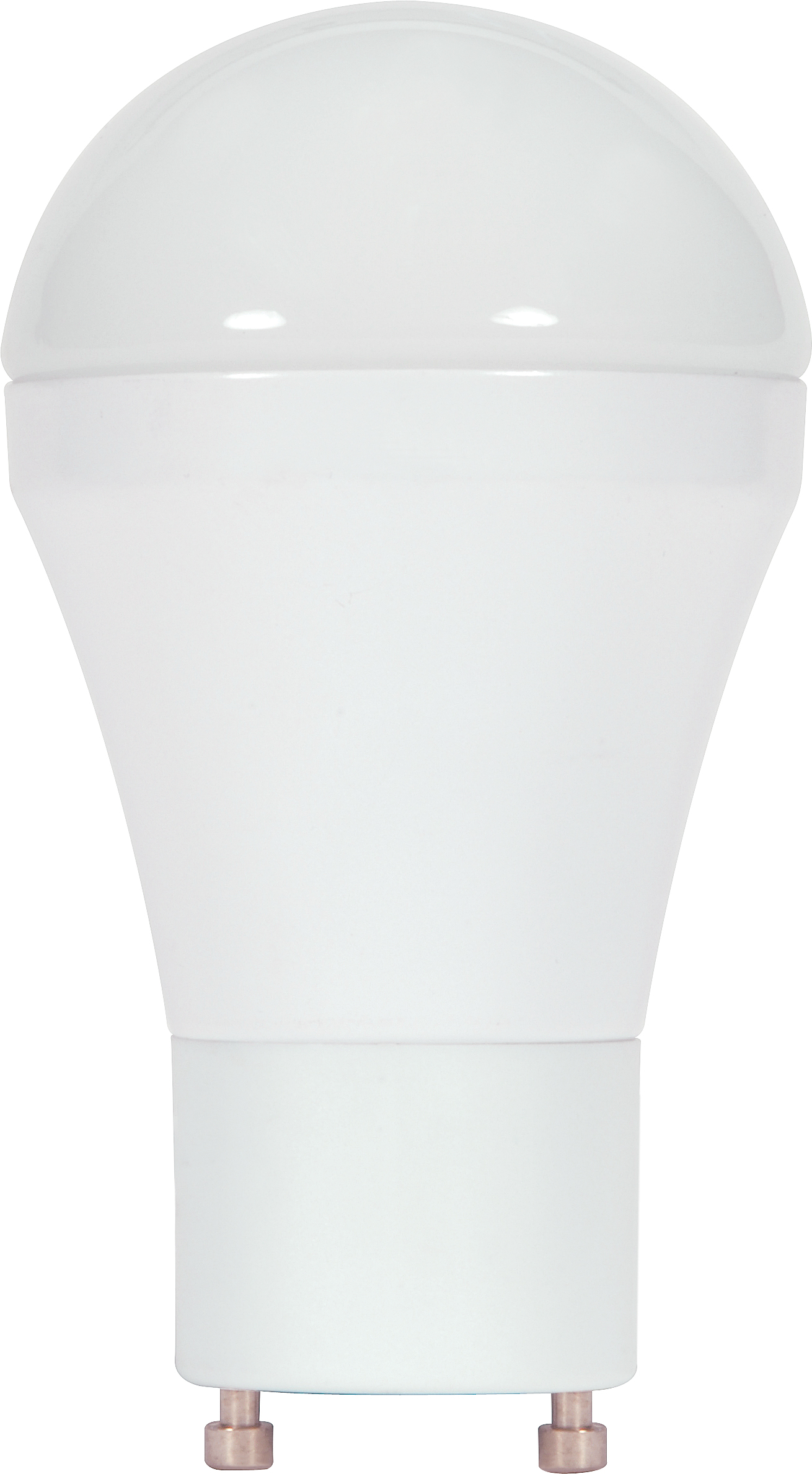

8A19/LED/2700K/GU24/120V - S8794
S8794

8A19/LED/2700K/GU24/120V

Discontinued - Suggested Replacement: S29840
  • Discontinued - 8 Watt
  • A19 LED
  • 2700K
  • GU24 base
  • 120 Volt
  • Carded
dimmable^dimmable^2
hours_rated^25k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S8794 Specifications
Description
Description
Discontinued - 8 Watt; A19 LED; 2700K; GU24 base; 120 Volt; Carded
Products Specs
General
CompanySATCO
Lamp FilamentLED
Fixture TypeType A
StatusObsolete
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.067A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
LensedYes
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)180
Color TempWarm White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-4F to +113F (-20C to +45C)
Lumens450L
Volts120v
Watts8W
Physical
Lamp BaseBi Pin GU24
FinishFrost
Housing ColorWhite
ANSI BaseGU24
Lamp TypeA19
MOD Lamps2.38
MOL4.44
Additional Info
Warranty5-Years
Documents
Compliance
FCC CompliantYes
ROHS CompliantYes
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
Packaging
UPC045923087943
Case Cube0.6296
Case Height11.81
Case Length11.14
Case Quantity24
Case UPC10045923087940
Case Weight6.72
Case Width8.27
EA Cube0.0159
EA Height4.92
EA Length2.36
EA Quantity1
EA Weight0.22
EA Width2.36
Inner Cube0.1196
Inner Height5.31
Inner Length7.6
Inner Quantity6
Inner UPC20045923087947
Inner Weight1.54
Inner Width5.12
Pack TypeCarded
Web Length4.44
Web Width2.38
