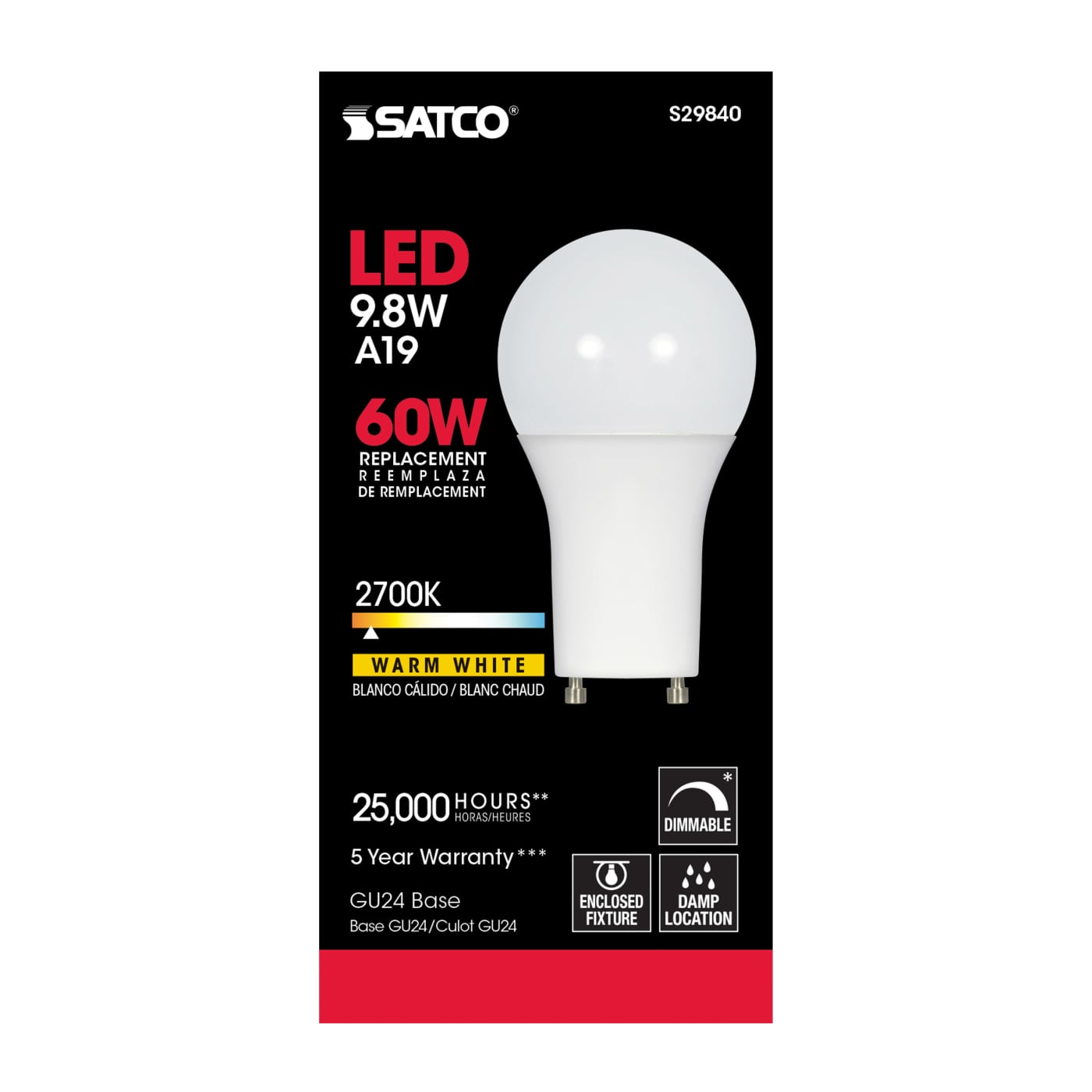

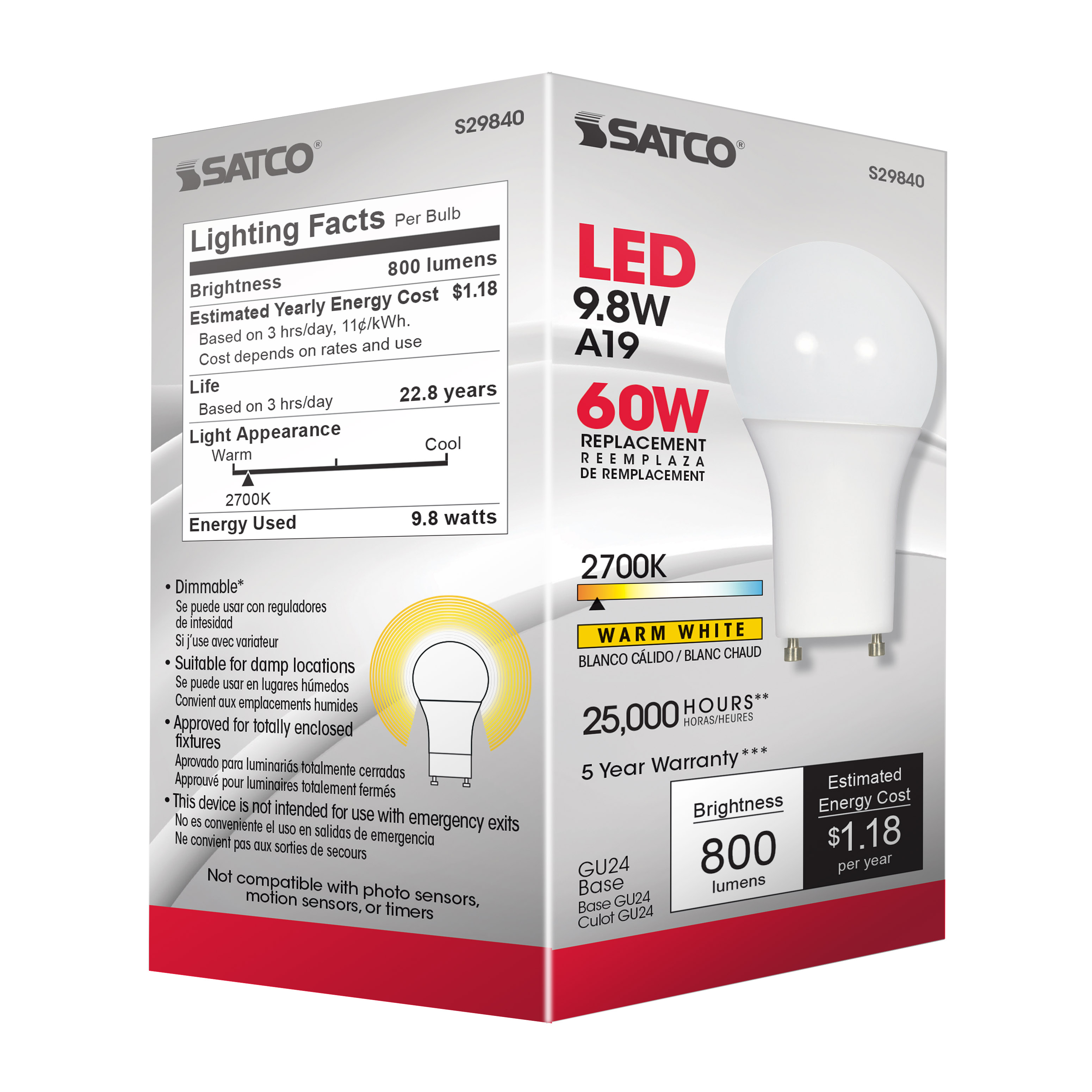

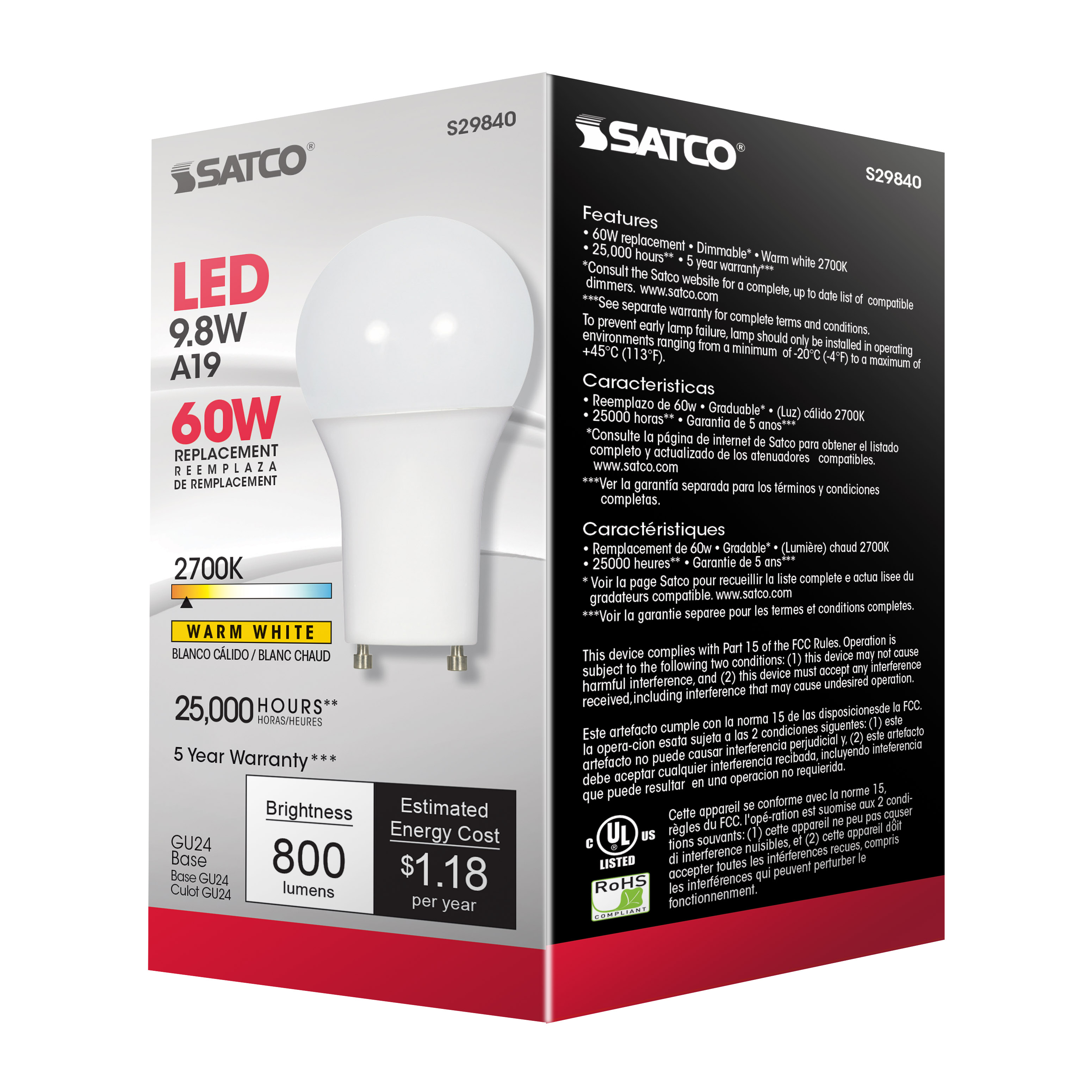

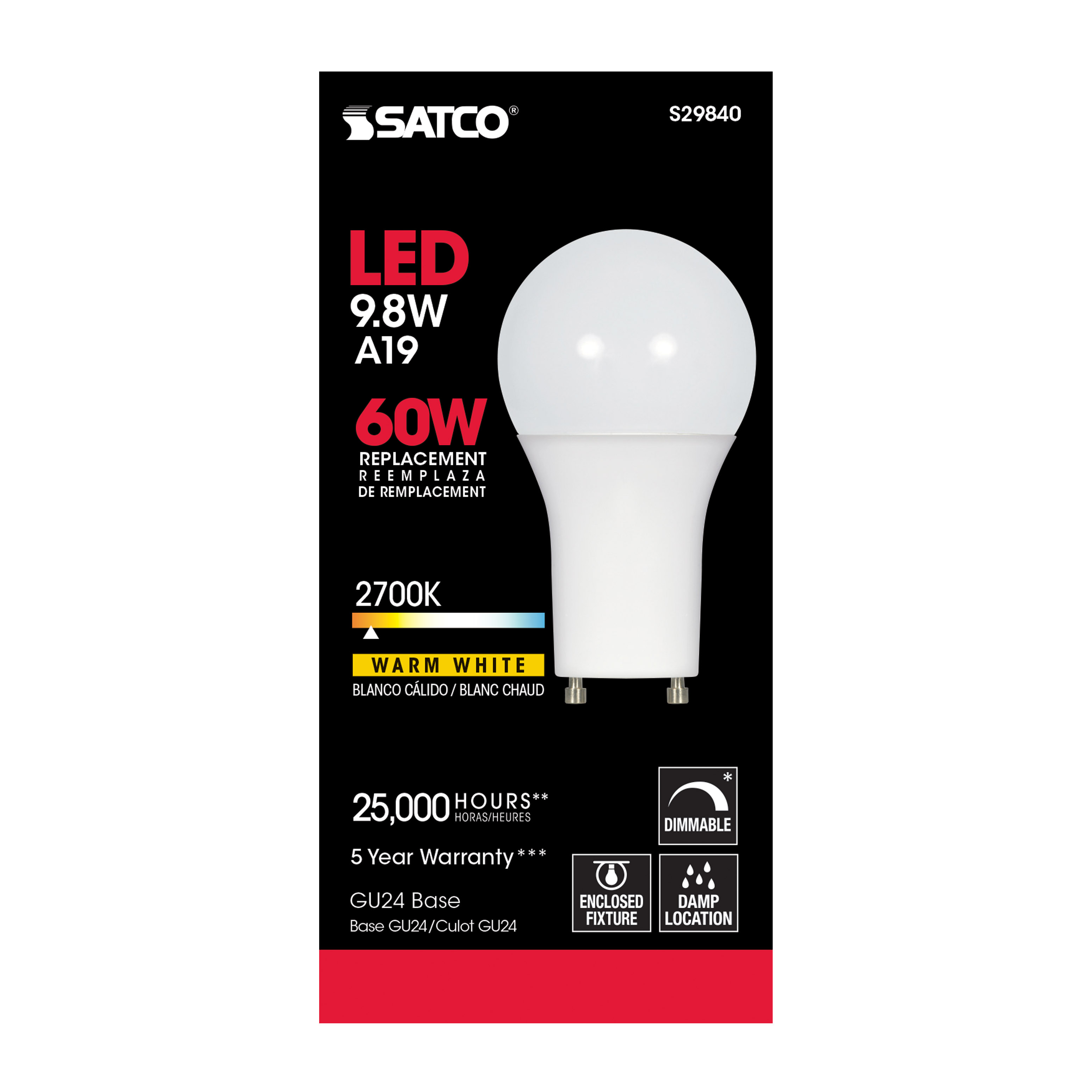

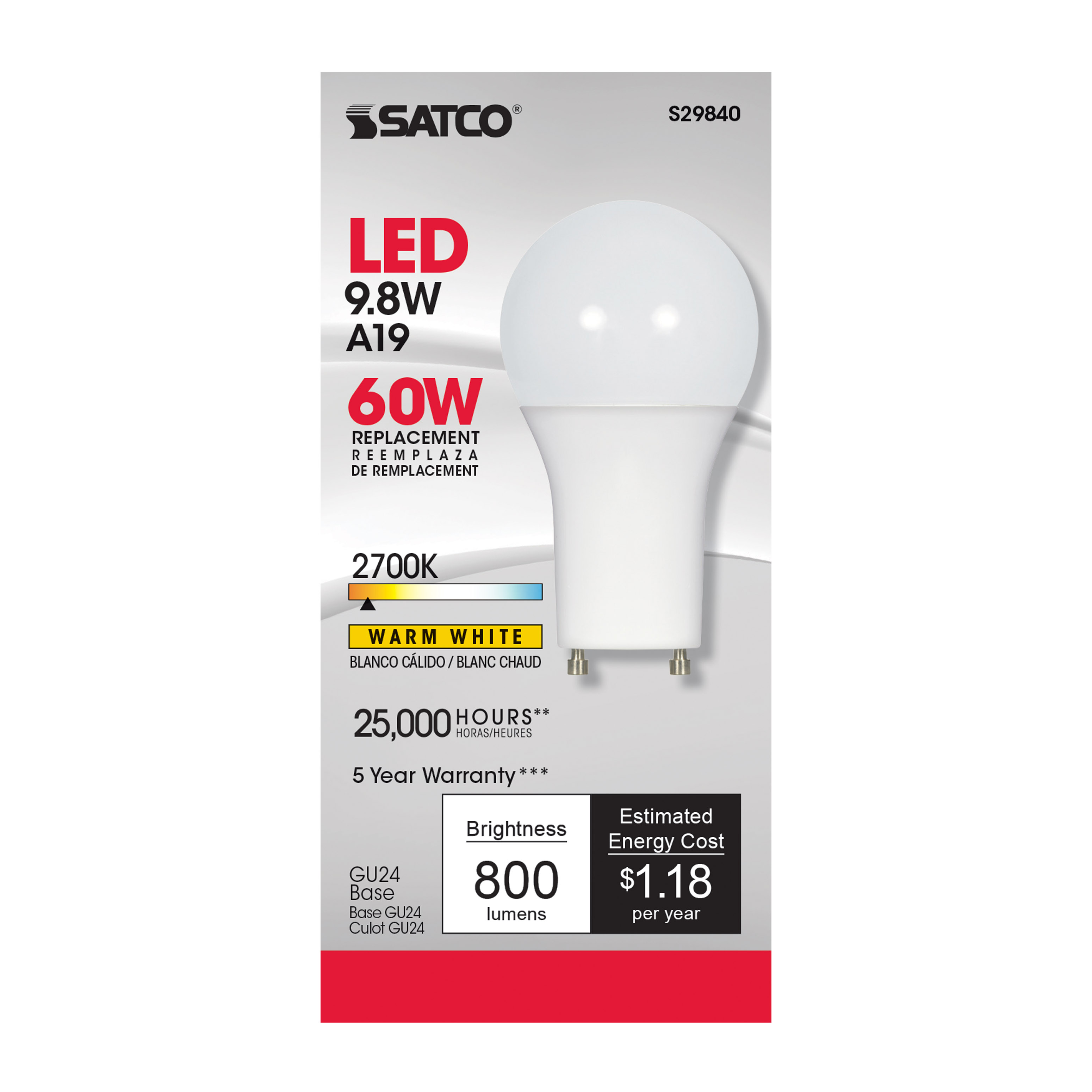

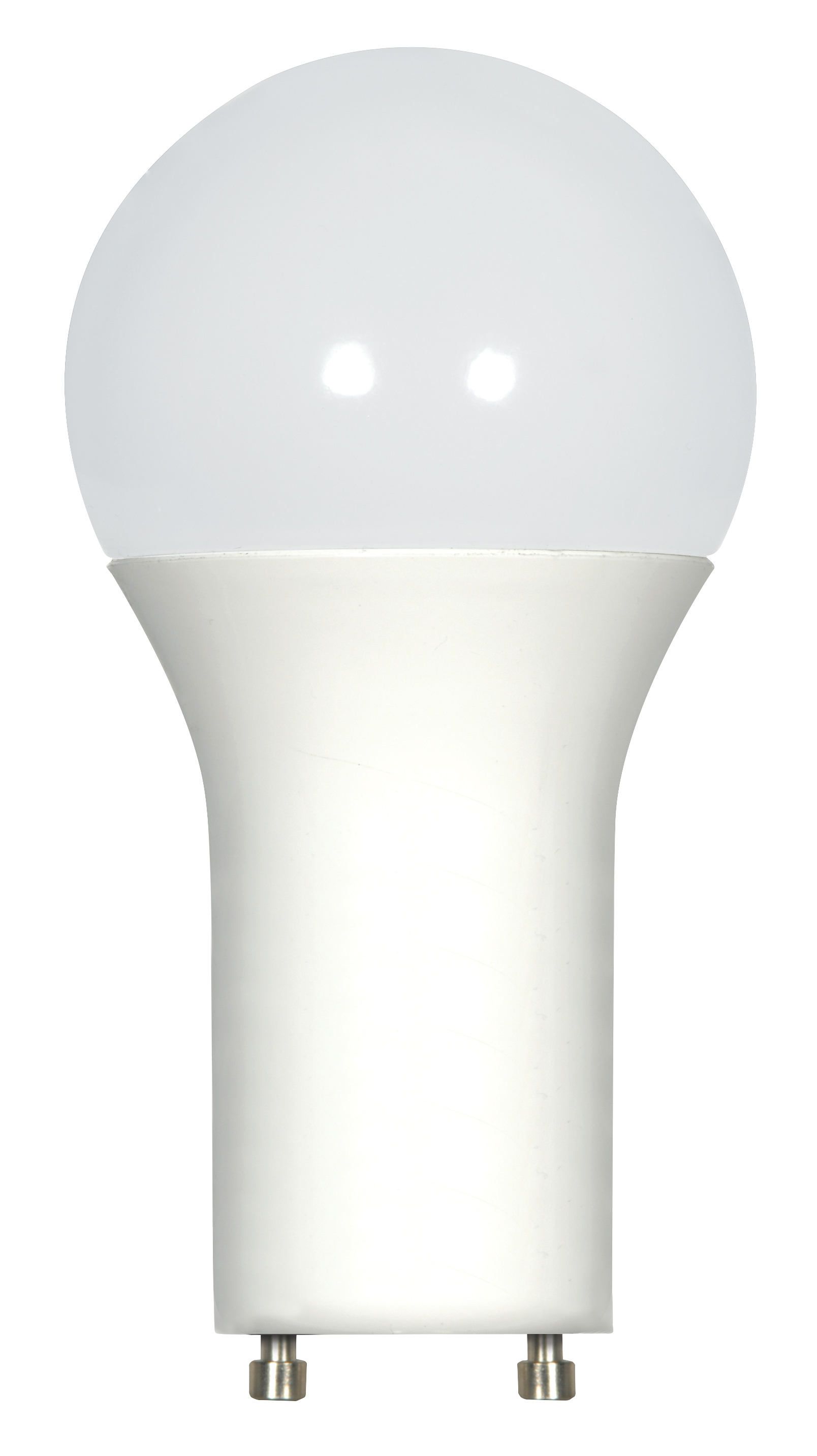

S29840

9.8A19/OMNI/220/LED/27K/GU24

  • 9.8 Watt
  • A19 LED
  • 2700K
  • GU24 base
  • 220 deg. Beam Angle
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S29840 SpecificationsS29840 LFLSA2631-60W Replacement LED A19 PI 9 24
Tools
Lighting Layout Analysis For S29840
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9.8 Watt; A19 LED; 2700K; GU24 base; 220 deg. Beam Angle; 120 Volt
Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTraditional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.082A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
LensedTrue
Operating PositionUniversal
Power Factor0.98
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempWarm White
CRI80+
Dimming TypeReverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)

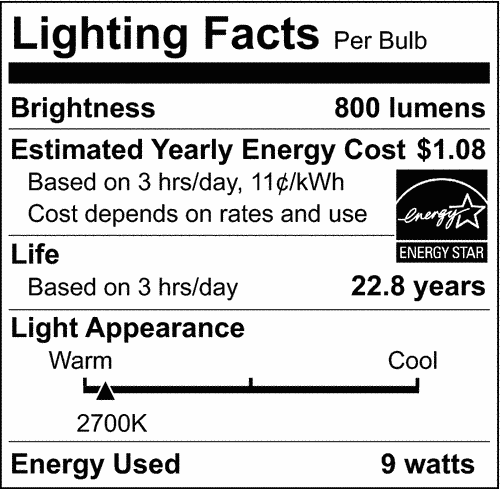

Lumens800L
Volts120v
Watts9.8W
Physical
Lamp BaseBi Pin GU24
FinishFrost
Housing ColorWhite
ANSI BaseGU24
Lamp TypeA19

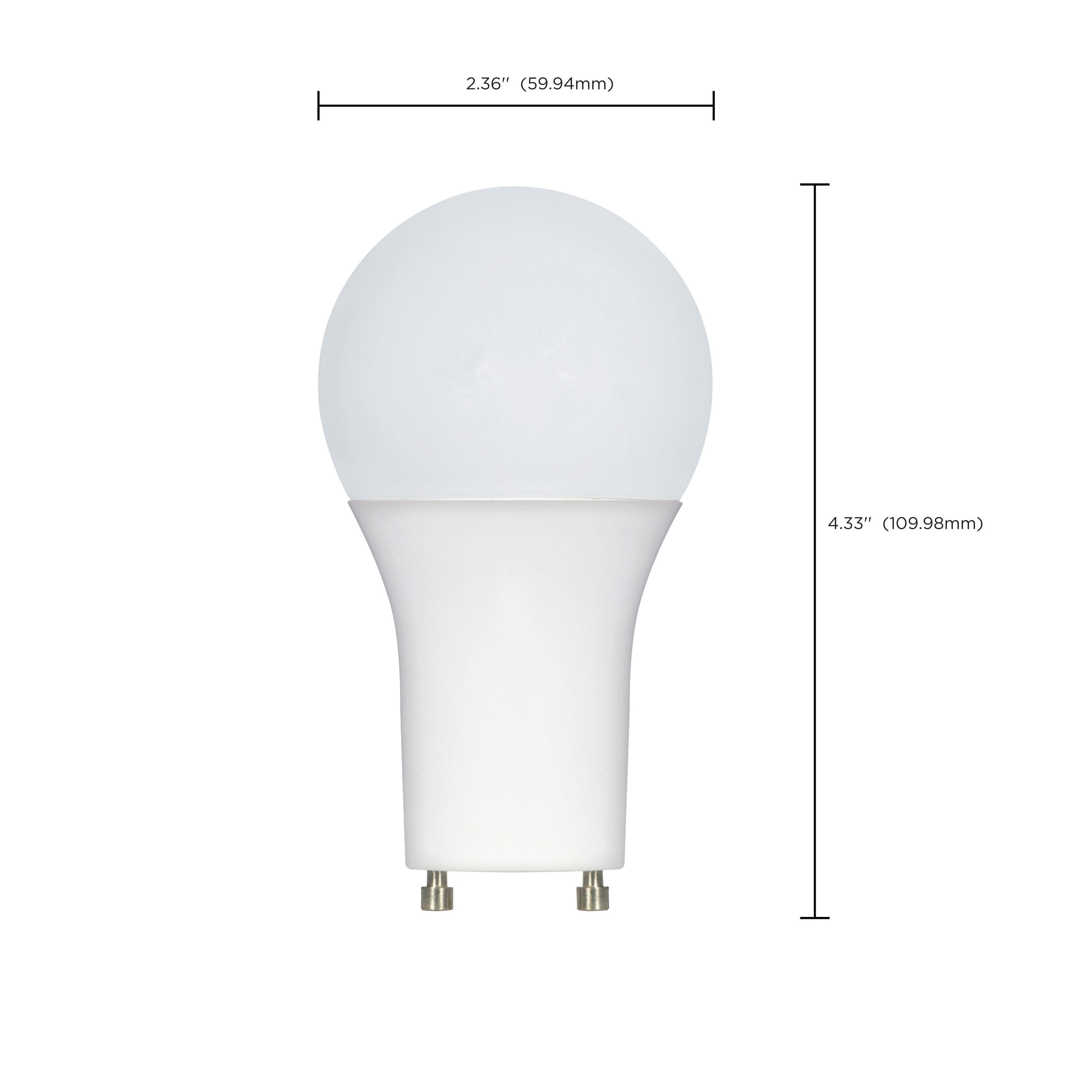

MOD Lamps2.362
MOL4.331
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsNon-Compliant - <82 CRI
CA T20 Compliant SubstituteS9707
CA StatusNon-Compliant
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextNon-Compliant
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20No
T24 CompliantFalse
Packaging
UPC045923298400
Case Cube0.6553
Case Height11.93
Case Length11.22
Case Quantity24
Case UPC10045923298407
Case Weight4.74
Case Width8.46
EA Cube0.0176
EA Height5.12
EA Length2.44
EA Quantity1
EA Weight0.15
EA Width2.44
Inner Cube0.1275
Inner Height5.43
Inner Length7.8
Inner Quantity6
Inner UPC20045923298404
Inner Weight1.06
Inner Width5.2
Pack TypeBox
Web Length4.331
Web Width2.362
