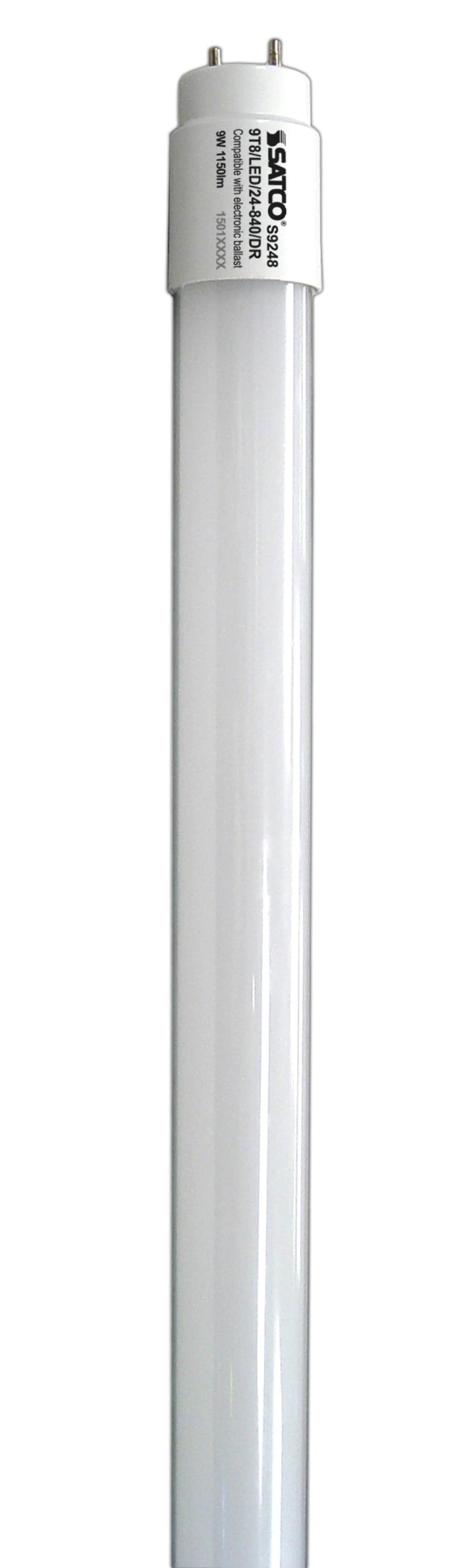

9T8/LED/24-840/DR - S9248
S9248

9T8/LED/24-840/DR

Discontinued - Suggested Replacement: S49948
  • Discontinued - 9 Watt T8 LED
  • 50000 Average rated hours
  • Medium bi-pin base
  • 1150 Lumens
  • 4000K
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S9248 SpecificationsS9248 Instructions.pdfComplete line-LED T8 direct replacements
Description
Description
Discontinued - 9 Watt T8 LED; 50000 Average rated hours; Medium bi-pin base; 1150 Lumens; 4000K
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A
Ballasting RequirementsMay not be compatible with all rapid start ballasts; Direct Replacement-for use on Instant Startand Rapid Start ballasts with no rewiring required
Lamp FilamentLED
Fixture TypeLinear
StatusDiscontinued
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoHigh efficacy
Amps0.075-0.032A
Has CameraNo
IOT EnabledNo
Lens FinishGloss White
LensedYes
Nominal Length24.0
Operating PositionUniversal
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv17W
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)230
Color TempCool White
CRI80+
Operating Temp-4F to +113F (-20C to +45C)
Lumens1150L
VoltsBallast Dependent
Watts9W
Physical
Lamp BaseMedium Bi Pin
FinishGloss White
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL24.0
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Documents
Compliance
FCC CompliantYes
ROHS CompliantYes
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923092480
Case Cube0.5919
Case Height4.7
Case Length25.6
Case Quantity10
Case UPC10045923092487
Case Weight3.8
Case Width8.5
EA Cube0.0197
EA Height1.2
EA Length23.6
EA Quantity1
EA Weight0.3
EA Width1.2
Pack TypeEgg Crate
Web Length24.0
Web Width1.0
