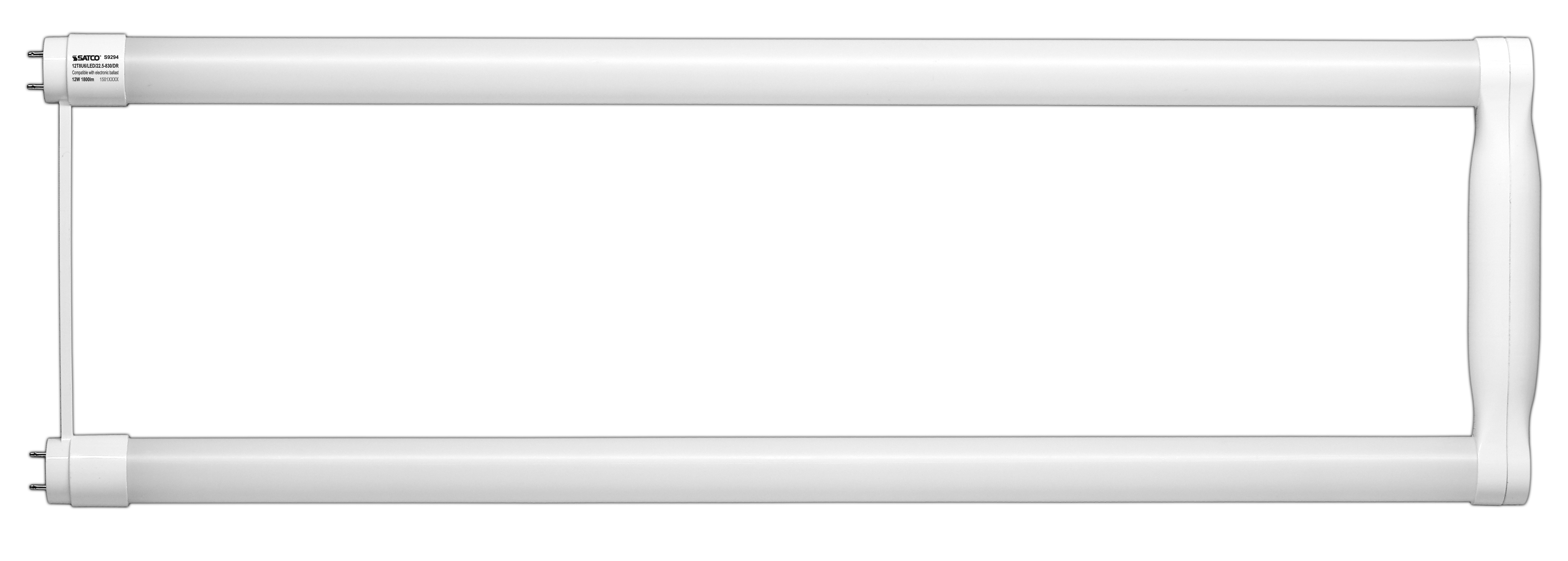

11.5T8U6/LED/22.5-850/DR - S9997
S9997

11.5T8U6/LED/22.5-850/DR

Discontinued - Suggested Replacement: S18413
  • 11.5 Watt T8 U-Bend LED
  • 50000 Average rated hours
  • Medium bi-pin base
  • 1800 Lumens
  • 5000K
  • Type A
  • Ballast dependent
location_rating^damp^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S9997 SpecificationsS9997 Ballast Compatibility Chart.pdf
Tools
Lighting Layout Analysis For S9997
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
11.5 Watt T8 U-Bend LED; 50000 Average rated hours; Medium bi-pin base; 1800 Lumens; 5000K; Type A; Ballast dependent
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A
Ballasting RequirementsBallast required, check compatibility
Lamp FilamentLED
Fixture TypeU-Bend
StatusObsolete
Total Harmonic Distortion20%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Has CameraNo
IOT EnabledNo
Leg Spacing6.0
Lens FinishFrost
LensedYes
Nominal Length22.5
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent60W
Electrical
CCT (Kelvin Temp)5000K
Hours Rated50000
Beam Angle (degree)230
Color TempNatural Light
CRI80+
Lumens1800L
VoltsBallast Dependent
Watts11.5W
Physical
Lamp BaseMedium Bi Pin
FinishFrost
ANSI BaseG13
Lamp TypeT8
MOD Lamps1.0
MOL22.5
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDPYPGJB67
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
Packaging
UPC045923099977
Case Cube1.9283
Case Height8.9
Case Length24.0
Case Quantity12
Case UPC10045923099974
Case Weight10.8
Case Width15.6
EA Cube0.141
EA Height23.2
EA Length1.4
EA Quantity1
EA Weight0.7
EA Width7.5
Pack TypeBox
Web Length22.5
Web Width1.0
