Discontinued – Suggested Replacement: S13161

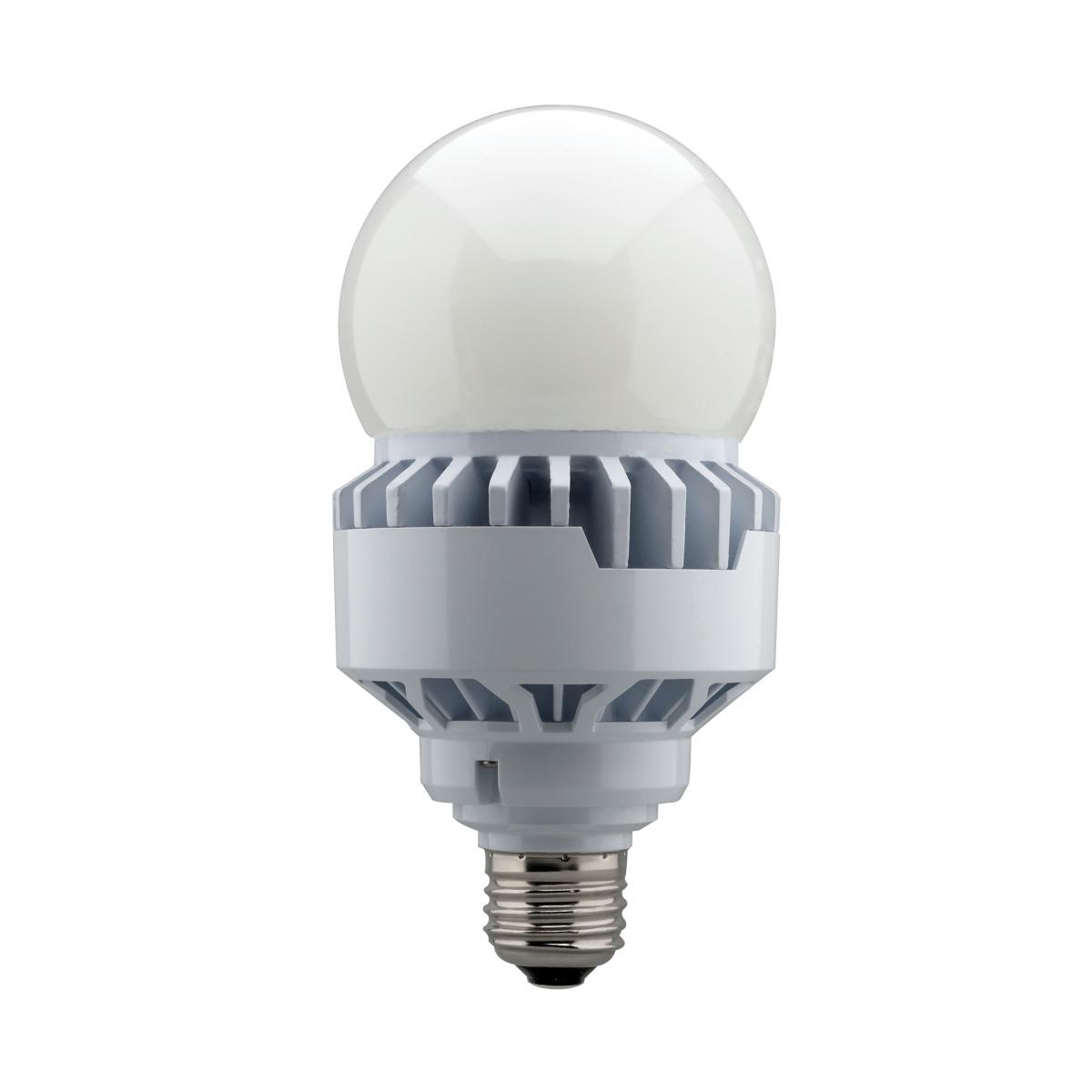

S13101 25WA23/LED/40K/100-277V/E26

S13101

25WA23/LED/40K/100-277V/E26

25 Watt LED A23 Hi-Pro; 4000K; Medium base; 120-277 Volt


Lights

S13101

25WA23/LED/40K/100-277V/E26

25 Watt LED A23 Hi-Pro; 4000K; Medium base; 120-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS13161
Watts25W
Incandescent Equivalent200W
Volts120V-277V
ShapeA23
BaseMedium
ANSI BaseE26
FinishFrost
CCT (Kelvin)4000K
TemperatureCool White
CRI80+
Lumens3375L
Beam Spread280
DimmableNon-Dimmable
Hours Rated25000
Product CategoryType A
Lamp TypeType A
TechnologyLED
Electrical
Watts25W
Incandescent Equivalent200W
Volts120V-277V
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI80+
Lumens3375L
Beam Spread280
Power Factor>0.9
Hours Rated25000
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL6.28
MOD3.22
ShapeA23
BaseMedium
ANSI BaseE26
FinishFrost
Housing ColorWhite
Weight (lb.)1.1
Additional Information
Rated For Enclosed FixtureYes
Min Compartment SizeDiameter: 6 in. Height: 8.5 in.
Warranty5-Years
Compliance
Safety ListingcULus - Certified; cULus - Classified; cULus - Listed
Location RatingDamp
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923131011
Each Quantity1
Each Length (in.)3.50
Each Width (in.)3.50
Each Height (in.)7.48
Each Weight (lb.)1.00
Each Cube (CuFt.)0.0530
Pack TypeBox
Inner UPC20045923131015
Inner Quantity12
Inner Length (in.)15.55
Inner Width (in.)7.68
Inner Height (in.)11.61
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.8024
Case UPC10045923131018
Case Quantity24
Case Length (in.)16.73
Case Width (in.)16.34
Case Height (in.)12.99
Case Weight (lb.)33.44
Case Cube (CuFt.)2.0550
