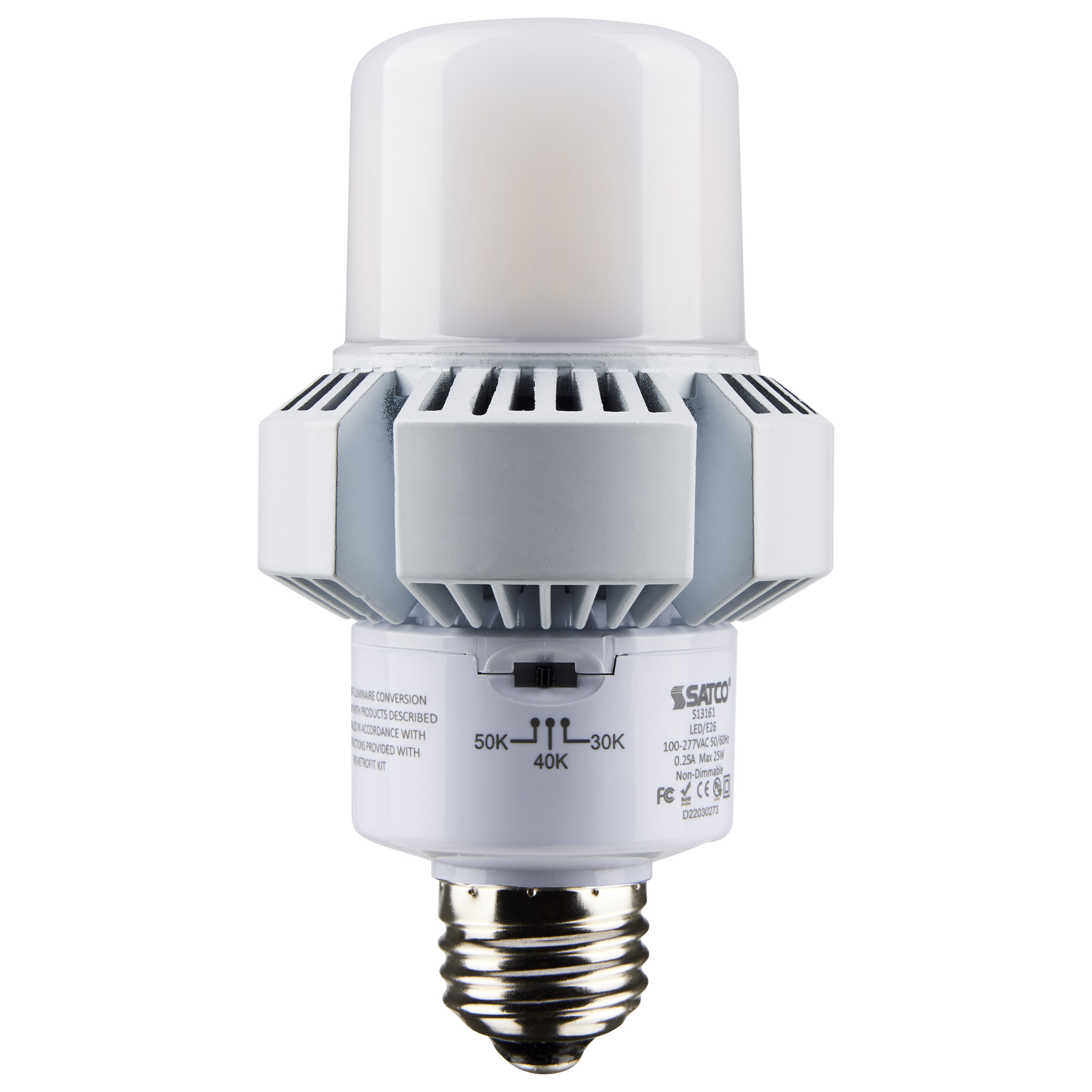

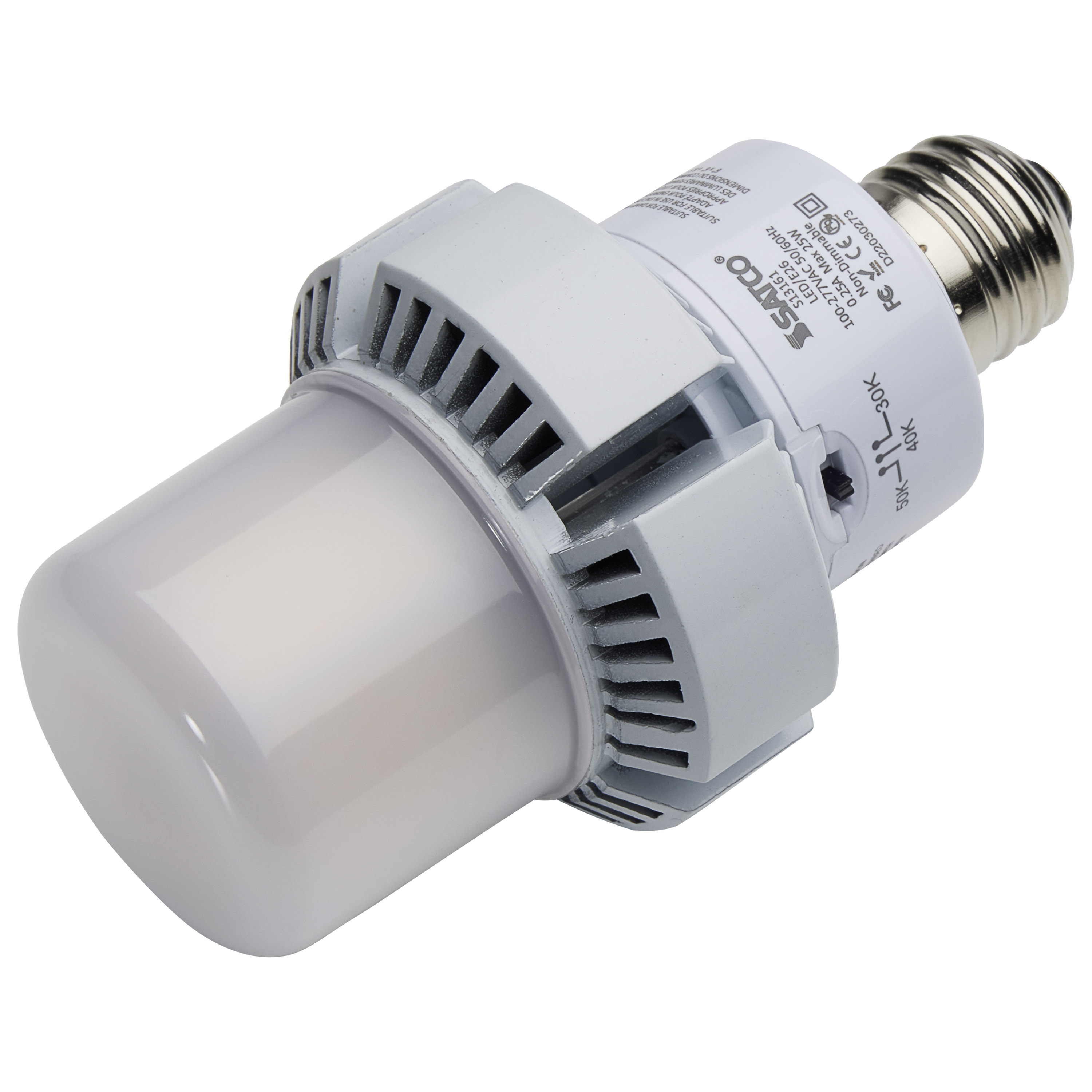

S13161 25W/AP23/LED/CCT/100-277V/E26

S13161

25W/AP23/LED/CCT/100-277V/E26

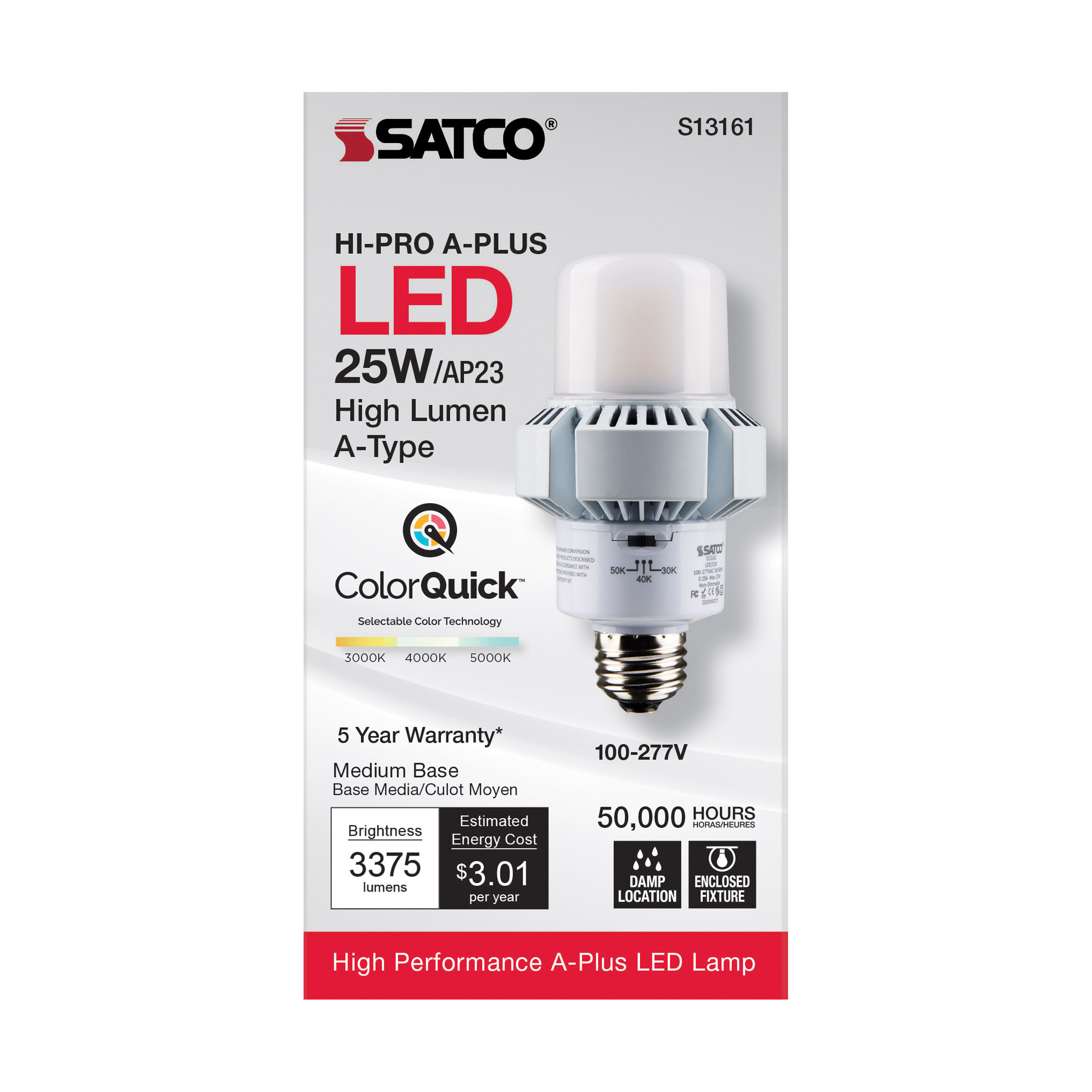

25 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; Type B; Ballast Bypass; 100-277 Volt; ColorQuick Technology

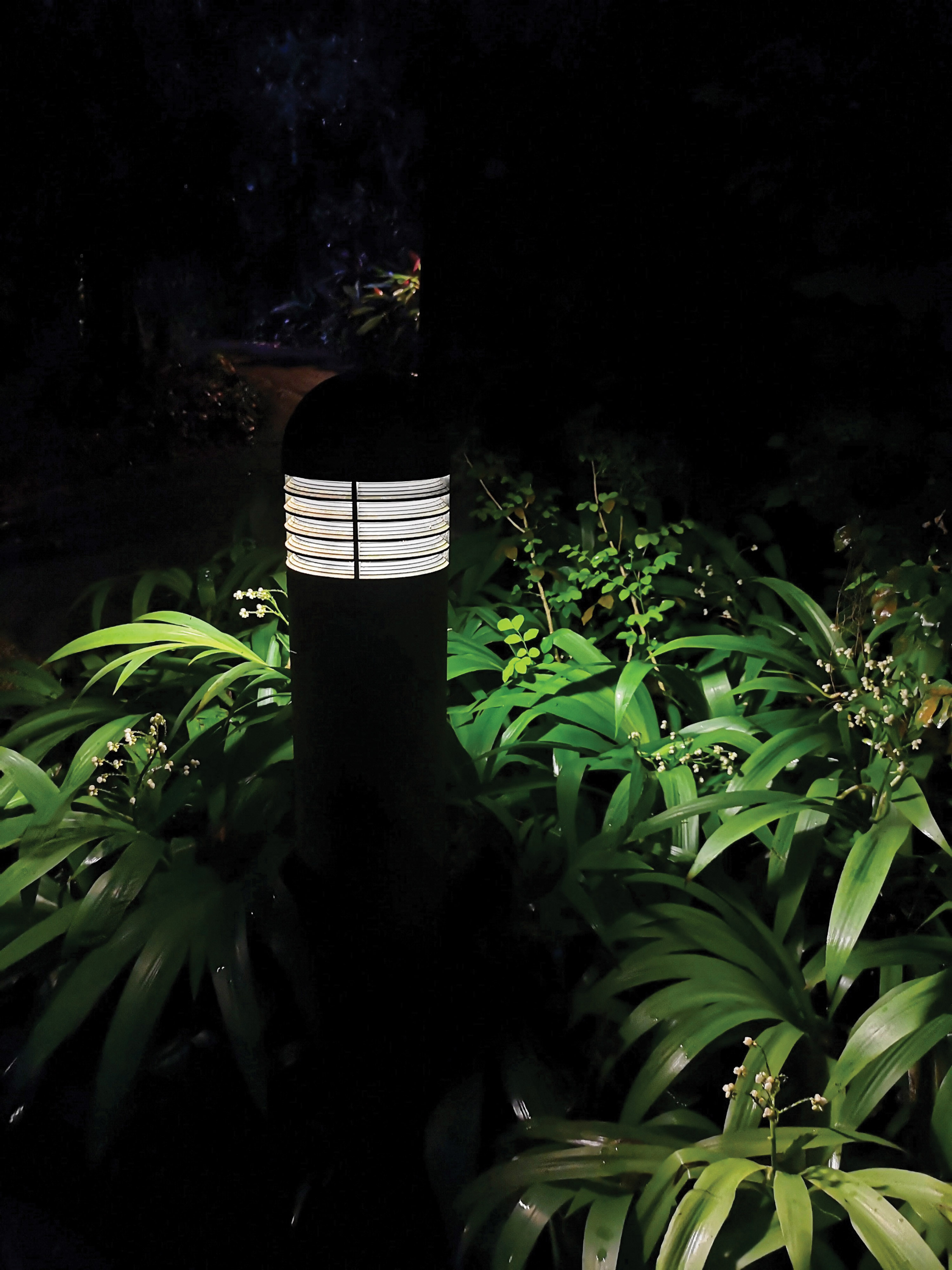

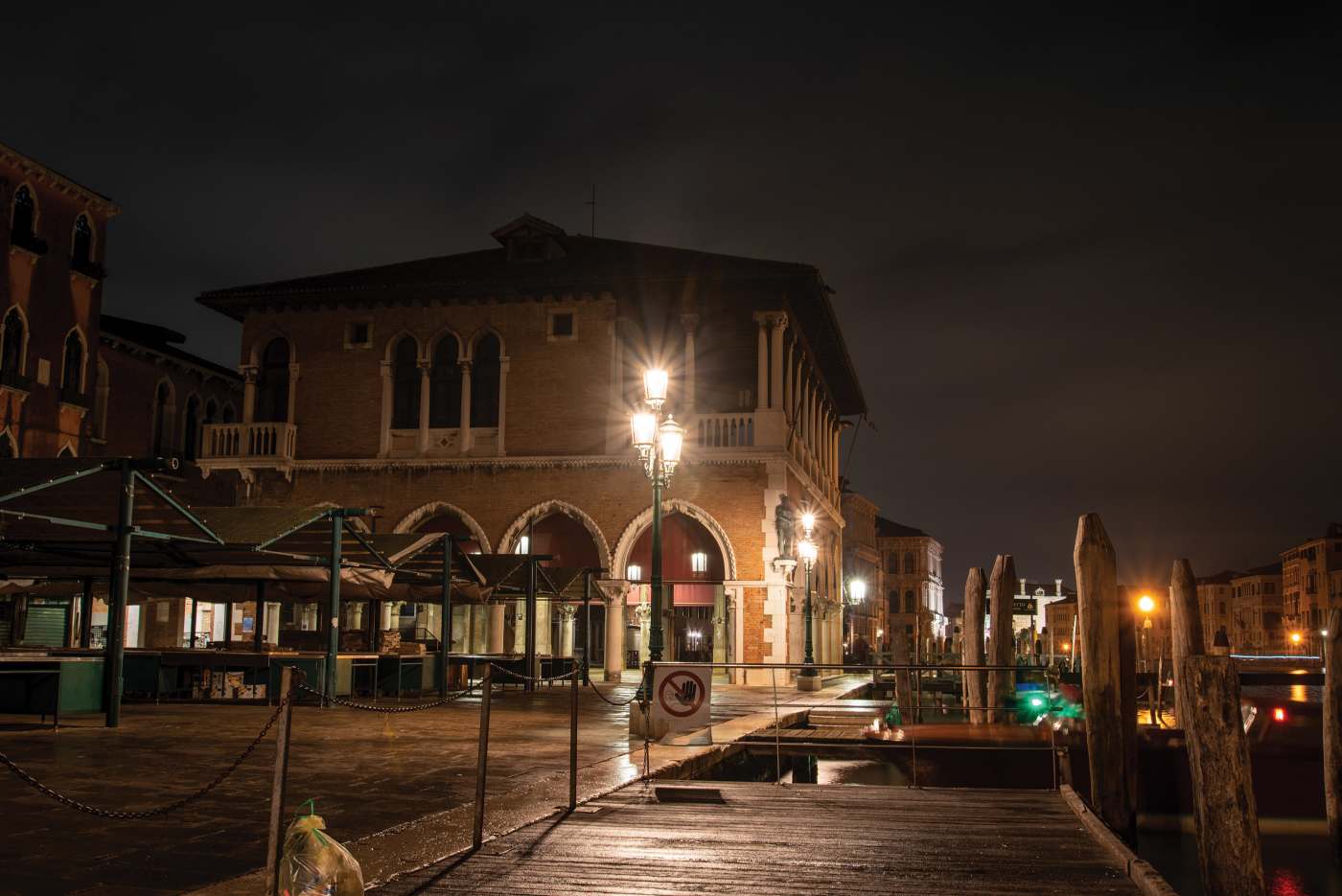

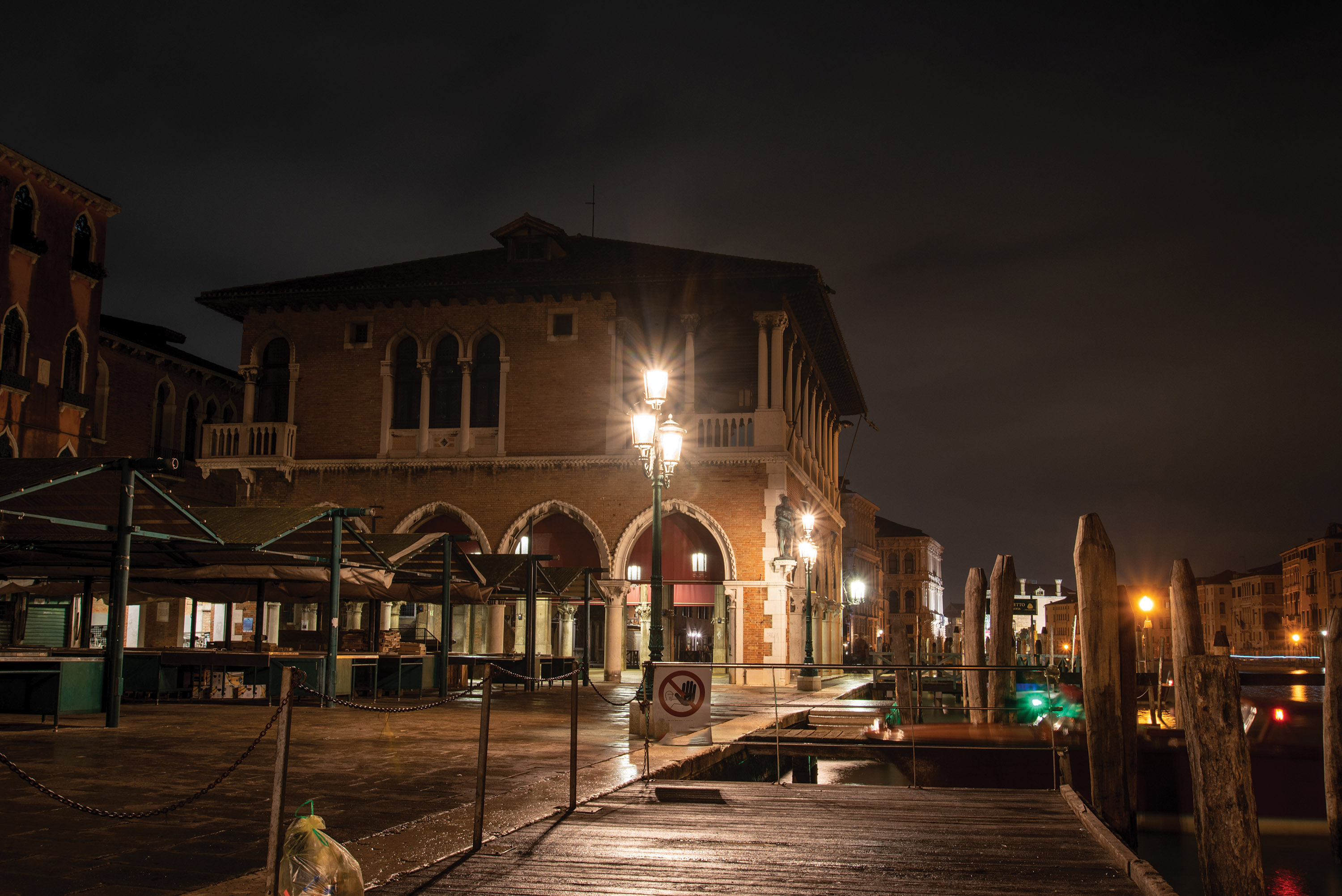

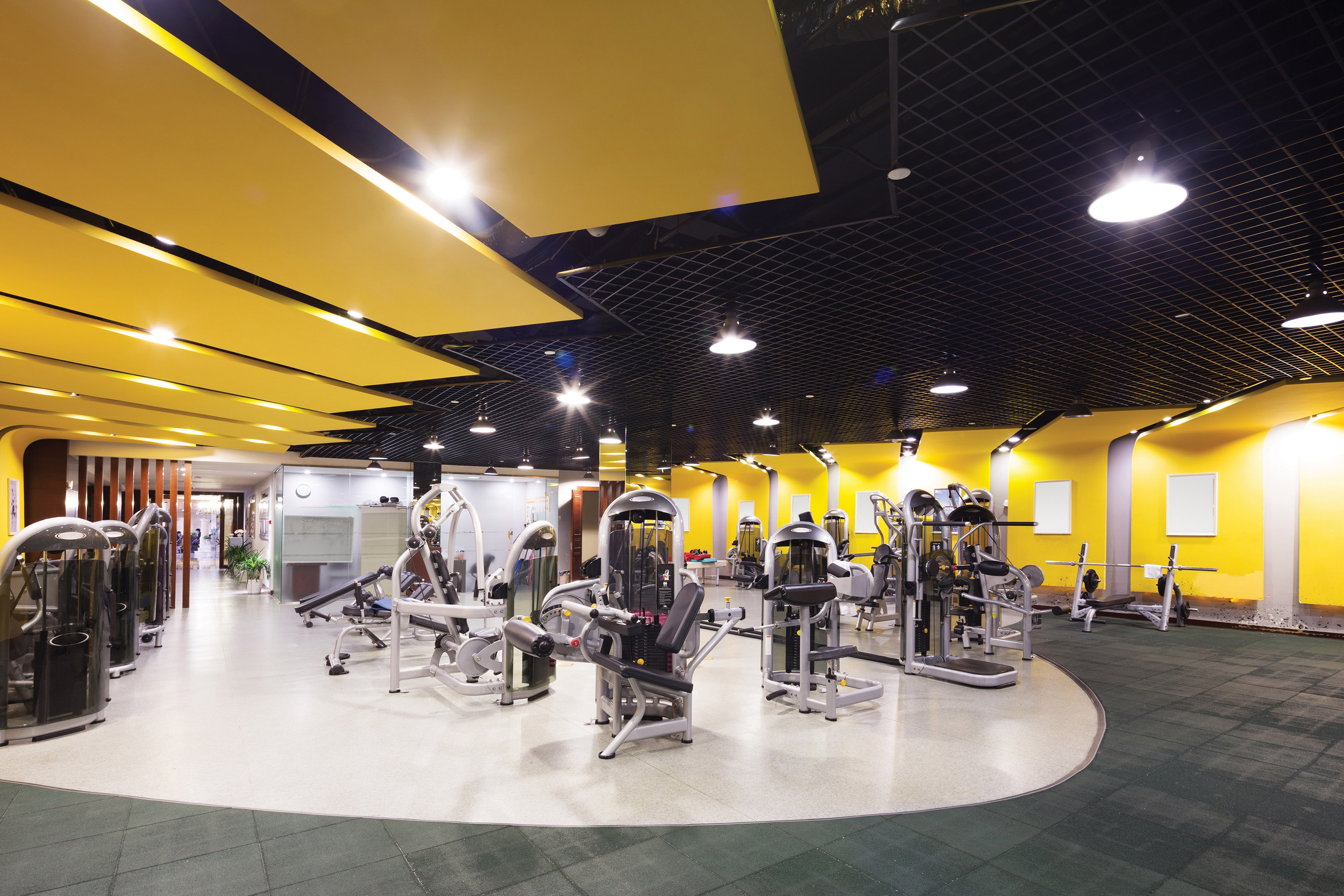

Satco's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce high-output light with over 300 degrees of illumination, these lamps are perfect for commercial bollard fixtures, post-top lighting and high ceiling applications, to name a few. A smaller jacket size and base up, down or horizontal use makes this our most versatile A-lamp to date.
  • Advanced heat sink design ensures long lifespan, less maintenance

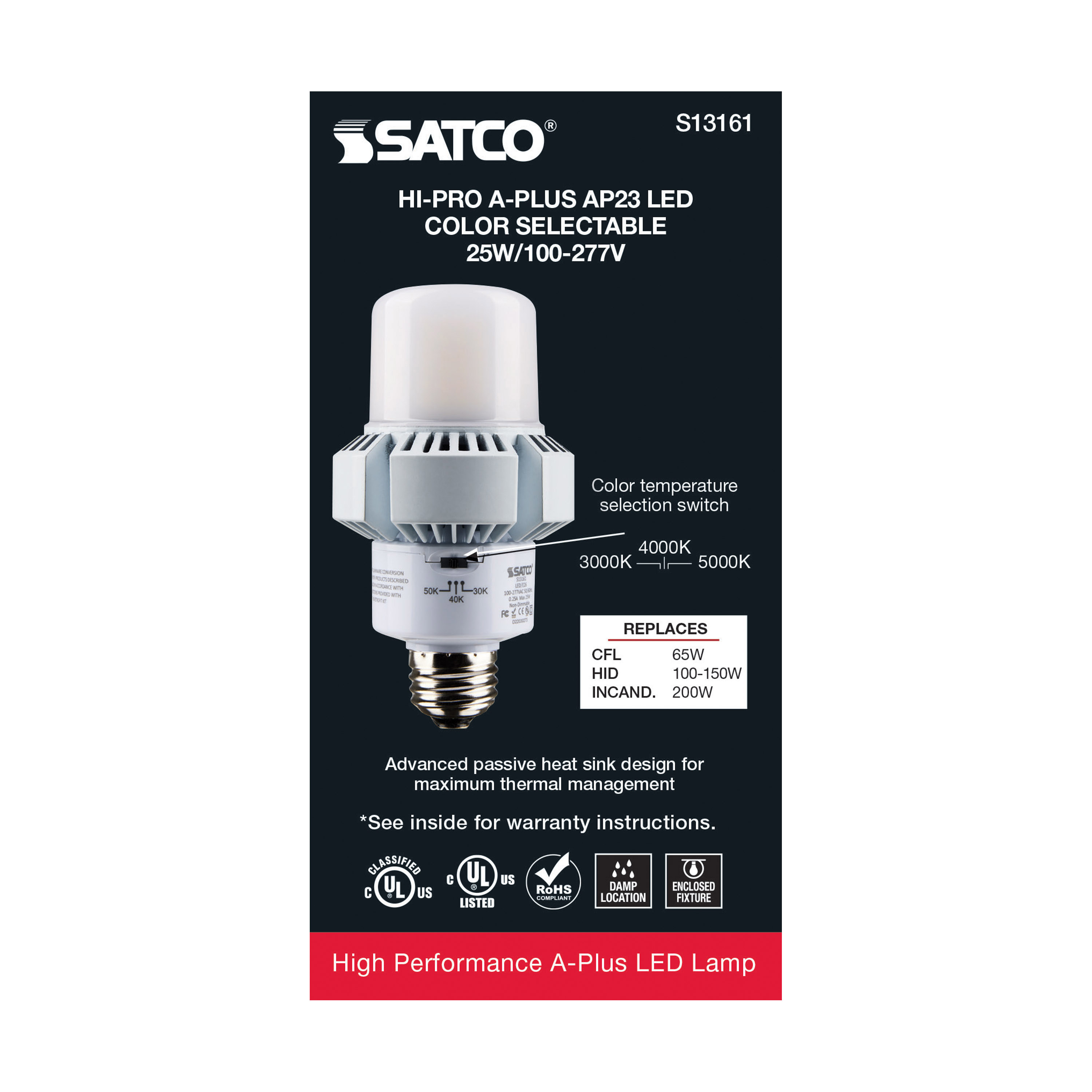

  • ColorQuick technology - Integrated switch allows for 3000K, 4000K and 5000K CCT Selections
  • Damp location rated for indoor or outdoor use
  • Rated for totally enclosed fixtures
  • Reduced jacket size and built-in surge protection
  • FCC/RoHS compliant
  • Superior 80 CRI light quality
Lights

S13161

25W/AP23/LED/CCT/100-277V/E26

25 Watt; A-Plus 23; LED; CCT Selectable 3K/4K/5K; Medium base; Type B; Ballast Bypass; 100-277 Volt; ColorQuick Technology

Satco's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce high-output light with over 300 degrees of illumination, these lamps are perfect for commercial bollard fixtures, post-top lighting and high ceiling applications, to name a few. A smaller jacket size and base up, down or horizontal use makes this our most versatile A-lamp to date.
  • Advanced heat sink design ensures long lifespan, less maintenance
  • ColorQuick technology - Integrated switch allows for 3000K, 4000K and 5000K CCT Selections
  • Damp location rated for indoor or outdoor use
  • Rated for totally enclosed fixtures
  • Reduced jacket size and built-in surge protection
  • FCC/RoHS compliant
  • Superior 80 CRI light quality

Specifications

General
StatusActive
Watts25W
Incandescent Equivalent200W
Fluorescent Equivalent65W
HID Equivalent100W-150W
Volts100V-277V
ShapeAP23
BaseMedium
ANSI BaseE26
FinishWhite
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens3000L/3375L/3250L
Beam Spread280
DimmableNon-Dimmable
Hours Rated50000
Product CategoryType A
Lamp TypeType A
TechnologyLED
Min Compartment SizeLength: 6 in. Width: 6 in. Height: 8.5 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts25W
Incandescent Equivalent200W
Fluorescent Equivalent65W
HID Equivalent100W-150W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens3000L/3375L/3250L
Beam Spread280
DimmableNon-Dimmable
Power Factor>0.9
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection - 1KV
Operating Temperature-22C (-30F) to +45C (+113F)
Physical

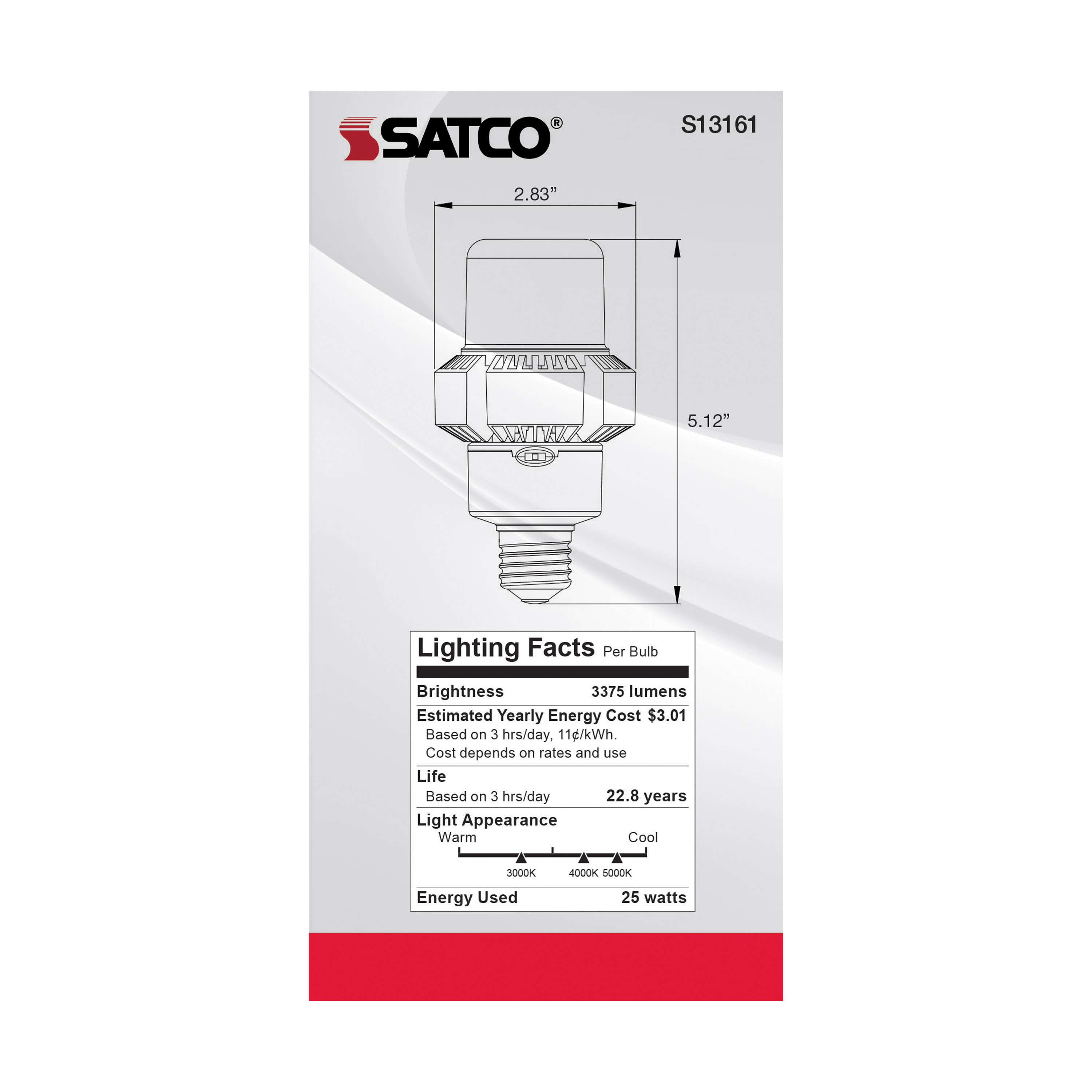

MOL5.12
MOD2.83
ShapeAP23
BaseMedium
ANSI BaseE26
FinishWhite
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
Housing ColorWhite
Weight (lb.)0.61
Additional Information
Min Compartment SizeLength: 6 in. Width: 6 in. Height: 8.5 in.
Rated For Enclosed FixtureYes
IP RatingIP64
Specification NoteLumen/Watt/CCT Ratio Chart in Documents.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Listed; cULus - Classified
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - >2600 Lumens
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp

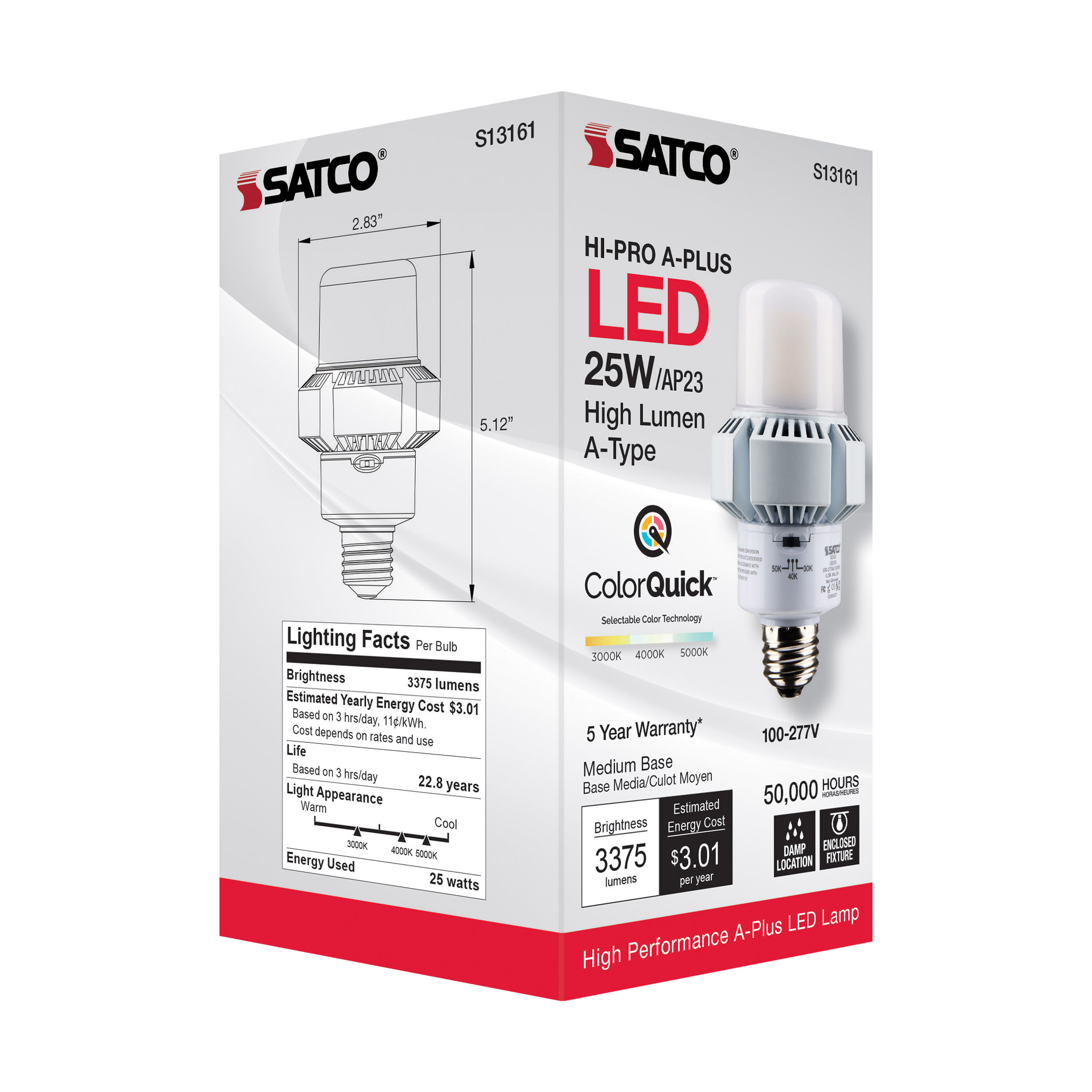

Packaging
Each UPC045923131615
Each Quantity1
Each Length (in.)2.99
Each Width (in.)2.99
Each Height (in.)5.70
Each Weight (lb.)0.63
Each Cube (CuFt.)0.0295
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923131612
Case Quantity24
Case Length (in.)12.60
Case Width (in.)9.70
Case Height (in.)12.40
Case Weight (lb.)15.80
Case Cube (CuFt.)0.8770
No compatibility links for this item.
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
