S29314

9.8WLED/RDL/5-6/40K/120V

Discontinued - Suggested Replacement: S12602

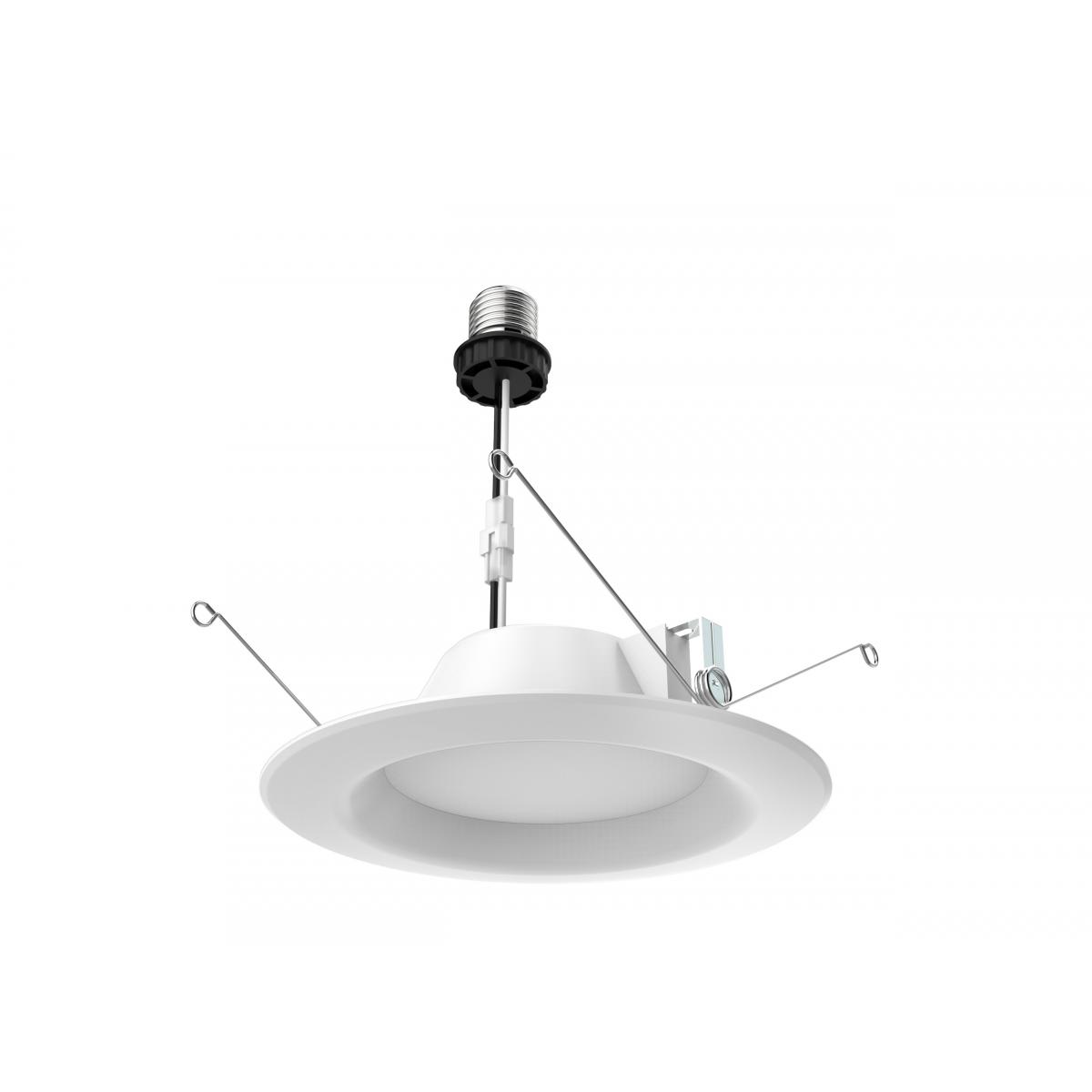

  • 9.8 watt LED Downlight Retrofit
  • 5 - 6"
  • 4000K
  • Dimmable
  • 120 volts
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^35k^2
volts^120v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S29314 SpecificationsS29314 Photometrics.iesS29314 Instructions.pdf
Tools
Lighting Layout Analysis For S29314
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
9.8 watt LED Downlight Retrofit; 5 - 6"; 4000K; Dimmable; 120 volts
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
Diameter7.38
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
MaterialThermo Plastic (PBT)
Fixture TypeDownlight Retrofit
IncludesE26 Adapter
StatusDiscontinued
StyleUtility
CCT SelectableNo
Wattage SelectableNo
Can Size5-6 in.
Finish FamilyWhite
Additional InfoTrim material is Thermo Plastic; Trim color is White
Amps0.082A
Has CameraNo
IOT EnabledNo
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent65W
Electrical
CCT (Kelvin Temp)4000K
DimmableYes-Dimmable
Hours Rated35000
Beam Angle (degree)90
Color TempCool White
CRI90+
Dimming Type120V only, Phase cut
Operating Temp-20C (-4F) to +40C (+104F)

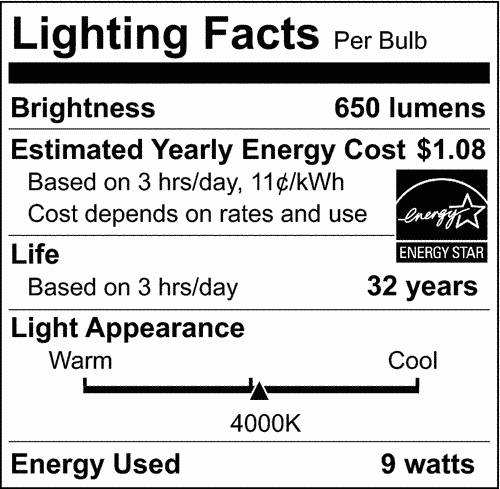

Lumens650L
Volts120v
Watts9.8W
Physical
Lamp BaseMedium Adapter
FinishWHITE
ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesThis retrofit is for use with recessed housings with an E26 socket only.
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
California BanNon-Compliant
DLC ApprovedNo
Energy Star CertifiedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923293146
Case Cube1.4541
Case Height8.86
Case Length25.55
Case Quantity12
Case UPC10045923293143
Case Weight12.12
Case Width11.1
EA Cube0.1035
EA Height8.07
EA Length8.27
EA Quantity1
EA Weight0.93
EA Width2.68
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height2.31
Web Width7.38
