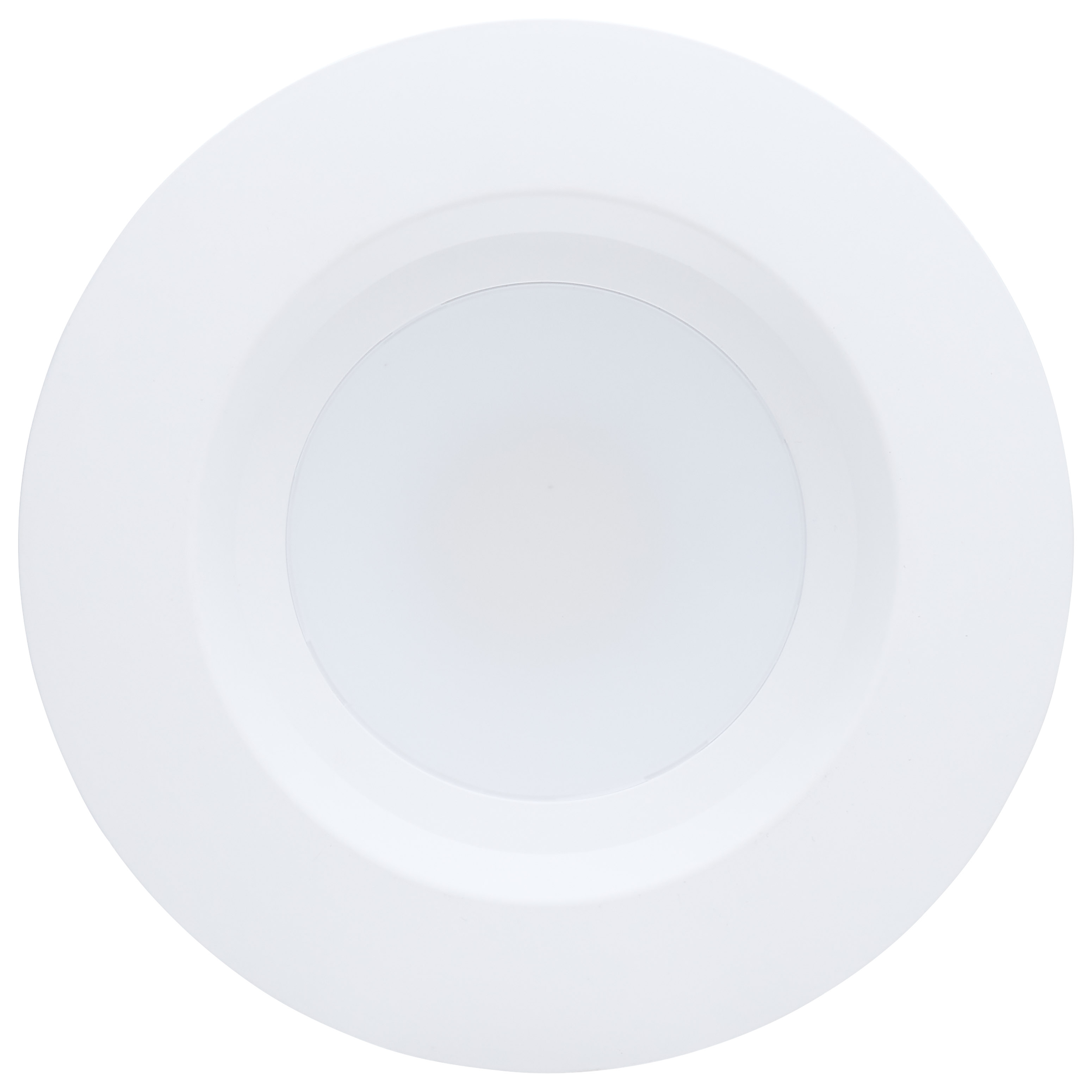

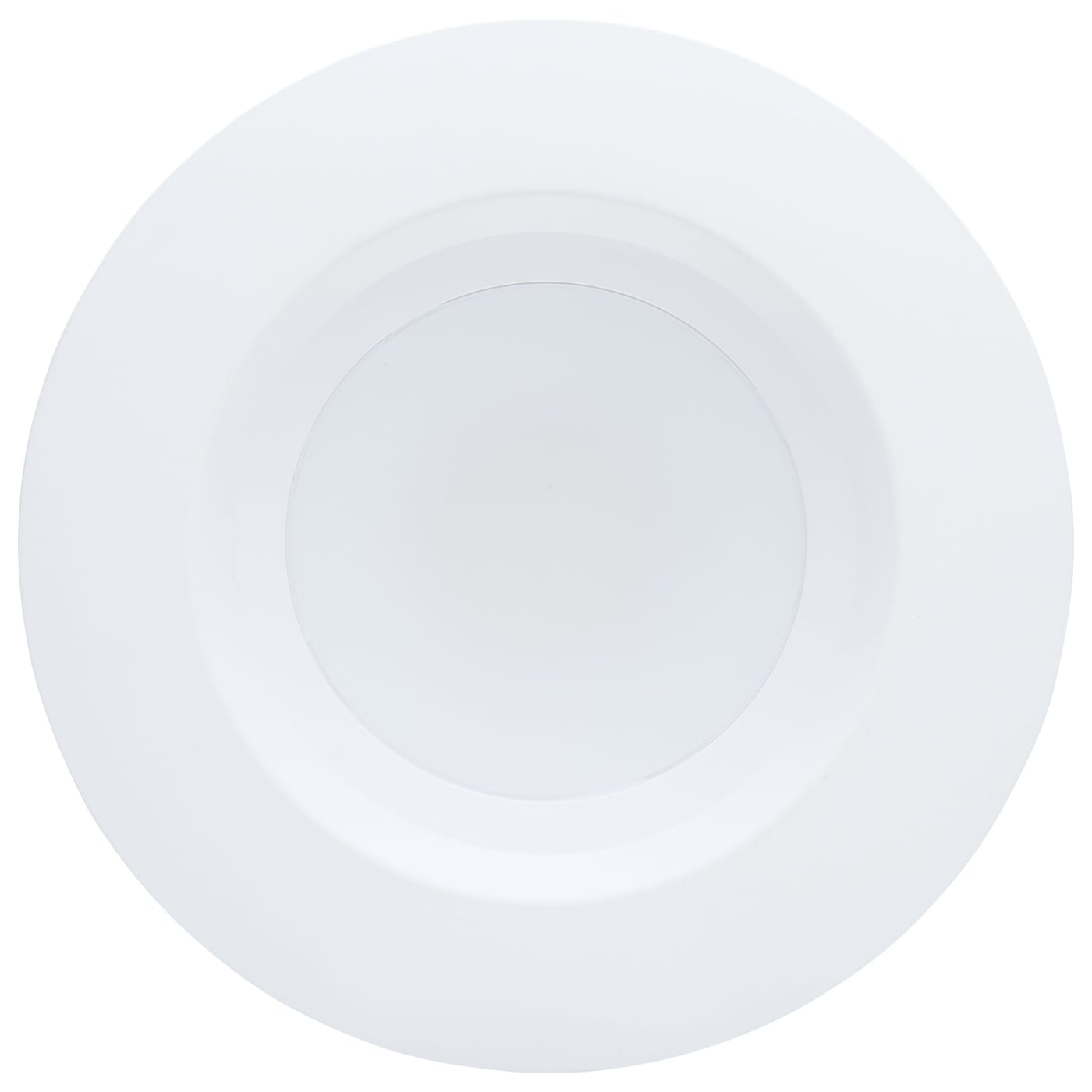

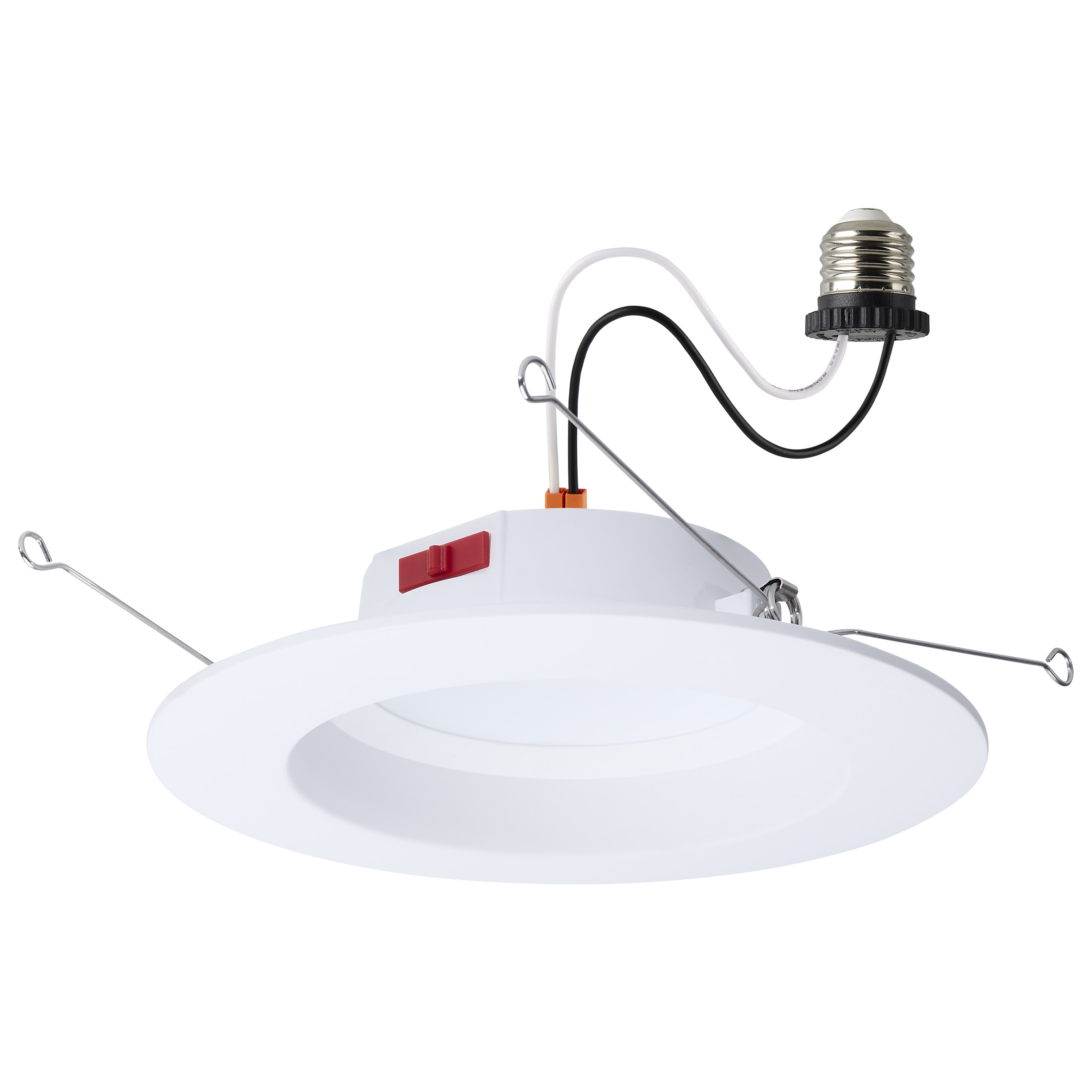

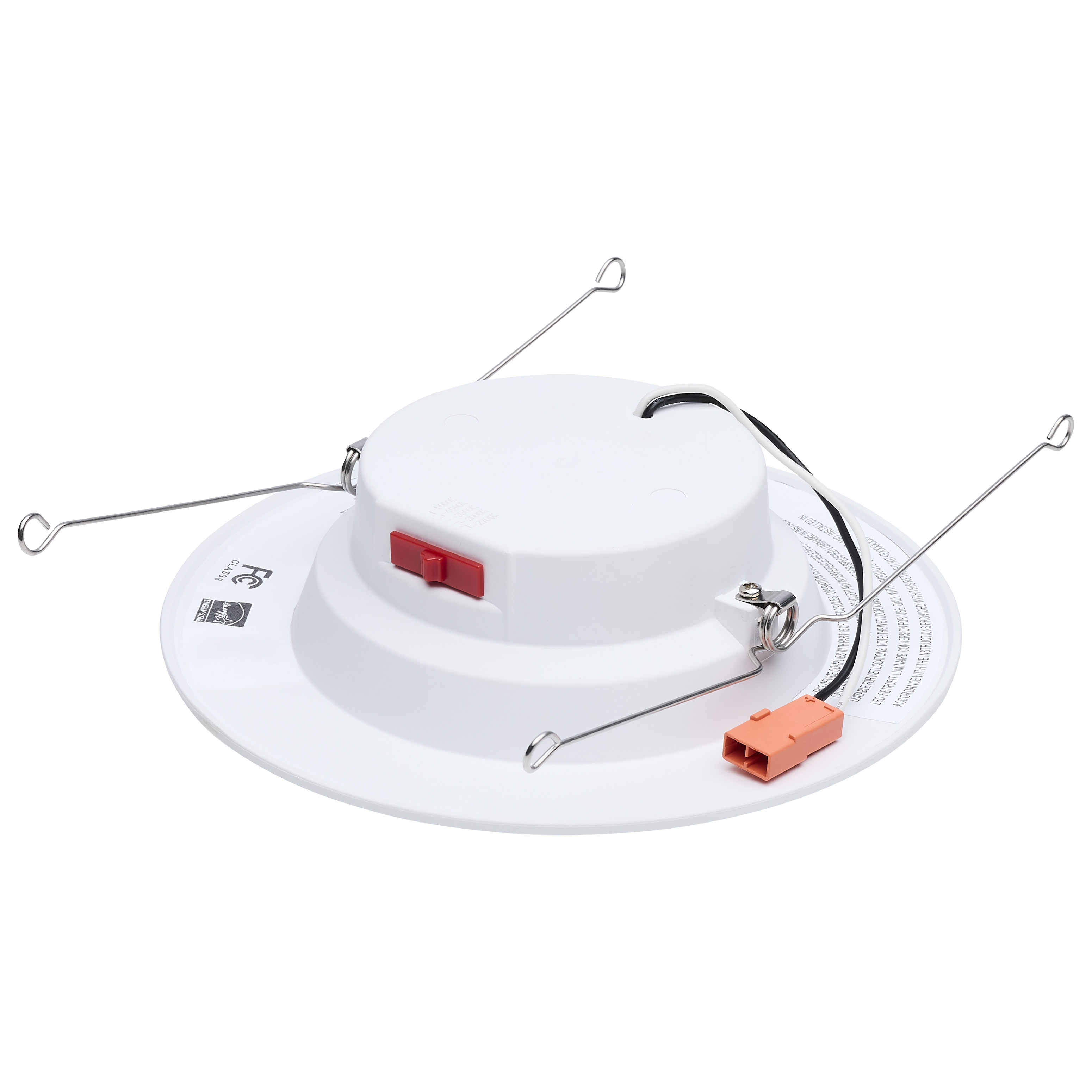

S12602

8WLED/DLR/5-6/5CCT/E/RND/WH

  • 8 Watt LED Downlight Retrofit
  • 5-6 Inch
  • CCT Selectable
  • Round
  • White Finish
cc_selectable^y^1
air_tight^y^1
energy_star_certified^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3
S12602 SpecificationsS12602 InstructionsSN1760 LED RETROFIT DOWNLIGHT FINAL
Tools
Lighting Layout Analysis For S12602
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

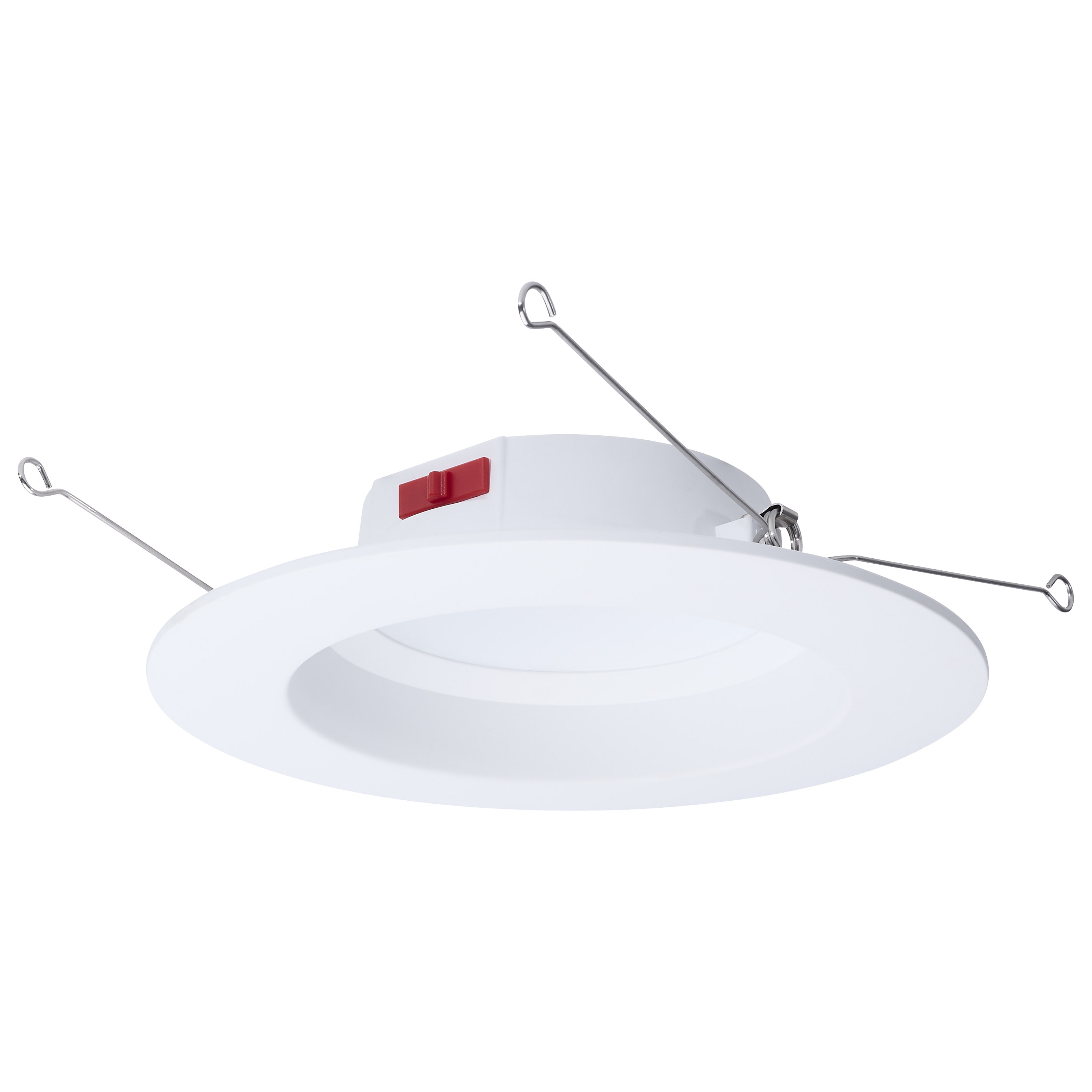

8 Watt LED Downlight Retrofit; 5-6 Inch; CCT Selectable; Round; White Finish

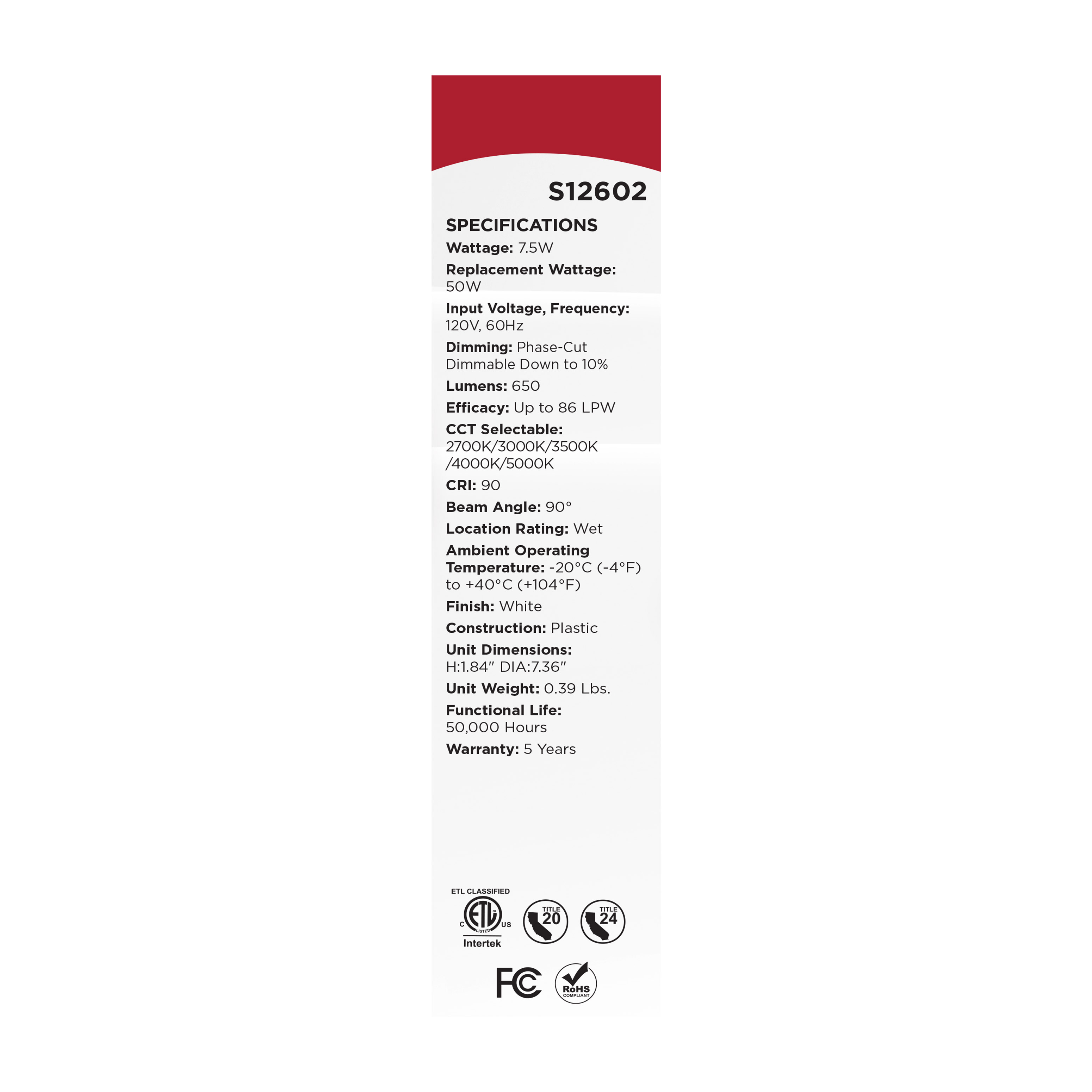

Products Specs
General
CompanySATCO
Mounting Height4.72
Bulb IncludedIntegrated

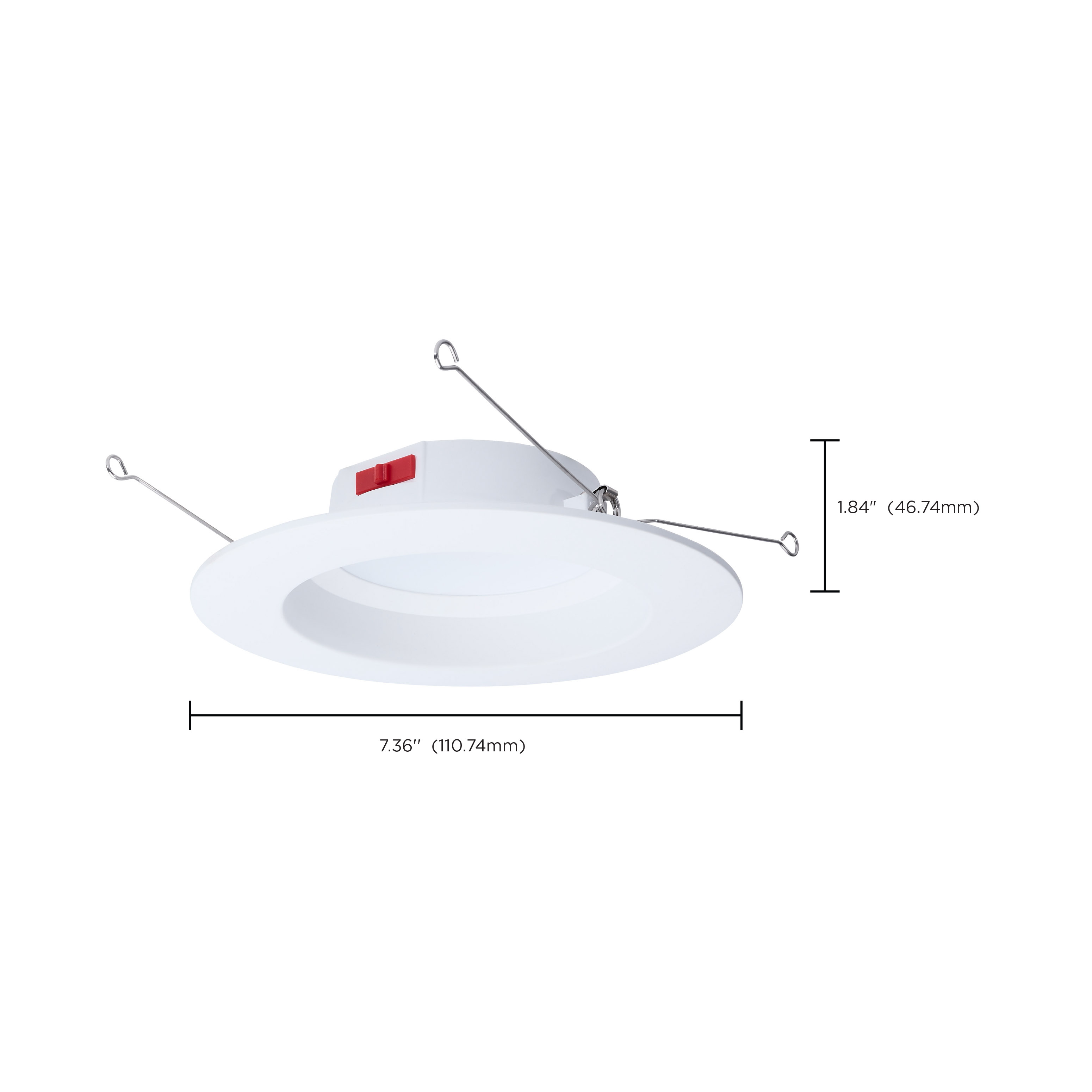

Diameter7.36
Dimmable Text120V only
MaterialPlastic
Fixture TypeDownlight Retrofit
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.5KV

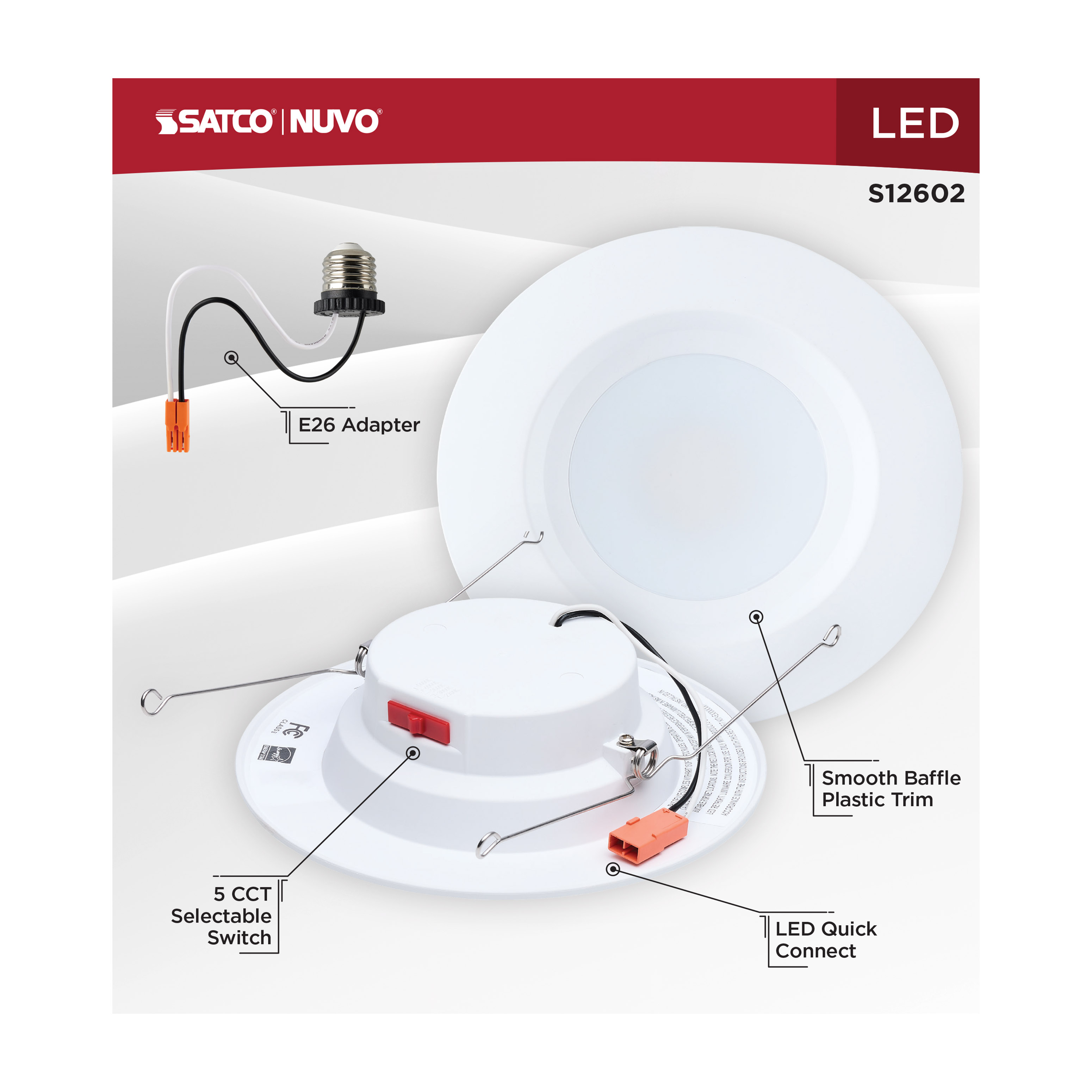

CCT SelectableTrue
Wattage SelectableFalse
Can Size5-6 in.
Finish FamilyWhite
Amps0.075A
Mounting Diameter5.04
Has CameraFalse
IOT EnabledFalse
Lens FinishMatte Frosted
Lens MaterialPlastic
LensedTrue
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical

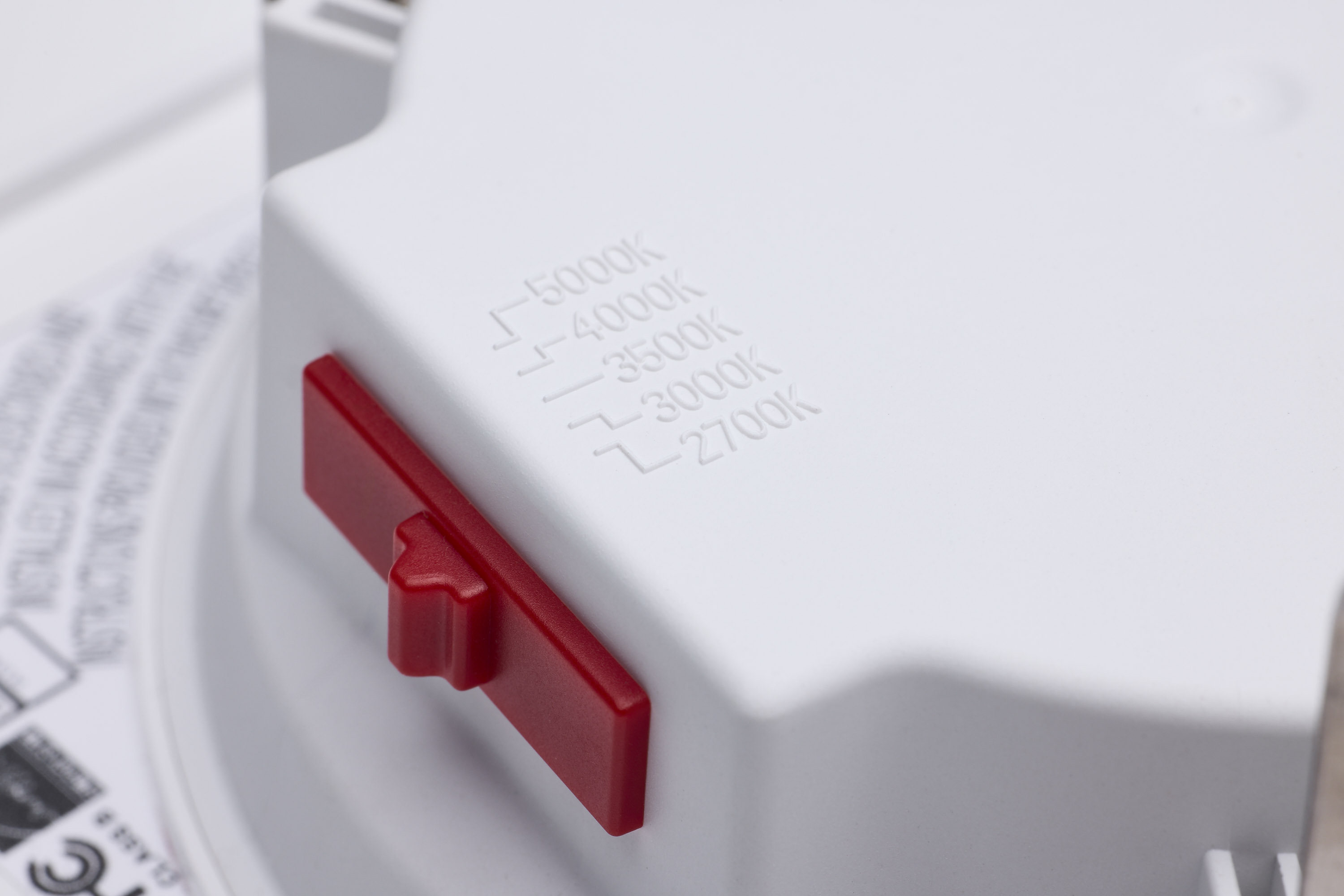

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempWarm White to Natural Light
CRI90+
Dimming TypePhase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens650L
Volts120v
Watts7.5W
Physical
Lamp BaseMedium Adapter
FinishWHITE

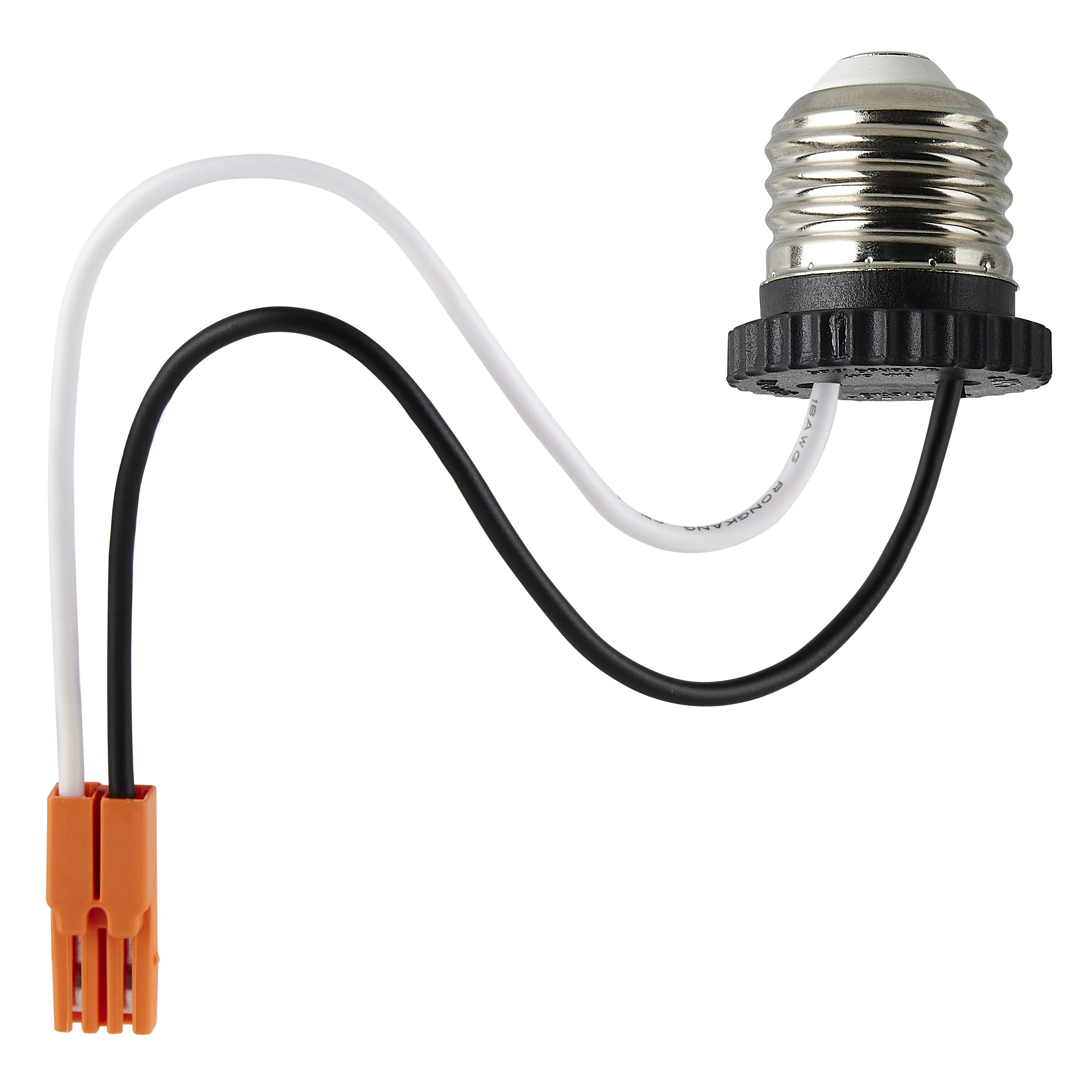

ANSI BaseE26 Adapter
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Installation NotesDefault CCT setting is 3000K
Documents
Compliance
Air TightTrue
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
Energy Star ID3942760
FCC CompliantTrue
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Classified
CA Compliance TextLawful for sale
Energy Star CertifiedYes
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923126024
Case Cube0.9754
Case Height8.66
Case Length15.35
Case Quantity12
Case UPC10045923126021
Case Weight7.36
Case Width12.68
EA Cube0.0705
EA Height8.27
EA Length7.48
EA Quantity1
EA Weight0.53
EA Width1.97
Inner Cube0.0
Pack TypeBox
Web Height1.84
Web Width7.36
