Discontinued – Suggested Replacement: S49676
S9676 100W/LED/HID/40K/100-277V EX39

S9676

100W/LED/HID/40K/100-277V EX39

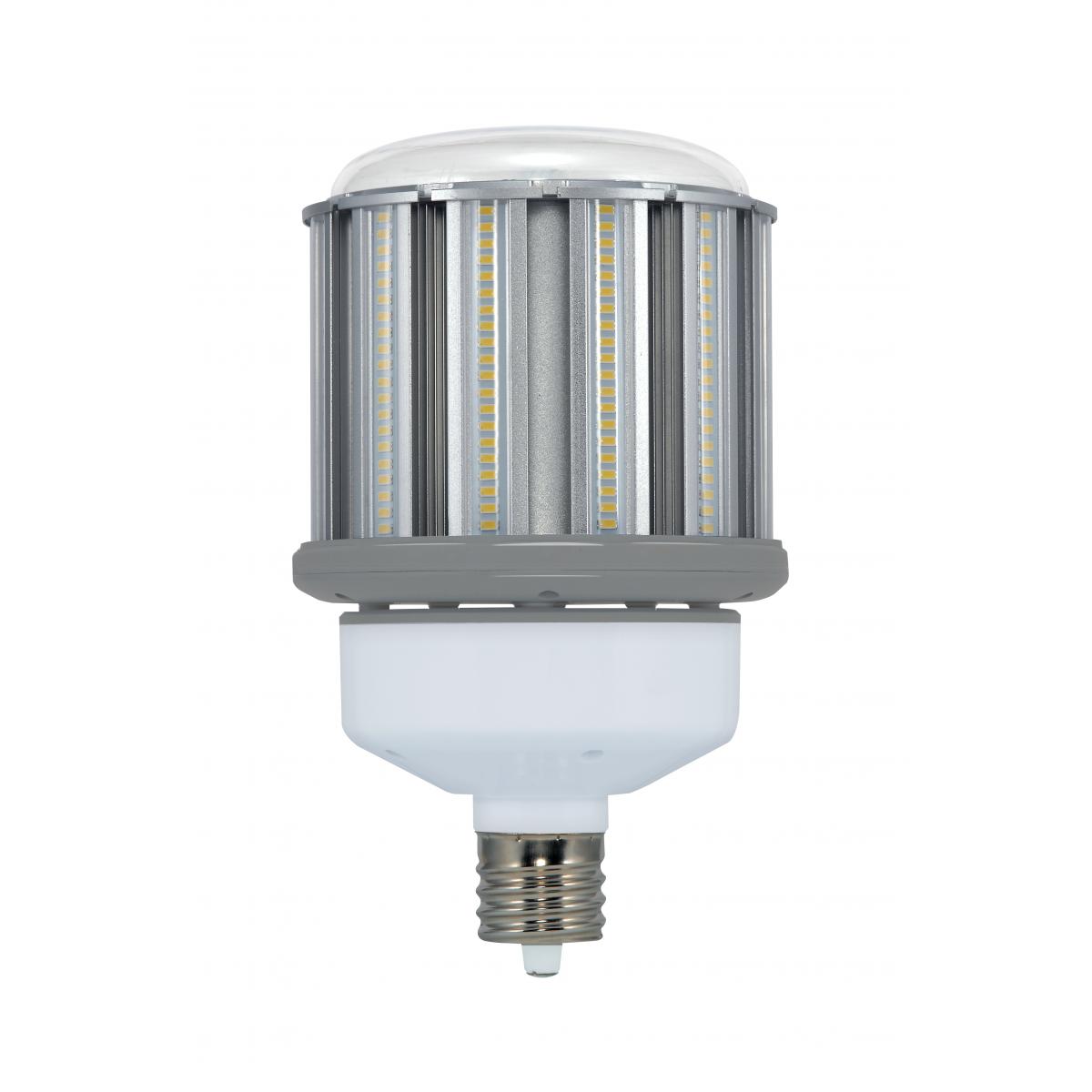

100 Watt - LED HID Replacement; 4000K; Mogul extended base; 100-277 Volt


Lights

S9676

100W/LED/HID/40K/100-277V EX39

100 Watt - LED HID Replacement; 4000K; Mogul extended base; 100-277 Volt

Specifications

General
StatusDiscontinued
SubstituteS49676
Watts100W
Incandescent Equivalent500W
Fluorescent Equivalent150W
HID Equivalent400W
Volts100V-277V
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
CCT (Kelvin)4000K
TemperatureCool White
CRI80+

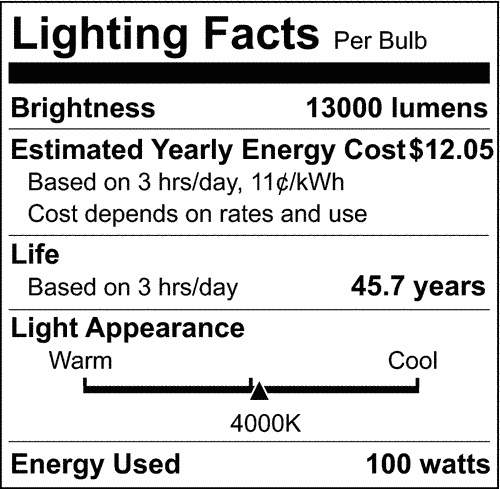

Lumens13000L
Beam Spread300
DimmableNon-Dimmable
Hours Rated50000
Product CategoryCorncob
Lamp TypeCorncob
TechnologyLED
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Electrical
Watts100W
Incandescent Equivalent500W
Fluorescent Equivalent150W
HID Equivalent400W
Volts100V-277V
Ballasting RequirementsBallast Bypass- Direct wire only 100V-277V
Working VoltageAC 90-305V
Operating Frequency50/60Hz
CCT (Kelvin)4000K
TemperatureCool White
CRI80+
Lumens13000L
Beam Spread300
DimmableNon-Dimmable
Power Factor0.95
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection
Operating Temperature-20C (-4F) to +65C (+149F)
Physical
MOL9.63
MOD5.88
ShapeCorncob
BaseMogul Extended
ANSI BaseEX39
FinishClear
Lens FinishClear
Housing ColorWhite
Additional Information
IncludesSafety chain
Min Compartment SizeLength: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Rated For Enclosed FixtureYes
IP RatingIP65
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Classified; cULus - Certified
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923096761
Each Quantity1
Each Length (in.)7.40
Each Width (in.)7.40
Each Height (in.)11.10
Each Weight (lb.)4.66
Each Cube (CuFt.)0.3518
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923096768
Case Quantity4
Case Length (in.)15.40
Case Width (in.)15.40
Case Height (in.)12.20
Case Weight (lb.)20.06
Case Cube (CuFt.)1.6744
