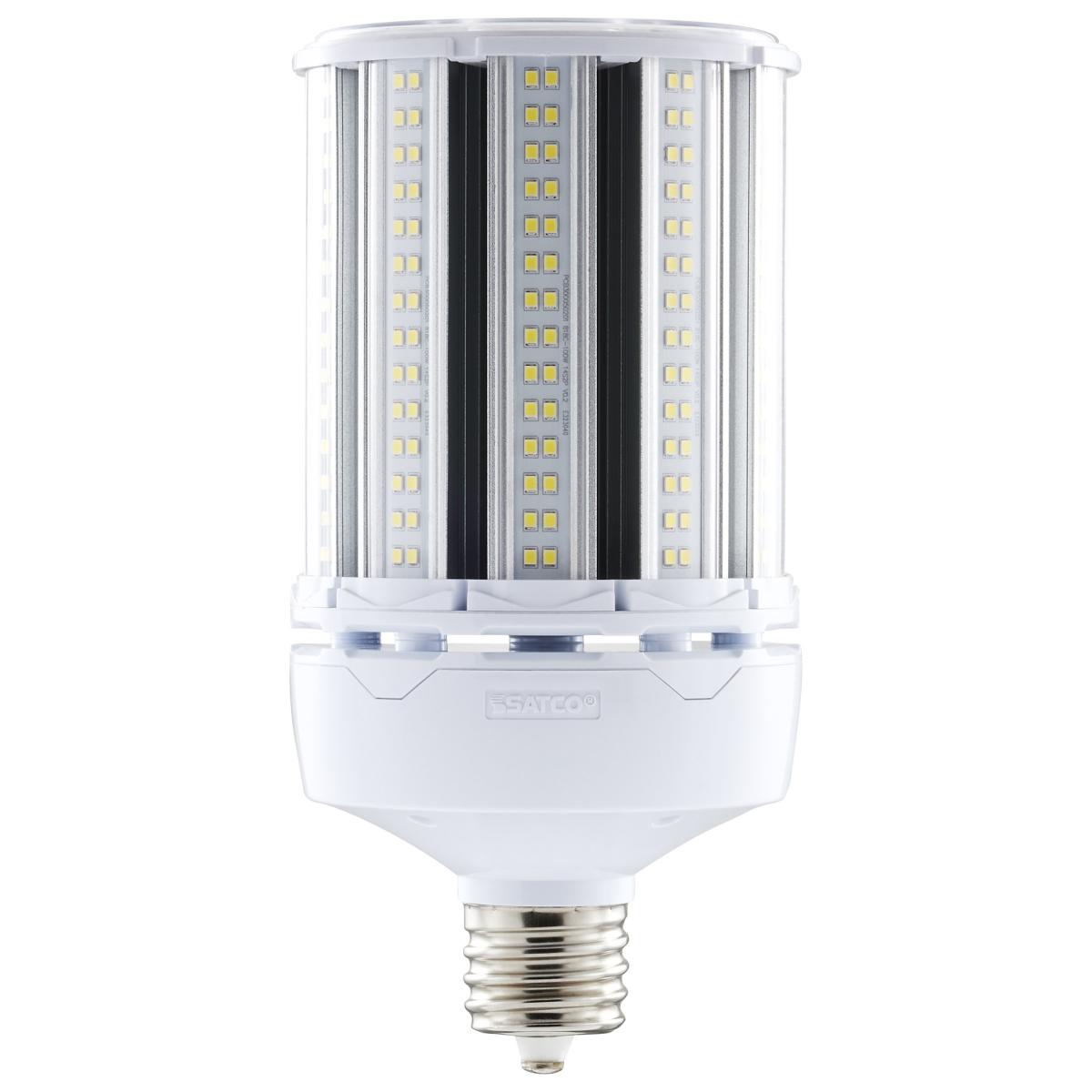

S49676

100W/LED/HP/840/100-277V/EX39

  • 100 Watt LED HID Replacement
  • 4000K
  • Extended Mogul base
  • Type B Ballast Bypass
  • Economy Hi-Pro
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
rated_for_enclosed_fixture^true^2
hours_rated^35k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S49676 SpecificationsS49676 Instructions.pdf
Tools
Lighting Layout Analysis For S49676
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
100 Watt LED HID Replacement; 4000K; Extended Mogul base; Type B Ballast Bypass; Economy Hi-Pro
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypeLED HID
IncludesSafety Cable
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 4KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoSafety cable provided with S49395, S49396, S49397, S49675, S49676, S49677 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions)
Amps1.000-0.361A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
Minimum Compartment SizeLength: 9.25 in. Width: 9.25 in. Height: 17.32 in.
Operating PositionBase Up or Down
Photo CellNo
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent500W
Electrical
CCT (Kelvin Temp)4000K
DimmableNon-Dimmable
Hours Rated35000
Beam Angle (degree)300
Color TempCool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +55C (+131F)
HID Equivalent400W

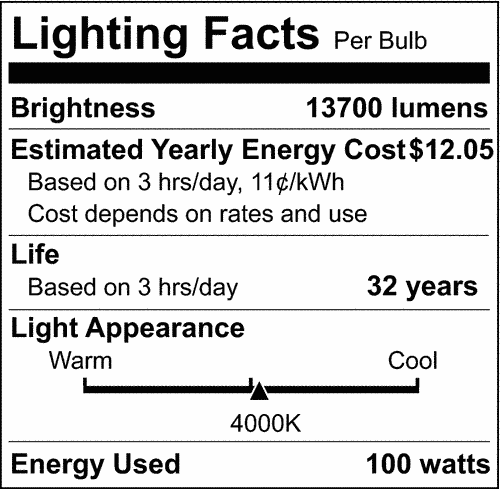

Lumens13700L
Volts120V-277V
Watts100W
Physical
Lamp BaseMogul Extended
FinishWHITE
Housing ColorWhite
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps4.72
MOL9.67
Additional Info
Warranty3-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP65
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923496769
Case Cube0.8691
Case Height11.93
Case Length11.22
Case Quantity4
Case UPC10045923496766
Case Weight15.21
Case Width11.22
EA Cube0.1831
EA Height11.22
EA Length5.31
EA Quantity1
EA Weight3.8
EA Width5.31

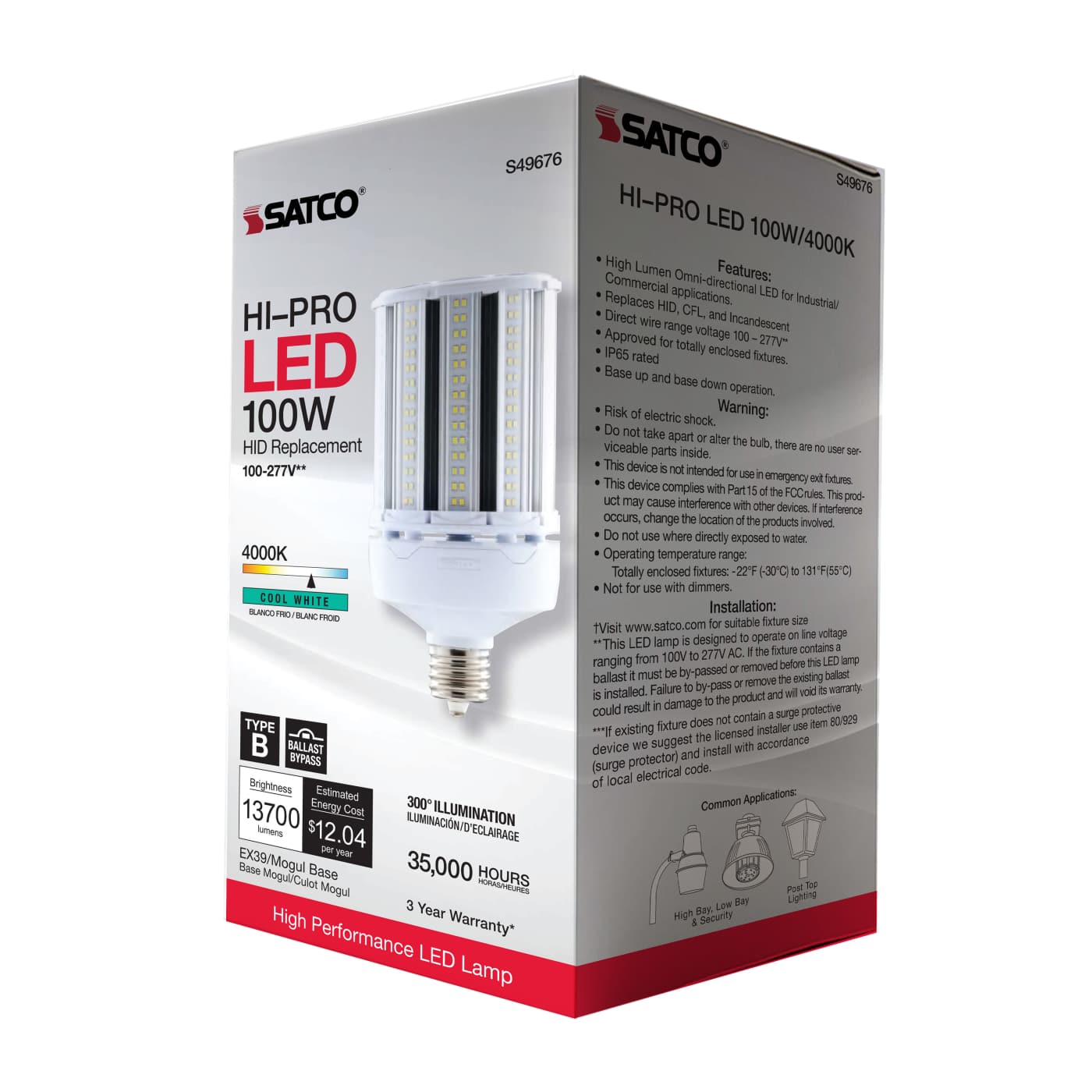

Pack TypeBox
Web Length9.67
Web Width4.72
