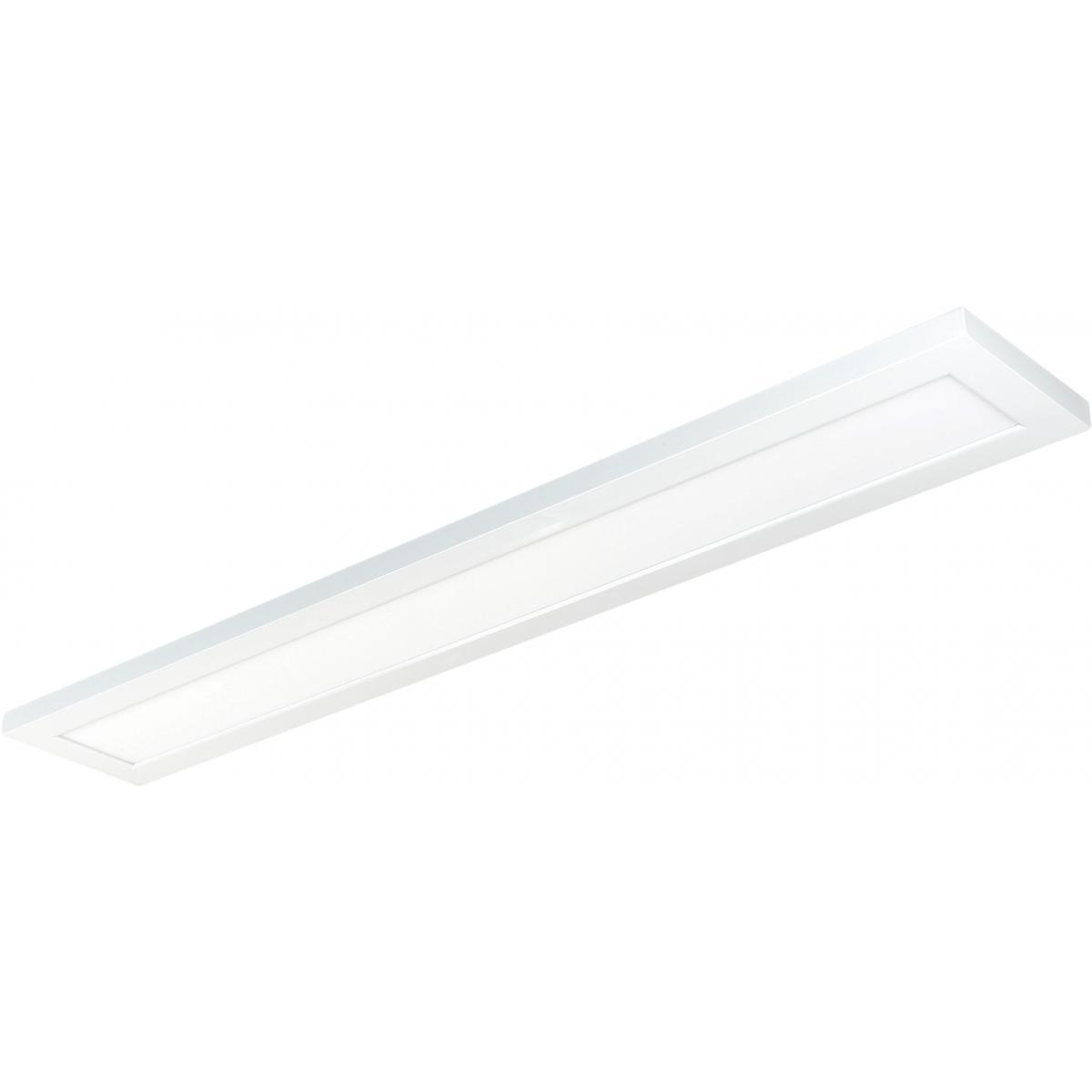

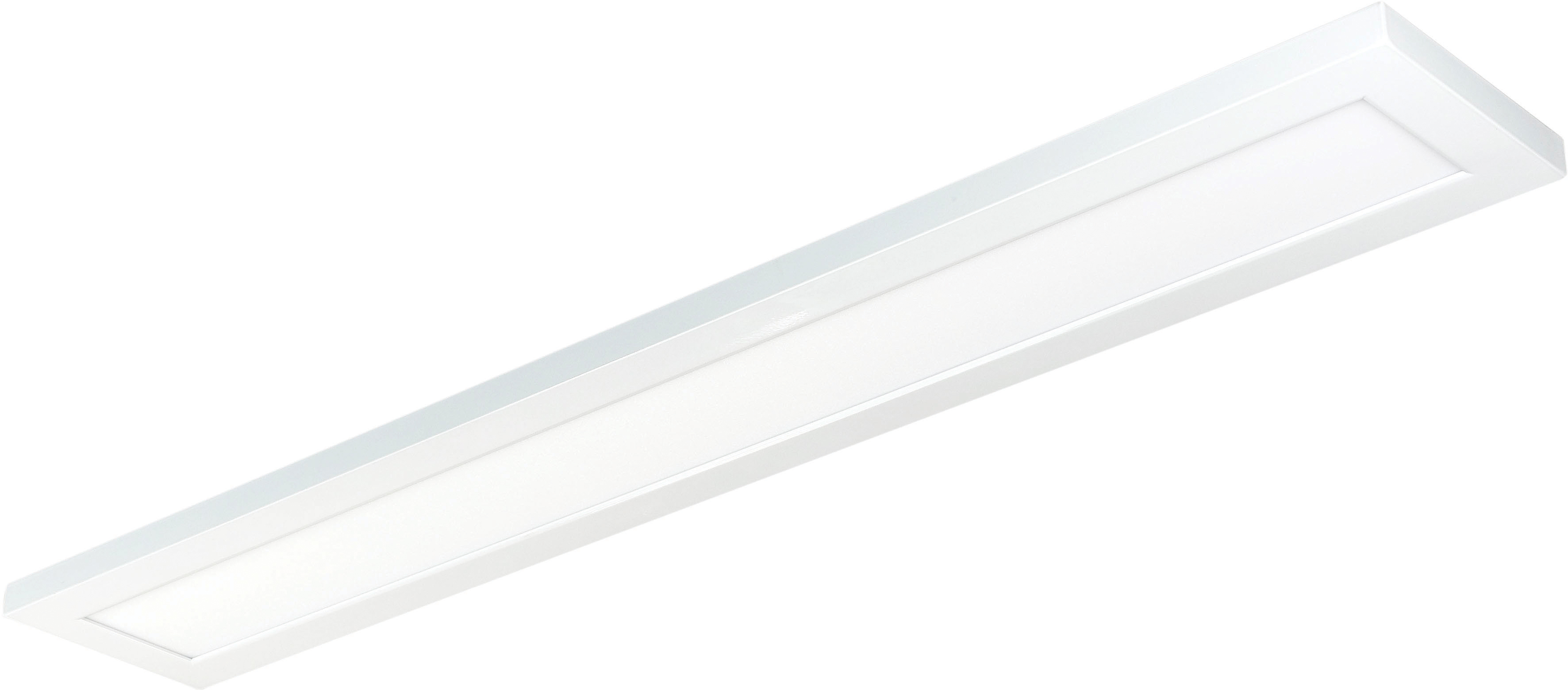

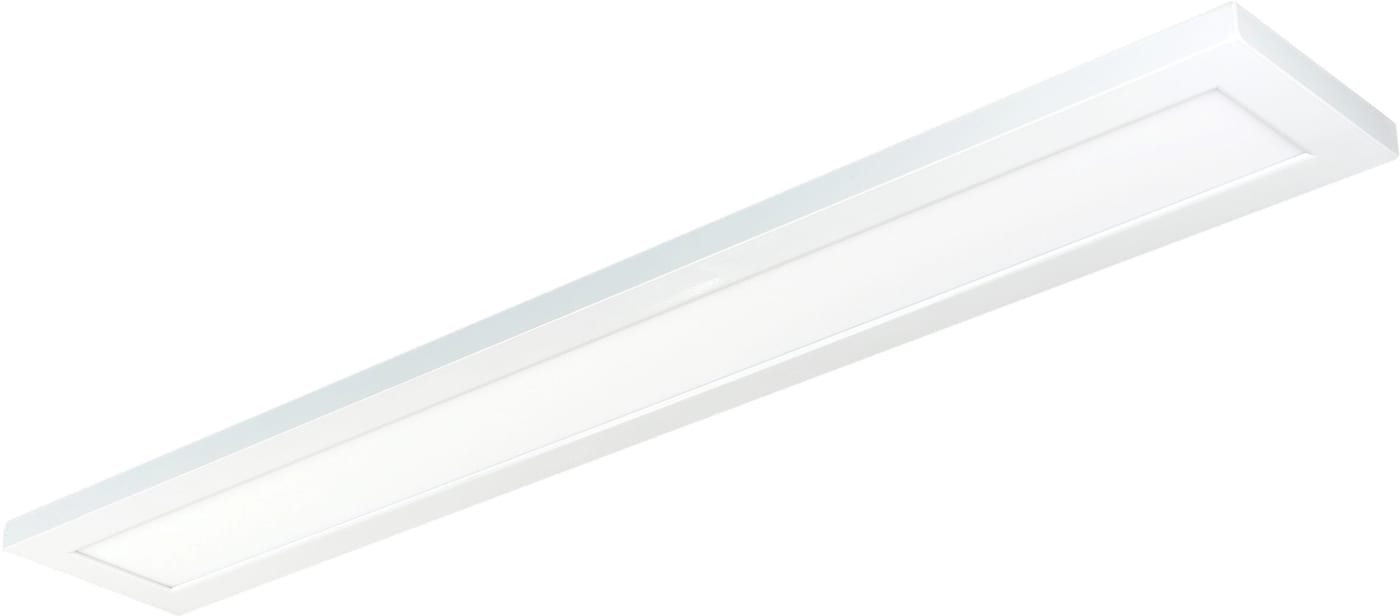

30W/LED/5"X36"/FLUSH/3K/WH - 62-1056
62-1056

30W/LED/5"X36"/FLUSH/3K/WH

Discontinued - Suggested Replacement: 62-1771
  • 30W
  • 5 in.
  • x 36 in.
  • Surface Mount LED Fixture
  • 3000K
  • 90 CRI
  • Low Profile
  • White Finish
  • 120/277V
location_rating^damp^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1056 Specifications62-1056 Photometrics.ies62-1056 Installation Instructions.pdf
Tools
Lighting Layout Analysis For 62-1056
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
30W; 5 in.; x 36 in.; Surface Mount LED Fixture; 3000K; 90 CRI; Low Profile; White Finish; 120/277V
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable TextReverse Phase; 120V only; Bi-Level Dimmable
MaterialAluminum
Fixture TypeBLINK Plus
StatusObsolete
StyleUtility
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.250/0.108A
Has CameraNo
IOT EnabledNo
Power Factor0.74
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent125W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Color TempWarm White
CRI90+
Dimming Type0-10V Dimming, Phase cut
Operating Frequency50/60Hz
Operating Temp-17C (+1.4F) to +45C (+113F)
Lumens2100L
Volts120V/277V
Watts30W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantYes
Packaging
UPC045923410567
Case Cube2.0767
Case Height8.94
Case Length37.48
Case Quantity4
Case UPC10045923410564
Case Weight25.48
Case Width10.71
EA Cube0.4393
EA Height8.27
EA Length37.01
EA Quantity1
EA Weight4.62
EA Width2.48
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height0.75
Web Length36.0
Web Width5.5
