» 62-1252

Discontinued – Suggested Replacement: 62-1773
62-1252 22W/LED/1X2/FLUSH/4K/WH

62-1252

22W/LED/1X2/FLUSH/4K/WH

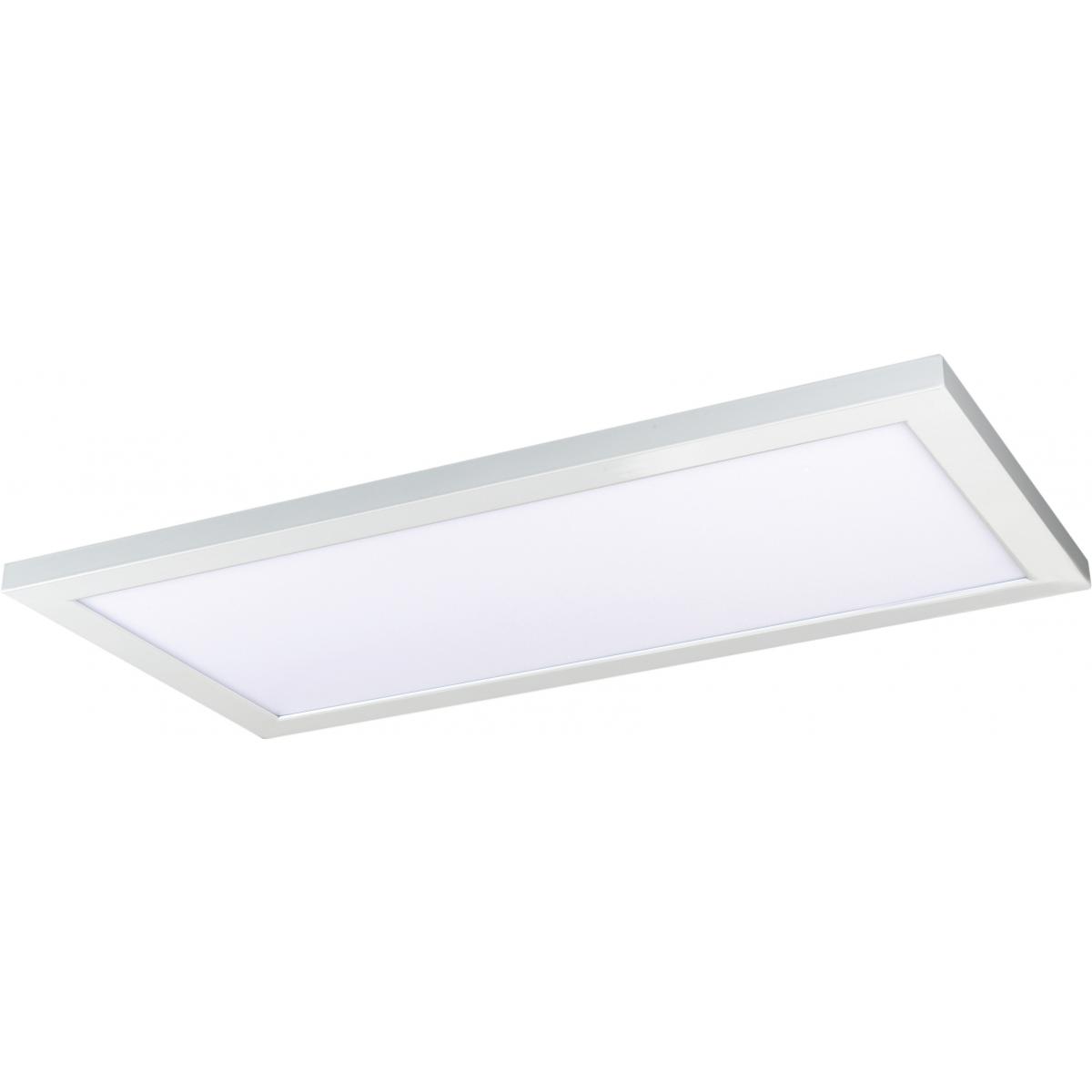

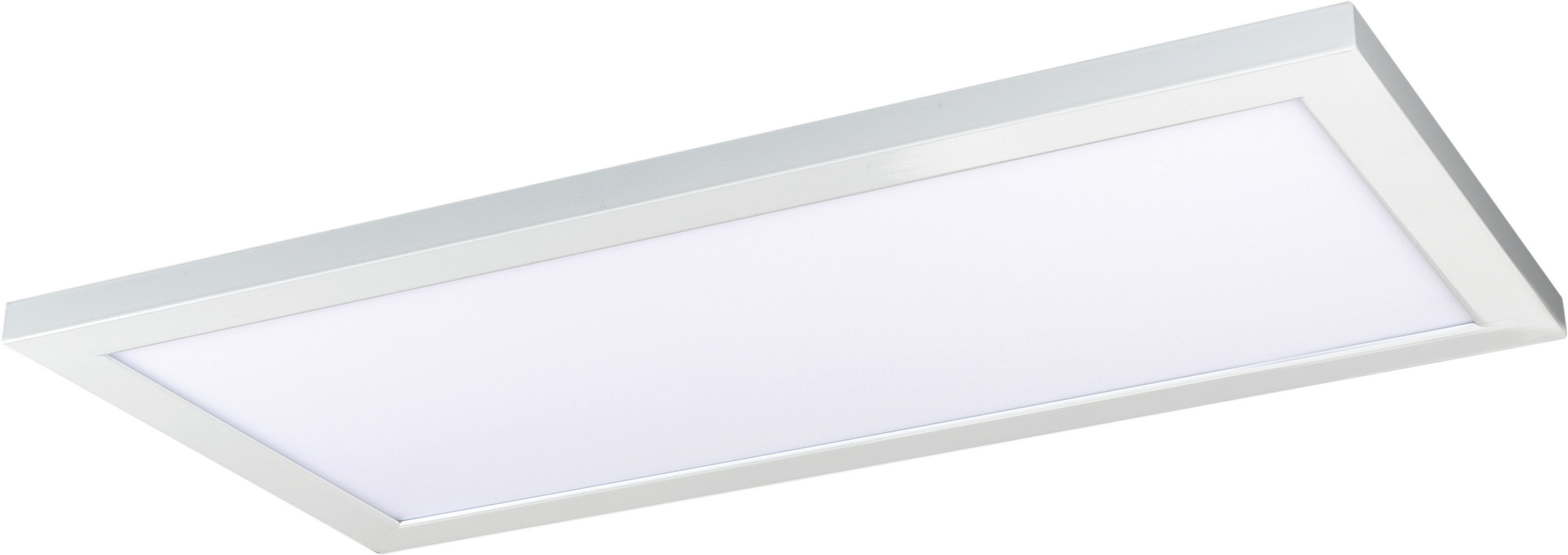

Blink Plus - 22W- 12" x 24" Surface Mount LED - 4000K - White Finish - 120-277V


Satco's 22 watt, linear surface mount LED fixture is an easy to install lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hospitals, offices, and retail spaces with this dimmable, LED surface mount. Low profile, with a sleek white finish, this surface mount delivers 50,000 hours of cool white light.
  • Length: 24.00 inches, Width: 12.00 inches, Height: 0.75 inches
  • White Finish
  • 5 year limited warranty
  • 1900 lumens
  • Dimmable
  • 4000K Cool White Light
  • Superior 90 CRI light quality
  • Rated for 50,000 hours
  • FCC and RoHS compliant
Lights

62-1252

22W/LED/1X2/FLUSH/4K/WH

Blink Plus - 22W- 12" x 24" Surface Mount LED - 4000K - White Finish - 120-277V

Satco's 22 watt, linear surface mount LED fixture is an easy to install lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hospitals, offices, and retail spaces with this dimmable, LED surface mount. Low profile, with a sleek white finish, this surface mount delivers 50,000 hours of cool white light.
  • Length: 24.00 inches, Width: 12.00 inches, Height: 0.75 inches
  • White Finish
  • 5 year limited warranty
  • 1900 lumens
  • Dimmable
  • 4000K Cool White Light
  • Superior 90 CRI light quality
  • Rated for 50,000 hours
  • FCC and RoHS compliant

Specifications

General
StatusDiscontinued
Substitute62-1773
Fixture TypeBLINK Plus
FinishWhite
Wattage22W
Lumen Output1900L
CCT (Kelvin)4000K
Indoor or Outdoor FixtureIndoor
Specifications
TechnologyLED
Wattage22W
Lumen Output1900L
CCT (Kelvin)4000K
Color TemperatureCool White
CRI90
Voltage120V/277V
Rated Hours50000
Operating Temperature-17C (+1.4F) to +45C (+113F)
DimmableYes-Dimmable
Dimming Note120V only
Weight (lb.)5.61
MaterialAluminum
Dimensions
Height (in.)0.75
Width (in.)12
Length (in.)24
Compliance
Safety ListingcETLus - Listed
Location RatingDamp
Energy StarYes
ES Unique IDESID-2291238
DLC ApprovedNo
CA T20 / T24 RationaleCalifornia T24 2016 - 2022 JA8 Listed
California StatusLawful for sale in California
Title 20 / 24 StatusCalifornia T24 Listed
California Prop 65
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Fixture
Additional Information
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923512520
Each Quantity1
Each Length (in.)25.20
Each Width (in.)2.48
Each Height (in.)14.57
Each Weight (lb.)5.90
Each Cube (CuFt.)0.5269
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923512527
Case Quantity4
Case Length (in.)25.67
Case Width (in.)10.71
Case Height (in.)15.24
Case Weight (lb.)25.20
Case Cube (CuFt.)2.4247
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Lutron CTRP-253P Visit
Dimmer Lutron DVRP-253P Visit
Dimmer Lutron NTRP-250 Visit
Dimmer Lutron RRD-PRO Visit
×
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
