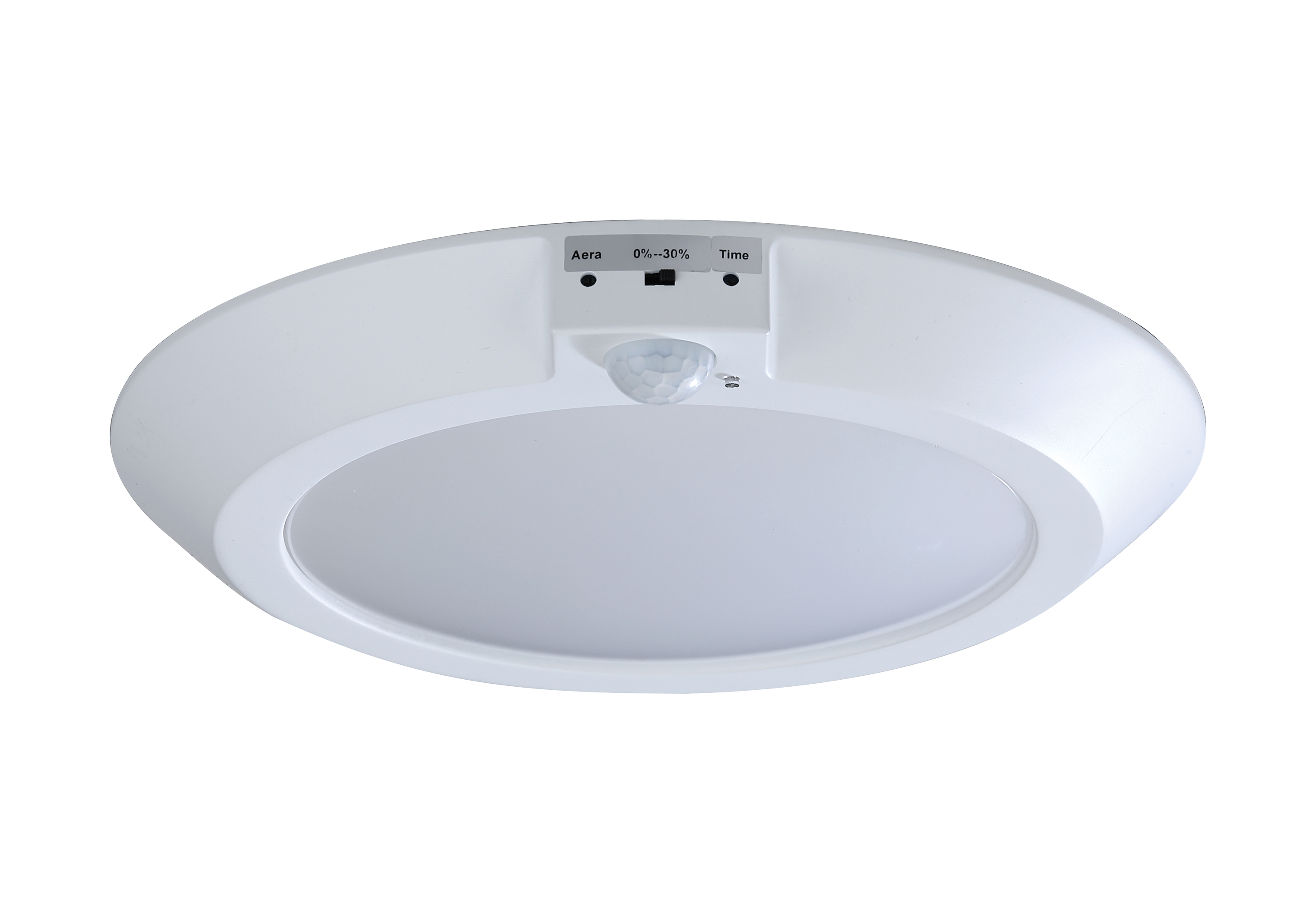

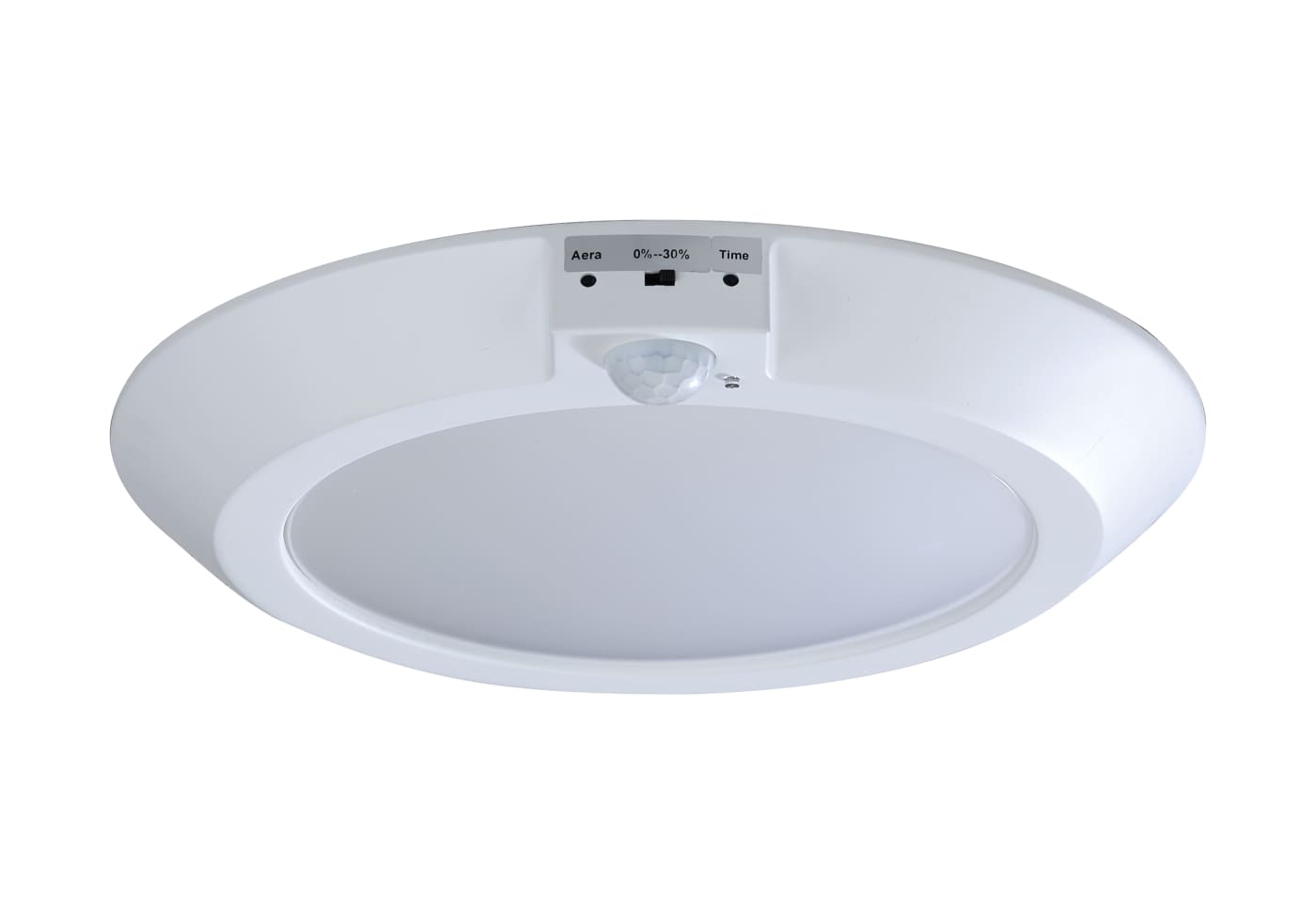

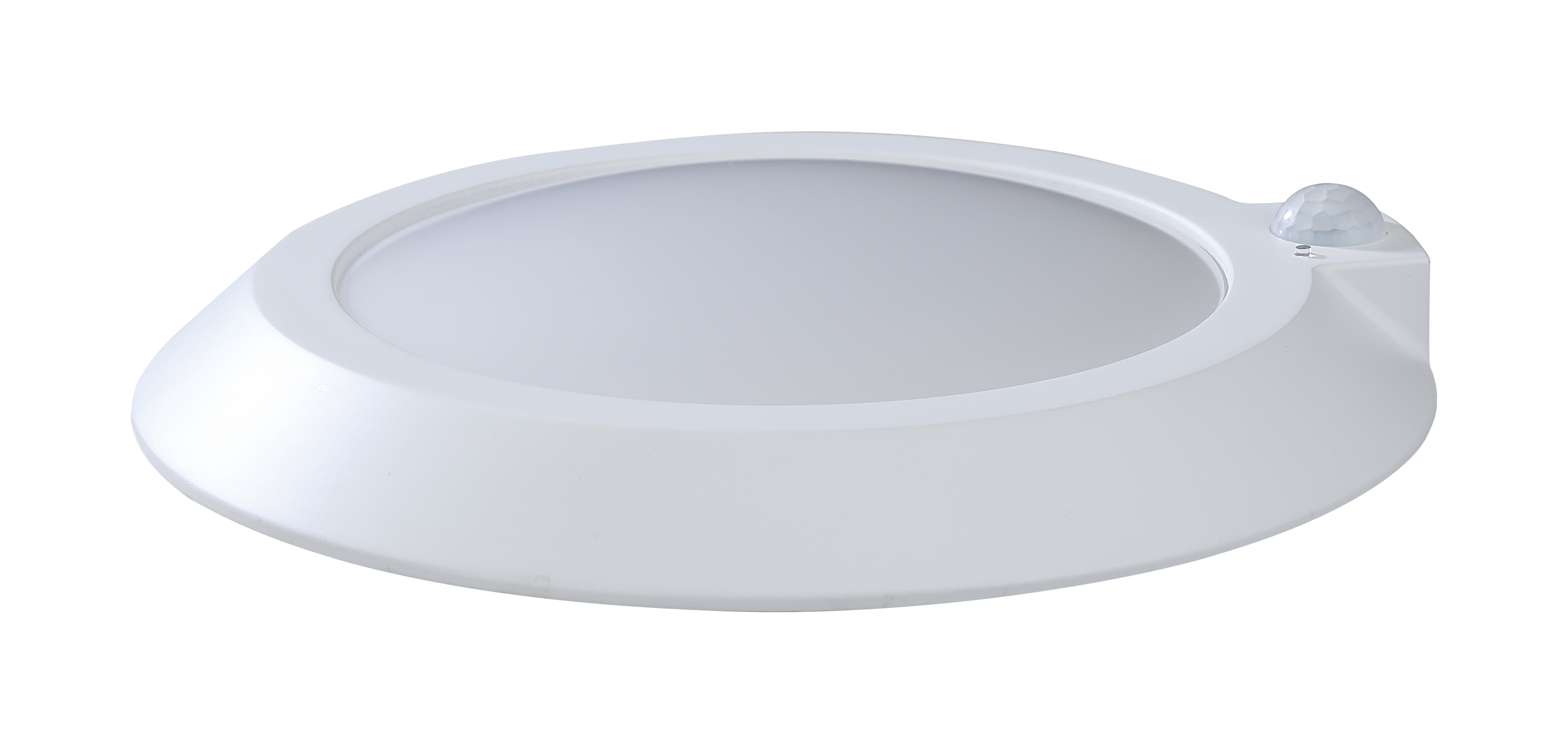

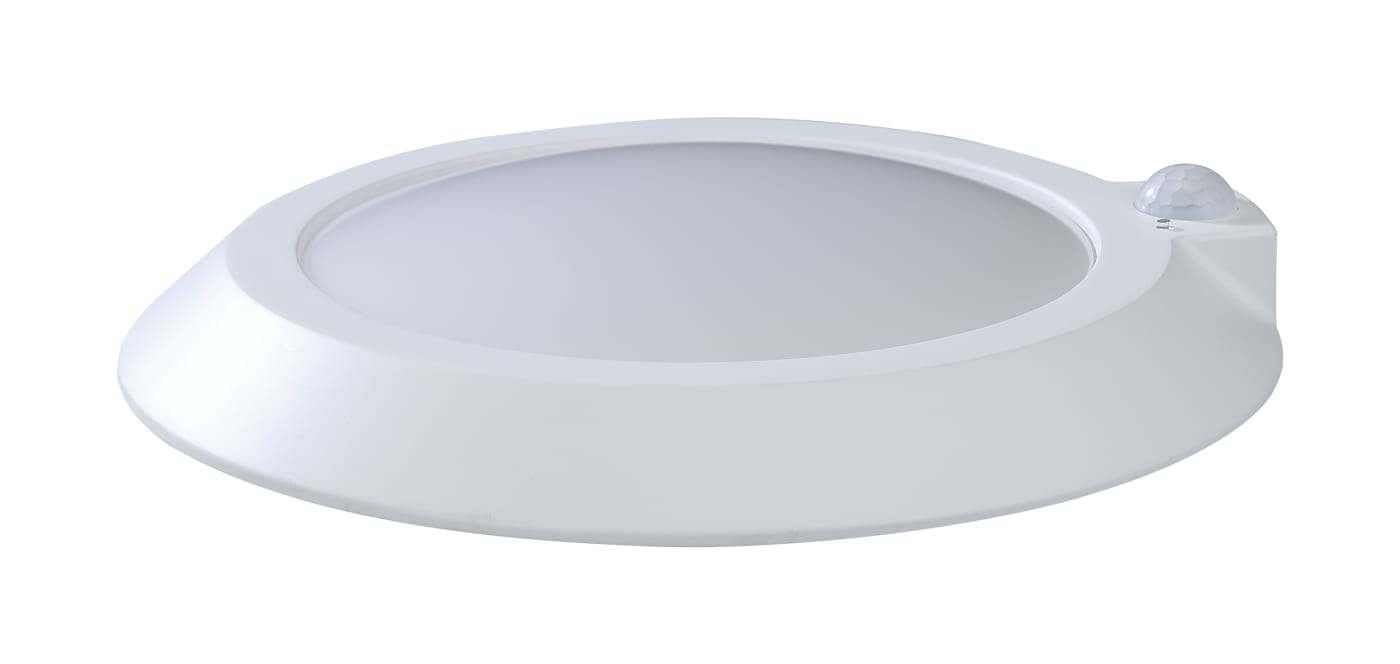

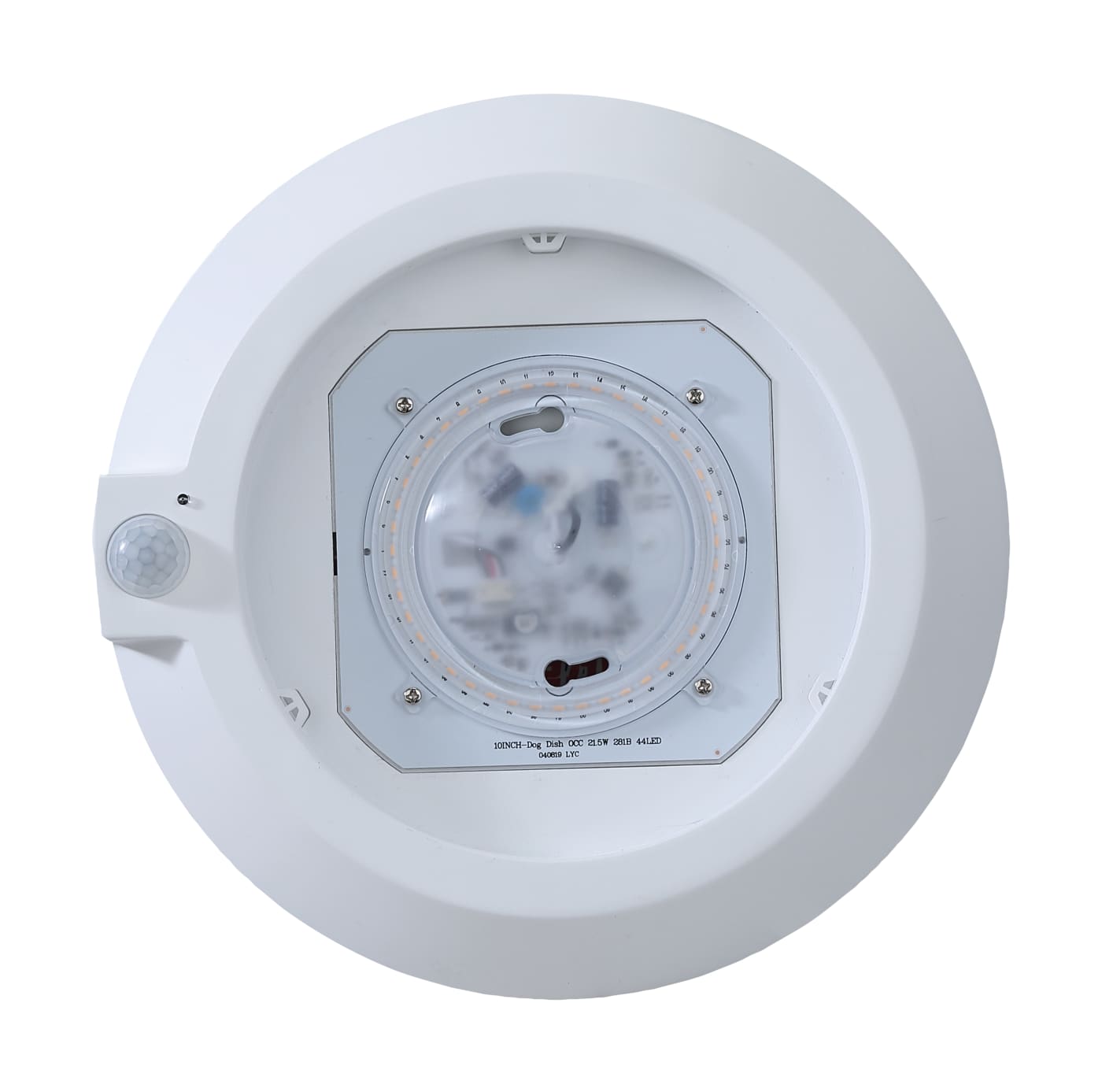

10" LED DISK LIGHT W/ OCC - 62-1311
10" LED DISK LIGHT W/ OCC - 62-1311
10" LED DISK LIGHT W/ OCC - 62-1311
62-1311

10" LED DISK LIGHT W/ OCC

Discontinued - Suggested Replacement: 62-1821R1
  • 10 in.
  • LED Disk Light
  • Fixture with Occupancy Sensor
  • White Finish
  • 3000K
location_rating^damp^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1311 Specifications62-1311 Photometrics 120V.ies62-1311 Instructions.pdf
Tools
Lighting Layout Analysis For 62-1311
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
10 in.; LED Disk Light; Fixture with Occupancy Sensor; White Finish; 3000K
Products Specs
General
CompanyNUVO
Mounting Height0.4
Mounting Length4.0
Mounting Width0.9
Bulb IncludedIntegrated
Diameter10.0
Dimmable TextBi-Level Dimmable
MaterialDie-cast Aluminum
Fixture TypeDisk Light
StatusObsolete
StyleContemporary
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Amps0.179A
Has CameraNo
IOT EnabledNo
Lens FinishMatte
Lens MaterialAcrylic
Photo CellHas Occupancy Sensor
Power Factor0.97
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Color TempWarm White
CRI90+
Dimming TypeBi-Level Dimmable
Operating Frequency60Hz
Operating Temp-17C (+1.4F) to +46C (+114.8F)
Lumens1200L
Volts120v
Watts21.5W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantYes
Packaging
UPC045923682292
Case Cube1.2919
Case Height10.63
Case Length20.67
Case Quantity12
Case UPC10045923682299
Case Weight19.2
Case Width10.16
EA Cube0.0916
EA Height10.04
EA Length10.04
EA Quantity1
EA Weight1.6
EA Width1.57
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeColor Box
Web Height1.31
Web Width10.0
