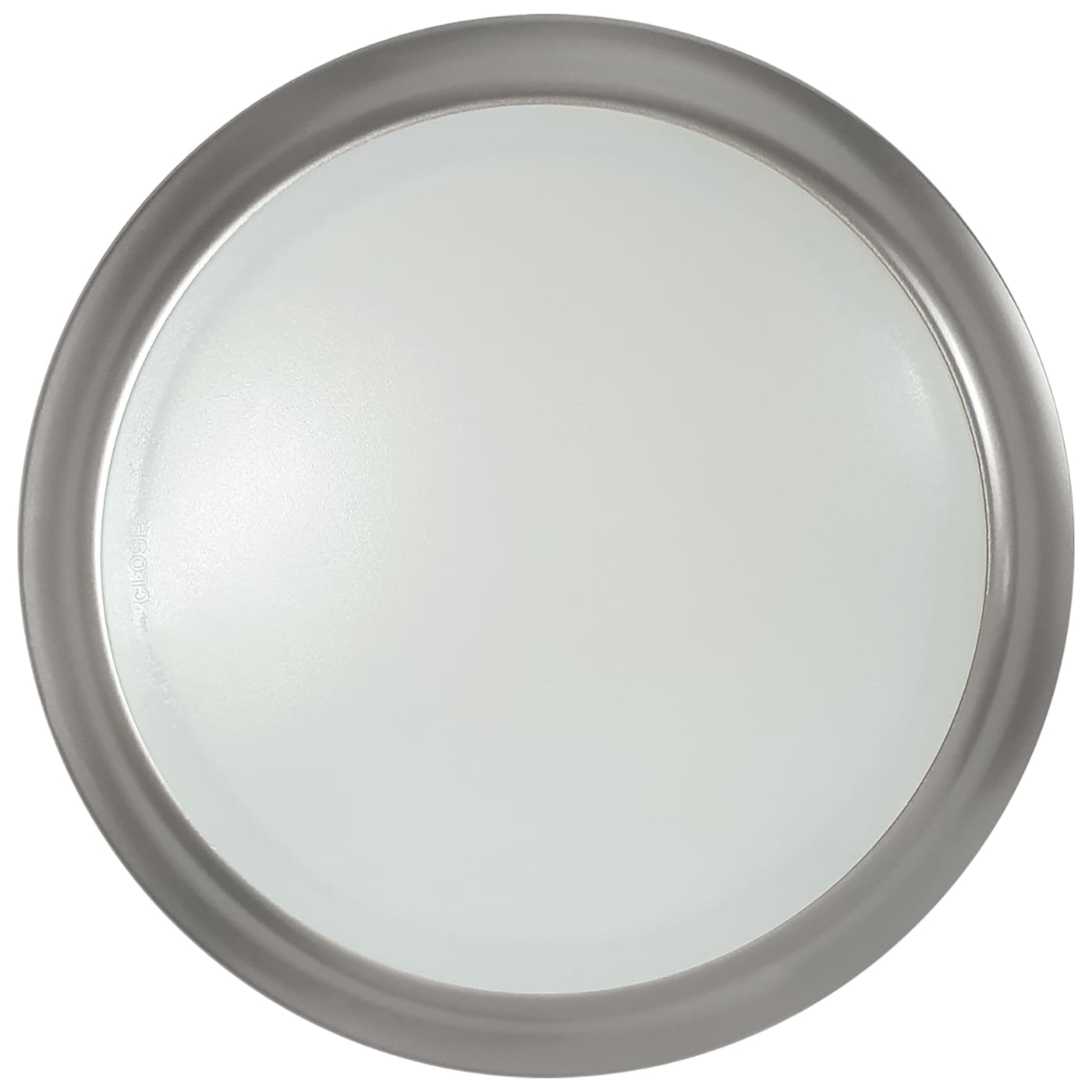

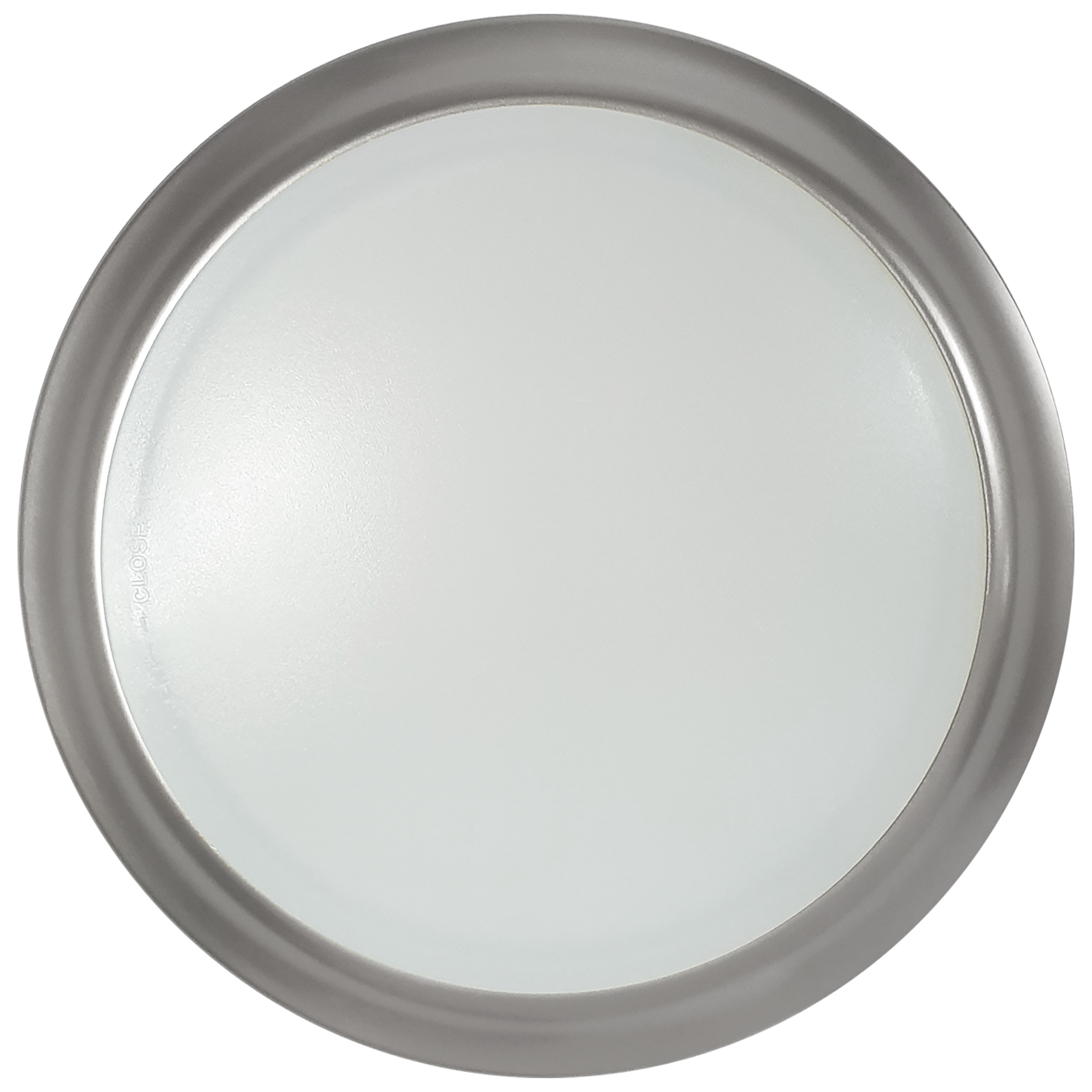

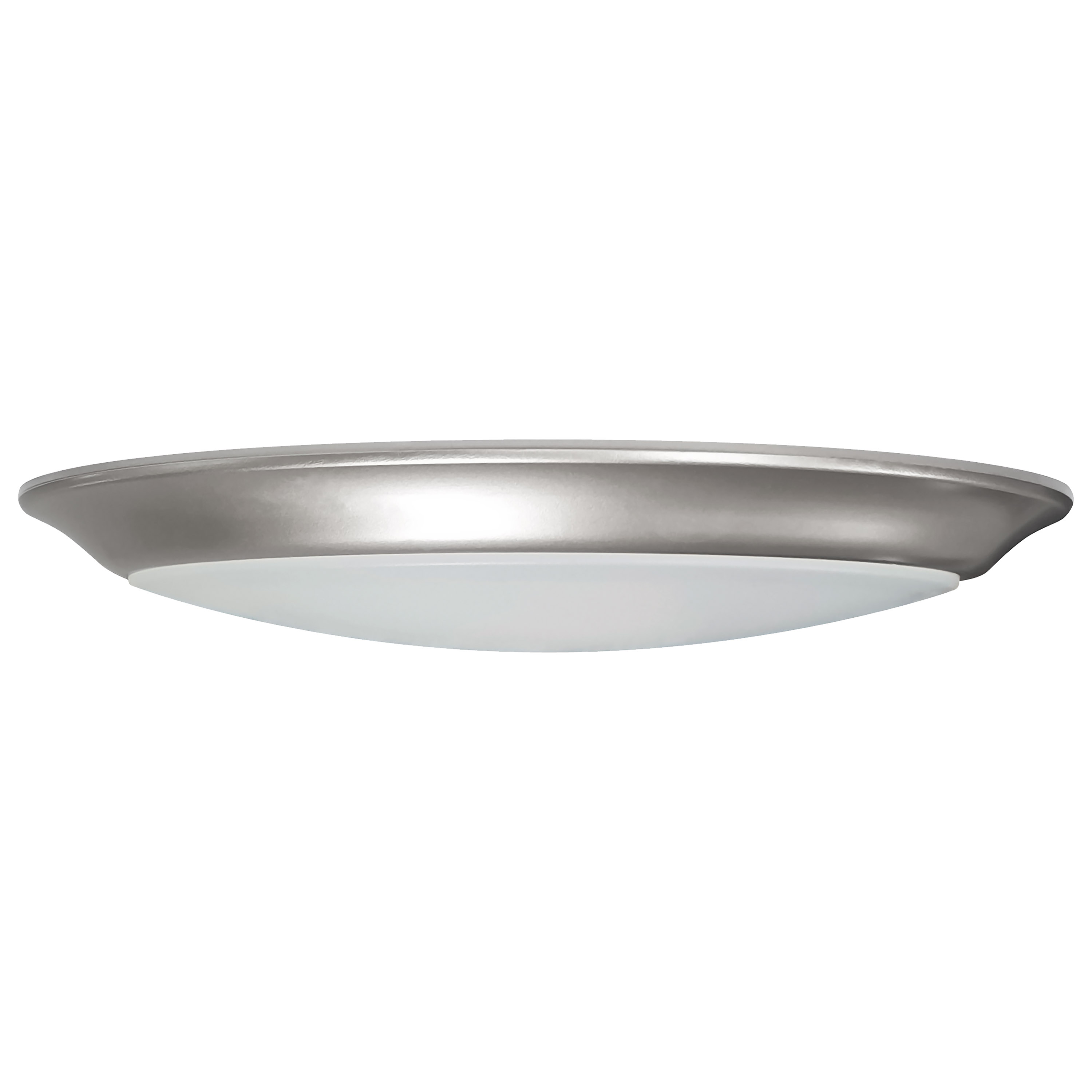

10" LED DISK LIGHT BN FINISH - 62-1675
10" LED DISK LIGHT BN FINISH - 62-1675
10" LED DISK LIGHT BN FINISH - 62-1675
62-1675

10" LED DISK LIGHT BN FINISH

Discontinued - Suggested Replacement: 62-1812R1
  • 10 inch
  • LED Disk Light

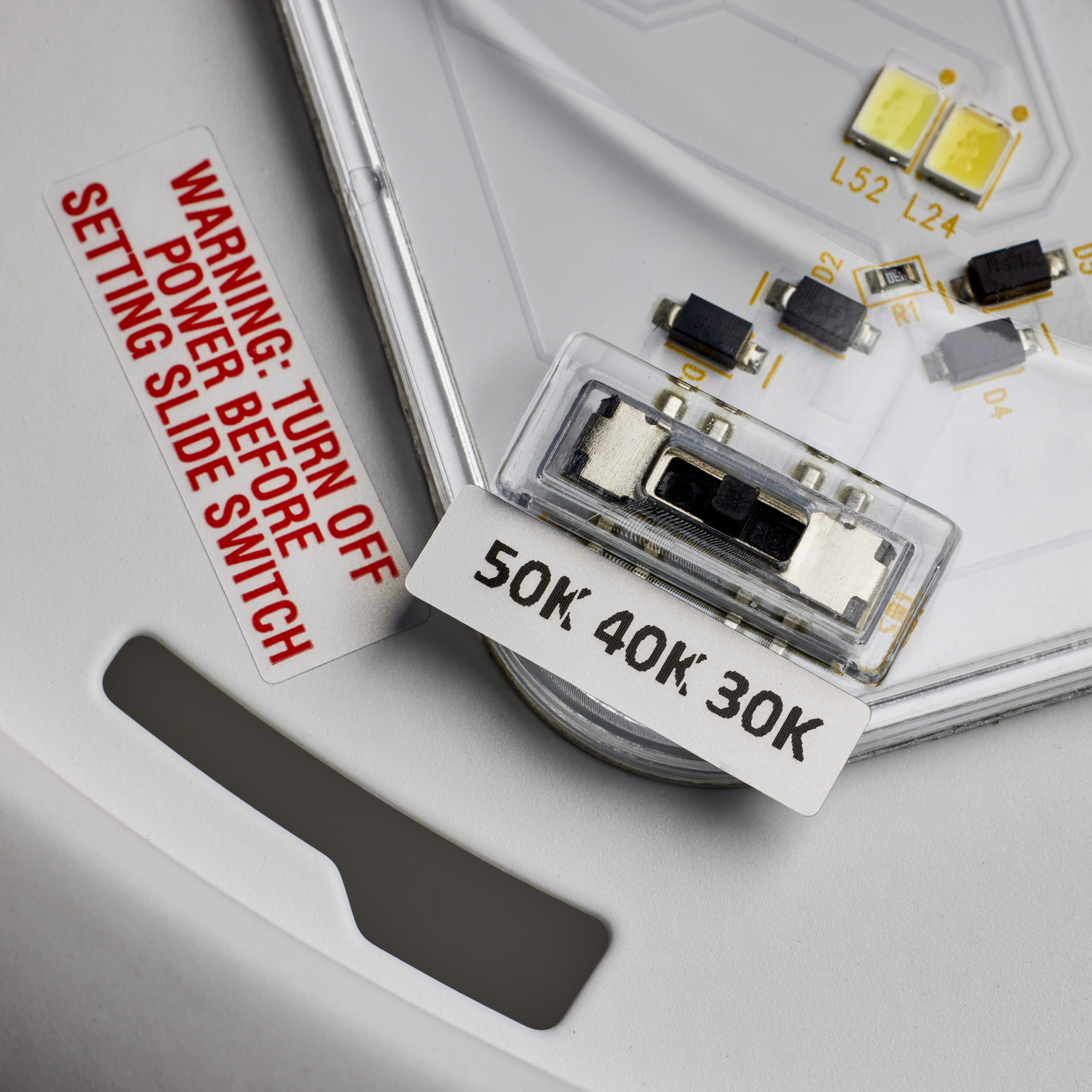

  • CCT Selectable 3K/4K/5K
  • Brushed Nickel Finish
cc_selectable^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^3_years^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1675 Specifications62-1675 Instructions Crossbar A.pdf62-1675 Instructions Crossbar B.pdf
Description
Description
Satco's new LED Disk Light fixtures are the perfect choice for adding cost effective, energy-efficient lighting to a variety of areas in your home. Sku 62-1675 features a 10 inch diameter, 3K/4K/5K CCT selectability all in a traditional brushed nickel finish. NEC compliant and wet location rated, the Satco LED Disk Light fixtures are truly an all-purpose lighting solution.
Products Specs
General
Generational SKU62-1812R1
CompanyNUVO
Bulb IncludedIntegrated
Diameter9.49
Shade FinishFrosted
MaterialSteel
Fixture TypeDisk Light
Product Notes3000K = 1120L; 4000K = 1220L; 5000K = 1160L
StatusDiscontinued
StyleTransitional
Surge ProtectionBuilt-in surge protection - 2.5KV
CCT SelectableYes
Wattage SelectableNo
Finish FamilyNickel
Amps0.133A
Has CameraNo
IOT EnabledNo
Lens MaterialAcrylic
Power Factor0.92
SDS ClassLED_Fixture
Sloped Ceiling CompatibleYes
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm to Cool White
CRI90+
Dimming TypeReverse Phase
Operating Frequency60Hz
Operating Temp-31F to +122F (-35C to +50C)
Lumens1120L-1220L
Volts120v
Watts16W
Max Lumens1220L
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishBrushed Nickel
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Mounting ProcedureCeiling
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingWet
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923616754
Case Cube1.3877
Case Height11.02
Case Length20.47
Case Quantity12
Case UPC10045923616751
Case Weight18.72
Case Width10.63
EA Cube0.0992
EA Height9.84
EA Length1.77
EA Quantity1
EA Weight1.36
EA Width9.84
Pack TypeBox
Web Height1.28
Web Width9.49
