» 62-1705

62-1705 BLINK 9W LED 5

62-1705

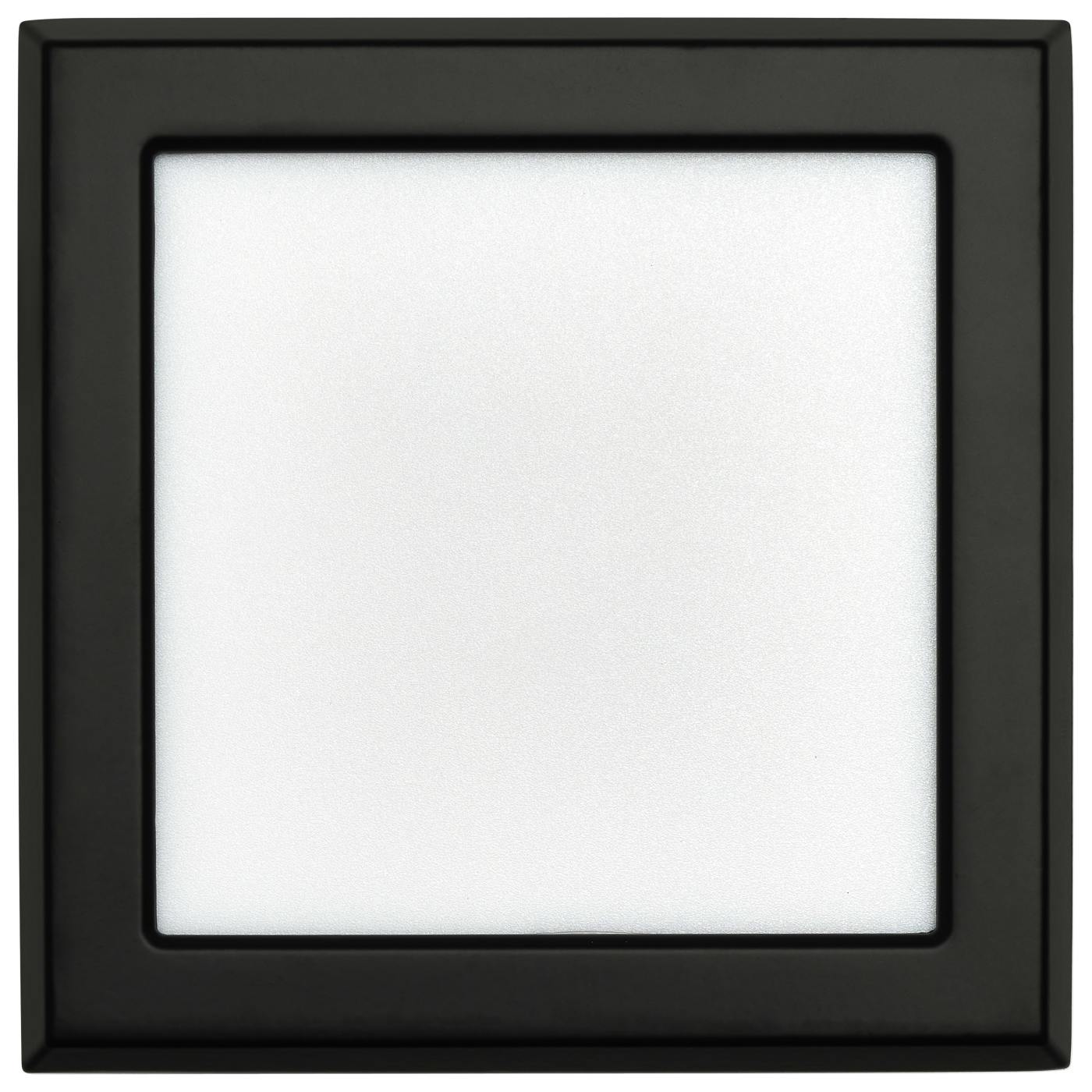

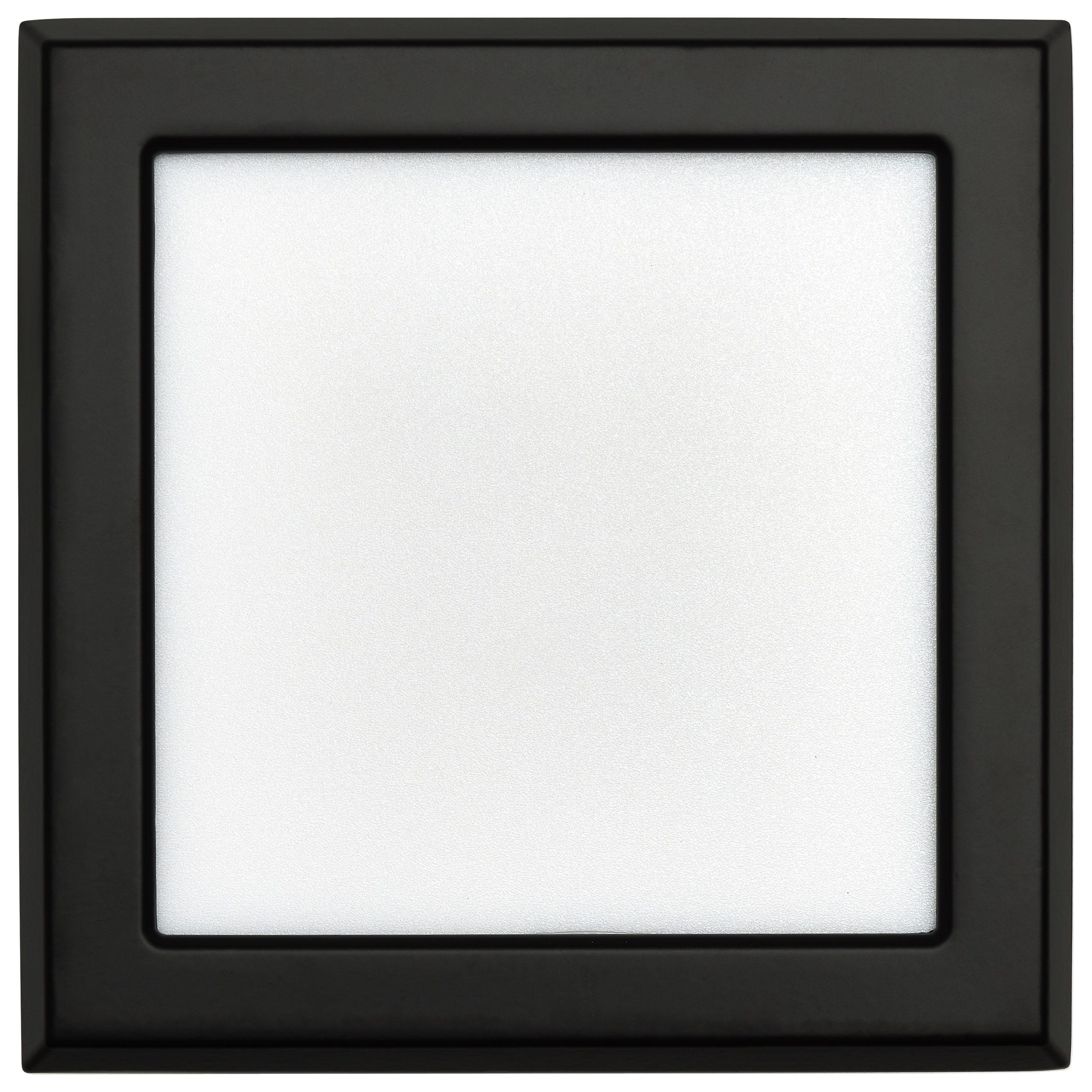

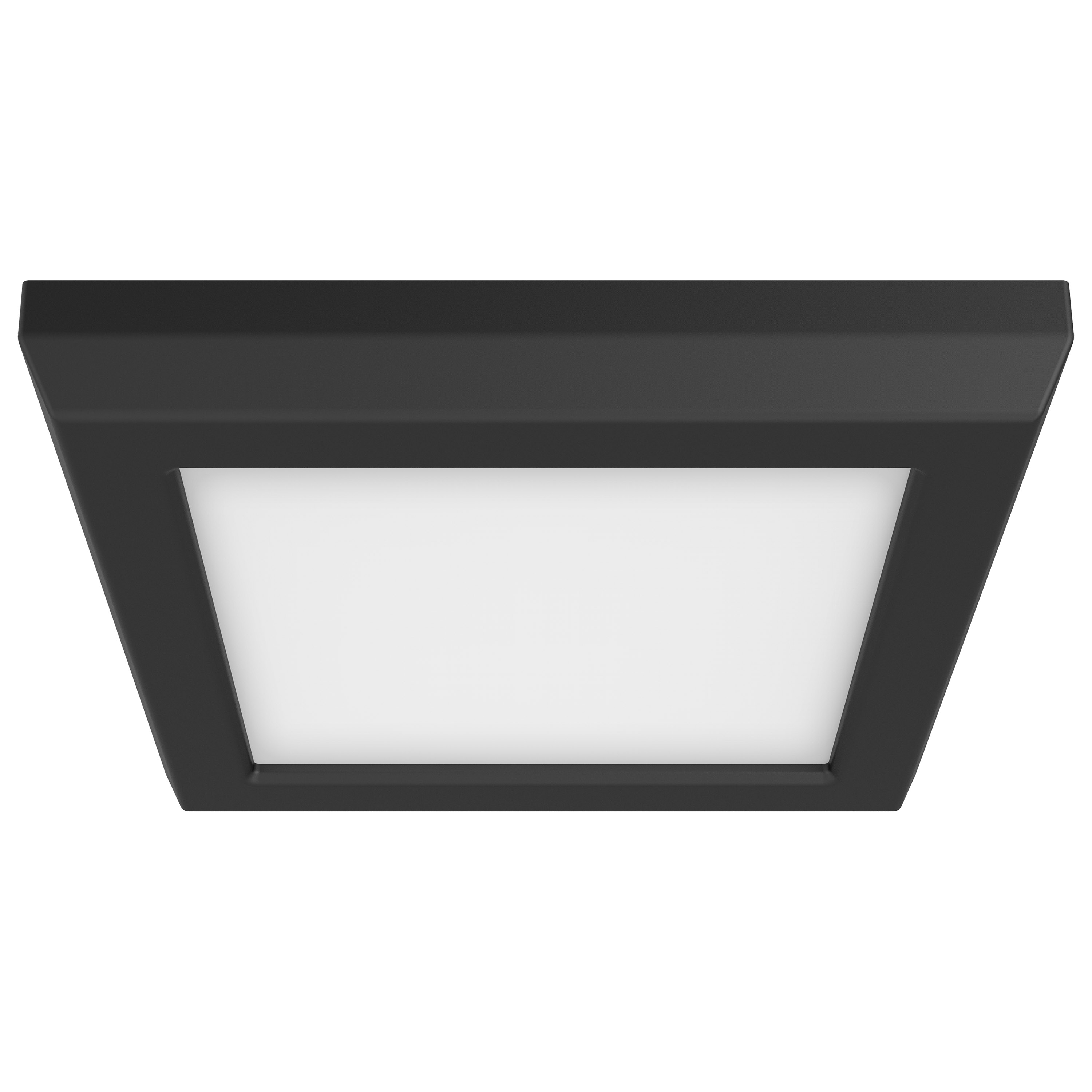

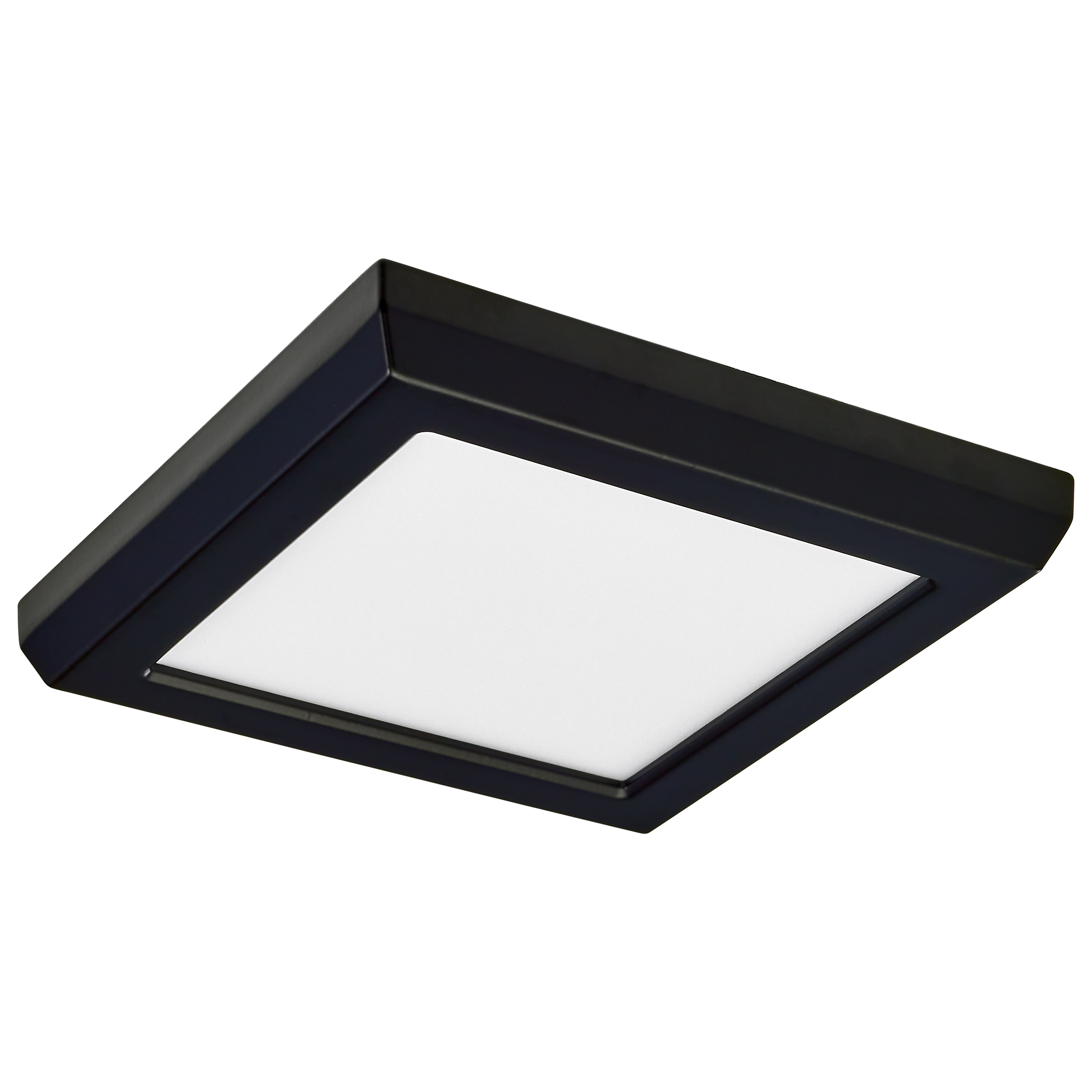

BLINK 9W LED 5" SQ BLACK

Blink Pro - 9W; 5in; LED Fixture; CCT Selectable; Square Shape; Black Finish; 120V


From designer aesthetics to state-of-the-art technology, BLINK's ENERGY STAR certified fixtures embody this concept entirely. The sleek, low-profile style features die-cast construction, and is CCT selectable, with five preset options from warm to natural light. BLINK Pro is the ideal fixture for installations where space is at a premium. The Pro series of fixtures are available in round and square, come in four finishes (white, black, bronze, and brushed nickel), and are offered in 5, 7 and 9 inch sizes, choose the best fit for your needs. The BLINK Pro series is perfect for corridors, closets, kitchens, bathrooms, bedrooms, even use outdoors as they are wet location certified for applications with a closed ceiling. All products feature a robust driver for enhanced surge protection, flicker free operation, smooth dimming and providing years of trouble-free operation.
  • Integrated LED featuring 9 watts, CCT Selectable from warm to natural light, 90 CRI
  • Fixture is dimmable, selectable from 600 to 680 lumens, with a beam spread of 100
  • 5 inch Length x 5 inch Width x 0.67 inch Height

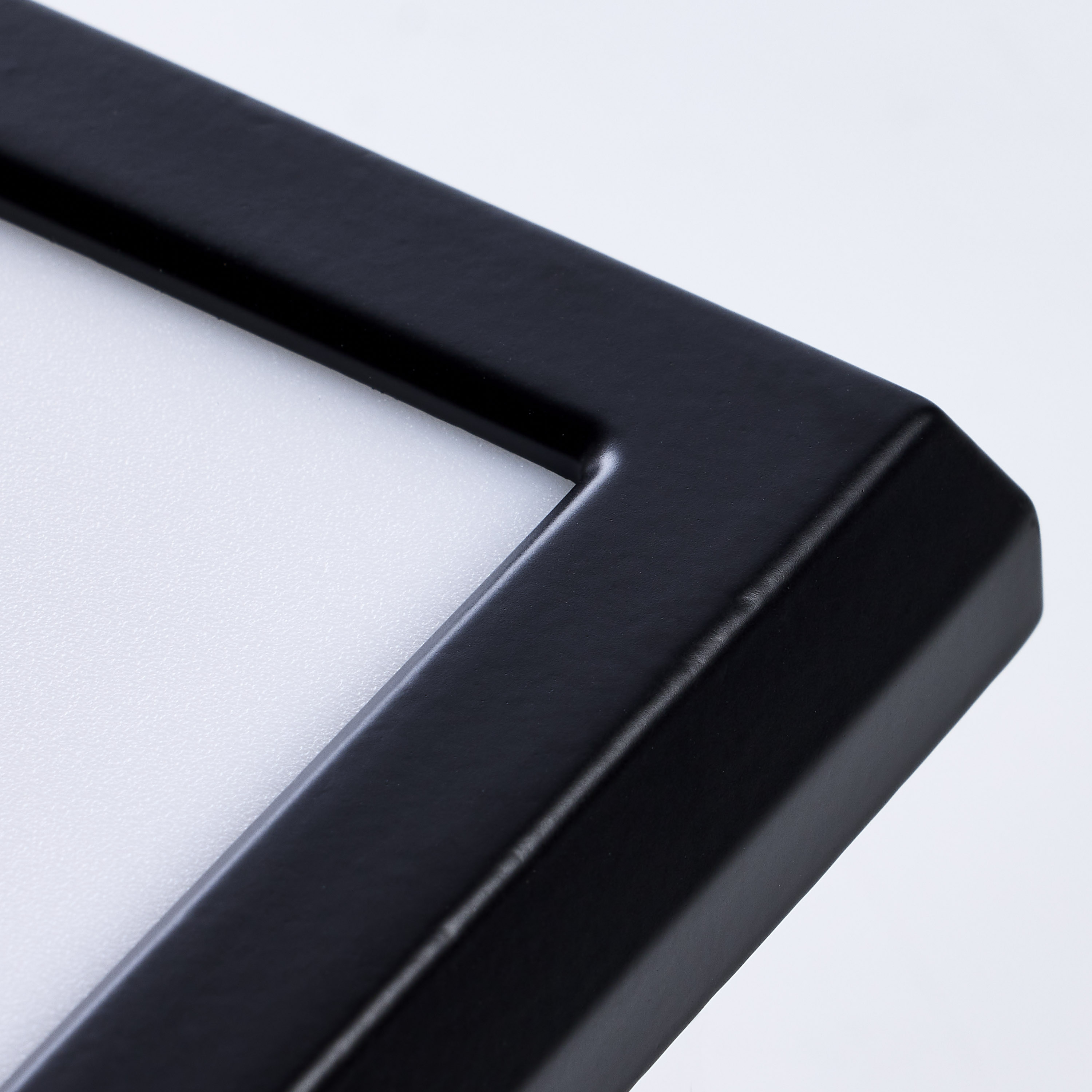

  • Black Finish with Acrylic Panel
  • Closet rated with zero clearance from storage material
  • Ideal for corridors, closets, kitchens, bathrooms, bedrooms, including outdoors as they are wet location rated with closed ceiling applications
  • Rated for 50,000 hours
  • 5 Year Warranty
  • Visit Satco.com for optional accessories: 5 inch square extension collar; White - 25-1704, Black - 25-1705, Bronze - 25-1706
Lights

62-1705

BLINK 9W LED 5" SQ BLACK

Blink Pro - 9W; 5in; LED Fixture; CCT Selectable; Square Shape; Black Finish; 120V

From designer aesthetics to state-of-the-art technology, BLINK's ENERGY STAR certified fixtures embody this concept entirely. The sleek, low-profile style features die-cast construction, and is CCT selectable, with five preset options from warm to natural light. BLINK Pro is the ideal fixture for installations where space is at a premium. The Pro series of fixtures are available in round and square, come in four finishes (white, black, bronze, and brushed nickel), and are offered in 5, 7 and 9 inch sizes, choose the best fit for your needs. The BLINK Pro series is perfect for corridors, closets, kitchens, bathrooms, bedrooms, even use outdoors as they are wet location certified for applications with a closed ceiling. All products feature a robust driver for enhanced surge protection, flicker free operation, smooth dimming and providing years of trouble-free operation.
  • Integrated LED featuring 9 watts, CCT Selectable from warm to natural light, 90 CRI
  • Fixture is dimmable, selectable from 600 to 680 lumens, with a beam spread of 100
  • 5 inch Length x 5 inch Width x 0.67 inch Height
  • Black Finish with Acrylic Panel
  • Closet rated with zero clearance from storage material
  • Ideal for corridors, closets, kitchens, bathrooms, bedrooms, including outdoors as they are wet location rated with closed ceiling applications
  • Rated for 50,000 hours
  • 5 Year Warranty
  • Visit Satco.com for optional accessories: 5 inch square extension collar; White - 25-1704, Black - 25-1705, Bronze - 25-1706

Specifications

General
StatusActive
Fixture TypeFlush Mount
FinishBlack
Wattage9W
Lumen Output600L-680L

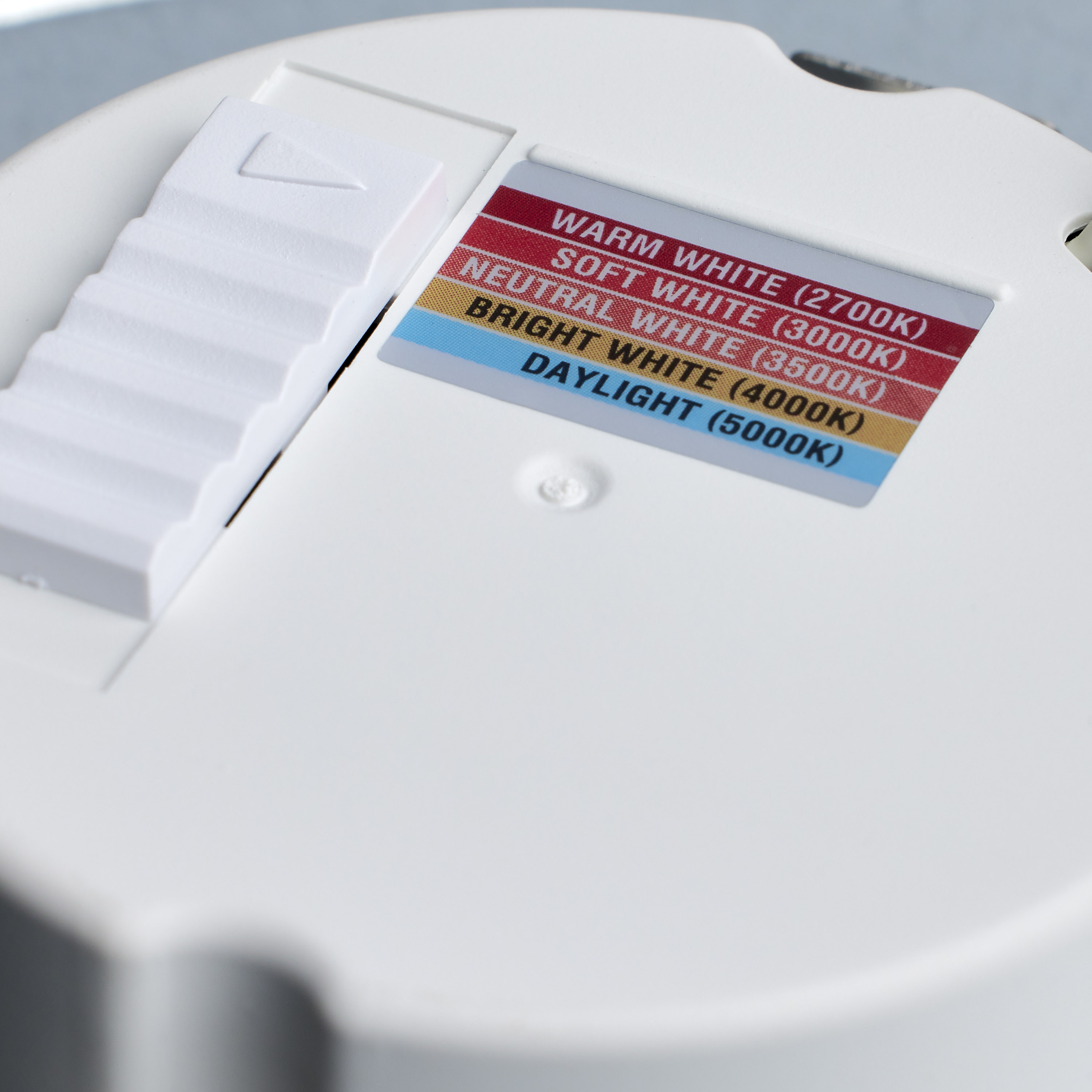

CCT (Kelvin)2700K/3000K/3500K/4000K/5000K
Indoor or Outdoor FixtureIndoor
Specifications
TechnologyLED
Wattage9W
Lumen Output600L-680L
CCT (Kelvin)2700K/3000K/3500K/4000K/5000K
Color TemperatureWarm White to Natural Light
CRI90
Voltage120V
Beam Angle100
Rated Hours50000
Operating Temperature-20C (-4F) to +40C (+104F)
DimmableYes-Dimmable
Dimming Note120V only
Lens MaterialPoly methyl methacrylate (PMMA)
Surge ProtectionBuilt-in surge protection - 2.5KV
Weight (lb.)0.69
MaterialDie-cast Aluminum

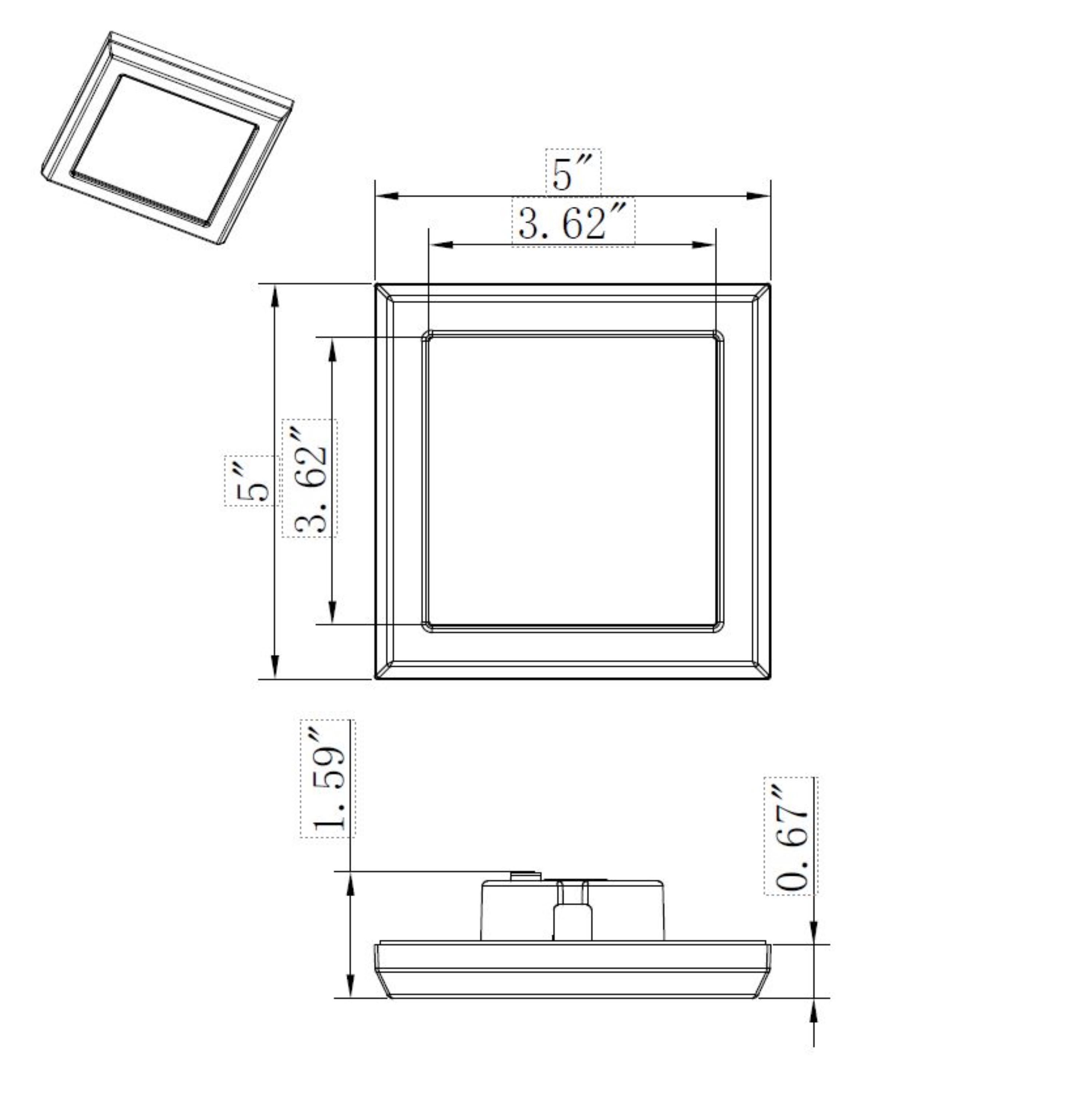

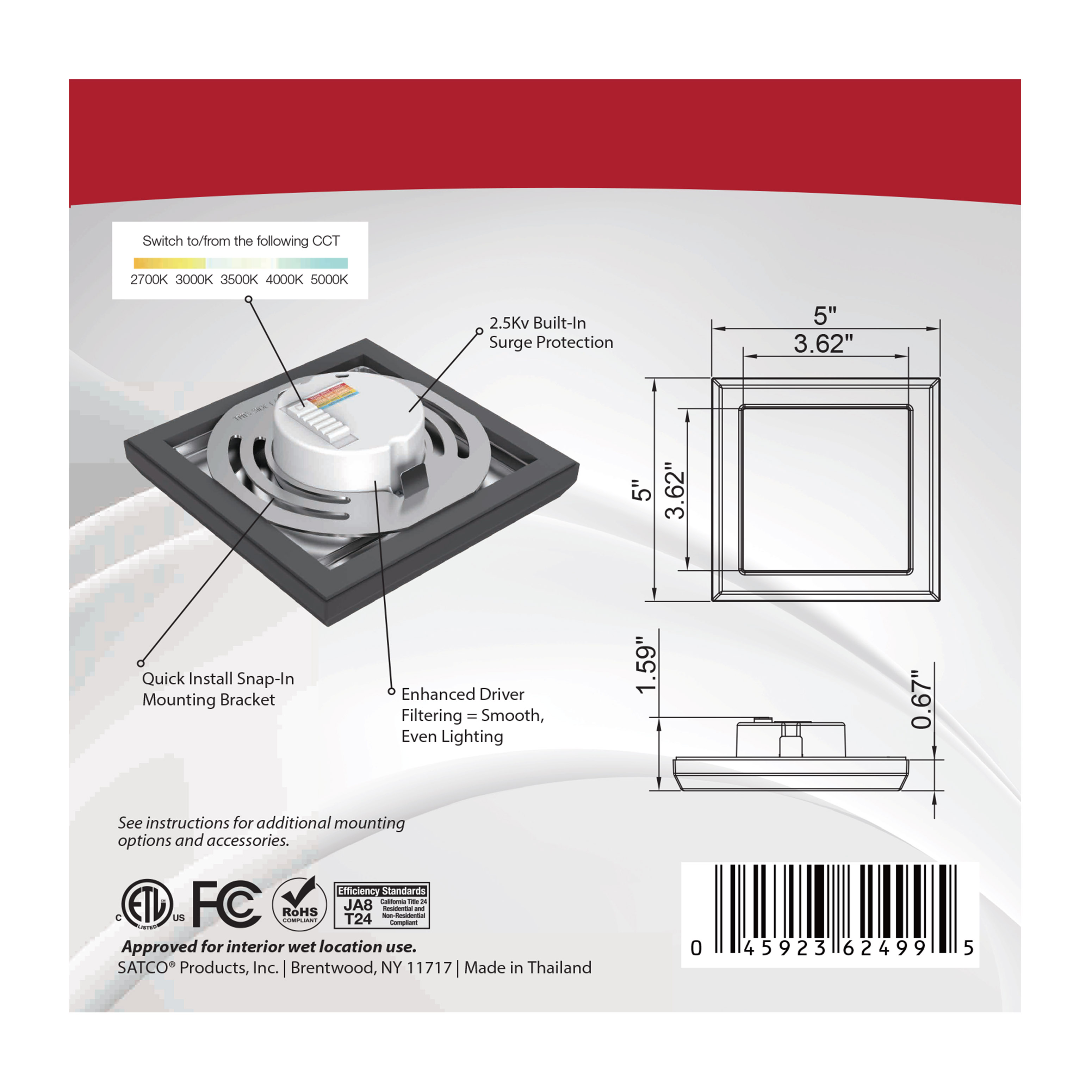

Dimensions
Height (in.)0.67
Width (in.)5
Length (in.)5
Compliance
Safety ListingcETLus
Location RatingWet
Energy StarYes
ES Unique IDESID-2402969
DLC ApprovedNo
CA T20 / T24 RationaleCalifornia T24 2016 - 2022 JA8 Listed
Title 20 / 24 StatusCalifornia T24 Listed
California Prop 65
RoHS CompliantYes
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
FCC CompliantYes
Flicker FreeNo
SDS SheetLED Fixture
Additional Information
Additional InformationUGR - 28.05; SDCM - 464; Hi pot - DC-1550V; Edge-lit - Yes
Specification NoteOverall height of fixture and driver: 1.59"

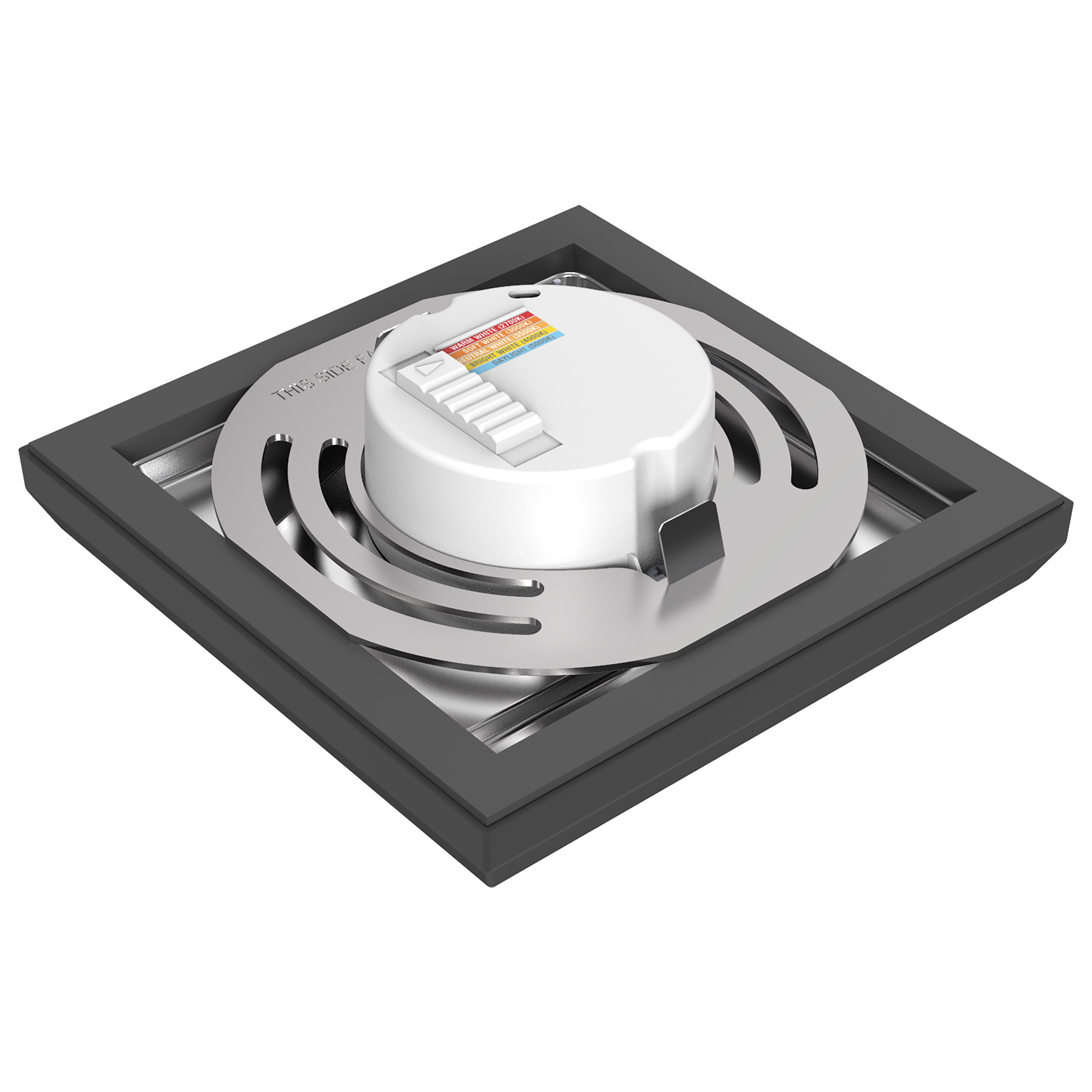

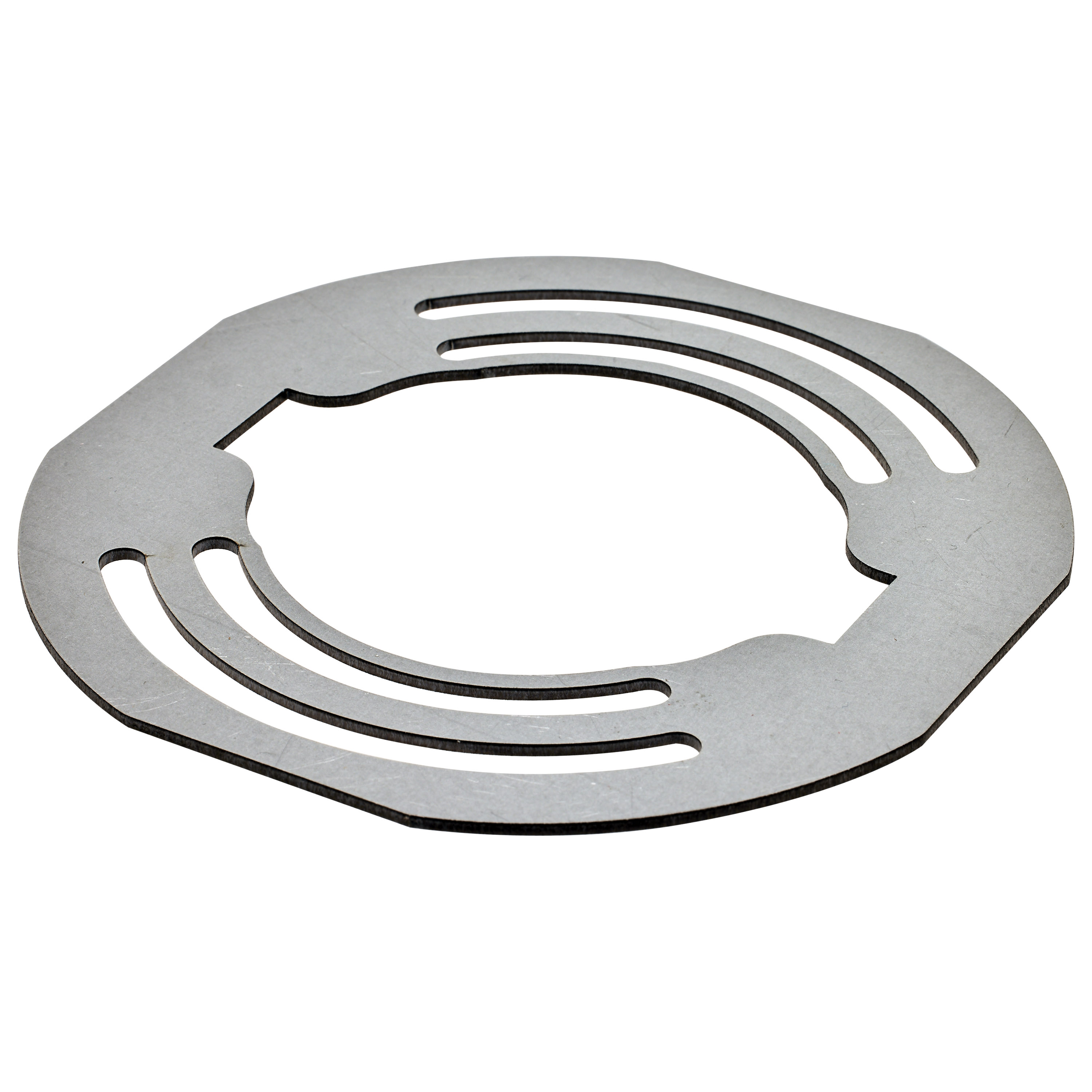

Installation NotesSurface mount; Compatible with 3"&4" J-box and pancake J-box with additional accessory
Warranty5 Year Limited - Fixtures
Packaging
Each UPC045923624995
Each Quantity1
Each Length (in.)5.20
Each Width (in.)1.81
Each Height (in.)5.20
Each Weight (lb.)0.77
Each Cube (CuFt.)0.0283
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923624992
Case Quantity12
Case Length (in.)11.81
Case Width (in.)11.02
Case Height (in.)5.91
Case Weight (lb.)8.94
Case Cube (CuFt.)0.4451
×

Dimmer Compatibility

Type Brand Model Number Website
Dimmer Leviton 6672 Visit
Dimmer Leviton 6674 Visit
Dimmer Satco 86/103 Visit
Dimmer LeGrand ADTP703TU Visit
Dimmer Lutron AYCL-153P Visit
Dimmer Lutron AYCL-253P Visit
Dimmer Lutron CTCL-153P Visit
Dimmer Lutron CTRP-253P Visit
Dimmer Eaton DAL06P-C2 Visit
Dimmer Leviton DDMX1 Visit
Dimmer Leviton DSE06-10Z Visit
Dimmer Leviton DSL06 Visit
Dimmer Leviton DSL06-1LZ Visit
Dimmer Leviton DSM10 Visit
Dimmer Eaton DUL06P-C2 Visit
Dimmer Lutron DVCL-153P Visit
Dimmer Lutron DVCL-253P Visit
Dimmer Lutron DVRP-253P Visit
Dimmer Lutron HQRA-PRO Visit
Dimmer Lutron HQRD-10D Visit
Dimmer Lutron HQRD-10NBD Visit
Dimmer Lutron HQRD-6ND Visit
Dimmer Lutron HQRD-HN6BRL Visit
Dimmer Lutron HQRD-PRO Visit
Dimmer Lutron HRST-PRO-N Visit
Dimmer Leviton IPE04-1L Visit
Dimmer Leviton IPL06 Visit
Dimmer Lutron LECL-153P Visit
Dimmer Lutron MA-PRO Visit
Dimmer Lutron MACL-153M Visit
Dimmer Lutron MACL-LFQ Visit
Dimmer Lutron MSCL-OP153M Visit
Dimmer Lutron NTCL-250 Visit
Dimmer Lutron NTRP-250 Visit
Dimmer Lutron PD-10NXD Visit
Dimmer Lutron PD-6WCL Visit
Dimmer Lutron RCL-153PNL Visit
Dimmer Eaton RF9640-ND Visit
Dimmer Legrand RHCL450PTC Visit
Dimmer Lutron RRD-10D Visit
Dimmer Lutron RRD-6CL Visit
Dimmer Lutron RRD-6ND Visit
Dimmer Lutron RRD-H6BRL Visit
Dimmer Lutron RRD-PRO Visit
Dimmer Lutron RRST-PRO-N Visit
Dimmer Satco S11268 Visit
Dimmer Eaton SAL06P Visit
Dimmer Lutron SCL-153P Visit
Dimmer Lutron ST-PRO-N Visit
Dimmer Lutron STCL-153M Visit
Dimmer Eaton SUF7 Visit
Dimmer Eaton TAL06P-C2 Visit
Dimmer Lutron TGCL-153PH Visit
Dimmer Leviton TSL06 Visit
Dimmer Leviton TSM10 Visit
Dimmer Lutron TTCL-100H Visit
Dimmer Eaton VSUL06D Visit
×
×

Precautions

No precautions available at this time.

×
California Prop 65 Warnings
Material Warning
Lead WARNING: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm.
