62-1785

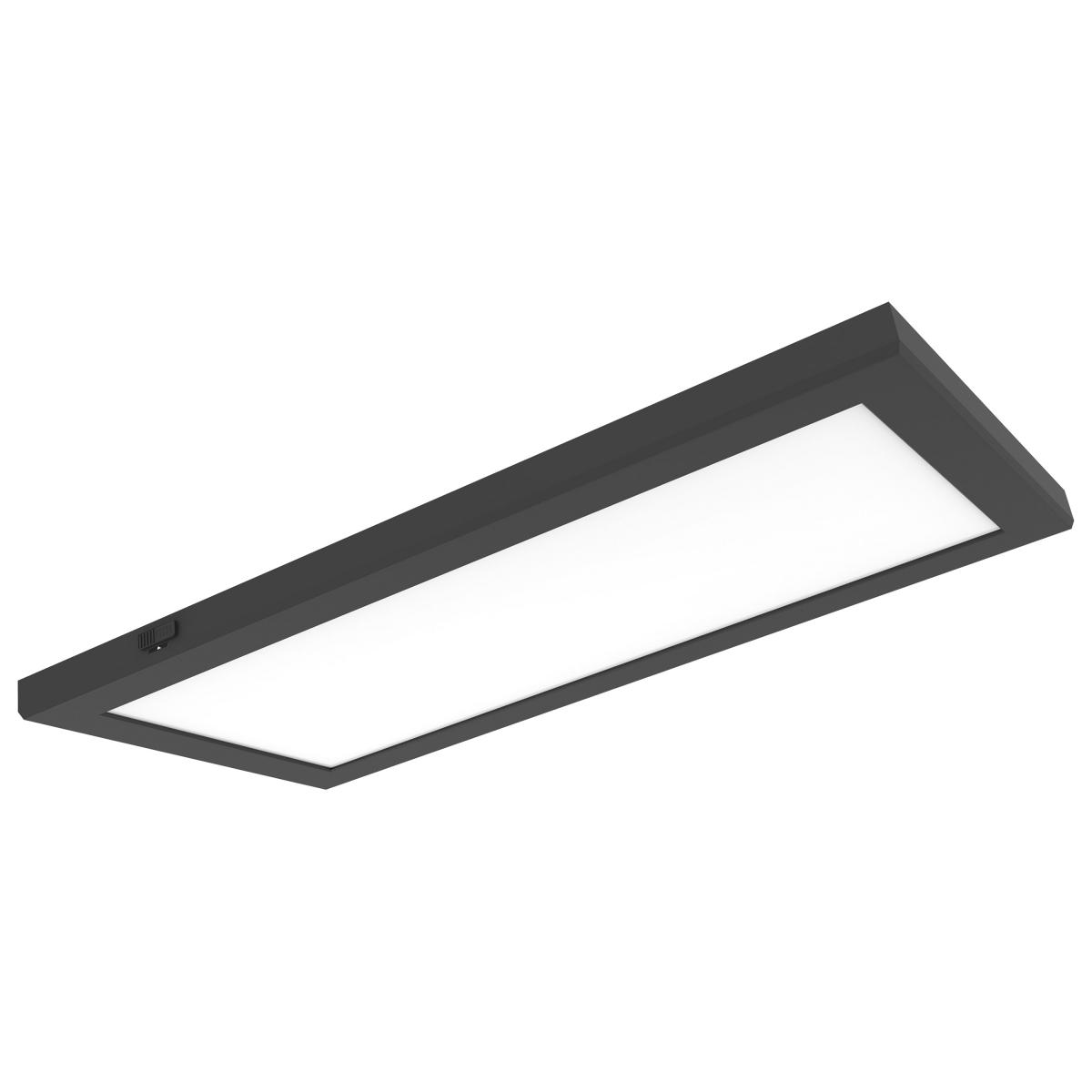

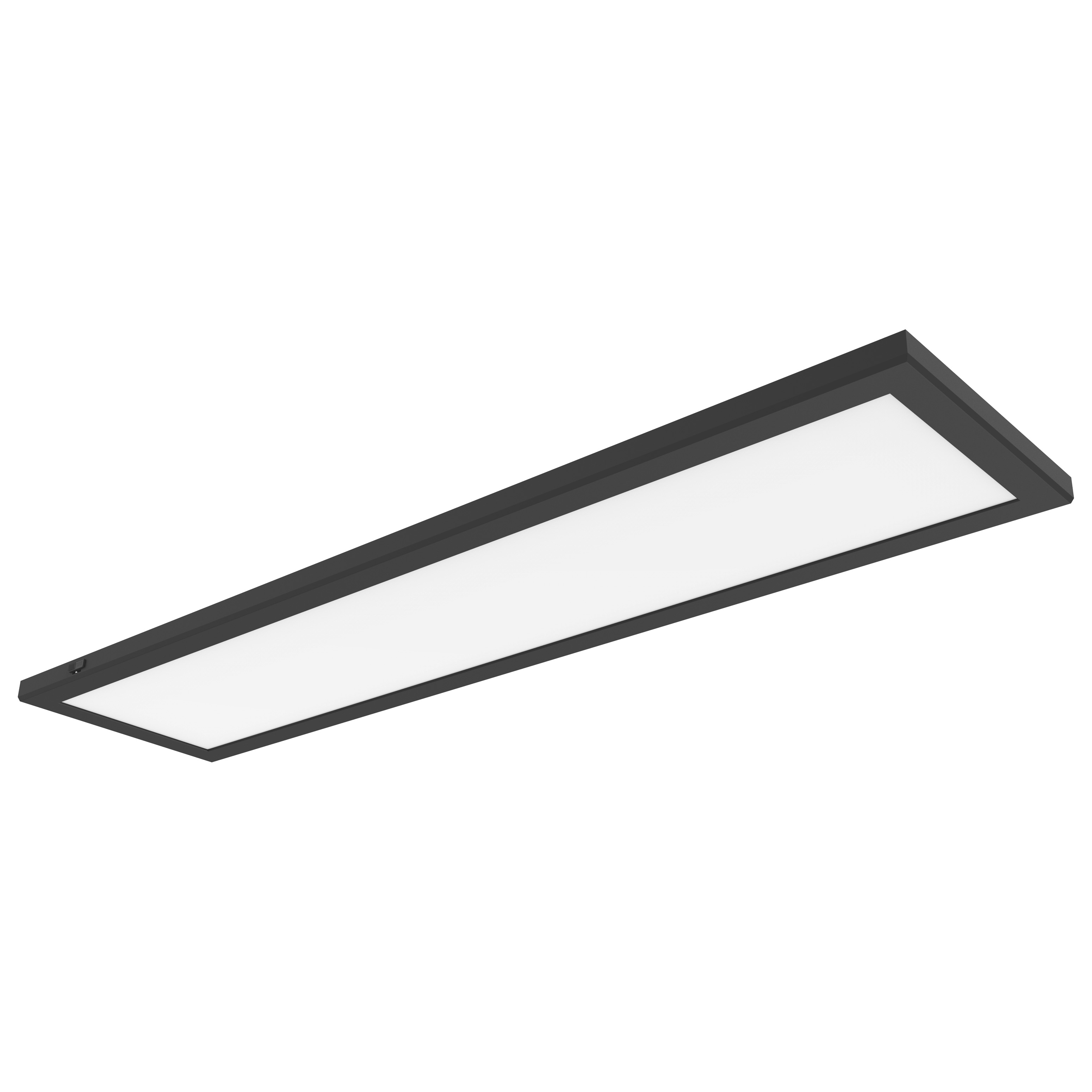

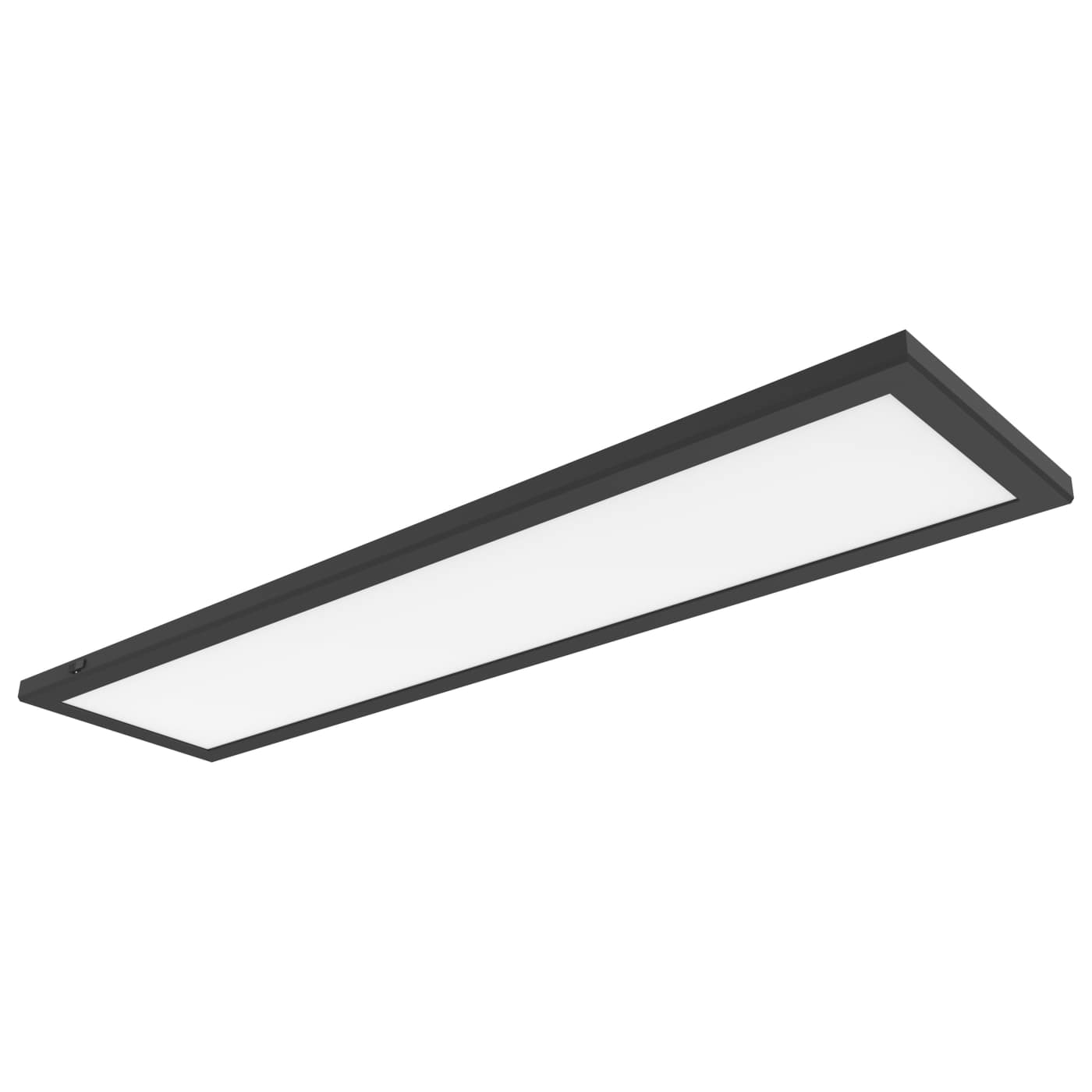

BLINK PRO PLUS 47W 1'X4'

  • Blink Pro Plus
  • 47 Watt
  • 12 in. x 48 in.
  • Surface Mount LED
  • CCT Selectable
  • 90 CRI
  • Black Finish
  • 120/277 Volt
  • Rectangular Shape
location_rating^damp^1
cc_selectable^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-1785 Specifications62-1785 Instructions.pdf
Tools
Lighting Layout Analysis For 62-1785
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Raising the bar for professional lighting, we present BLINK Pro Plus, a sleek design with advanced technology and features abound. BLINK's 62-1785 embodies a contemporary yet familiar aesthetic, a versatile solution suitable for a wide range of environments. The low-profile style features die-cast aluminum construction, and is CCT selectable, with five preset options from warm to natural light. The BLINK Pro Plus series is perfect for utility, basements, kitchens, garages, bathrooms, bedrooms, hallways. All products feature a robust driver for enhanced surge protection, flicker free operation, smooth dimming and providing years of trouble-free operation.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated

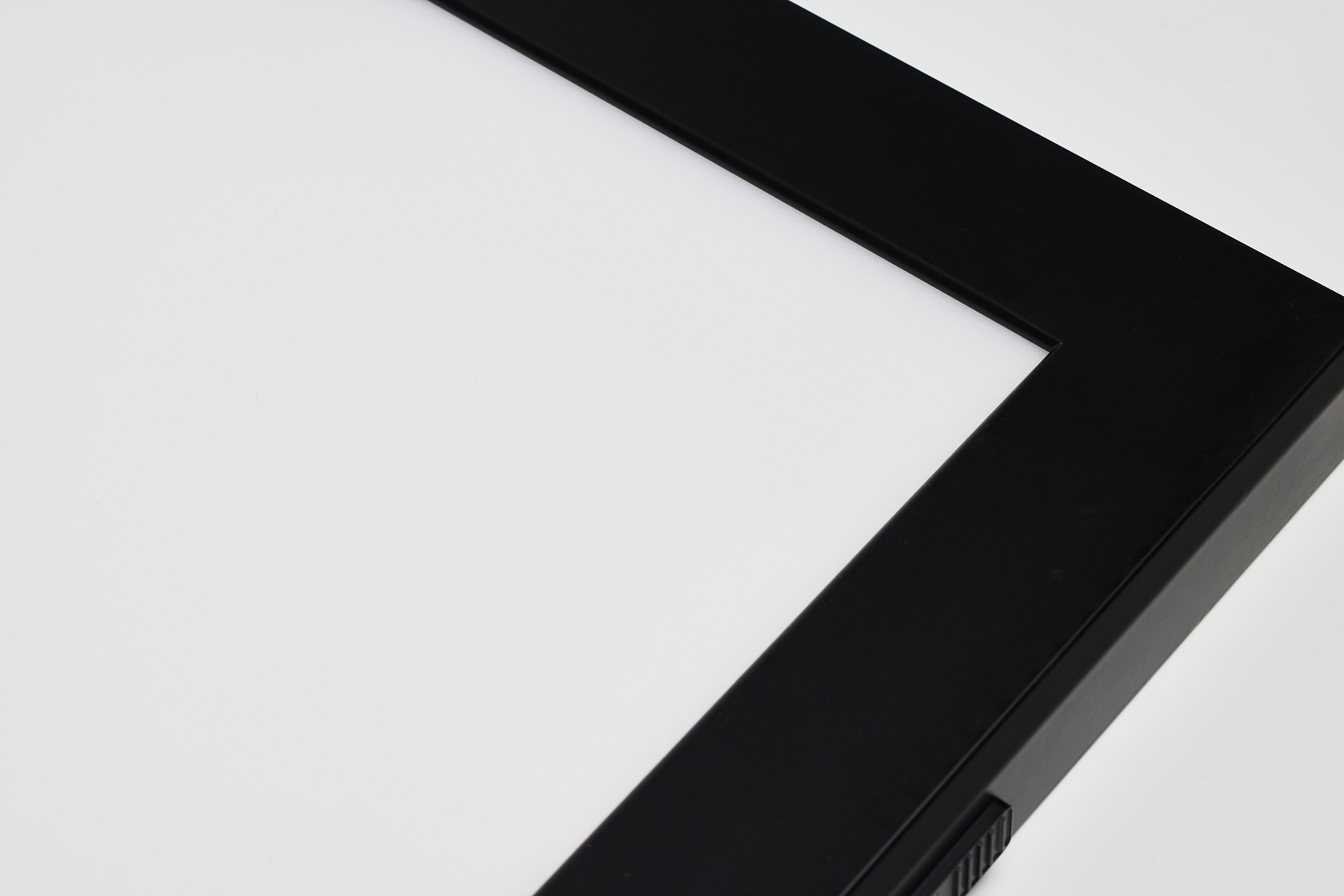

MaterialDie-cast Aluminum
Fixture TypeSurface Mount
StatusActive
StyleContemporary
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyBlack
Additional InfoUGR - 20.1; Hi pot - DC-1550V; Edge-lit - Yes
Amps0.392/0.170A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPoly methyl methacrylate (PMMA)
Power Factor0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent150W
Electrical

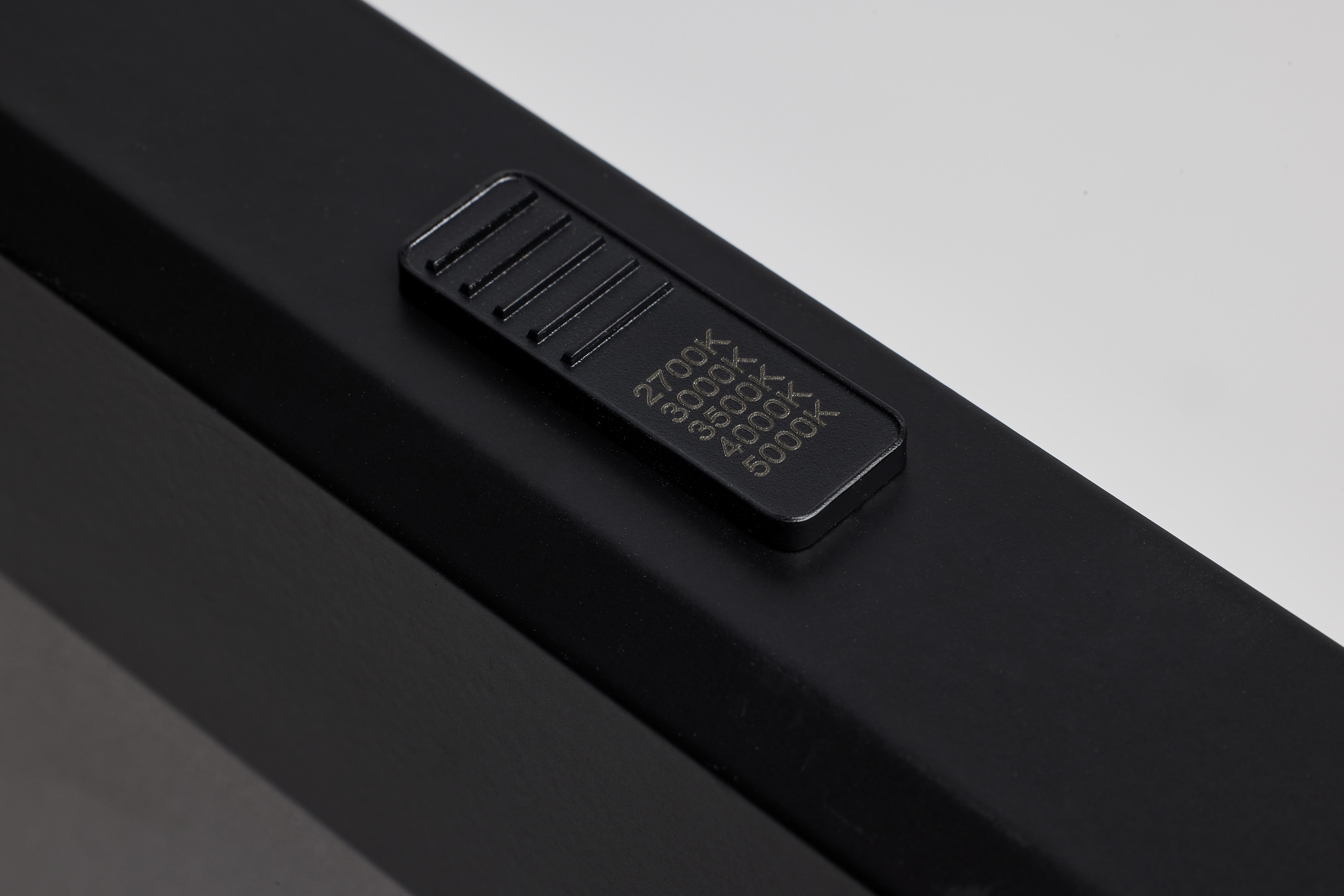

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)110
Color TempWarm White to Natural Light
CRI90+
Dimming Type120V only, Phase Cut (TRIAC)
Operating Frequency60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens3450L-3800L
Volts120V/277V
Watts47W
Max Lumens3800L
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED

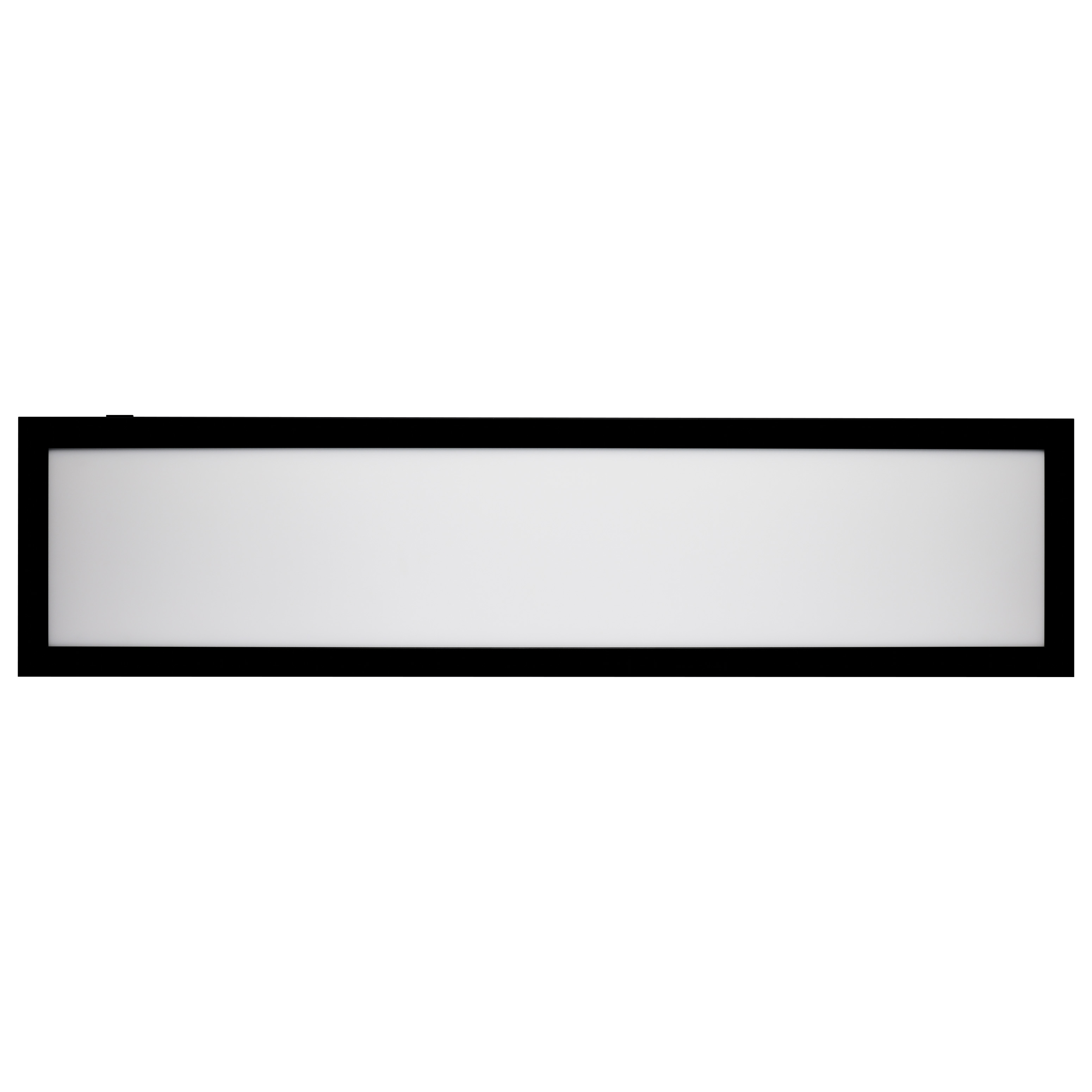

Fixture ShapeRectangle

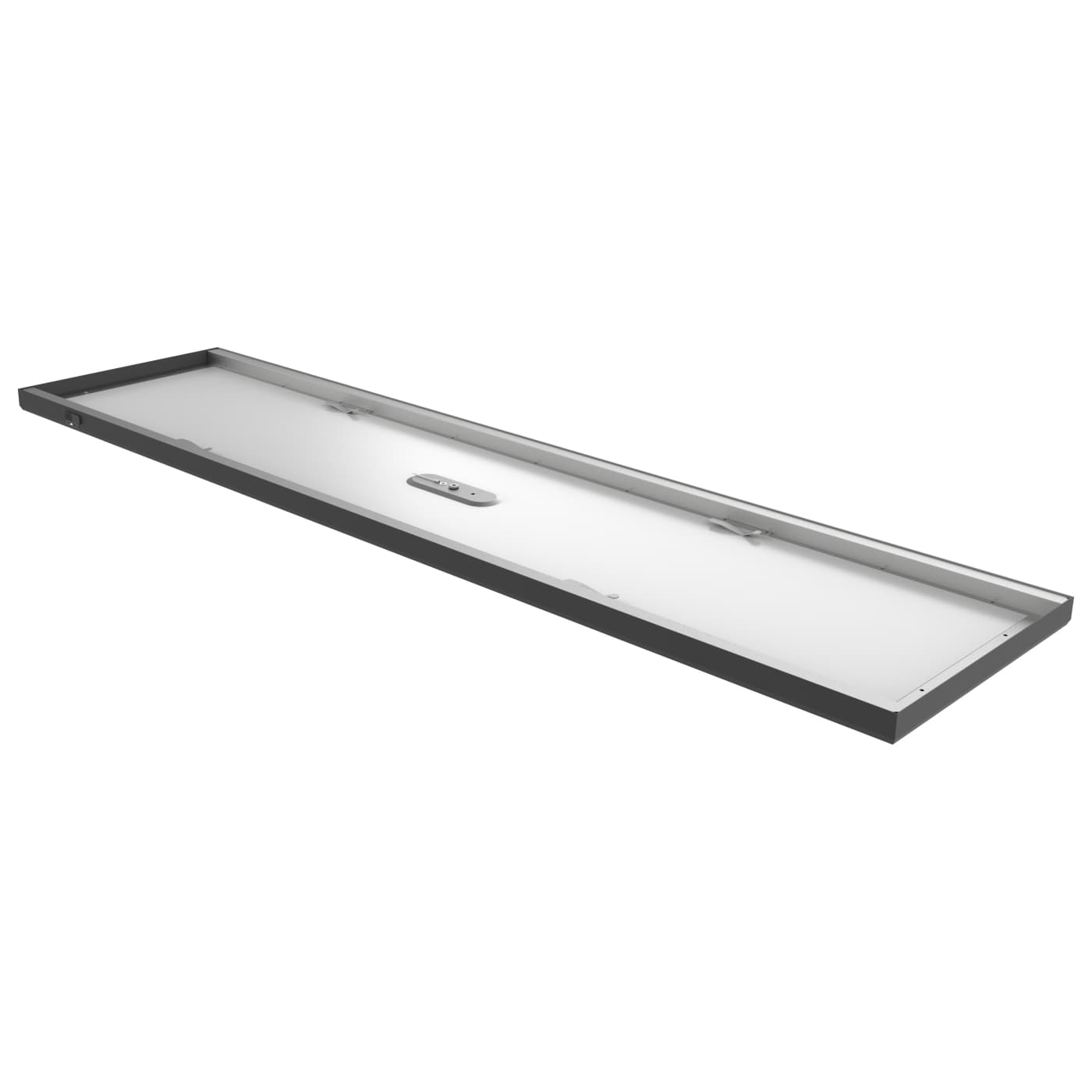

Mounting ProcedureCeiling
Additional Info
Warranty5-Years

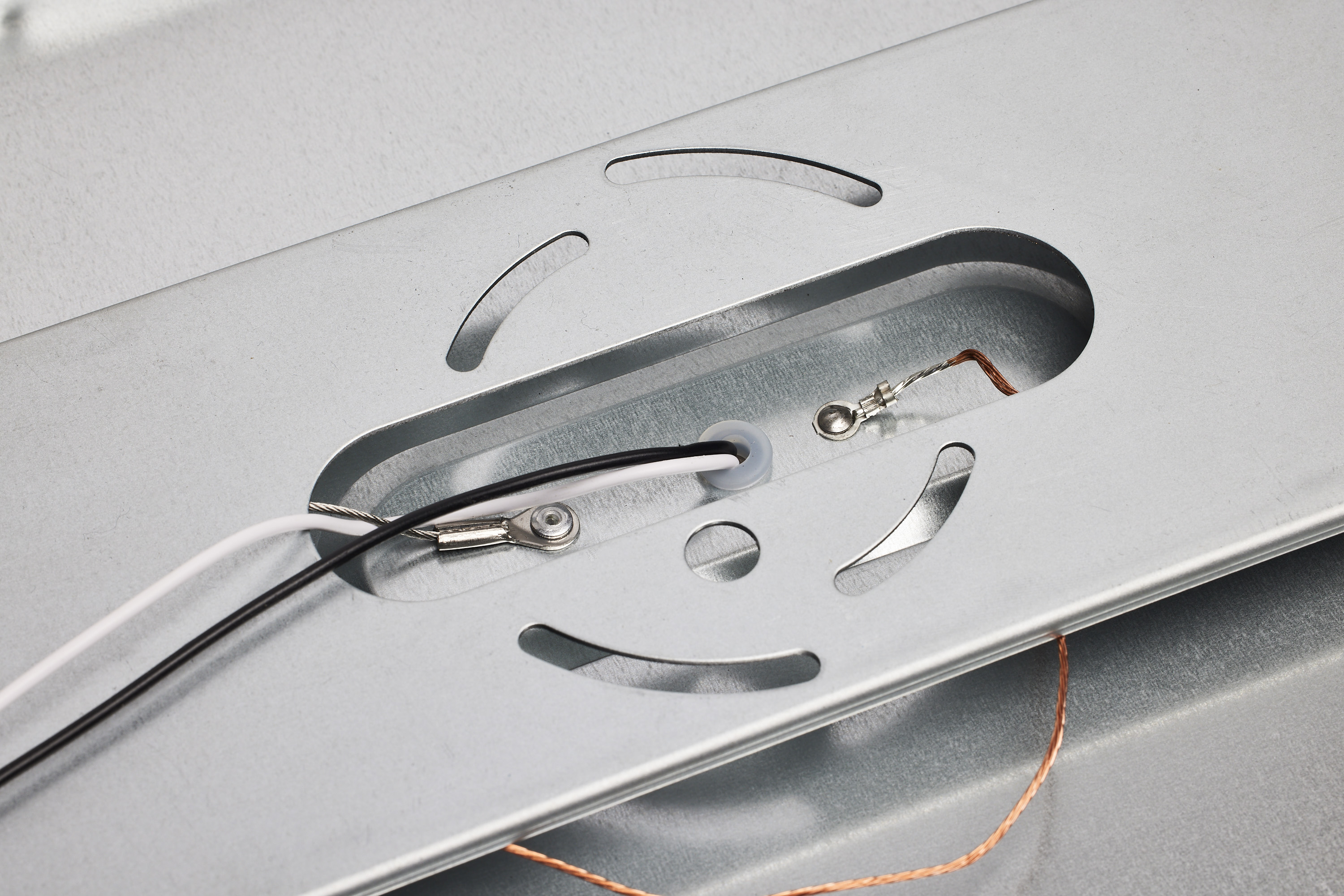

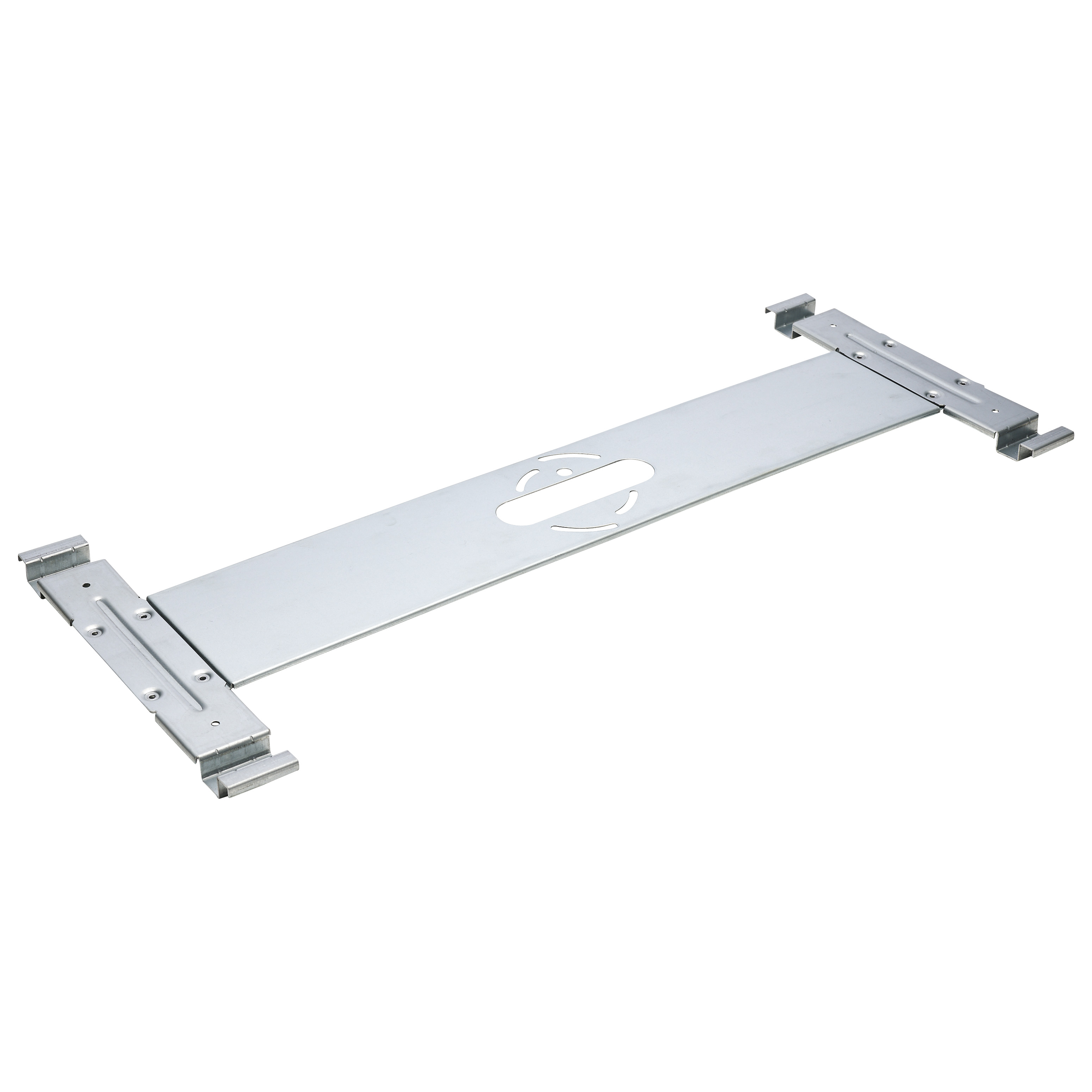

Installation NotesCompatible with 3" & 4" J-box and pancake J-box
Documents
Features
Flicker FreeNo
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923613142
Case Cube1.6788
Case Height13.78
Case Length48.62
Case Quantity3
Case UPC10045923613149
Case Weight35.34
Case Width4.33
EA Cube0.4001
EA Height12.2
EA Length48.03
EA Quantity1
EA Weight11.19
EA Width1.18
Pack TypeBox
Web Height1.06
Web Length47.72
Web Width11.83
