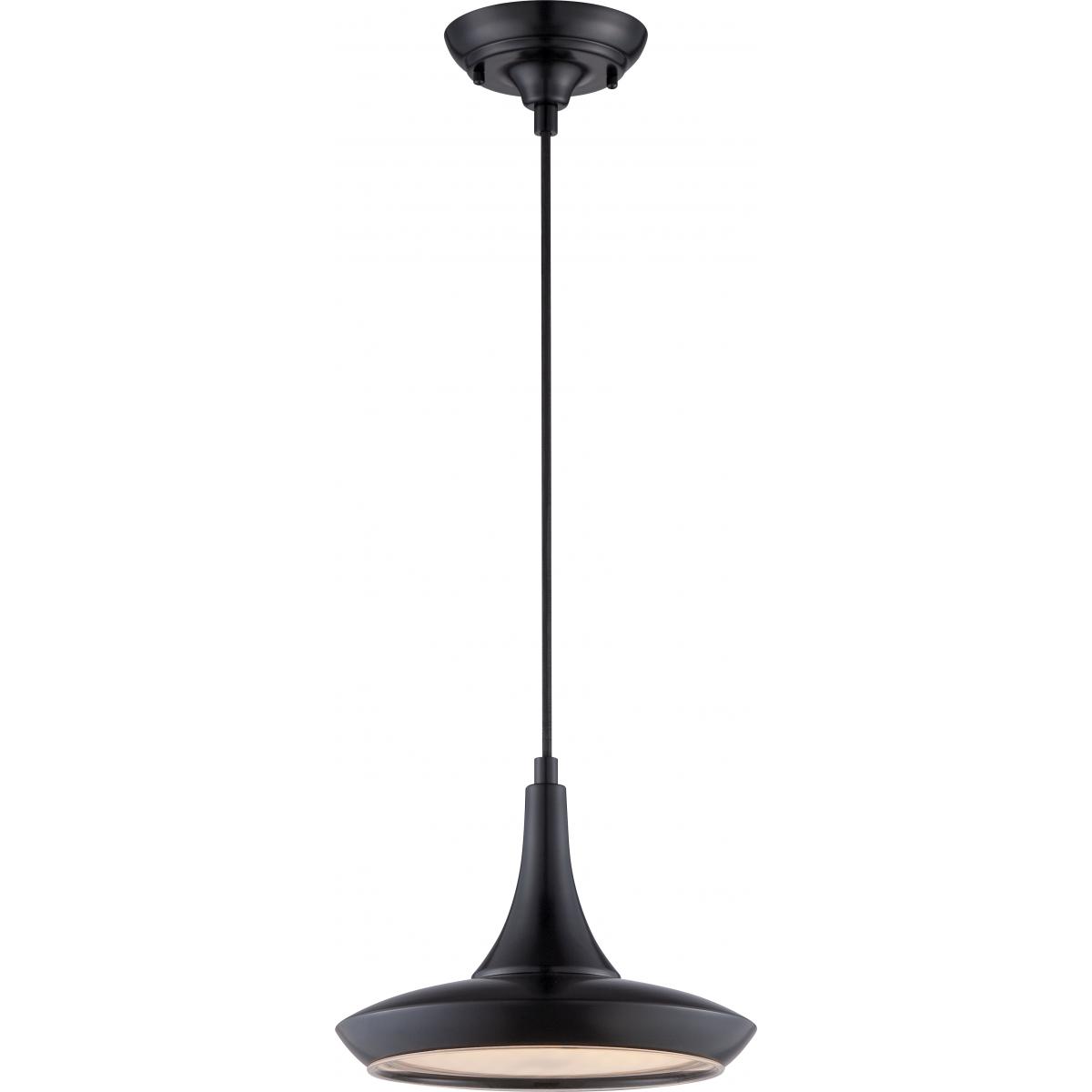

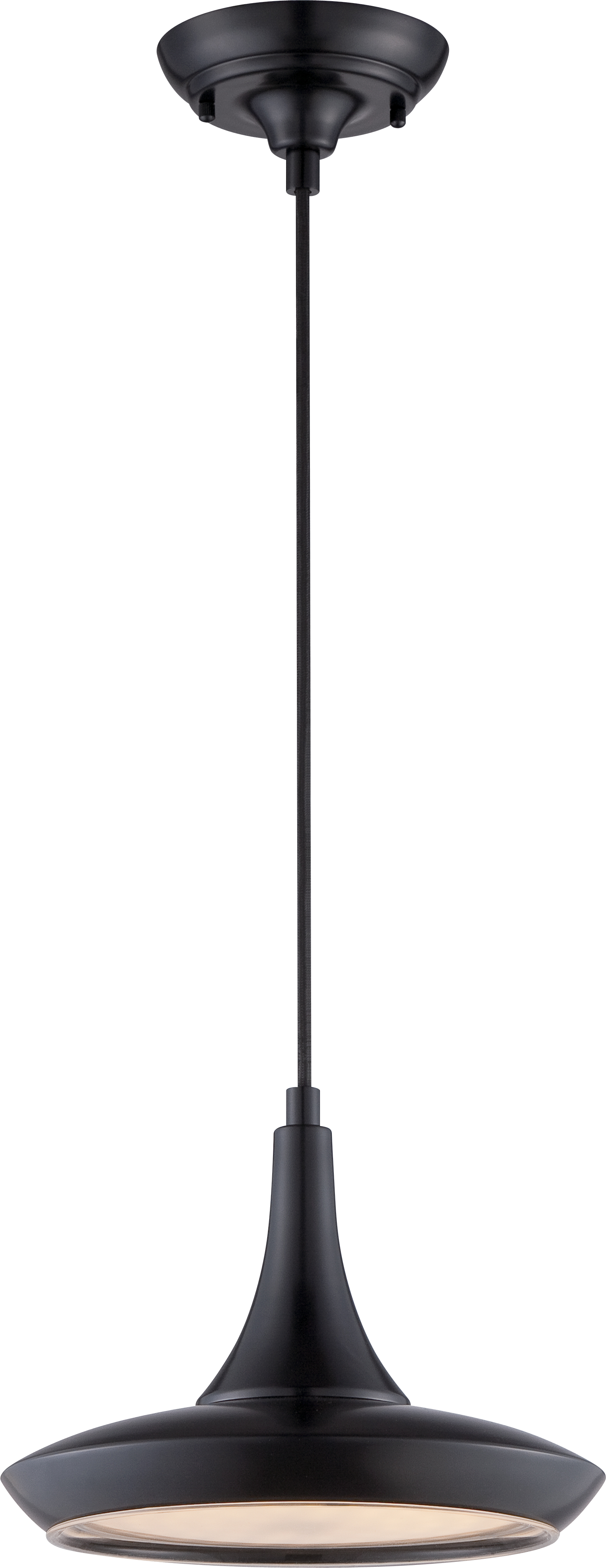

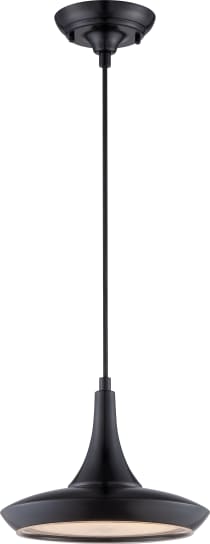

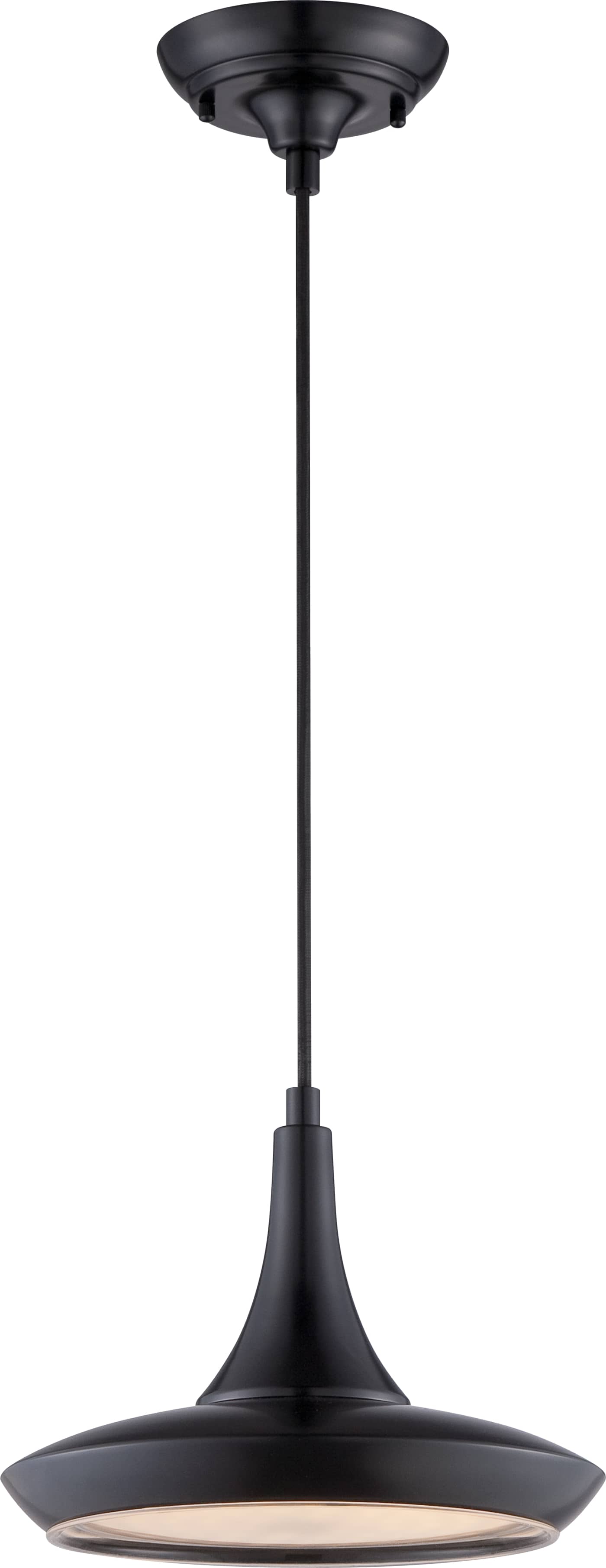

FANTOM LED PENDNT W/RAYON WIRE - 62-443
62-443

FANTOM LED PENDNT W/RAYON WIRE

Discontinued
  • Fantom
  • LED Colored Pendant with Rayon Wire
  • Black Finish
title_24^y^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^30k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
62-443 Specifications62-443 Photometrics.ies62-443 Installation Instructions EnSpFr.pdf
Tools
Lighting Layout Analysis For 62-443
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Fantom; LED Colored Pendant with Rayon Wire; Black Finish
Products Specs
General
CompanyNUVO
Mounting Height1.8
Bulb IncludedIntegrated
Diameter10.5
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
MaterialGlass / Metal
Fixture TypePendant
Includes(1) 12 Foot cord
StatusObsolete
StyleTransitional
Wire ColorBlack
CCT SelectableNo
Wattage SelectableNo
CollectionFantom
Finish FamilyBlack
Amps0.167A
Mounting Diameter5.35
Has CameraNo
IOT EnabledNo
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated30000
Color TempWarm White
CRI80+
Dimming Type120V only, Phase cut
Lumens1420L
Volts120v
Watts20W
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
UL ApplicationCeiling
DLC ApprovedNo
Title 20Exempt
T24 CompliantYes
Packaging
UPC045923324437
Case Cube1.0641
Case Height10.88
Case Length13.0
Case Quantity1
Case UPC10045923324434
Case Weight3.55
Case Width13.0
EA Cube1.0641
EA Height10.88
EA Length13.0
EA Quantity1
EA Weight3.55
EA Width13.0
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Height8.0
Web Width10.5
