| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | Forward Phase |
| Material | Polycarbonate (PC) |
| Fixture Type | Under Cabinet |
| Status | Active |
| Style | Contemporary |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Total Harmonic Distortion | <30% |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.067A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Finish | Frost |
| Lens Material | Polycarbonate (PC) |
| Lensed | Yes |
| Connectable Units | 37 |
| Power Factor | >0.9 |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 40W |

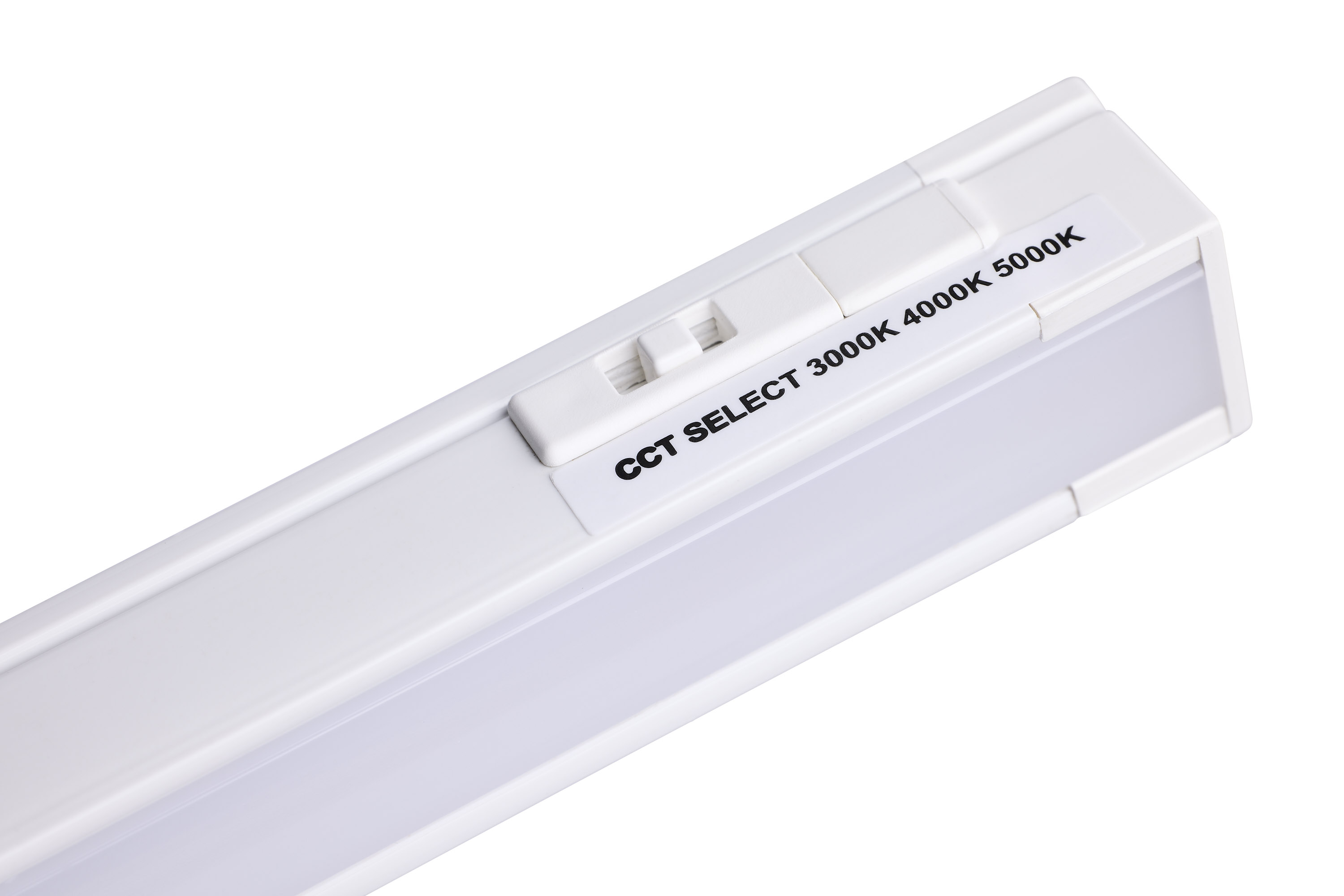

| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 110 |
| Color Temp | Soft White to Natural Light |
| CRI | 90+ |
| Dimming Type | 120V only, Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 500L |
| Volts | 120v |
| Watts | 8W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Minimum Installation Area: 24" x 4" x 4" |
| Flicker Free | No |
|---|
| ADA Compliant | No |
|---|---|
| CA Prop 65 | Lead |
| FCC Compliant | Yes |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| California Ban | Lawful for sale |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923630385 |
|---|---|
| Case Cube | 1.0953 |
| Case Height | 6.9 |
| Case Length | 22.3 |
| Case Quantity | 48 |
| Case UPC | 10045923630382 |
| Case Weight | 21.14 |
| Case Width | 12.3 |
| EA Cube | 0.019 |
| EA Height | 0.79 |

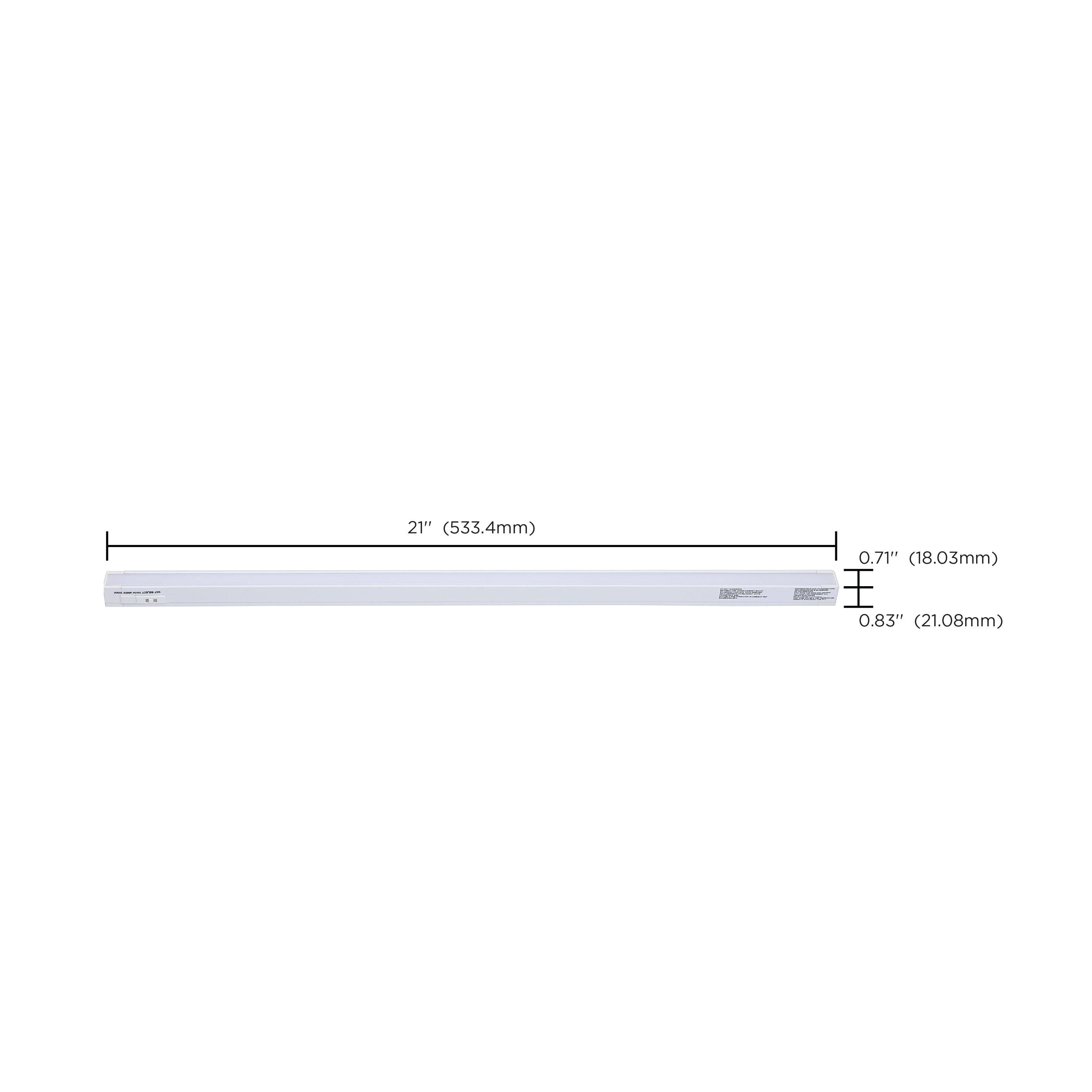

| EA Length | 21.1 |
| EA Quantity | 1 |
| EA Weight | 0.37 |
| EA Width | 1.97 |
| Inner Cube | 0.1953 |
| Inner Height | 3.54 |
| Inner Length | 22.86 |
| Inner Quantity | 12 |
| Inner UPC | 20045923630389 |
| Inner Weight | 4.62 |
| Inner Width | 4.17 |
| Pack Type | Box |

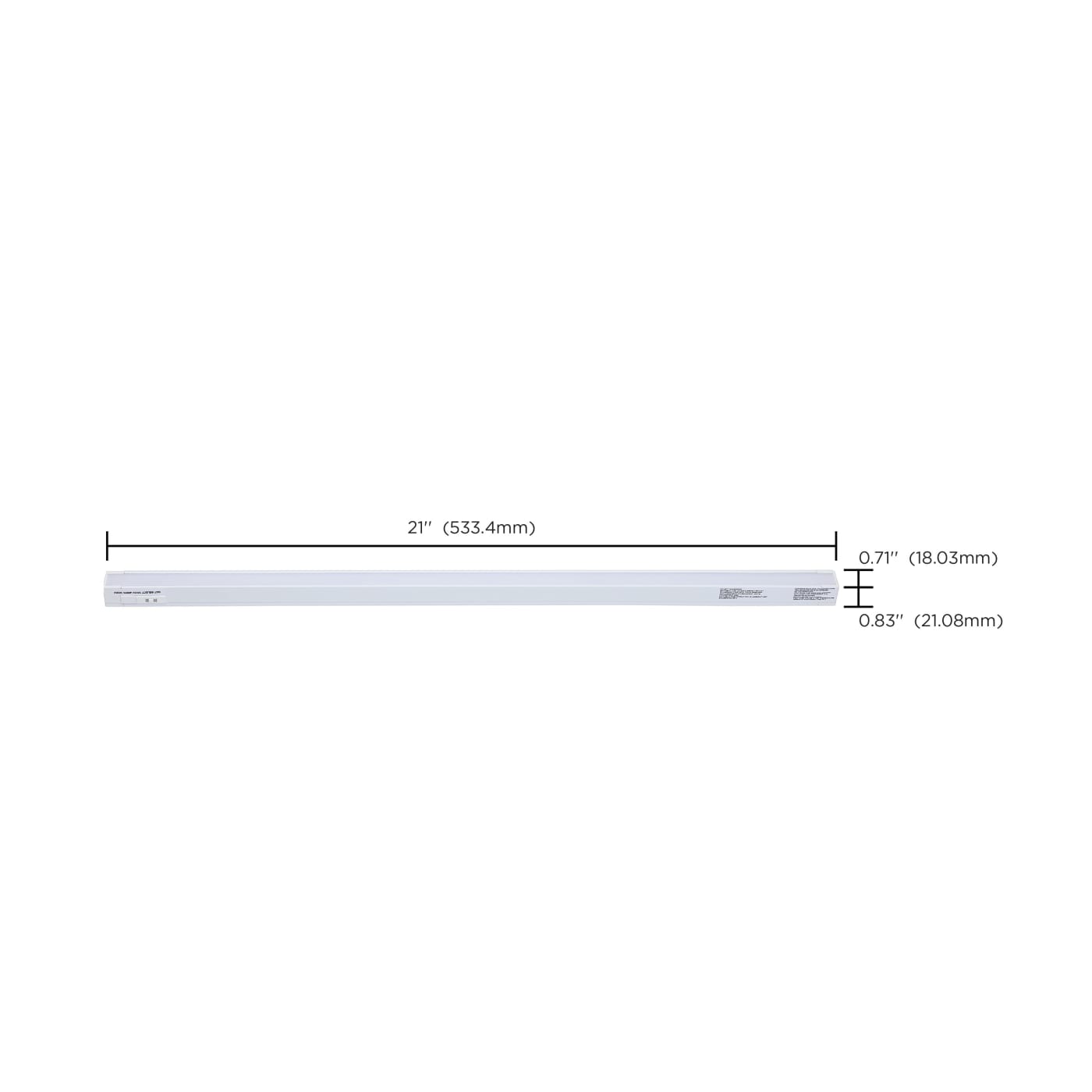

| Web Height | 0.78 |
| Web Length | 21.0 |
| Web Width | 0.7 |
