64-135

TAPE/RGBTW-HO/IP20/JBOX/SF/64'

  • Dimension Pro

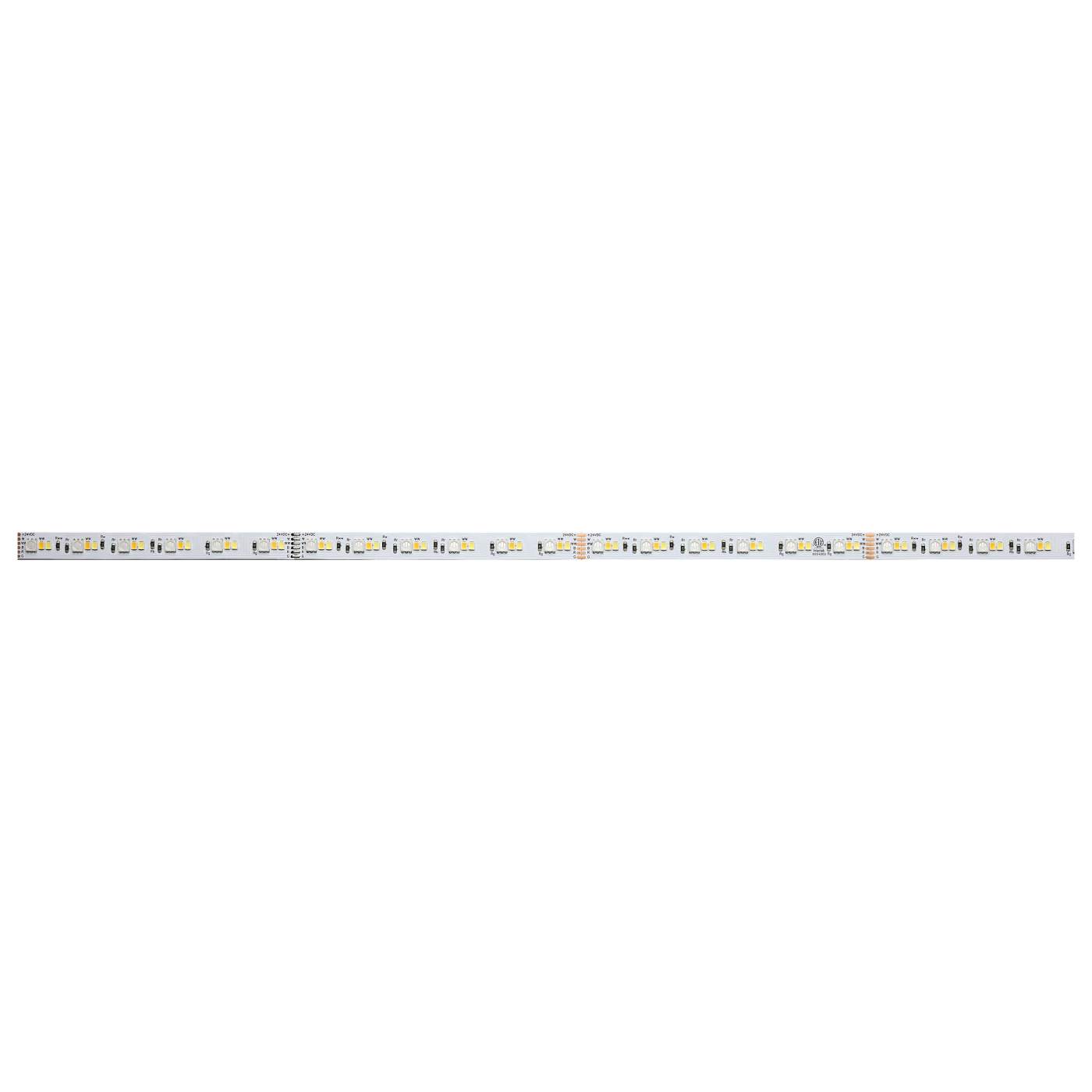

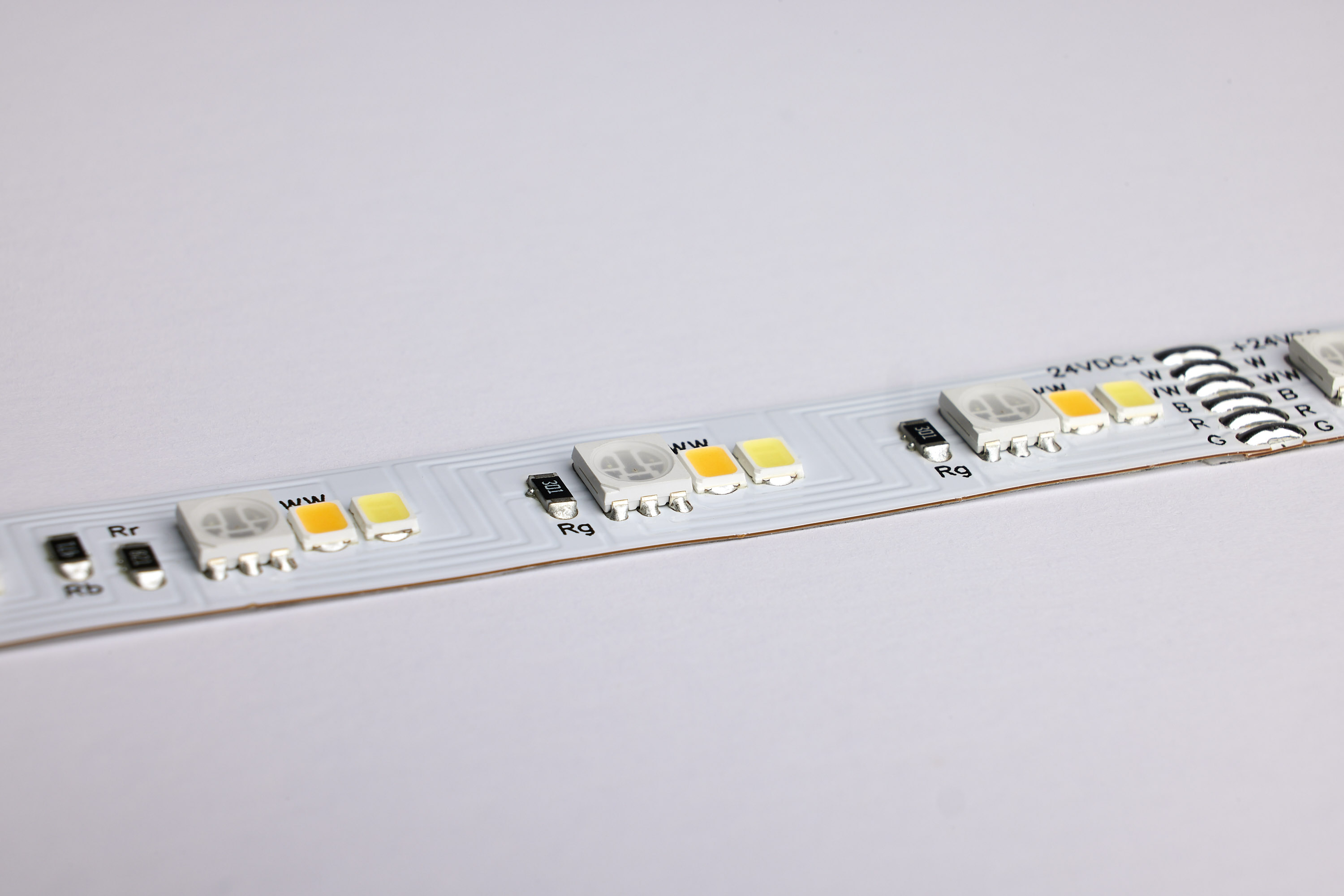

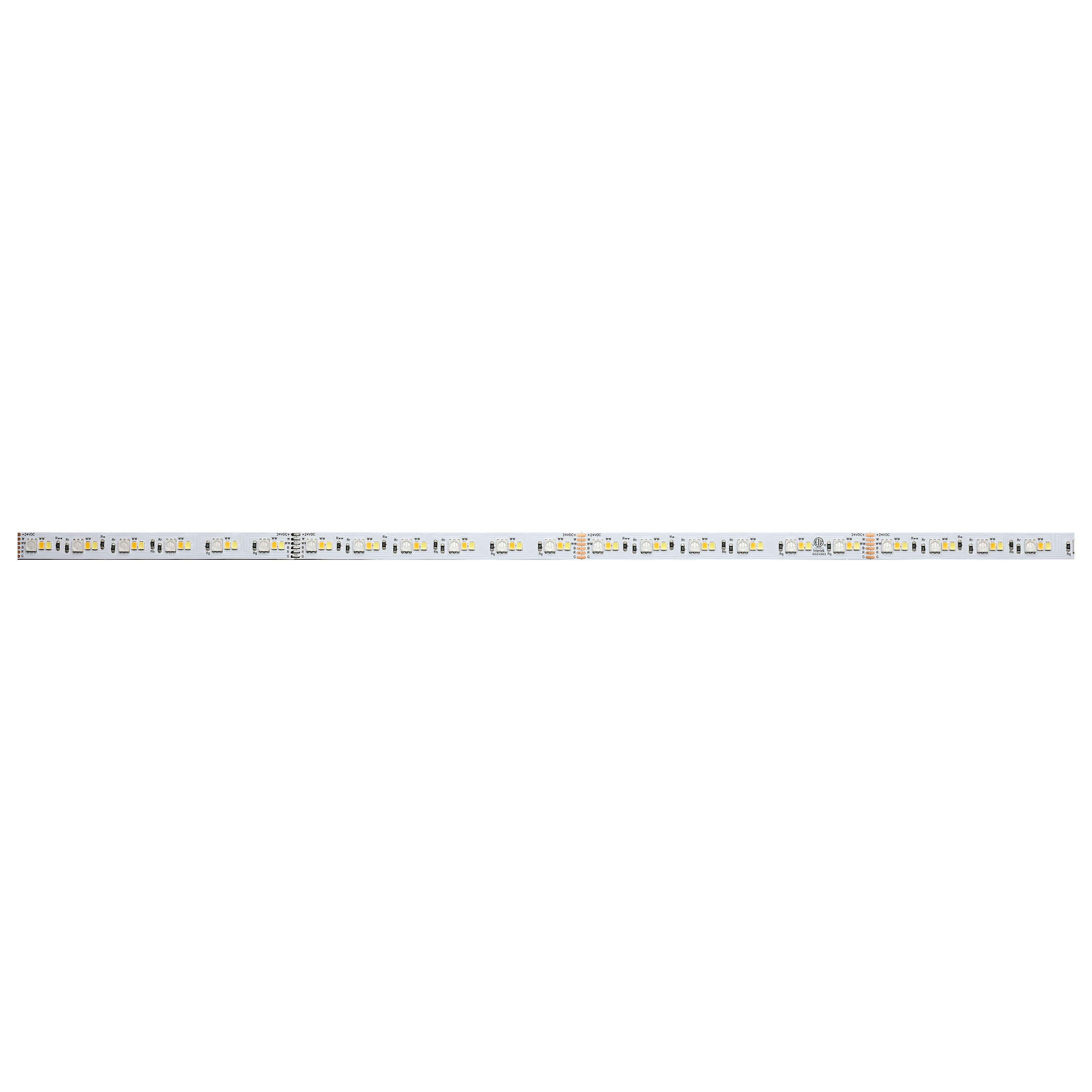

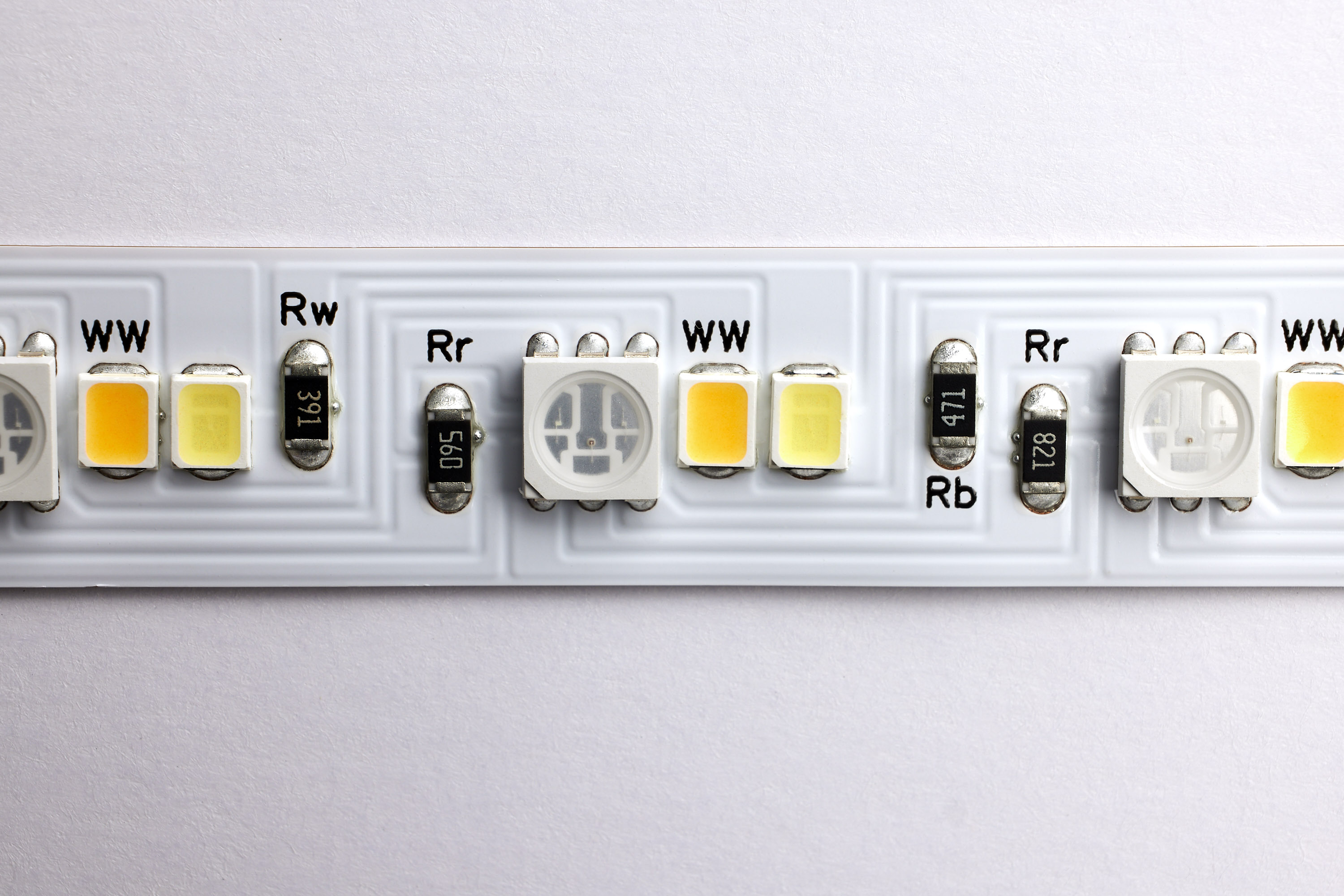

  • Tape Light strip
  • 64 ft.
  • Hi-Output
  • RGB plus Tunable White
  • J-Box connection
  • Starfish IOT Capable

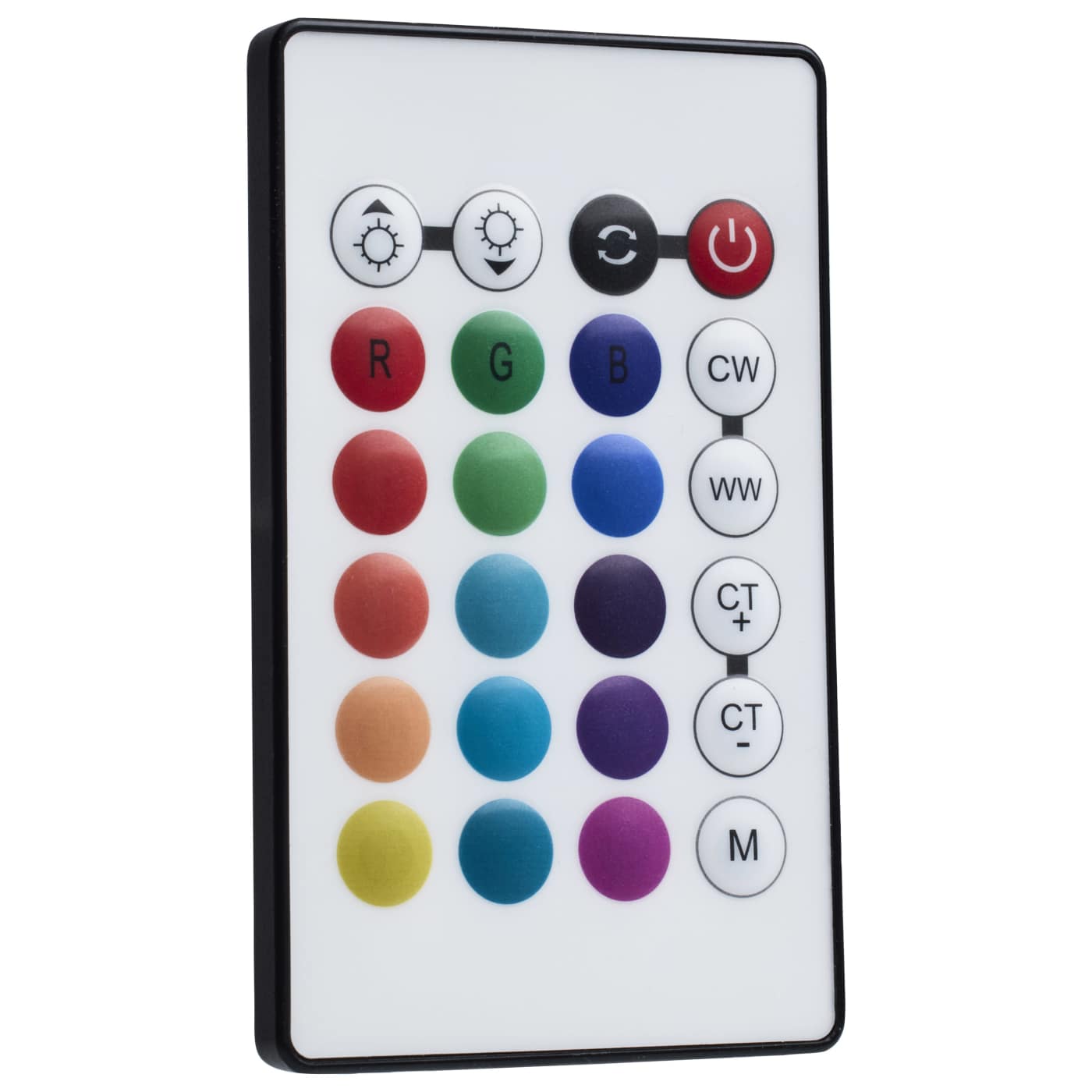

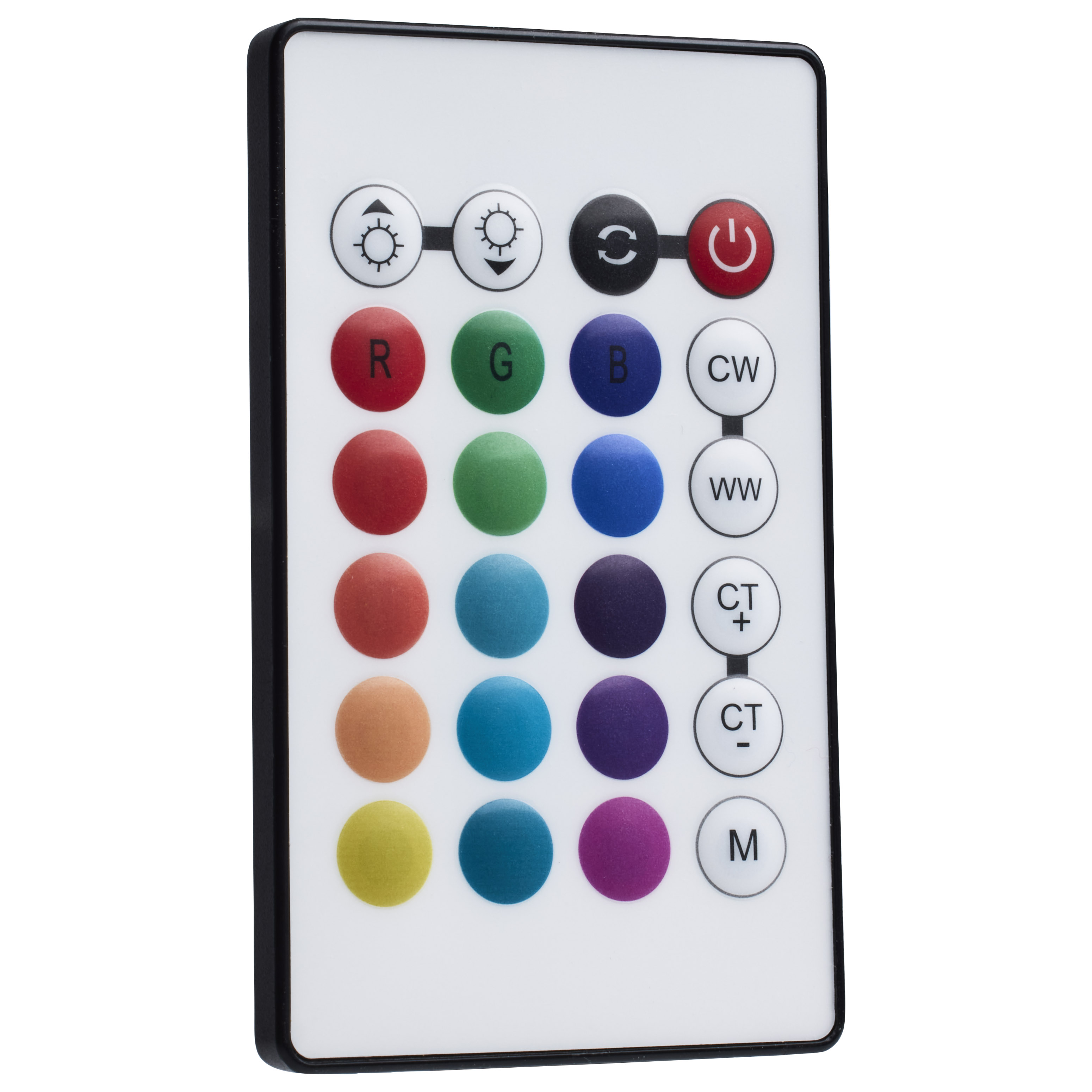

  • IR Remote Included
  • White Finish
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
64-135 Specifications64-135 Instructions.pdf
Tools
Lighting Layout Analysis For 64-135
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
Dimension Pro; Tape Light strip; 64 ft.; Hi-Output; RGB plus Tunable White; J-Box connection; Starfish IOT Capable; IR Remote Included; White Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Starfish Communication ProtocolWiFi-2.4GHz
Dimmable TextSmart-Starfish App or Remote Control only
MaterialPlastic
Fixture TypeTape Light

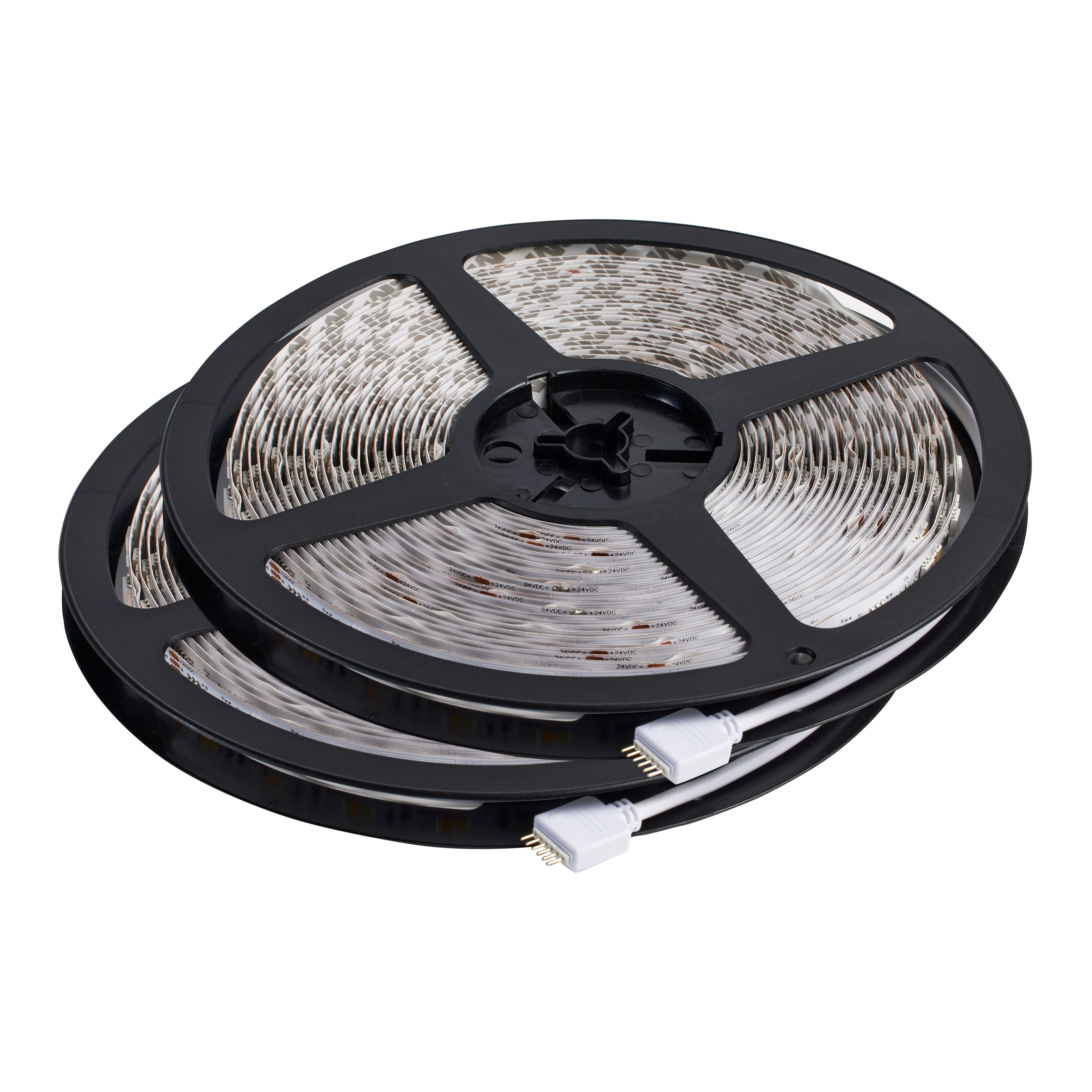

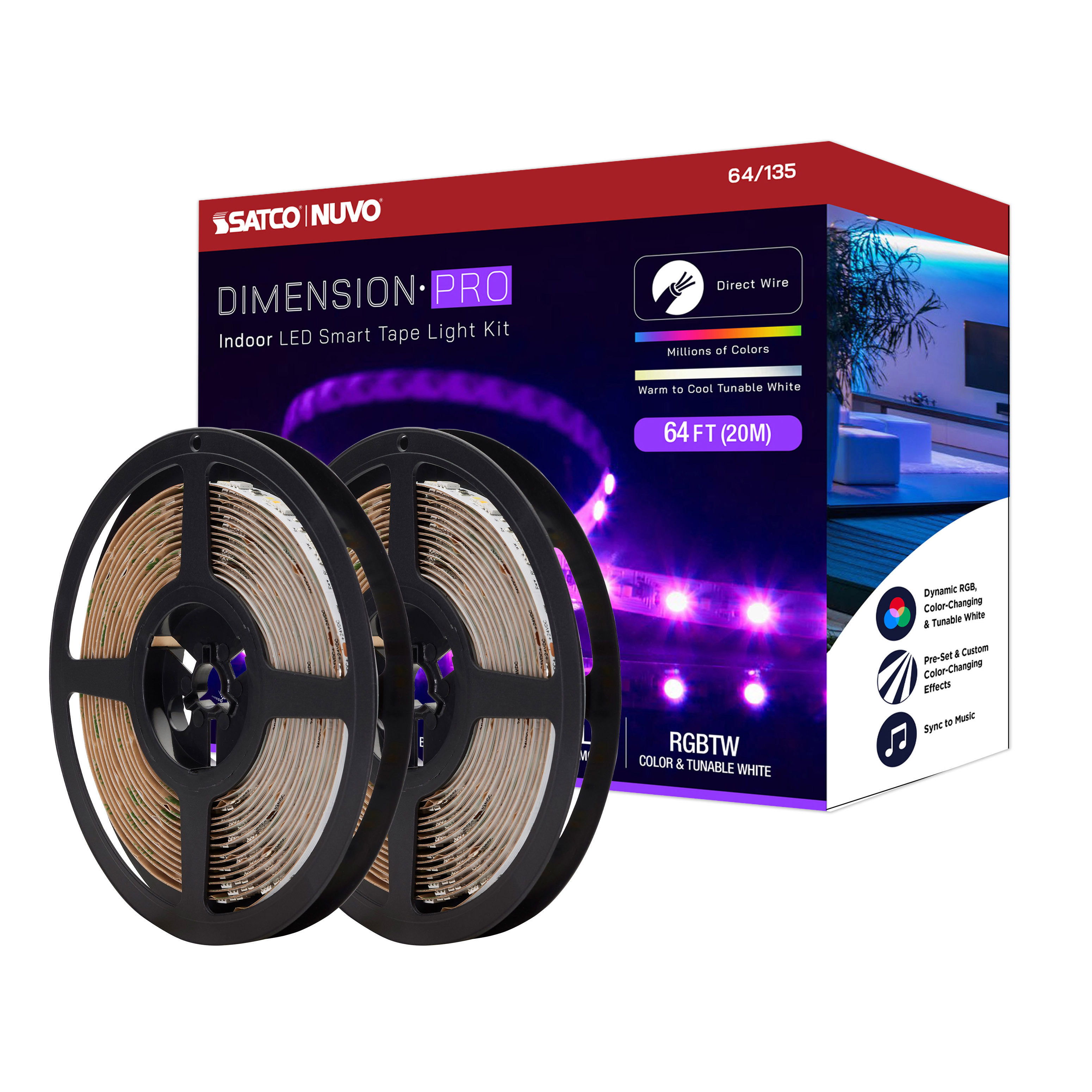

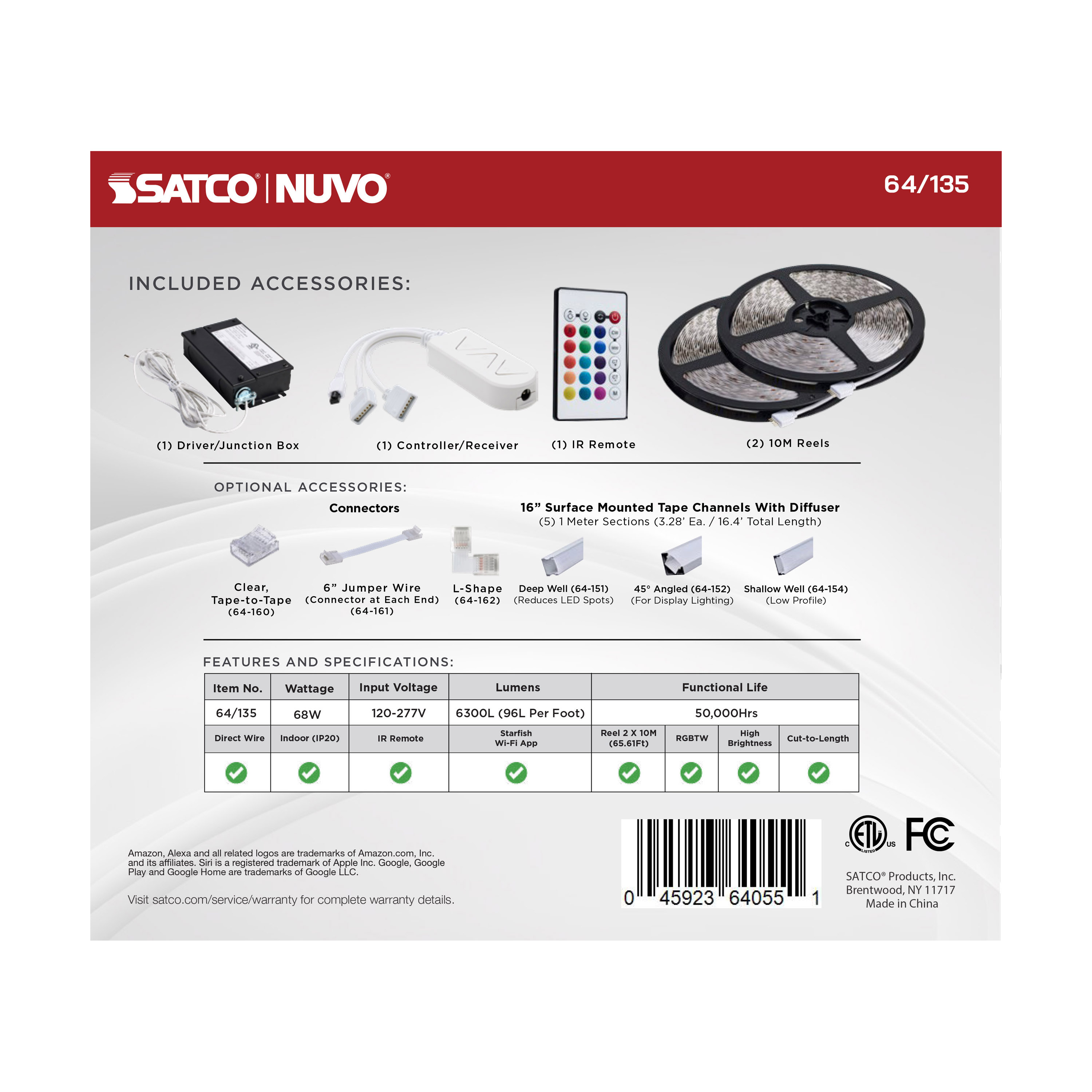

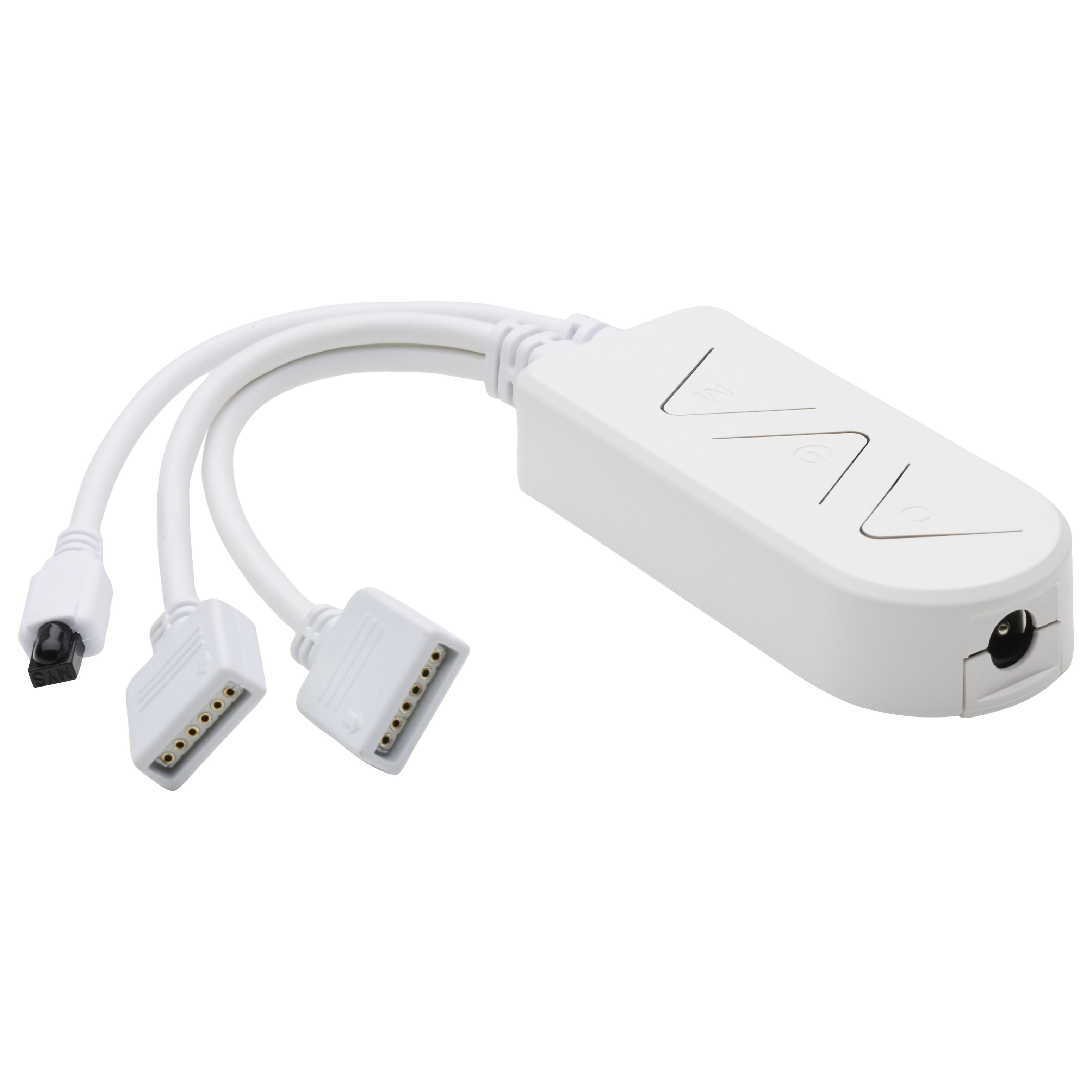

IncludesKit includes: Driver/Junction Box; Controller/Receiver; IR Remote; 2-10M Reels

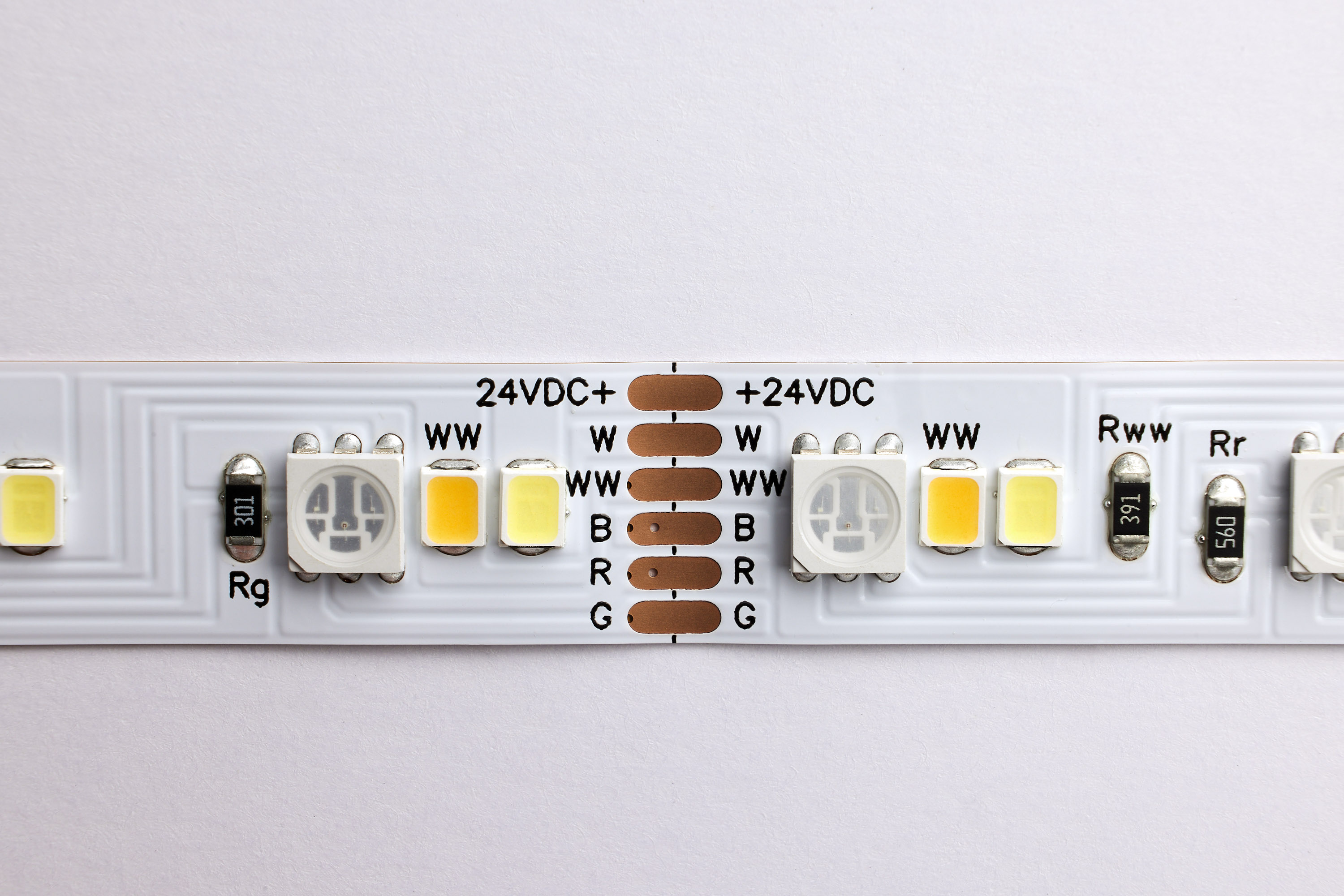

Product NotesCuttable: Yes; Distance between cuts: 4.92" (125 mm); High Brightness; Sync to Music
StatusActive
StyleUtility
Starfish Voice Assistants SupportedAlexa, Google Home, Siri, SmartThings
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite

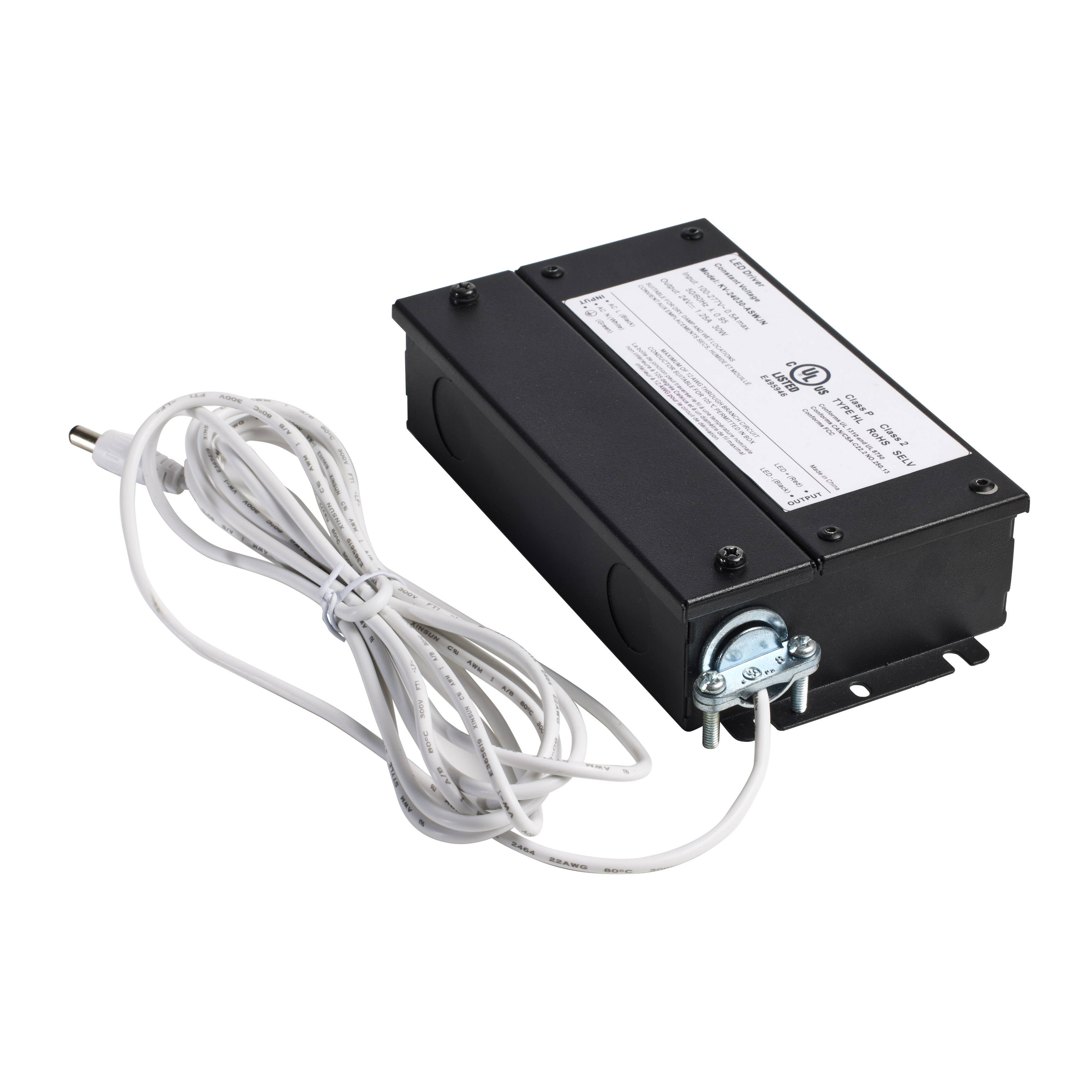

Additional InfoDriver Wattage is 80W; Driver Voltage is 120V-277V
Amps0.567A
Has CameraNo
IOT EnabledYes
SDS ClassLED_Fixture
Starfish Software SupportedTuya/Starfish App
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent400W
Electrical
CCT (Kelvin Temp)2700K-6500K
DimmableYes-Dimmable
Hours Rated50000
Color TempRGB and Tunable White
CRI80+
Dimming TypeSmart-Starfish App or Remote Control only
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens6300L
Volts24V
Watts68W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty1-Year

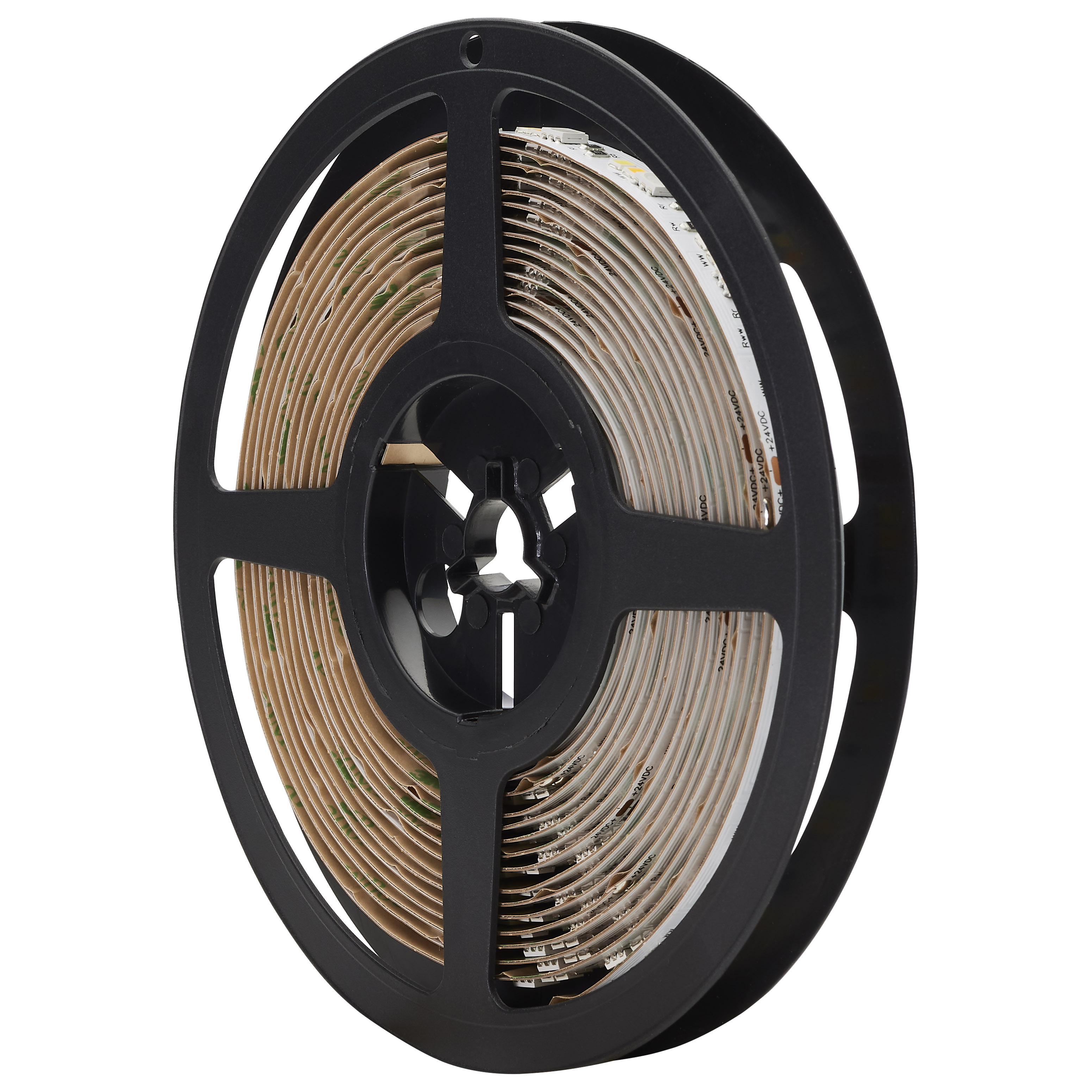

Installation Notes2 reels of 32 feet (10M); 9 Foot (3M) wire lead Junction Box; double-sided tape pre-installed on back for quick installation
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
IP RatingIP20
Location RatingDry
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923640551
Case Cube0.7548
Case Height8.86
Case Length14.96
Case Quantity4
Case UPC10045923640558
Case Weight27.94
Case Width9.84
EA Cube0.1601
EA Height8.27
EA Length9.45
EA Quantity1
EA Weight4.3
EA Width3.54
Pack TypeBox
Web Length787.44
Web Width0.47
