| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Dimmable Text | 0-10V Dimming |
| Material | Die-cast Aluminum |

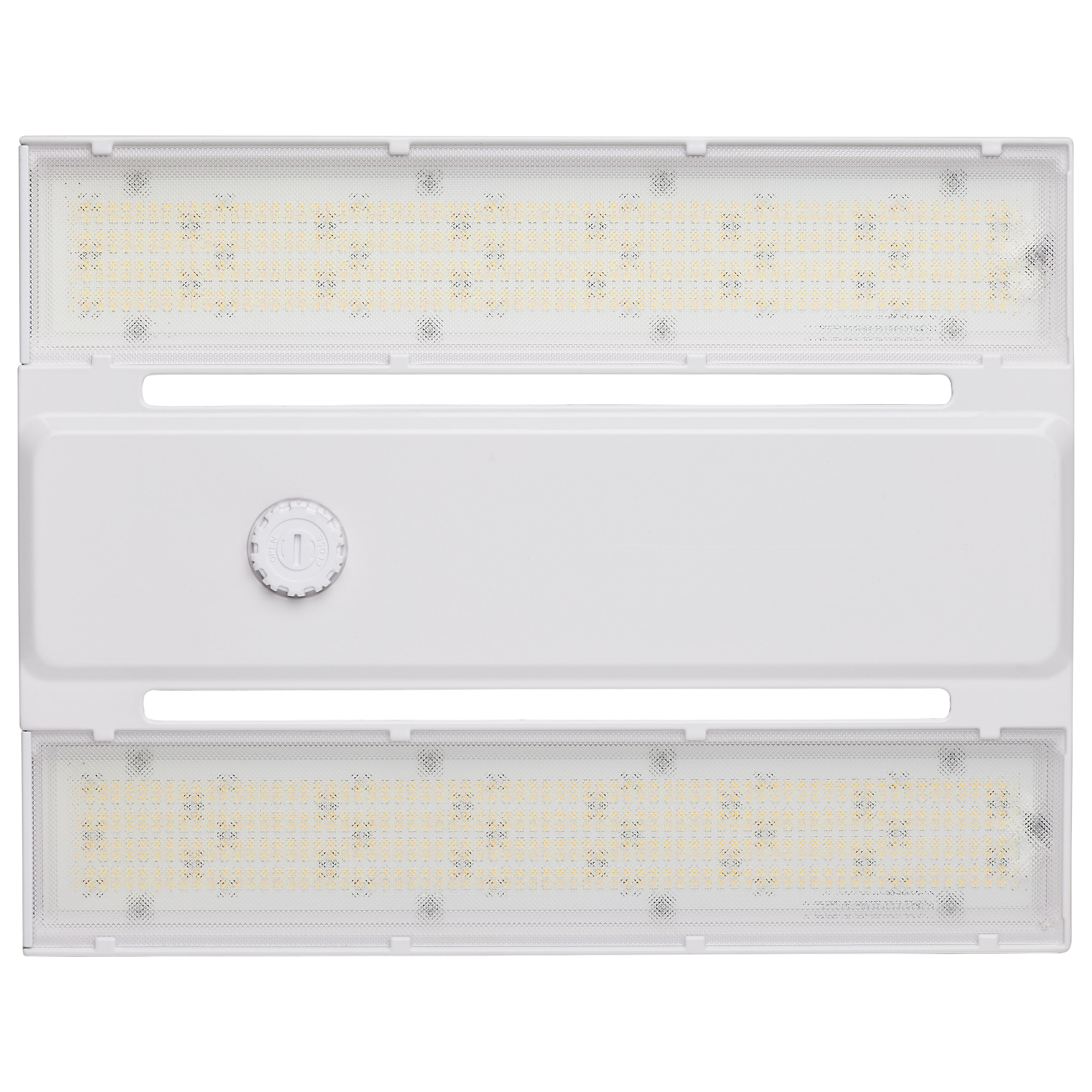

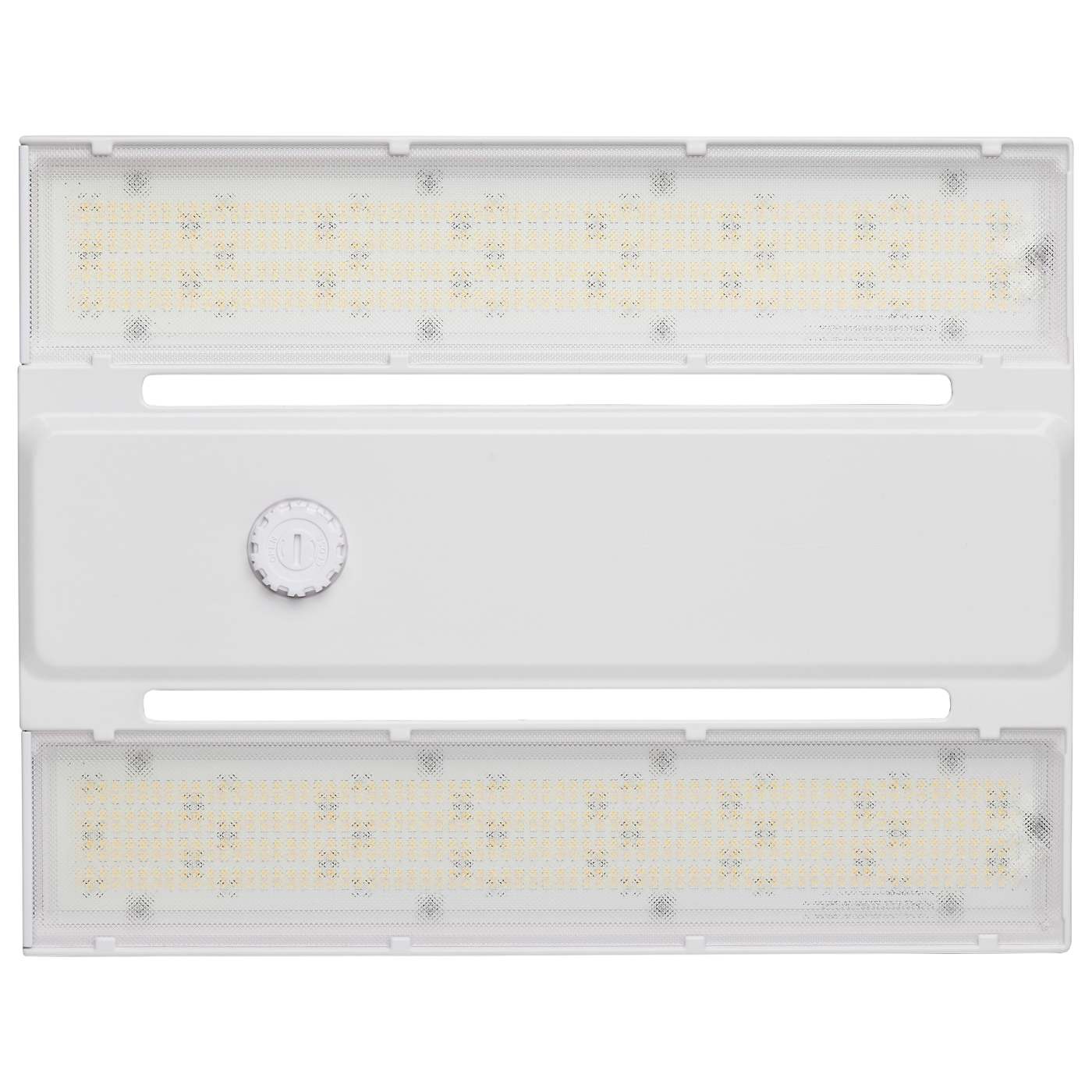

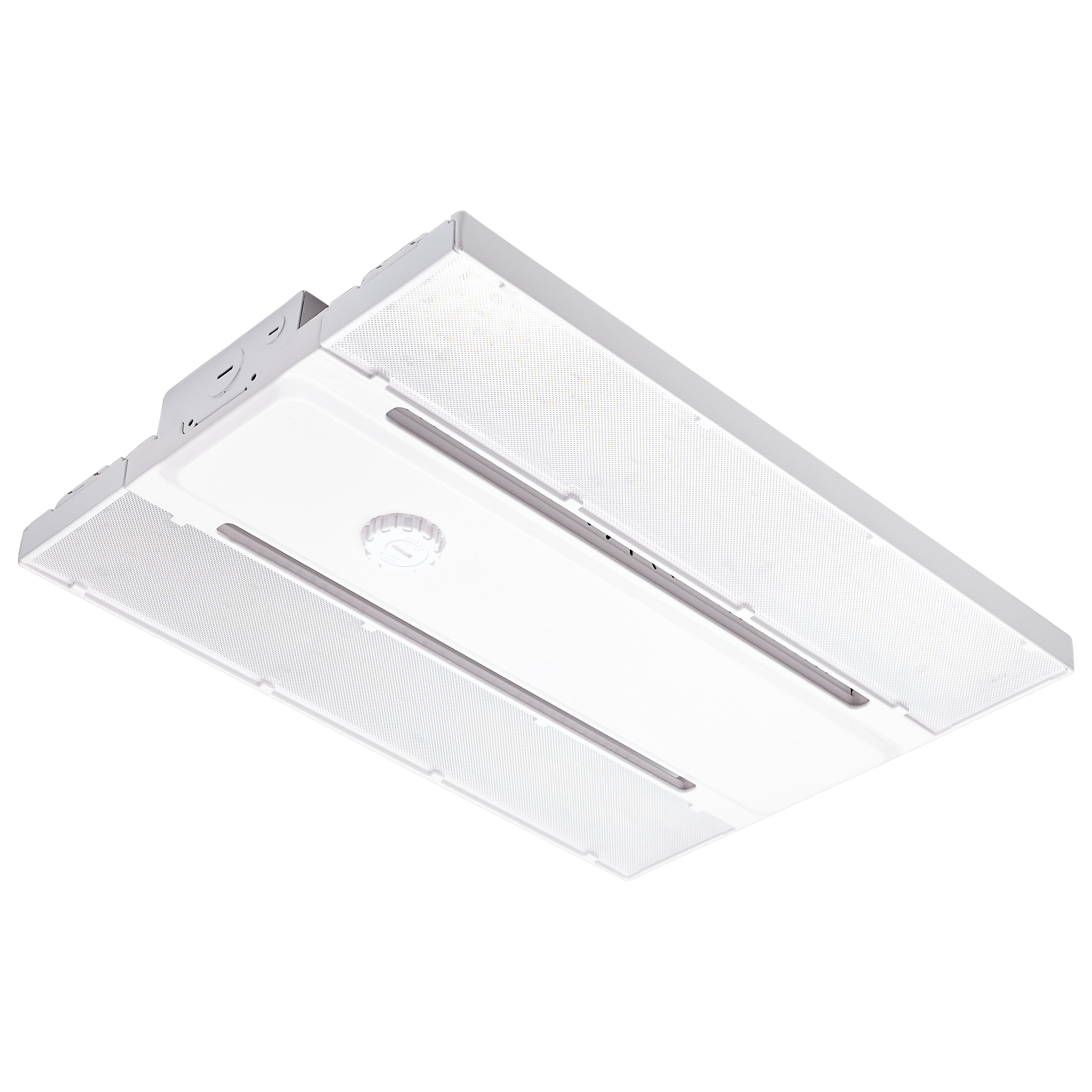

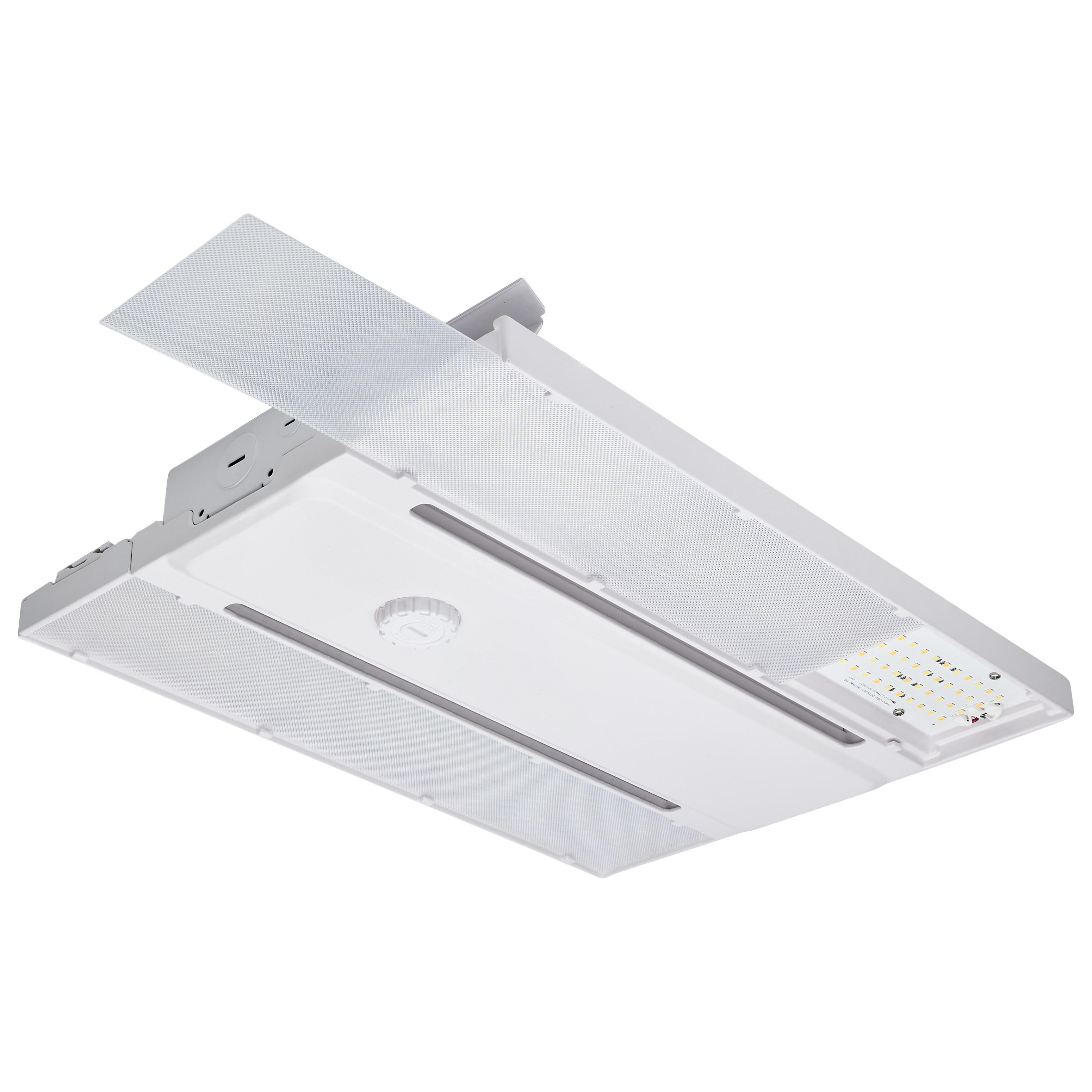

| Fixture Type | Linear Hi-Bay |

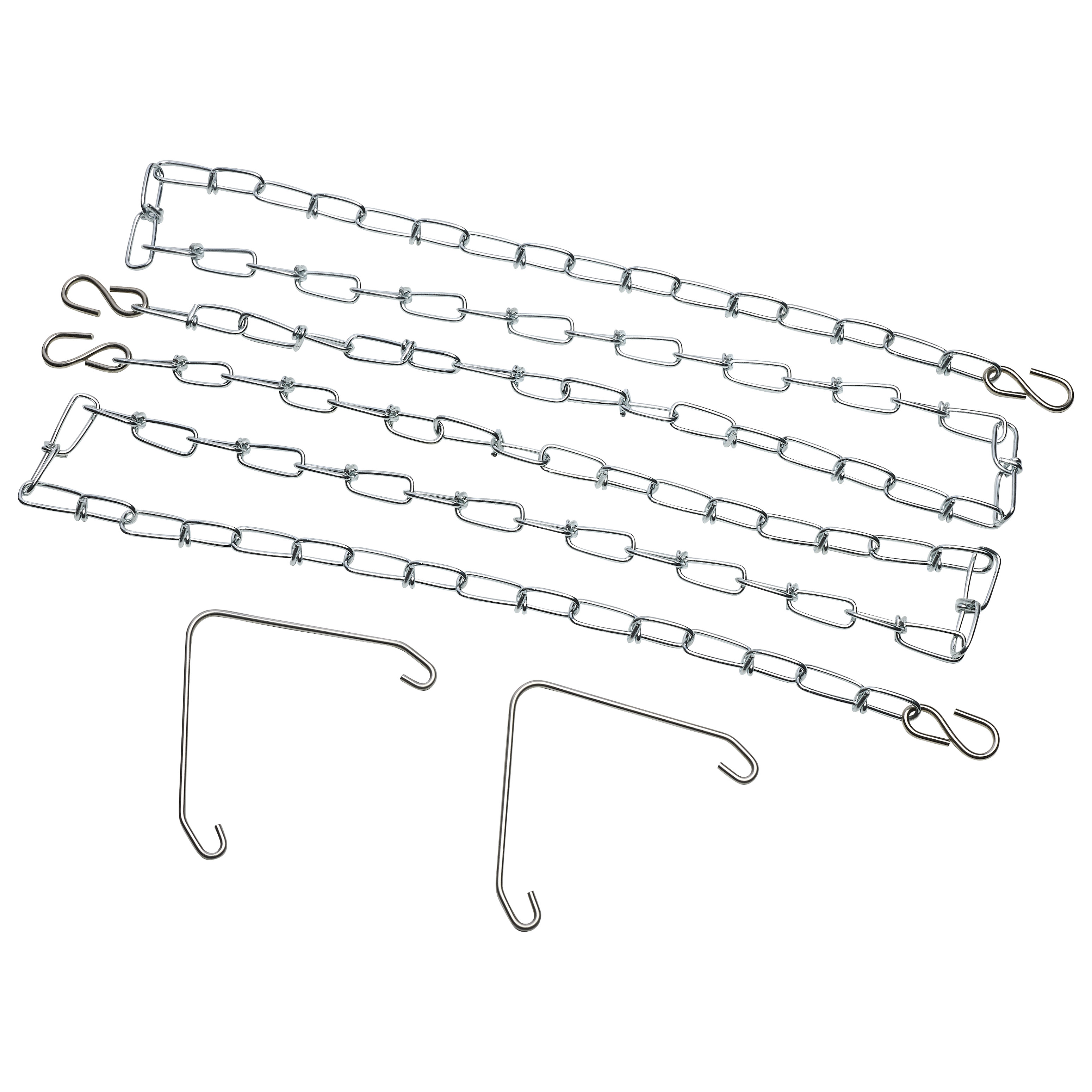

| Includes | 41 Inch Suspension Kit |
| Status | Active |
| Surge Protection | Built-in surge protection - 6KV |
| Total Harmonic Distortion | <20% |

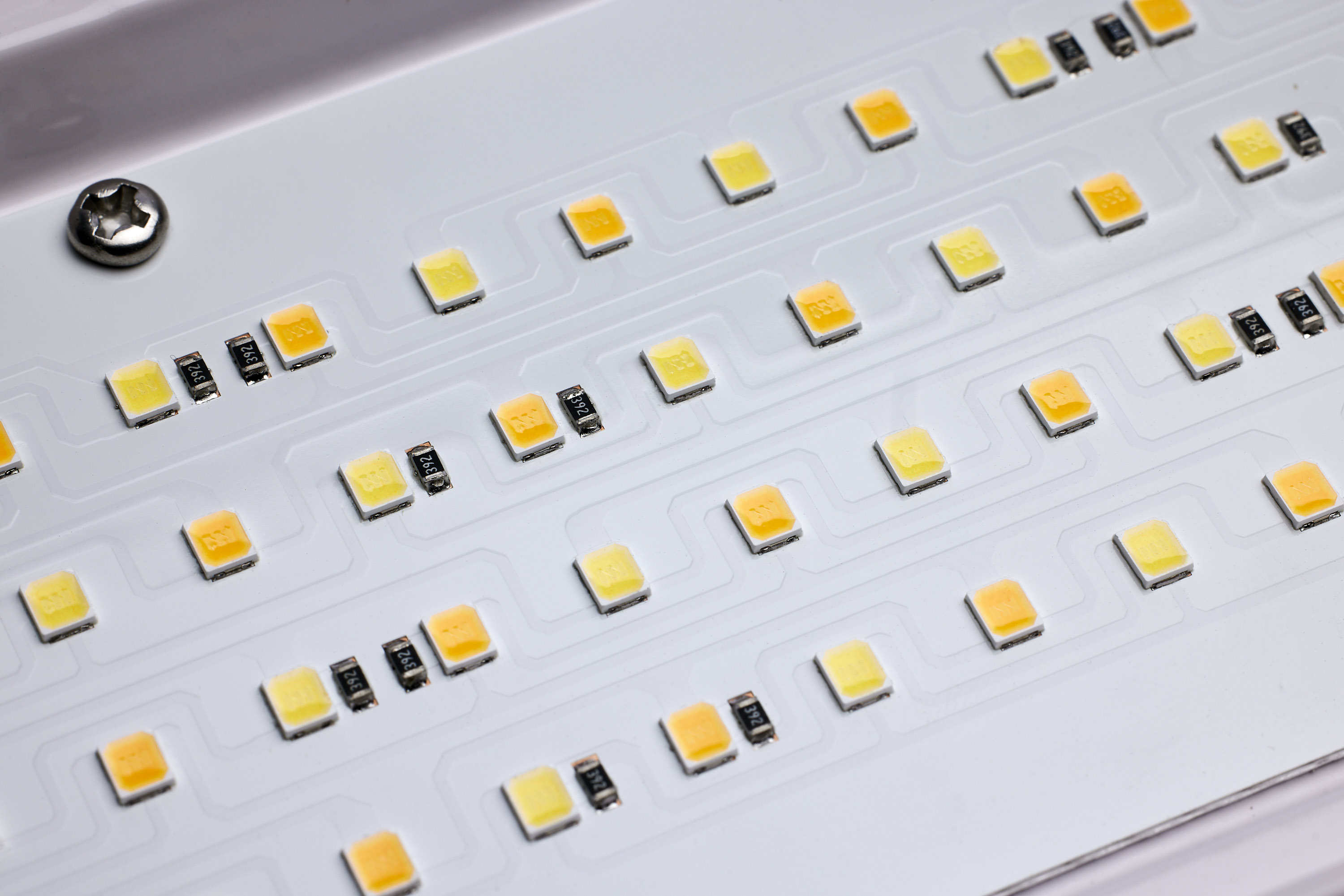

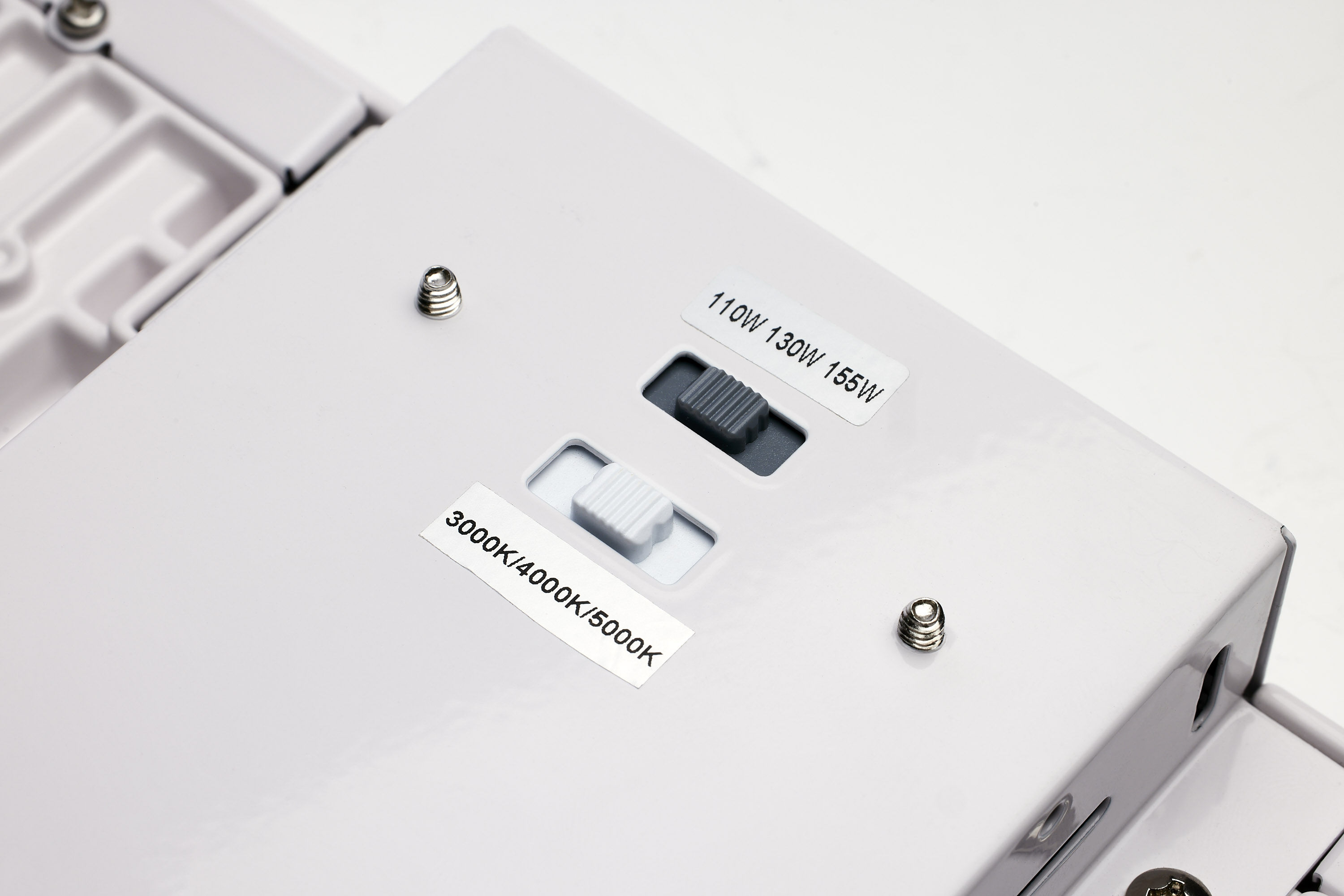

| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | White |
| Amps | 0.917-0.397/1.083-0.469/1.292-0.560A |
| Has Camera | False |
| IOT Enabled | False |

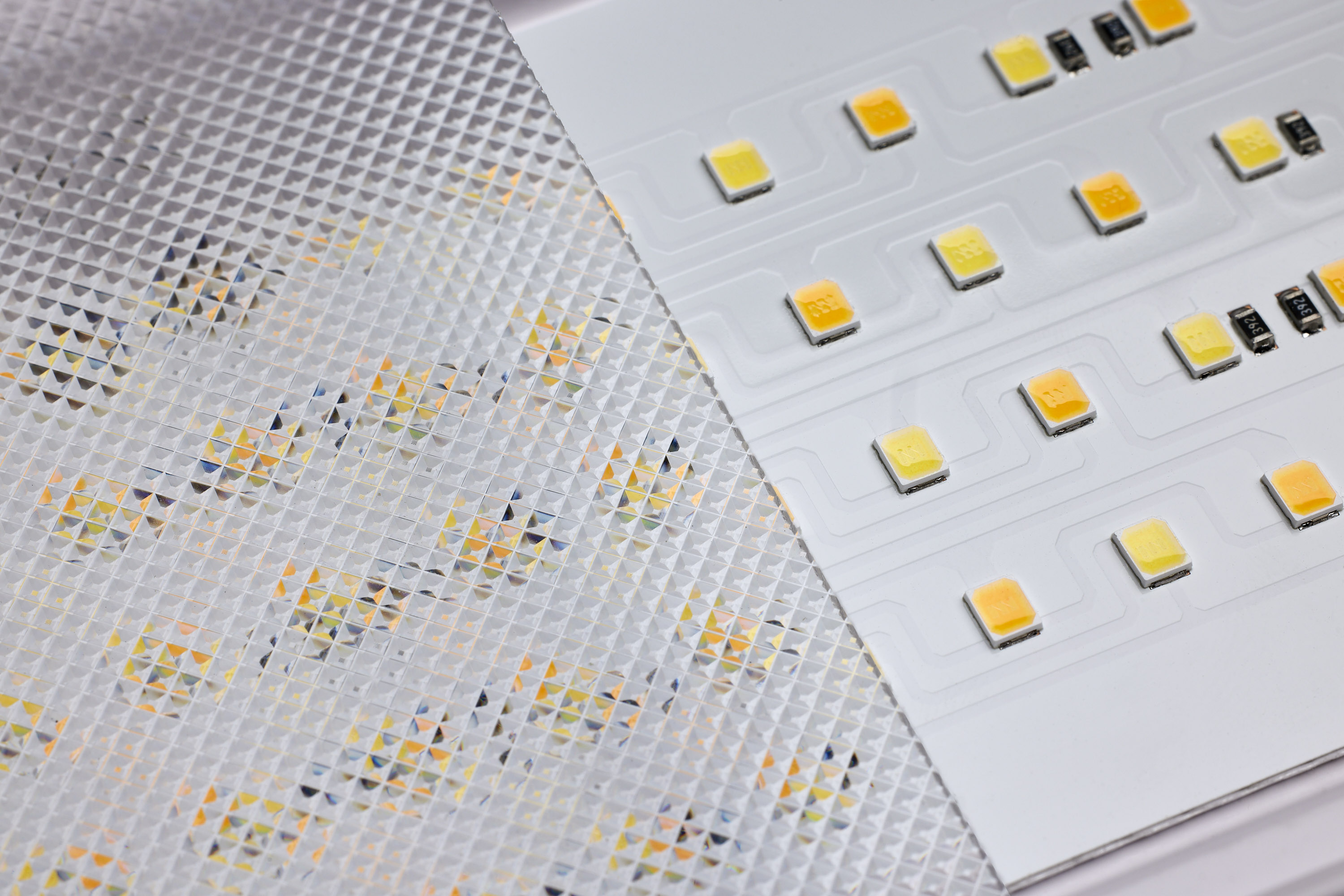

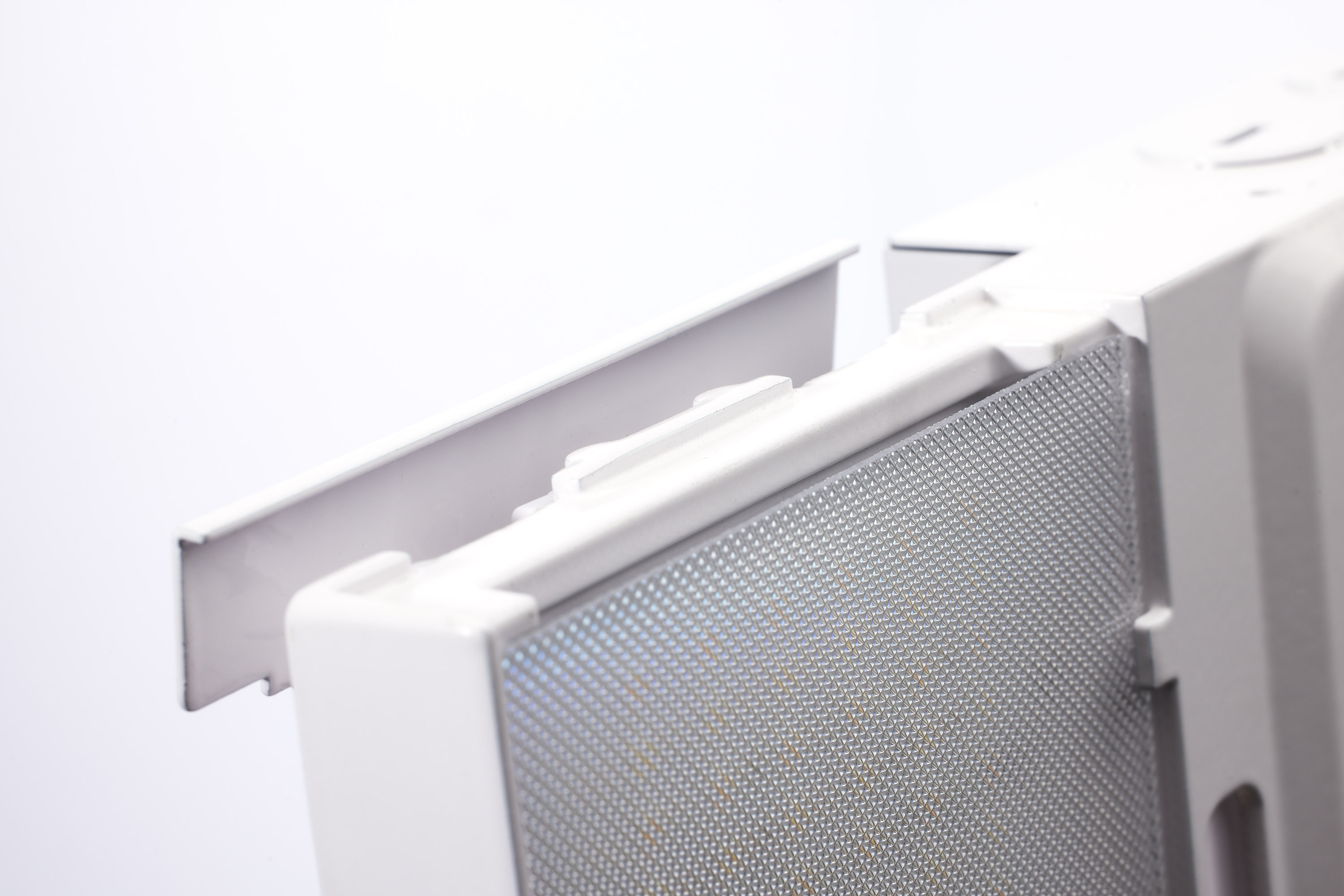

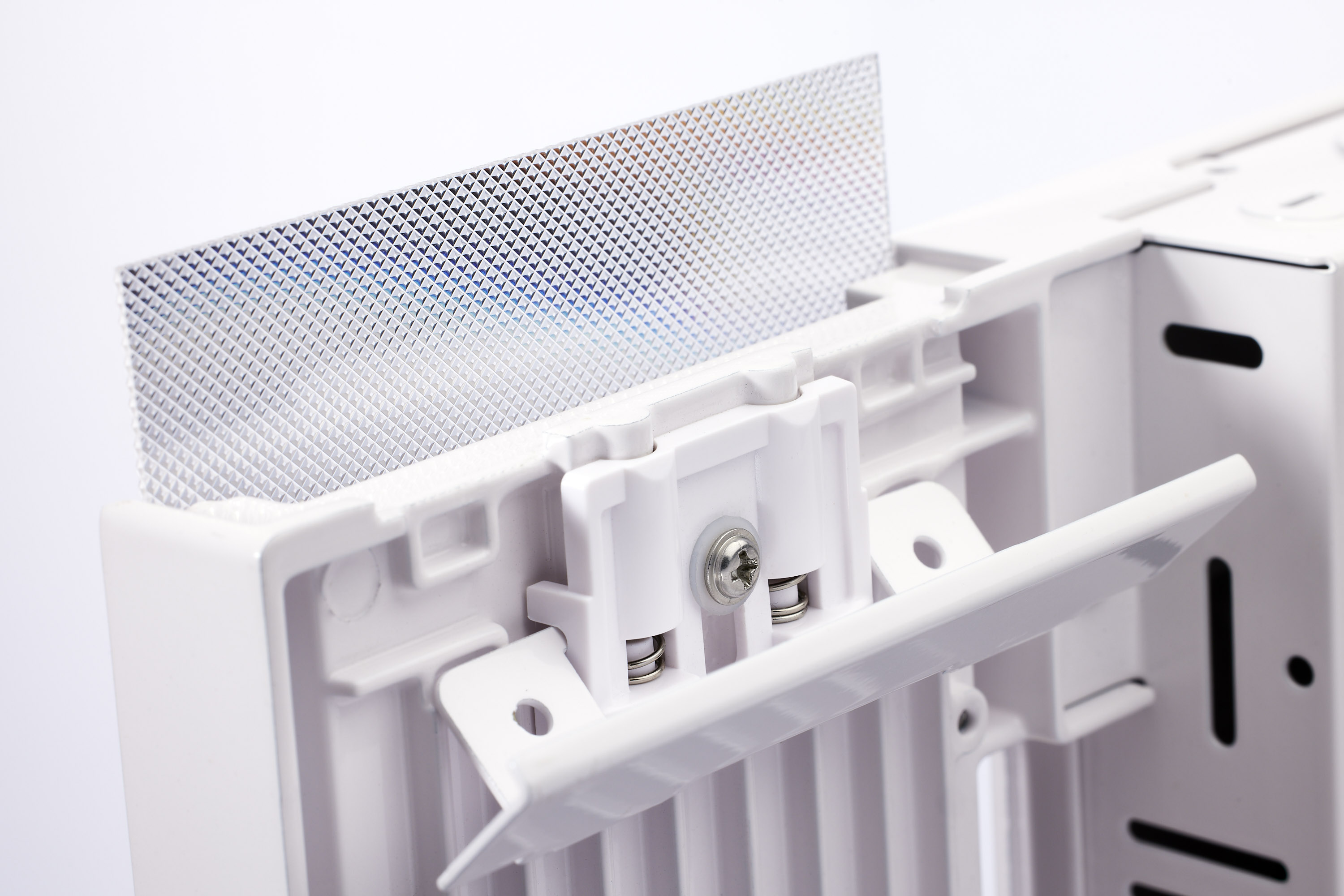

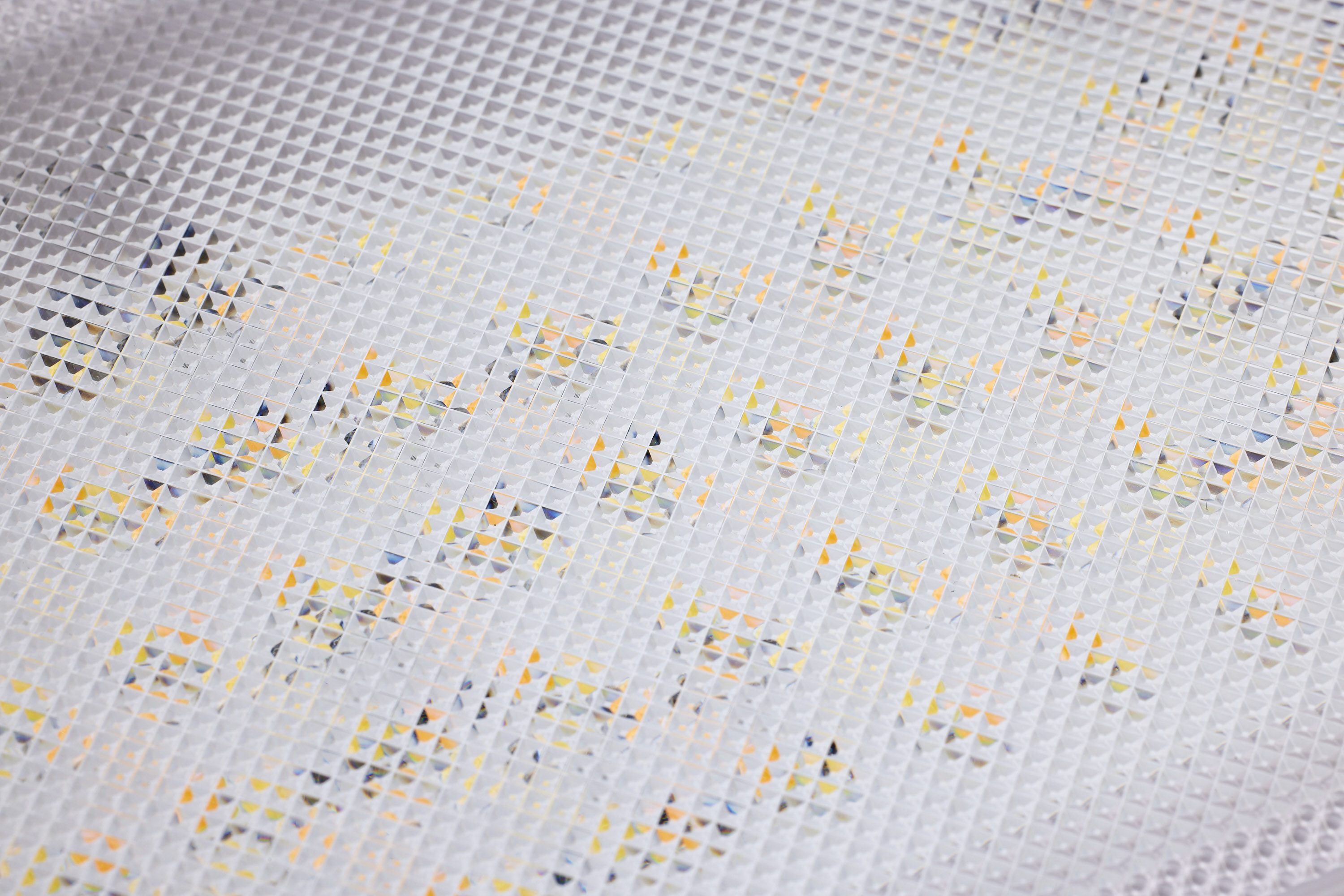

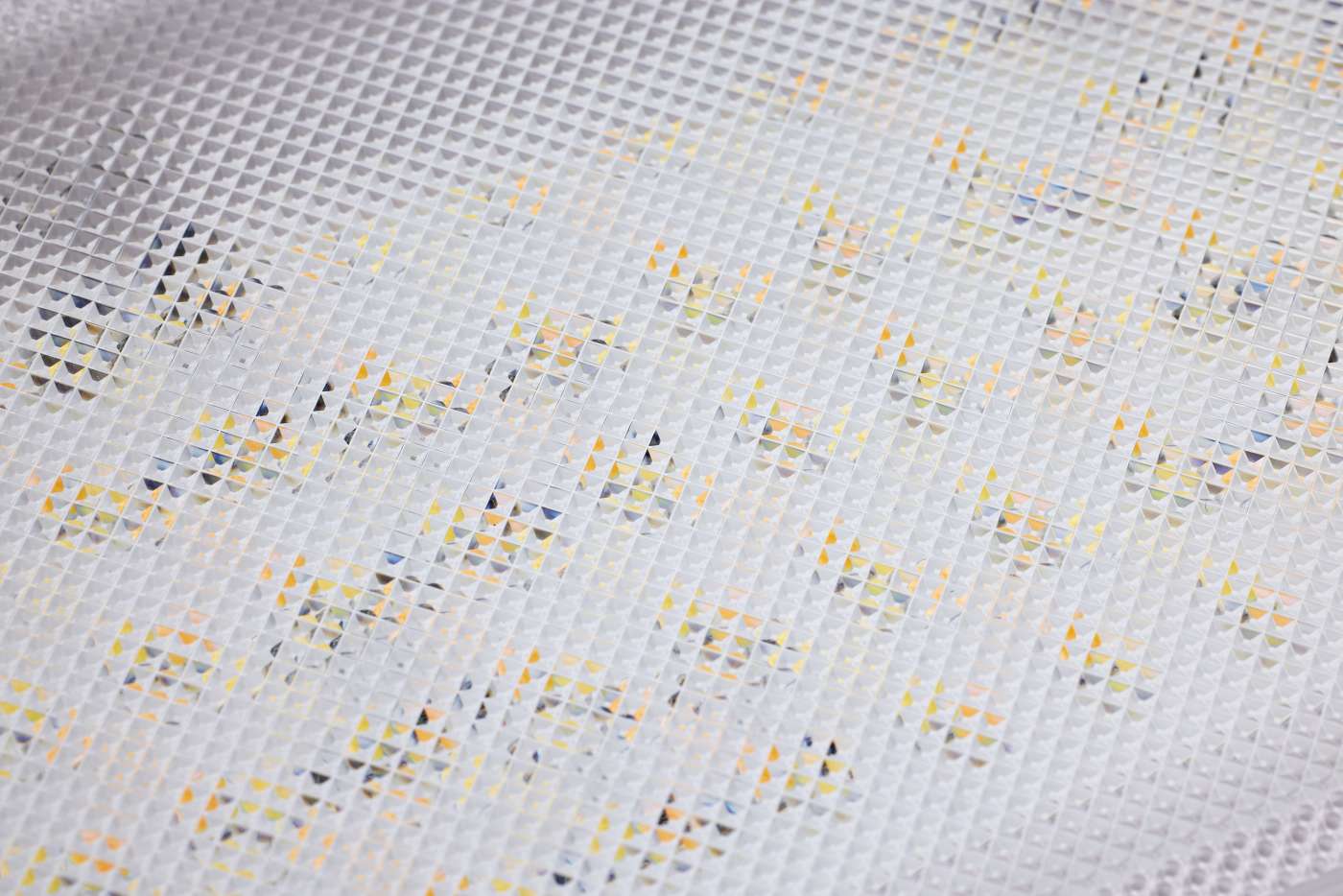

| Lens Material | Polycarbonate (PC) |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 225W-315W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 90x90 |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +55C (+131F) |
| HID Equivalent | 300W |

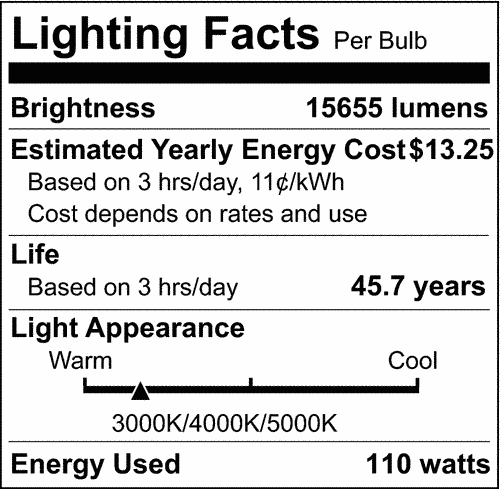

| Lumens | 15655L-21714L |
| Volts | 120V-277V |
| Watts | 110W/130W/155W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-K0QYWM |
| FCC Compliant | True |
| IP Rating | IP20 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923657283 |
|---|---|
| Case Cube | 0.3016 |
| Case Height | 2.95 |
| Case Length | 14.96 |
| Case Quantity | 1 |
| Case UPC | 10045923657280 |
| Case Weight | 6.61 |
| Case Width | 11.81 |
| EA Cube | 0.3016 |
| EA Height | 2.95 |
| EA Length | 14.96 |
| EA Quantity | 1 |
| EA Weight | 6.61 |
| EA Width | 11.81 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Brown Box |
| Web Height | 1.77 |
| Web Length | 14.17 |
| Web Width | 11.02 |
