| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming |
| Material | Die-cast Aluminum |

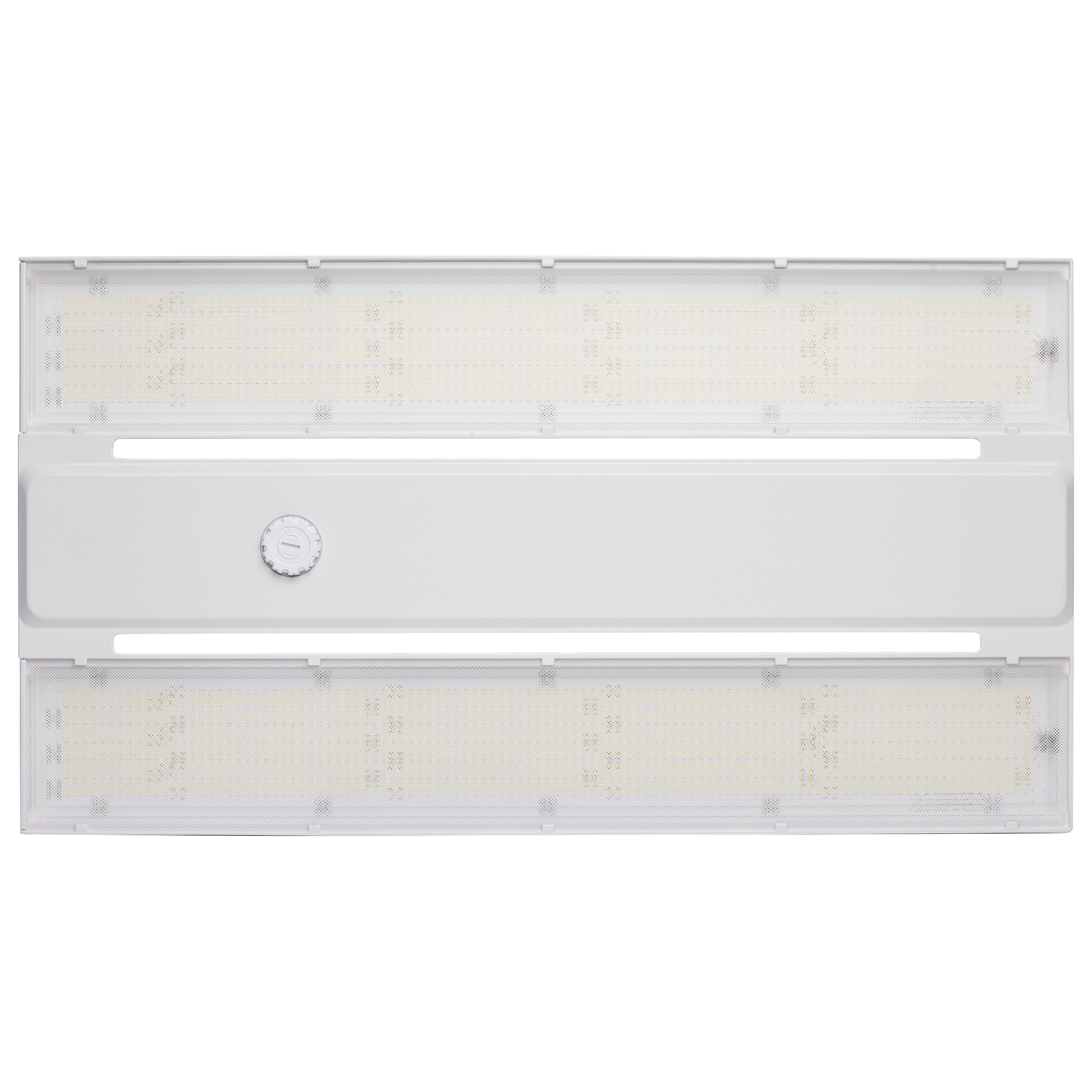

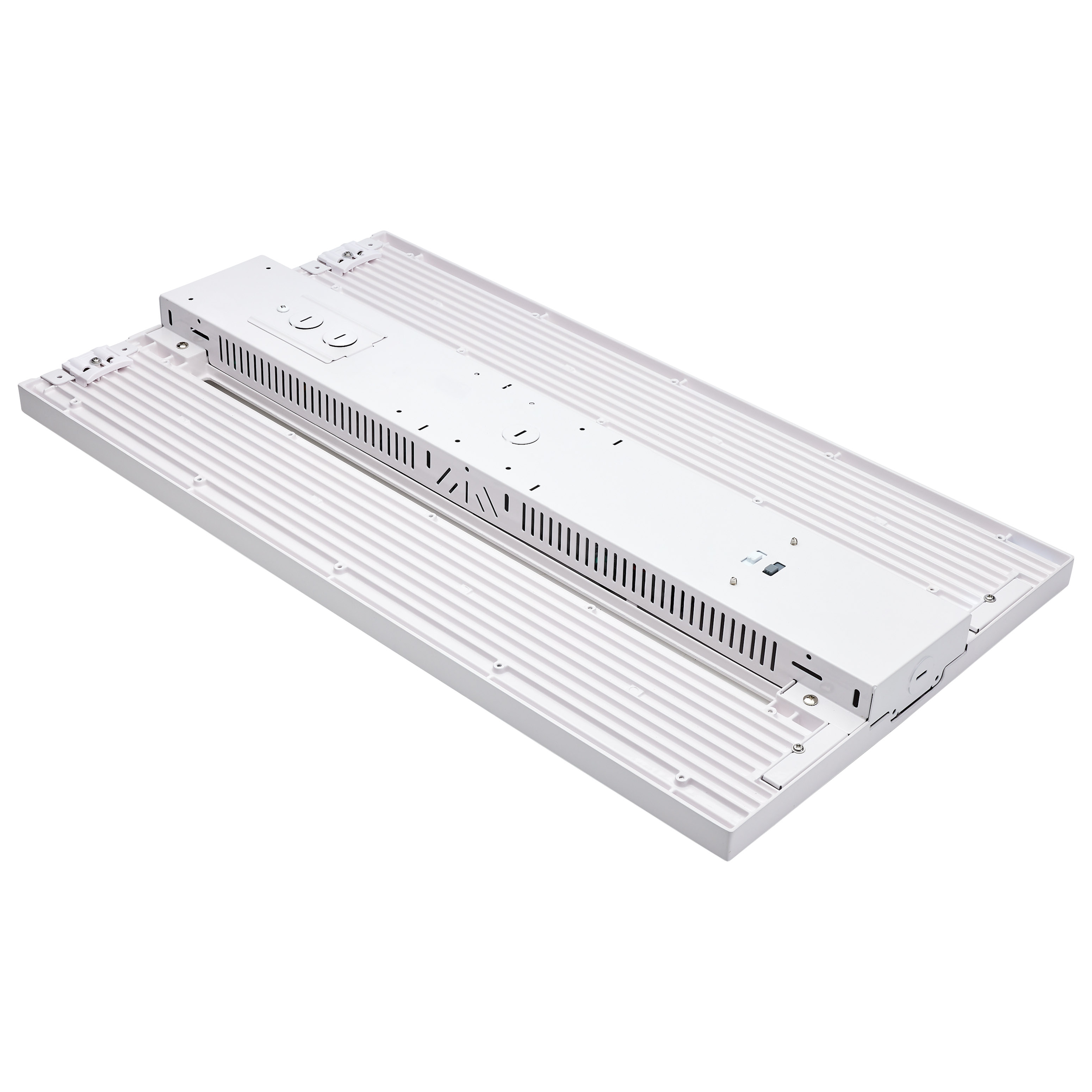

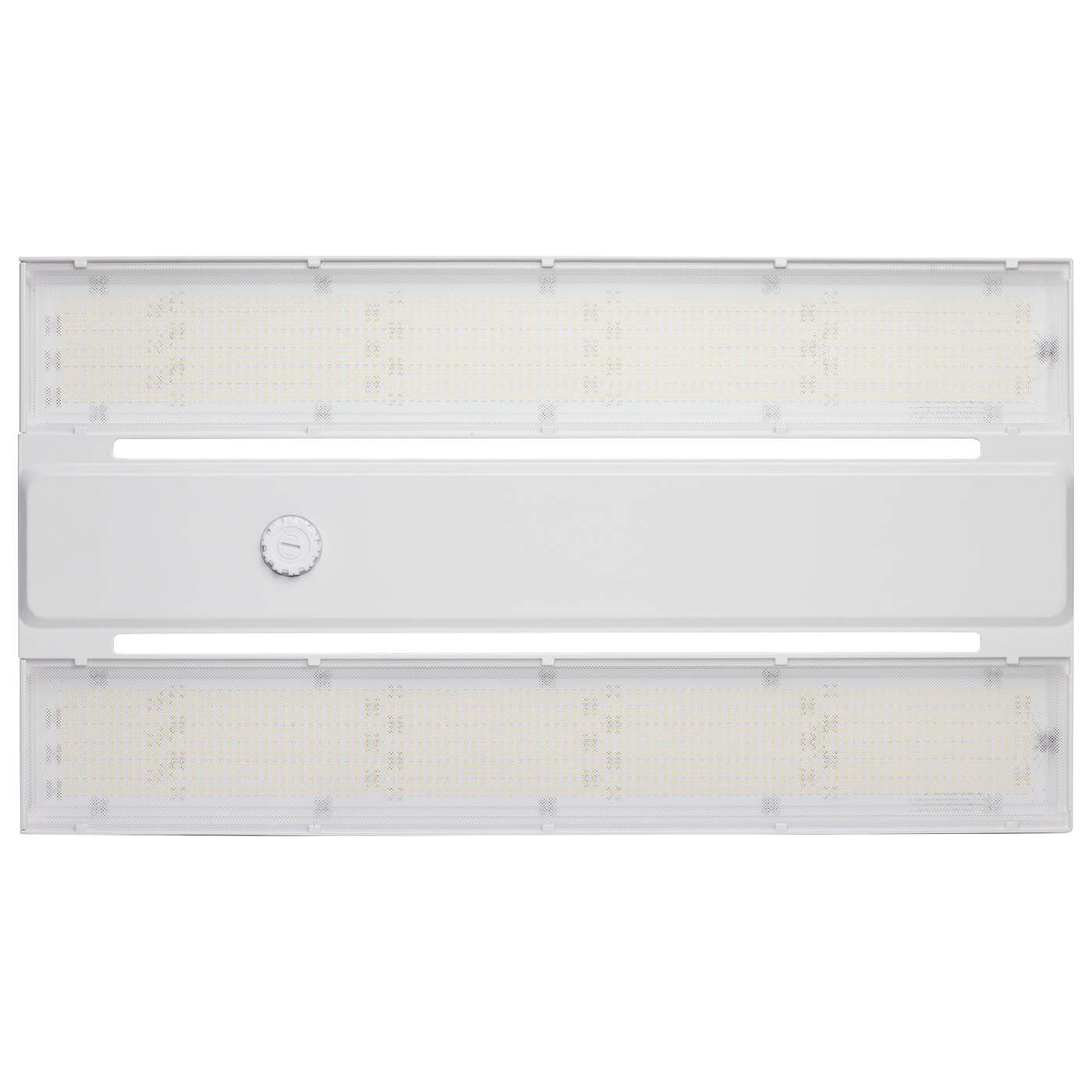

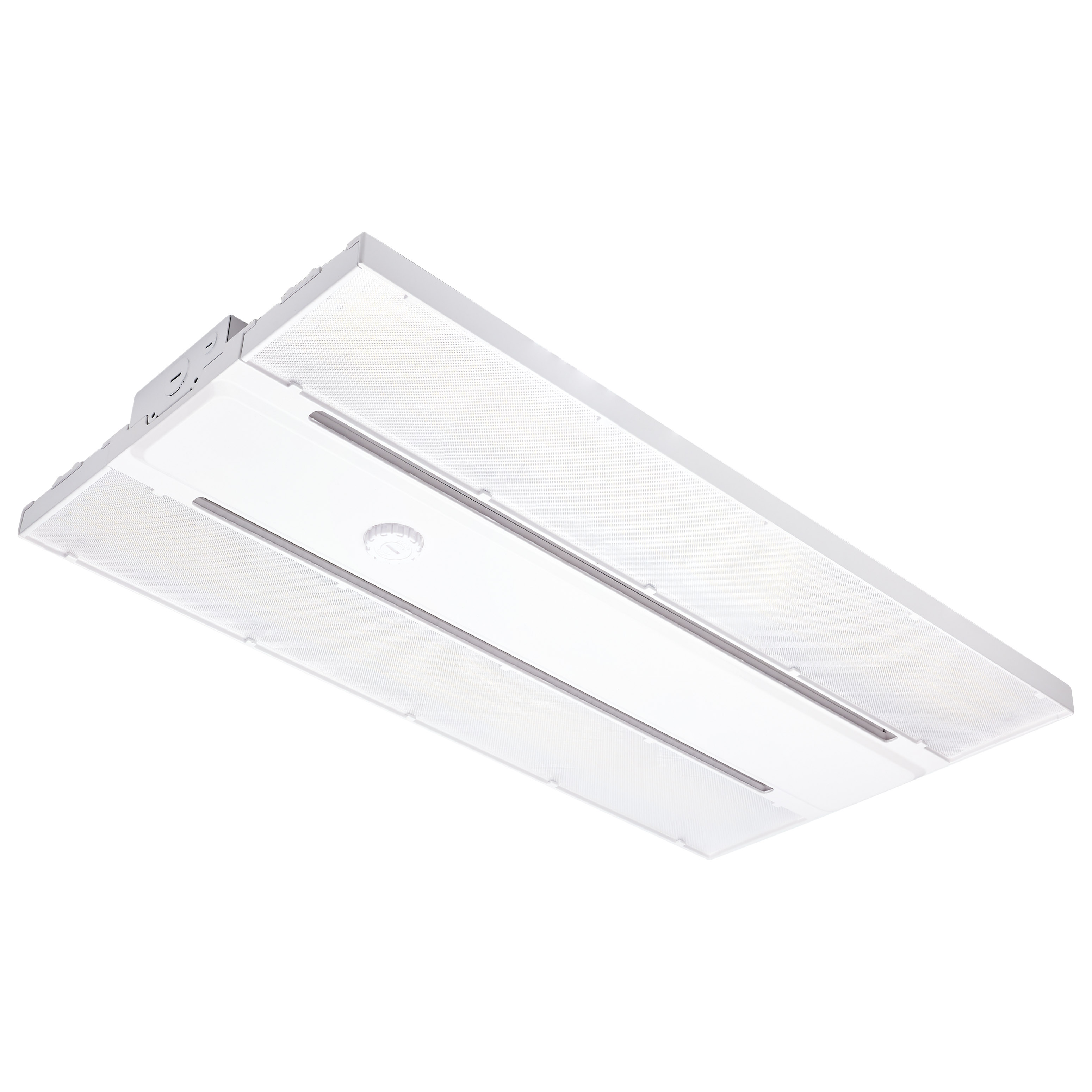

| Fixture Type | Linear Hi-Bay |

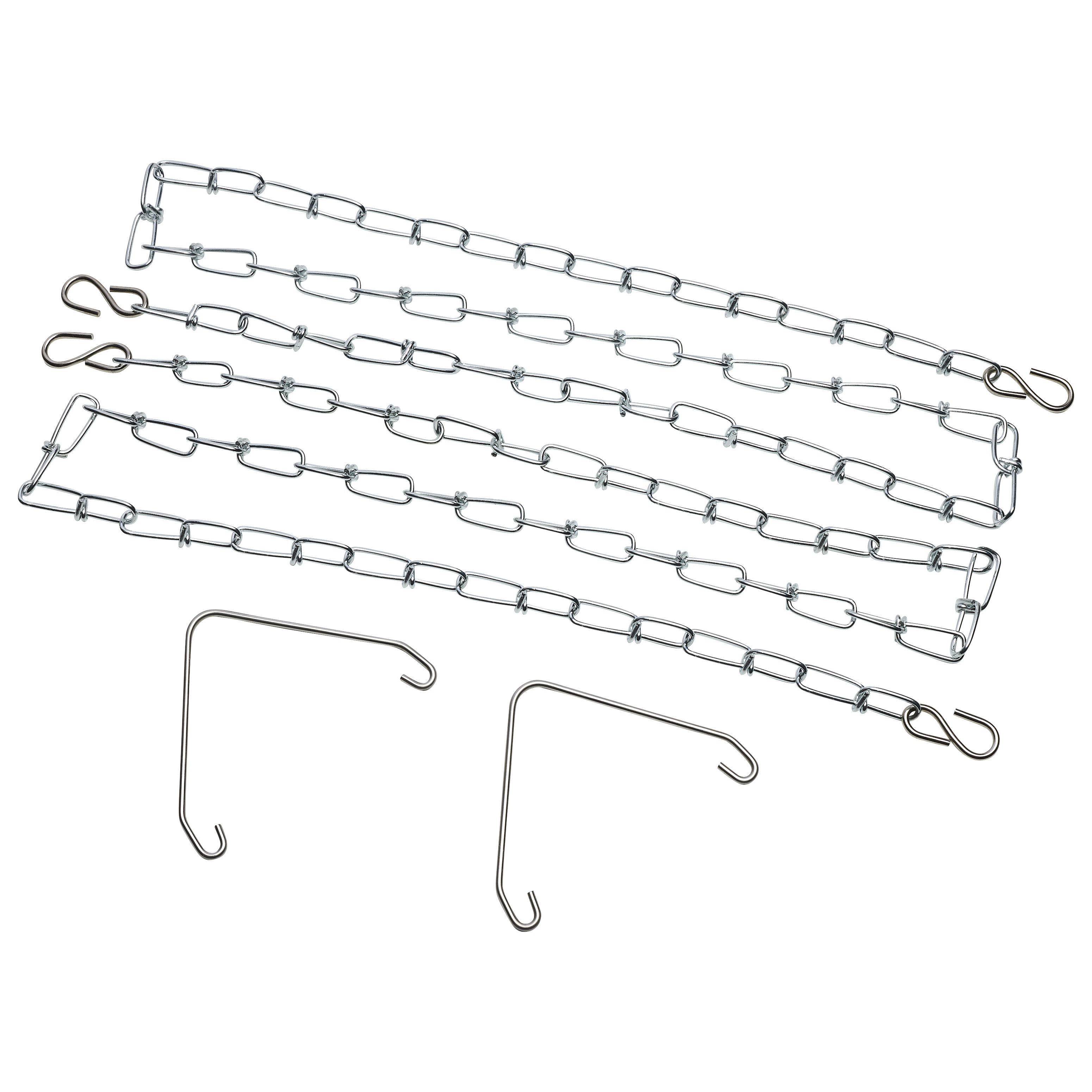

| Includes | 41 Inch Suspension Kit |
| Status | Active |
| Surge Protection | Built-in surge protection - 6KV |
| Total Harmonic Distortion | <20% |

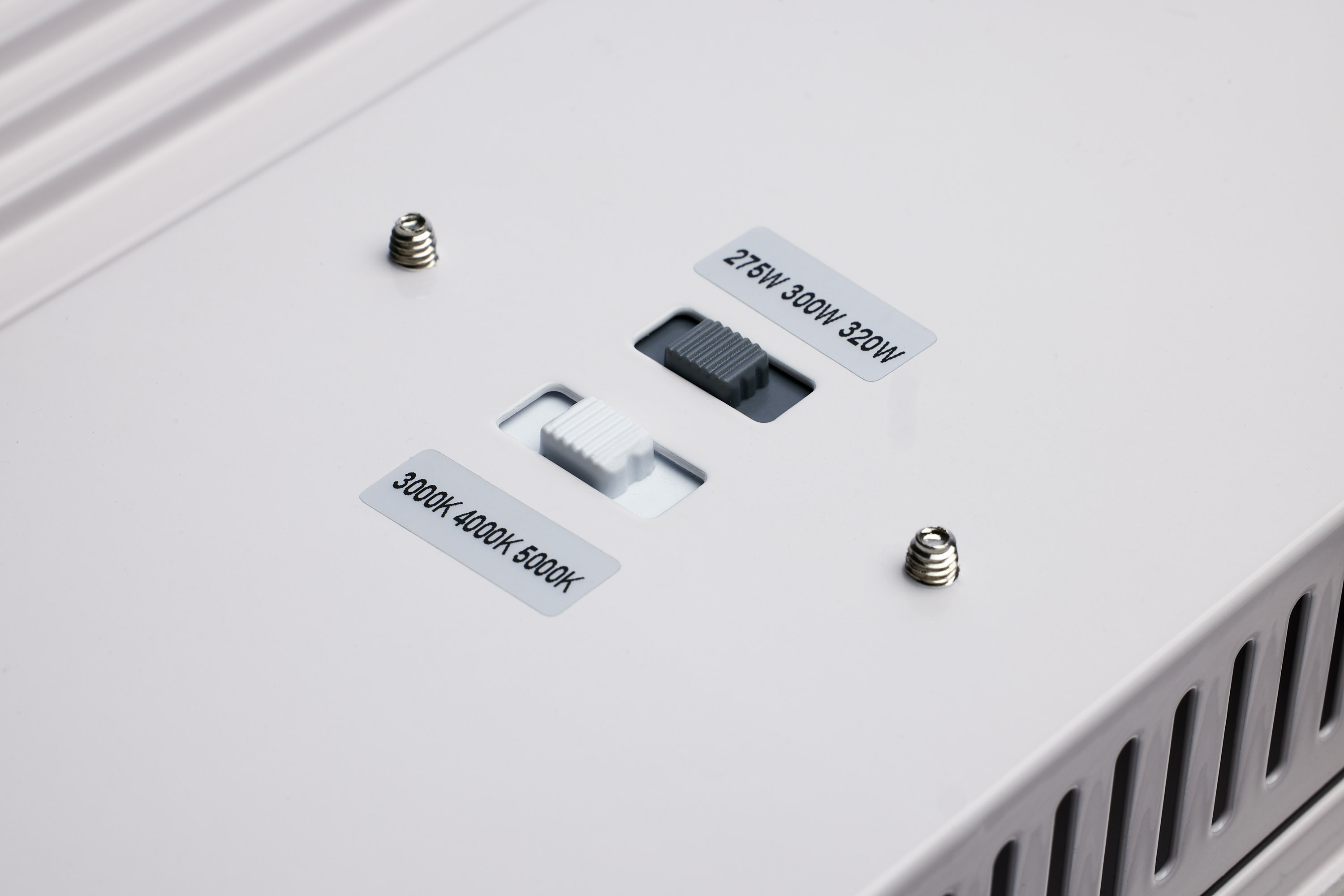

| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| Finish Family | White |
| Amps | 2.250-0.993/2.500-1.155/2.667-1.155A |
| Has Camera | No |
| IOT Enabled | No |

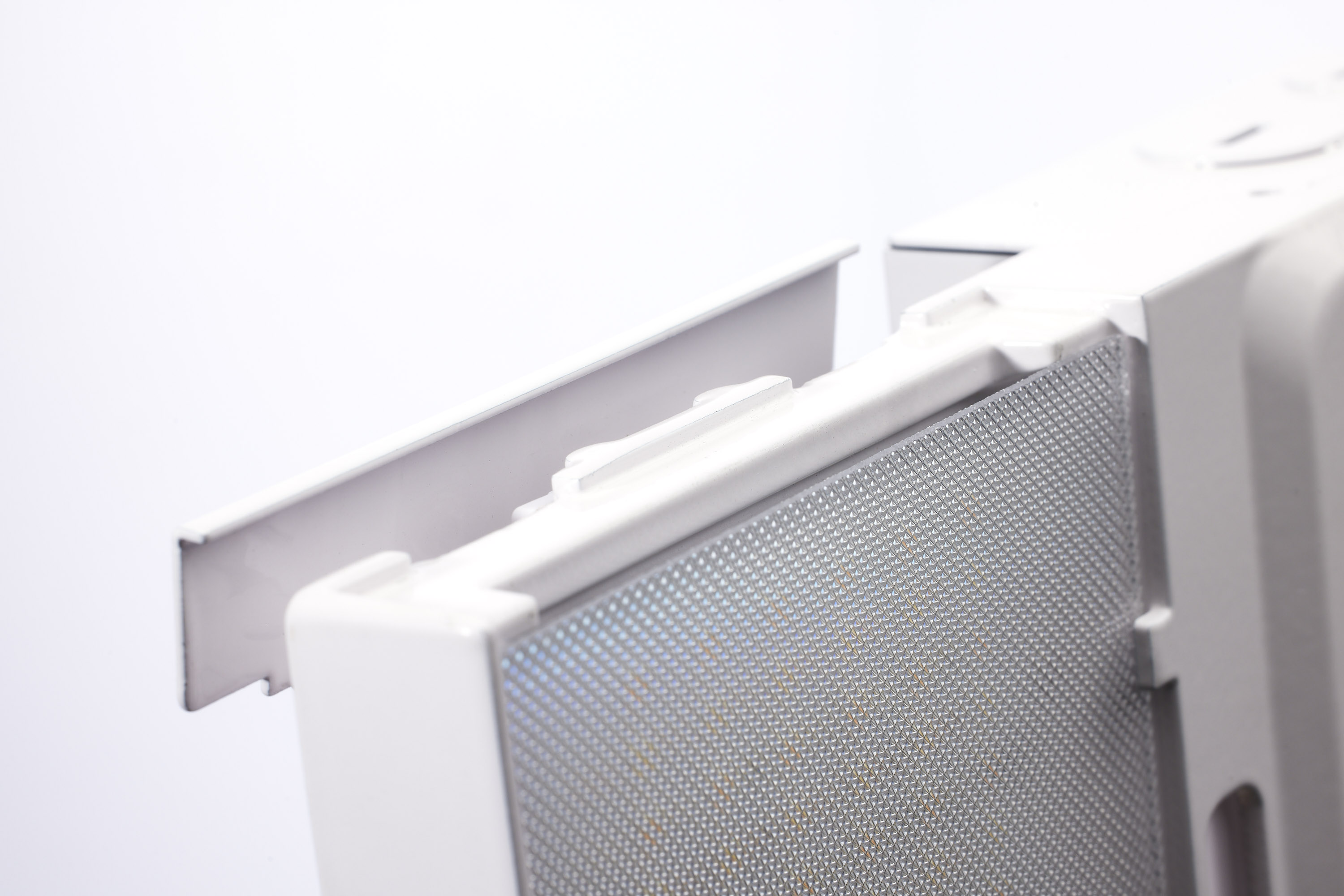

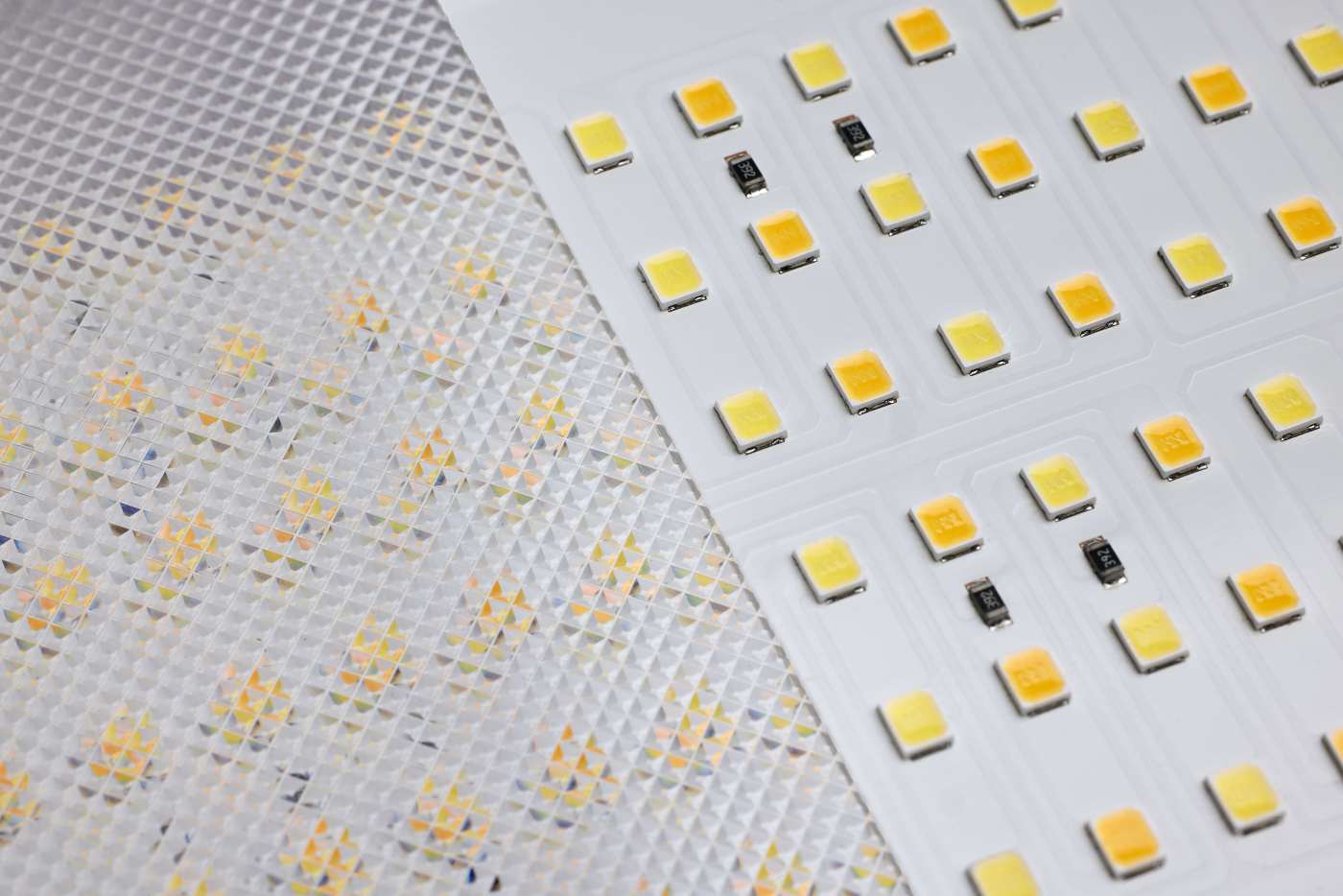

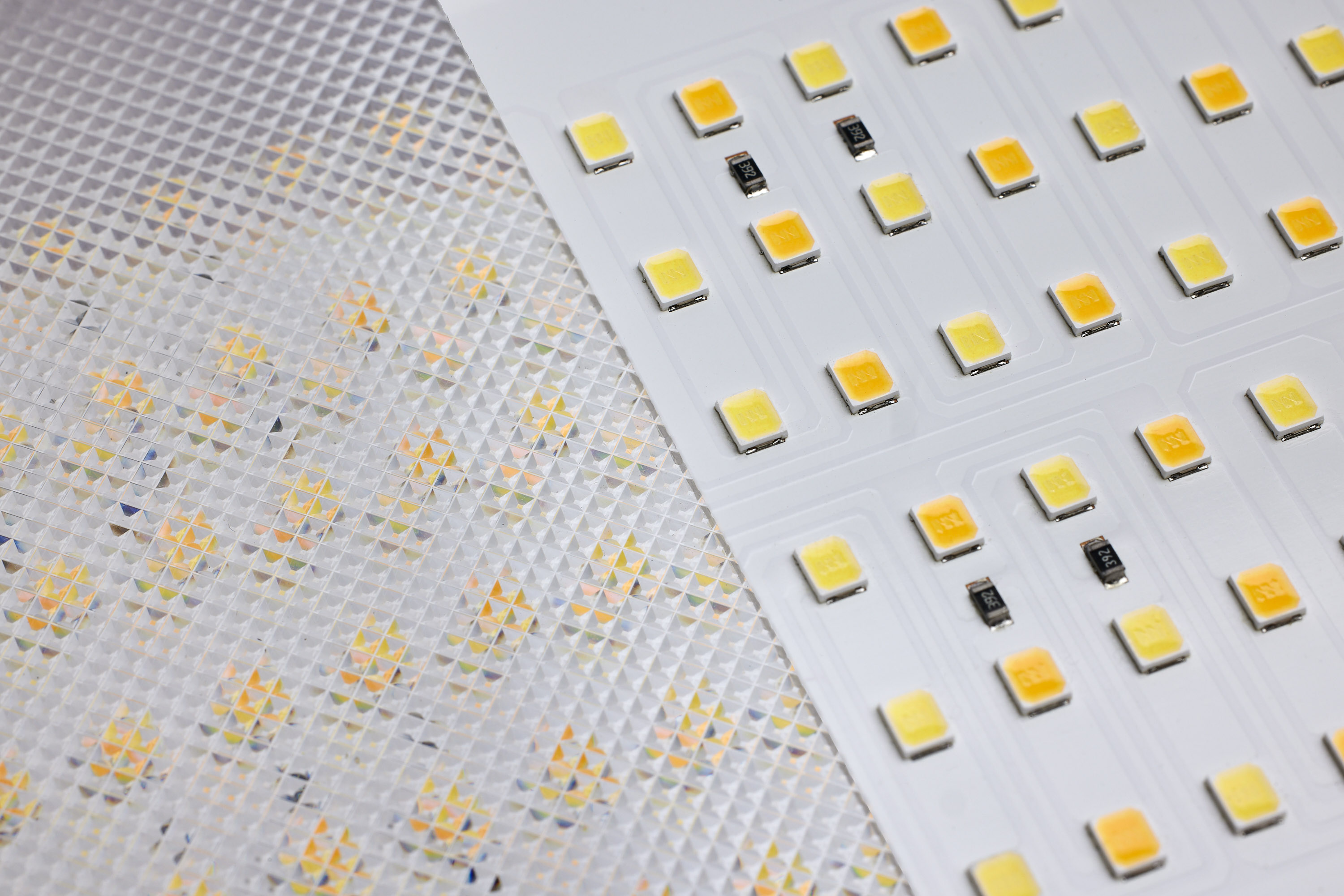

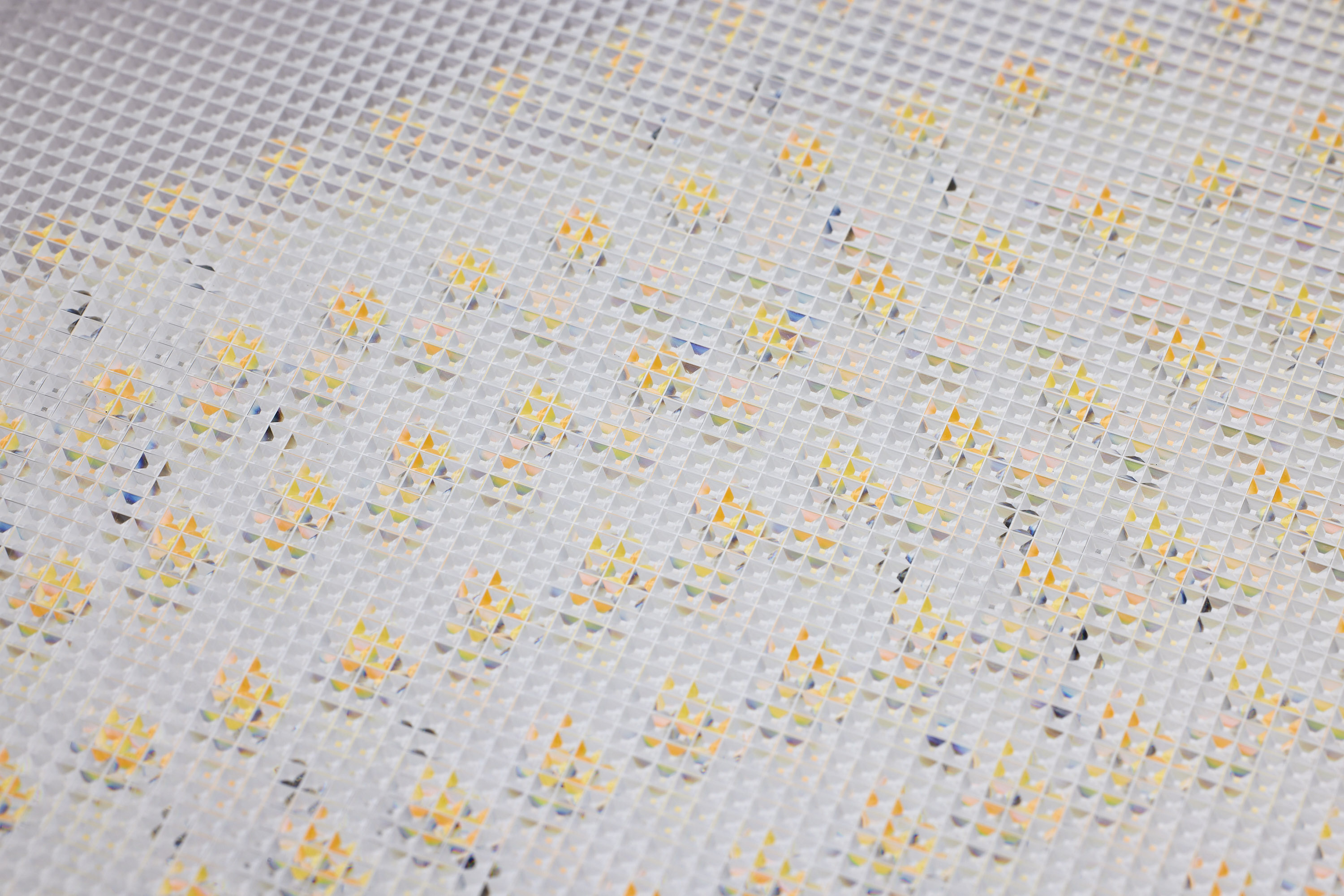

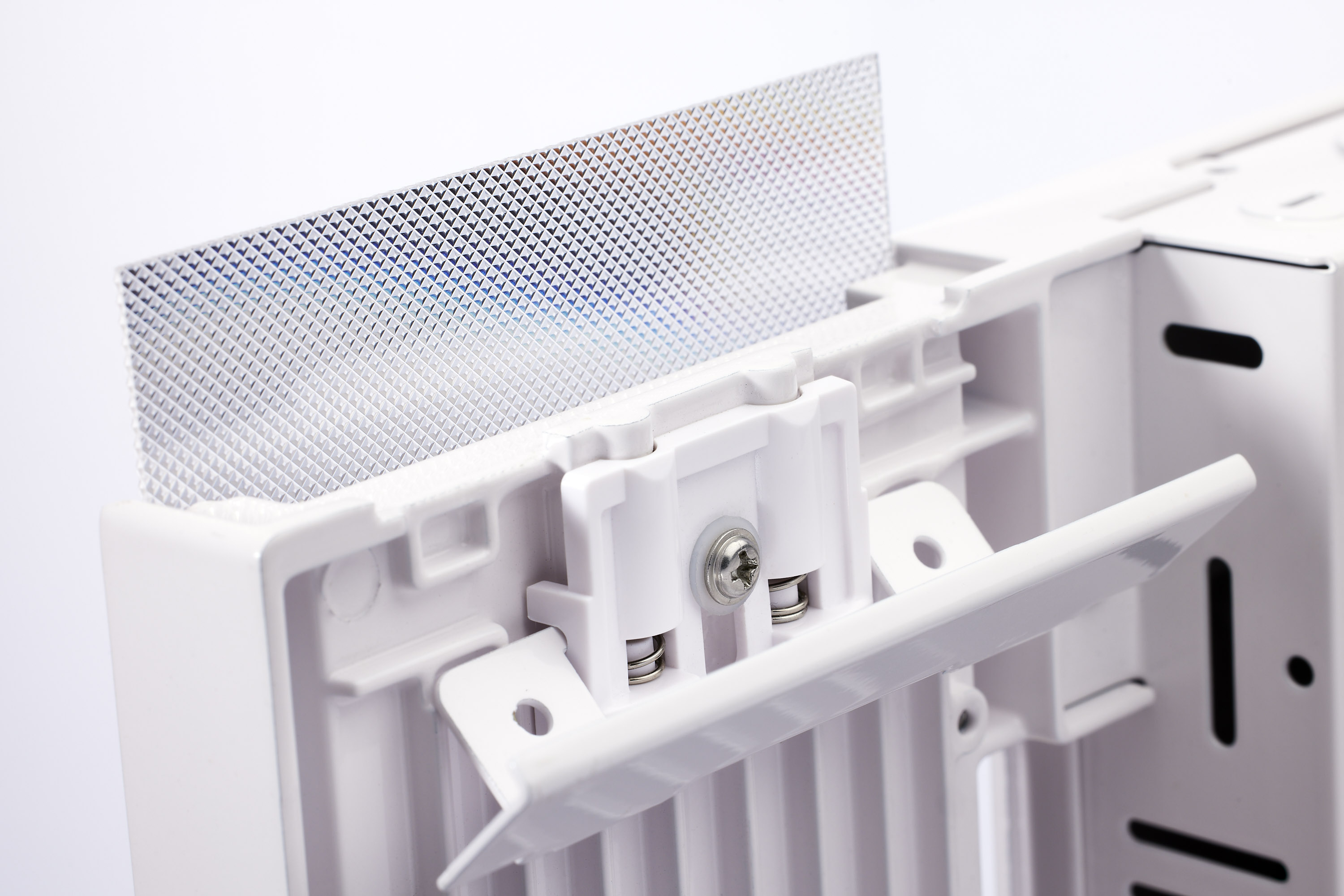

| Lens Material | Polycarbonate (PC) |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 545W-760W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 90x90 |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Dimming Type | 0-10V Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +55C (+131F) |
| HID Equivalent | 550W |

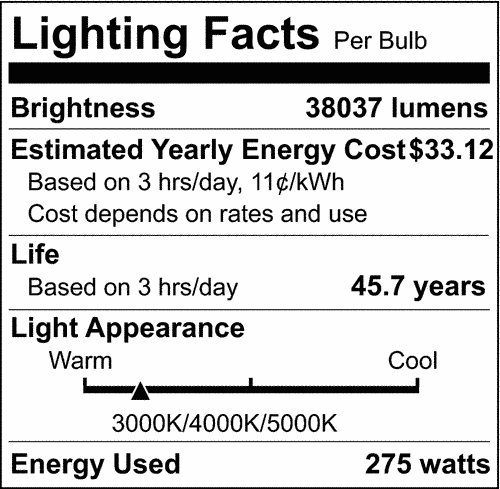

| Lumens | 38037L-45598L |
| Volts | 120V-277V |
| Watts | 275W/300W/320W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | Integrated |

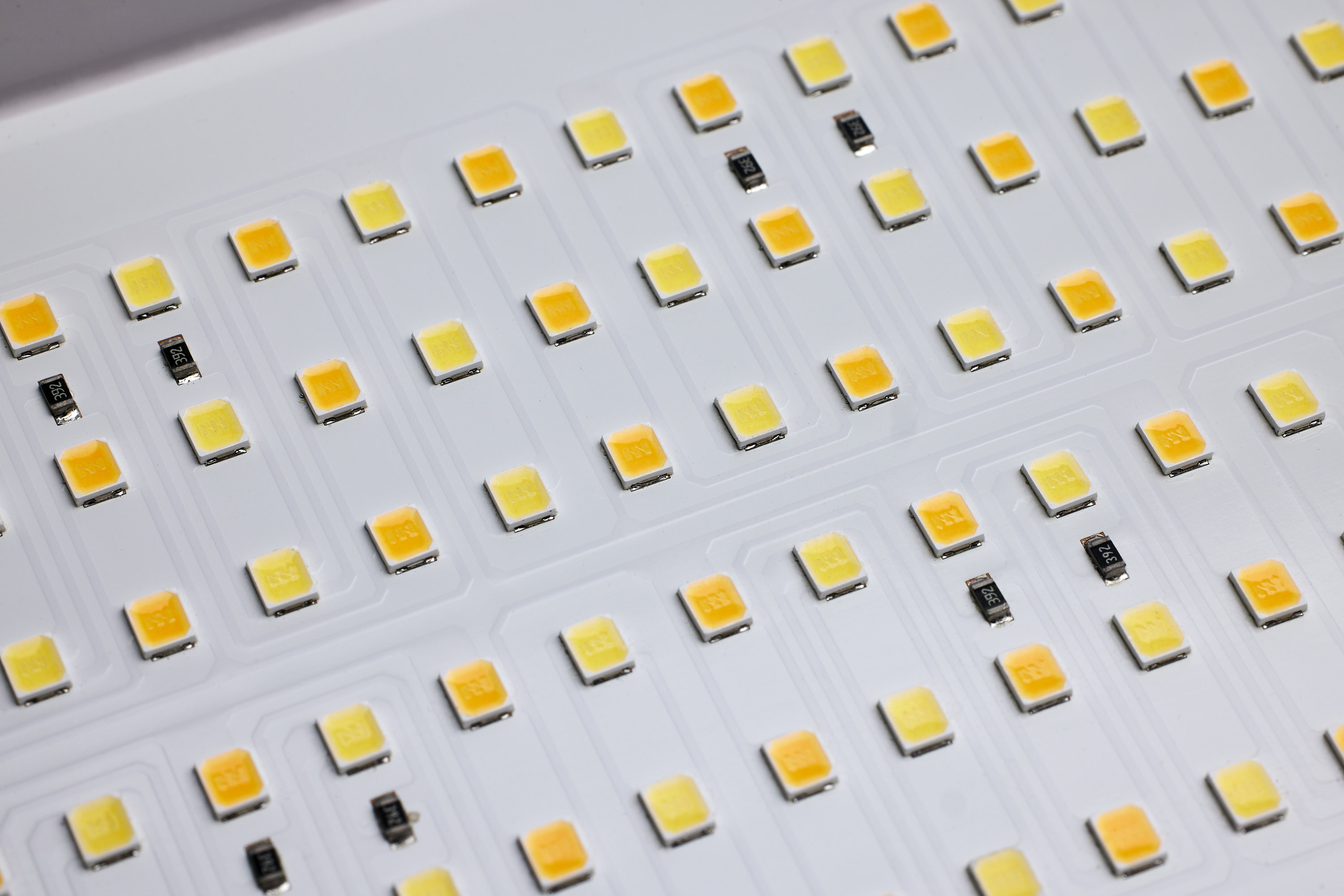

| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| DLC ID | S-3MYZ7S |
| FCC Compliant | Yes |
| IP Rating | IP20 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Energy Star Certified | No |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923657306 |
|---|---|
| Case Cube | 0.5445 |
| Case Height | 2.95 |
| Case Length | 23.82 |
| Case Quantity | 1 |
| Case UPC | 10045923657303 |
| Case Weight | 10.36 |
| Case Width | 13.39 |
| EA Cube | 0.5445 |
| EA Height | 2.95 |
| EA Length | 23.82 |
| EA Quantity | 1 |
| EA Weight | 10.36 |
| EA Width | 13.39 |
| Pack Type | Brown Box |
| Web Height | 1.77 |
| Web Length | 23.03 |
| Web Width | 12.6 |
