65-1030

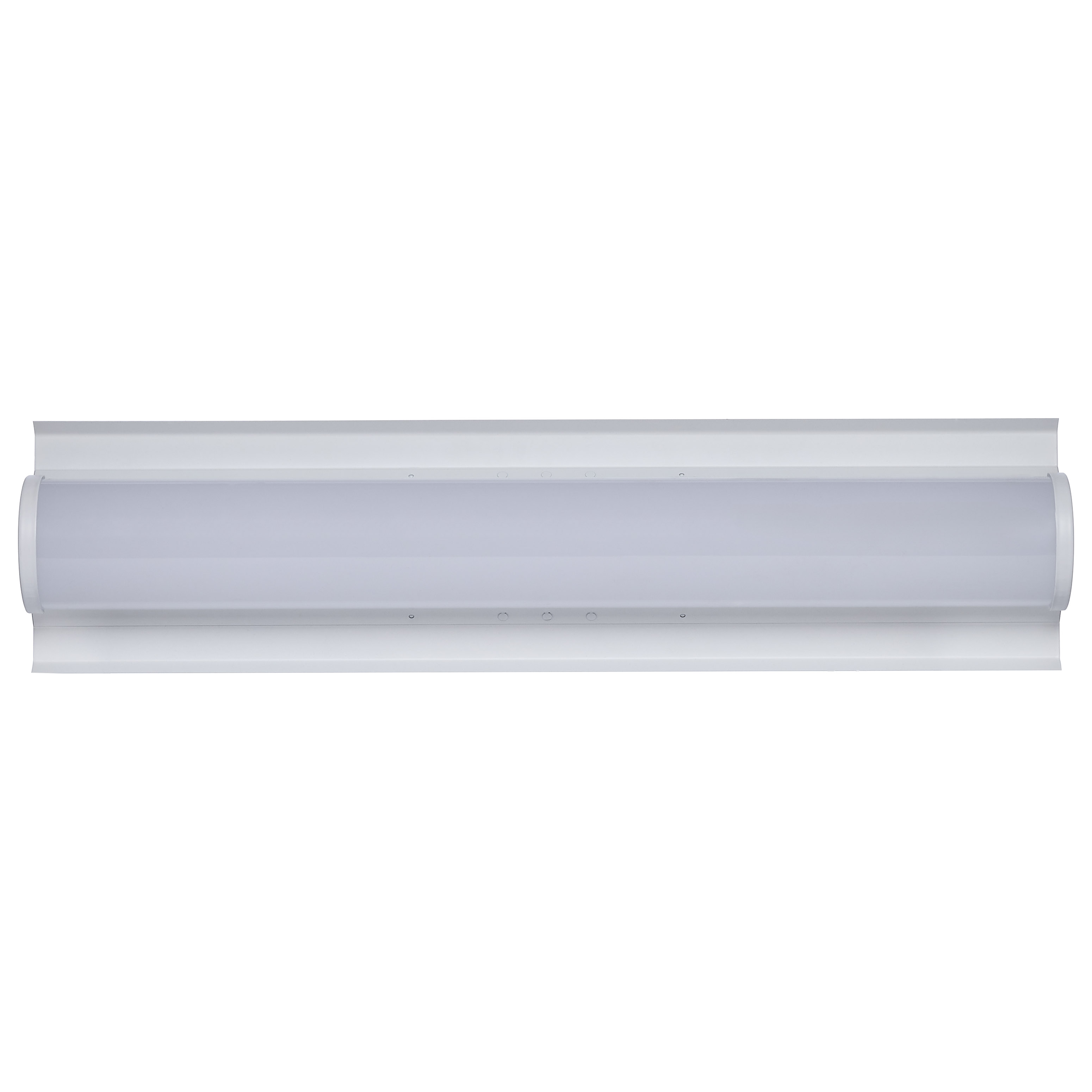

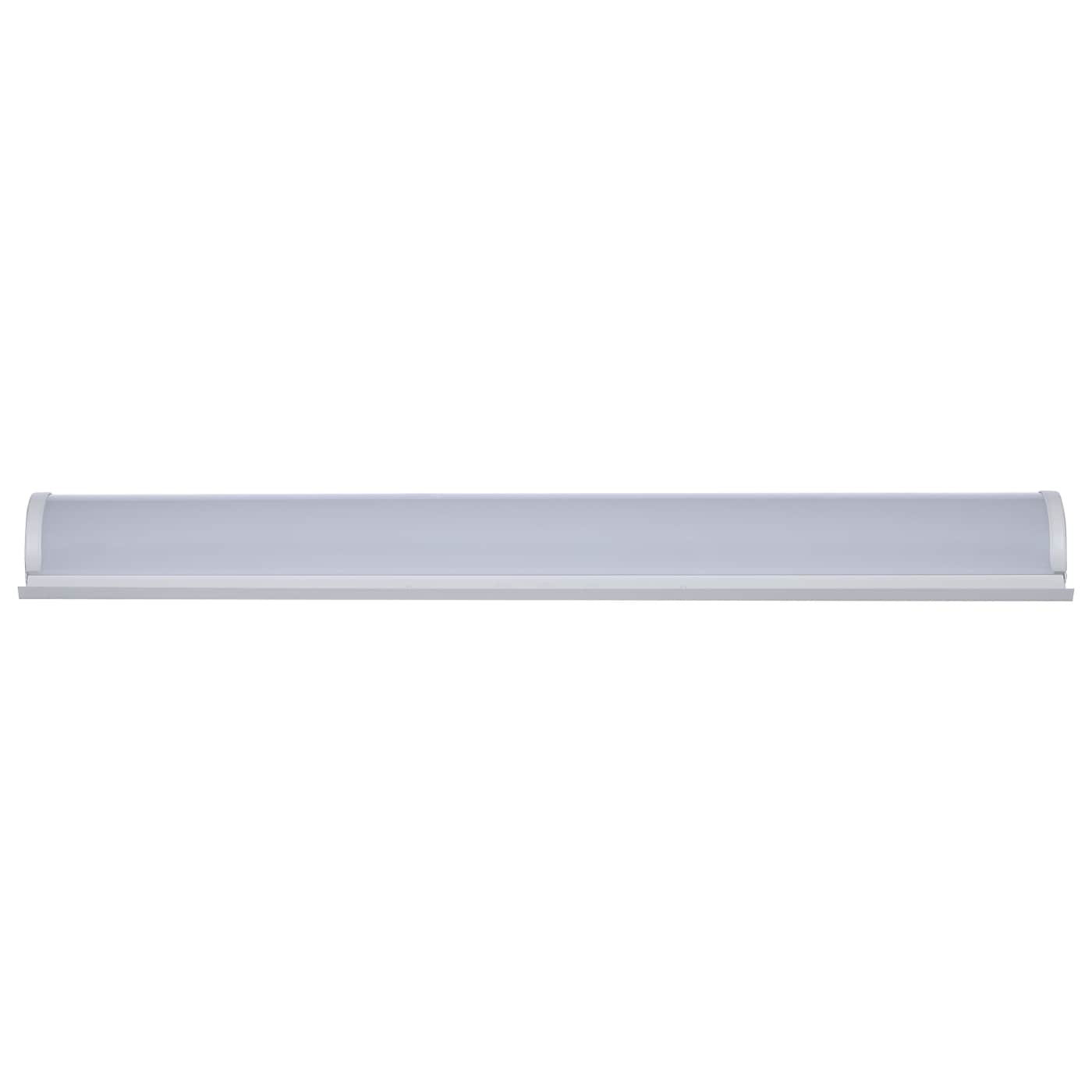

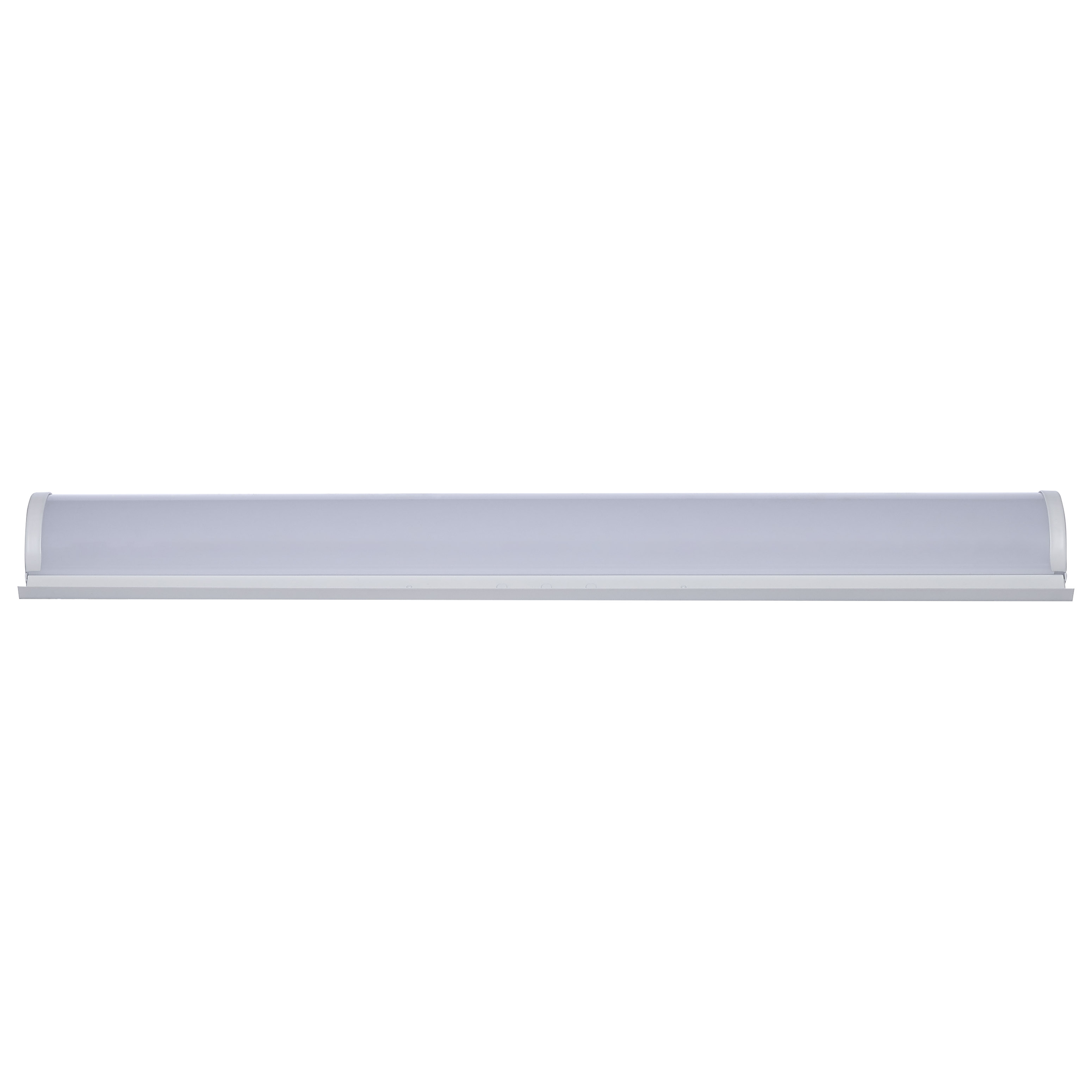

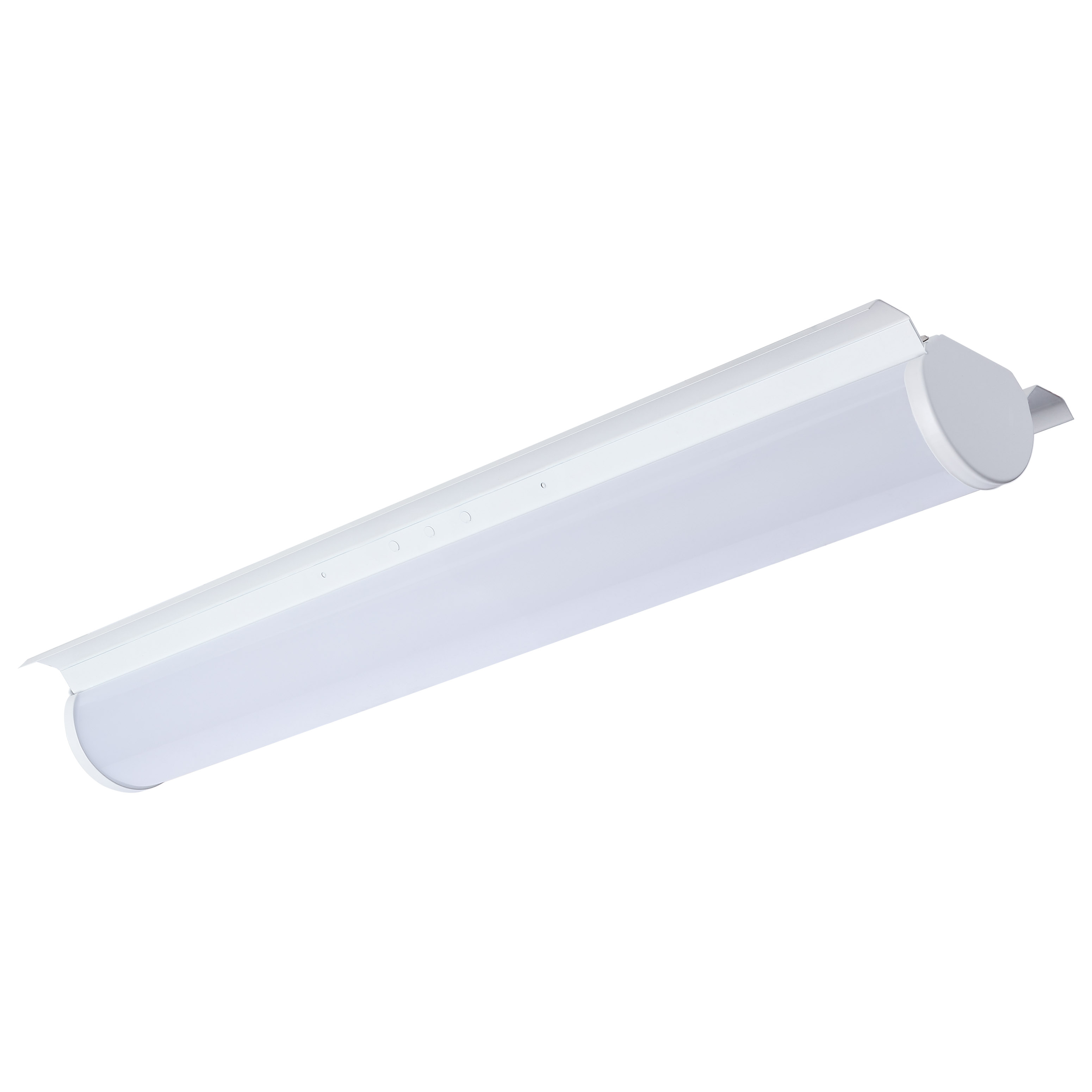

2FT 25W LED STRIP RETROFIT

  • 15/20/25 Watt LED 2 Foot Retrofit Strip Light
  • 35K/4K/5K CCT Selectable
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
65-1030 Specifications65-1030 InstructionsSN1862 Strip Retrofit PI 7-3-25
Tools
Lighting Layout Analysis For 65-1030
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
15/20/25 Watt LED 2 Foot Retrofit Strip Light; 35K/4K/5K CCT Selectable; 120-277 Volt
Products Specs
General
CompanyNUVO
Mounting Height1.0
Mounting Length24.0
Mounting Width2.75
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming Only
MaterialSteel
Fixture TypeStrip Light
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion<20%
CCT SelectableTrue

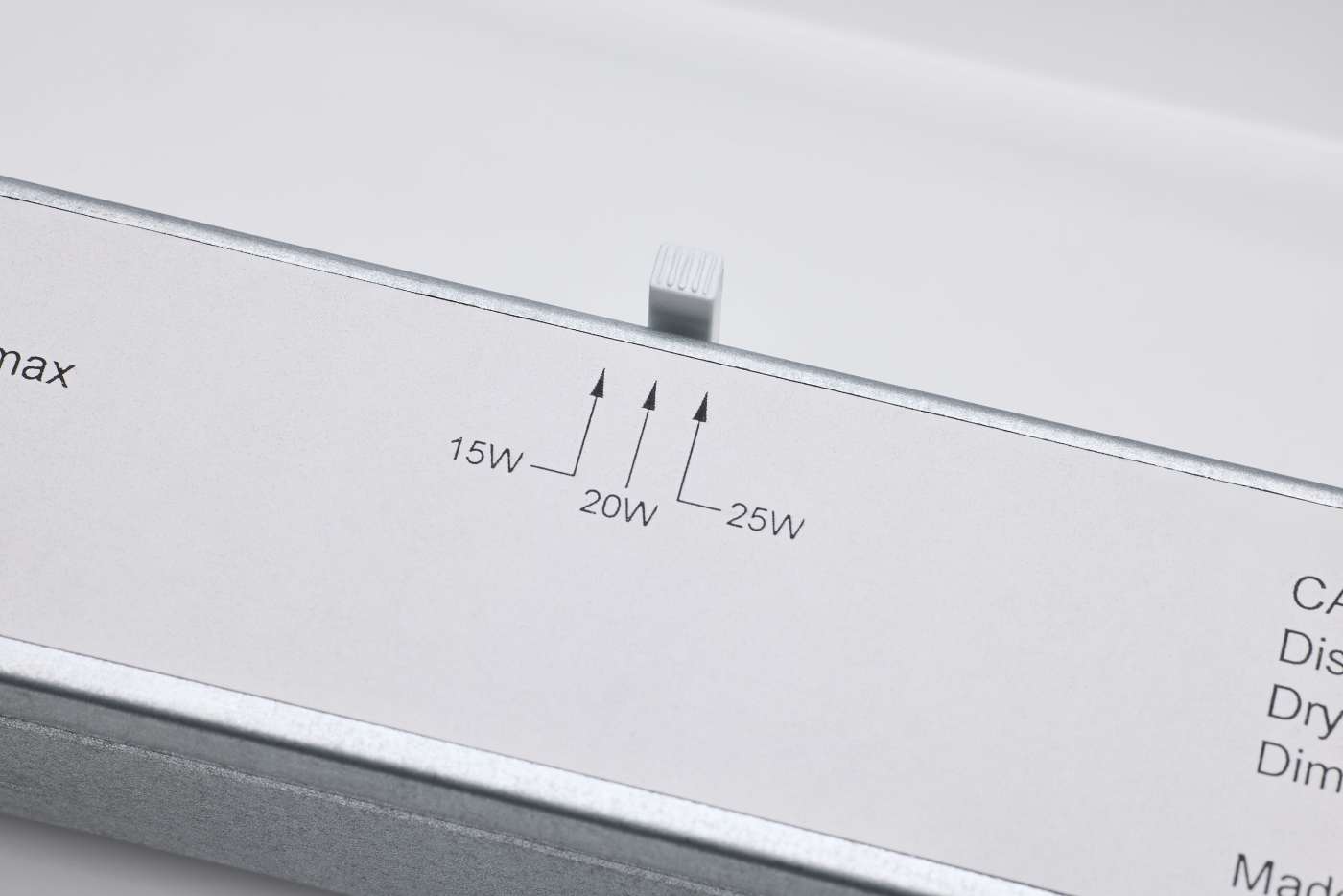

Wattage SelectableTrue
Finish FamilyWhite
Amps0.125-0.054/0.167-0.072/0.208-0.090A
Has CameraFalse
IOT EnabledFalse
Lens FinishGlossy Frosted
Lens MaterialPolycarbonate (PC)
Power Factor0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv3 x 17W T8
Electrical

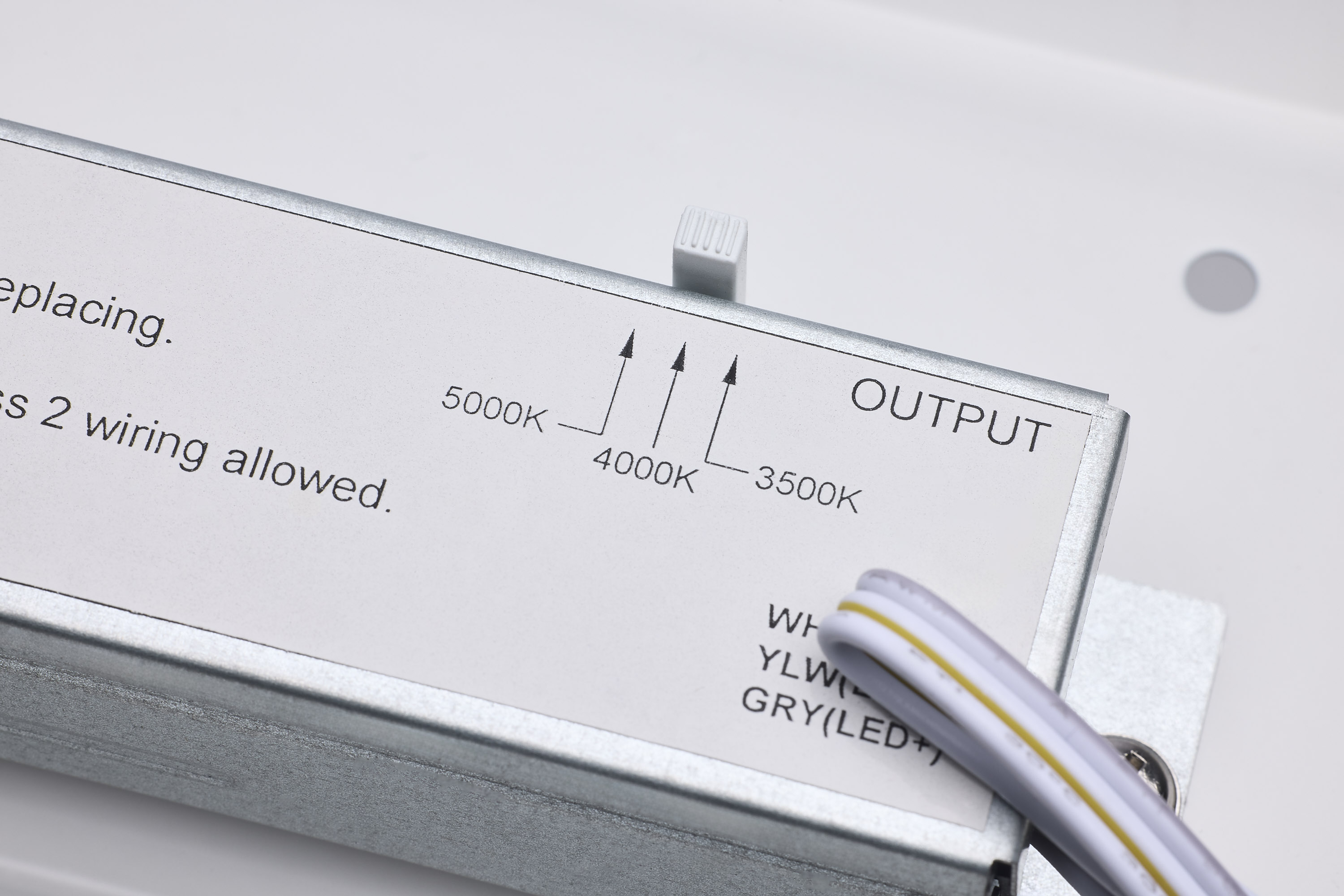

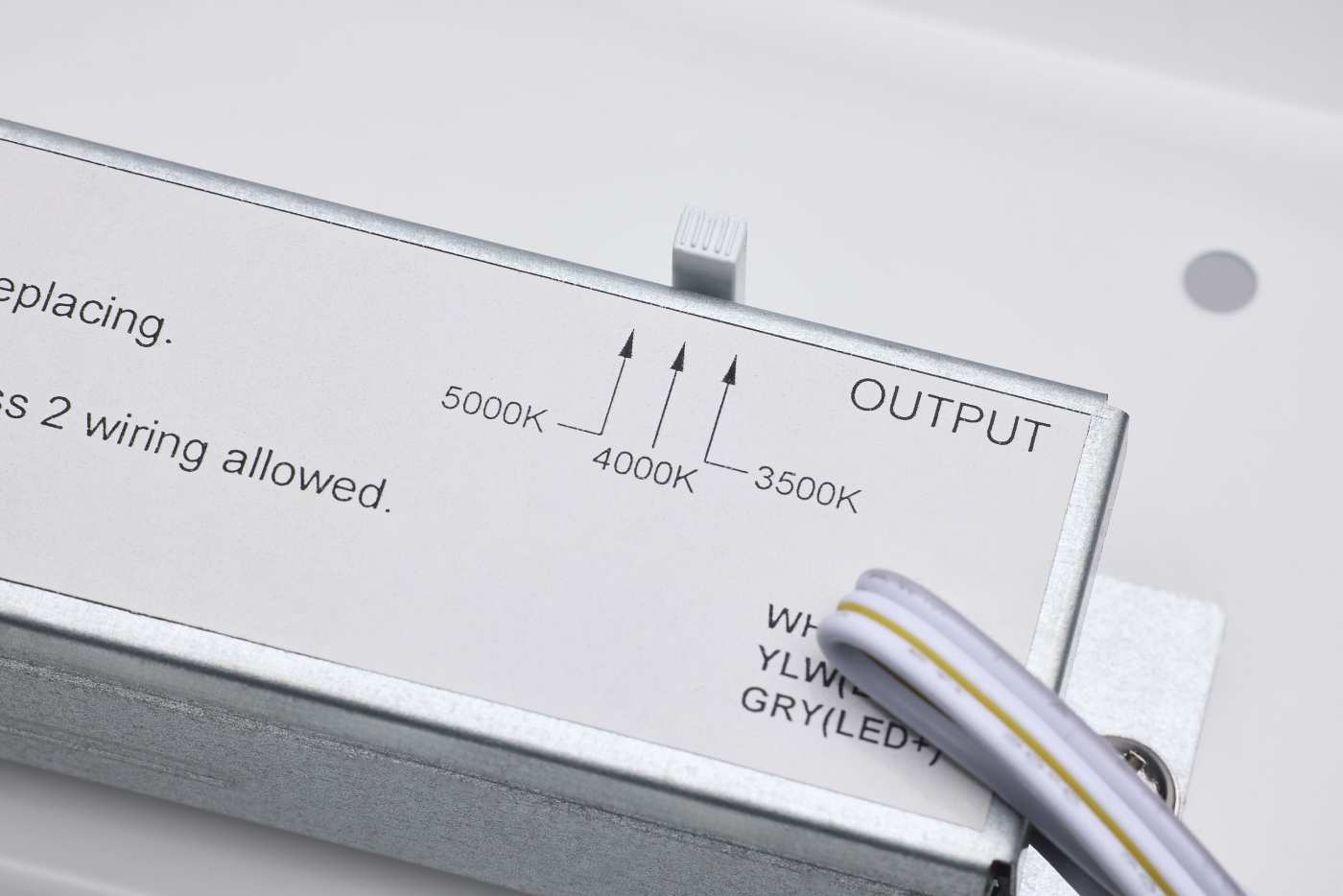

CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNeutral White to Natural Light
CRI80
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1950L/2600L/3250L
Volts120V-277V

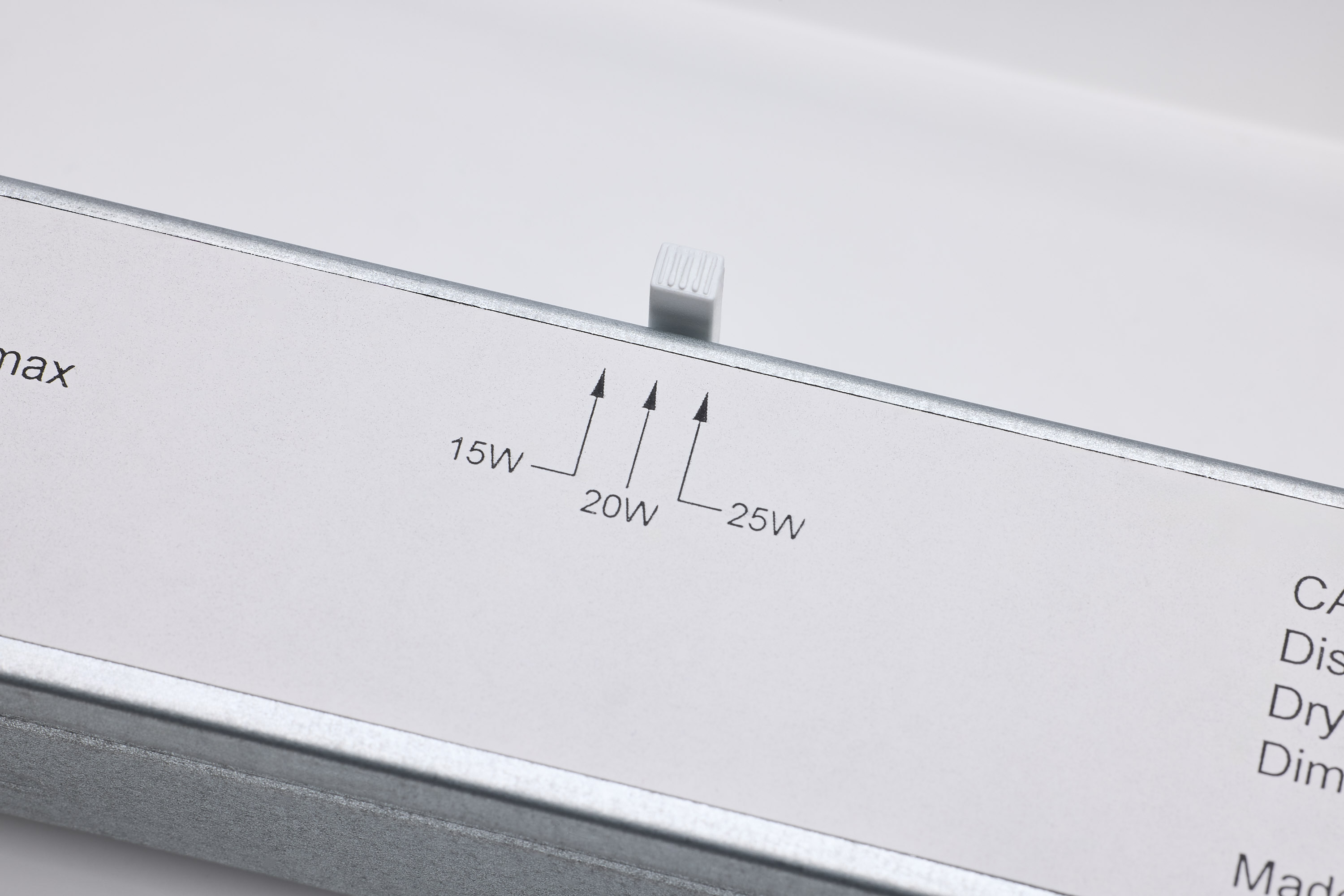

Watts15W/20W/25W
Physical
Lamp BaseIntegrated
FinishGloss White
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years

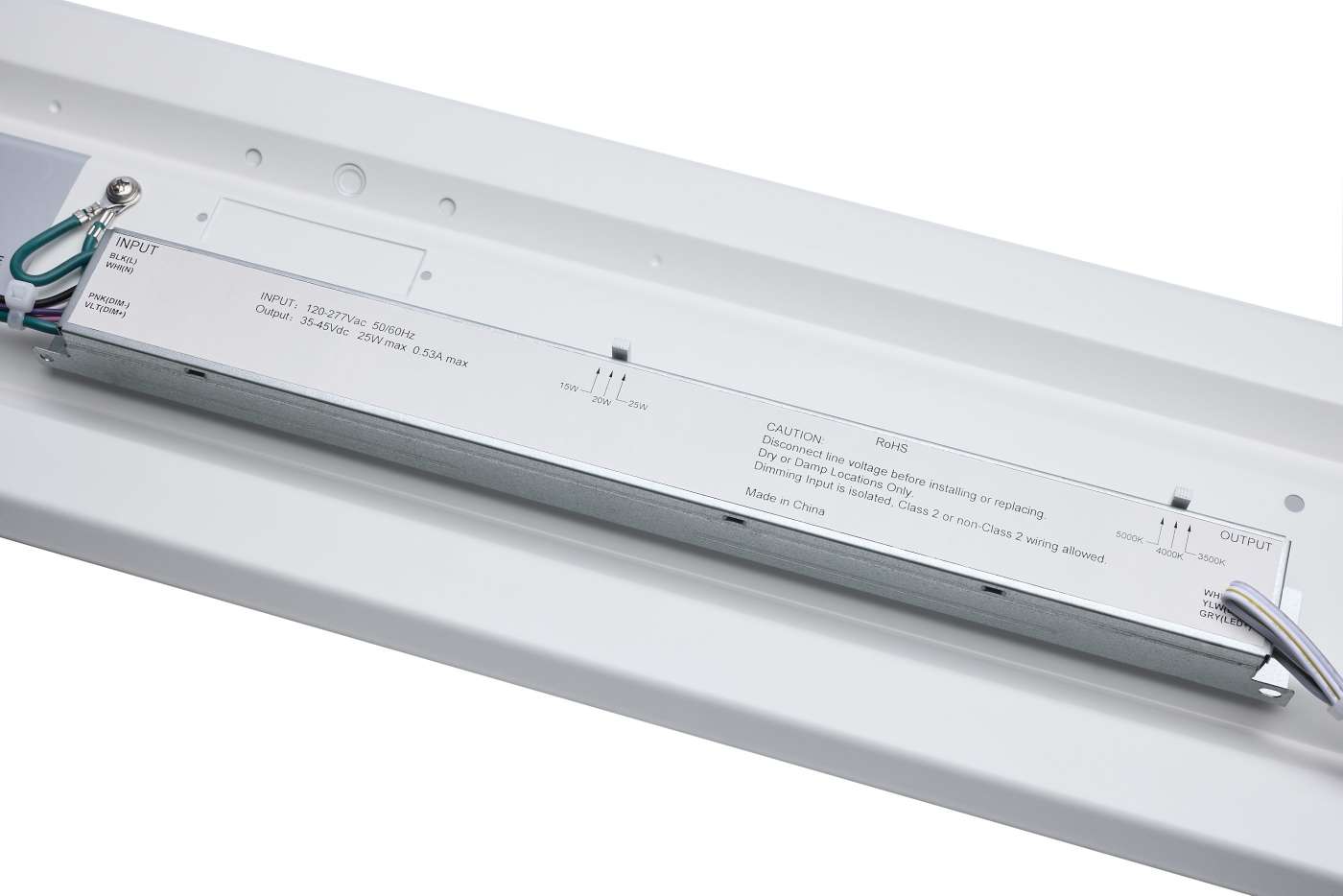

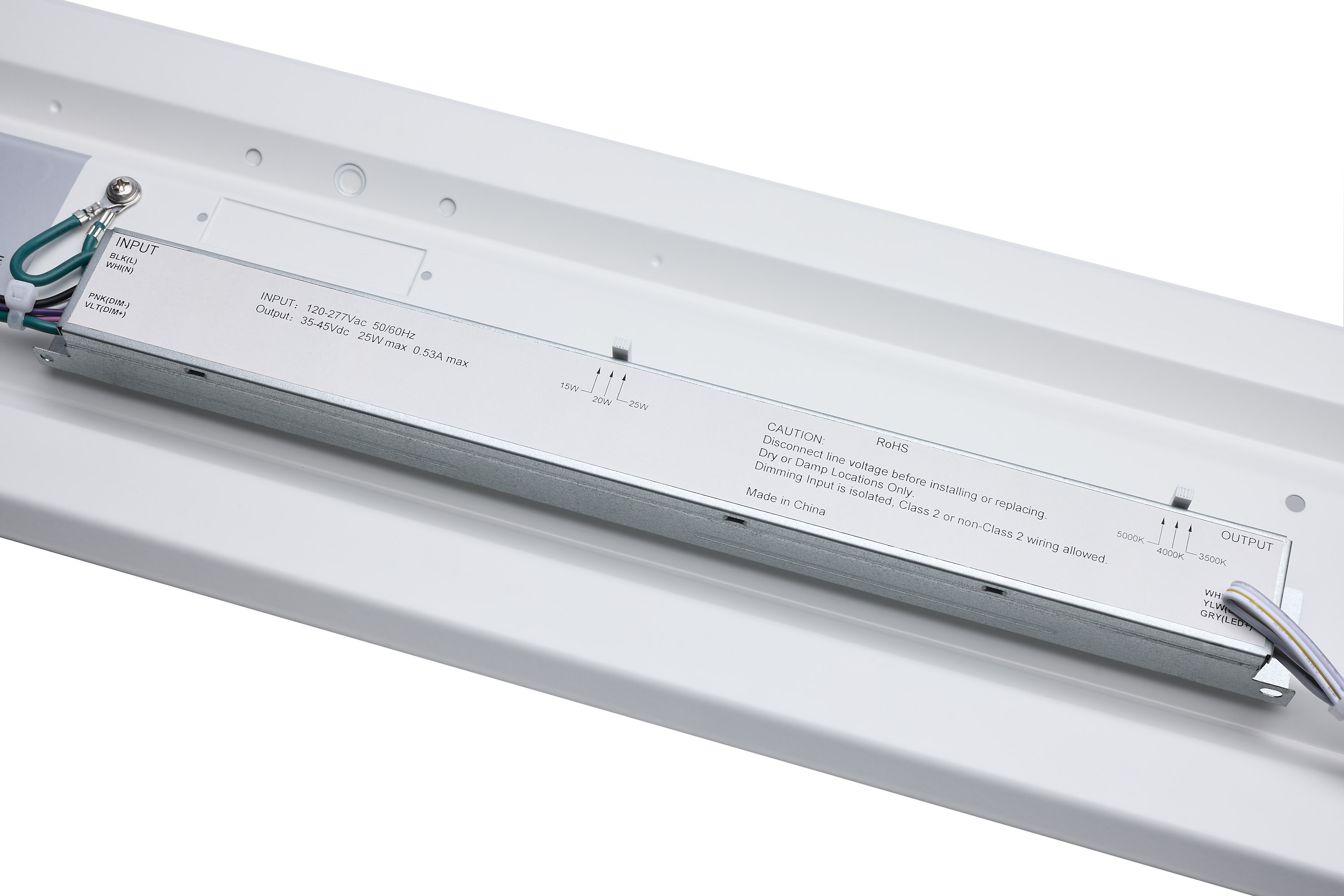

Installation NotesDefault CCT setting is 4000K; Default Wattage setting is 25W.
Documents
Compliance
Bug RatingB1-U3-G2
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-9Z0S55; S-604WB2; S-V16MNV
FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Classified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923401978
Case Cube3.9771
Case Height18.11
Case Length25.71
Case Quantity8
Case UPC10045923401975
Case Weight4.0
Case Width14.76
EA Cube0.3985
EA Height4.13
EA Length24.92
EA Quantity1
EA Weight1.98
EA Width6.69
Inner Cube0.0
Pack TypeBox

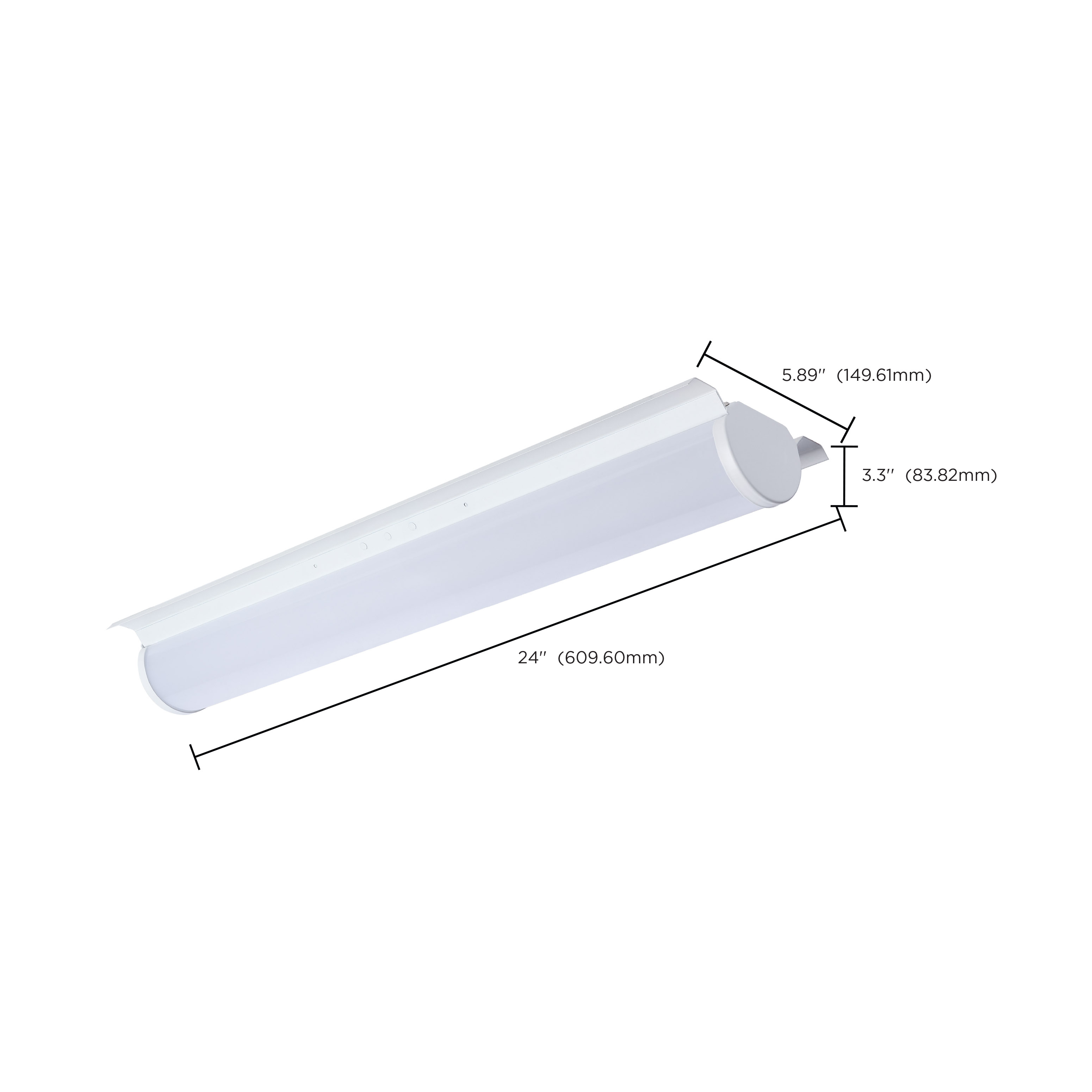

Web Height3.3
Web Length24.0
Web Width5.89
