65-1031

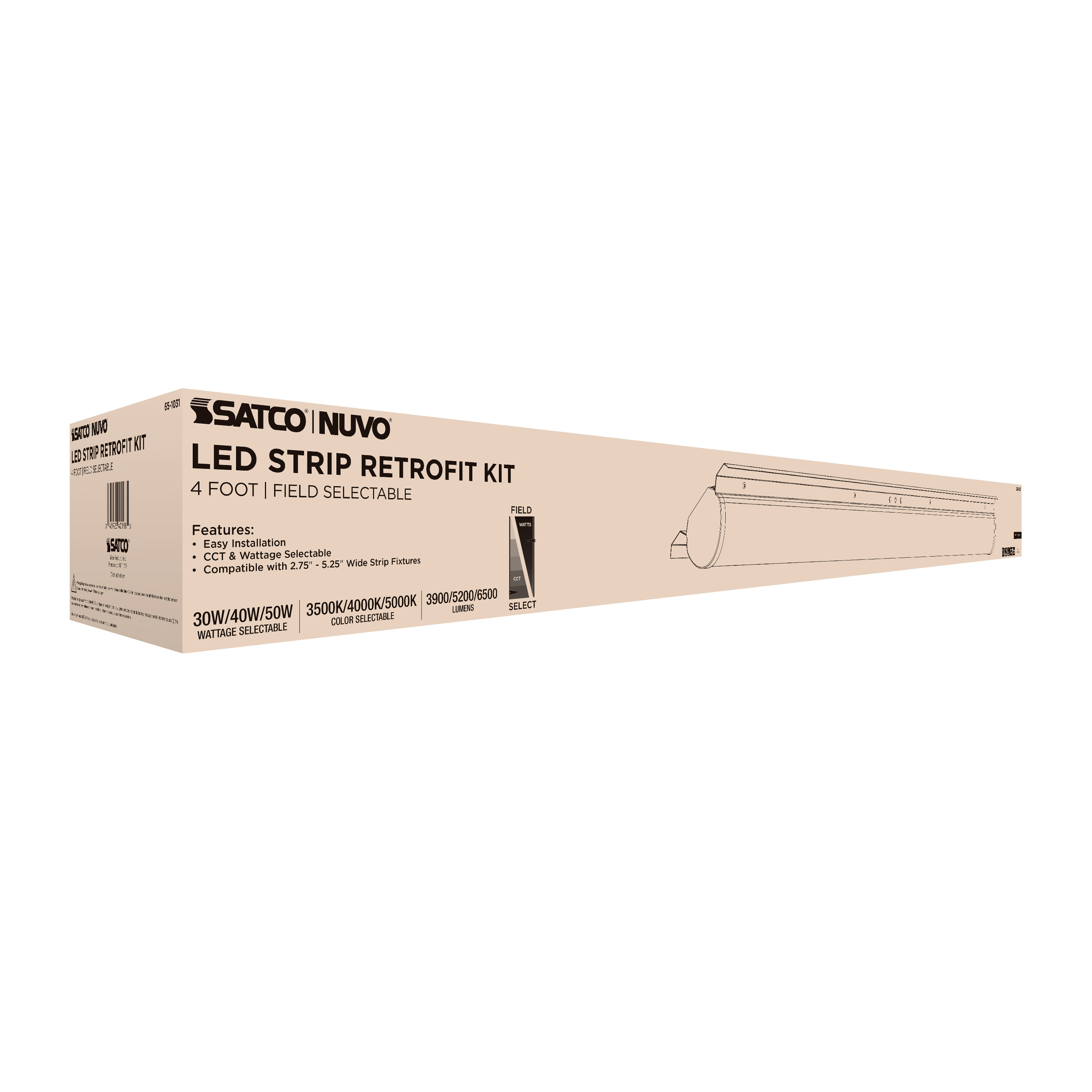

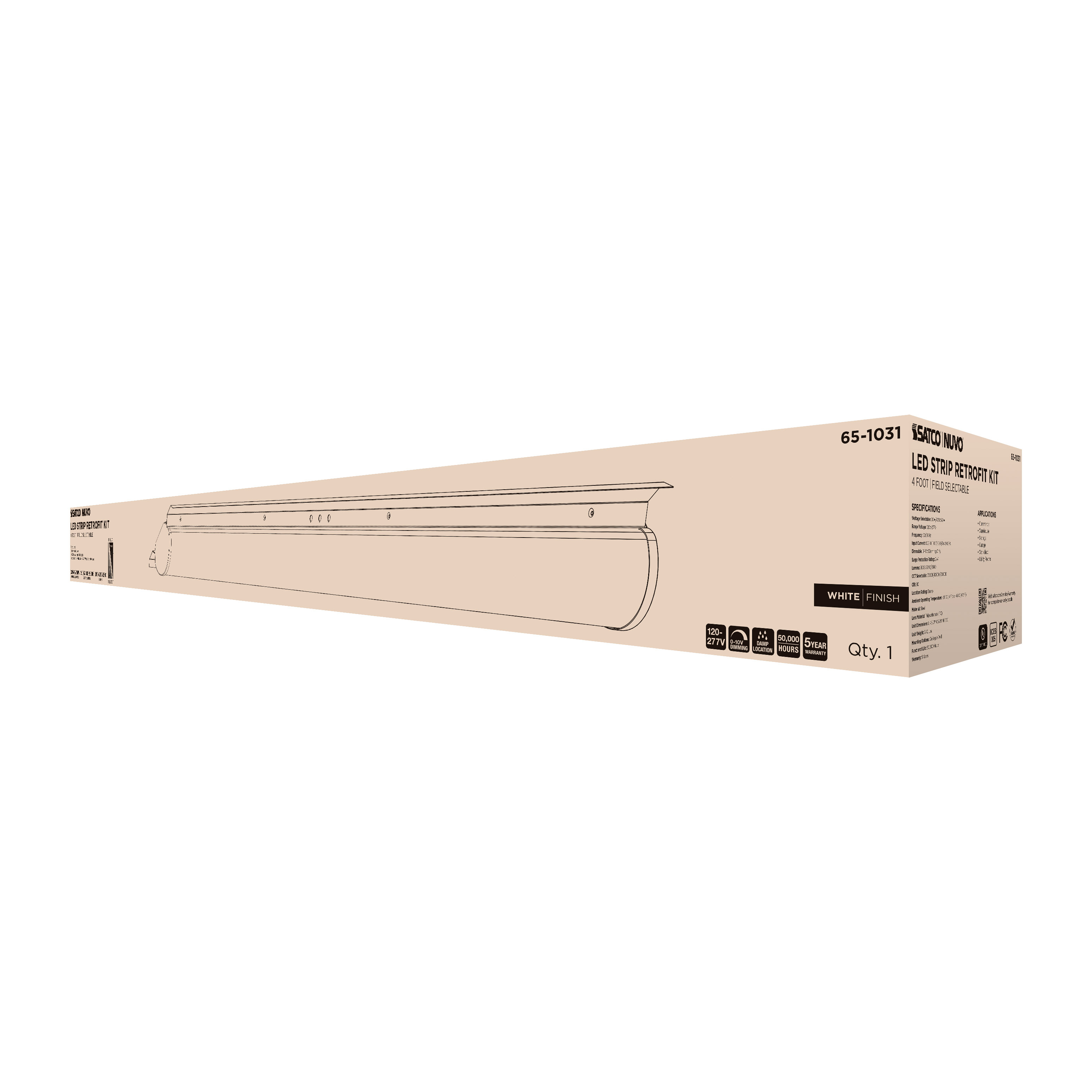

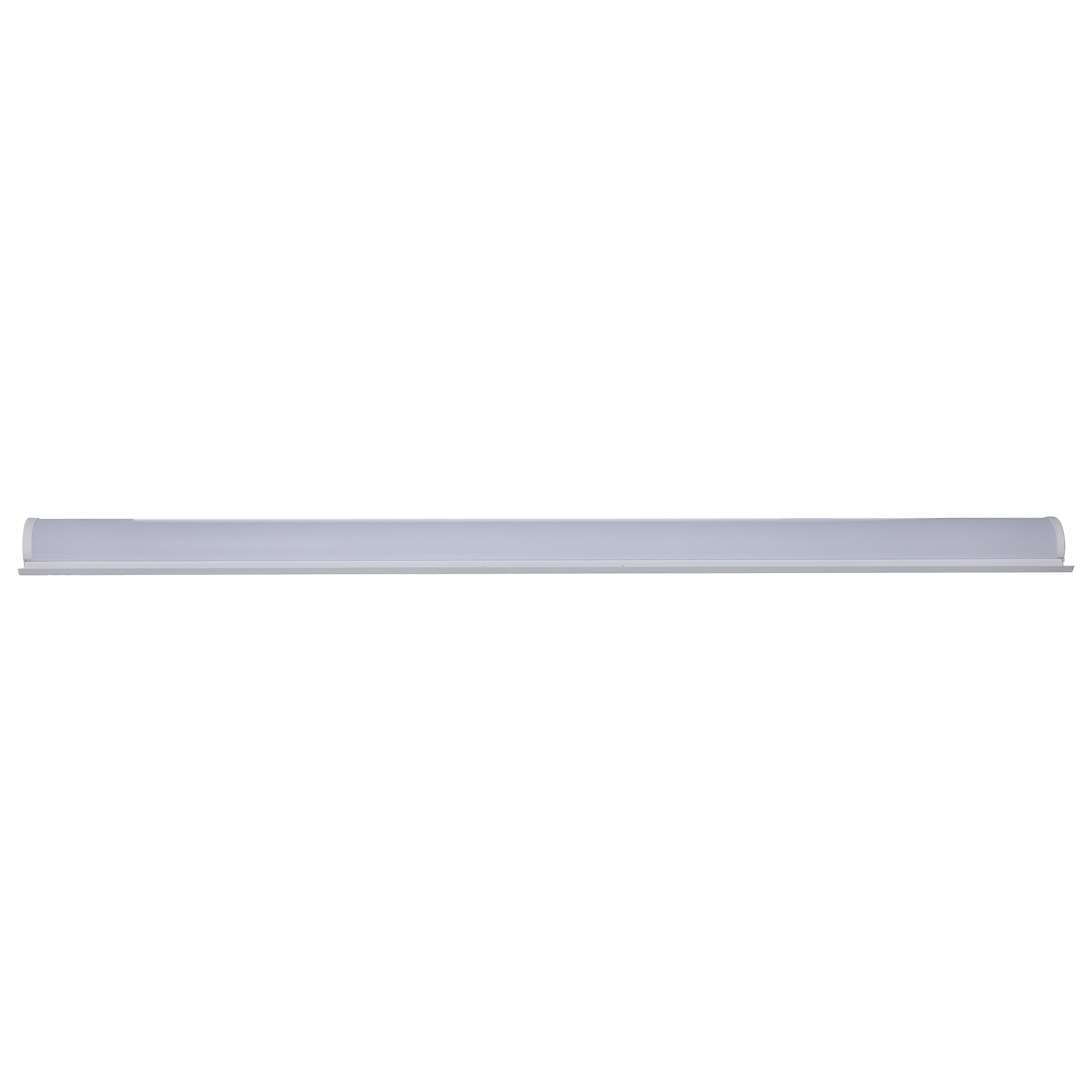

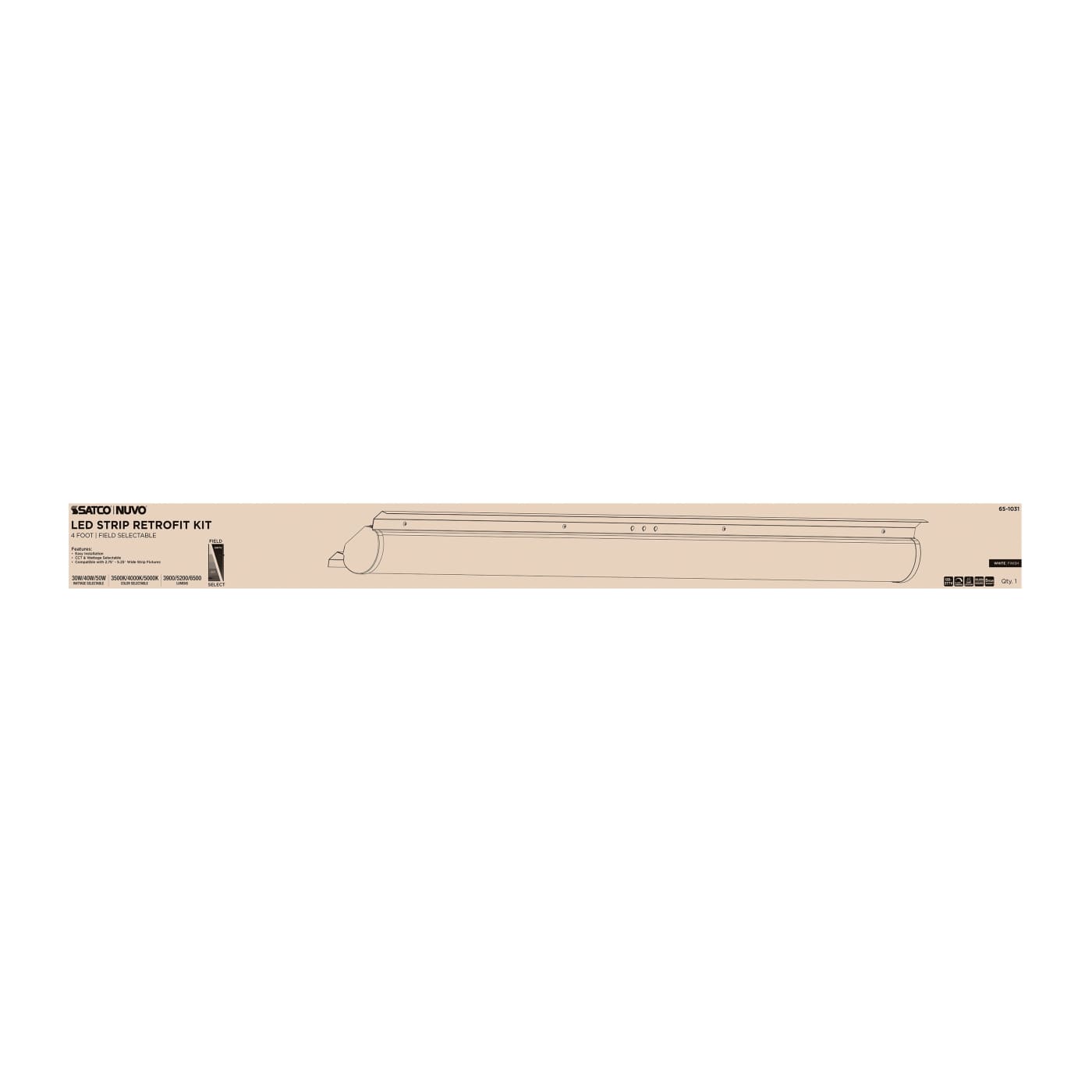

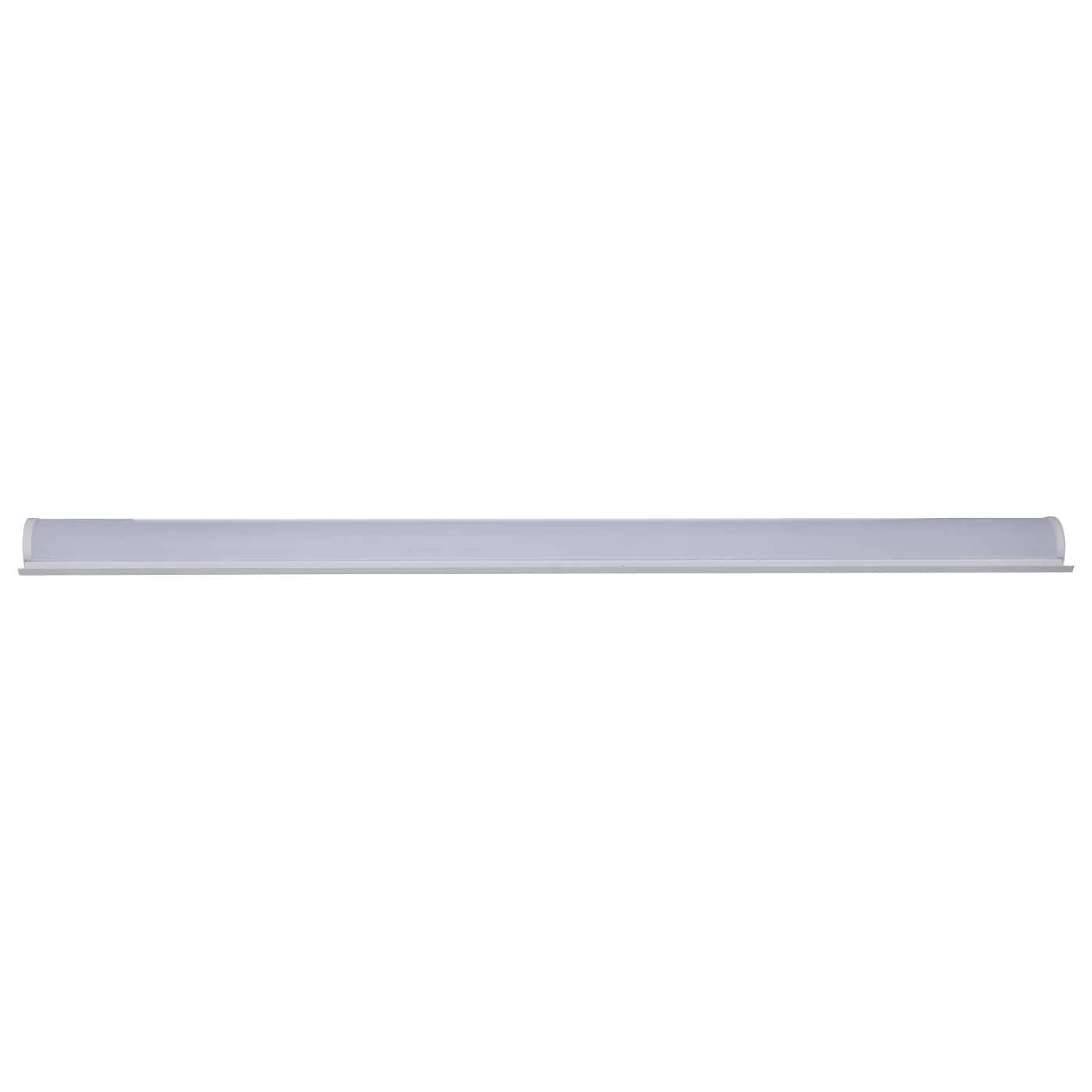

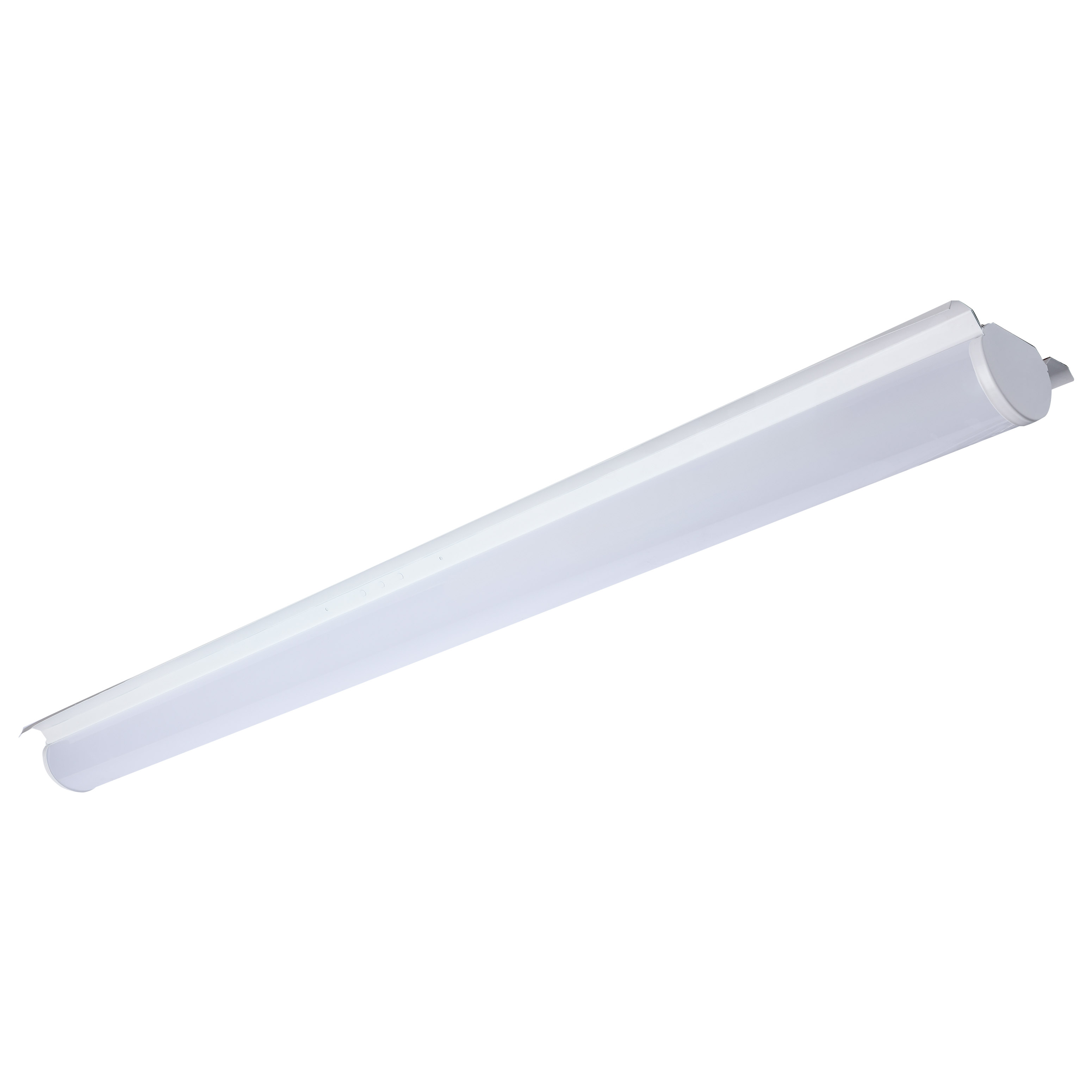

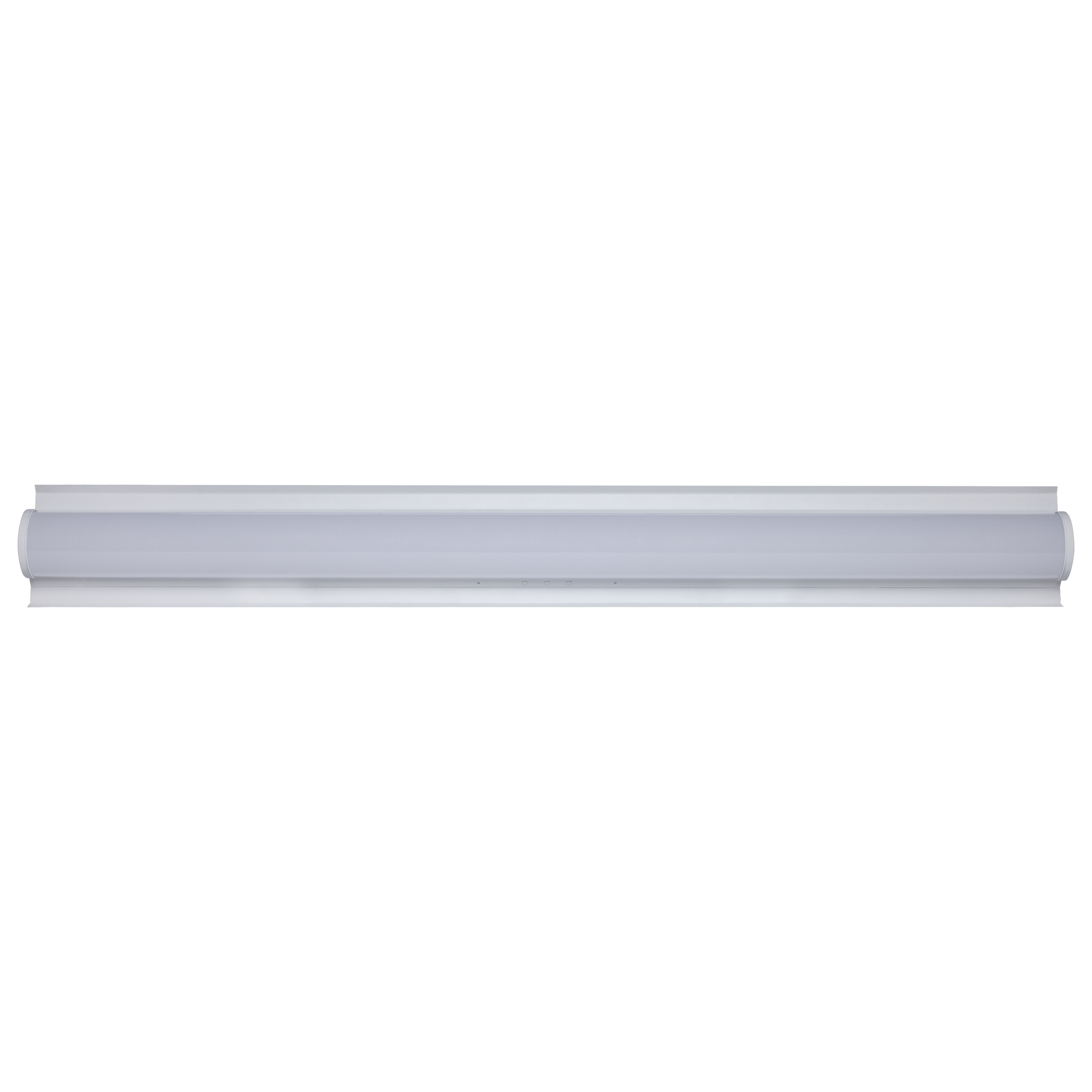

4FT 50W LED STRIP RETROFIT

  • 30/40/50 Watt LED 4 Foot Retrofit Strip Light
  • 35K/4K/5K CCT Selectable
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
65-1031 Specifications65-1031 InstructionsSN1862 Strip Retrofit PI 7-3-25
Tools
Lighting Layout Analysis For 65-1031
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
30/40/50 Watt LED 4 Foot Retrofit Strip Light; 35K/4K/5K CCT Selectable; 120-277 Volt

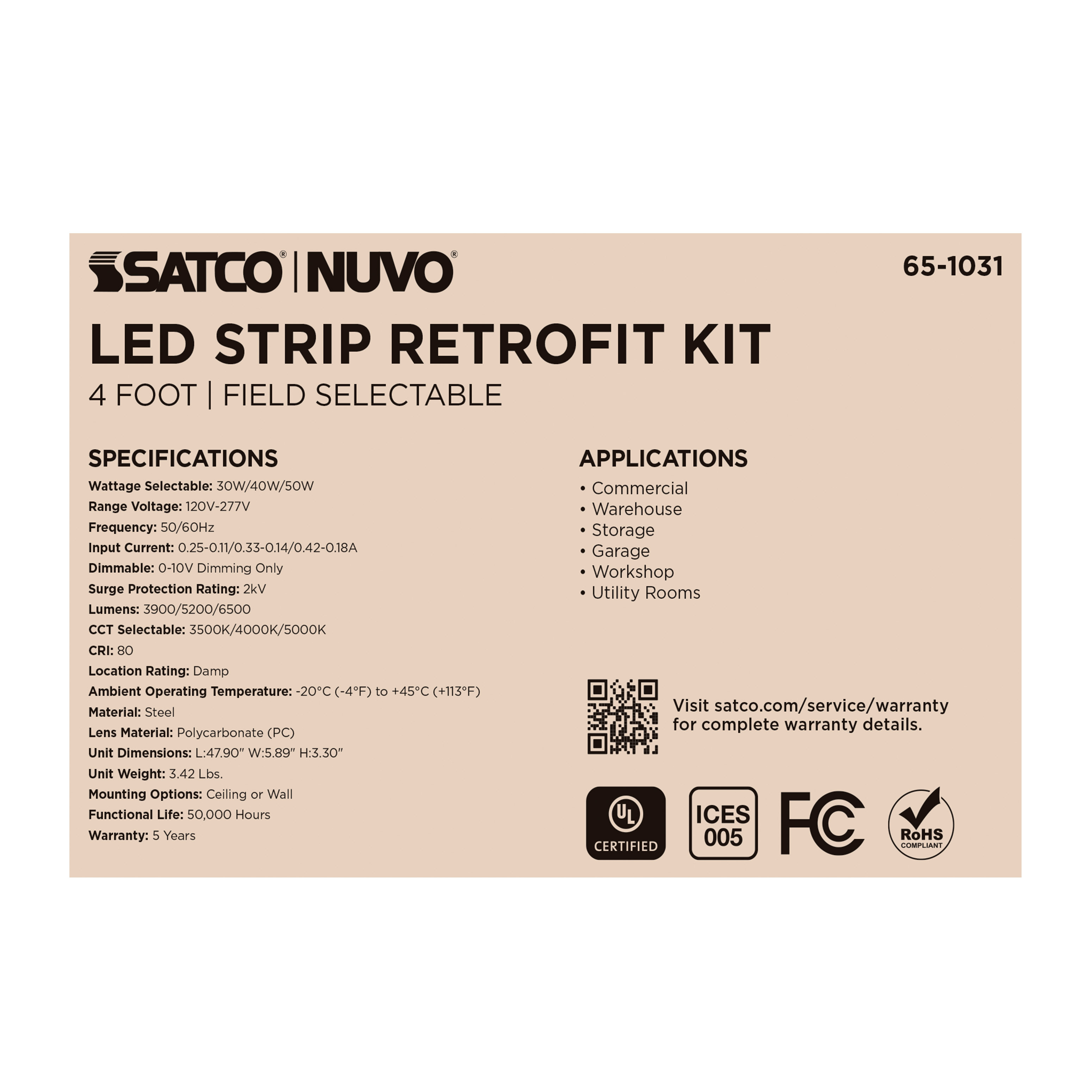

Products Specs
General
CompanyNUVO
Mounting Height1.0
Mounting Length48.0
Mounting Width2.75
Bulb IncludedIntegrated
CA RegulationsT20 Exempt - Fixtures Not Regulated
Dimmable Text0-10V Dimming Only
MaterialSteel
Fixture TypeStrip Light
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.250-0.108/0.333-0.144/0.417-0.181A
Has CameraFalse
IOT EnabledFalse
Lens FinishGlossy Frosted
Lens MaterialPolycarbonate (PC)
Power Factor0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv3 x 32W T8
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNeutral White to Natural Light
CRI80
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens3900L/5200L/6500L
Volts120V-277V
Watts30W/40W/50W
Physical
Lamp BaseIntegrated
FinishGloss White
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Additional Info
Warranty5-Years
Installation NotesDefault CCT setting is 4000K. Default Wattage setting is 50W.
Documents
Compliance
Bug RatingB2-U3-G3
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-SQ488H; S-B8W5P7; S-V1GZF7; S-Y4K2BS; S-ZFF52H
FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Classified
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923401985
Case Cube5.8487
Case Height13.78
Case Length49.69
Case Quantity6
Case UPC10045923401982
Case Weight14.33
Case Width14.76
EA Cube0.7819
EA Height4.13
EA Length48.9
EA Quantity1
EA Weight3.42
EA Width6.69
Inner Cube0.0
Pack TypeBox

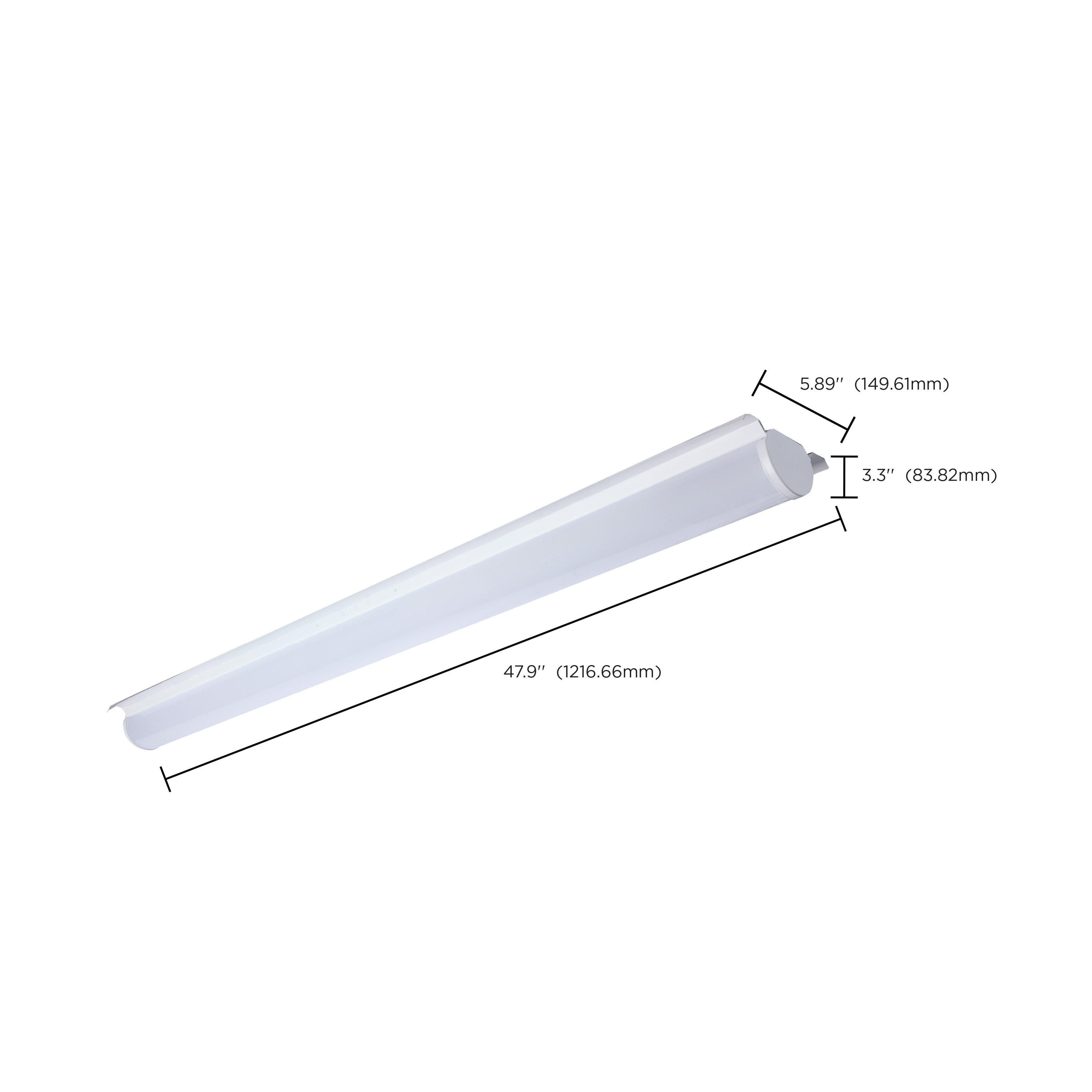

Web Height3.3
Web Length47.9
Web Width5.89
