| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming |
| Material | Steel |

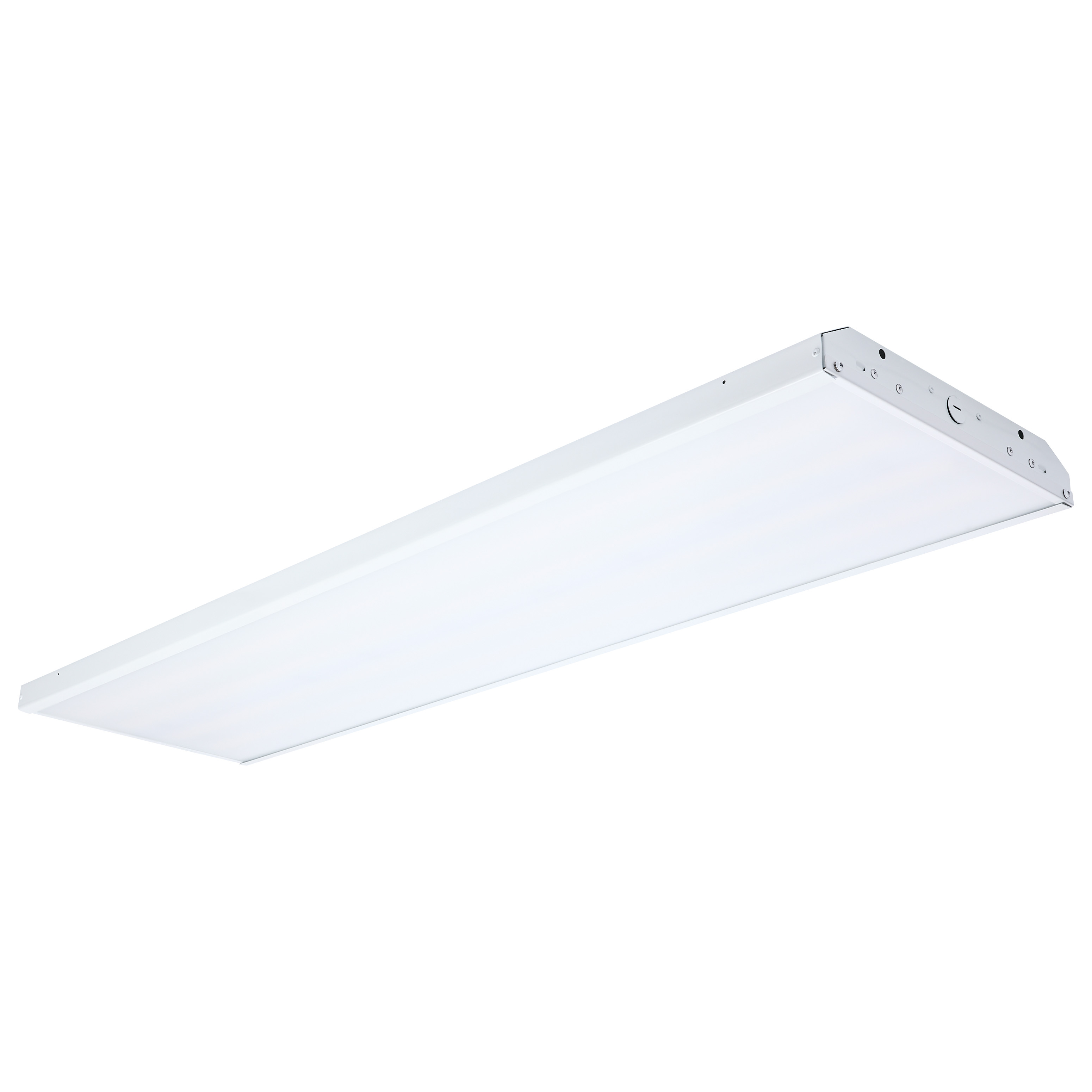

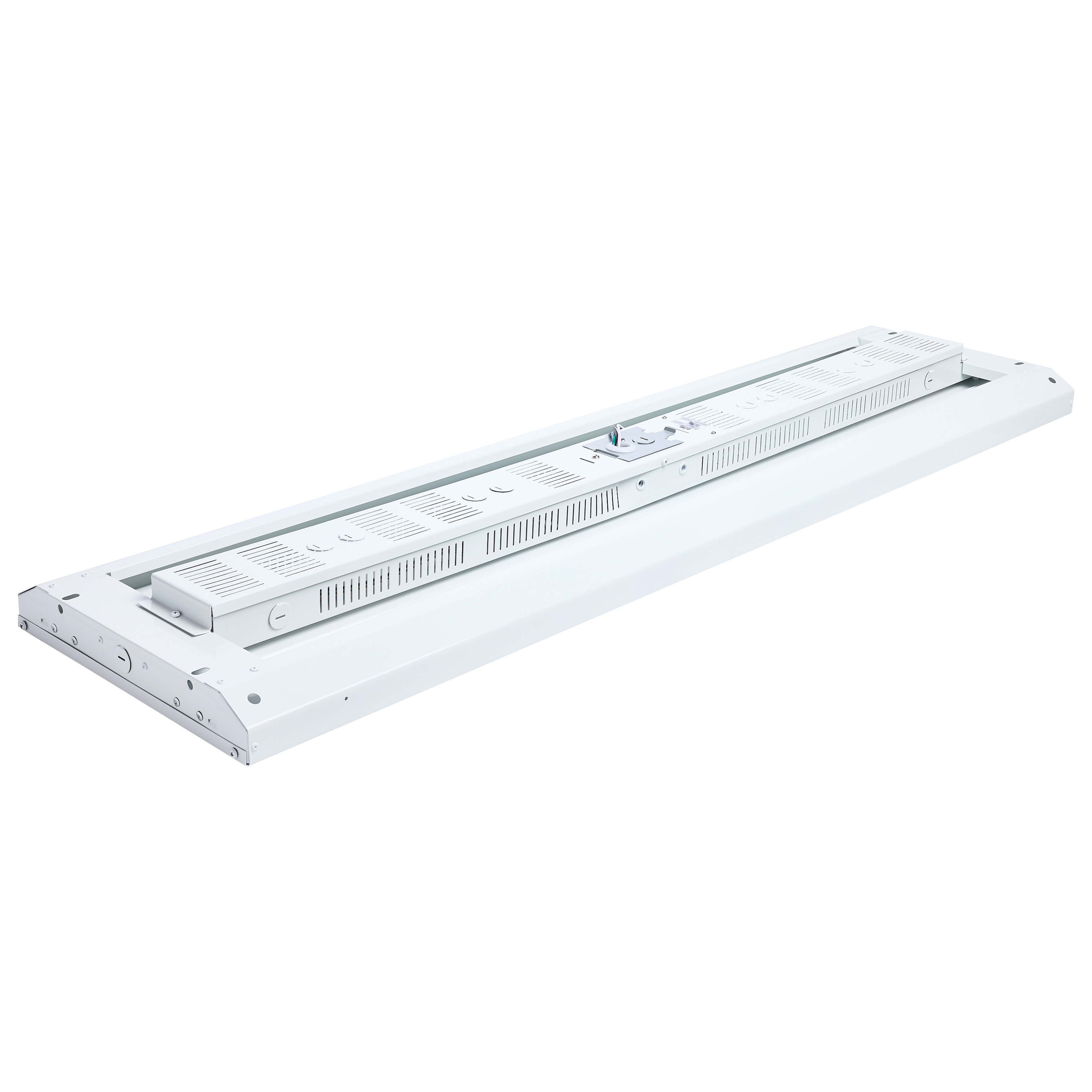

| Fixture Type | Linear Hi-Bay |
| Includes | 4 Foot Suspension Kit; V-Clips |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 6KV |
| Total Harmonic Distortion | <20% |

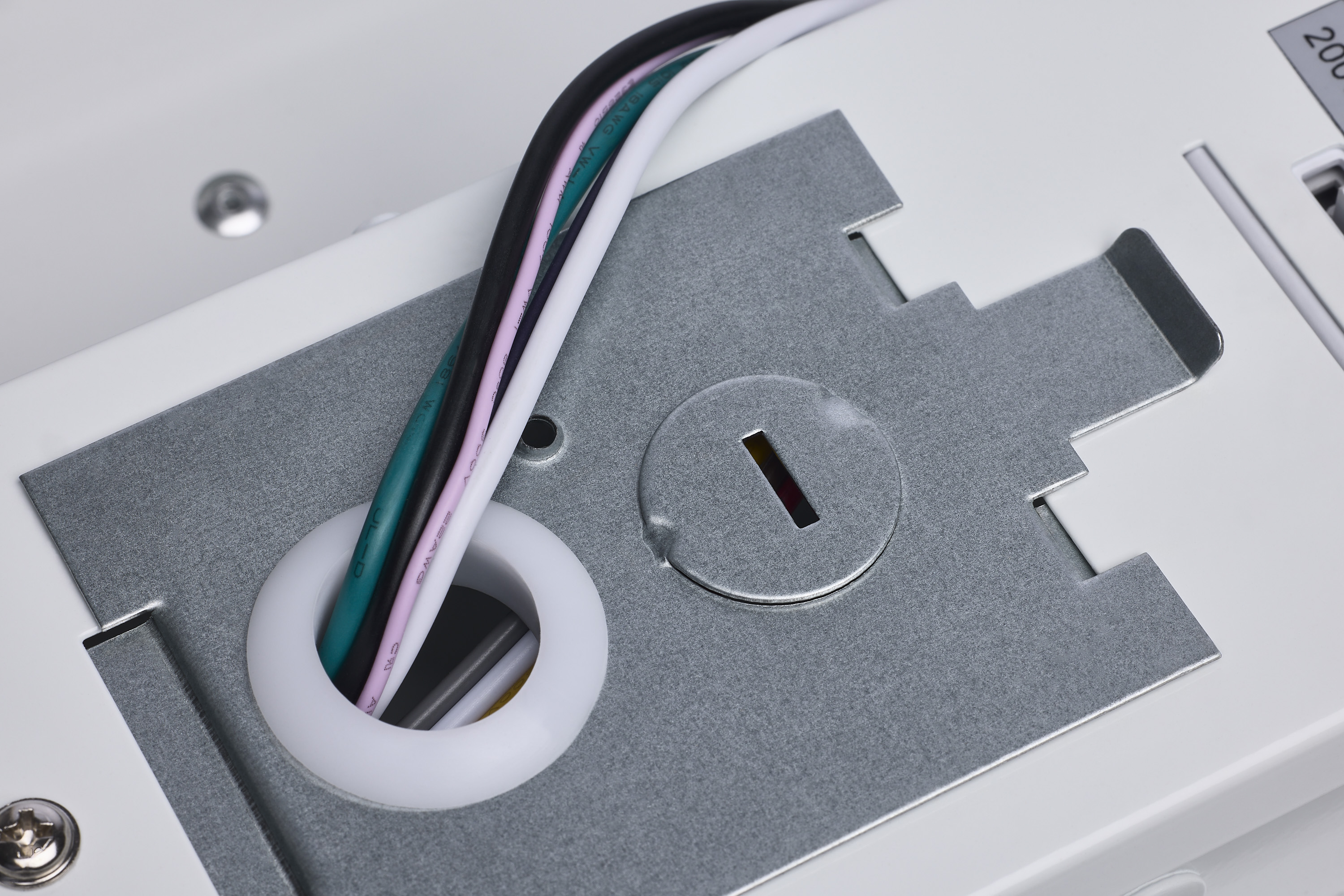

| Wire Color | White |

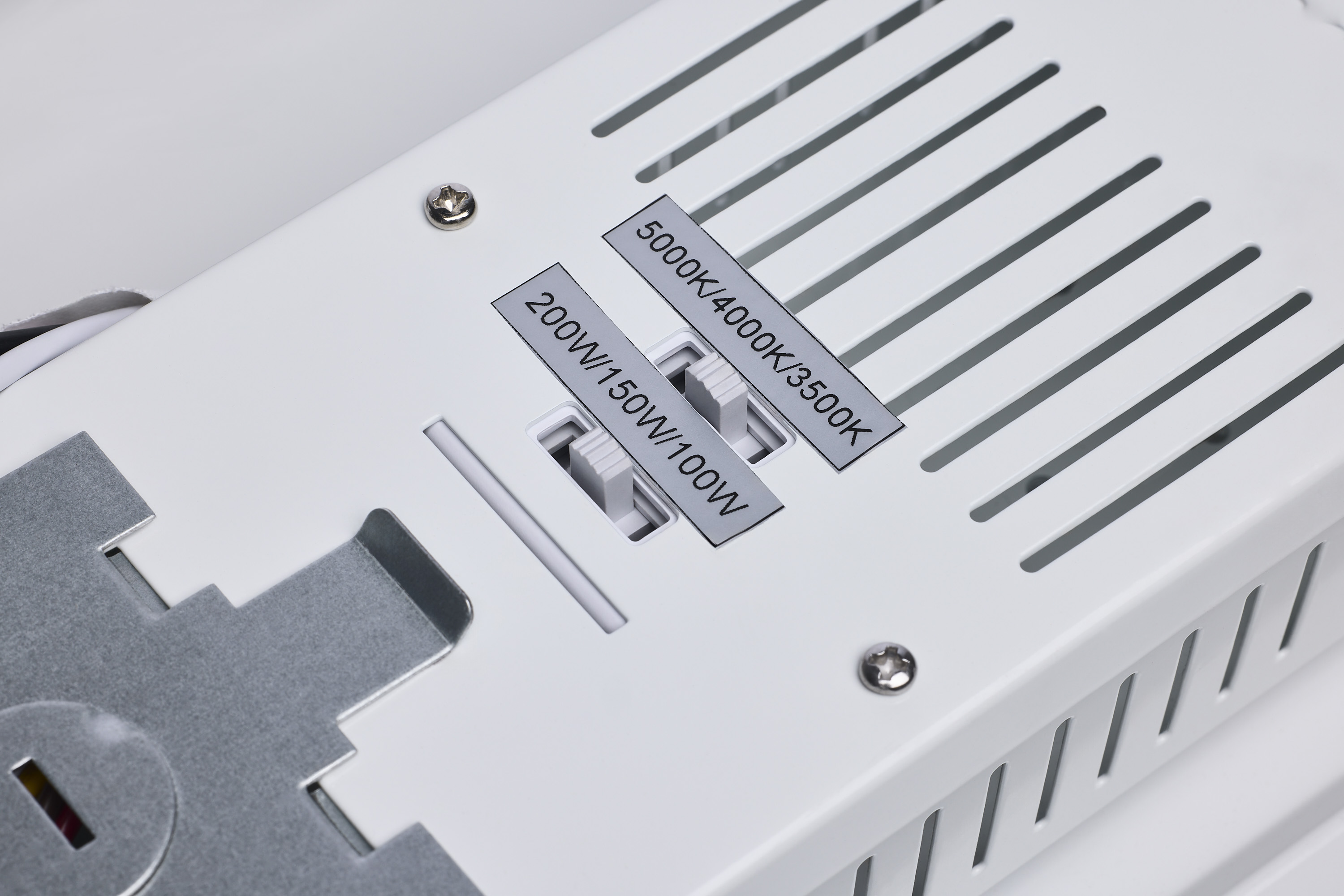

| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| Finish Family | White |
| Additional Info | Default Wattage: 200W |
| Amps | 0.917/1.375/1.833A |

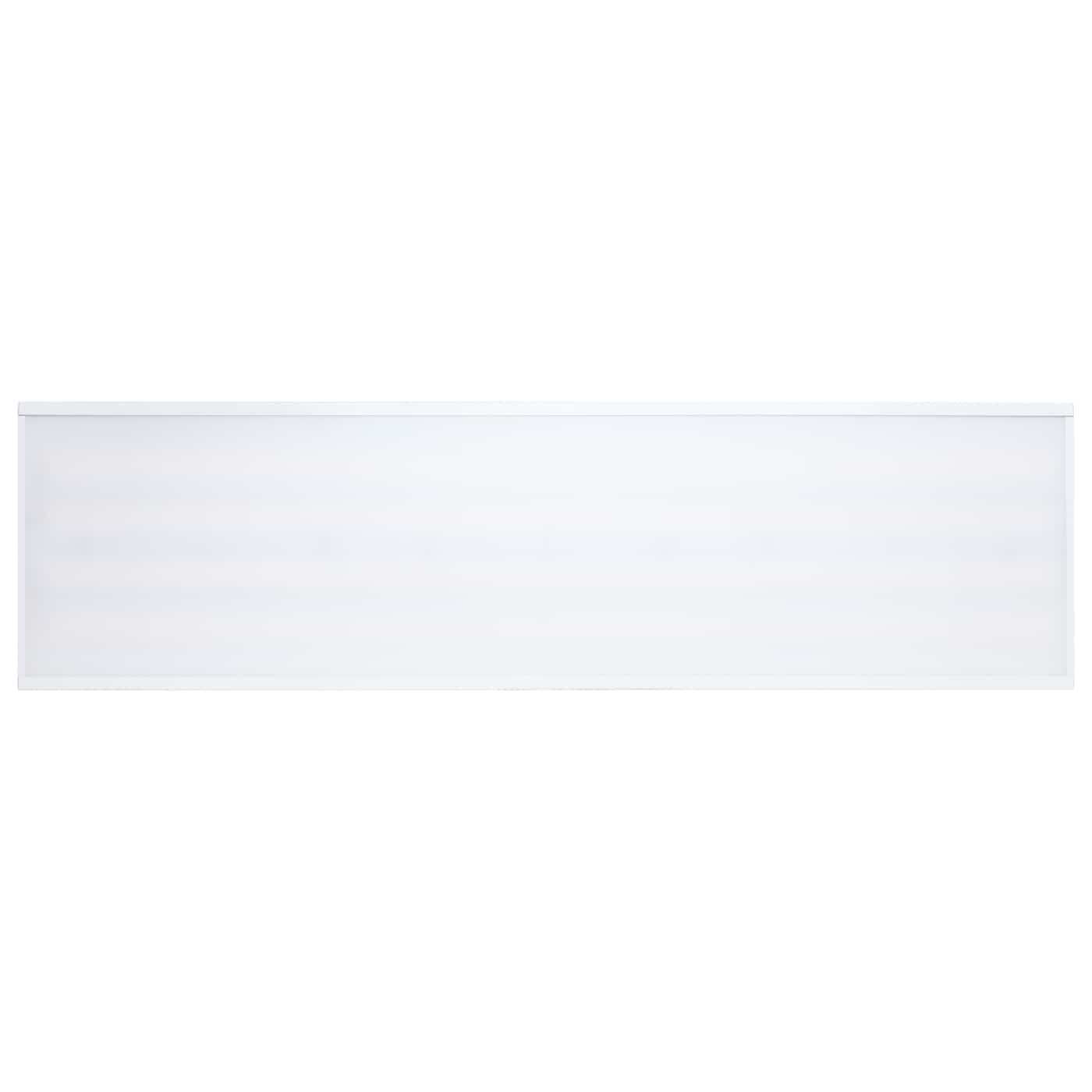

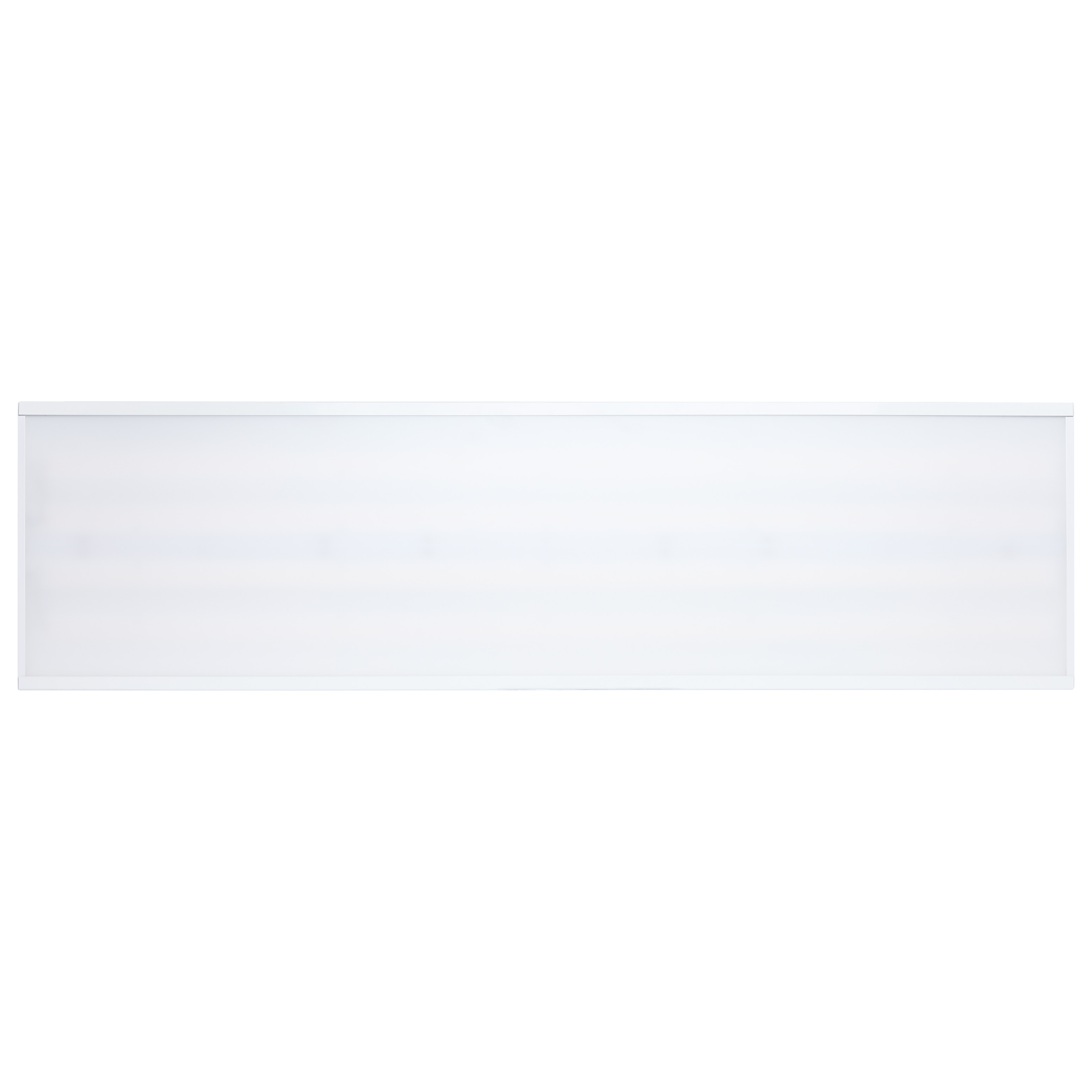

| Lens Finish | White |
| Lens Material | Polystyrene (PS) |
| Lensed | Yes |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 135W-570W |
| CCT (Kelvin Temp) | 3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 120 |
| Color Temp | Neutral White to Natural Light |
| CRI | 80 |
| Dimming Type | 0-10V Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| HID Equivalent | 200W-450W |
| Lumens | 30000L/22500L/15000L |
| Volts | 120V-277V |
| Watts | 200W/150W/100W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Linear |
| Warranty | 5-Years |
|---|
| CA Prop 65 | Lead |
|---|---|
| DLC ID | S-NLC5WG |
| FCC Compliant | Yes |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923413346 |
|---|---|
| Case Cube | 1.5058 |
| Case Height | 3.94 |
| Case Length | 47.24 |
| Case Quantity | 1 |
| Case UPC | 10045923413343 |
| Case Weight | 18.41 |
| Case Width | 13.98 |
| EA Cube | 1.5058 |
| EA Height | 3.94 |
| EA Length | 47.24 |
| EA Quantity | 1 |
| EA Weight | 18.41 |
| EA Width | 13.98 |
| Inner Cube | 0.0 |
| Pack Type | Box |

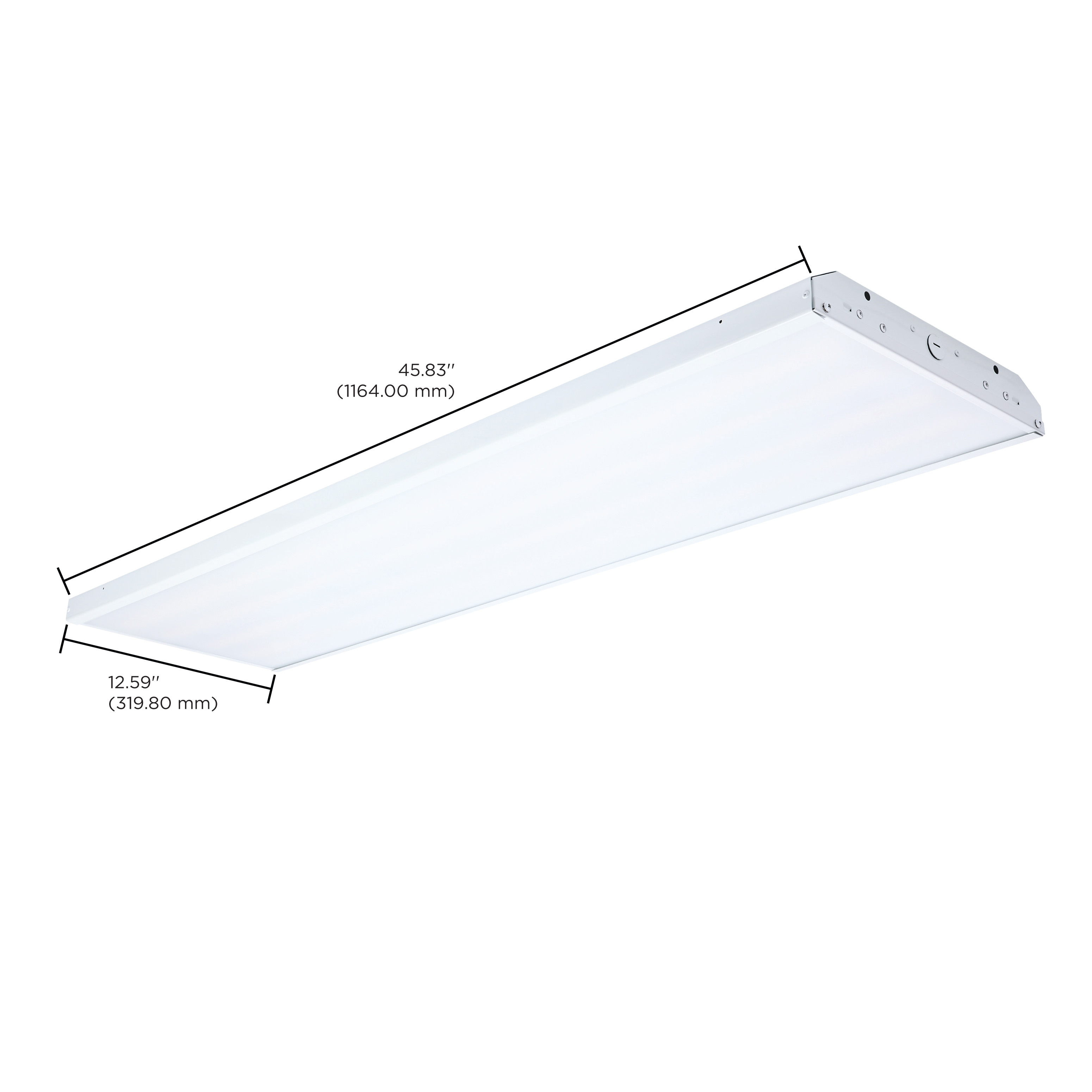

| Web Height | 2.8 |
| Web Length | 45.83 |
| Web Width | 12.59 |
