65-1051

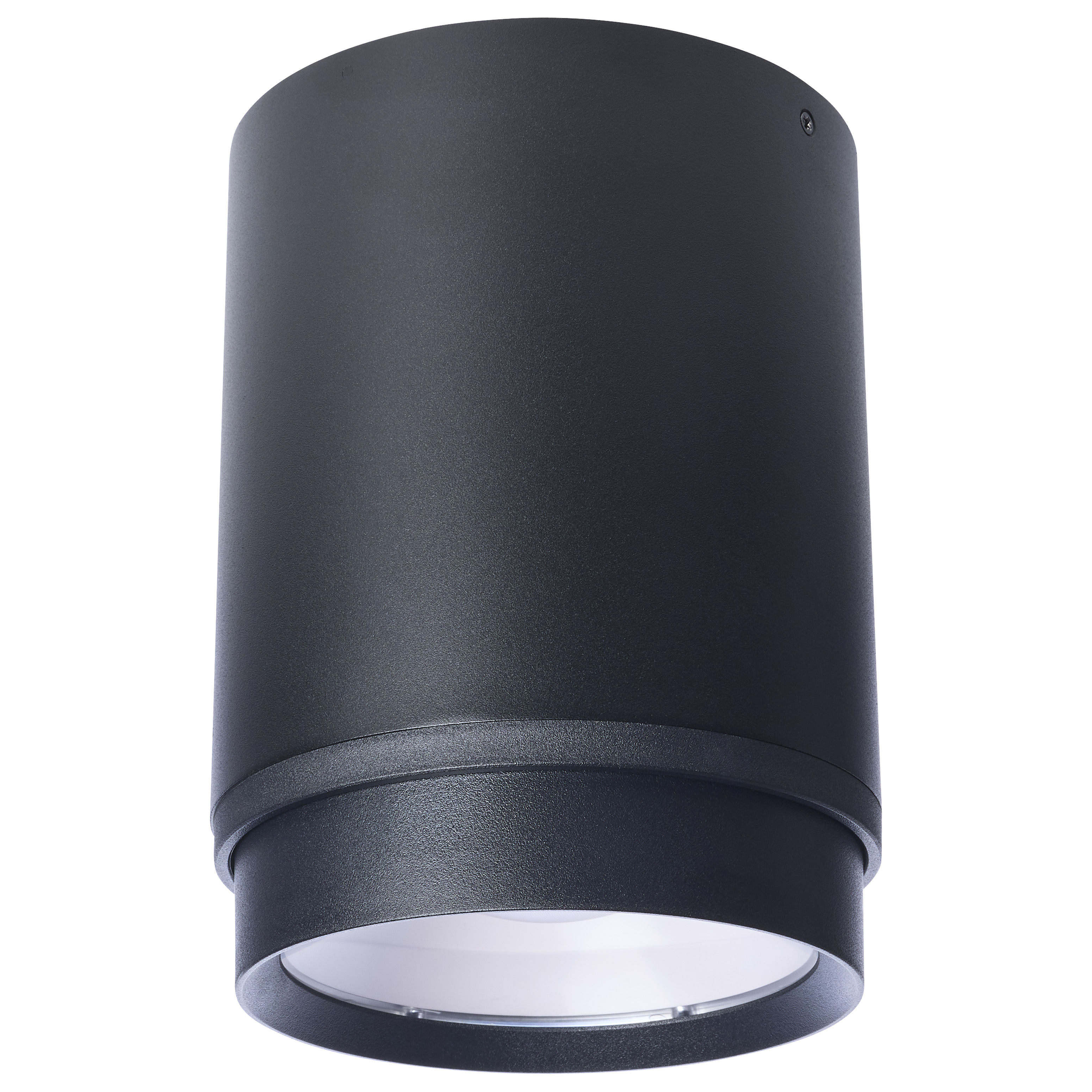

LED CYLINDER FLUSH BLACK

  • 35/28/21 Watt LED Cylinder Flush Mount
  • 3K/4K/5K CCT Selectable
  • Black
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
65-1051 Specifications65-1051 Instructions.pdf
Tools
Lighting Layout Analysis For 65-1051
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

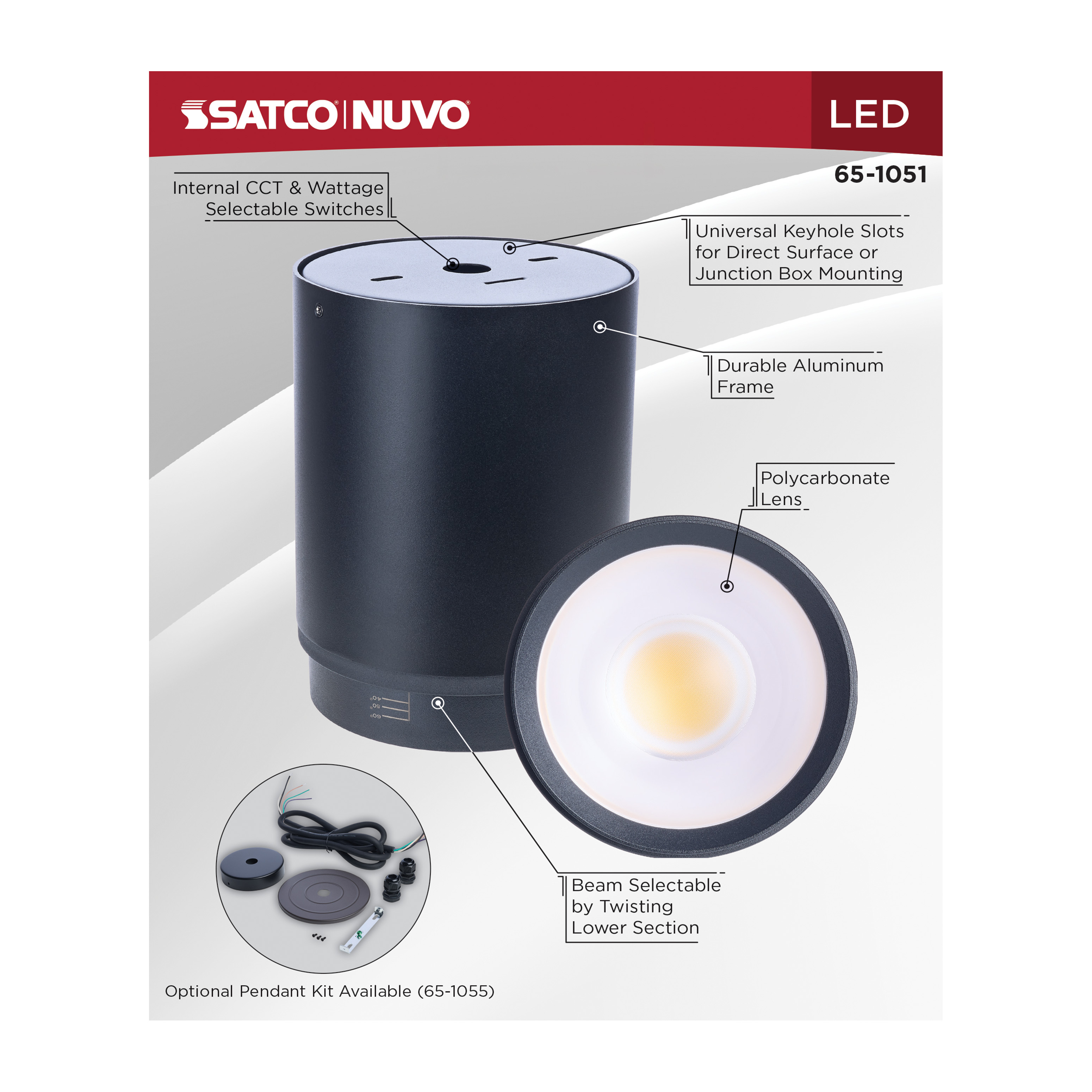

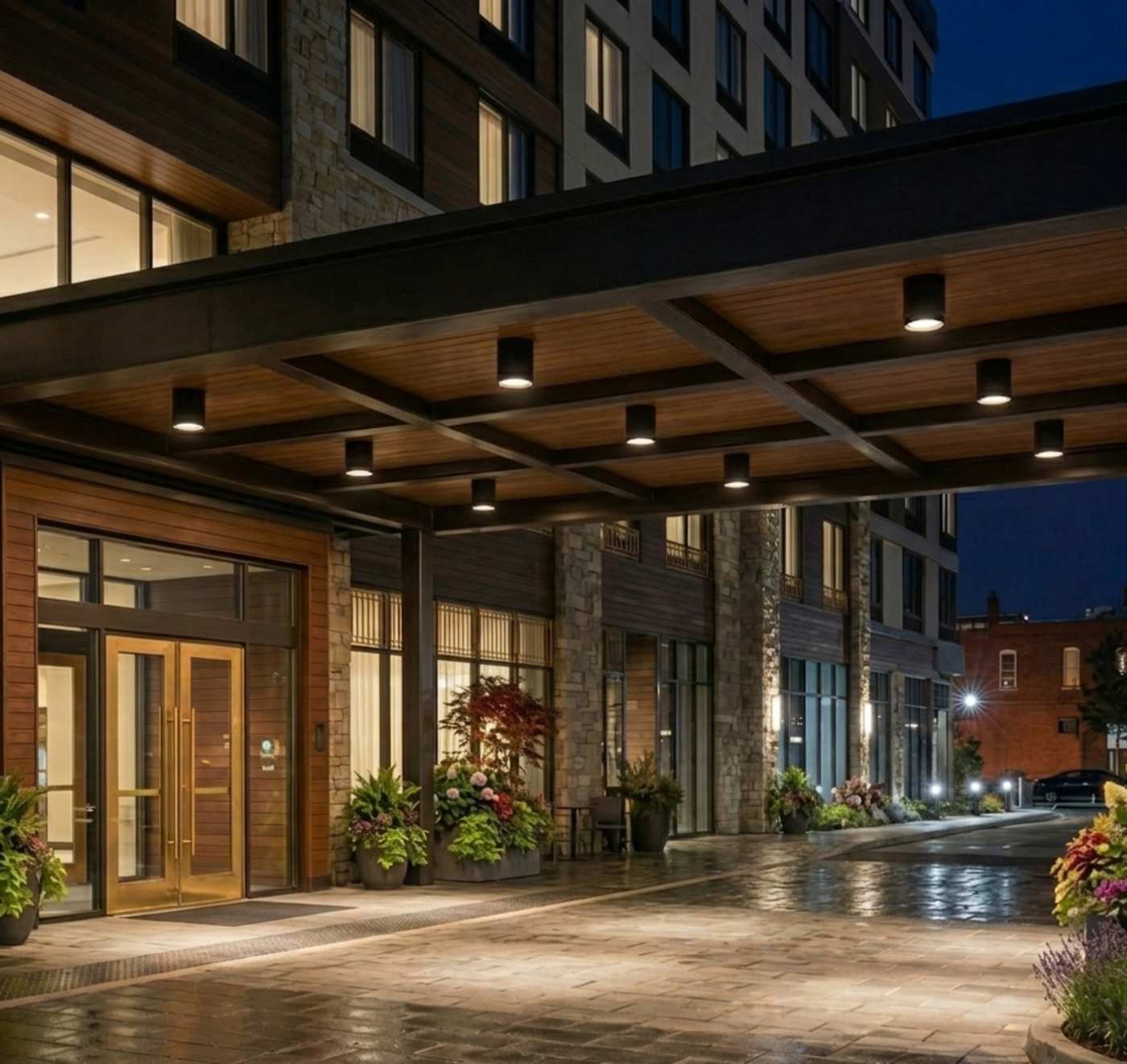

SATCO NUVO's LED Cylinder Flush Mount #65-1051 combines selectable wattage, CCT, and beam angle in one versatile solution, making it easy to customize lighting performance for the application. Designed to simplify inventory while maximizing flexibility, this canister light makes it easy to adjust light output, color temperature, and beam distribution on-site without changing fixtures. With a durable aluminum black finish, universal 120-347V operation and 0-10V dimming, it delivers dependable performance, simplified specification, and exceptional value across a wide range of commercial applications.

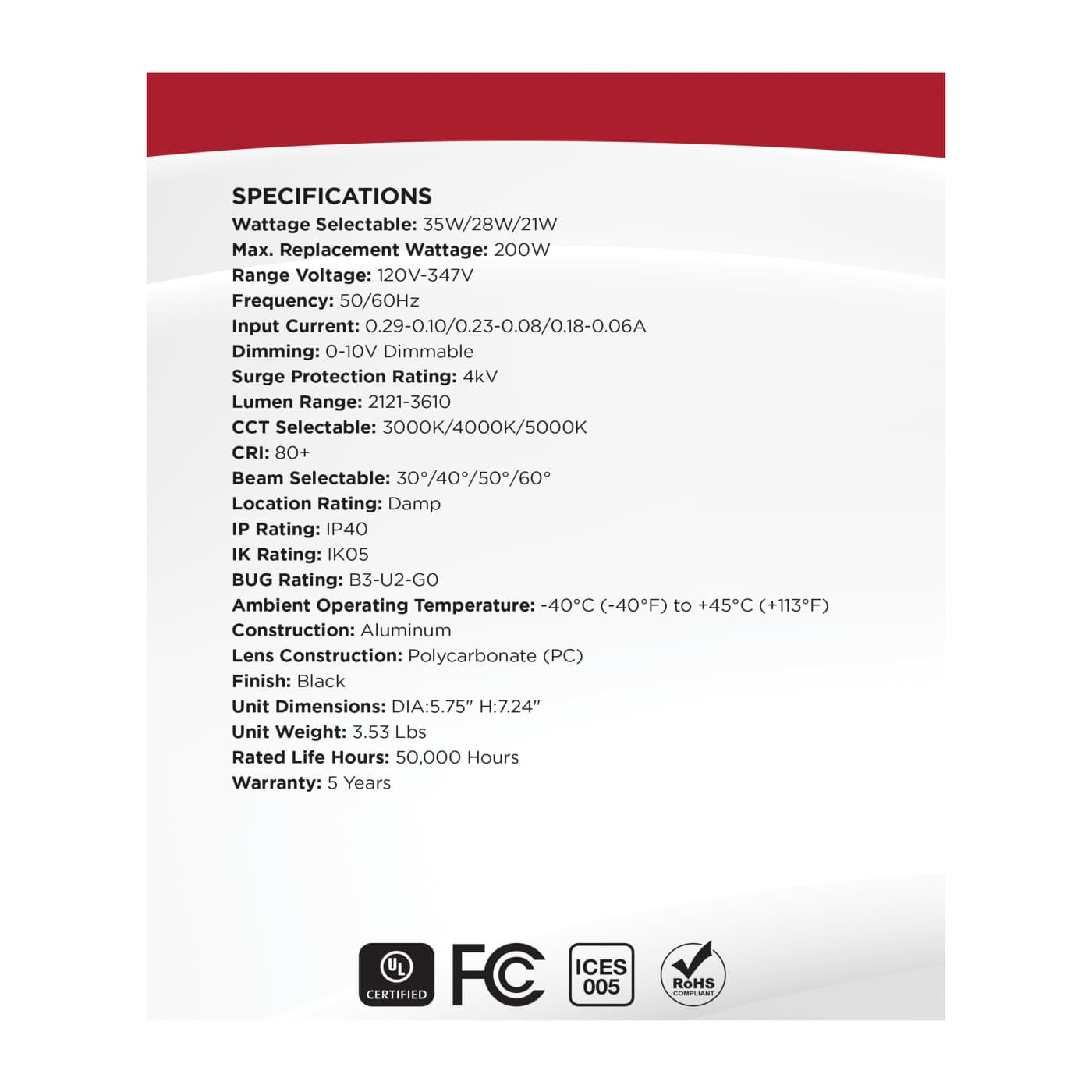

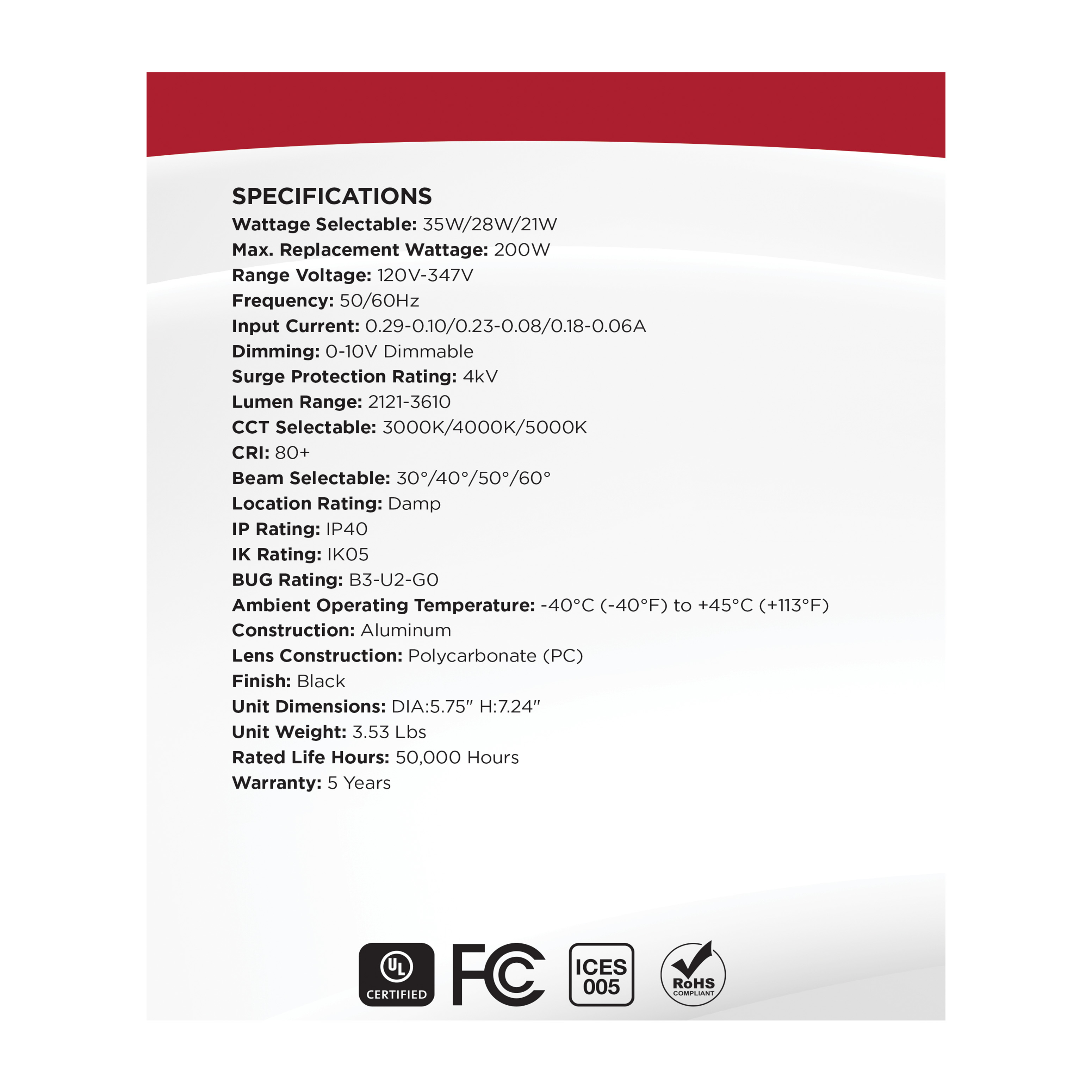

Products Specs
General
CompanyNUVO
Mounting Height0.25
Bulb IncludedIntegrated

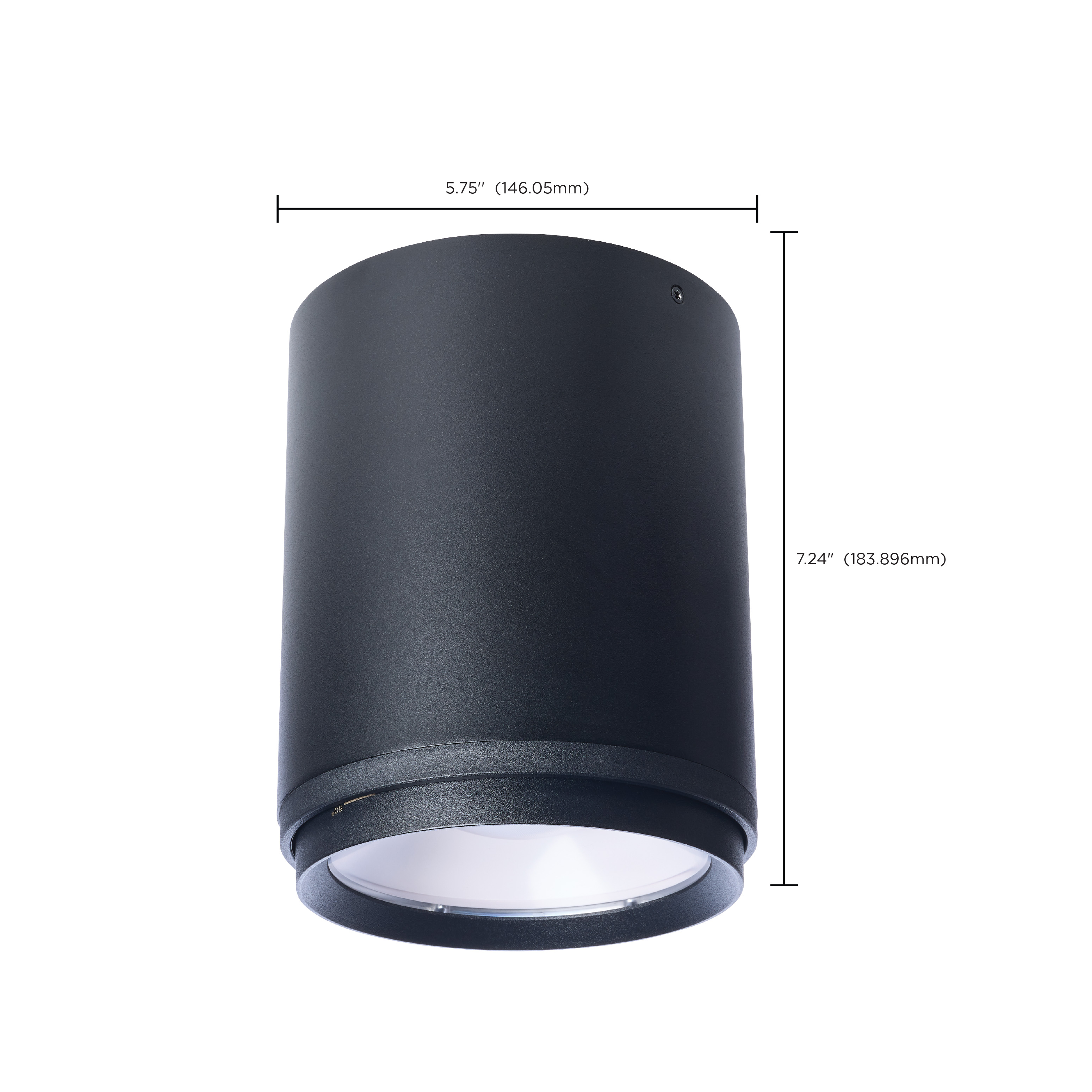

Diameter5.75
MaterialAluminum
Fixture TypeFlush Mount
Product NotesDefault Wattage: 35W
StatusActive
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion<20%
Wire Length13.0
CCT SelectableYes
Wattage SelectableYes
Finish FamilyBlack
Amps0.290-0.101/0.230-0.081/0.180-0.061A
Mounting Diameter5.88

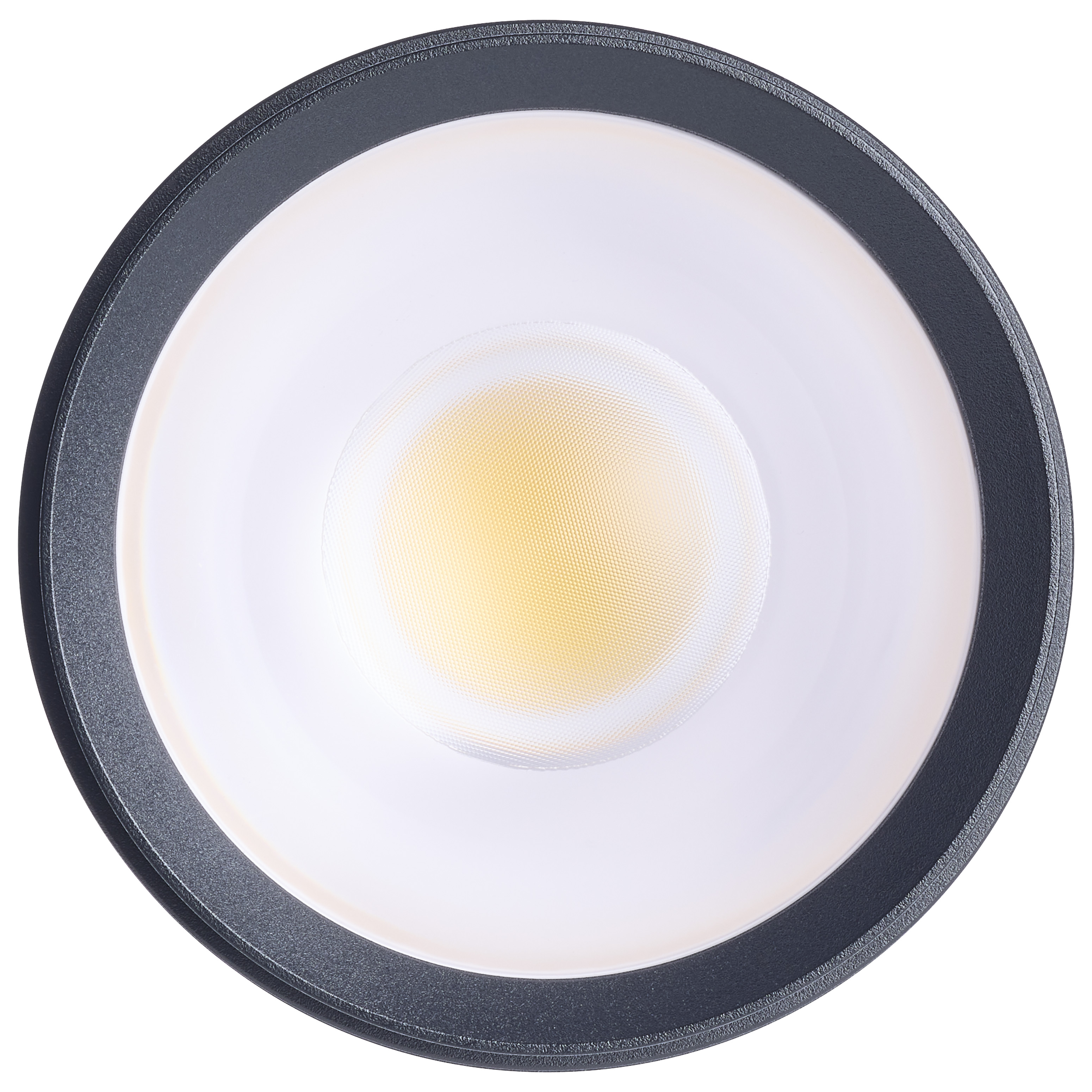

Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
Power Factor>0.9
SDS ClassLED_Fixture
Product TechnologyLED
Incandescent Equivalent120W-200W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000

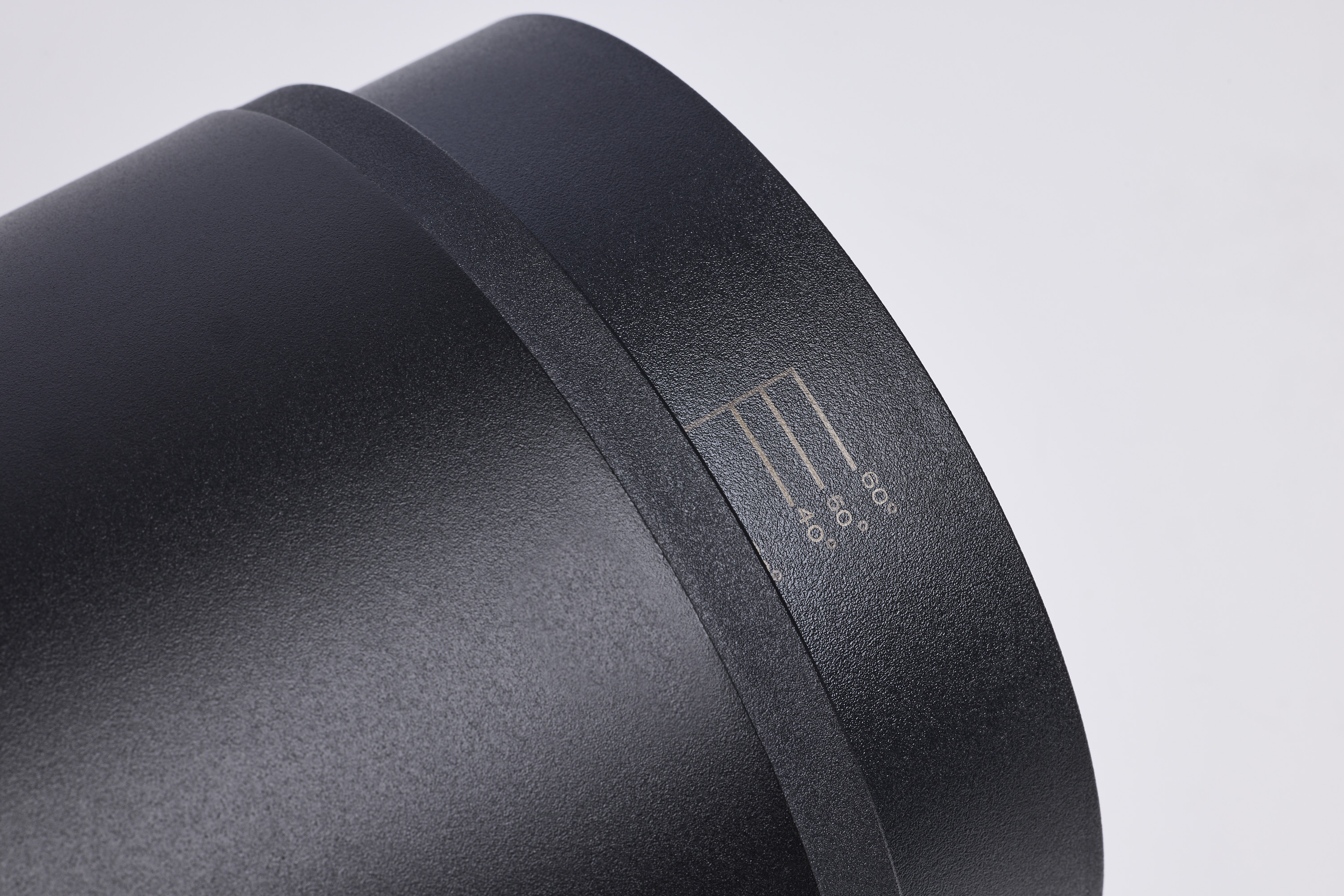

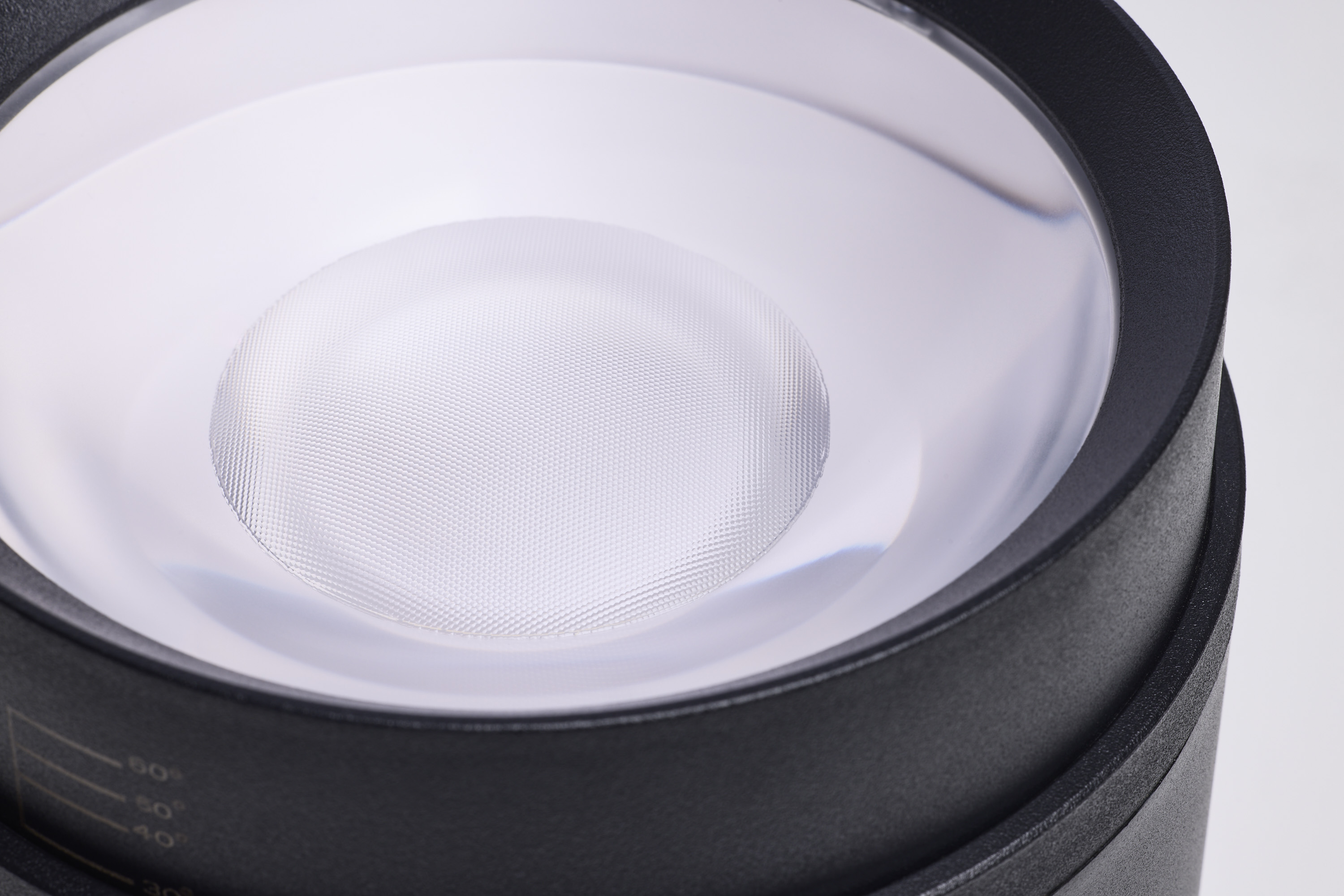

Beam Angle (degree)30/40/50/60
Color TempSoft White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +113F (-40C to +45C)
HID Equivalent50W-125W
Lumens2121L-3610L
Volts120V-347V
Watts35W/28W/21W
Max Lumens3610L
Physical
Lamp BaseIntegrated
FinishBLACK
Housing ColorBlack
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeCylinder
Mounting ProcedureCeiling, Pendant Hanging Surface
Additional Info
Warranty5-Years
Documents
Compliance
Bug RatingB3-U2-G0
CA Prop 65Lead
FCC CompliantYes
IP RatingIP40
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus
California BanLawful for sale
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923414145
Case Cube0.7598
Case Height8.27
Case Length12.6
Case Quantity4
Case UPC10045923414142
Case Weight16.28
Case Width12.6
EA Cube0.1611
EA Height7.48
EA Length6.1
EA Quantity1
EA Weight4.07
EA Width6.1
Pack TypeBox
Web Height7.24
Web Width5.75
