65-1171

IP69K LINEAR HB 160W/135W/120W

  • 160/135/120 Watt LED Linear High Bay
  • 3K/4K/5K CCT
  • IP69K
  • 120-347 Volt
  • White Finish
cc_selectable^y^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
Description
Description

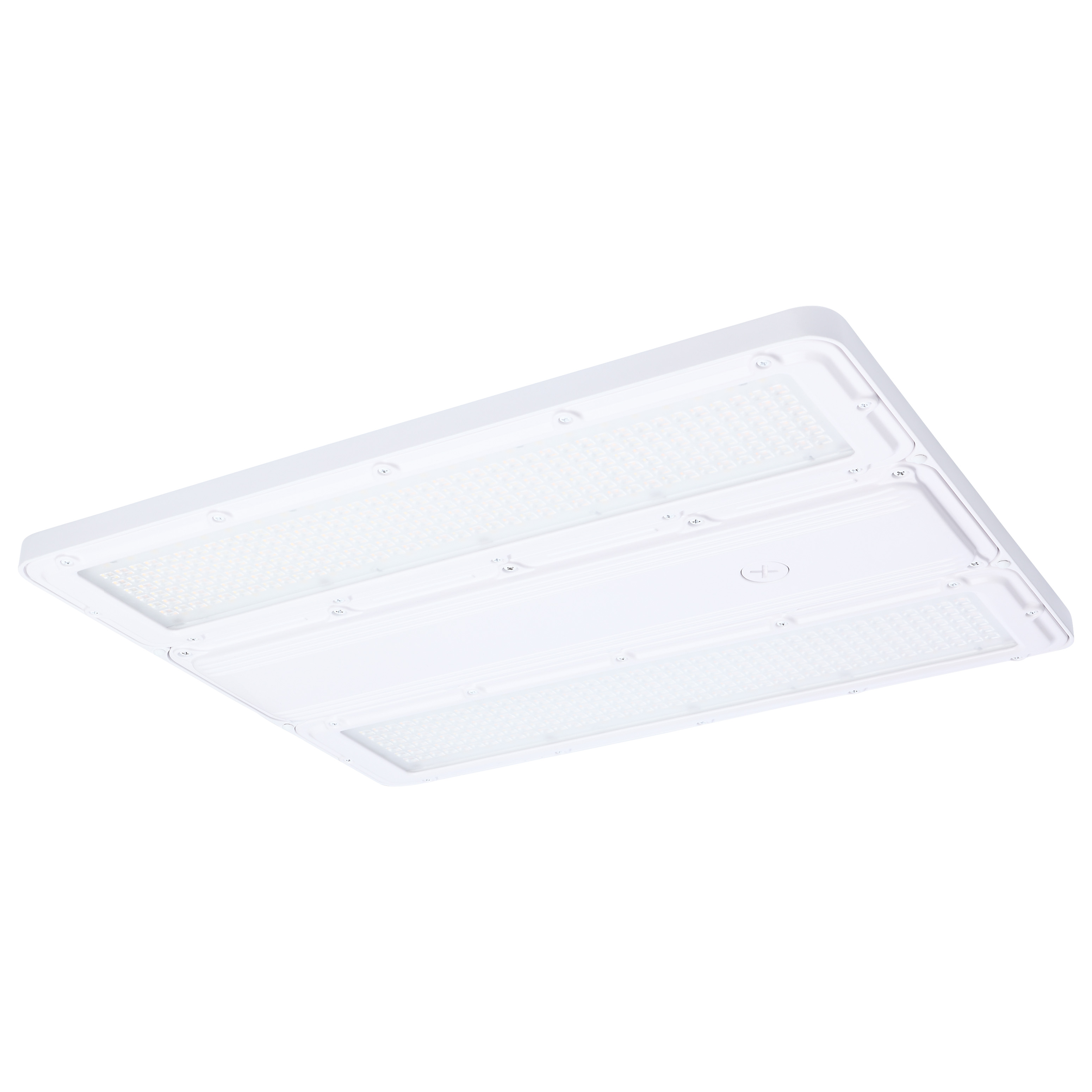

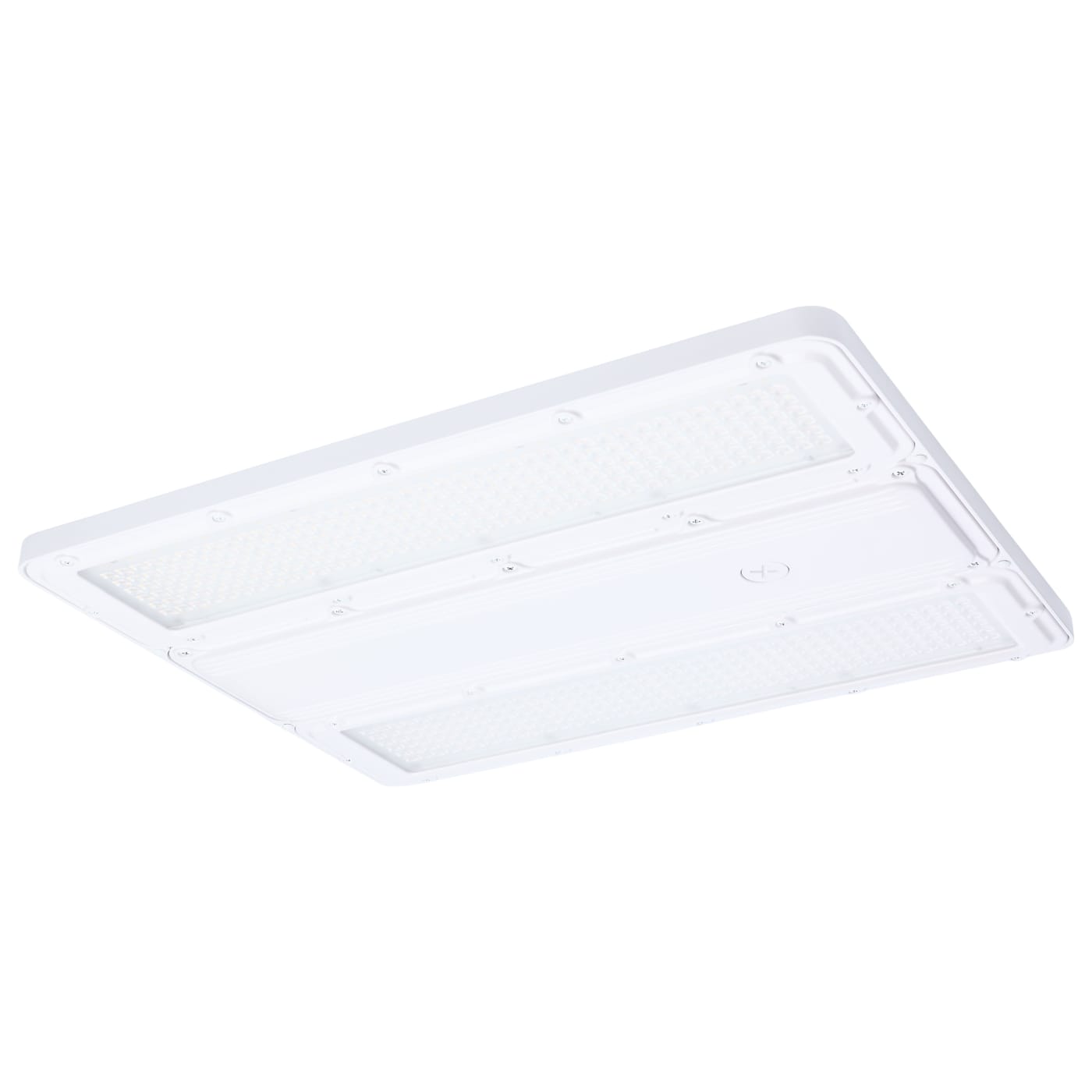

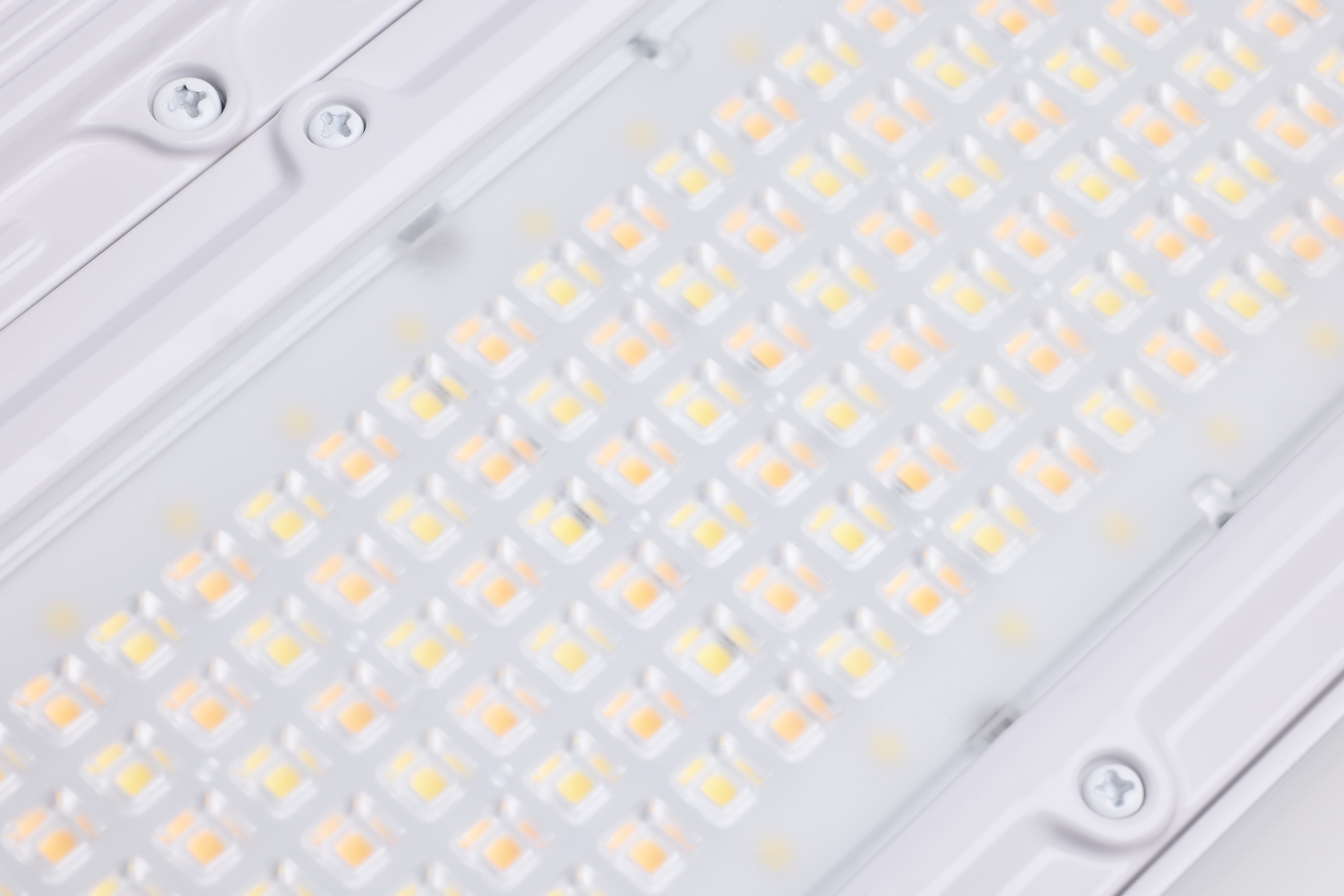

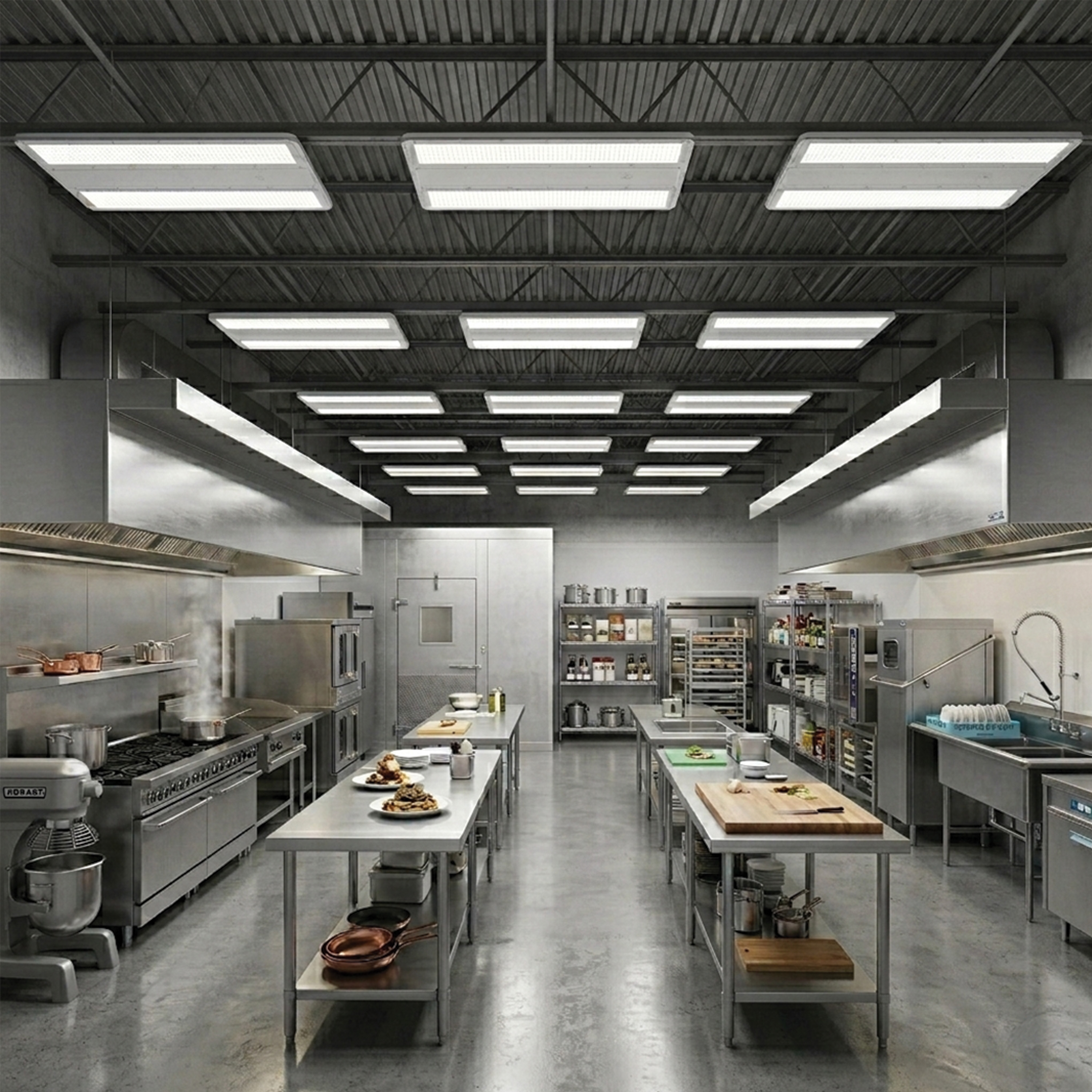

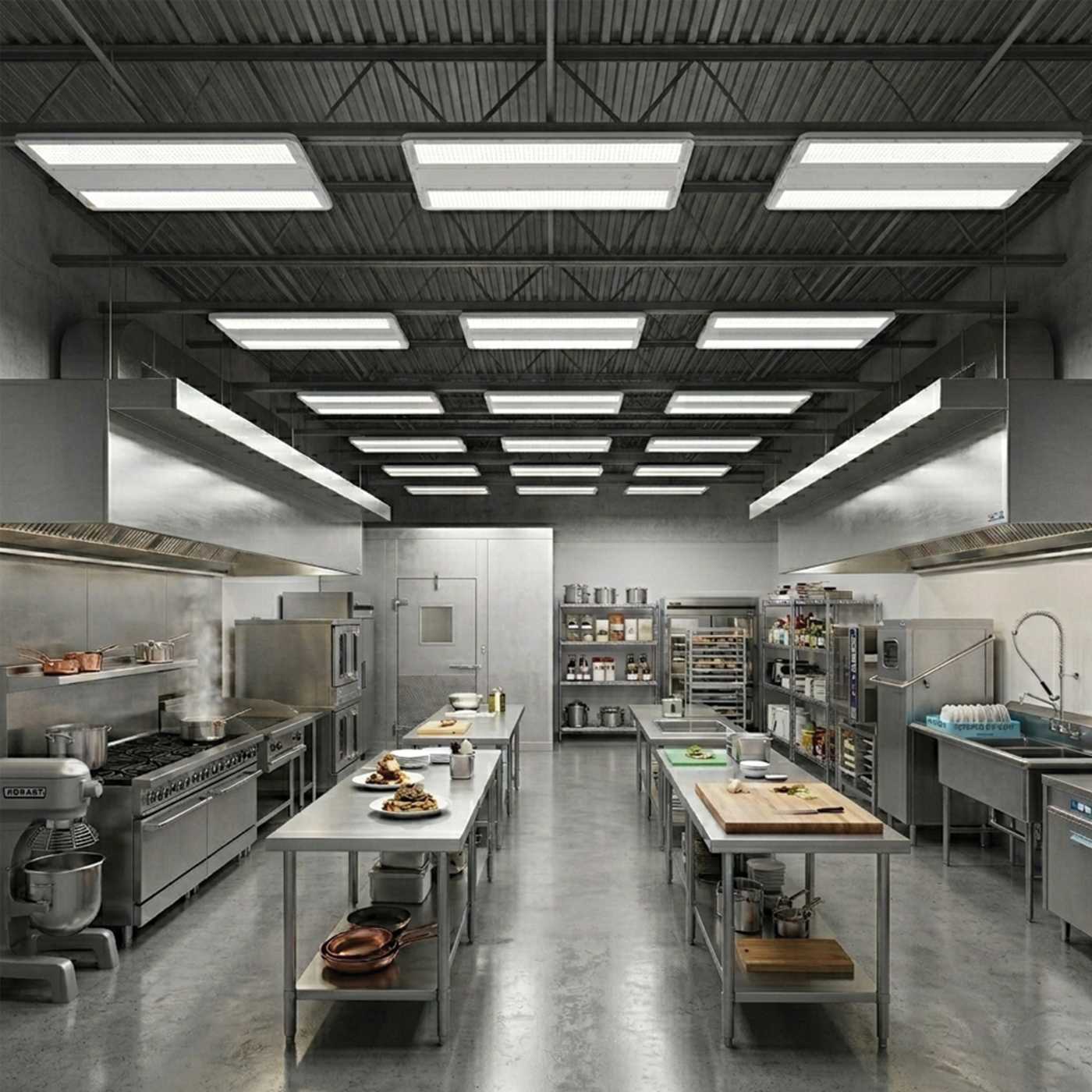

The SATCO NUVO 65-1171 Linear IP69K High Bay offers increased lumen output in a compact, rugged design built for harsh environments. With selectable wattages of 160W/135W/120W and CCT options of 3000K/4000K/5000K, it allows for adaptable performance in the field. Designed for demanding washdown applications, this fixture features an IP69K rating, IK10 impact-resistant polycarbonate lens, and 6kV surge protection. Operating on 120-347V, this NSF listed high bay is sensor ready with an integrated 3.5mm auxiliary port and includes suspension chains and hooks for straightforward installation.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeLinear Hi-Bay
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion<20%

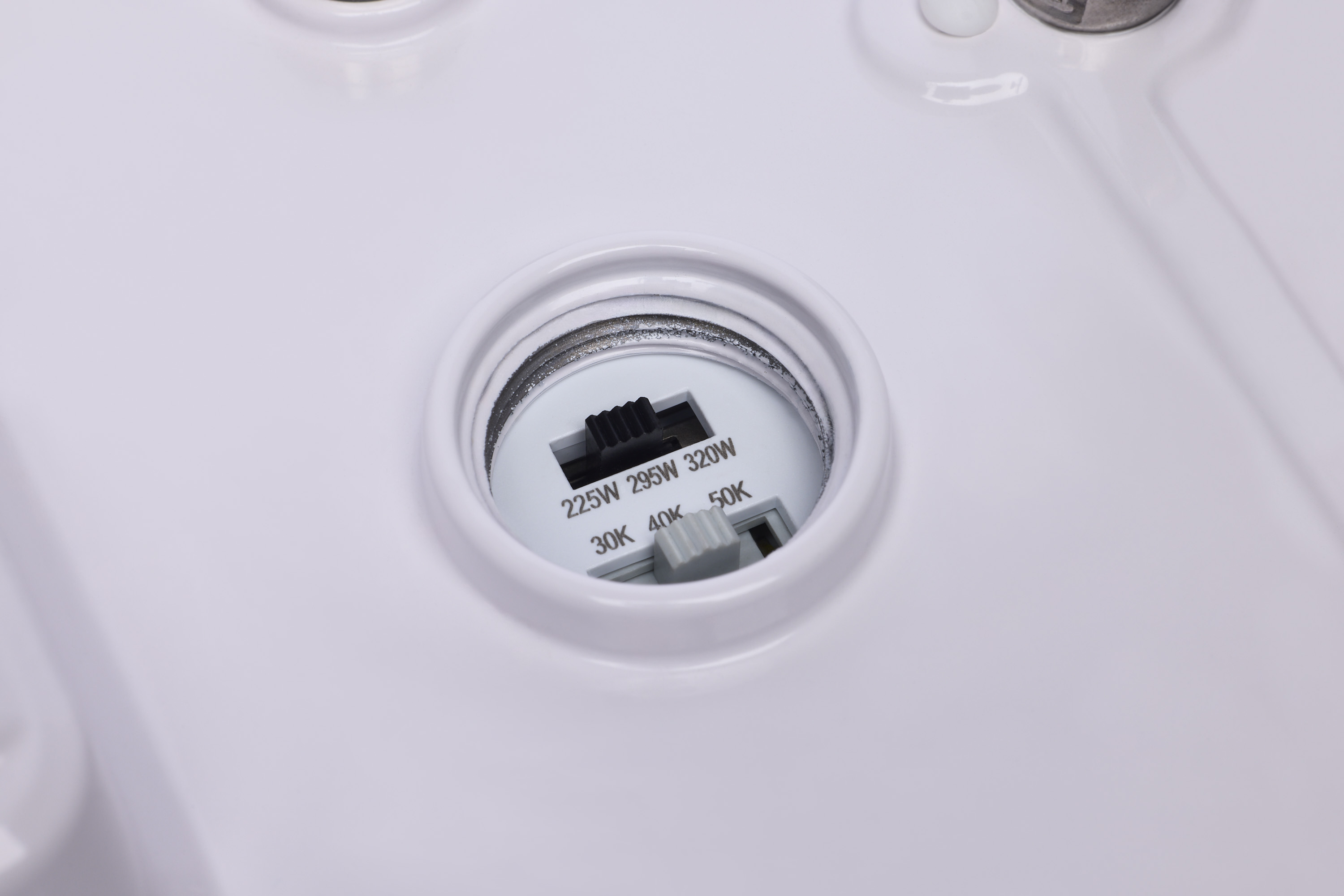

CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Additional InfoDefault Wattage: 160W
Amps1.330-0.460/1.130-0.390/1.000-0.350A

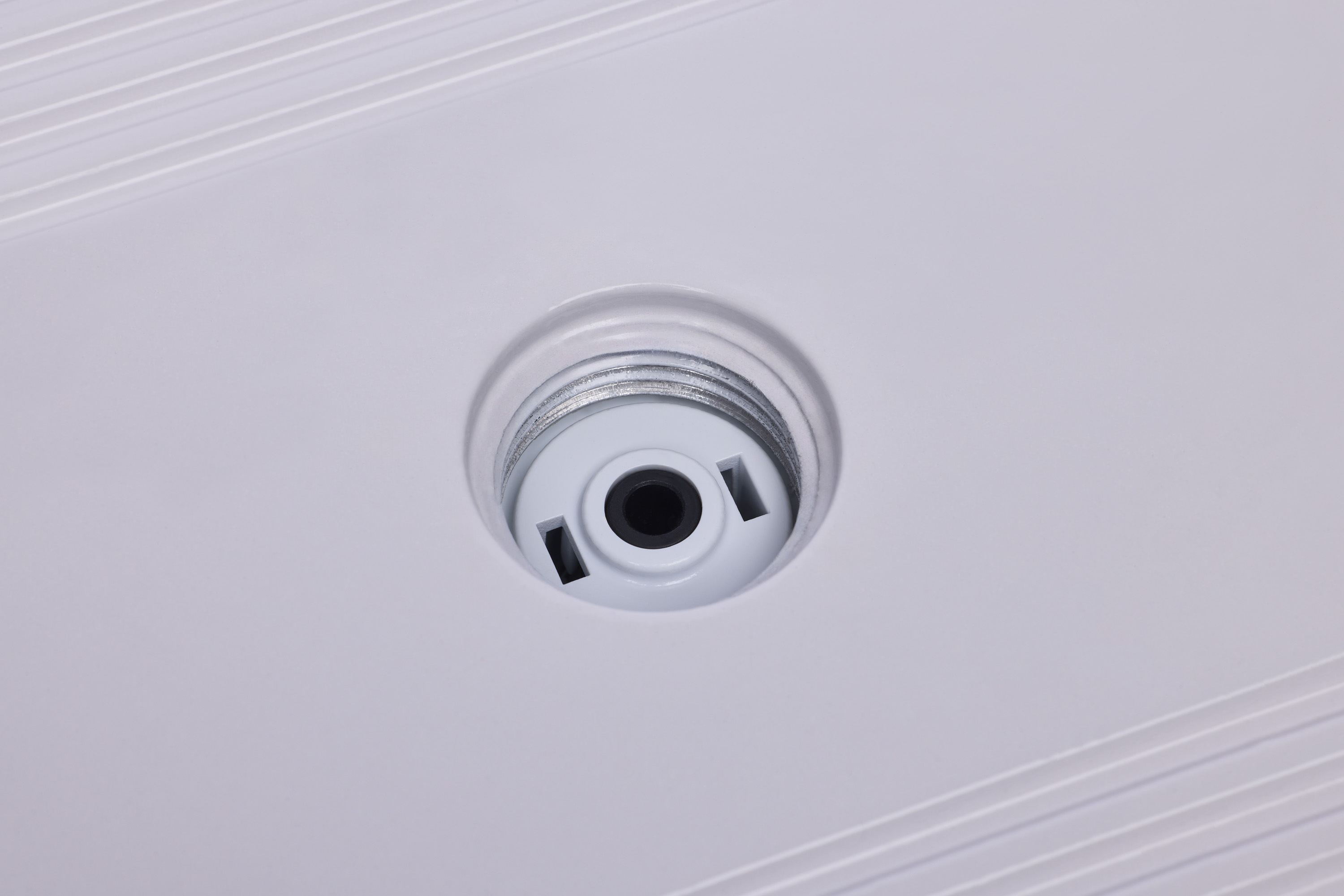

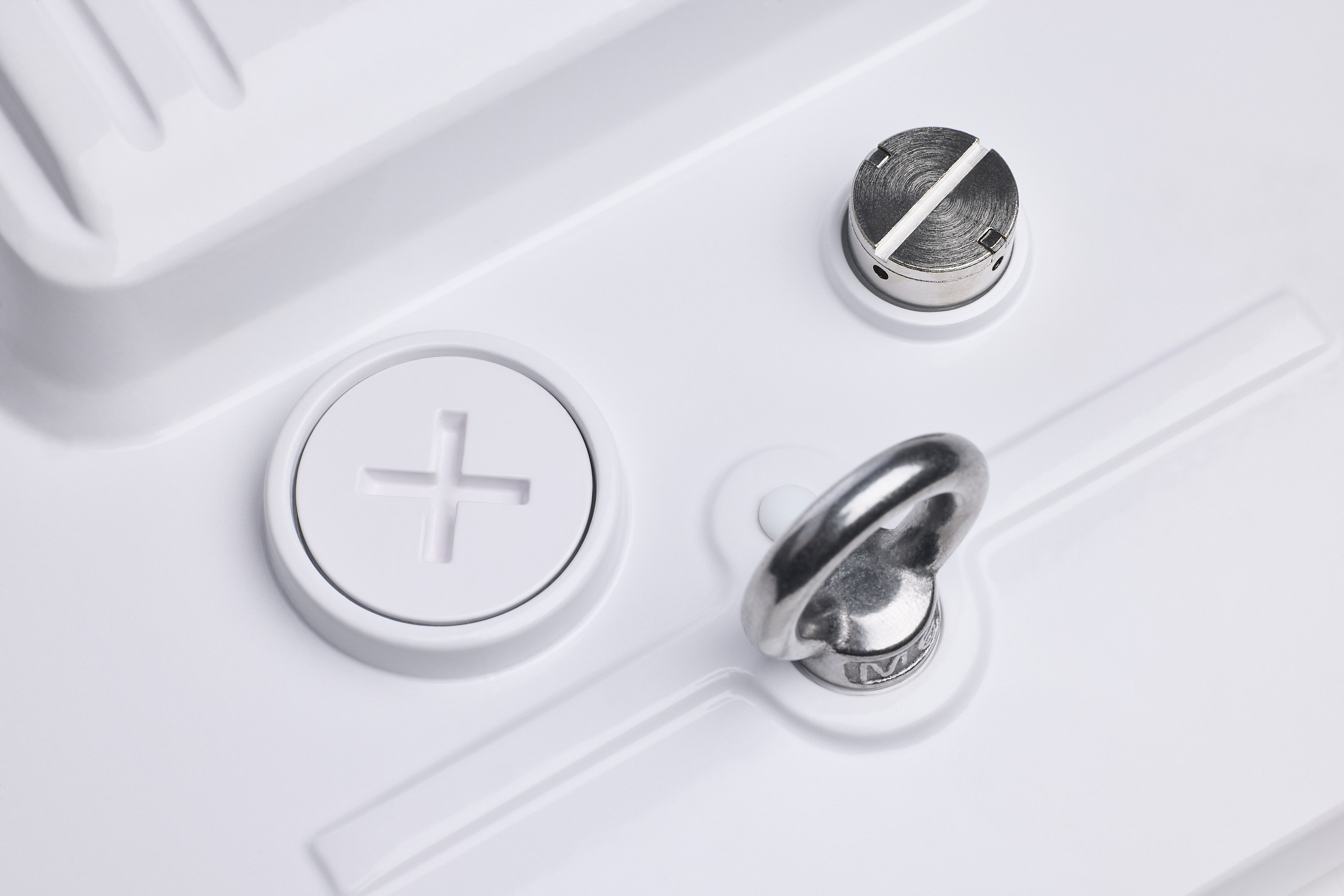

Integrated FeaturesIntegrated Sensor Port
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
LensedYes
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv225W-315W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempSoft White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +131F (-40C to +55C)
HID Equivalent300W
Lumens26000L-19900L
Volts120V-347V
Watts160W/135W/120W
Max Lumens19900L
Physical
Lamp BaseIntegrated
FinishWHITE
Housing ColorWhite
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear

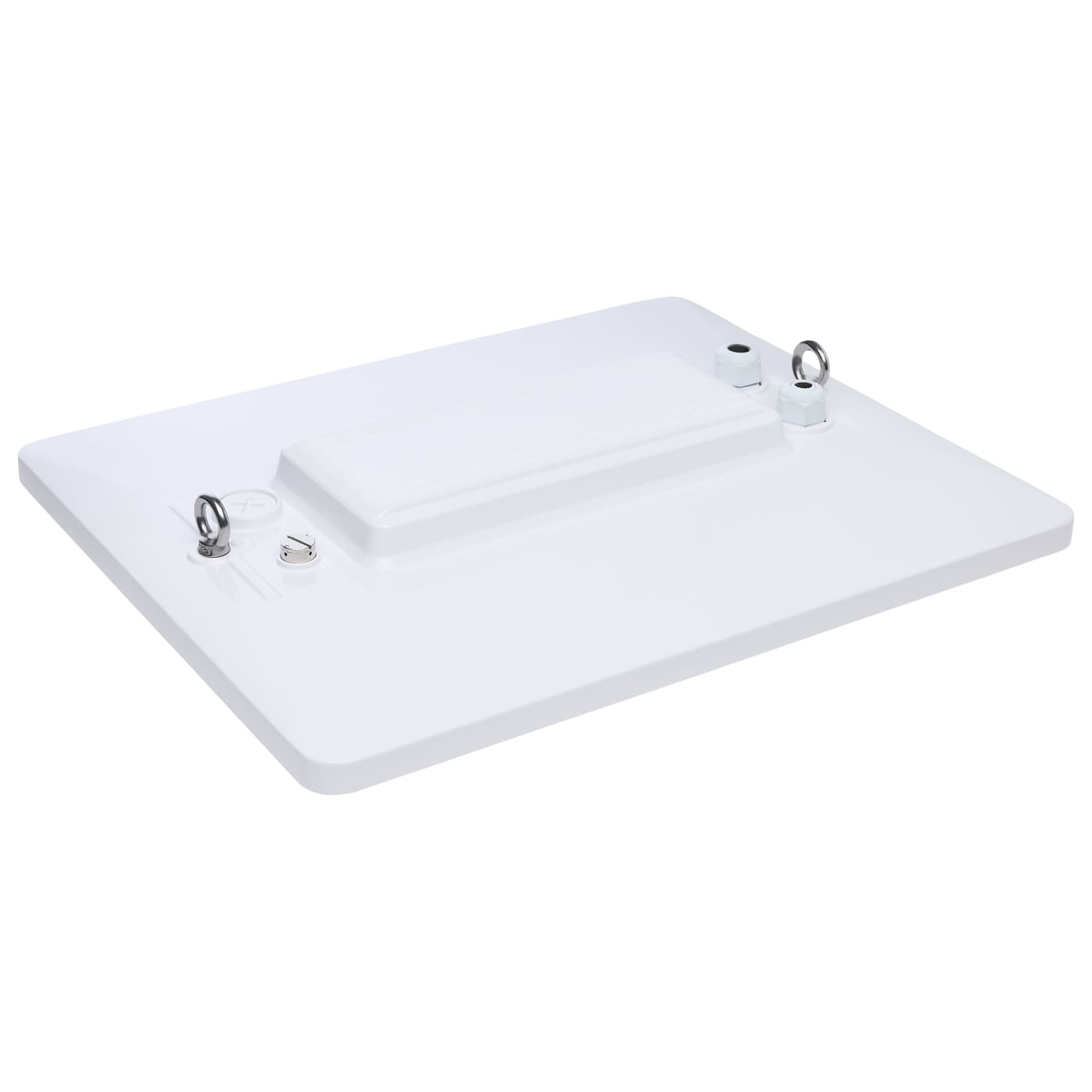

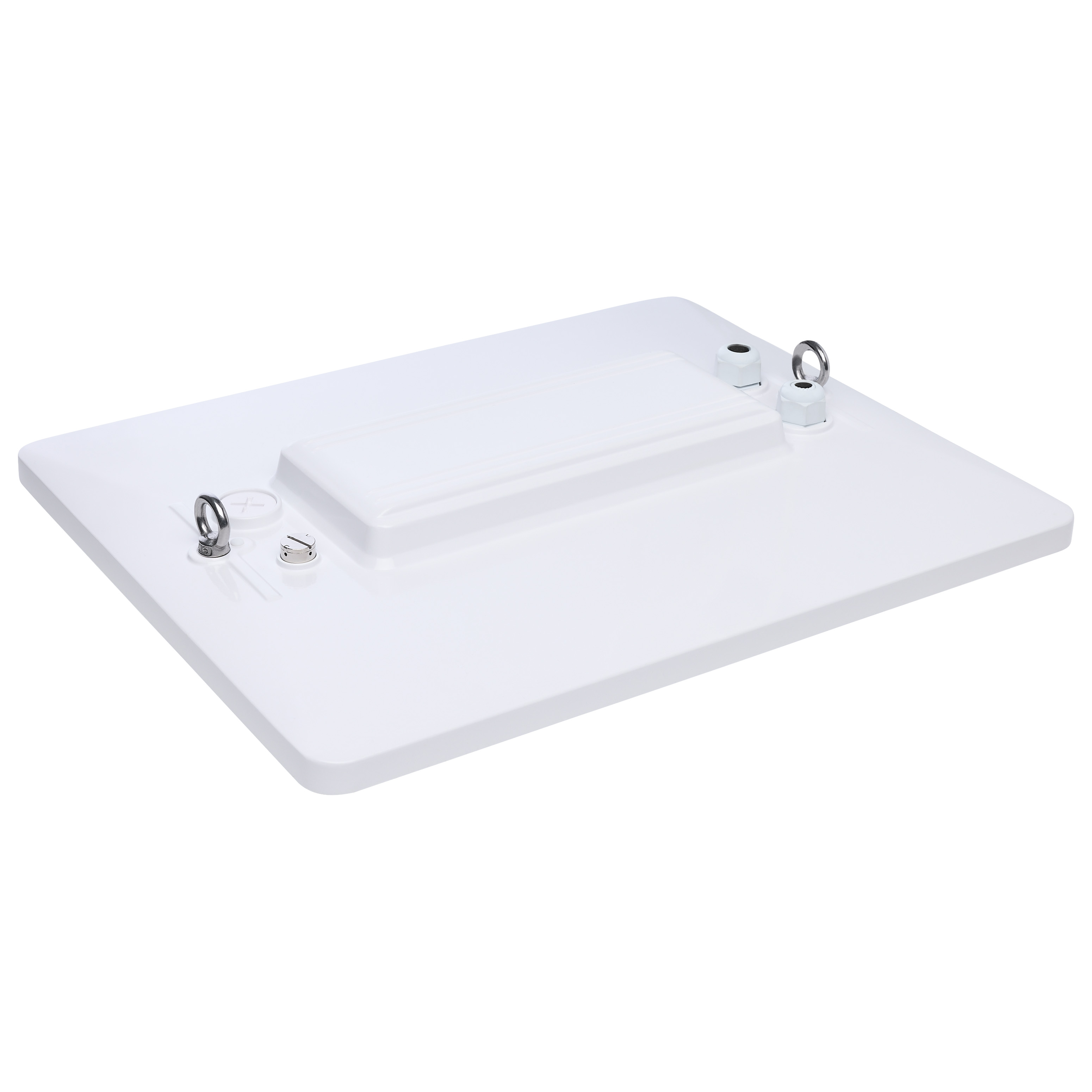

Mounting ProcedureSurface/Suspension: Mounting Bracket/Cables/Chain
Additional Info
Warranty5-Years
Compliance
Bug RatingB4-U2-G2
CA Prop 65Lead
DLC IDS-VYFRM2
FCC CompliantYes
IP RatingIP69K
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923413261
Case Cube0.582
Case Height3.94
Case Length17.52
Case Quantity1
Case UPC10045923413268
Case Weight12.8
Case Width14.57
EA Cube0.582
EA Height3.94
EA Length17.52
EA Quantity1
EA Weight12.8
EA Width14.57
Pack TypeBox

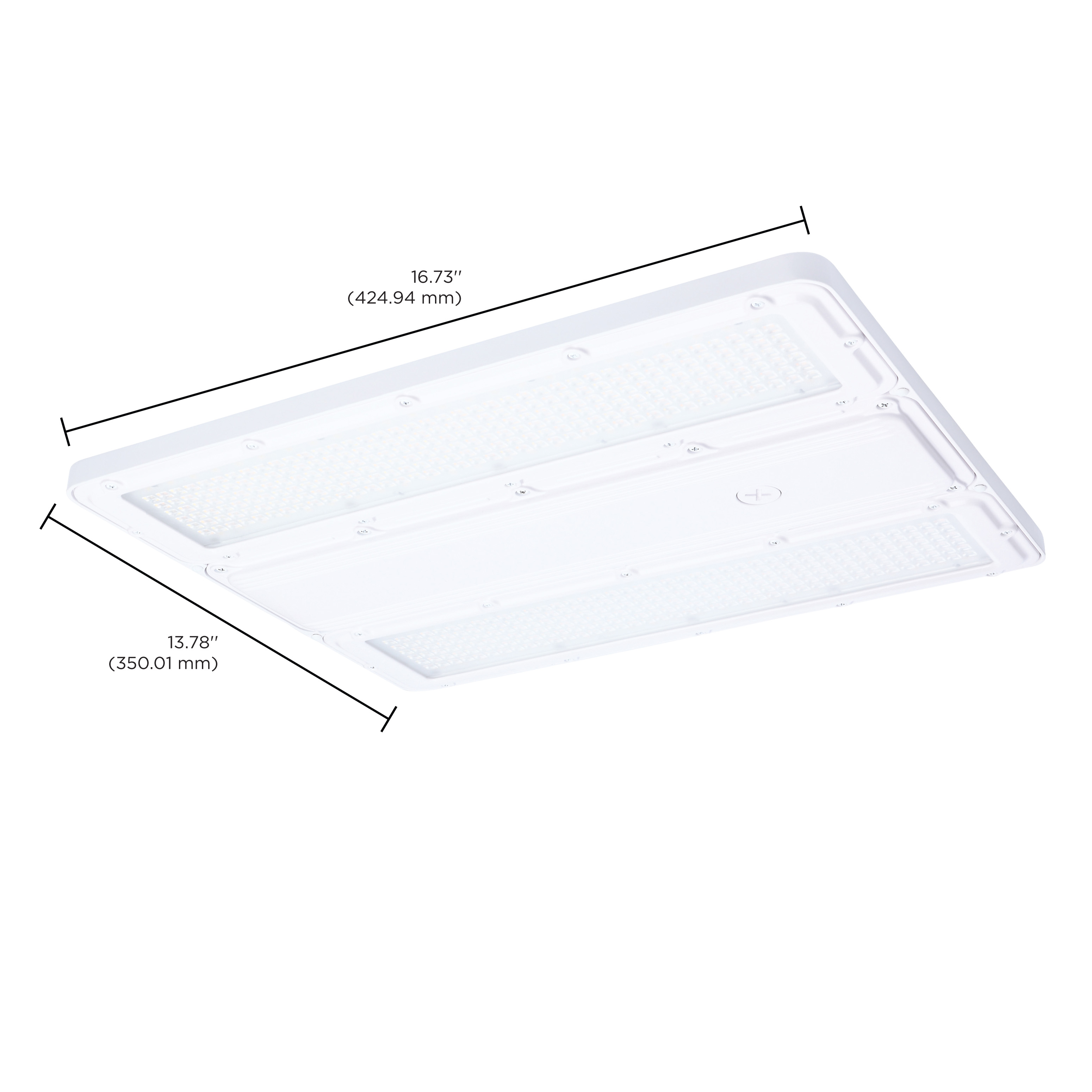

Web Height2.44
Web Length16.77
Web Width13.78
