65-1172

IP69K LINEAR HB 240W/220W/180W

  • 240/220/180 Watt LED Linear High Bay
  • 3K/4K/5K CCT
  • IP69K
  • 120-347 Volt
  • White Finish
cc_selectable^y^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
Description
Description

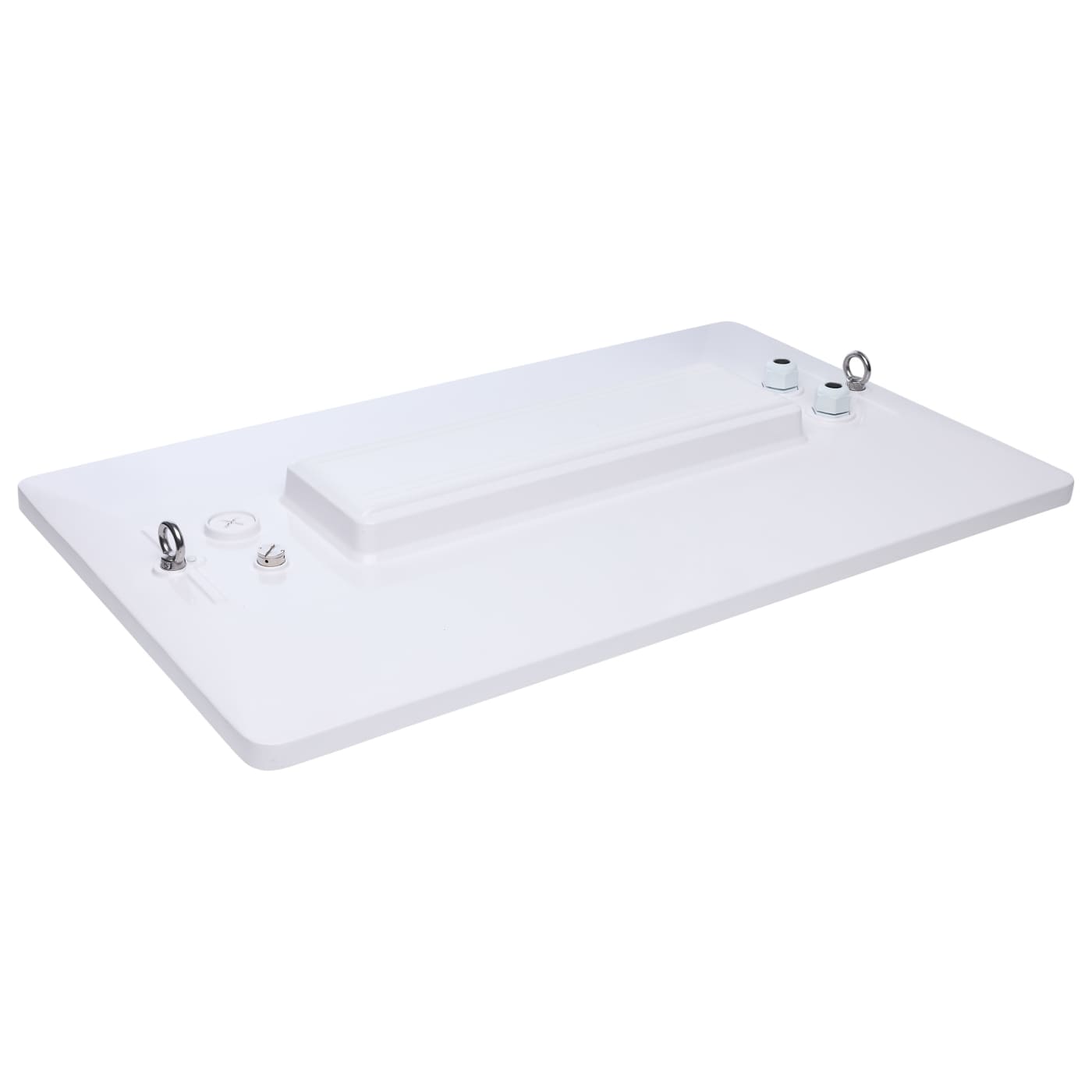

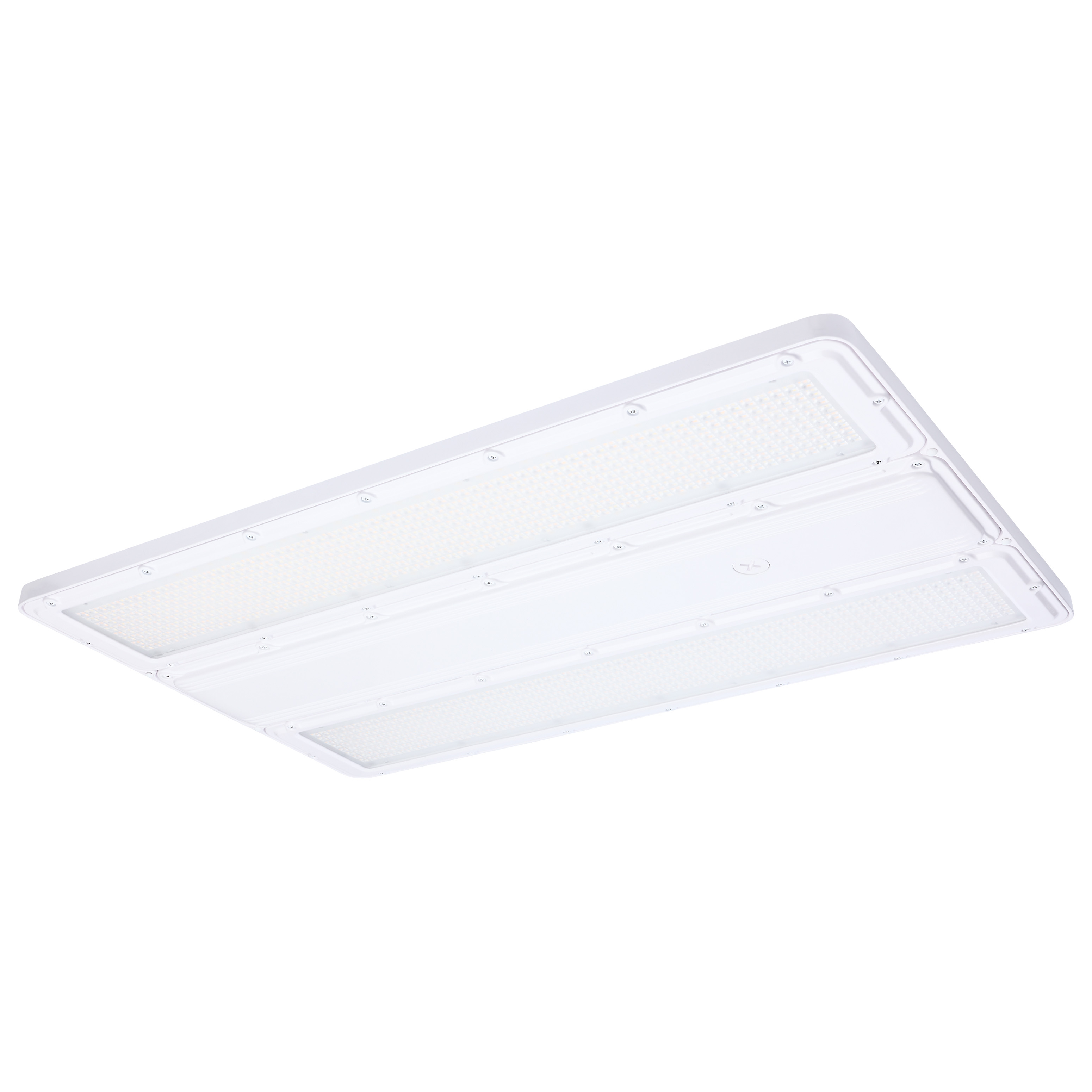

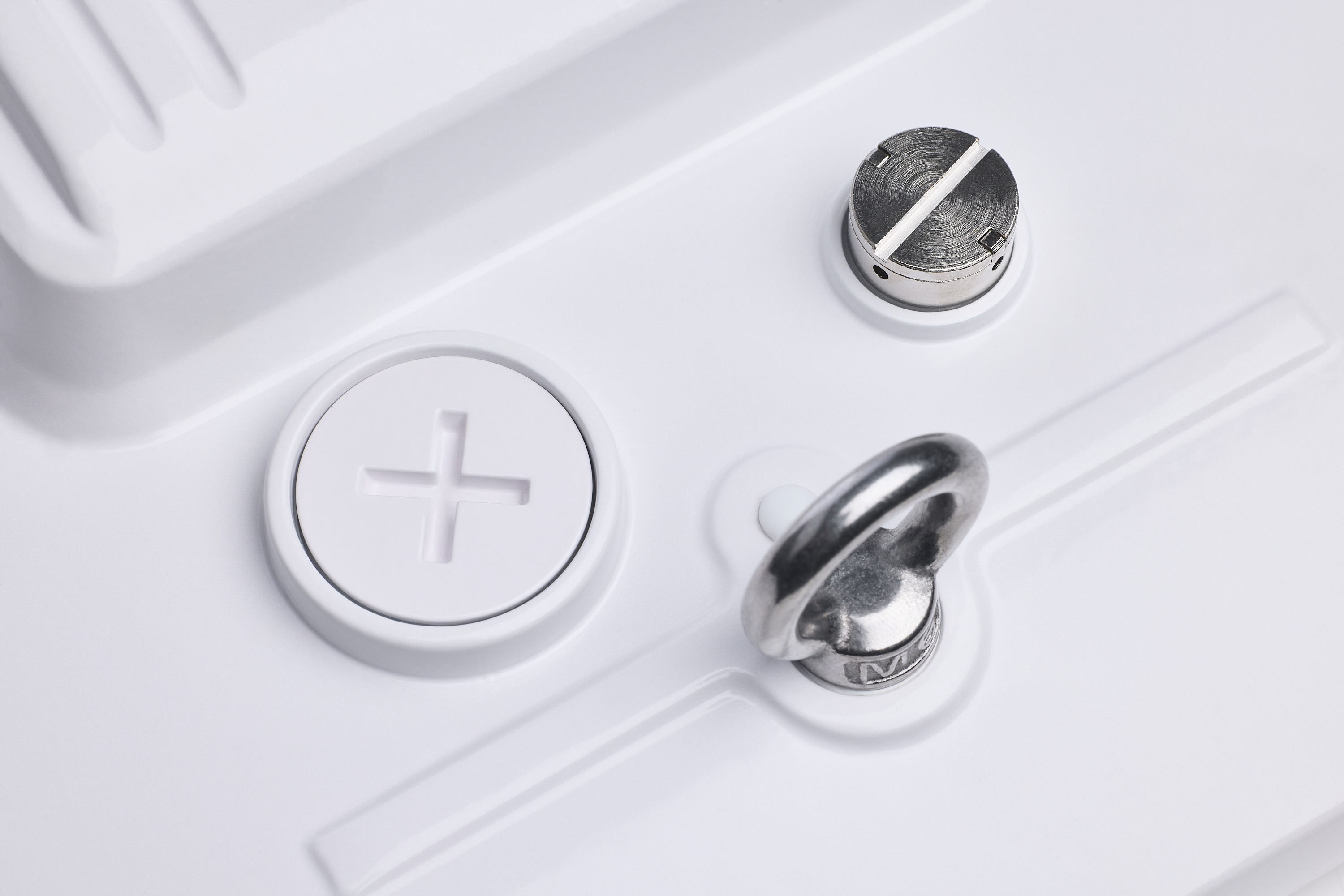

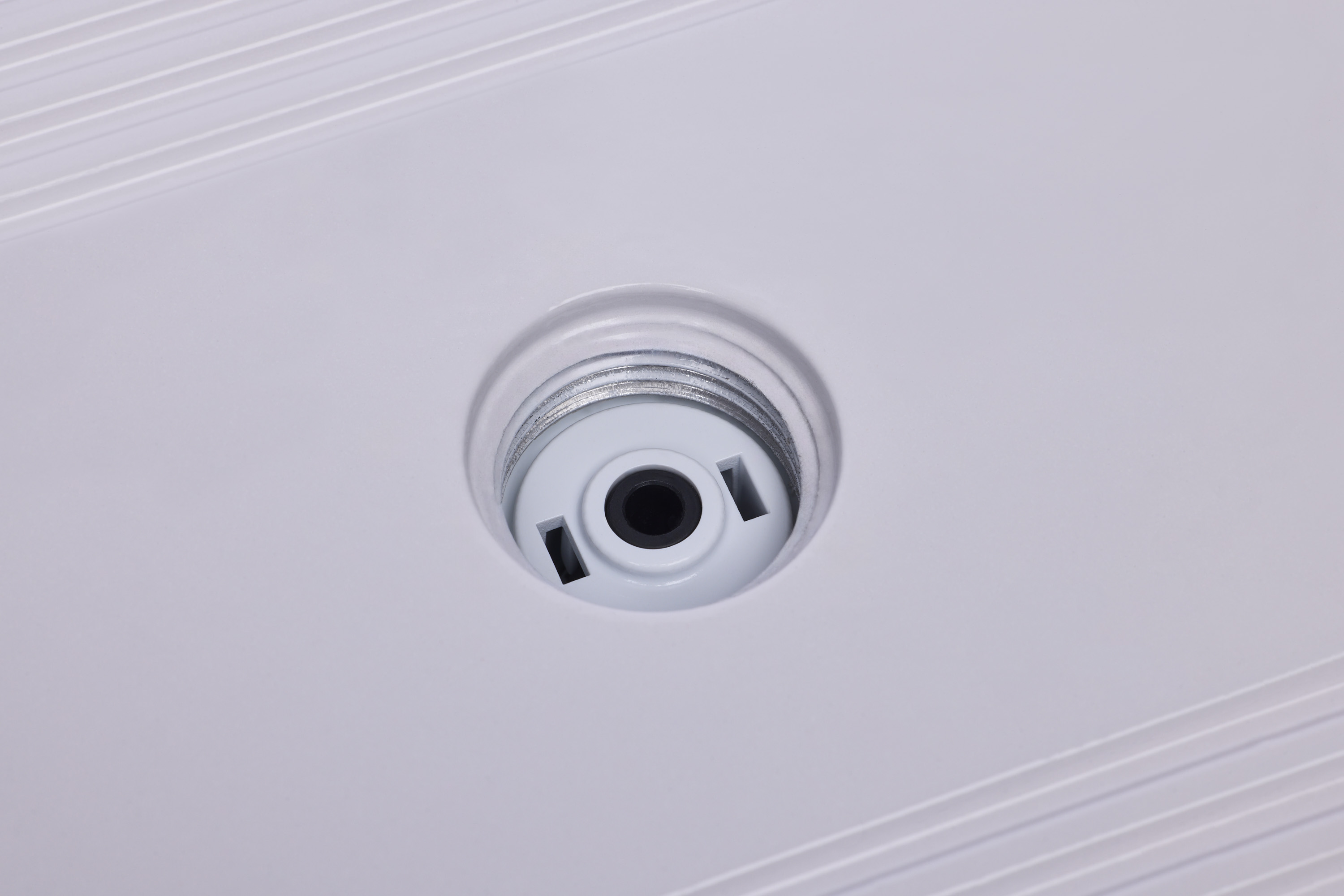

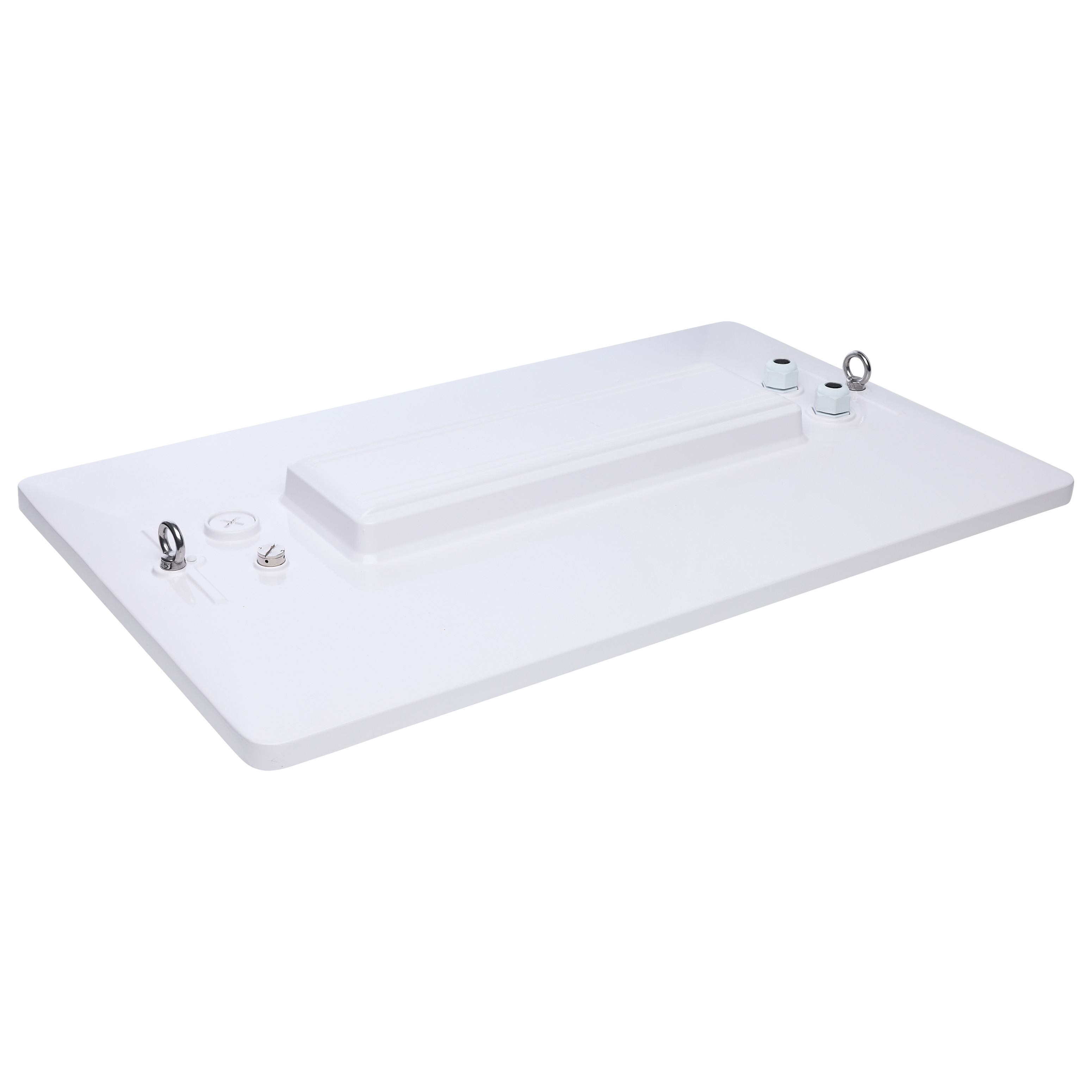

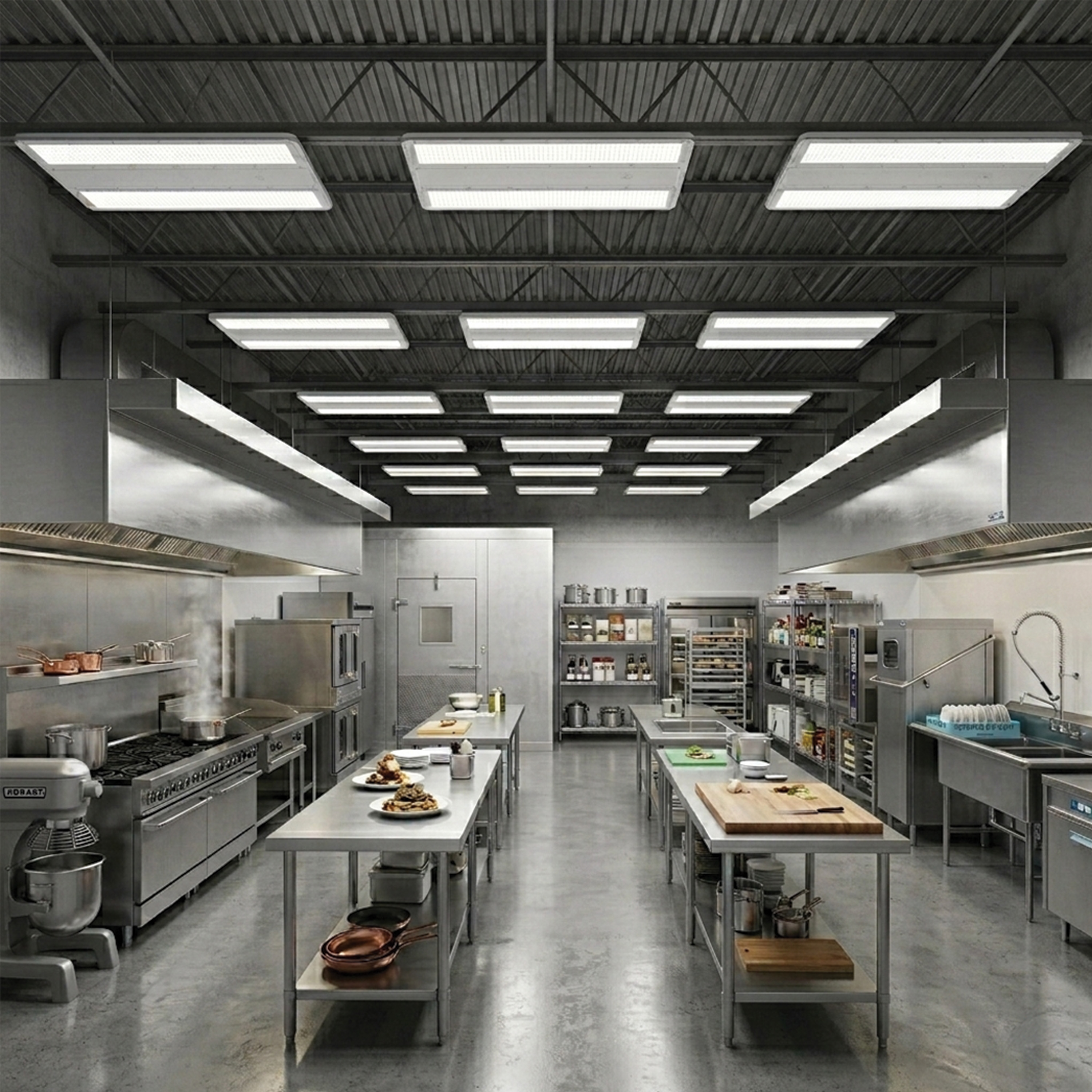

The SATCO NUVO 65-1172 Linear IP69K High Bay is engineered for higher mounting heights and expanded coverage, delivering powerful illumination in a larger housing. Offering selectable wattages of 240W/220W/180W and CCT selectability (3000K/4000K/5000K), it provides on-site flexibility to meet application needs. Built to withstand rigorous washdown conditions, this fixture features an IP69K rating, IK10 impact-resistant polycarbonate lens, and 6kV surge protection. Designed for operation on 120-347V, this NSF rated high bay is sensor ready with an integrated 3.5mm auxiliary port and includes suspension chains and hooks for installation.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeLinear Hi-Bay
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Additional InfoDefault Wattage: 240W
Amps2.000-0.690A/1.830-0.630A/1.500-0.520A
Integrated FeaturesIntegrated Sensor Port
Lens FinishOpaque
Lens MaterialPolycarbonate (PC)
LensedYes
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv400W-570W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)90
Color TempSoft White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +131F (-40C to +55C)
HID Equivalent450W
Lumens37600L-28900L
Volts120V-347V
Watts240W/220W/180W
Max Lumens28900L
Physical
Lamp BaseIntegrated
FinishWHITE
Housing ColorWhite
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Mounting ProcedureSurface/Suspension: Mounting Bracket/Cables/Chain
Additional Info
Warranty5-Years
Compliance
Bug RatingB4-U2-G2
CA Prop 65Lead
DLC IDS-4RH6T8
FCC CompliantYes
IP RatingIP69K
Location RatingWet
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923413278
Case Cube0.8864
Case Height3.94
Case Length25.0
Case Quantity1
Case UPC10045923413275
Case Weight18.5
Case Width15.55
EA Cube0.8864
EA Height3.94
EA Length25.0
EA Quantity1
EA Weight18.5
EA Width15.55
Pack TypeBox

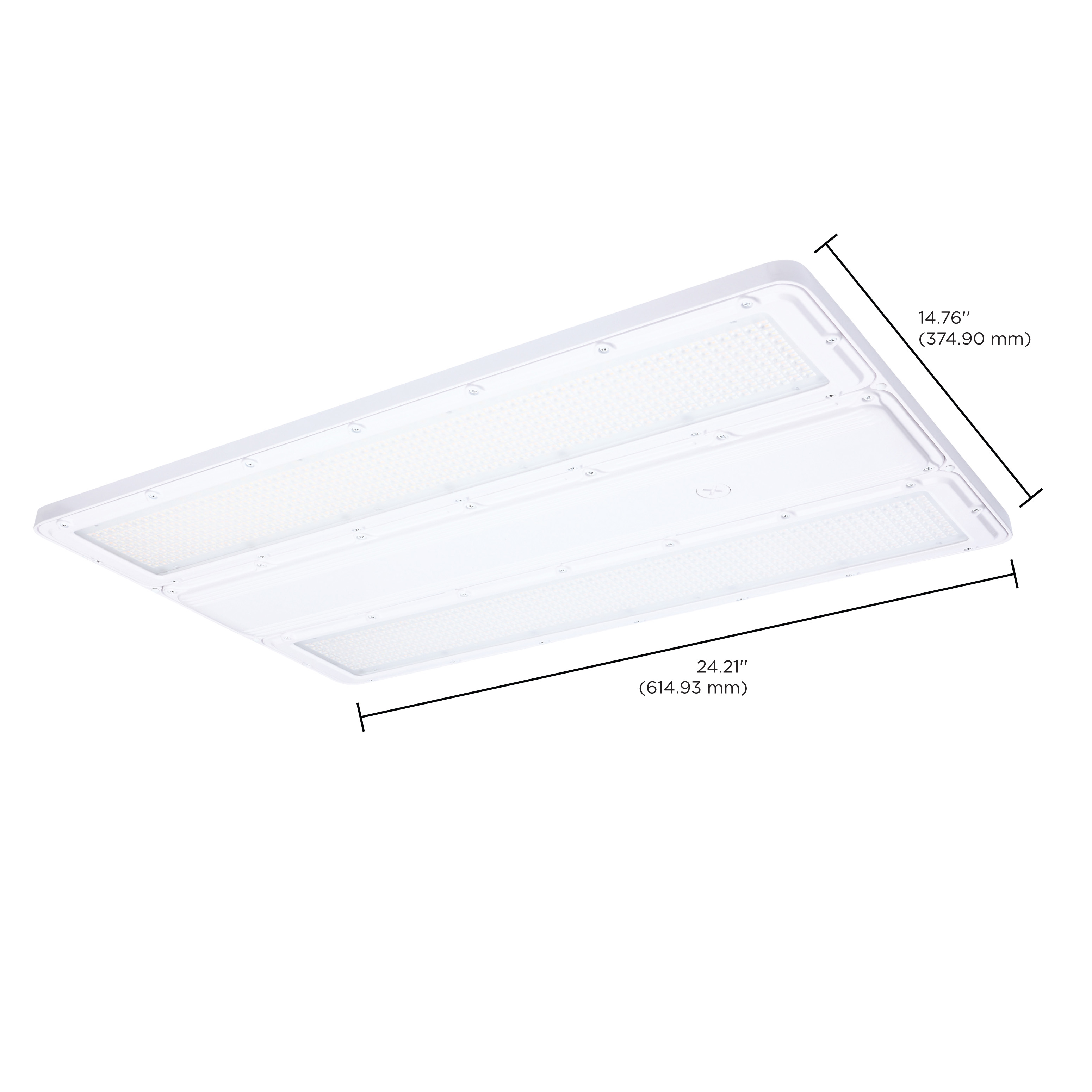

Web Height2.44
Web Length24.21
Web Width14.76
