65-1180

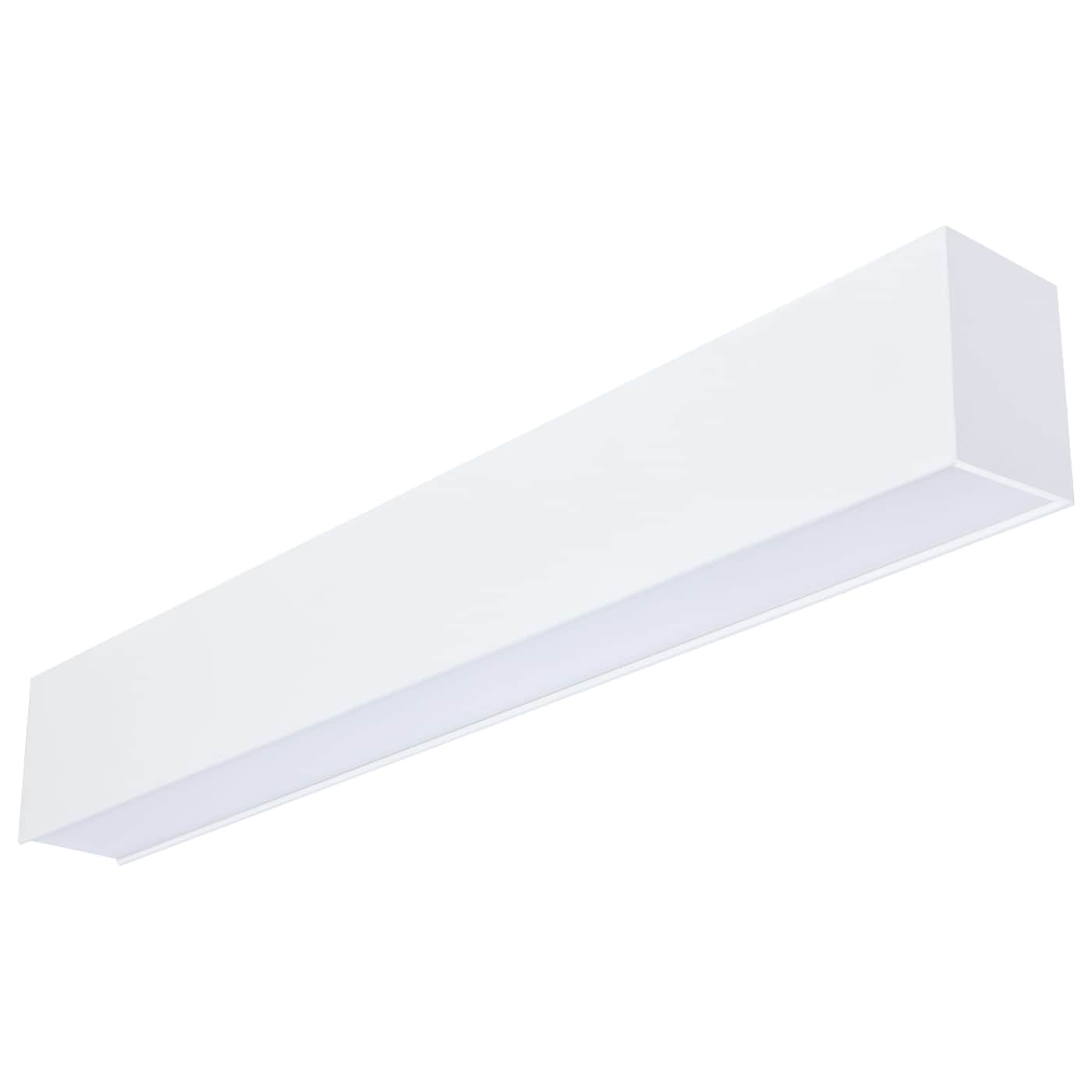

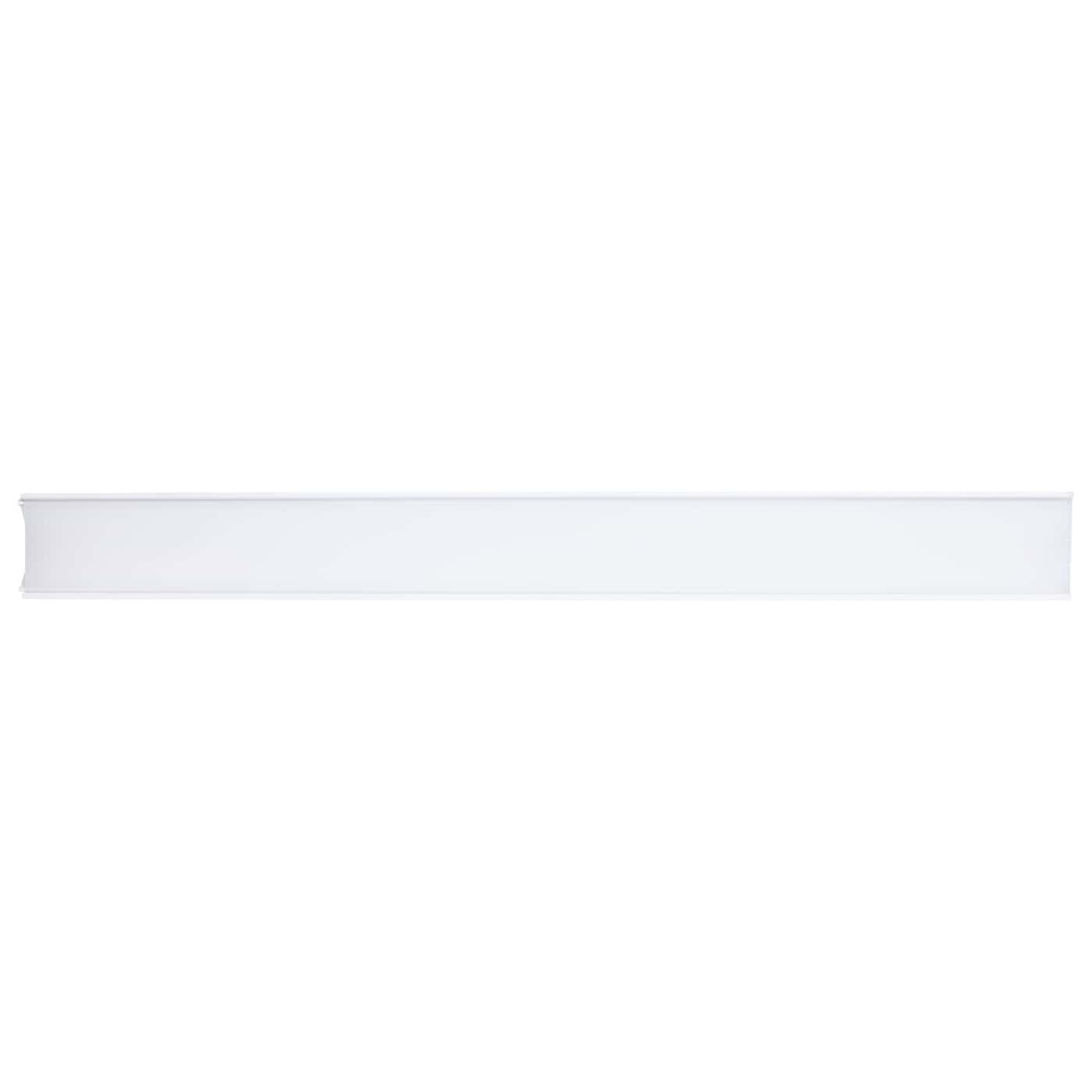

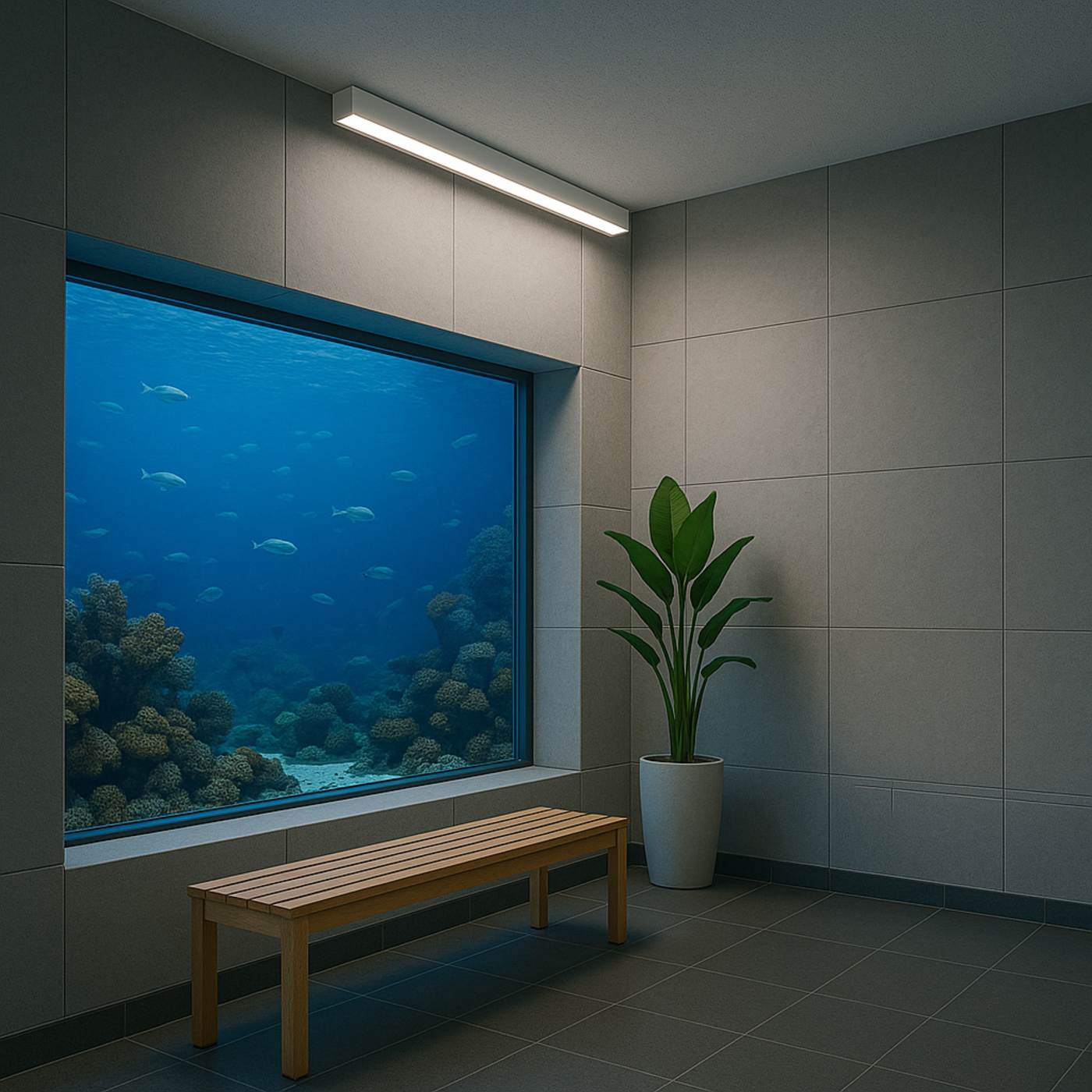

2' LED CONNECTABLE LINEAR

  • 2 Foot LED Connectable Linear Strip

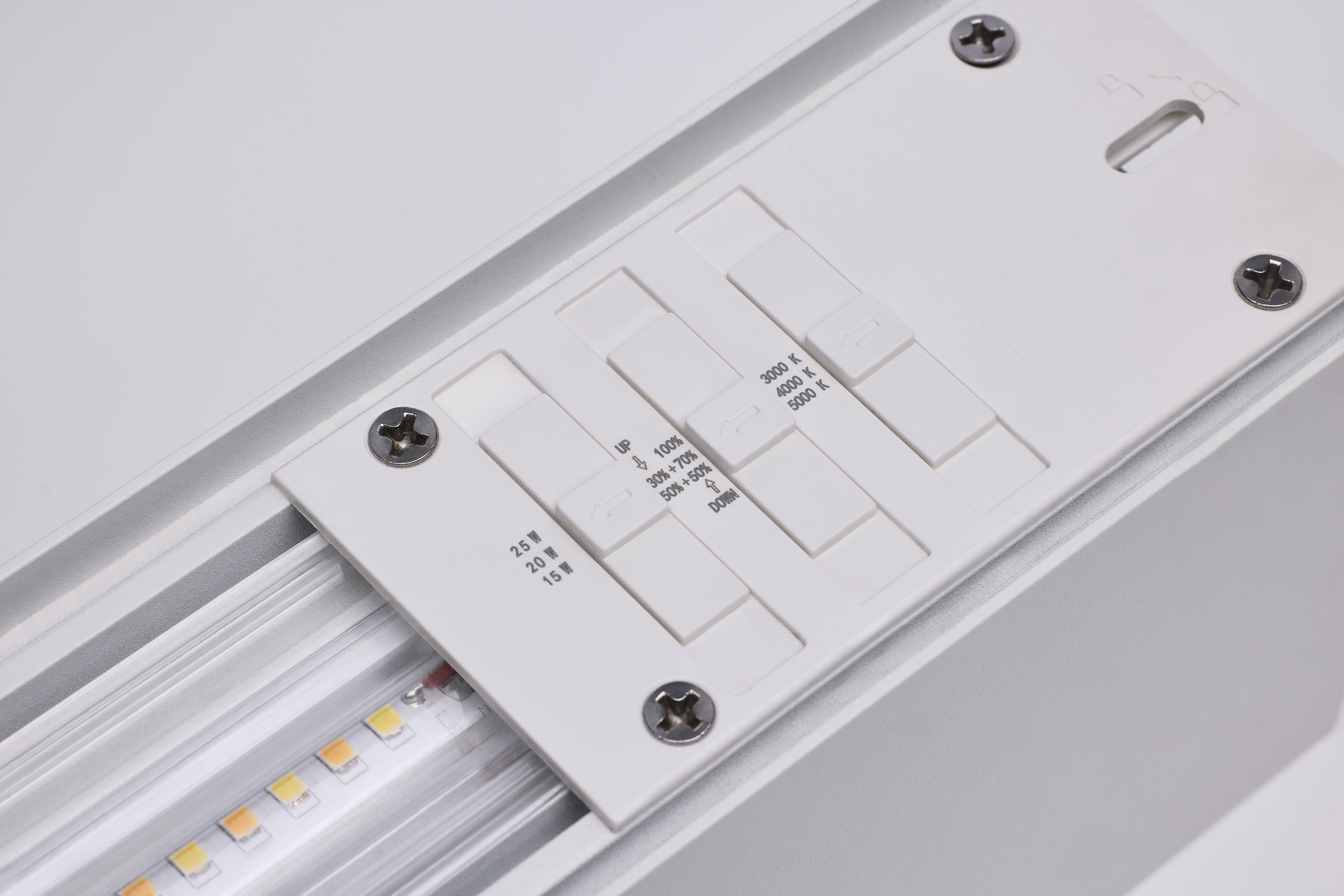

  • Up and Down Selectable
  • White Finish
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
hours_rated^50k^2
dimmable_text^0-10_dim^2
safety_listing^cetlus^3
fcc_compliant^true^3
rohs_compliant^y^3
65-1180 Specifications
Tools
Lighting Layout Analysis For 65-1180
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
2 Foot LED Connectable Linear Strip; Up and Down Selectable; White Finish
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
Dimmable Text0-10V
MaterialAluminum
Fixture TypeLinear
Product NotesMax Wattage when connected at 120V: 700W; Max Wattage when connected at 277V: 1400W; Max Wattage when connected at 347V: 1750W
StatusFuture Item
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion10.8%

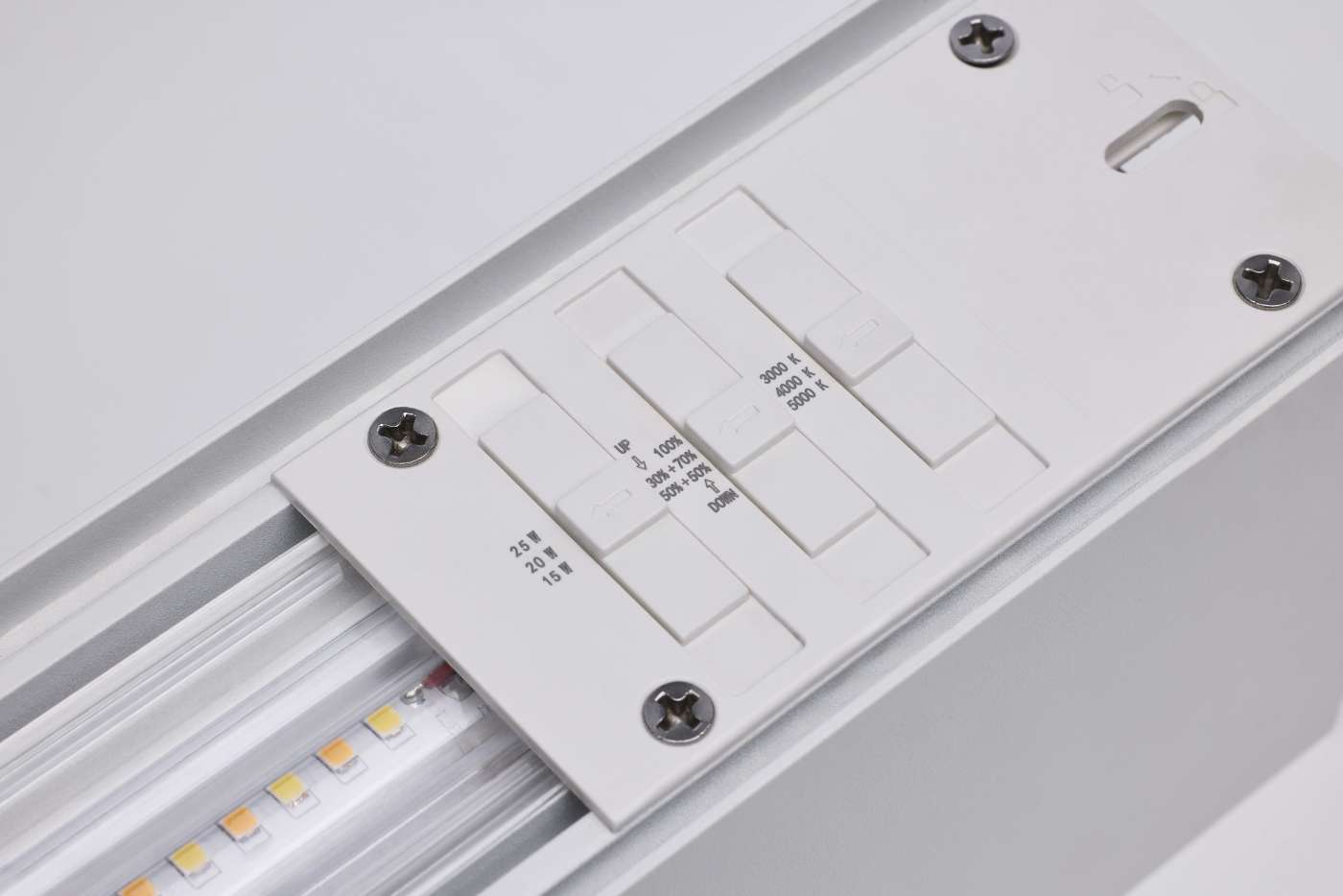

CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.125-0.043/0.167-0.058/0.208-0.072A
Has CameraFalse
IOT EnabledFalse
Lens FinishWhite
Lens MaterialPolycarbonate (PC)
LensedTrue
Power Factor0.93
Indoor OutdoorIndoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempSoft White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1650L/2200L/2750L
Volts120V-347V
Watts15W/20W/25W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeLinear
Additional Info
Warranty5-Years
Documents
Features
Flicker FreeTrue
Compliance
CA RegulationsT20 Exempt - Fixtures Not Regulated
CA Prop 65Lead
CA StatusLawful for sale in California
DLC IDS-M9TV12
FCC CompliantTrue
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus
CA Compliance TextLawful for sale
DLC ApprovedTrue
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923654107
Case Cube1.8077
Case Height11.81
Case Length25.83
Case Quantity6
Case UPC10045923654104
Case Weight23.98
Case Width10.24
EA Cube0.2503
EA Height3.66
EA Length25.04
EA Quantity1
EA Weight4.0
EA Width4.72
Inner Cube0.0
Pack TypeBox

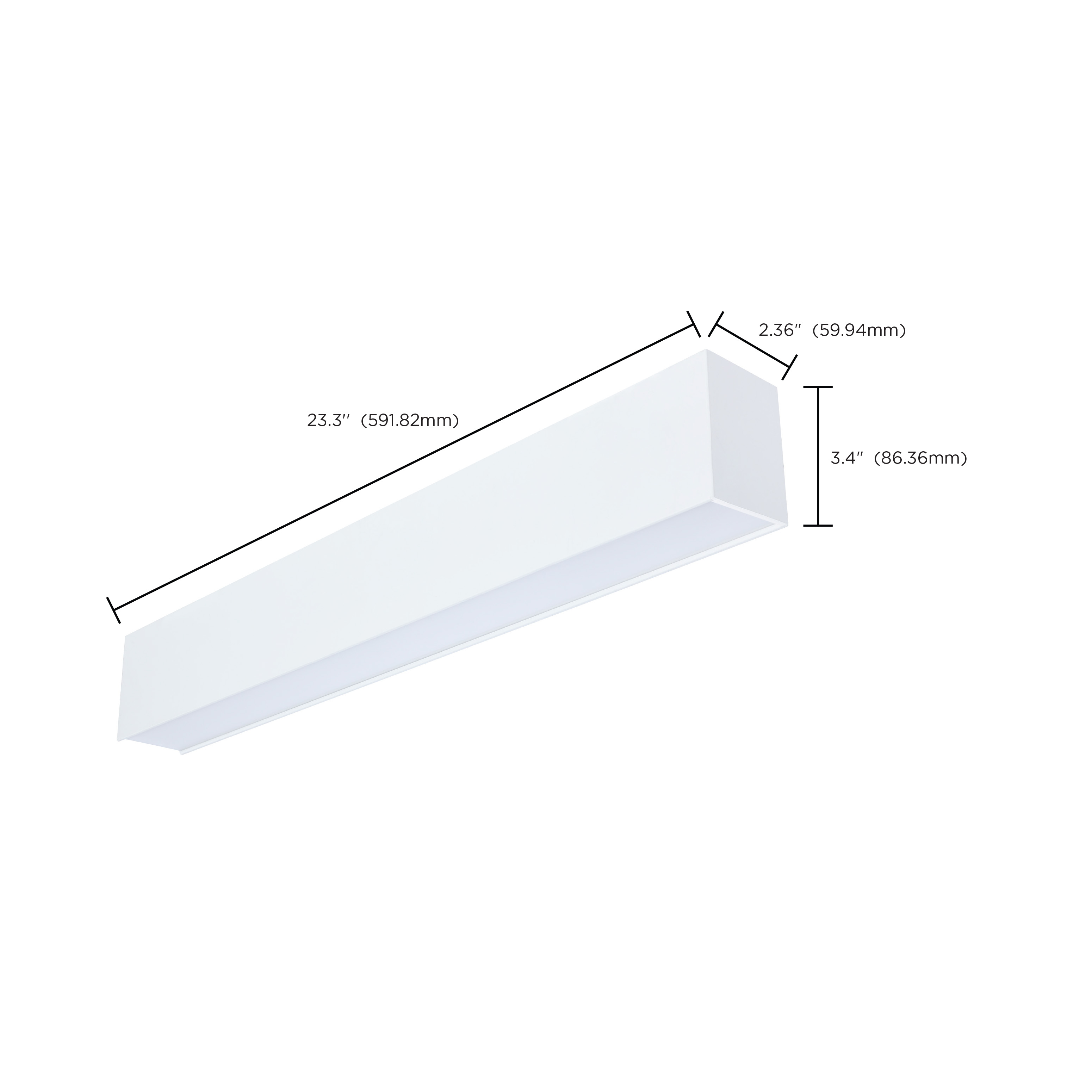

Web Height3.4
Web Length23.3
Web Width2.36
