| Company | NUVO |
|---|---|
| Dimmable Text | 0-10V |
| Material | Aluminum |
| Status | Active |
| CCT Selectable | True |
| Finish Family | White |
| Amps | 0.200A |
| Lens Finish | White |
| Lens Material | Polycarbonate (PC) |
| Lensed | True |
| Product Technology | Not Applicable |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 120 |
| Color Temp | Soft White to Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 750L |
| Watts | 6.6W |
| Finish | WHITE |
|---|
| Warranty | 1-Year |
|---|
| CA Prop 65 | Lead |
|---|---|
| FCC Compliant | True |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| UPC | 045923654343 |
|---|---|
| Case Cube | 1.1264 |
| Case Height | 13.78 |
| Case Length | 16.54 |
| Case Quantity | 6 |
| Case UPC | 10045923654340 |
| Case Width | 8.54 |
| EA Cube | 0.1552 |
| EA Height | 7.87 |
| EA Length | 7.87 |
| EA Quantity | 1 |
| EA Width | 4.33 |
| Inner Cube | 0.0 |
| Pack Type | Box |

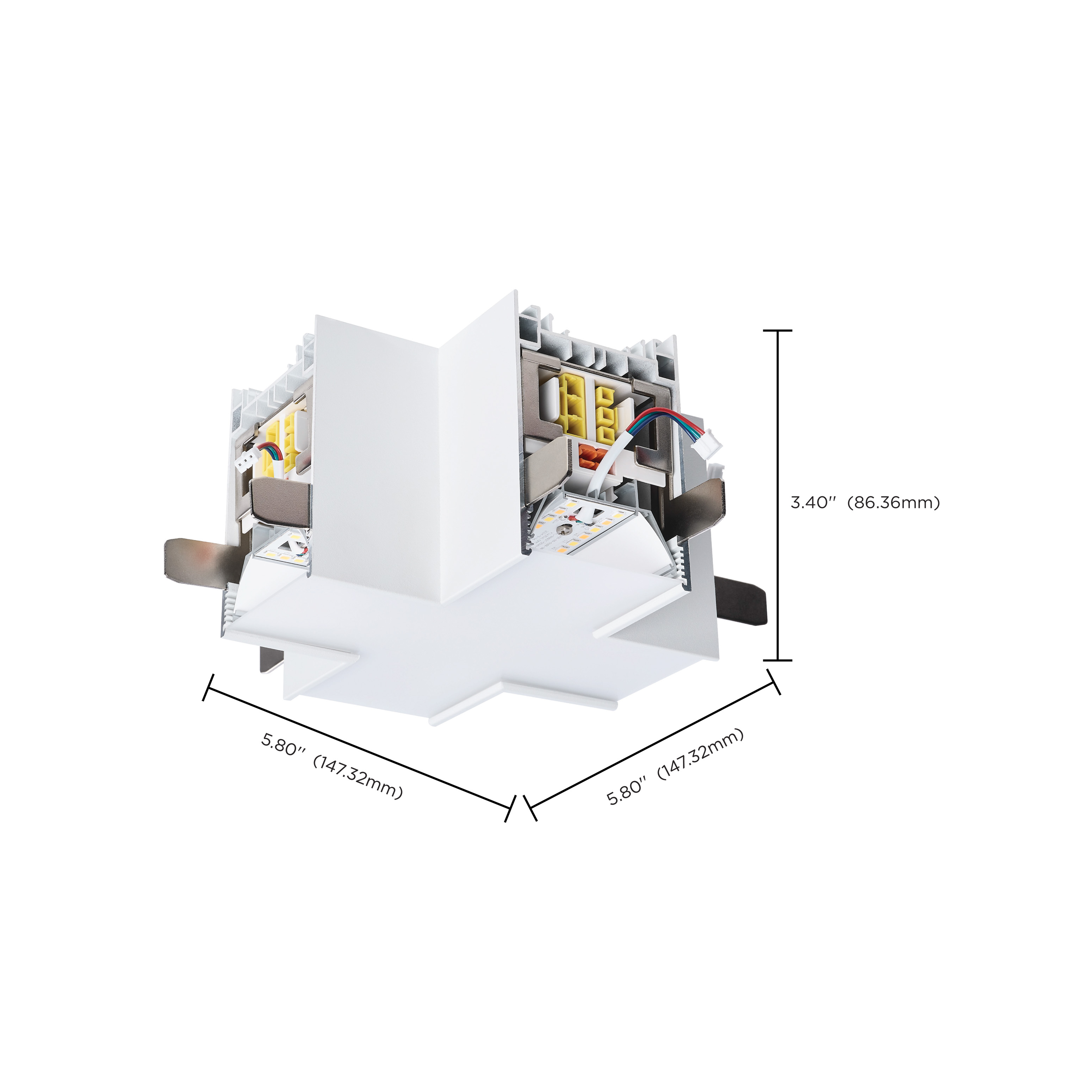

| Web Height | 3.4 |
| Web Length | 5.8 |
| Web Width | 5.8 |
