65-1251

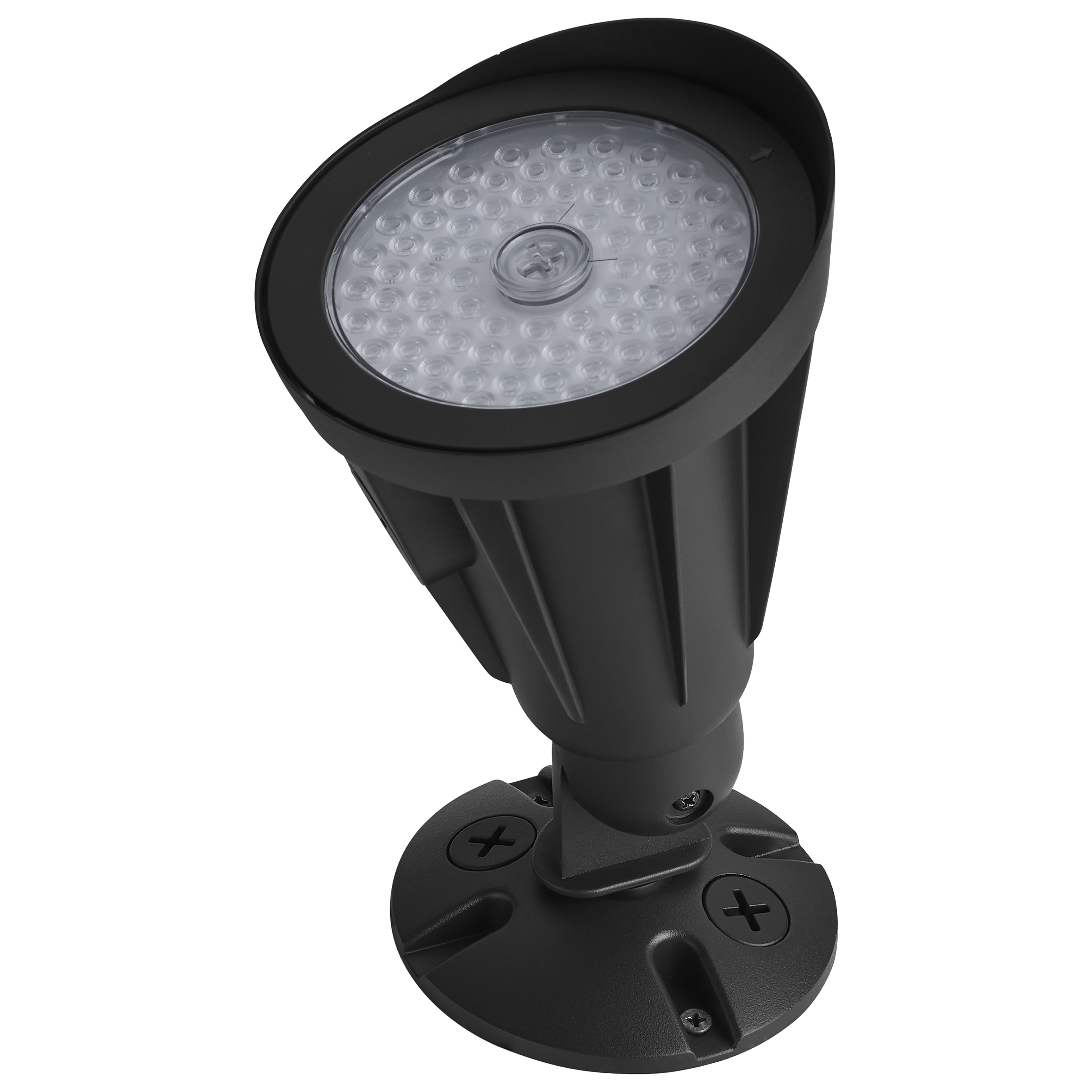

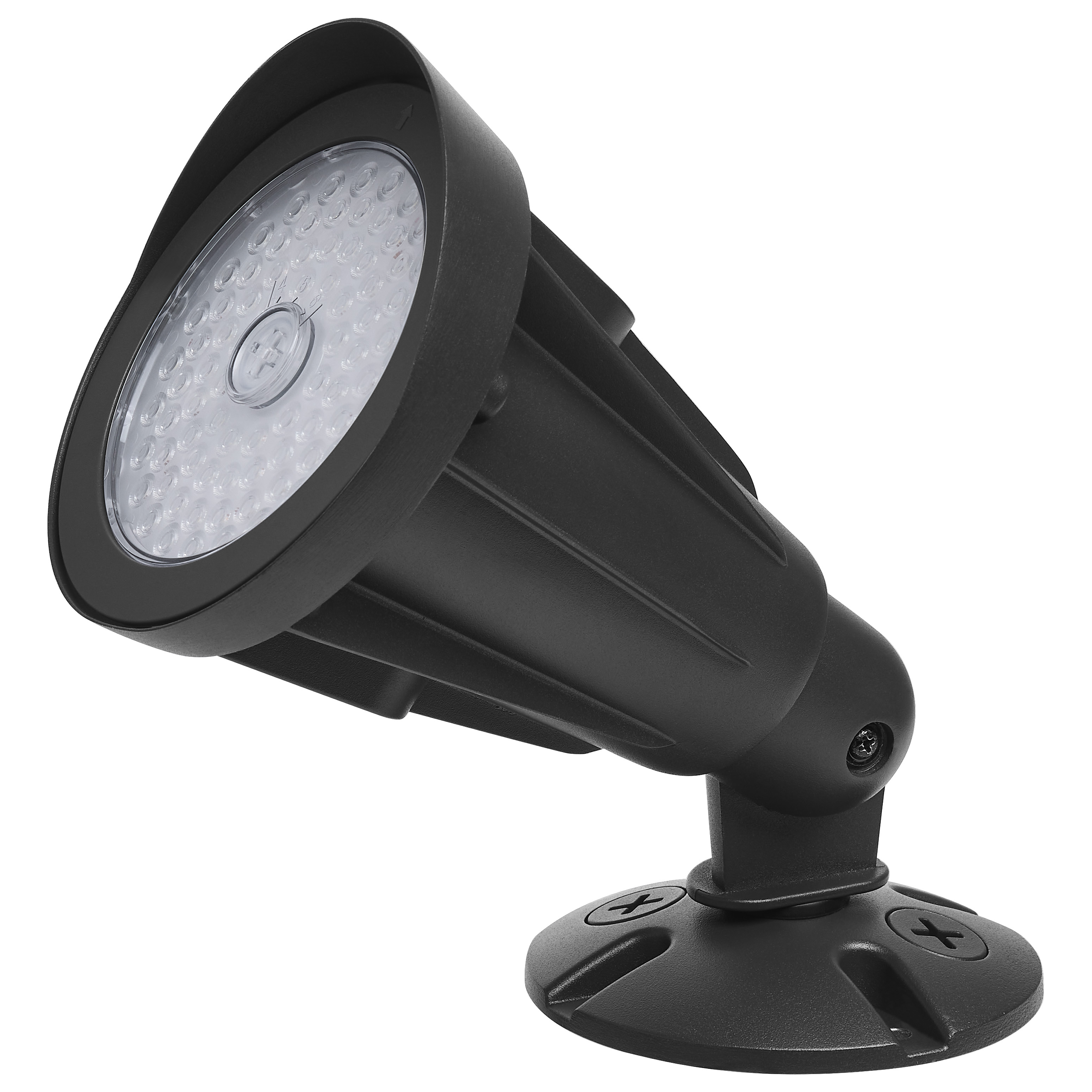

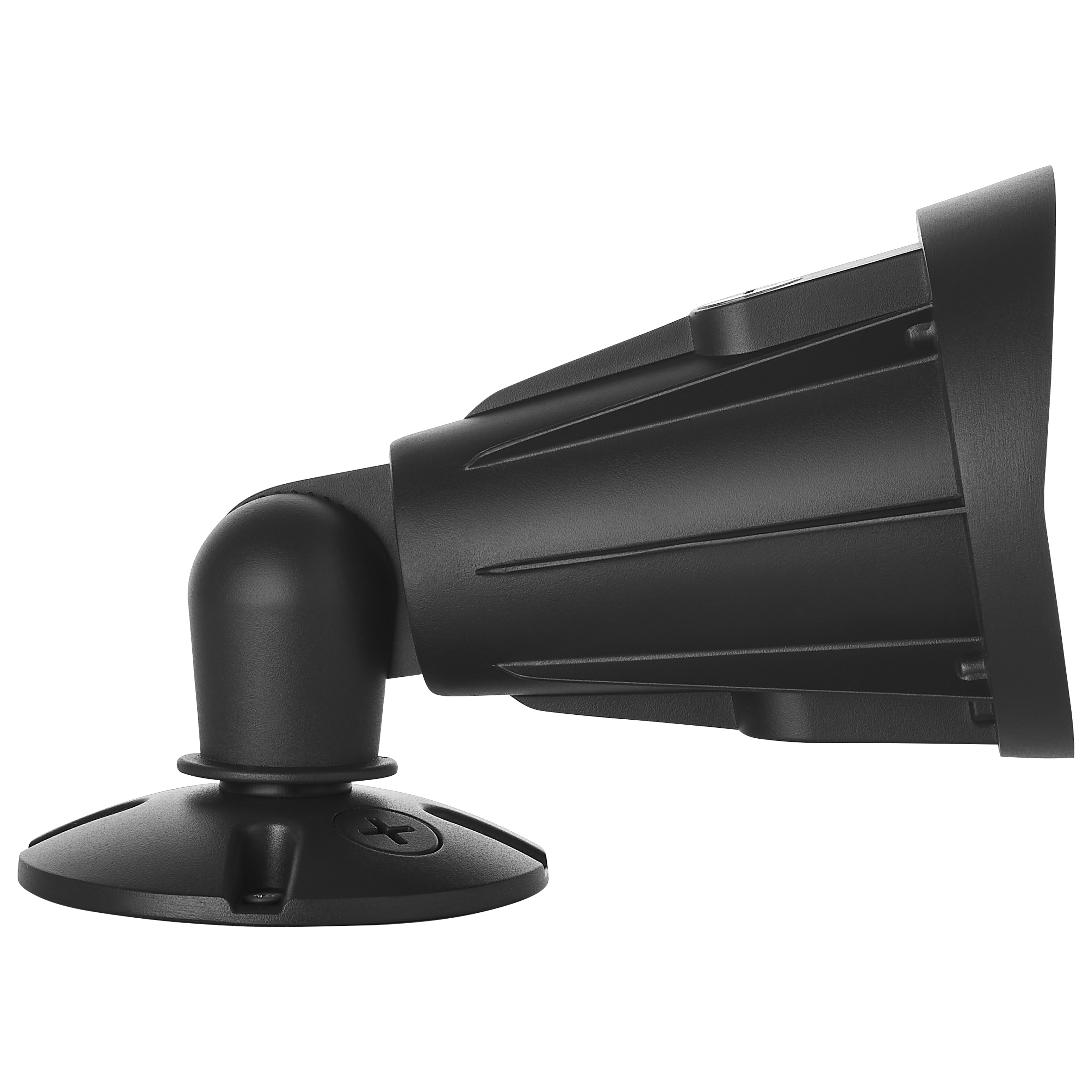

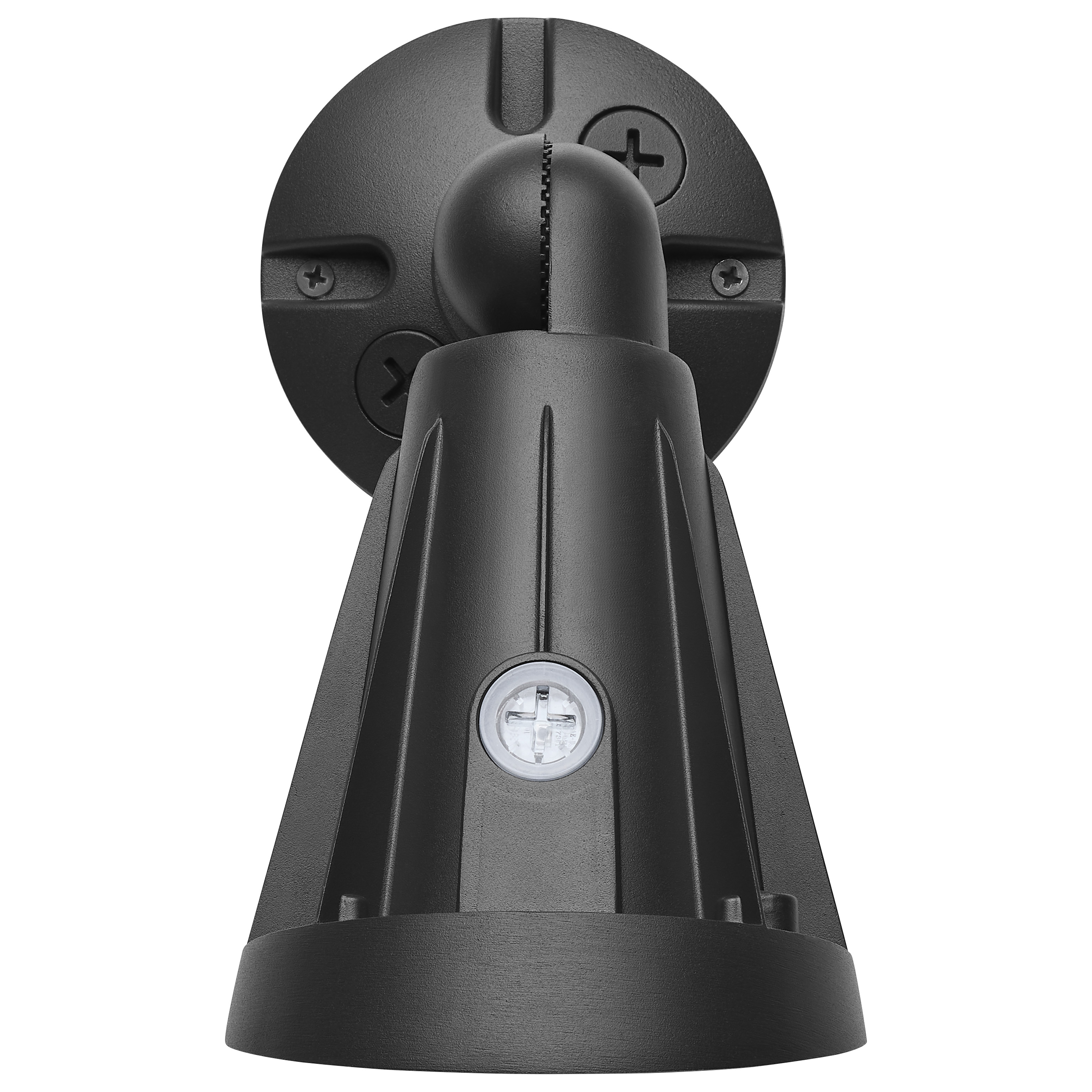

LED FLOOD 25W FIELD SEL BLACK

  • 25/20/15 Watt LED Flood Light
  • 3K/4K/5K CCT
  • NEMA 4
  • Black Finish
  • 120-347 Volt
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
65-1251 Specifications65-1251 Instructions.pdf
Tools
Lighting Layout Analysis For 65-1251
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

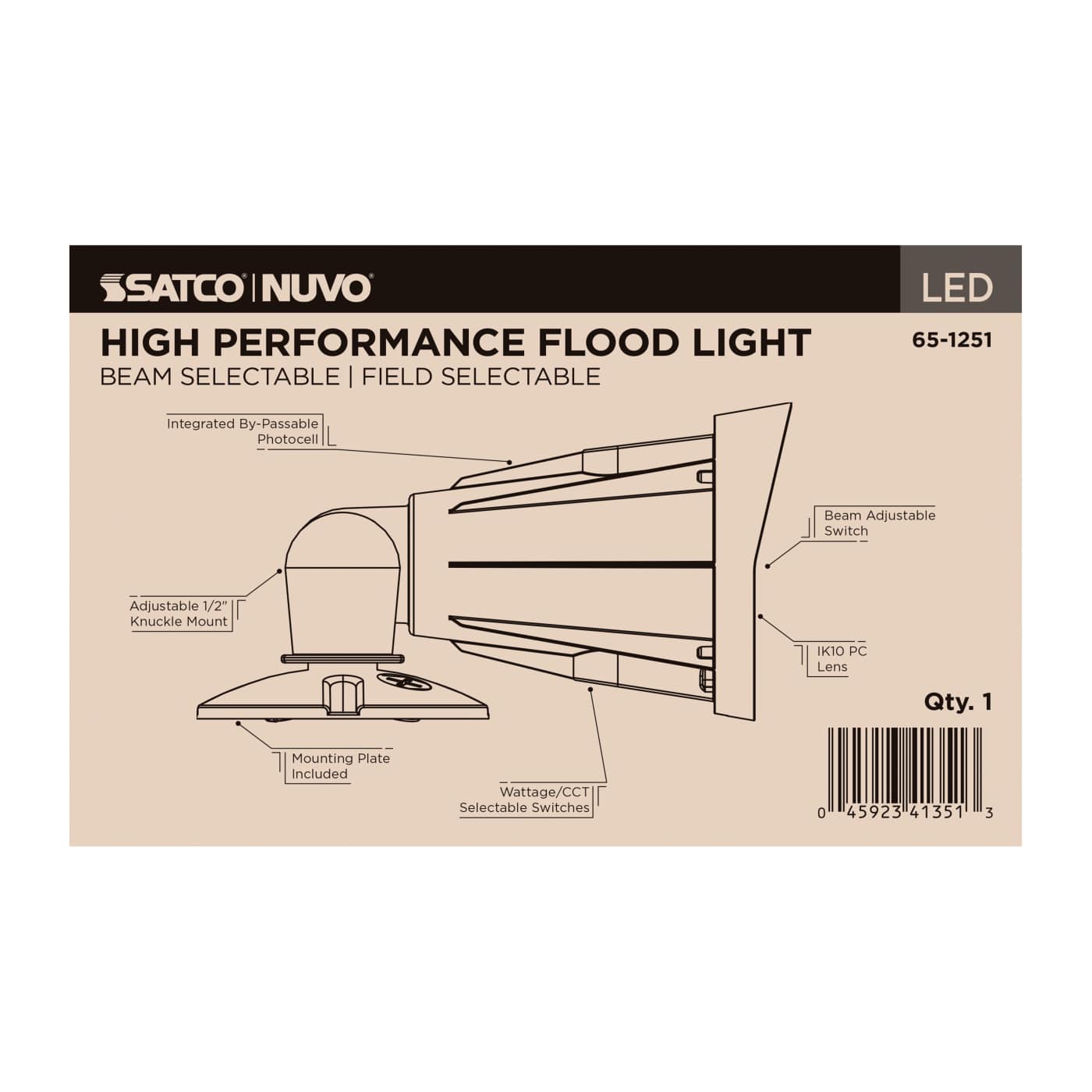

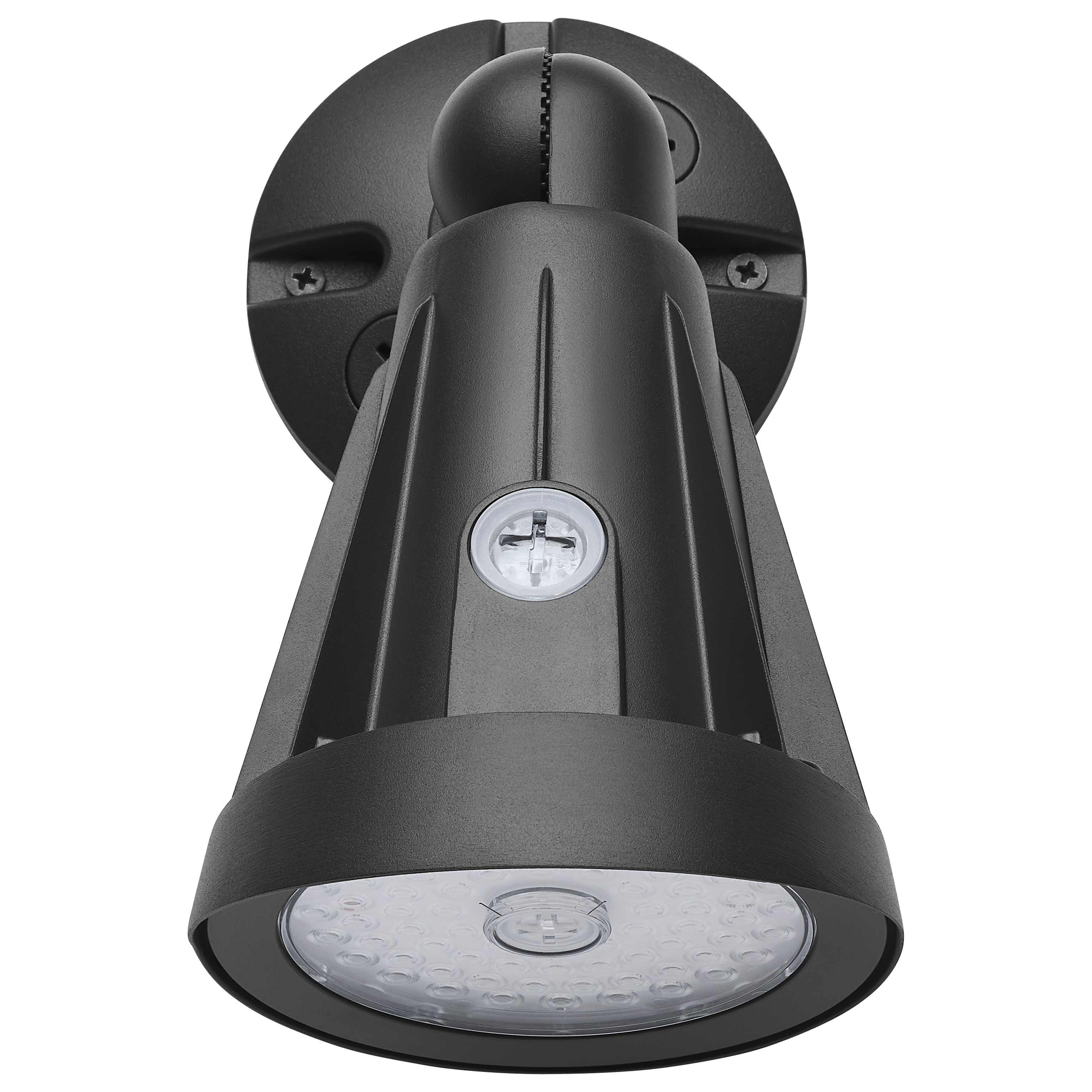

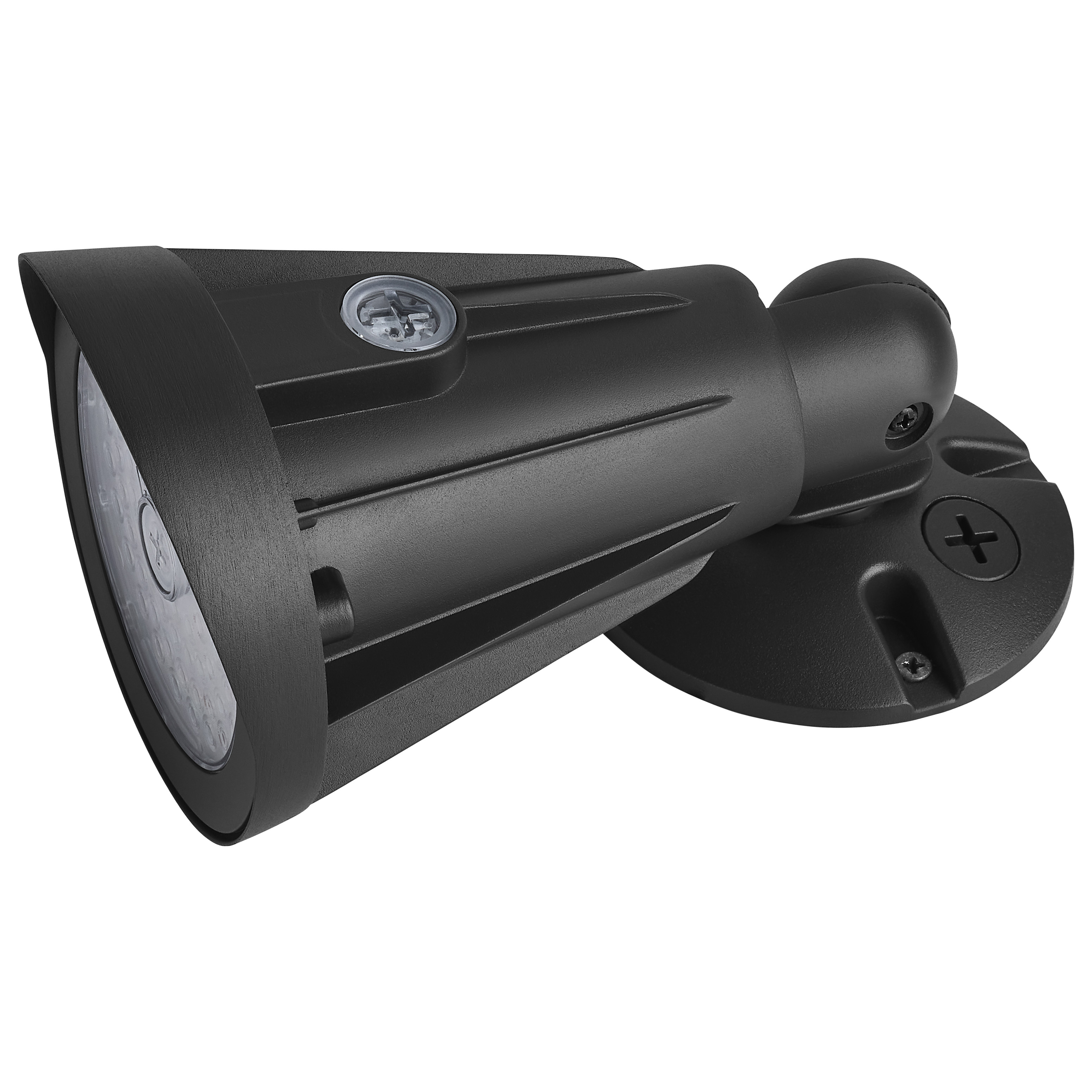

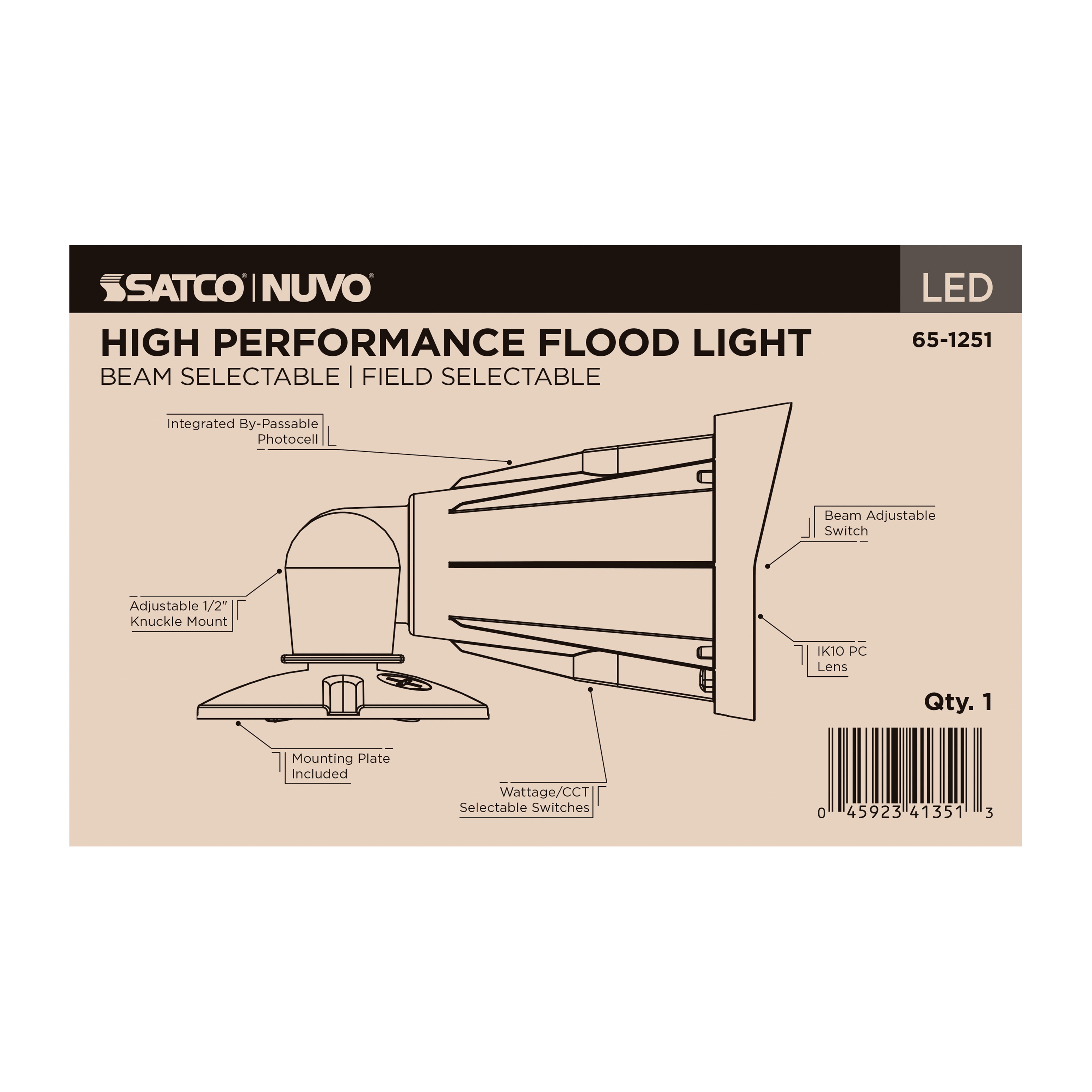

The SATCO NUVO High Performance 65-1251 LED flood light in a black finish delivers precise, targeted illumination for outdoor applications where control and flexibility are essential. Featuring NEMA beam angle selectability, this fixture allows for tailored light distribution-from narrow spot lighting to broader coverage. Selectable wattage and CCT enhance versatility, enabling on-site adjustment of light output and energy use. Multiple lumen packages support a range of mounting heights and project needs, while the compact design maintains a clean, unobtrusive look. Built with IP65 and IK10 ratings, this durable flood light is engineered for reliable performance in demanding outdoor environments.

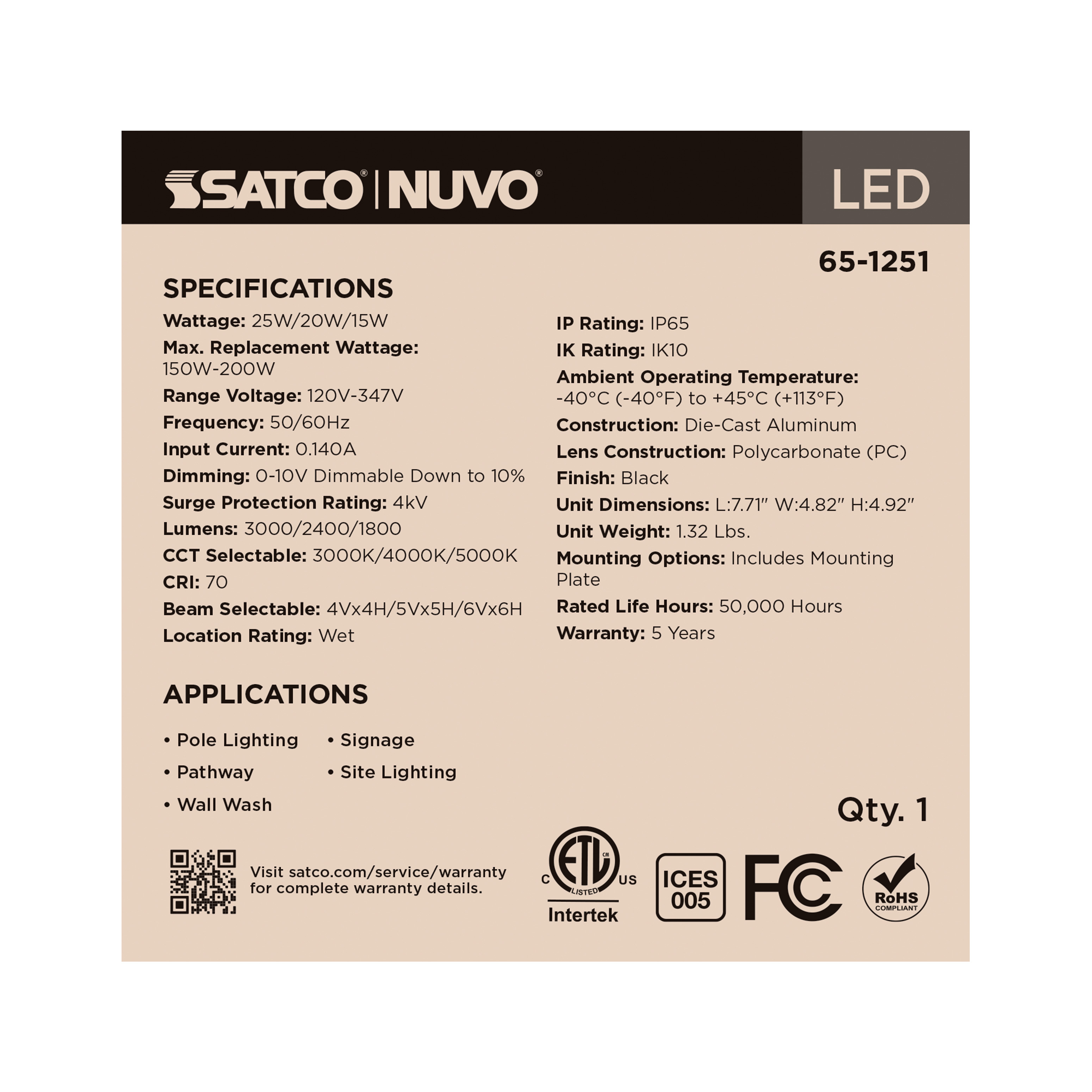

Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialDie-cast Aluminum
Fixture TypeFlood Light

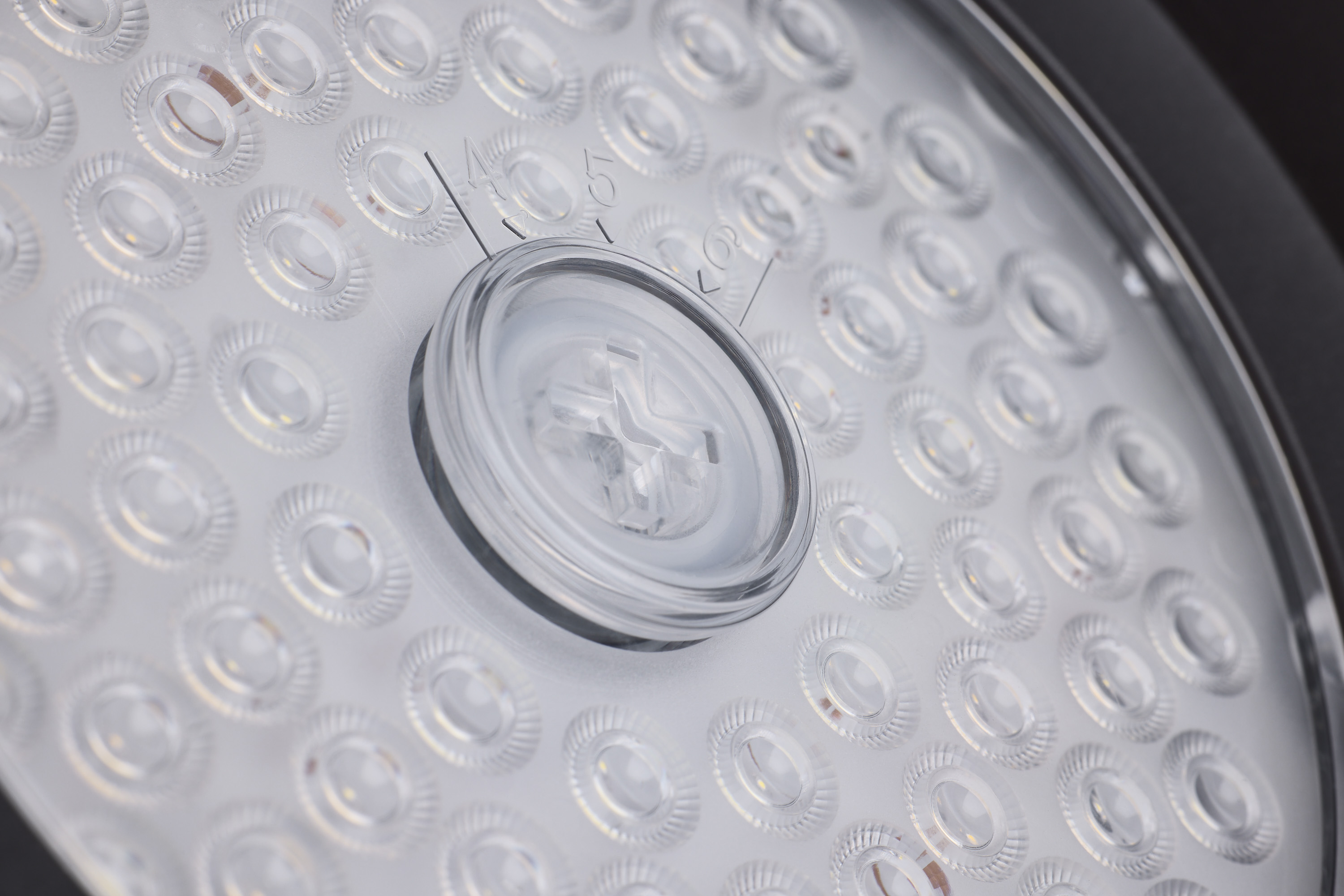

Product NotesDefault Wattage: 25W; 4Vx4H/5Vx5H/6Vx6H Beam Selectable
StatusActive
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion<20%
Wire ColorBlack

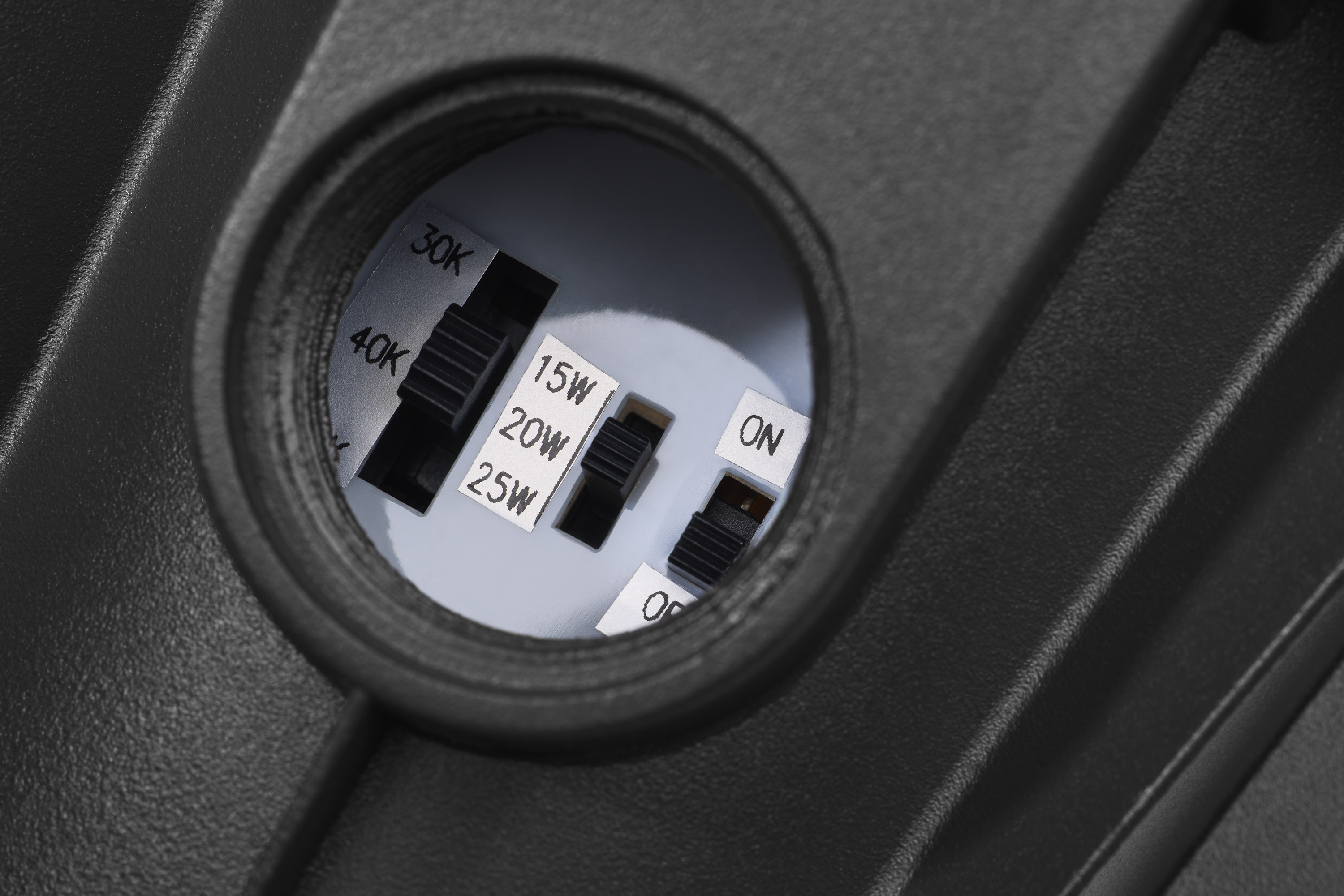

CCT SelectableYes
Wattage SelectableYes
Finish FamilyBlack
Amps0.210-0.070/0.170-0.060/0.130-0.040A
Mounting Diameter4.5
Integrated FeaturesIntegrated Photocell
Lens MaterialPolycarbonate (PC)

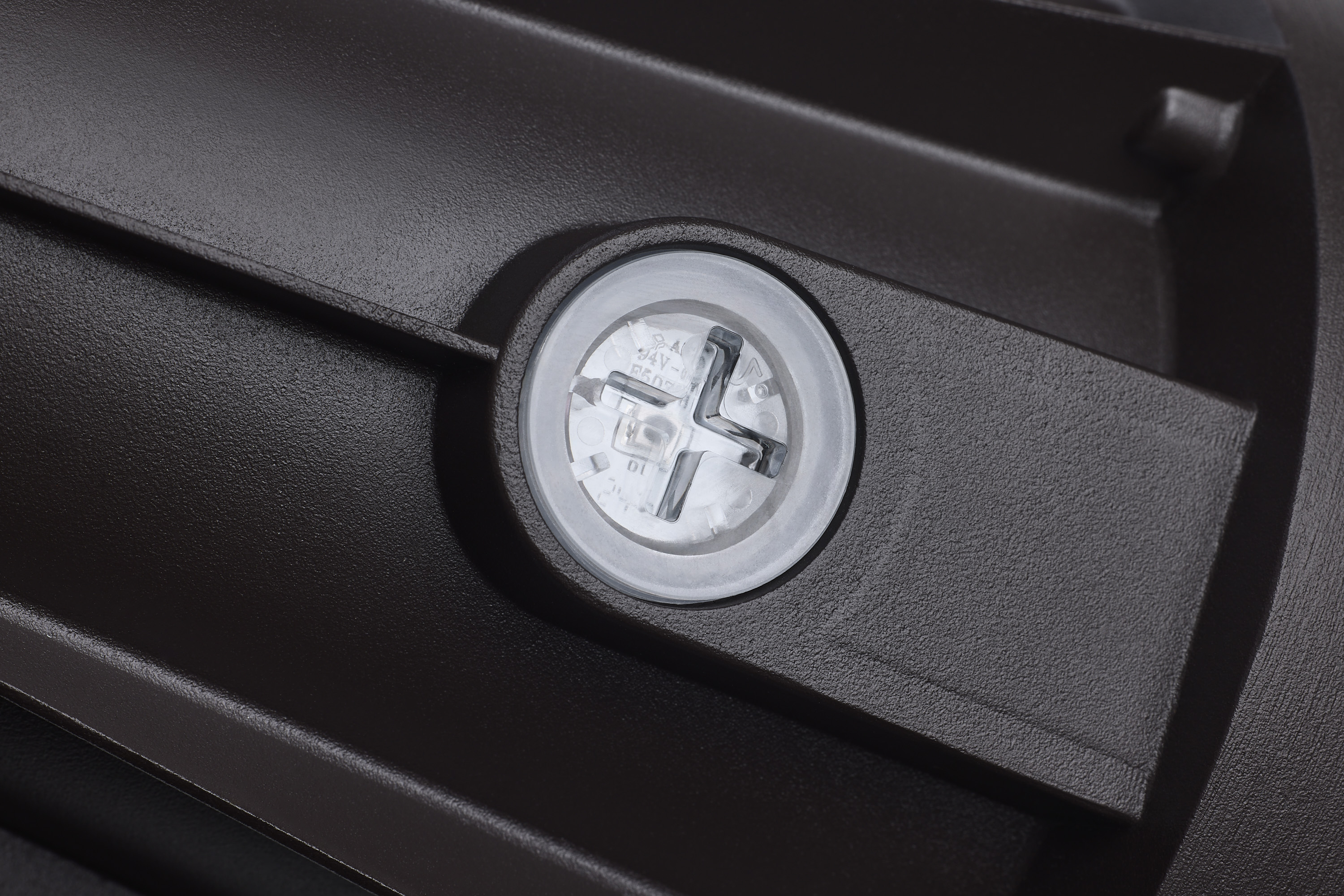

Photo CellYes - Bypassable
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Incandescent Equivalent150W-200W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)40/60/75
Color TempSoft White to Natural Light
CRI70+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +113F (-40C to +45C)
HID Equivalent100W-150W
Lumens3000L/2400L/1800L
Volts120V-347V
Watts25W/20W/15W
Max Lumens3000L
Physical
Lamp BaseIntegrated
FinishBLACK
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
CA Prop 65Lead
DLC IDS-0SG3L3
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923413513
Case Cube2.3462
Case Height11.22
Case Length21.65
Case Quantity16
Case UPC10045923413510
Case Weight26.75
Case Width16.69
EA Cube0.1257
EA Height5.2
EA Length8.03
EA Quantity1
EA Weight1.98
EA Width5.2

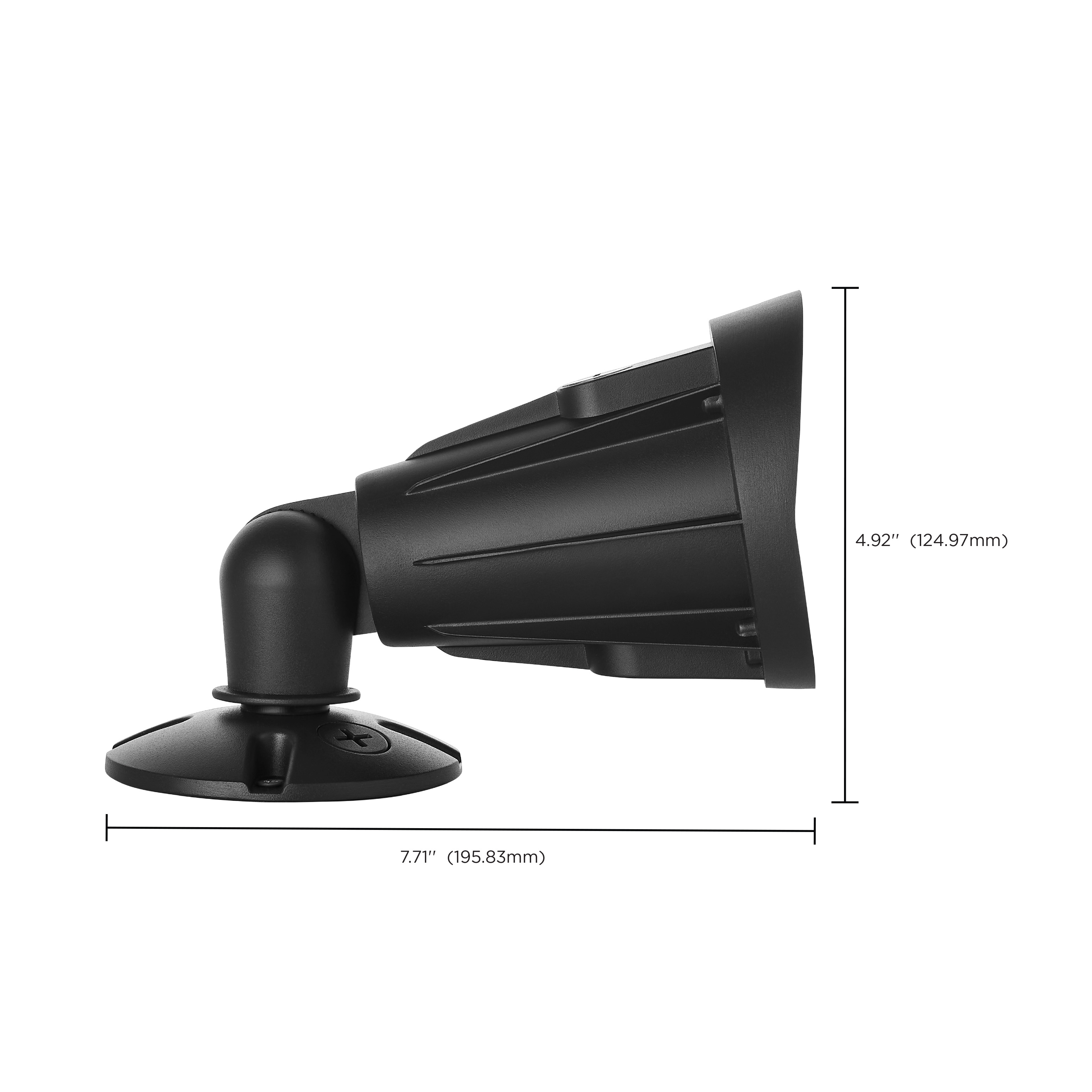

Web Height4.92
Web Length7.71
Web Width4.82
