65-1322

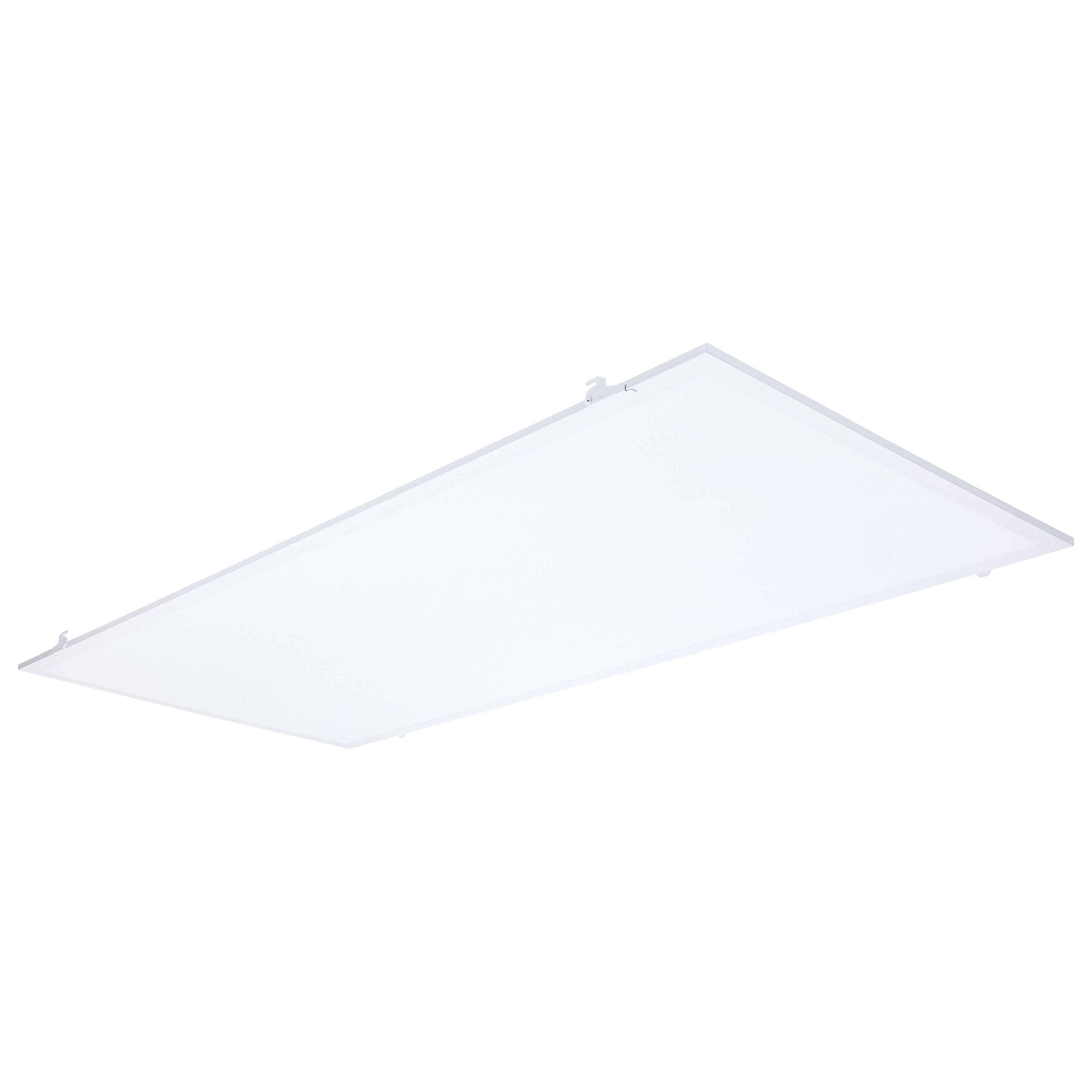

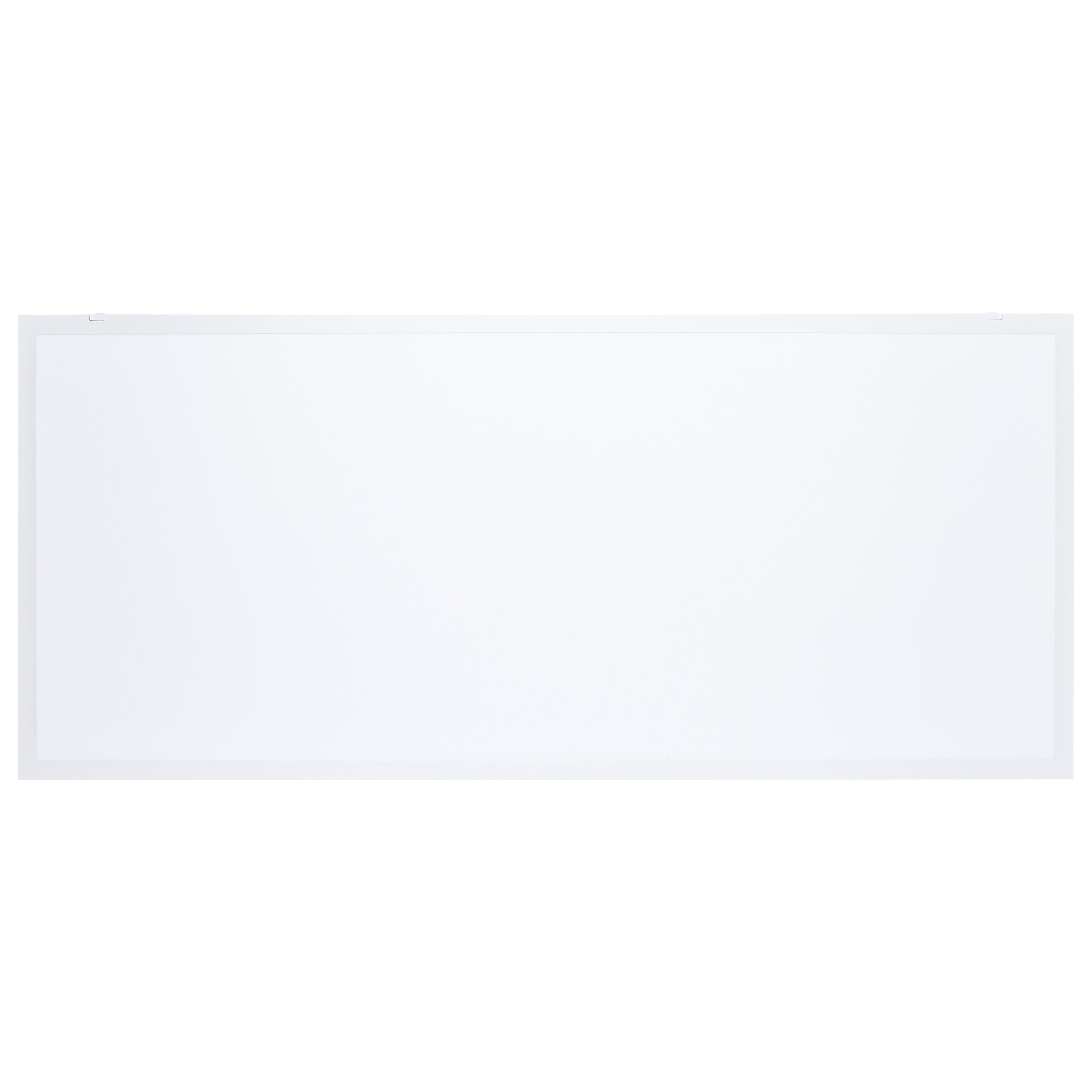

2X4 FLAT PANEL RETROFIT

  • 50/40/30 Watt LED 2x4 Flat Panel Troffer Retrofit Kit
  • 35K/4K/5K CCT
  • Dimmable
  • 120-277 Volt
  • Matte White Finish
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

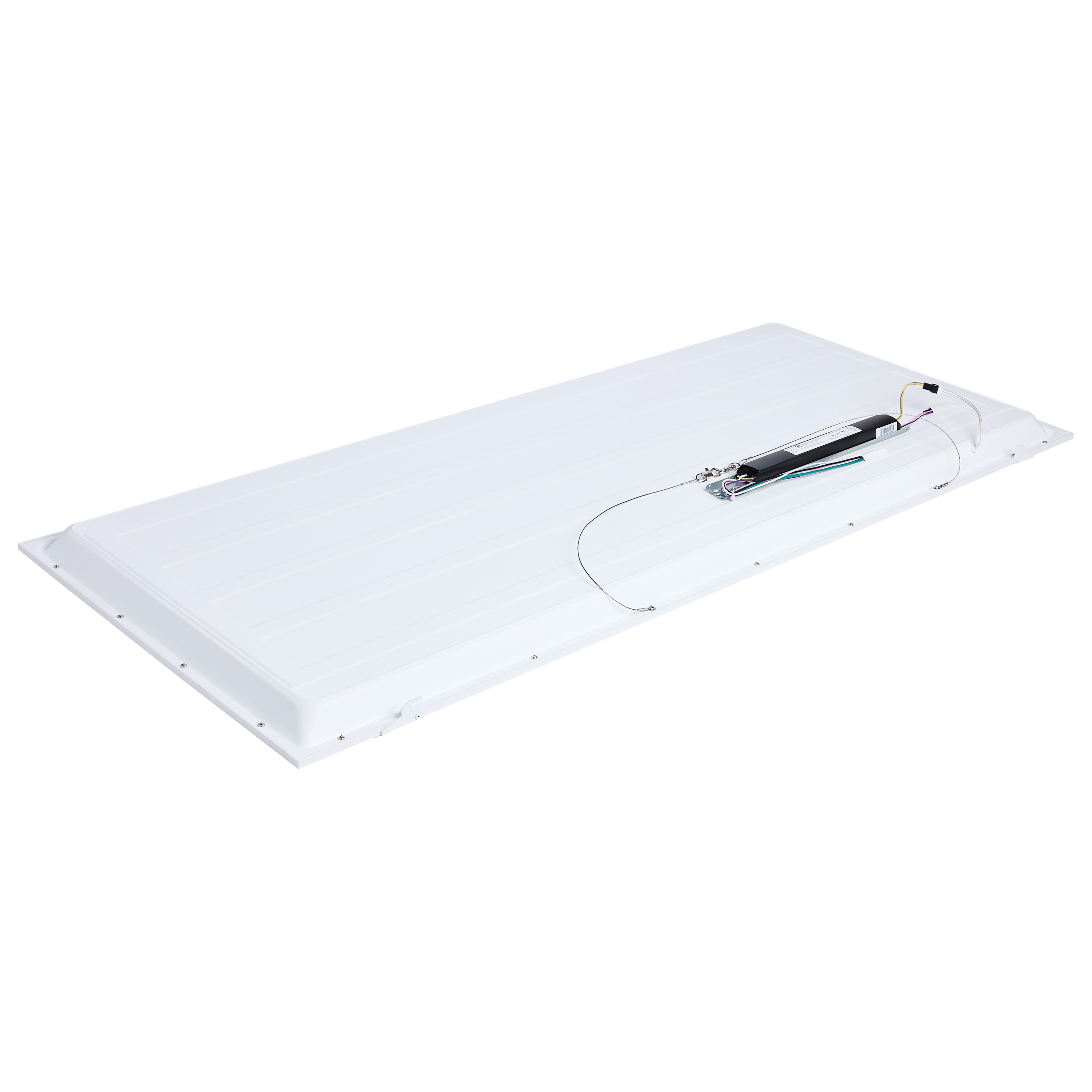

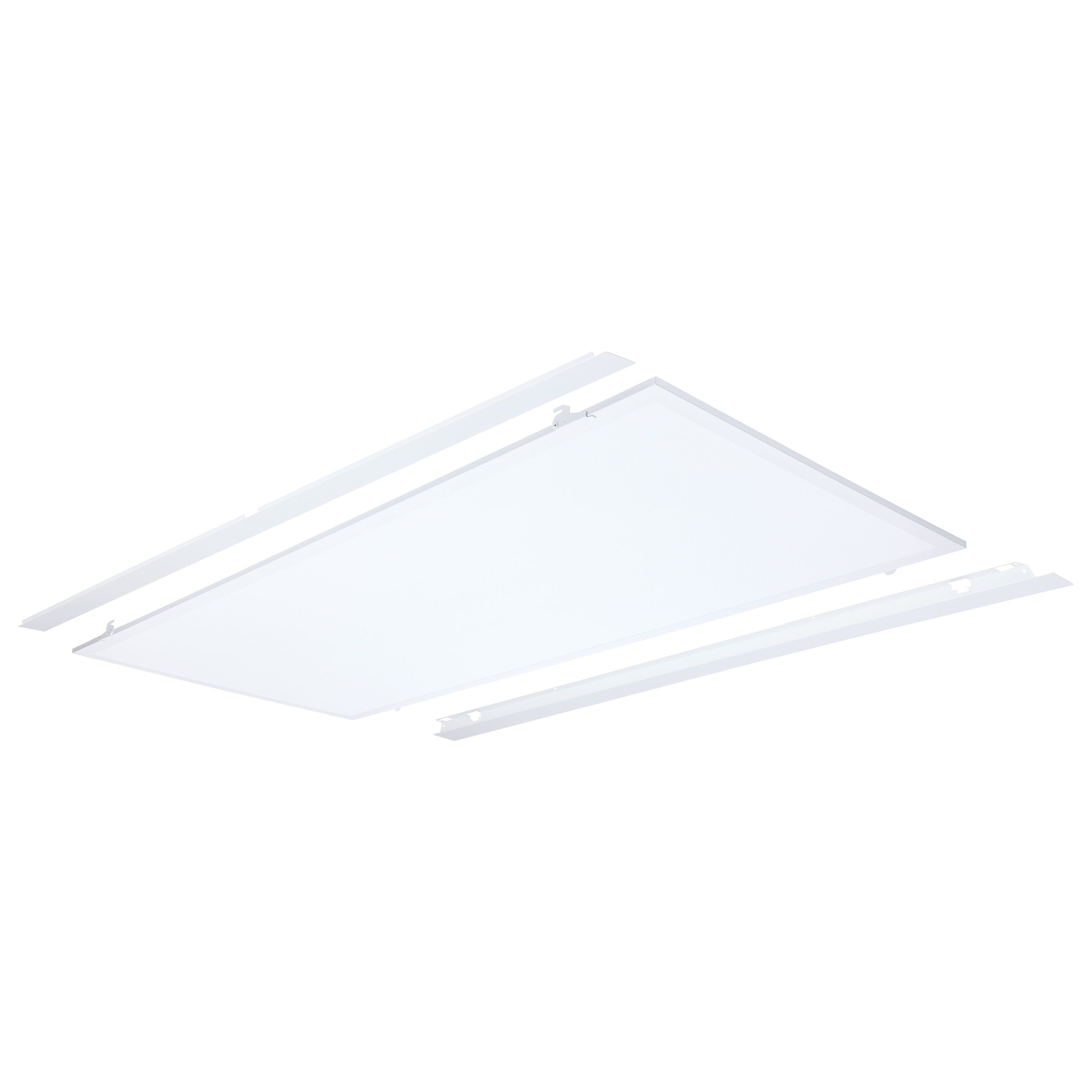

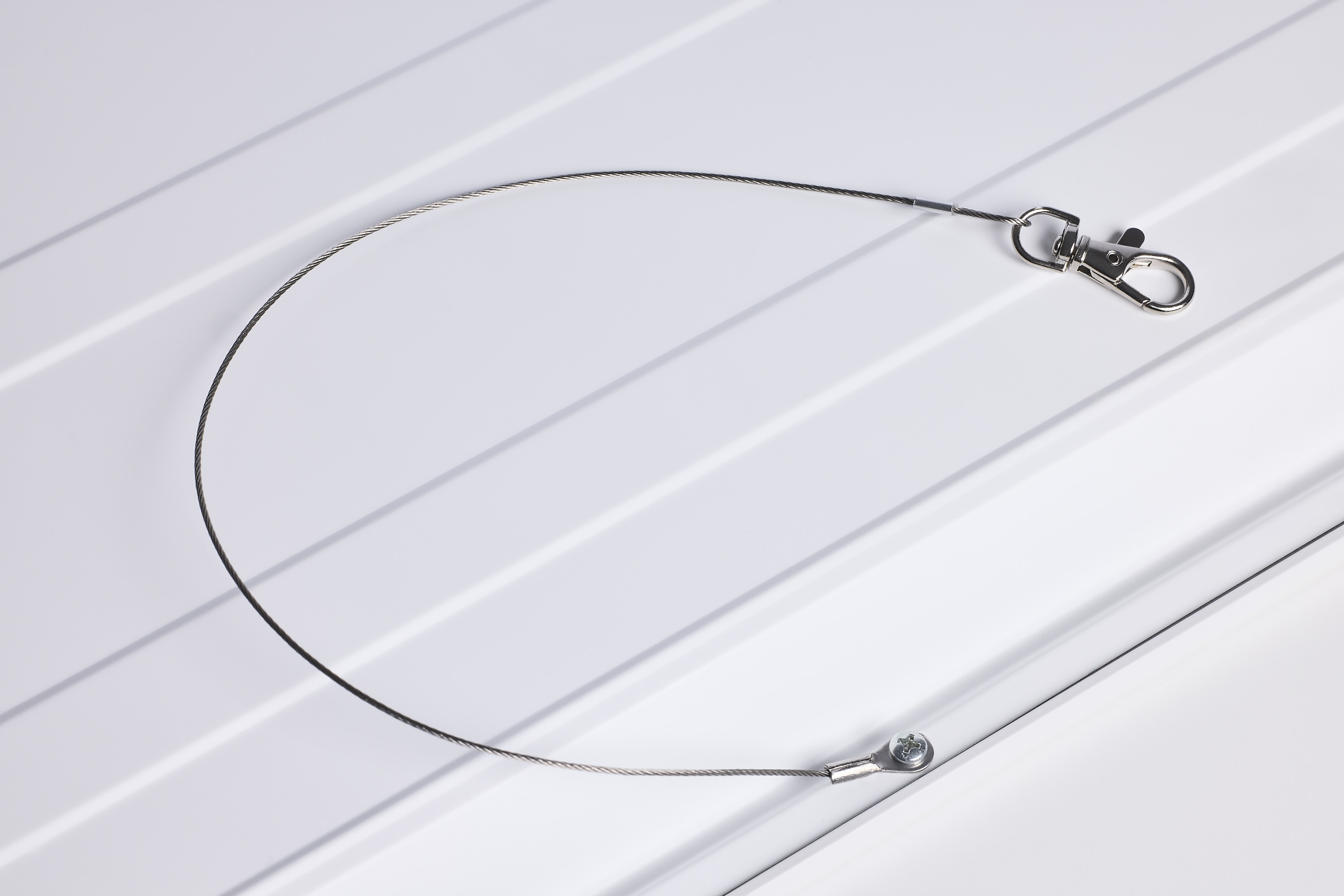

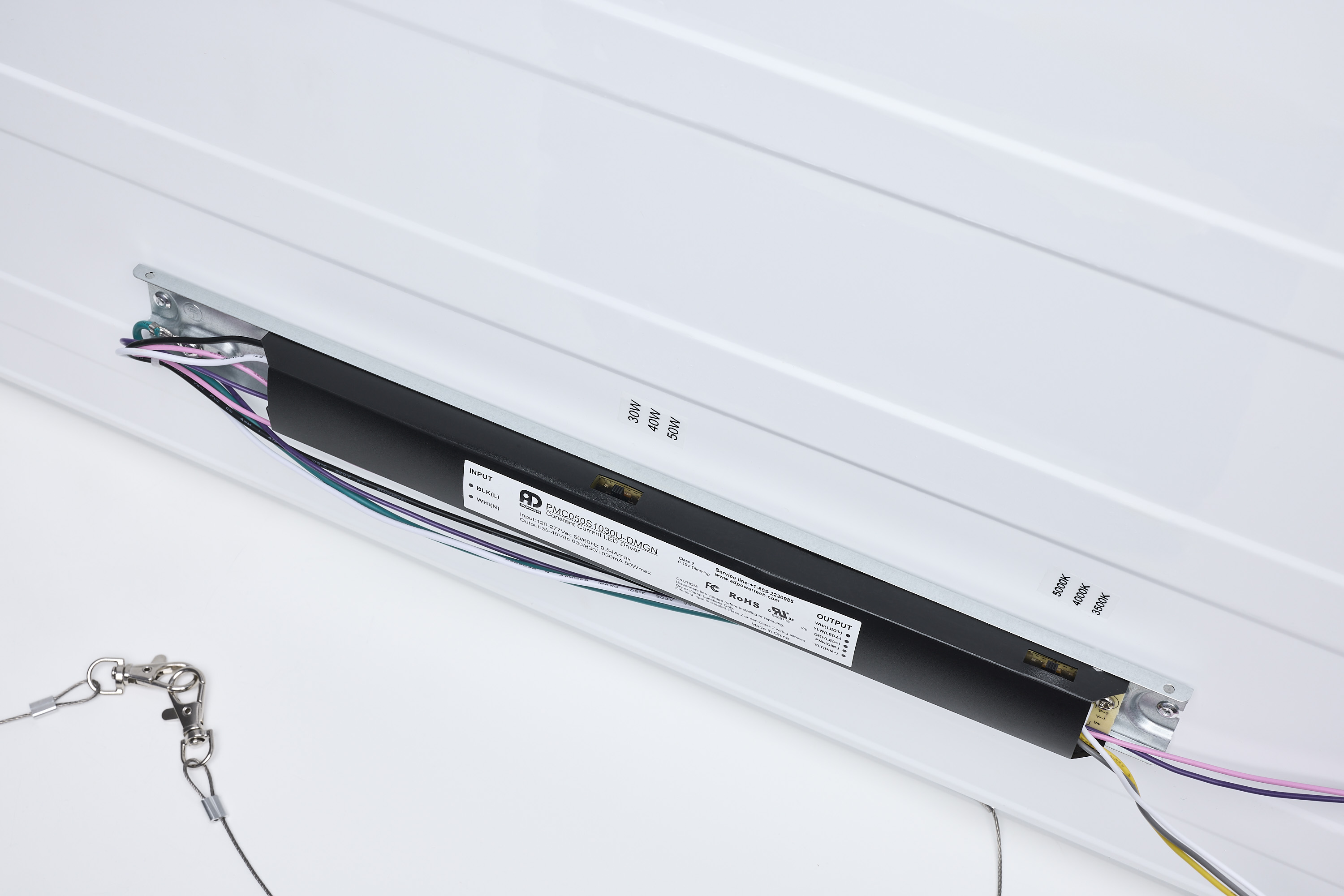

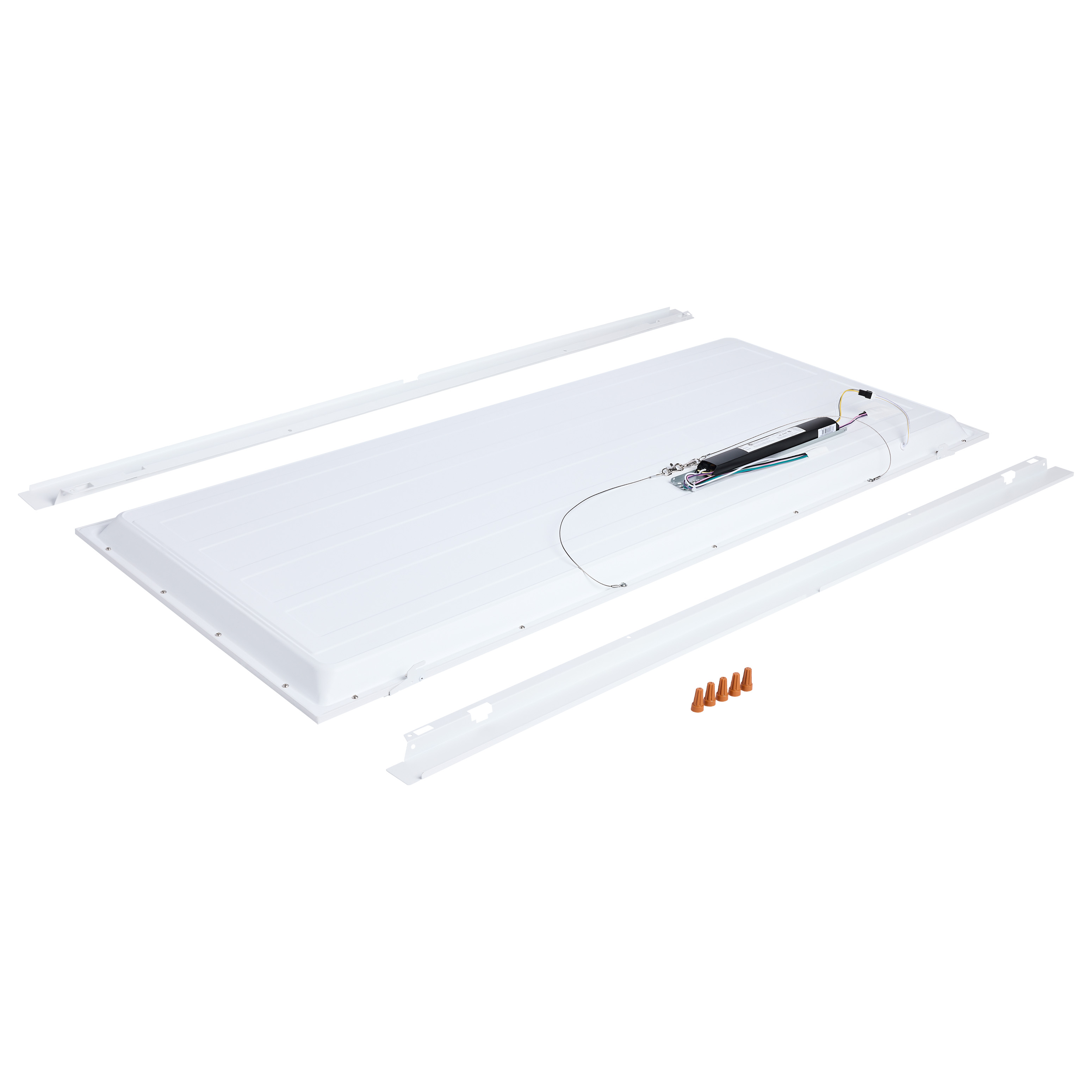

SATCO NUVO's 65-1322 Flat Panel Troffer Retrofit Door Kit, in a 2x4 configuration, provides a streamlined solution for upgrading existing troffers with modern, energy-efficient LED performance. Designed to utilize the existing housing, it helps reduce material waste while simplifying installation. Selectable wattage (50W/40W/30W) and CCT (3500K/4000K/5000K) allow installers to tailor light output and color temperature on-site, while 0–10V dimming ensures additional control. The durable steel housing with an aluminum trim delivers strength with a clean, finished appearance. A built-in safety tether supports the door during installation, simplifying wiring access. With a 50,000-hour lifespan and a 5-year warranty, it provides reliable, long-term performance while meeting stringent DLC efficacy standards.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialSteel
Fixture TypeTroffer

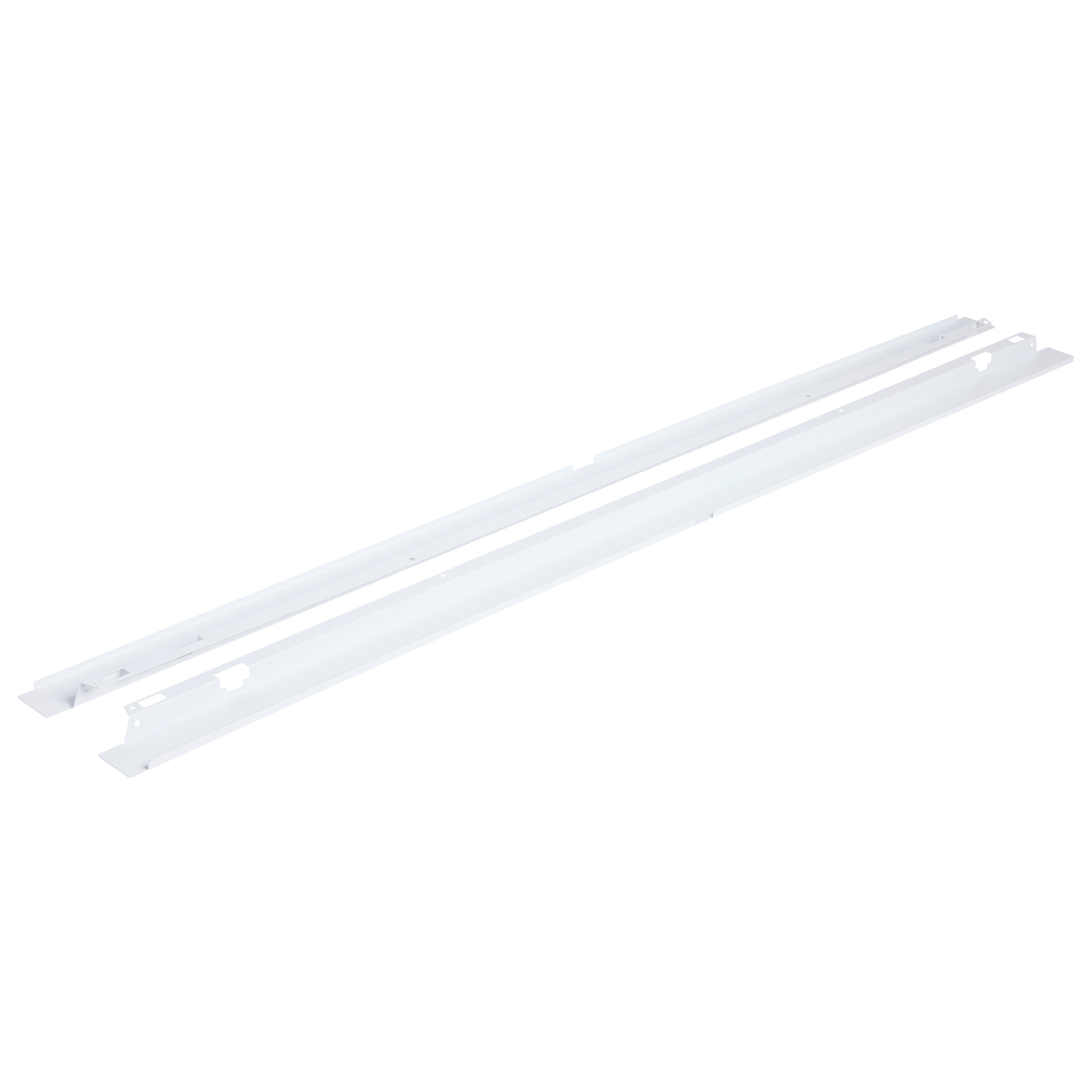

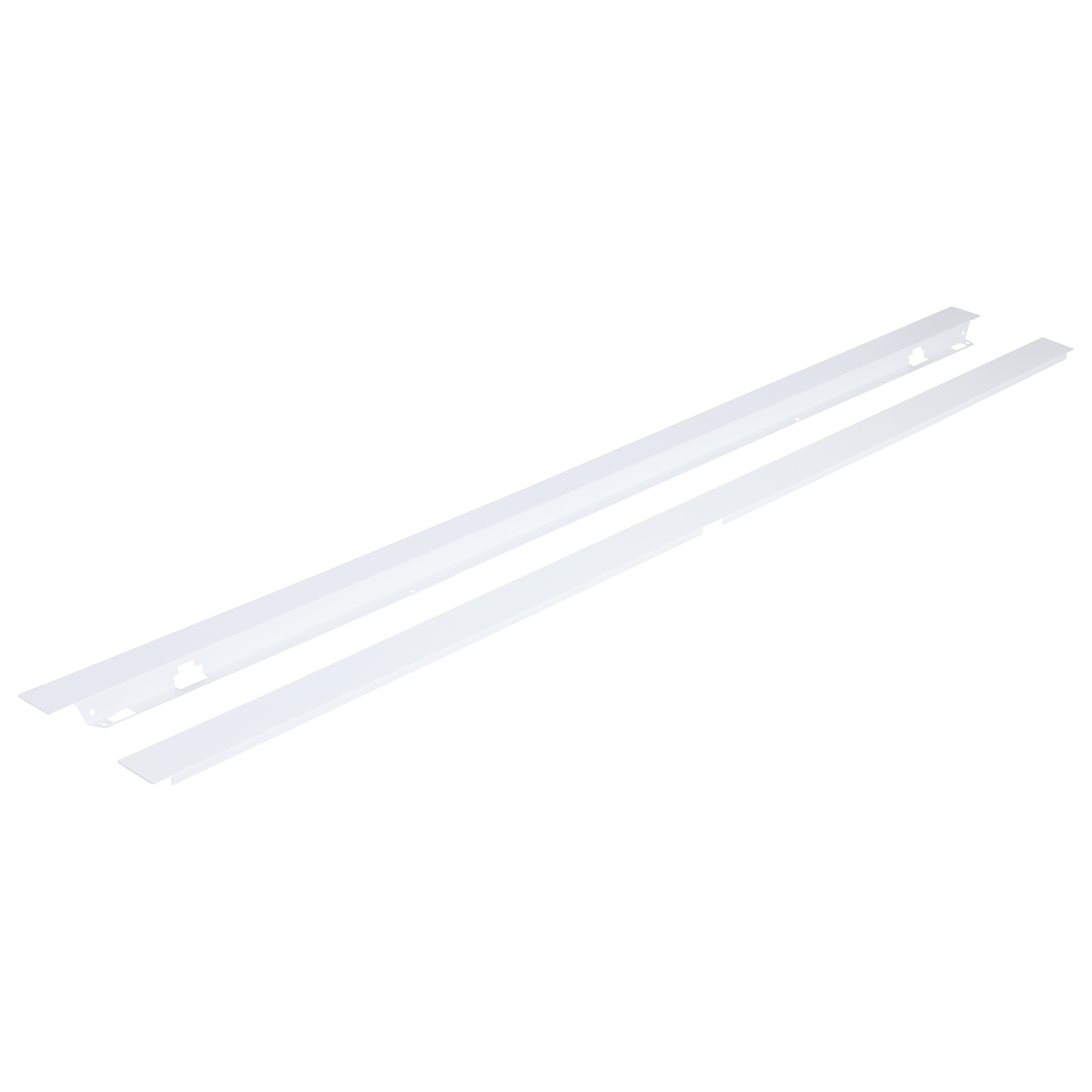

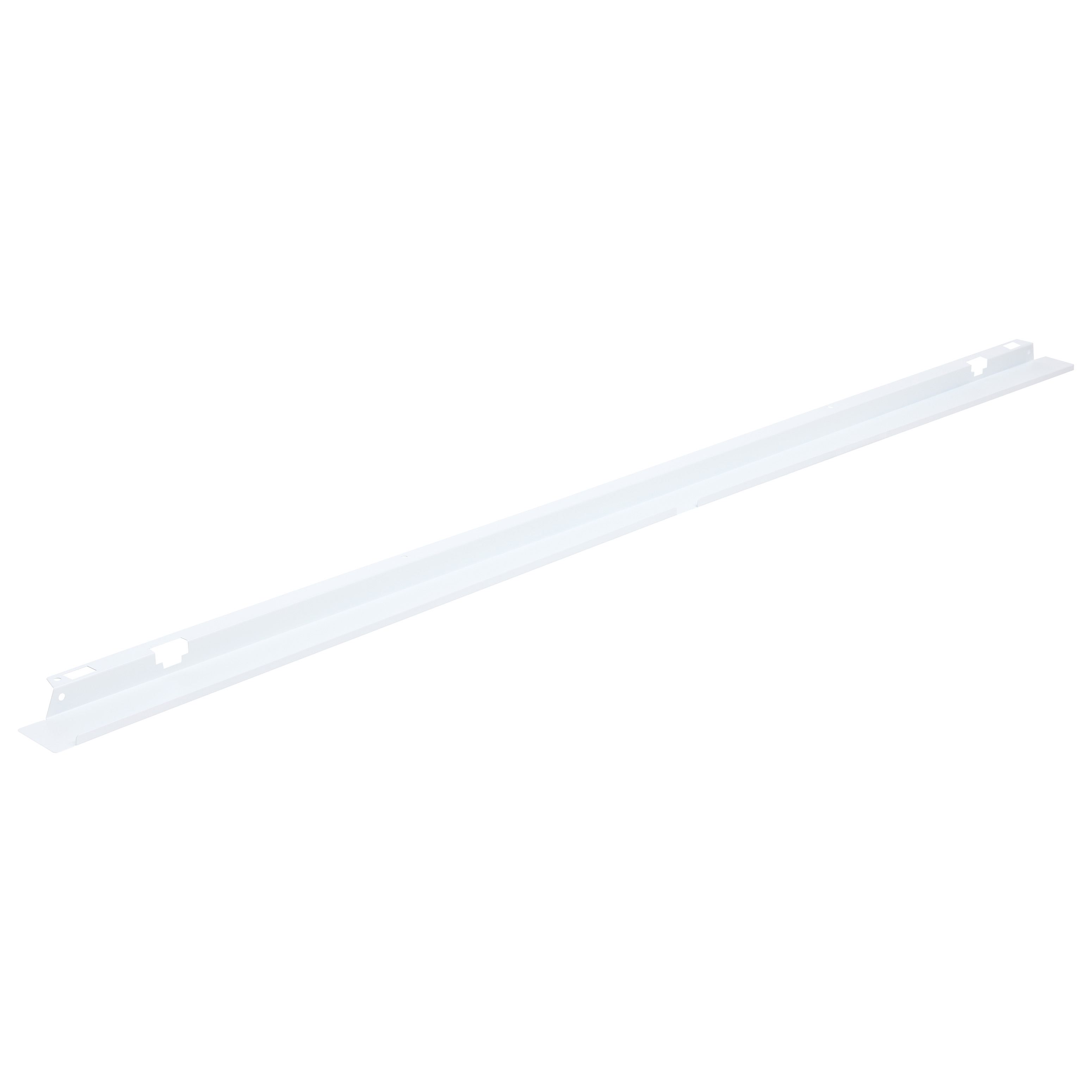

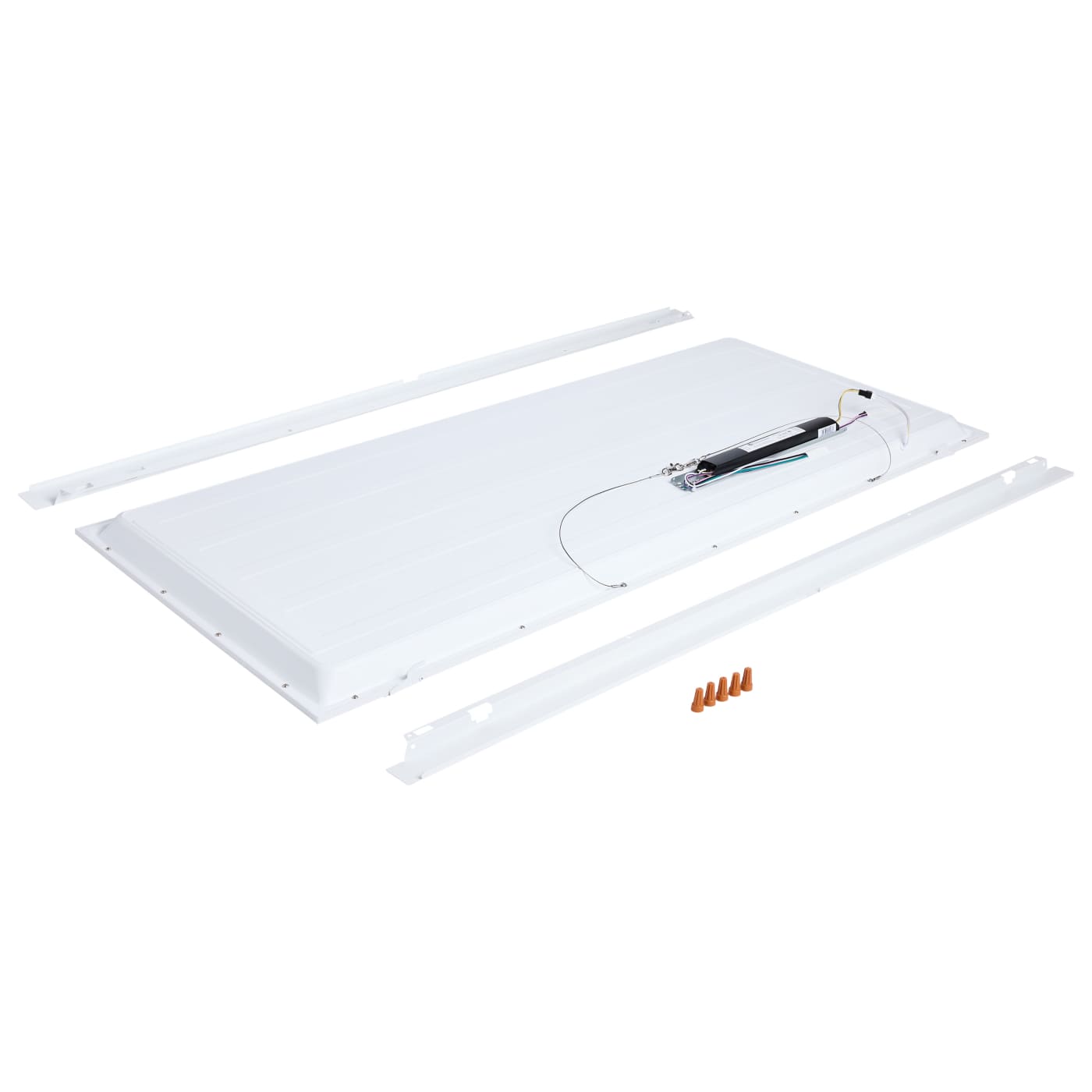

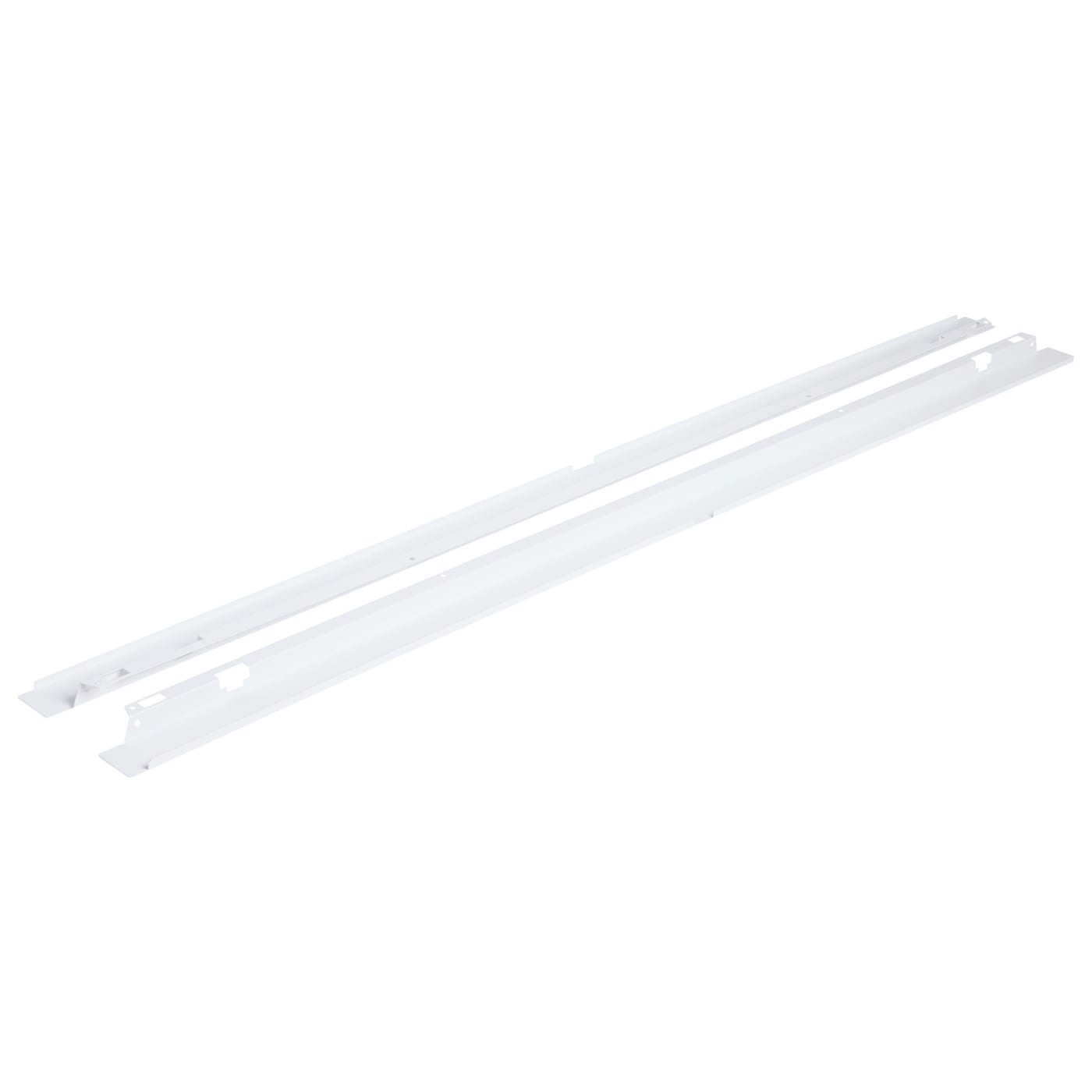

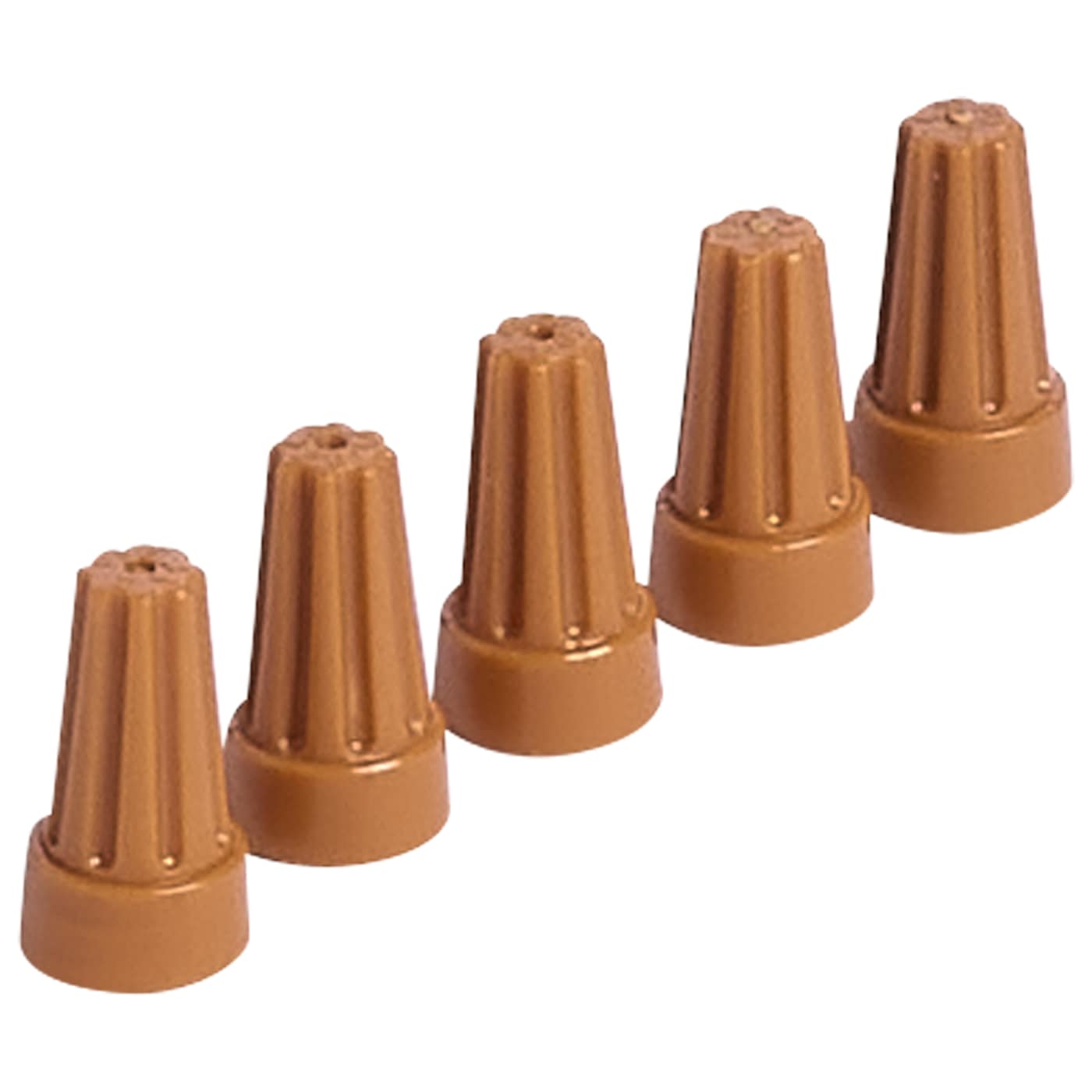

IncludesMounting Brackets, Wire nuts
Product NotesDefault Wattage setting is 50W
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion<20%
Up Down InstallationDown
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Amps 0.417-0.181/0.333-0.144/0.250-0.108A
Lens FinishFrosted
Lens MaterialPolystyrene (PS)
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv3 x 32W T8
Incandescent Equivalent125W
Serviceable BatteryNo
Electrical
CCT (Kelvin Temp)3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempNeutral White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-4F to +104F (-20C to +40C)
Lumens5500L/4400L/3300L
Volts120V-277V
Watts50W/40W/30W
Max Lumens5500L
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishMatte White
Housing ColorMatte White
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Mounting ProcedureCeiling
Additional Info
Warranty5-Years
Features
Flicker FreeYes
Compliance
Air TightNo
CA Prop 65Lead
Dark Sky RatedNo
DLC IDS-HCRLS9
FCC CompliantYes
IC RatedYes
IP RatingIP20
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Classified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923411403
Case Cube1.7834
Case Height2.68
Case Length49.33
Case Quantity1
Case UPC10045923411400
Case Weight10.0
Case Width23.31
EA Cube1.7834
EA Height2.68
EA Length49.33
EA Quantity1
EA Weight10.0
EA Width23.31
Pack TypeKraft Box

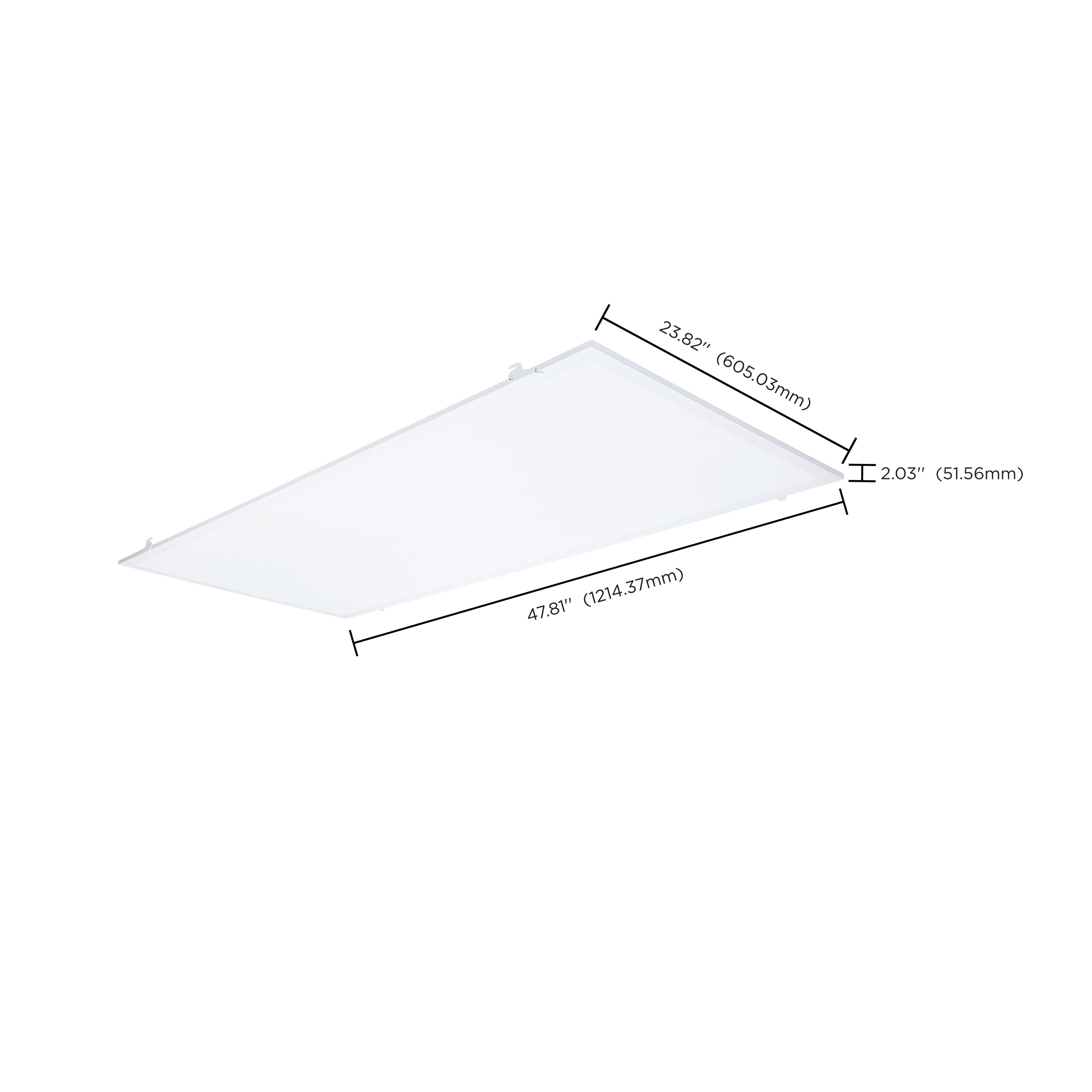

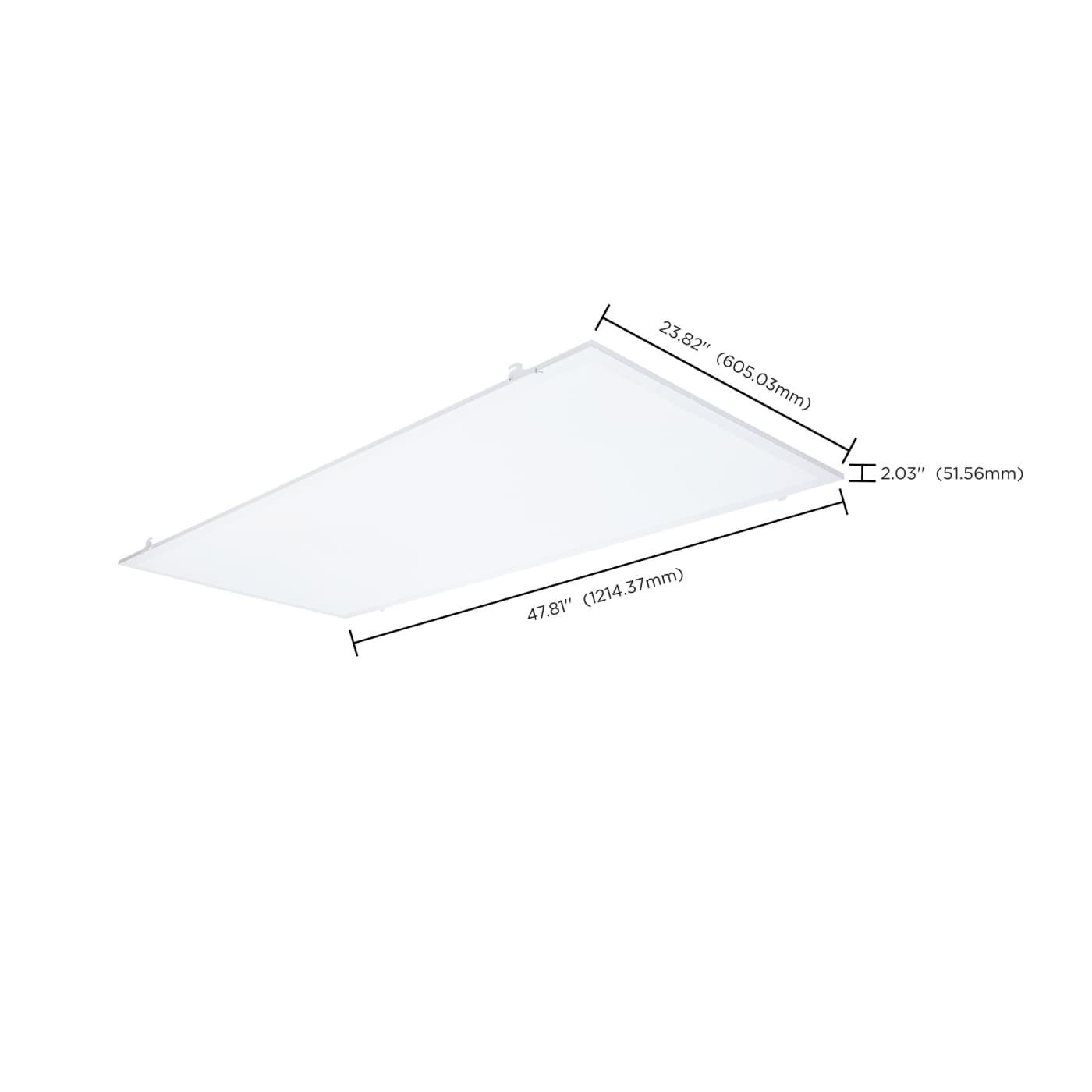

Web Height2.03
Web Length47.81
Web Width23.82
