65-1332

LBR40WSL3B2/8CCT5/DIMU

  • 40W/35W/30W/25W/20W Wattatage Selectable LED Light Bar Retrofit Kit
  • 3000K/3500K/4000K/5000K/6500K CCT Selectable

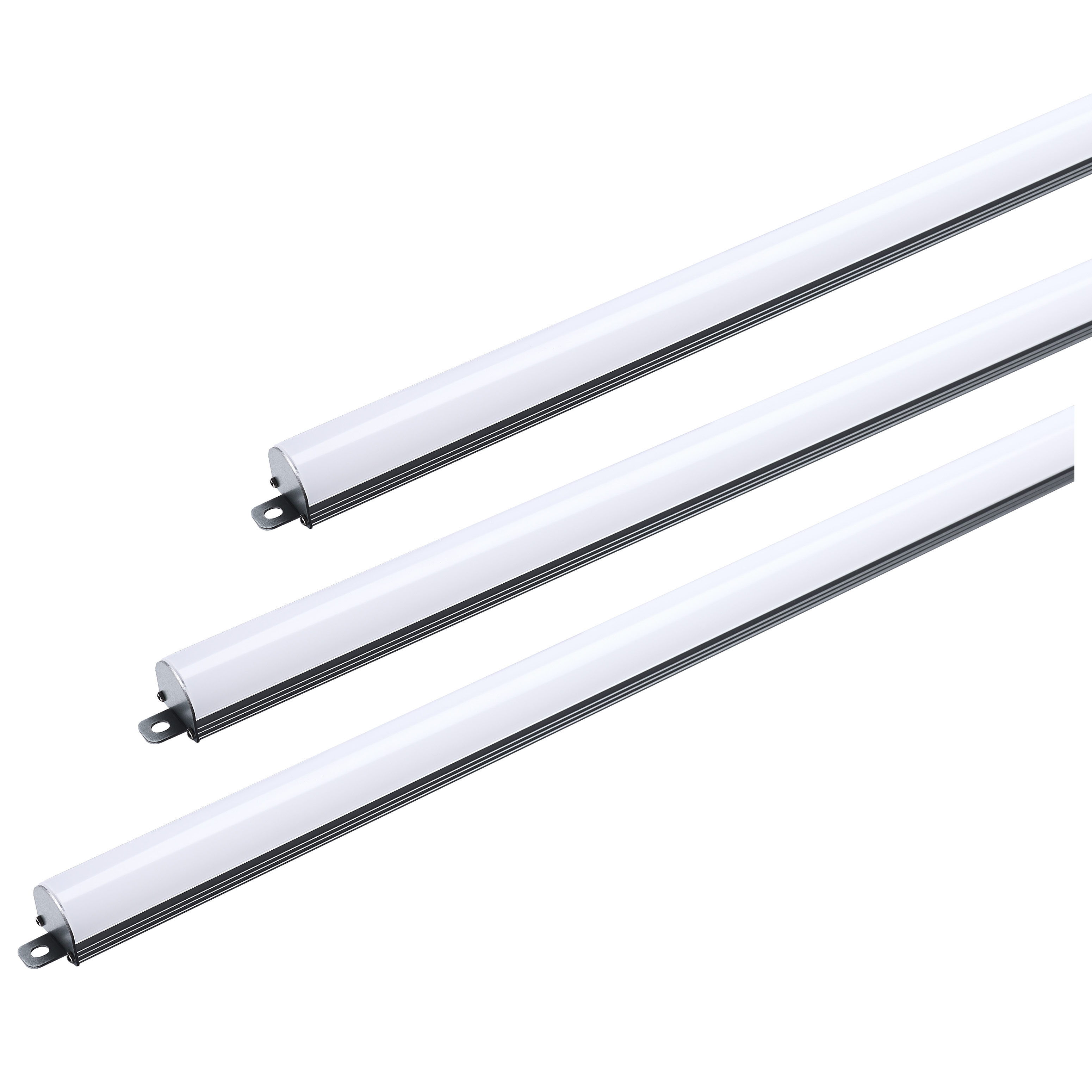

  • 3-Bars
  • 2 Feet
  • 120-277 Volt
  • Silver Finish
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

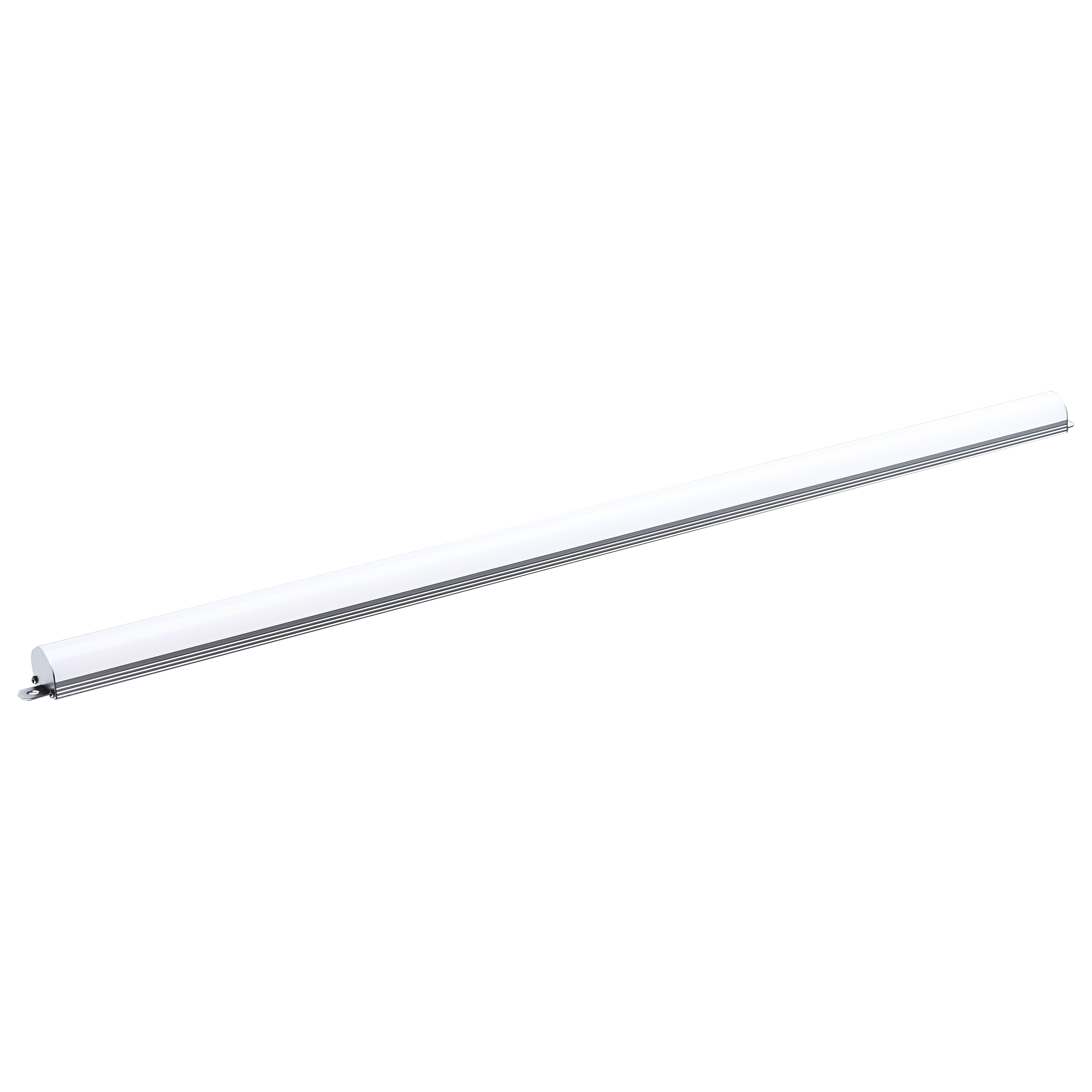

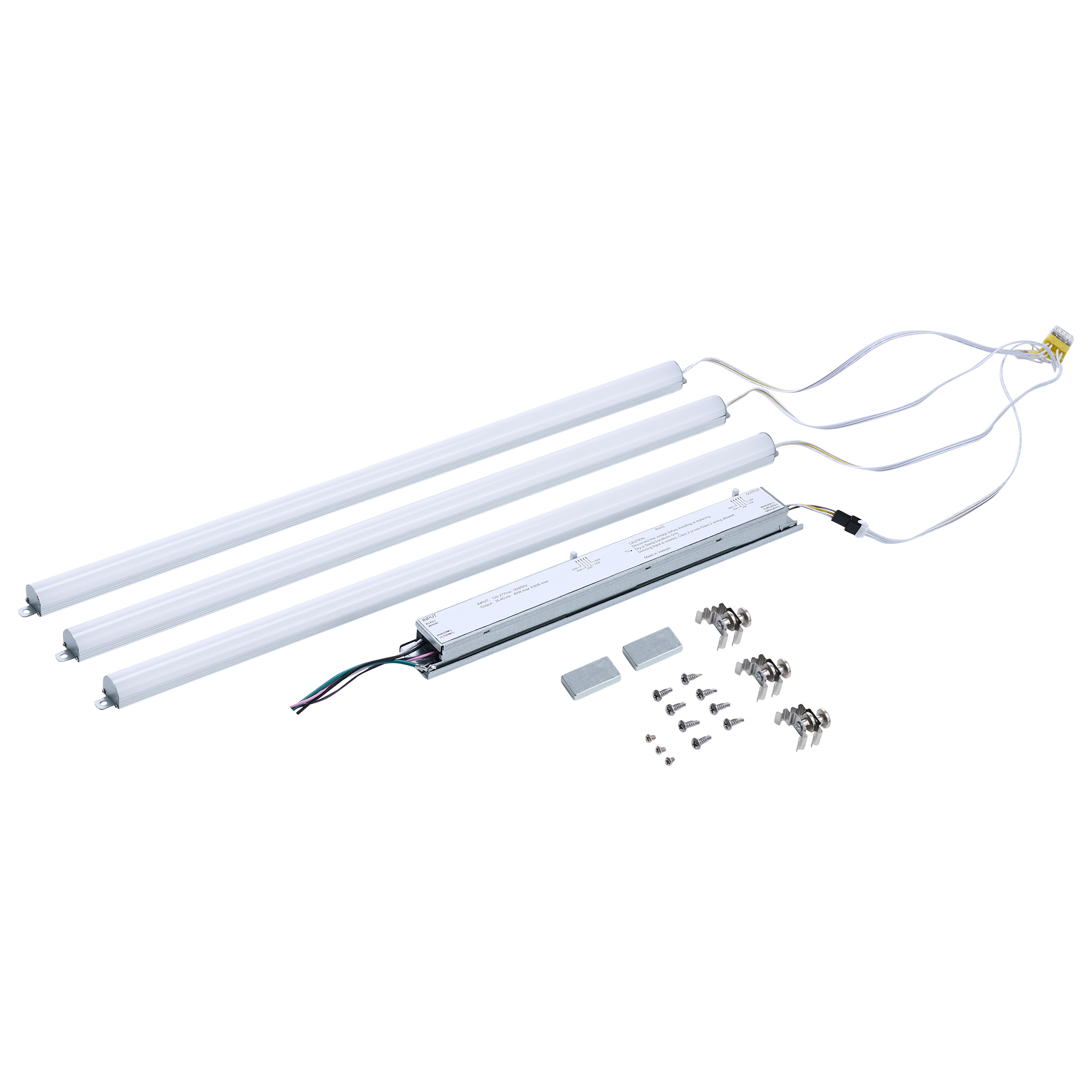

SATCO NUVO's 65-1332 2-foot Retrofit Lightbar Kit with three LED bars delivers a versatile and energy-efficient solution for converting existing fluorescent fixtures to LED technology. Designed to replace 3 x 17W T8 lamps, this kit features selectable wattages from 20W to 40W and selectable CCT from 3000K to 6500K to customize light output for the application. Compatible with a wide range of existing troffers, strips, wraps, and vapor tight fixtures, the kit combines durable aluminum construction with a frosted polycarbonate lens for reliable operation and even illumination. Complete with 0-10V dimming, a 50,000-hour lifespan, and a 5-year warranty, this retrofit kit offers long-lasting performance and flexibility.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeBacklit Flat Panel

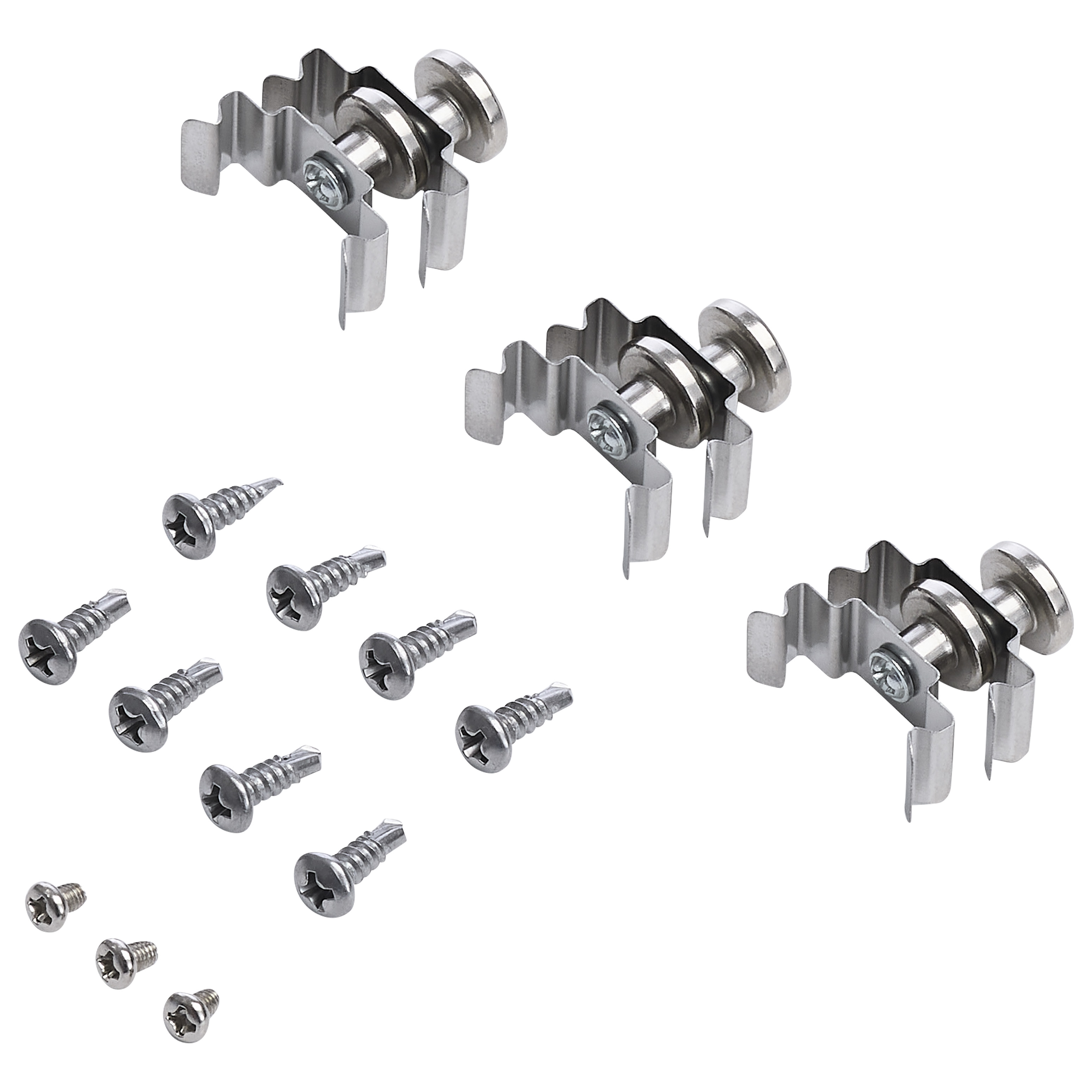

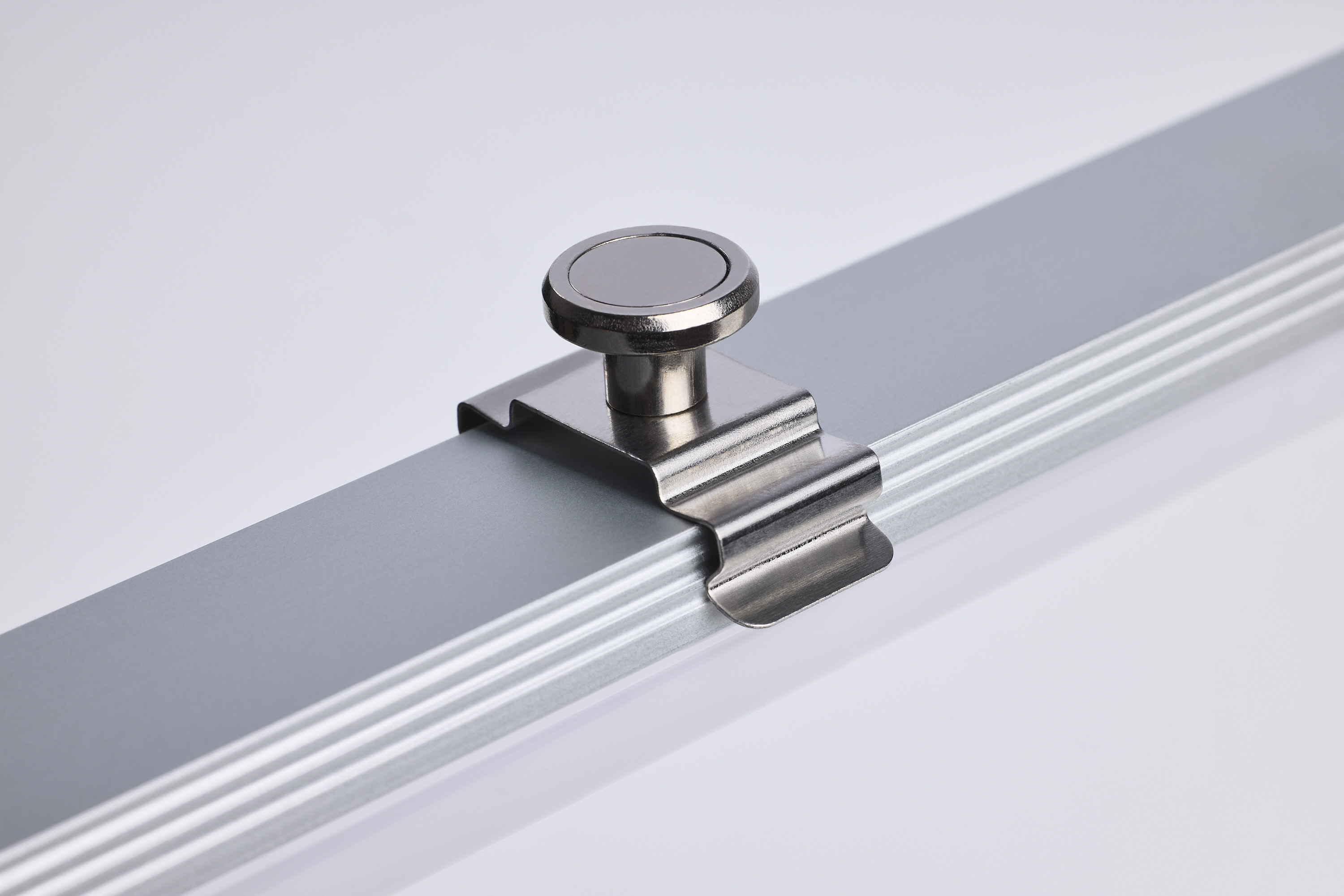

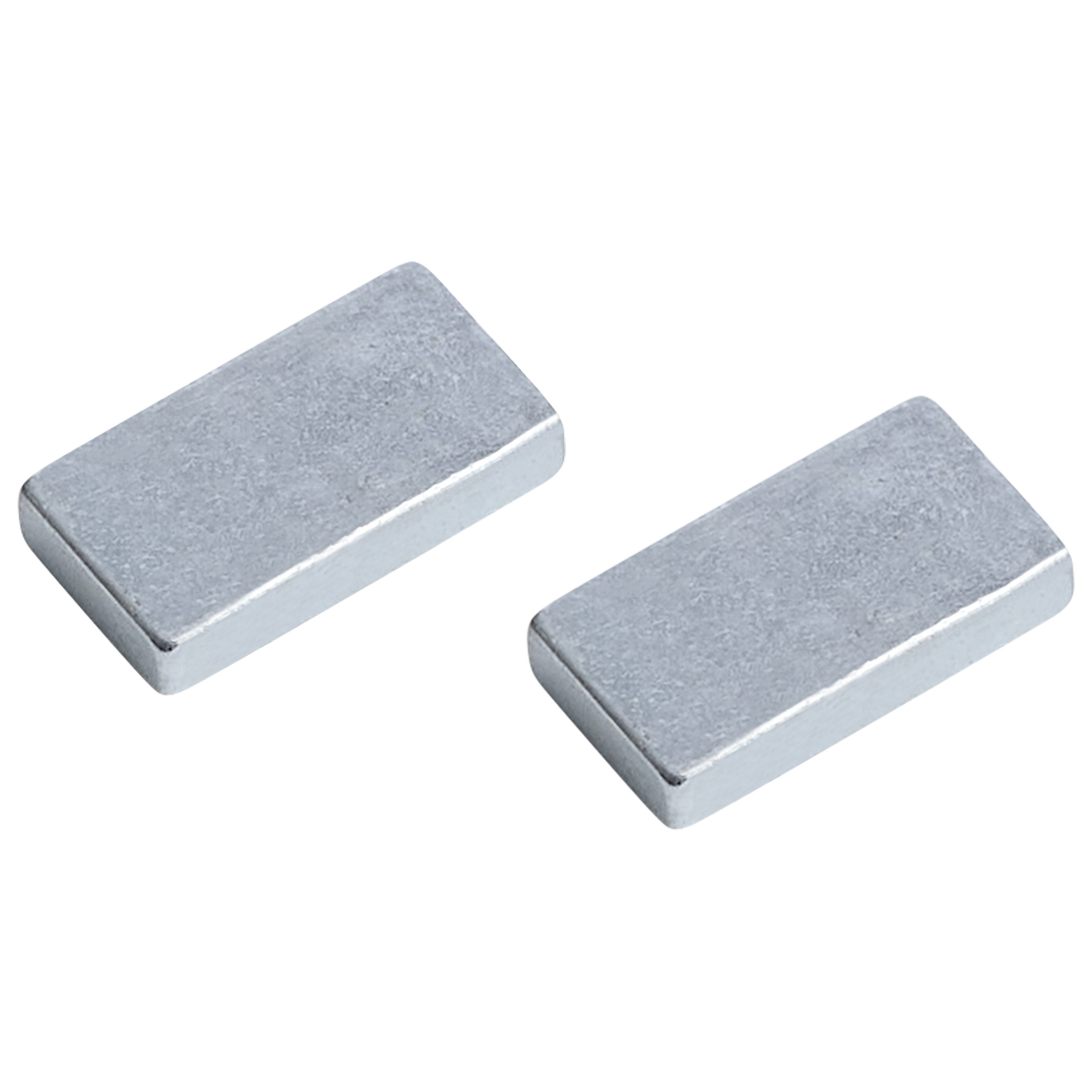

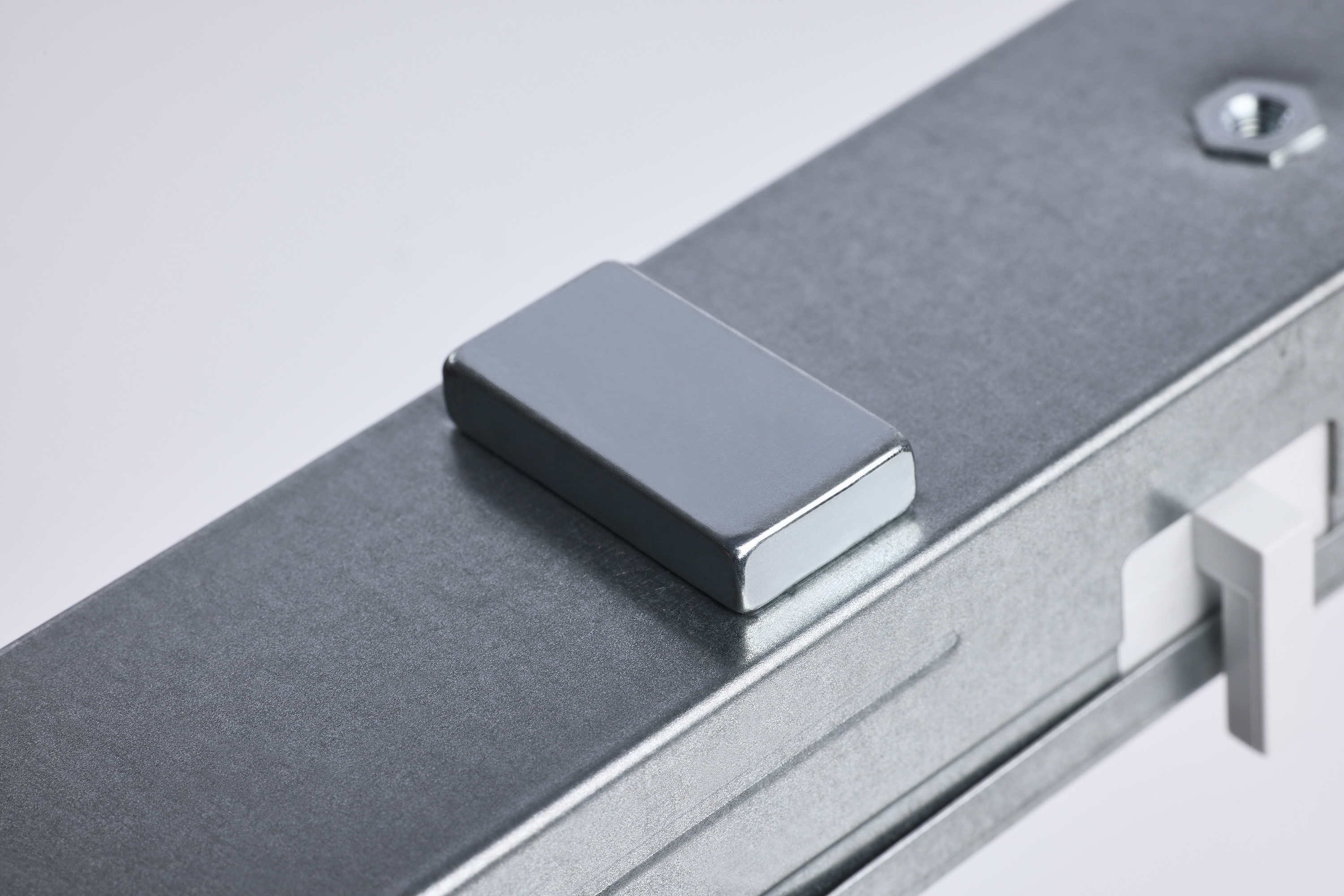

IncludesMagnetic Feet, Screws, Wire nuts
Product NotesDefault CCT setting is 4000K; Default Wattage setting is 40W.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1KV
Total Harmonic Distortion<20%
Up Down InstallationDown

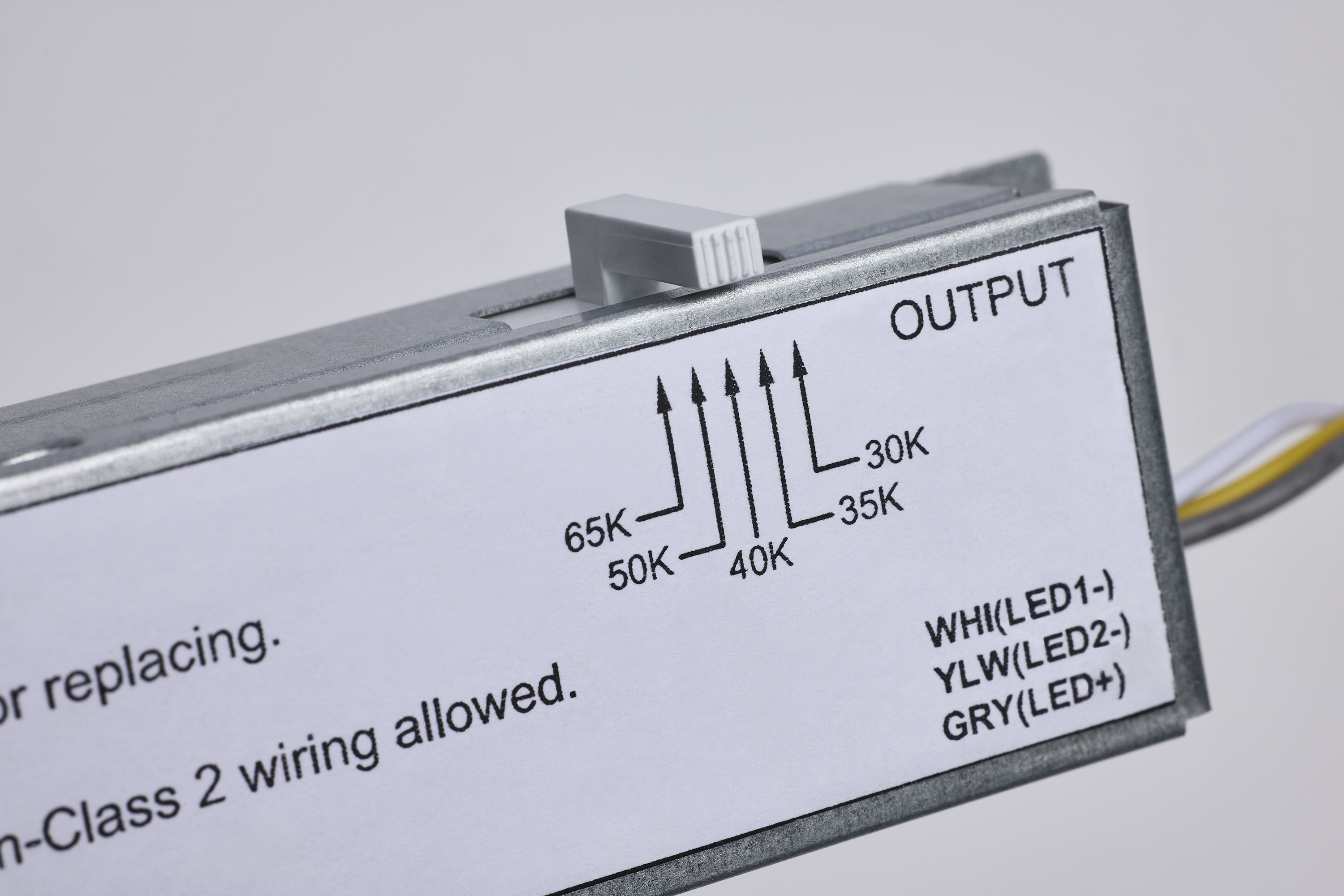

CCT SelectableYes

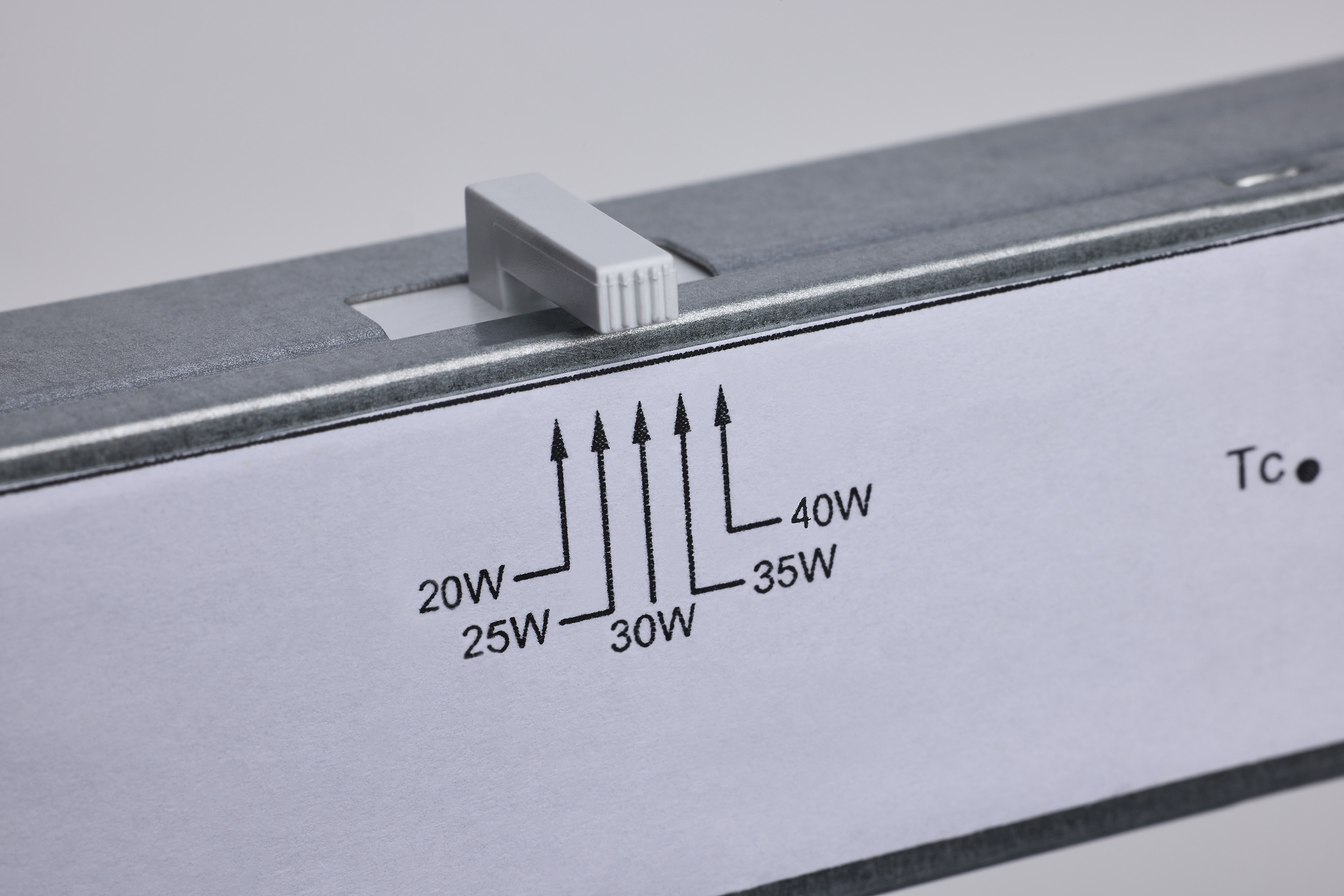

Wattage SelectableYes
Finish FamilySilver
Additional InfoDefault CCT setting is 4000K; Default Wattage setting is 40W.
Amps0.333-0.144/0.292-0.126/0.25-0.108/0.208-0.09/0.167-0.072A

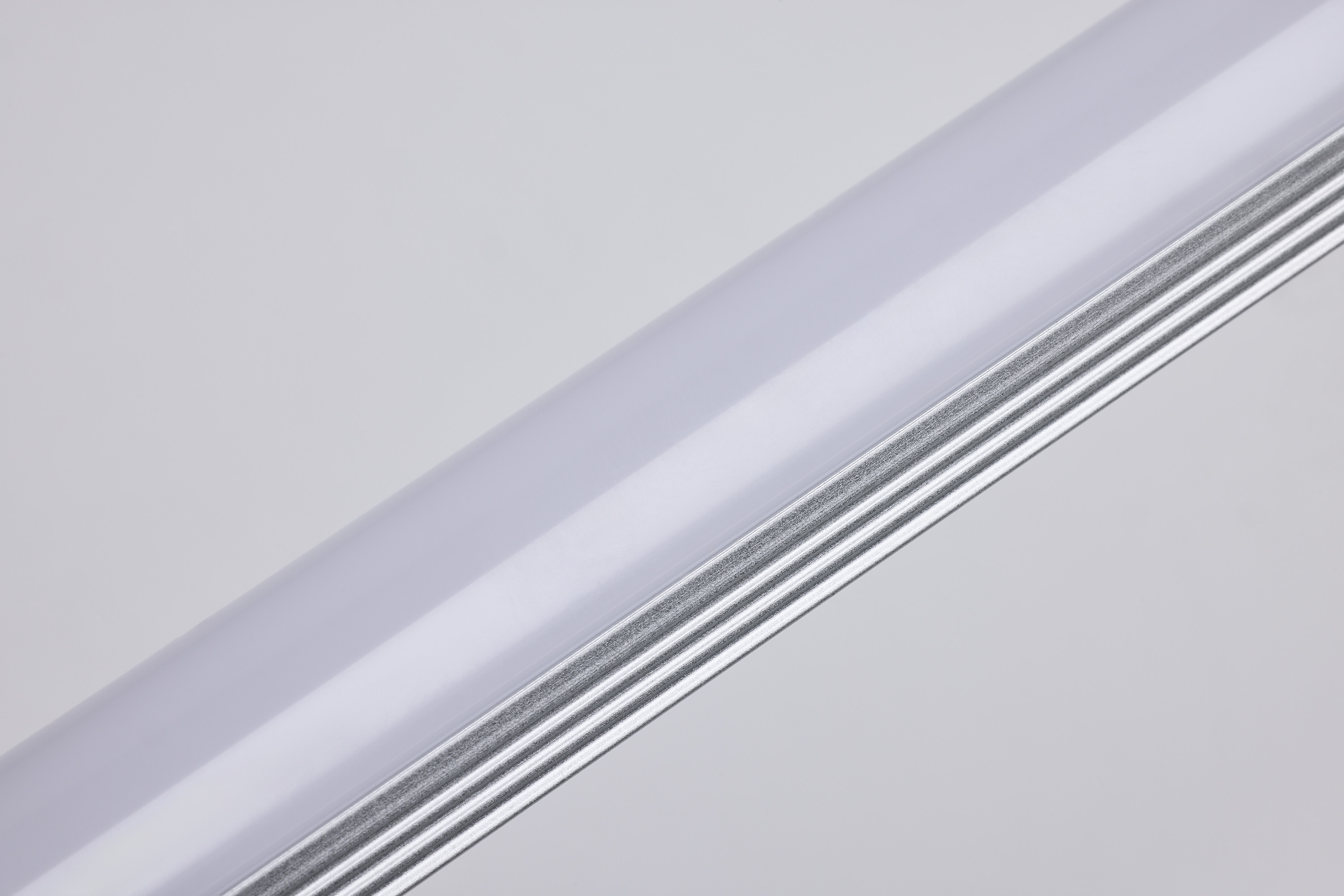

Lens FinishFrosted
Lens MaterialPolycarbonate (PC)
Nominal Length21.0
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv3 x 17W T8
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempSoft White to Daylight
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-4F to +113F (-20C to +45C)
Lumens5000L/4375L/3750L/3125L/2500L
Volts120V-277V
Watts40W/35W/30W/25W/20W
Max Lumens5000L
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishSILVER
Housing ColorSilver
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Mounting ProcedureCeiling/Wall
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Features
Flicker FreeYes
Compliance
CA Prop 65Lead
Dark Sky RatedNo
DLC IDS-7S1LMC
FCC CompliantYes
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923409851
Case Cube0.8021
Case Height6.89
Case Length23.23
Case Quantity10
Case UPC10045923409858
Case Weight22.0
Case Width8.66
EA Cube0.0616
EA Height1.18
EA Length22.44
EA Quantity1
EA Weight2.0
EA Width4.02
Pack TypeKraft Box

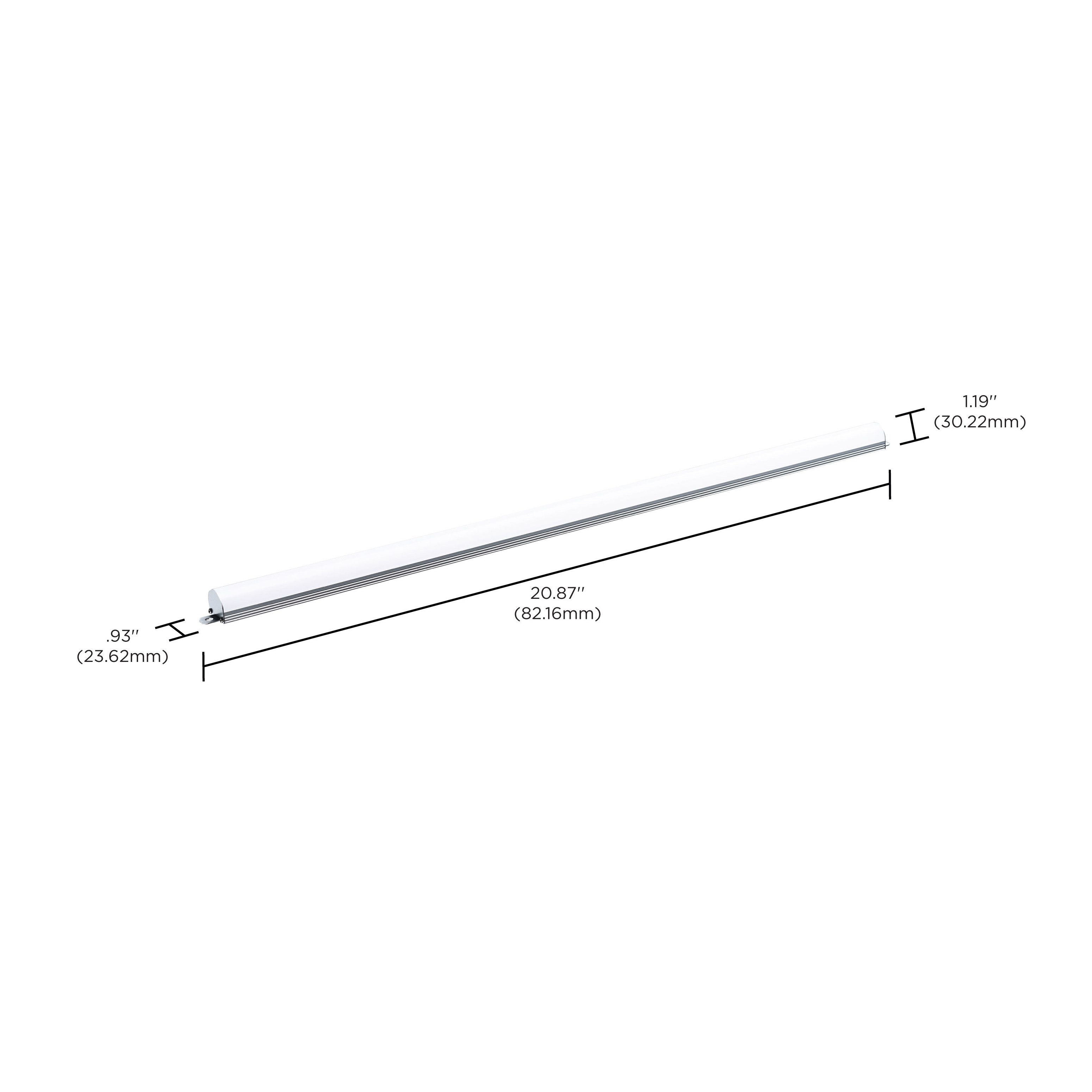

Web Height1.19
Web Length20.87
Web Width0.93
