65-1337

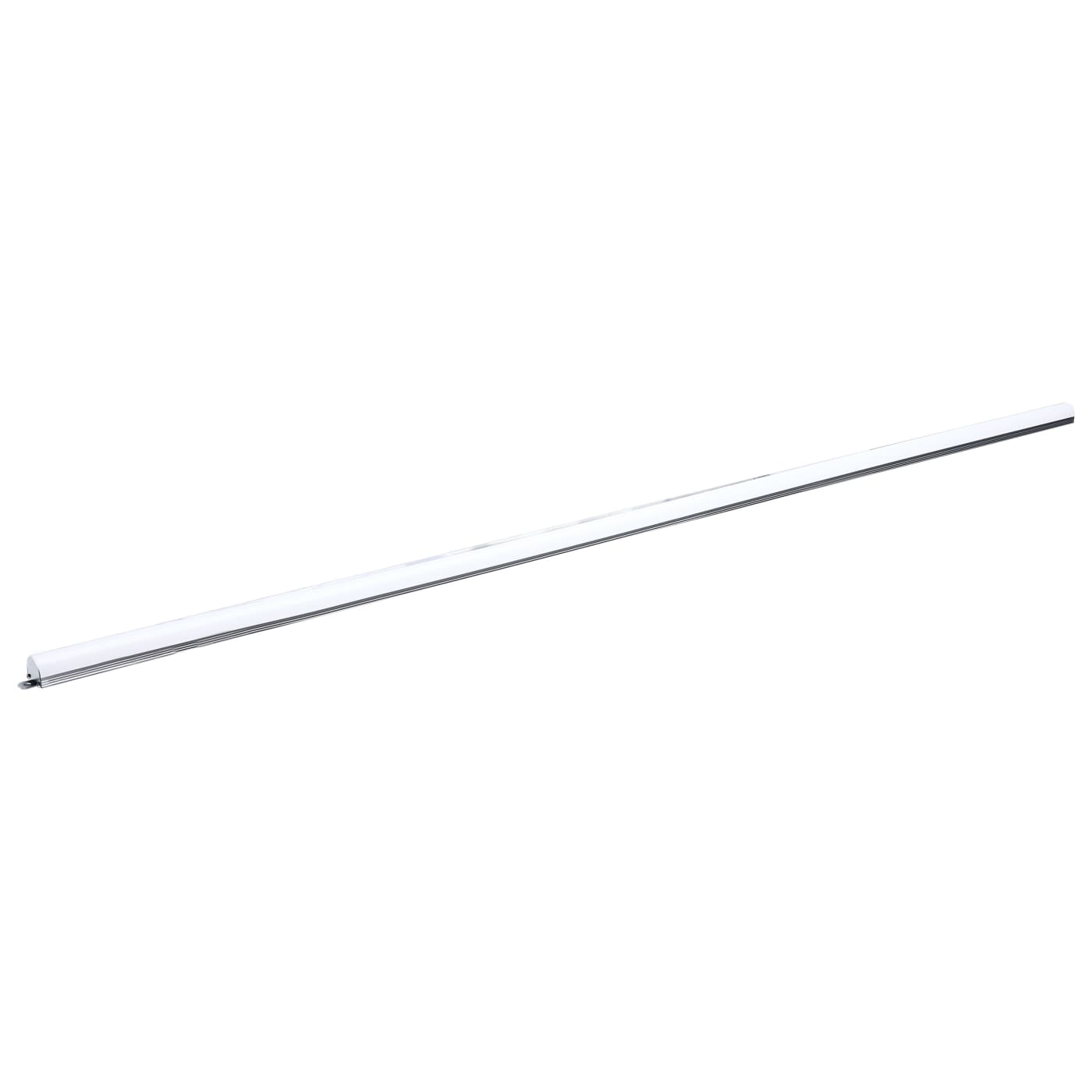

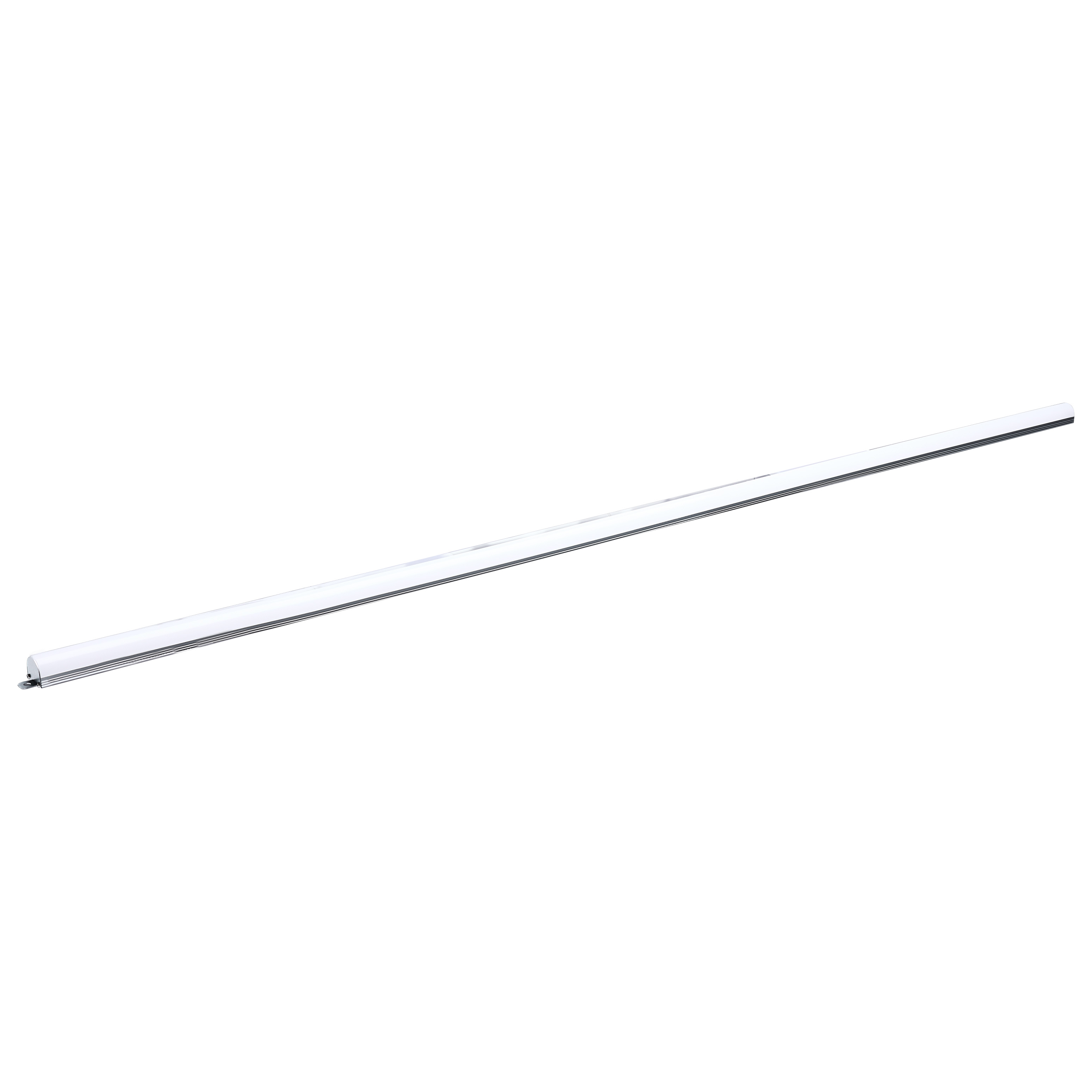

LBR50WSL4B4/8CCT5/DIMU

  • 50W/45W/40W/35W/30W Wattage Selectable LED Light Bar Retrofit Kit

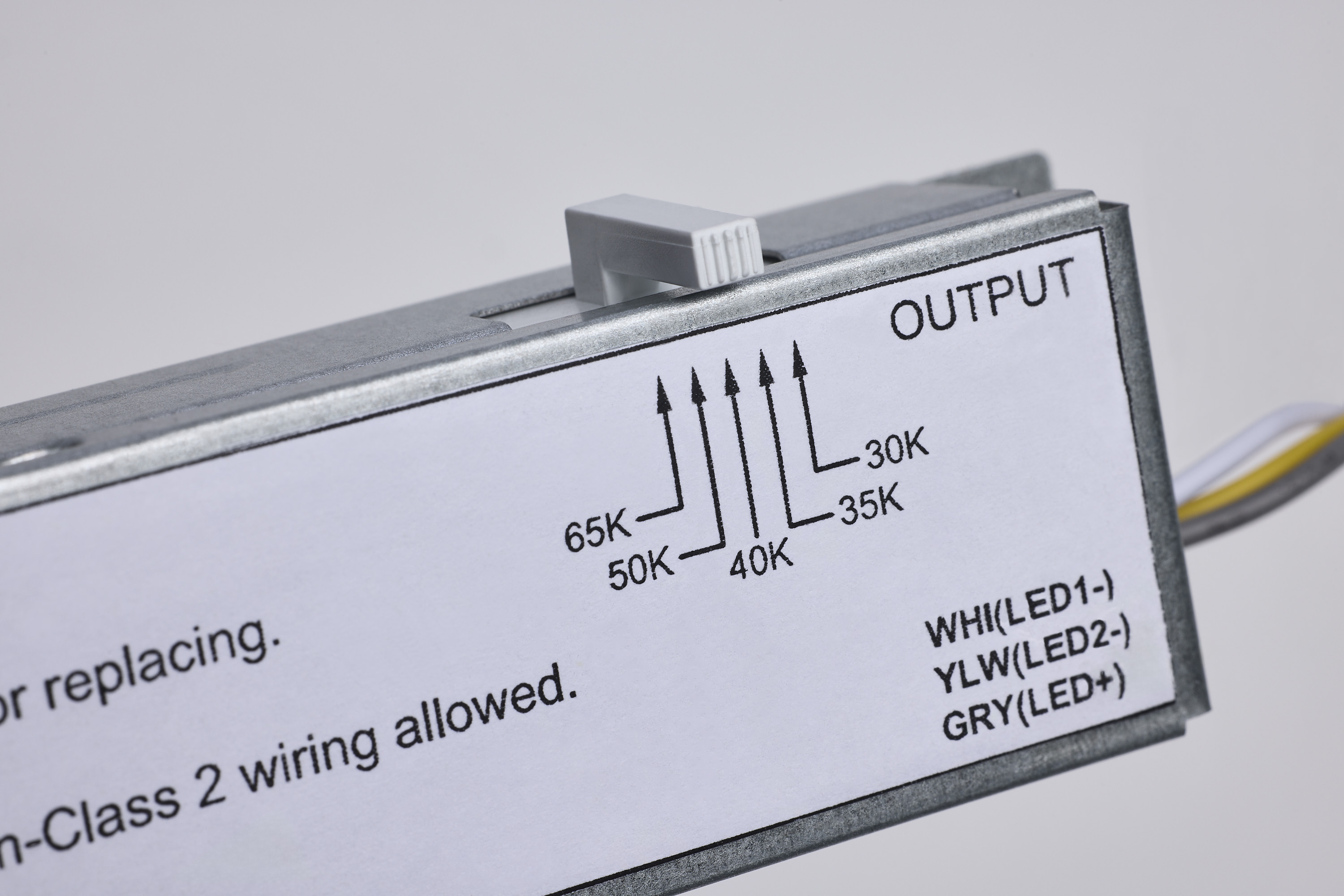

  • 3000K/3500K/4000K/5000K/6500K CCT Selectable

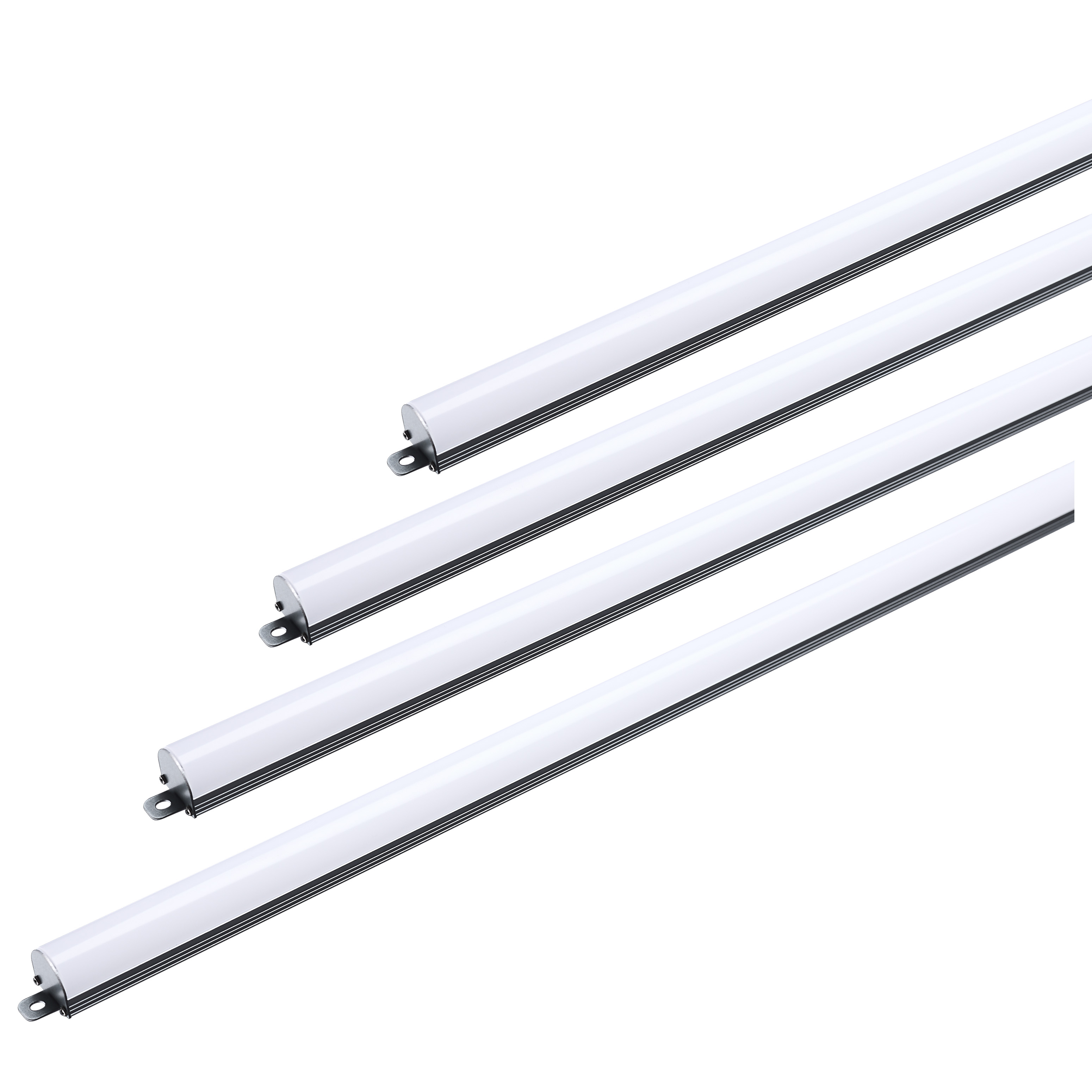

  • 4-Bars
  • 4 Feet
  • 120-277 Volt
  • Silver Finish
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
dimmable_text^0-10_dim^2
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

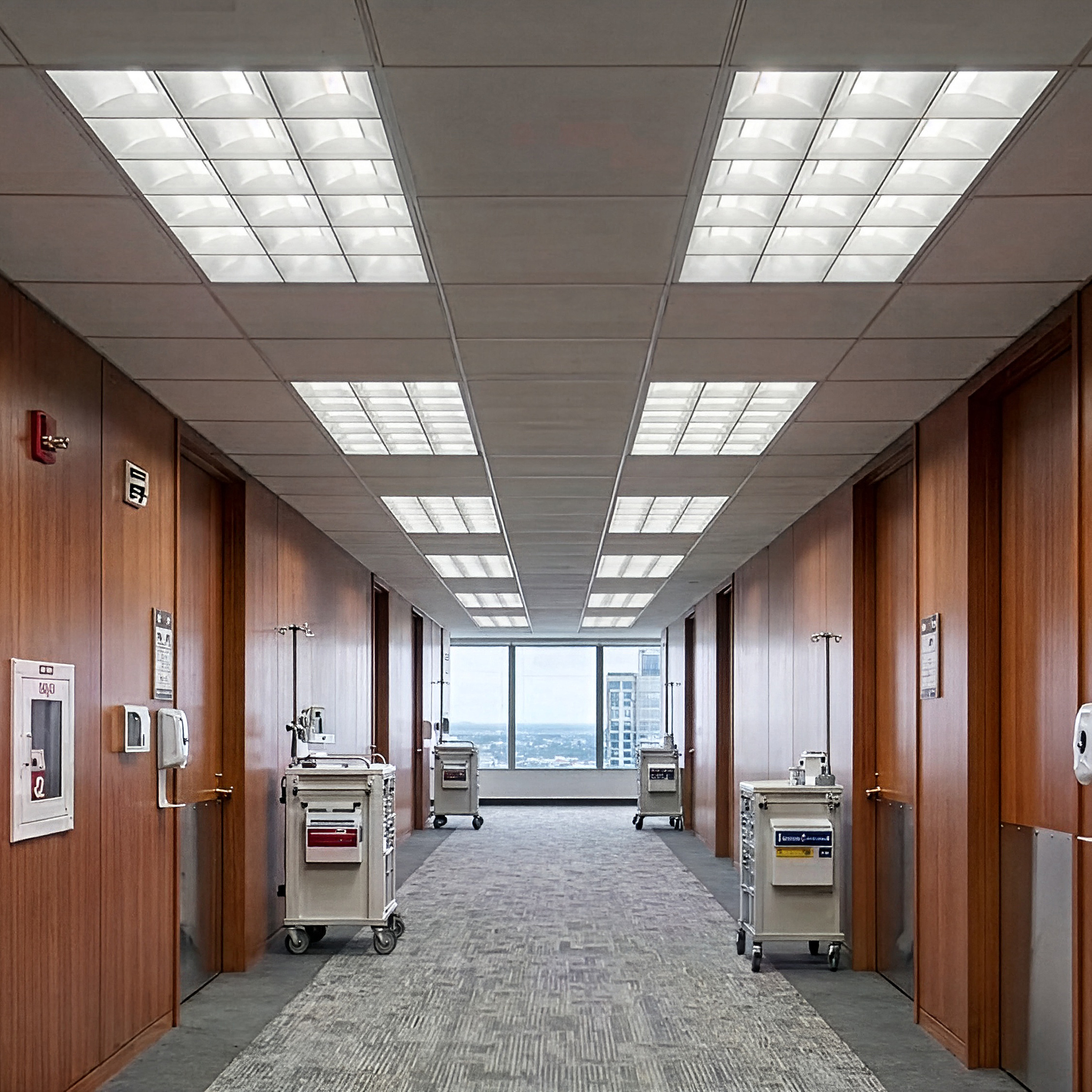

SATCO NUVO's 65-1337 4-foot Retrofit Lightbar Kit with four LED bars provides a powerful and flexible LED retrofit solution for existing fluorescent fixtures. Designed to replace 4 x 32W T8 lamps, this kit offers selectable wattages from 30W to 50W and selectable CCT from 3000K to 6500K for customized illumination at installation. Engineered for use in troffers, strips, wraps, and vapor tight fixtures, the durable aluminum housing and frosted polycarbonate lens ensure lasting durability and even light distribution. Featuring 0-10V dimming, a 50,000-hour lifespan, and a 5-year warranty, this retrofit kit delivers dependable, high-quality illumination for commercial environments.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeBacklit Flat Panel

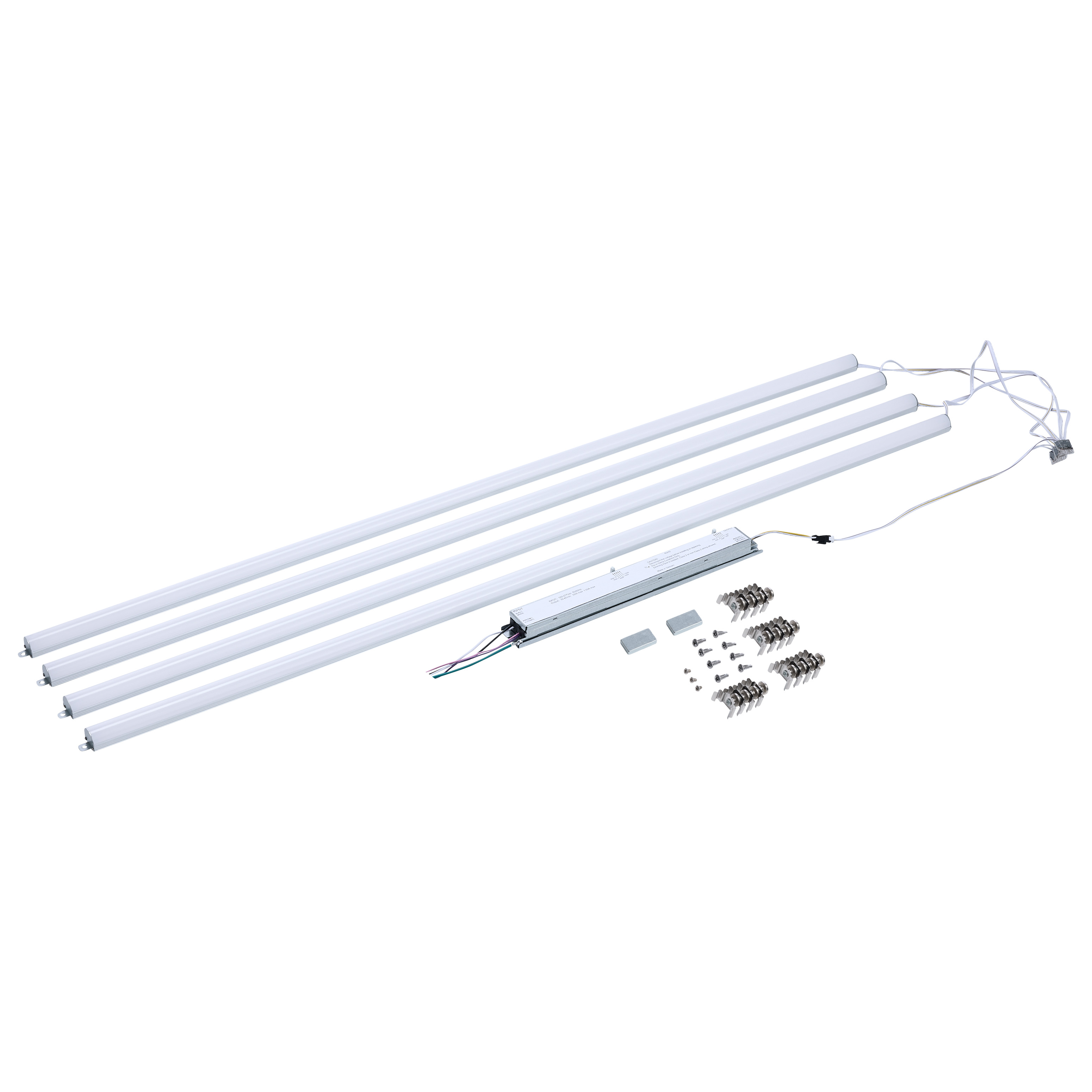

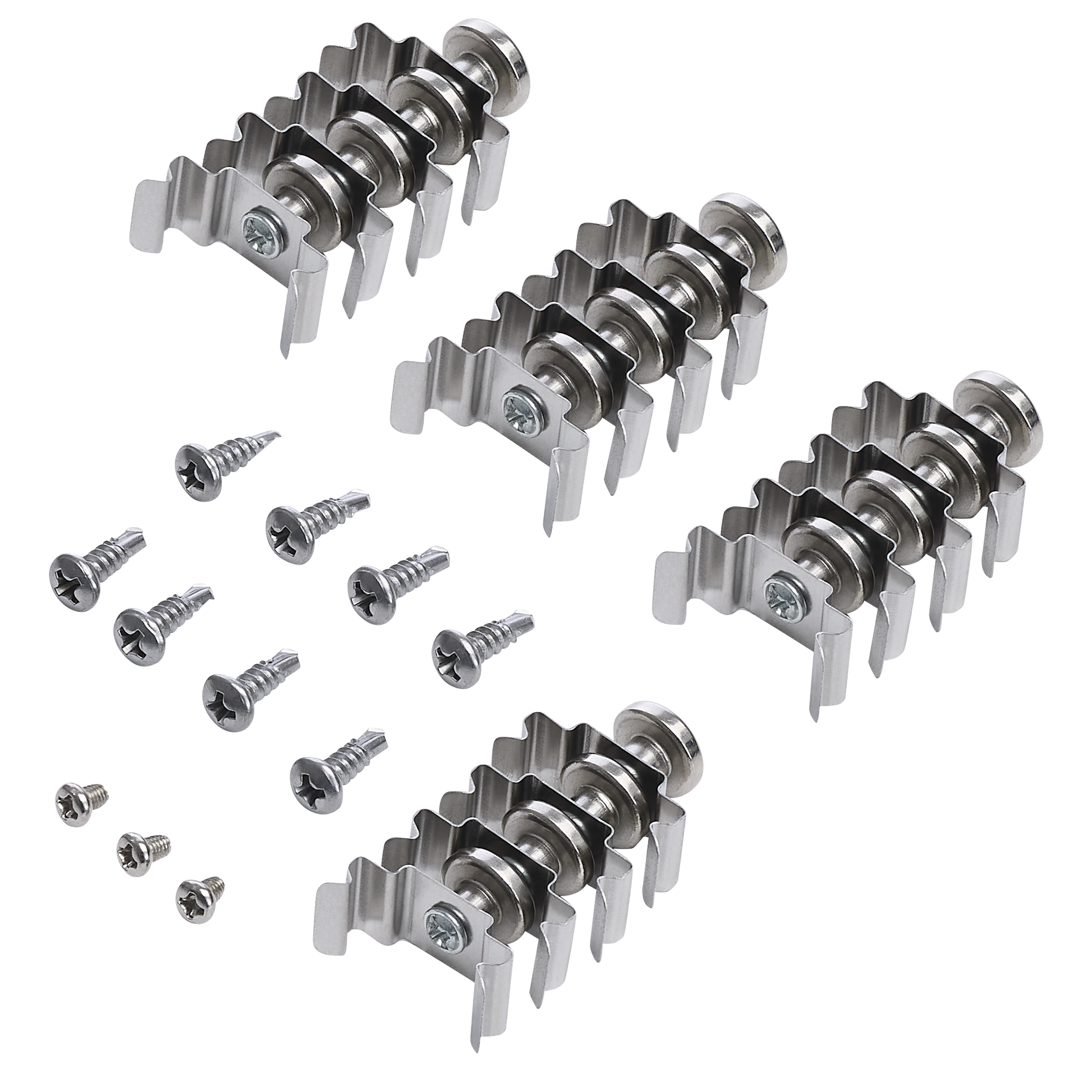

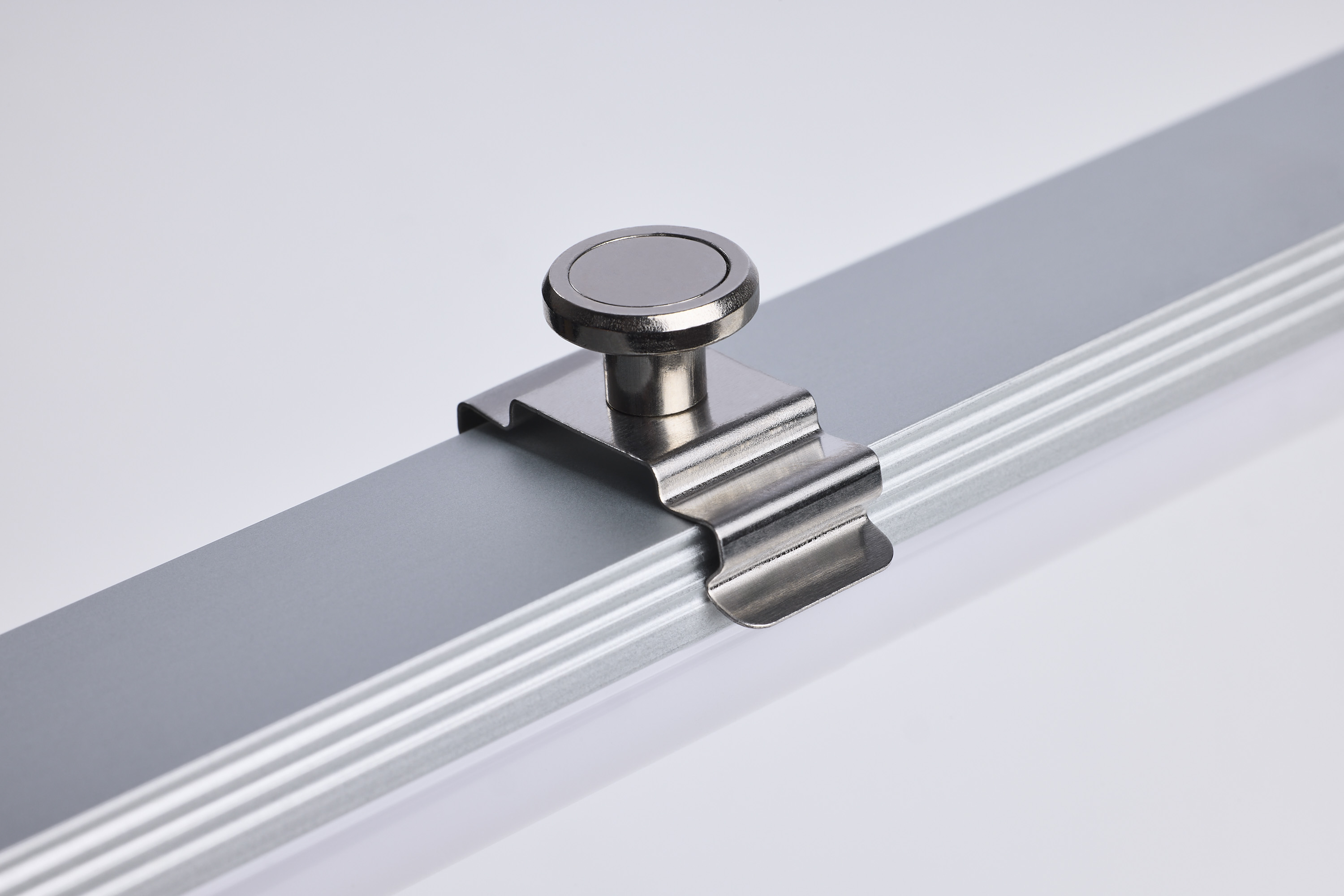

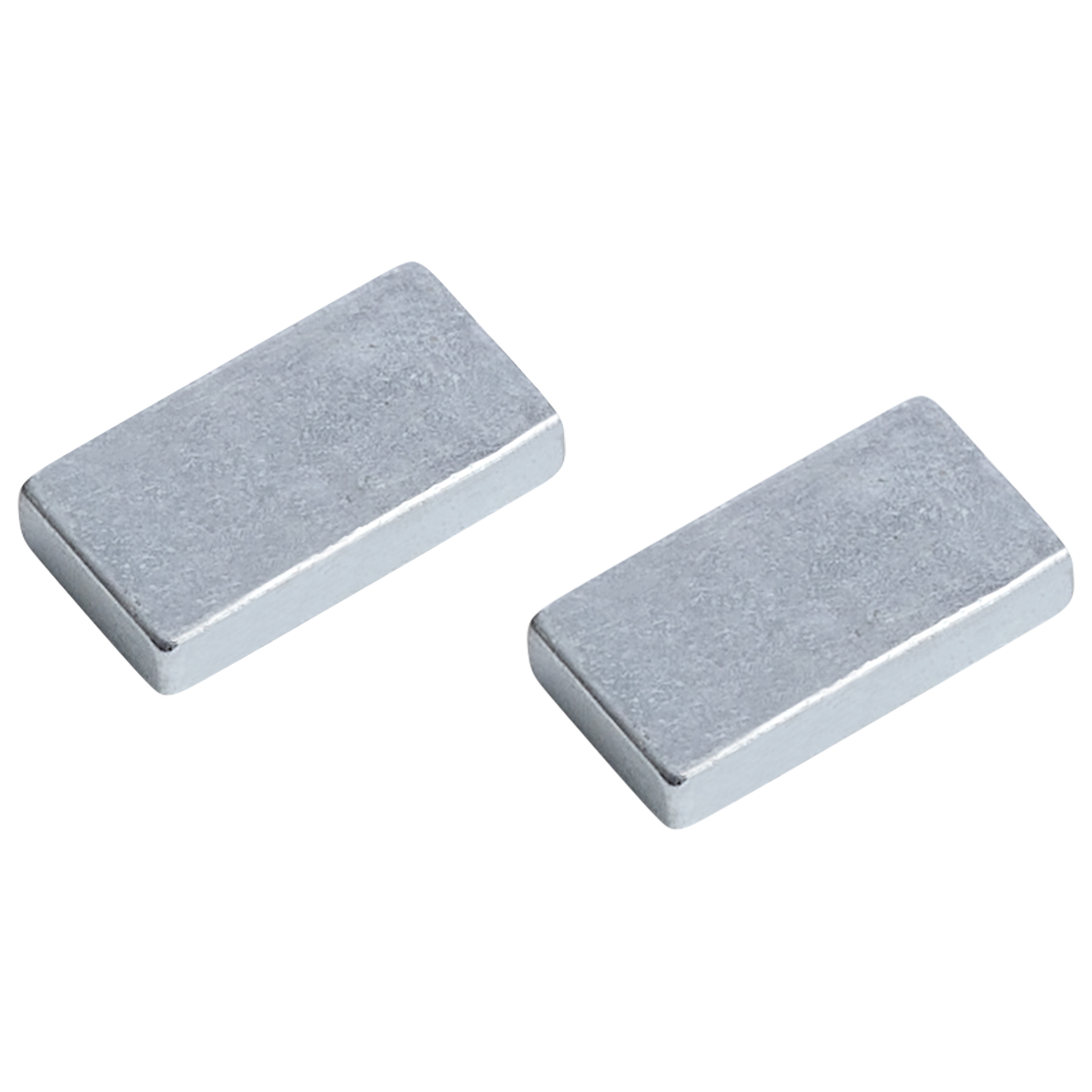

IncludesMagnetic Feet, Screws, Wire nuts
Product NotesDefault CCT setting is 4000K; Default Wattage setting is 50W.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1KV
Total Harmonic Distortion<20%
Up Down InstallationDown
CCT SelectableYes

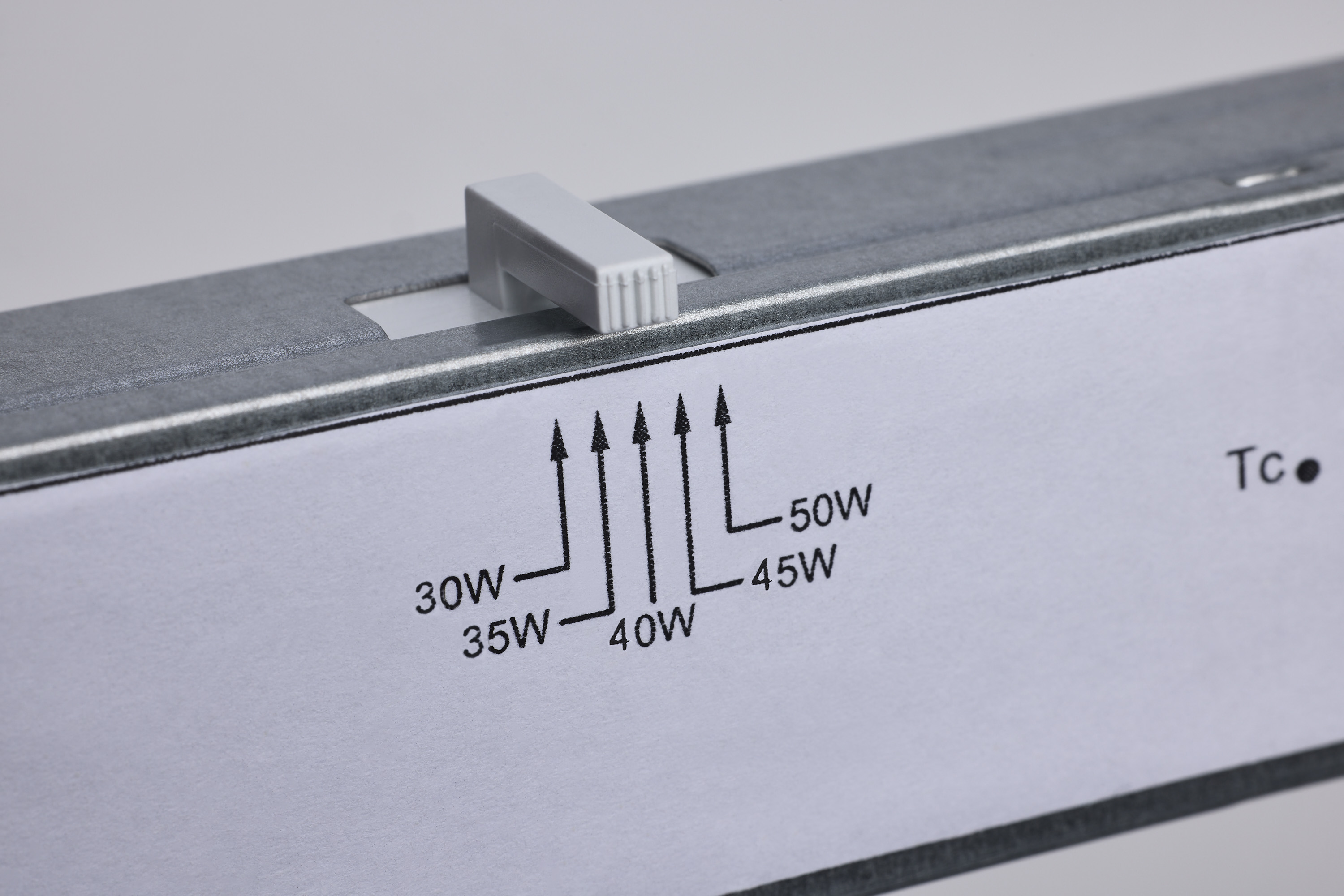

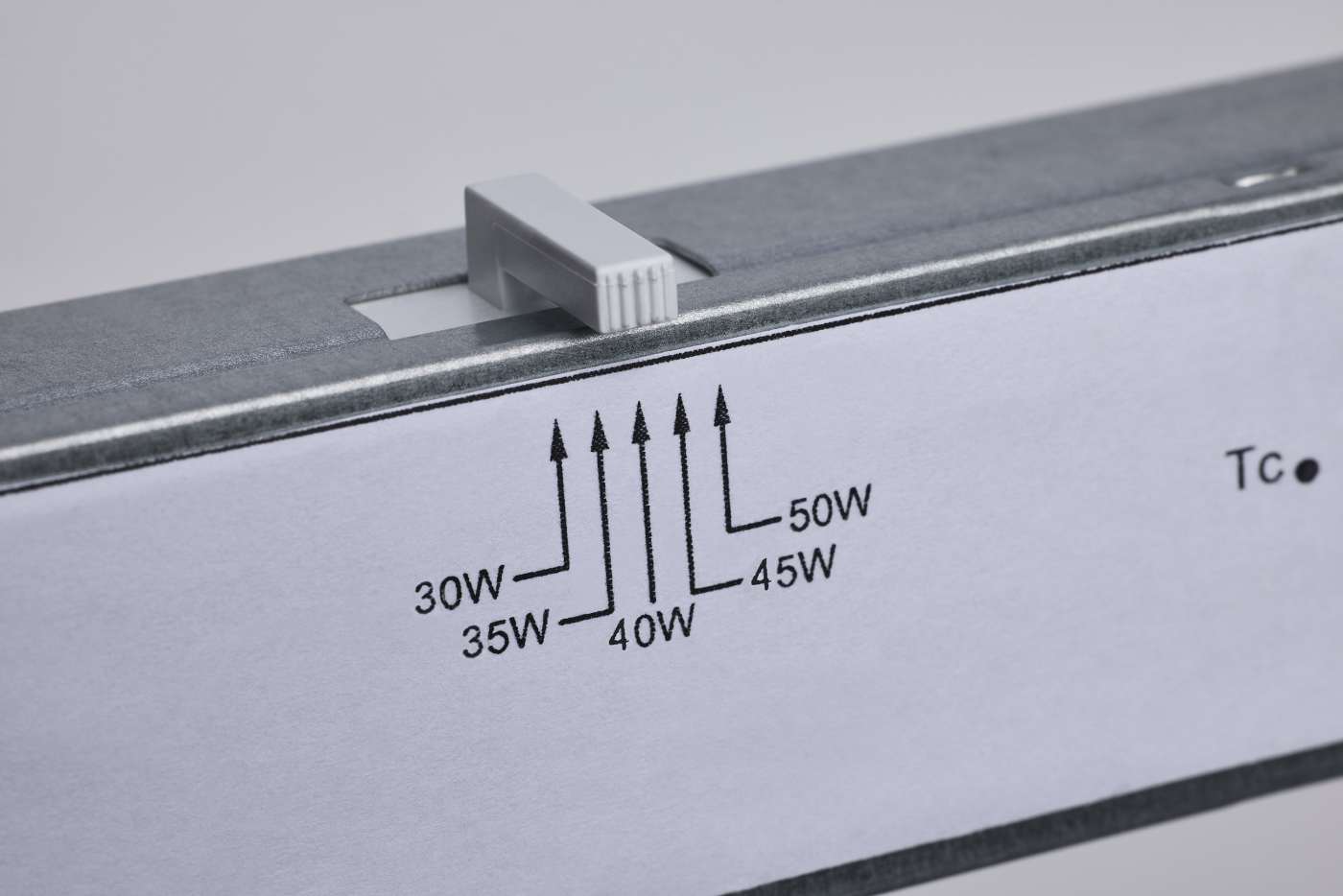

Wattage SelectableYes
Finish FamilySilver
Additional InfoDefault CCT setting is 4000K; Default Wattage setting is 50W.
Amps0.417-0.181/0.375-0.162/0.333-0.144/0.292-0.126/0.25-0.108A

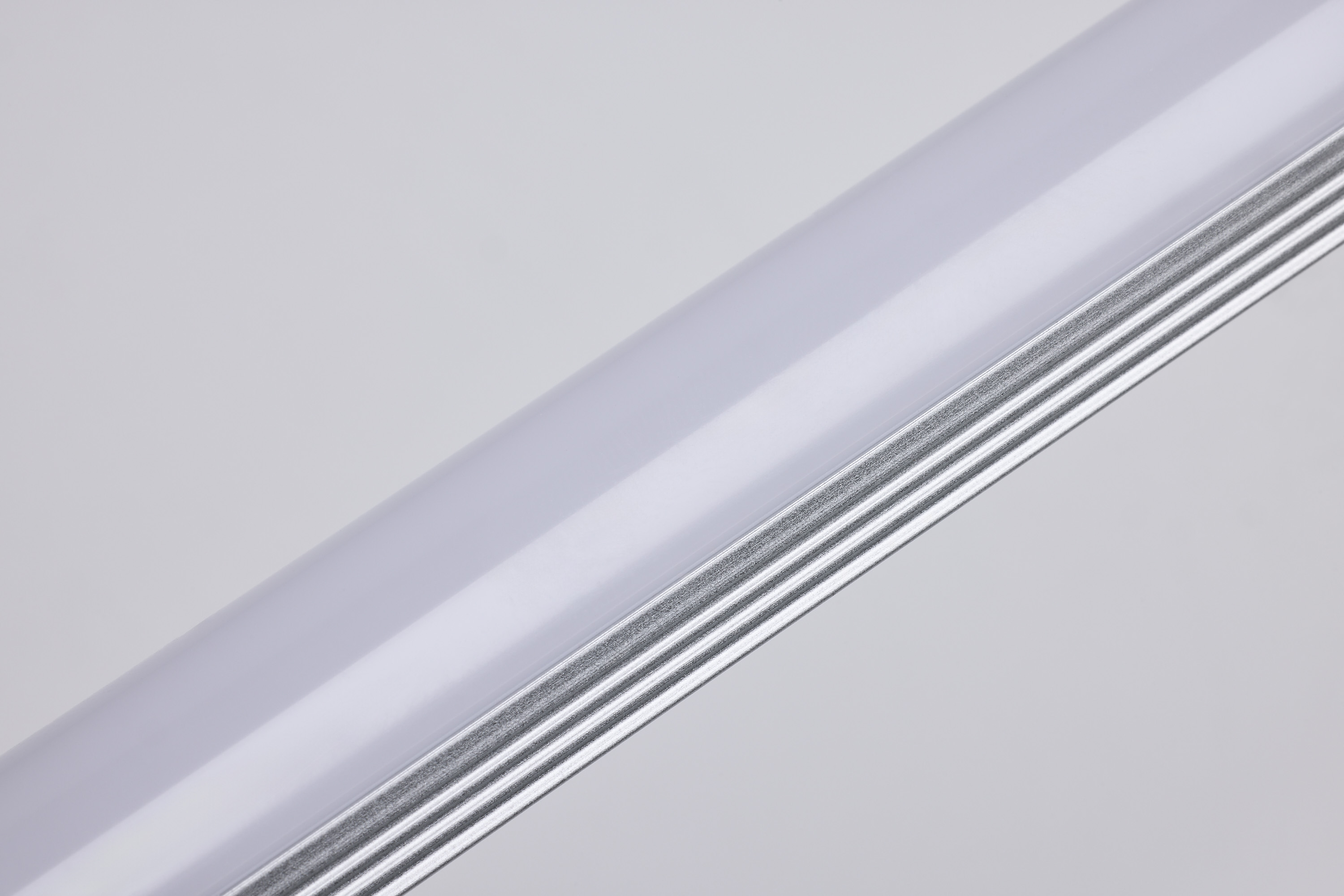

Lens FinishFrosted
Lens MaterialPolycarbonate (PC)
Nominal Length42.0
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv4 x 32W T8
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempSoft White to Daylight
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-4F to +113F (-20C to +45C)
Lumens6250L/5625L/5000L/4375L/3750L
Volts120V-277V
Watts50W/45W/40W/35W/30W
Max Lumens6250L
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishSILVER
Housing ColorSilver
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRectangle
Mounting ProcedureCeiling/Wall
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Features
Flicker FreeYes
Compliance
CA Prop 65Lead
Dark Sky RatedNo
DLC IDS-H5R6D6
FCC CompliantYes
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified
California BanLawful for sale
DLC ApprovedYes
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923409899
Case Cube1.8002
Case Height6.89
Case Length44.09
Case Quantity10
Case UPC10045923409896
Case Weight38.0
Case Width10.24
EA Cube0.142
EA Height1.18
EA Length43.31
EA Quantity1
EA Weight3.6
EA Width4.8
Pack TypeKraft Box

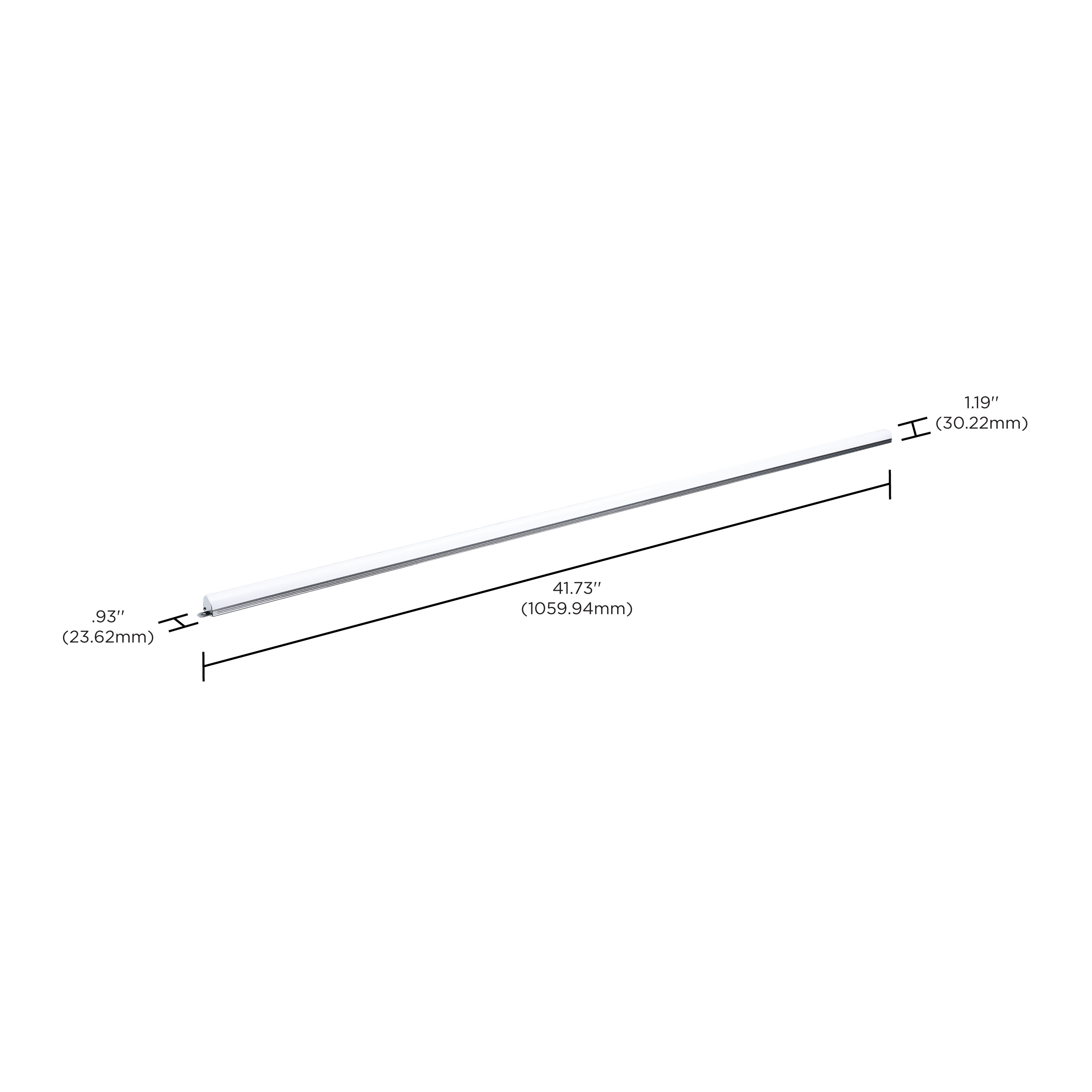

Web Height1.19
Web Length41.73
Web Width0.93
