65-1500

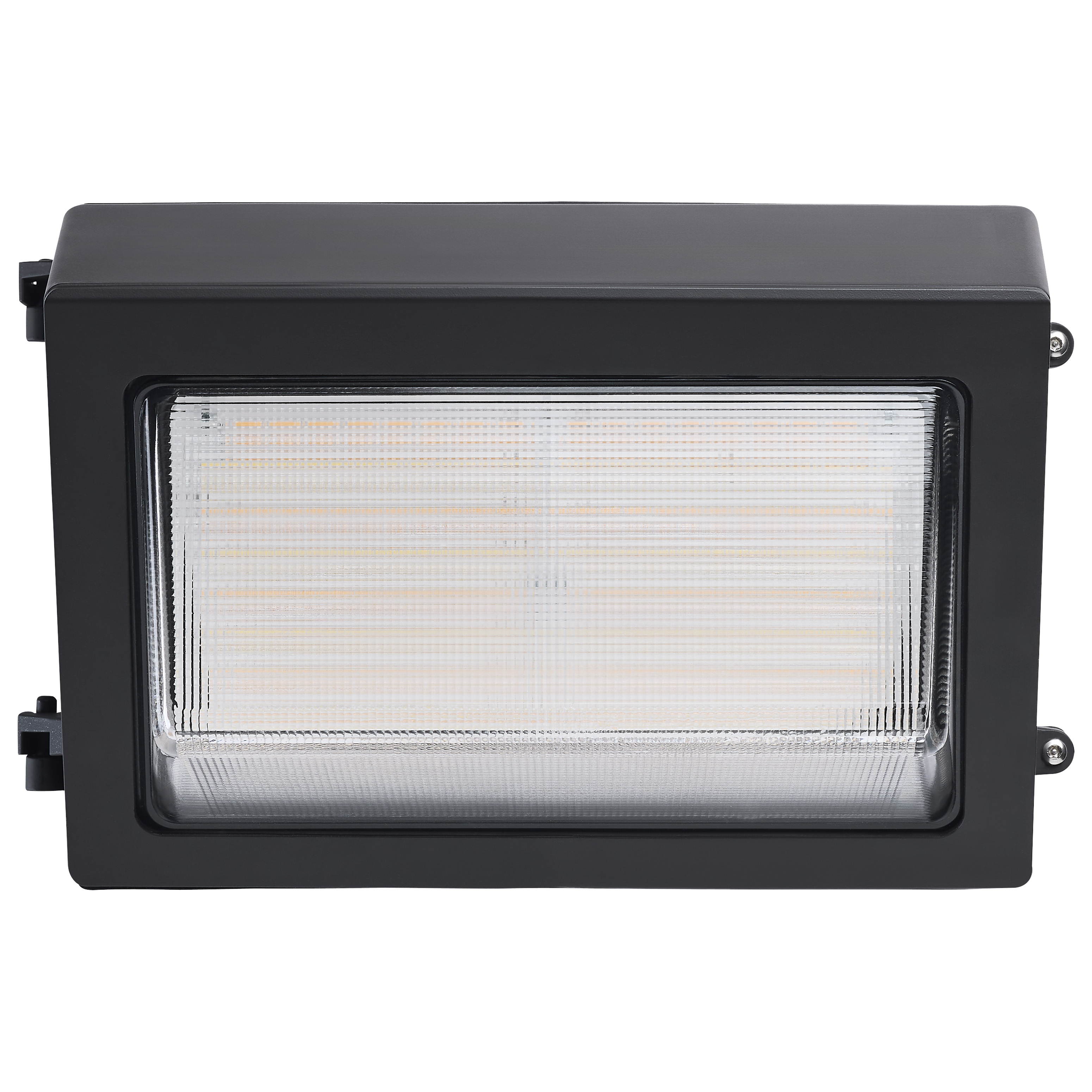

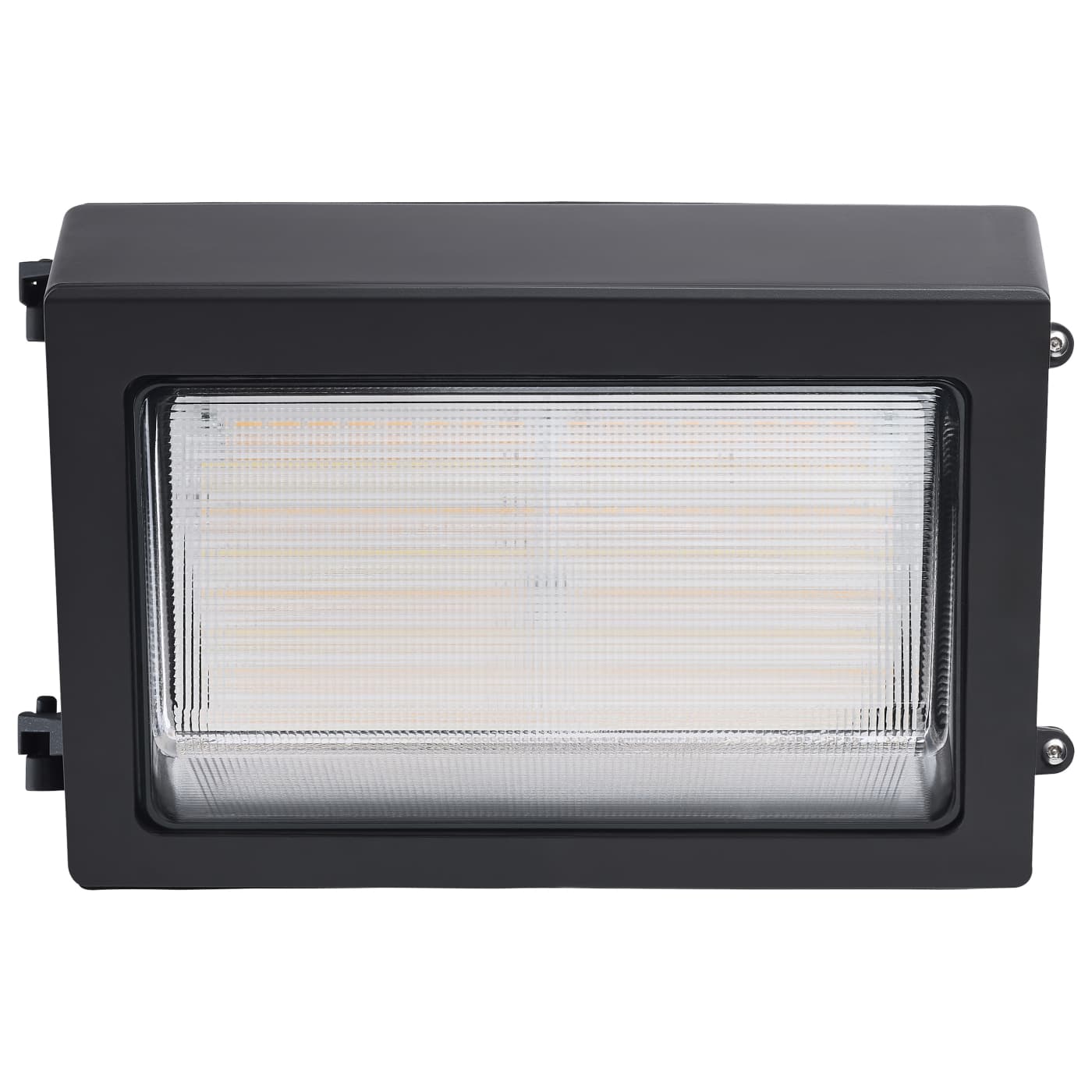

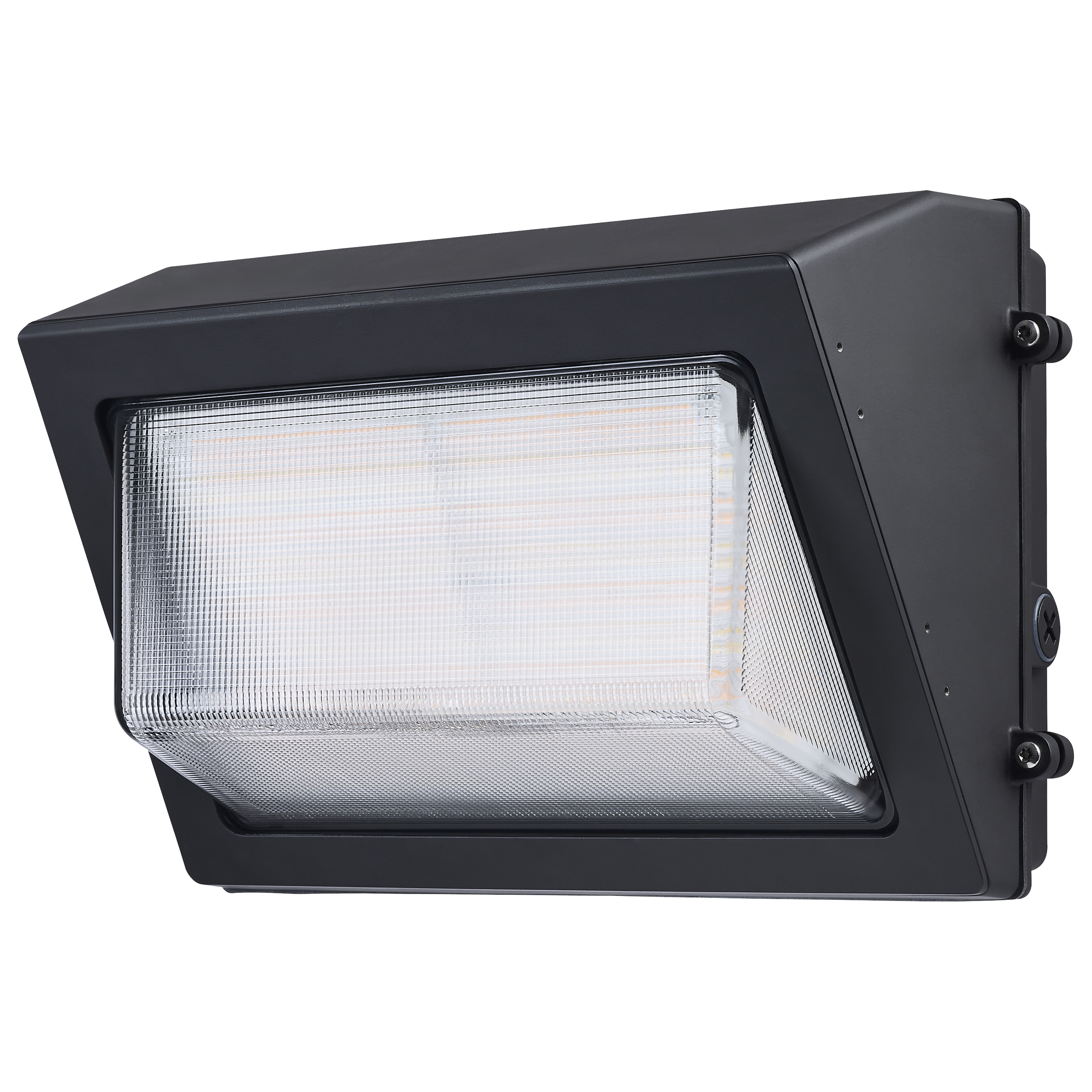

60W SELECTABLE LED WALL PACK

  • 60/40/29 Wattage Selectable LED Wall Pack
  • 3K/4K/5K CCT Selectable
  • 60/90/110 Beam Angle Selectable
  • 120-347 Volt
  • Bronze Finish
cc_selectable^y^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
hours_rated^50k^2
warranty^5_years^2
dimmable_text^0-10_dim^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

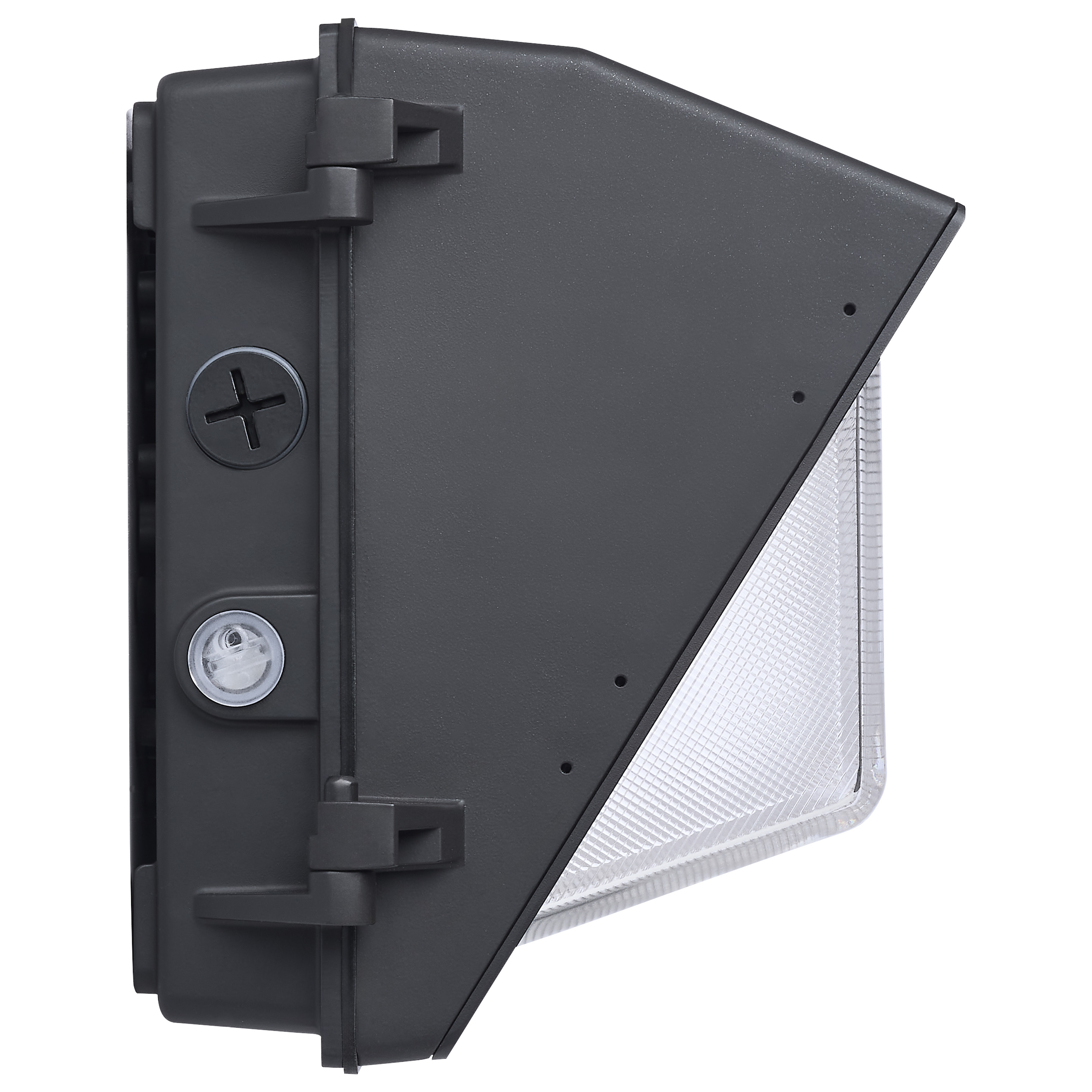

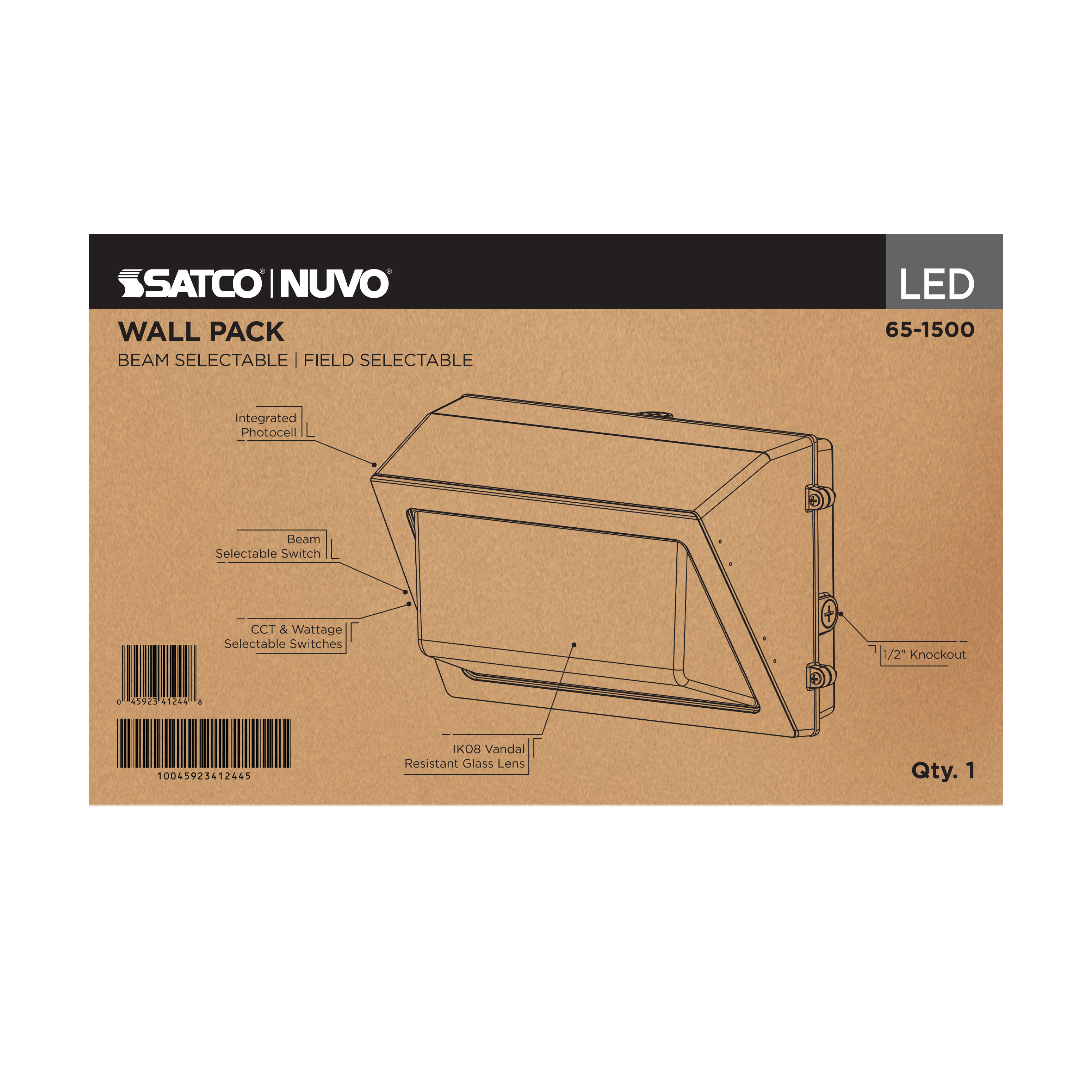

The SATCO NUVO 65-1500 LED Wall Pack delivers efficient, targeted exterior lighting for commercial and industrial perimeter applications. Beam selectable optics provide 60-degrees, 90-degrees, or 110-degrees distributions, while field-selectable wattage options of 29W, 40W, or 60W produce lumen outputs ranging from 4,225 to 9,193 lumens with efficacy up to 153 LPW. Selectable CCTs of 3000K, 4000K, and 5000K allow tailored illumination to suit site requirements. Constructed with a die-cast aluminum housing, borosilicate glass lens, and an integrated bypassable photocell, the fixture operates on a universal 120–347V input. IP65 and IK08 rated, wet-location suitable, DLC 6.0 Listed, and 0–10V dimmable, it offers a 50,000-hour rated life and a 5-year warranty.
Products Specs
General
CompanyNUVO
Bulb IncludedIntegrated
MaterialDie-cast Aluminum
Fixture TypeWall Pack
Product NotesDefault Wattage: 60W
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 6KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyBronze
Amps0.500-0.170/0.330-0.120/0.242-0.105A
Integrated FeaturesIntegrated Photocell
Lens FinishClear
Lens MaterialBorosilicate Glass
LensedYes
Starfish Operational Humidity20% to 95% R.H.
Power Factor>0.9
SDS ClassLED_Fixture
Indoor OutdoorOutdoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)60/90/110
Color TempSoft White to Natural Light
CRI80+
Dimming Type0-10V Dimming
Operating Frequency50/60Hz
Operating Temp-40F to +122F (-40C to +50C)
HID Equivalent75W-175W
Lumens4225L-9193L
Volts120V-347V
Watts60W/40W/29W
Max Lumens9193L
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Mounting ProcedureWall
Additional Info
Warranty5-Years
Compliance
Bug RatingB2-U3-G5
CA Prop 65Lead
Dark Sky RatedNo
DLC IDS-S5WGVC
FCC CompliantYes
IP RatingIP65
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923412448
Case Cube1.0673
Case Height10.0
Case Length15.94
Case Quantity1
Case UPC10045923412445
Case Weight10.5
Case Width11.57
EA Cube1.0673
EA Height10.0
EA Length15.94
EA Quantity1
EA Weight10.5
EA Width11.57
Pack TypeBox

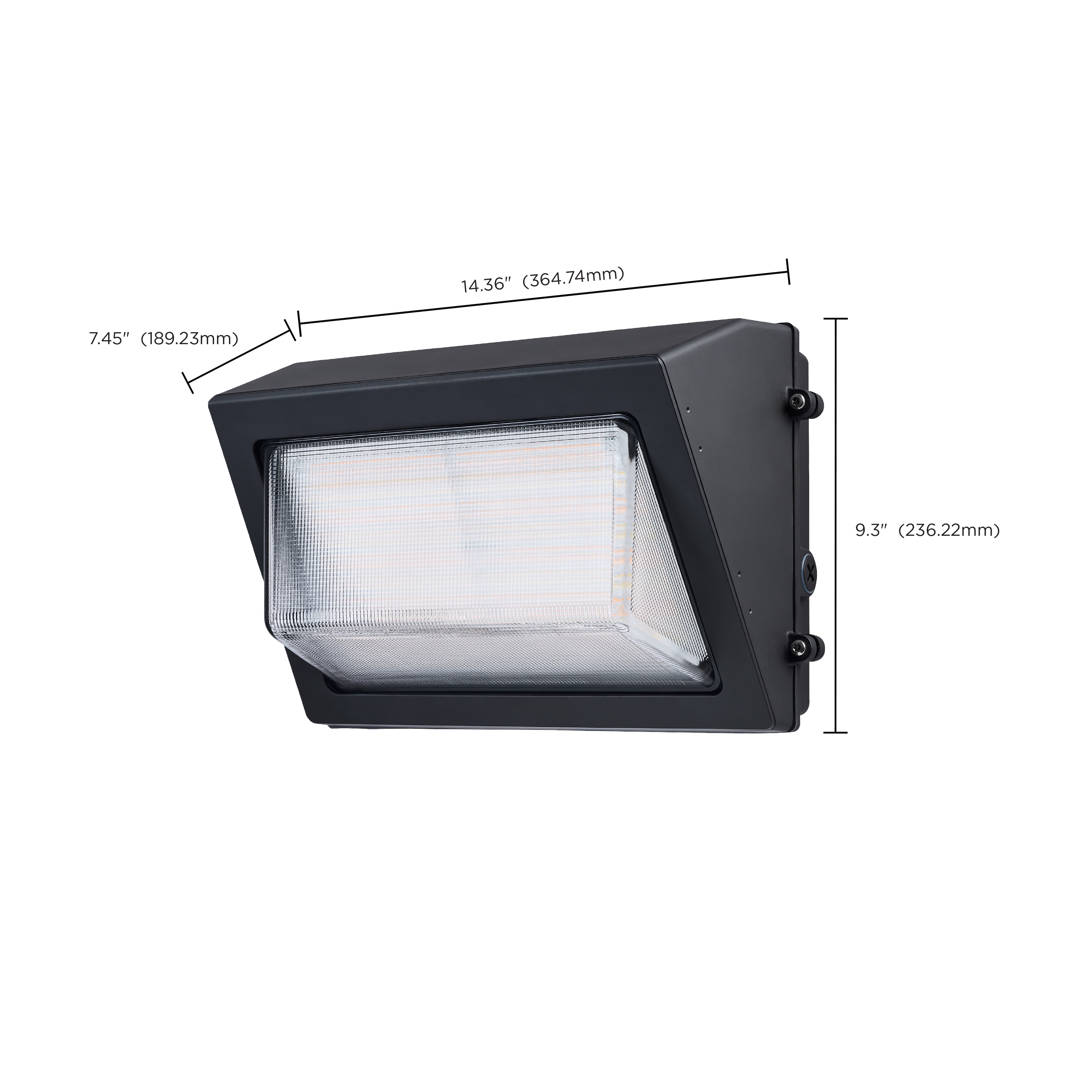

Web Height9.3
Web Length14.36
Web Width14.36
