| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming |
| Material | Die-cast Aluminum |

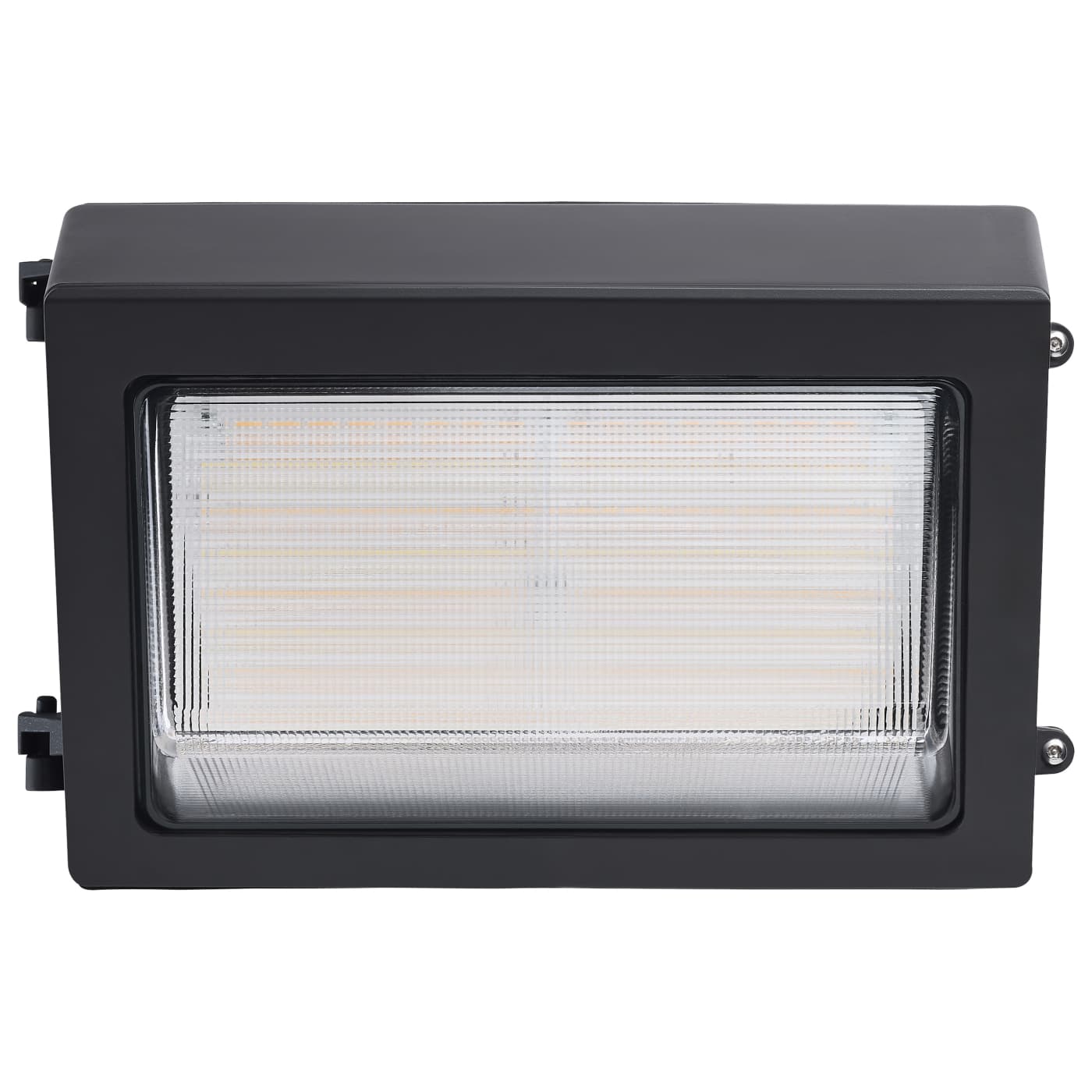

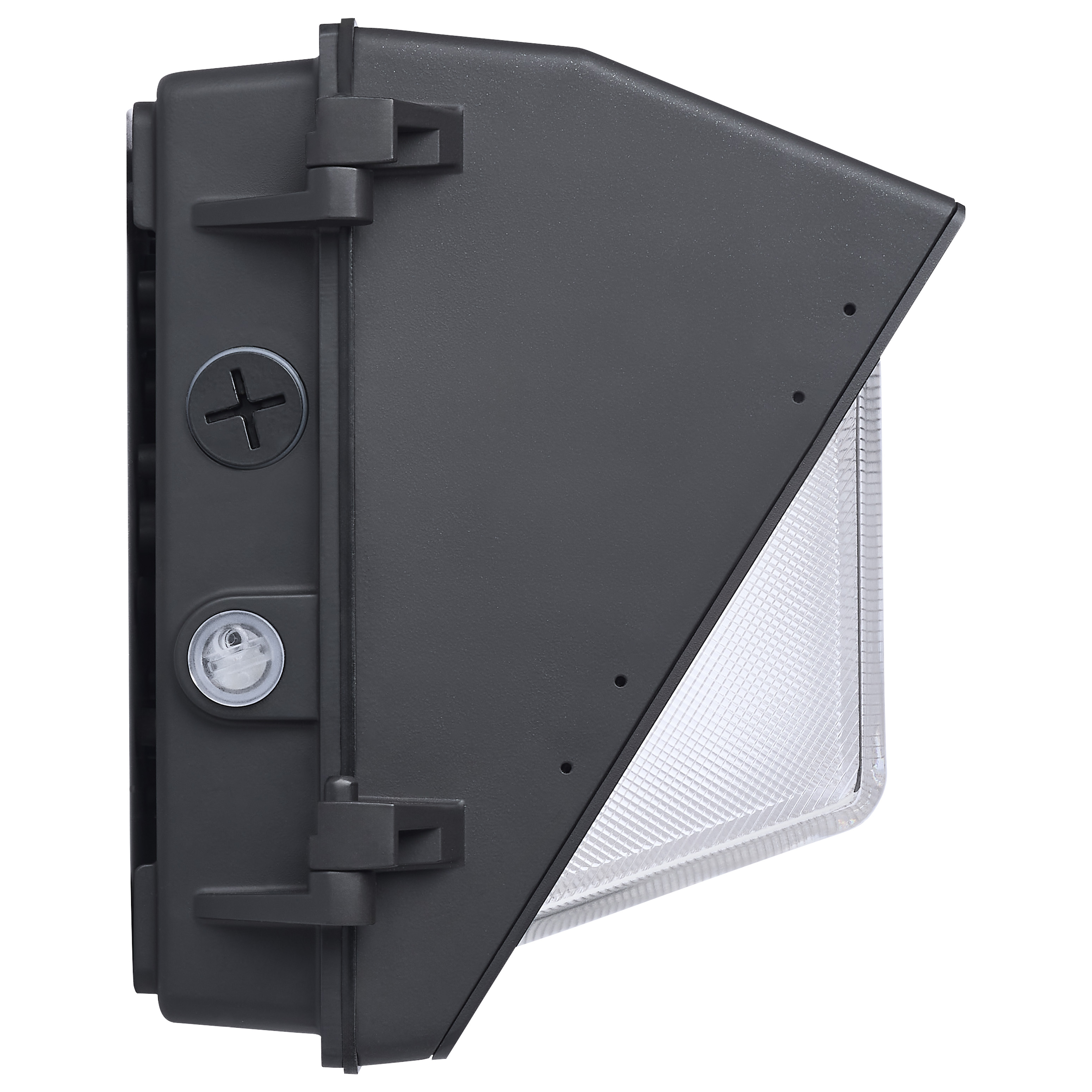

| Fixture Type | Wall Pack |
| Product Notes | Default Wattage: 120W |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 6KV |
| Total Harmonic Distortion | <20% |

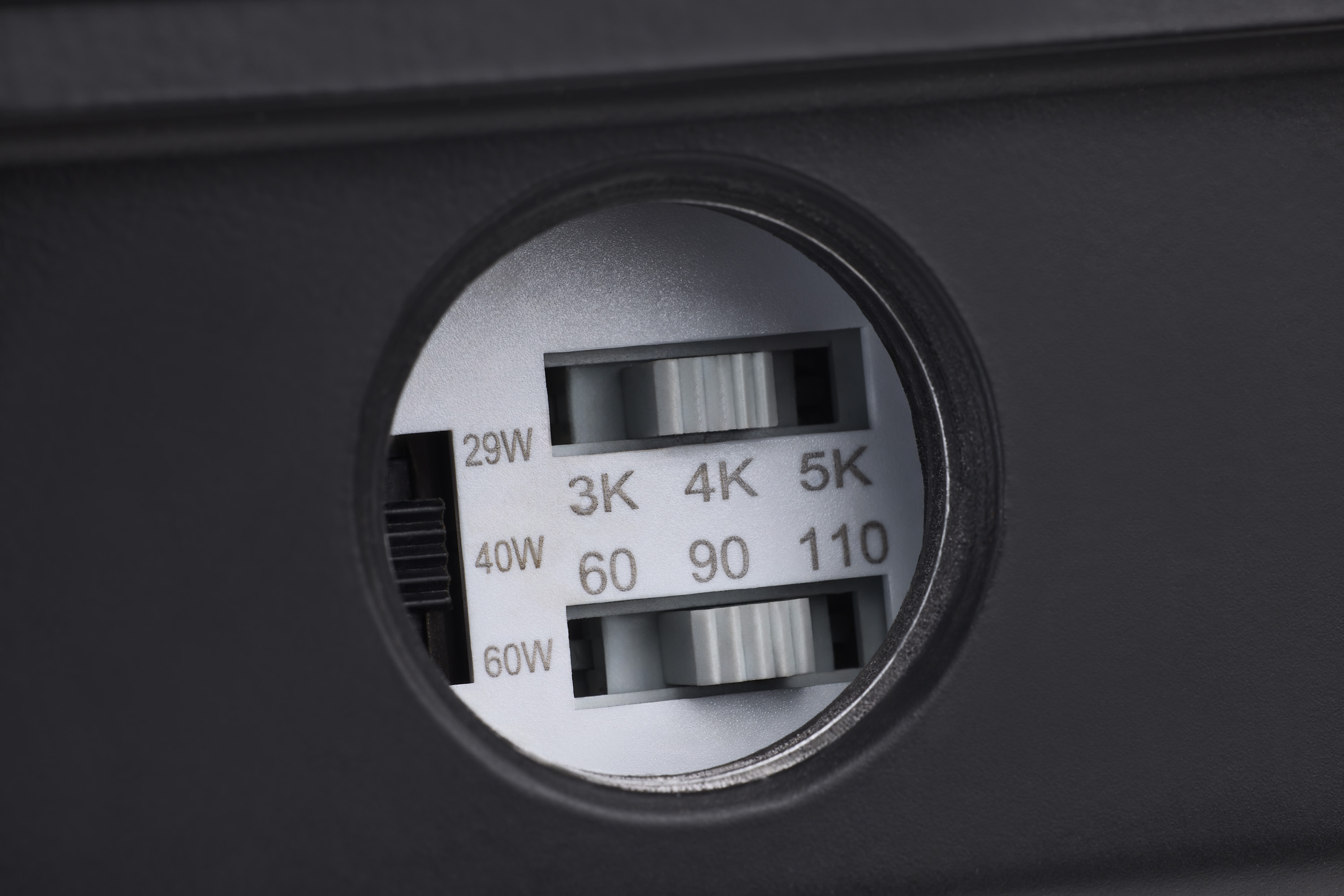

| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | Bronze |
| Amps | 1.000-0.350/0.830-0.290/0.670-0.230A |
| Lens Finish | Clear |
| Lens Material | Borosilicate Glass |
| Lensed | True |
| Starfish Operational Humidity | 20% to 95% R.H. |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Product Technology | LED |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 60/90/110 |
| Color Temp | Soft White to Natural Light |
| CRI | 80 |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +50C (+122F) |
| HID Equivalent | 200W-400W |
| Lumens | 11858L-18221L |
| Volts | 120V-347V |
| Watts | 120W/100W/80W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| Bug Rating | B2-U5-G5 |
|---|---|
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| Dark Sky Rated | False |
| DLC ID | S-LRSM9Q |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923412455 |
|---|---|
| Case Cube | 1.0673 |
| Case Height | 10.0 |
| Case Length | 15.94 |
| Case Quantity | 1 |
| Case UPC | 10045923412452 |
| Case Weight | 10.5 |
| Case Width | 11.57 |
| EA Cube | 1.0673 |
| EA Height | 10.0 |
| EA Length | 15.94 |
| EA Quantity | 1 |
| EA Weight | 10.5 |
| EA Width | 11.57 |
| Inner Cube | 0.0 |
| Pack Type | Box |
| Web Height | 9.3 |
| Web Length | 14.36 |
| Web Width | 14.36 |
