65-1525 150W SELECT AREA LT

Description

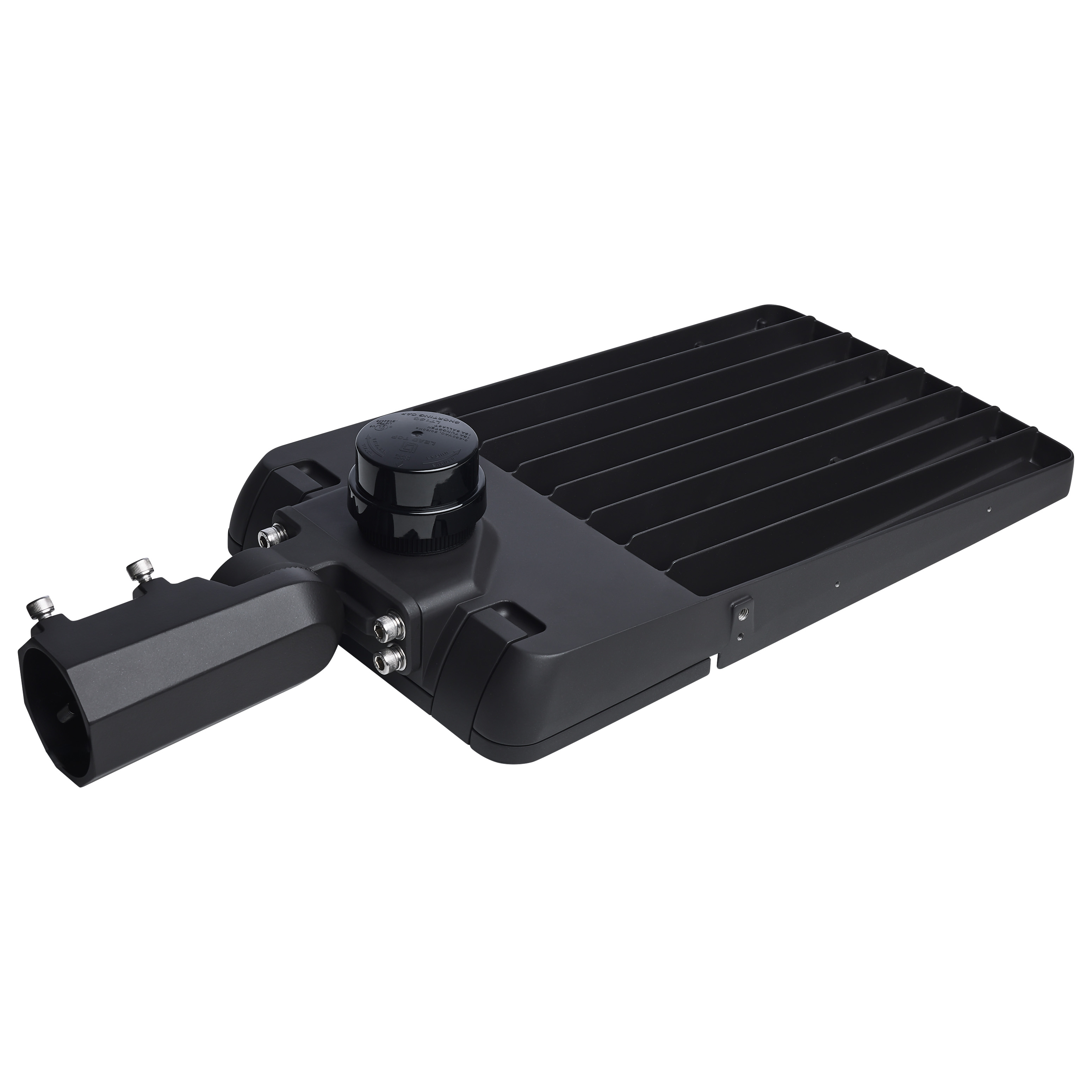

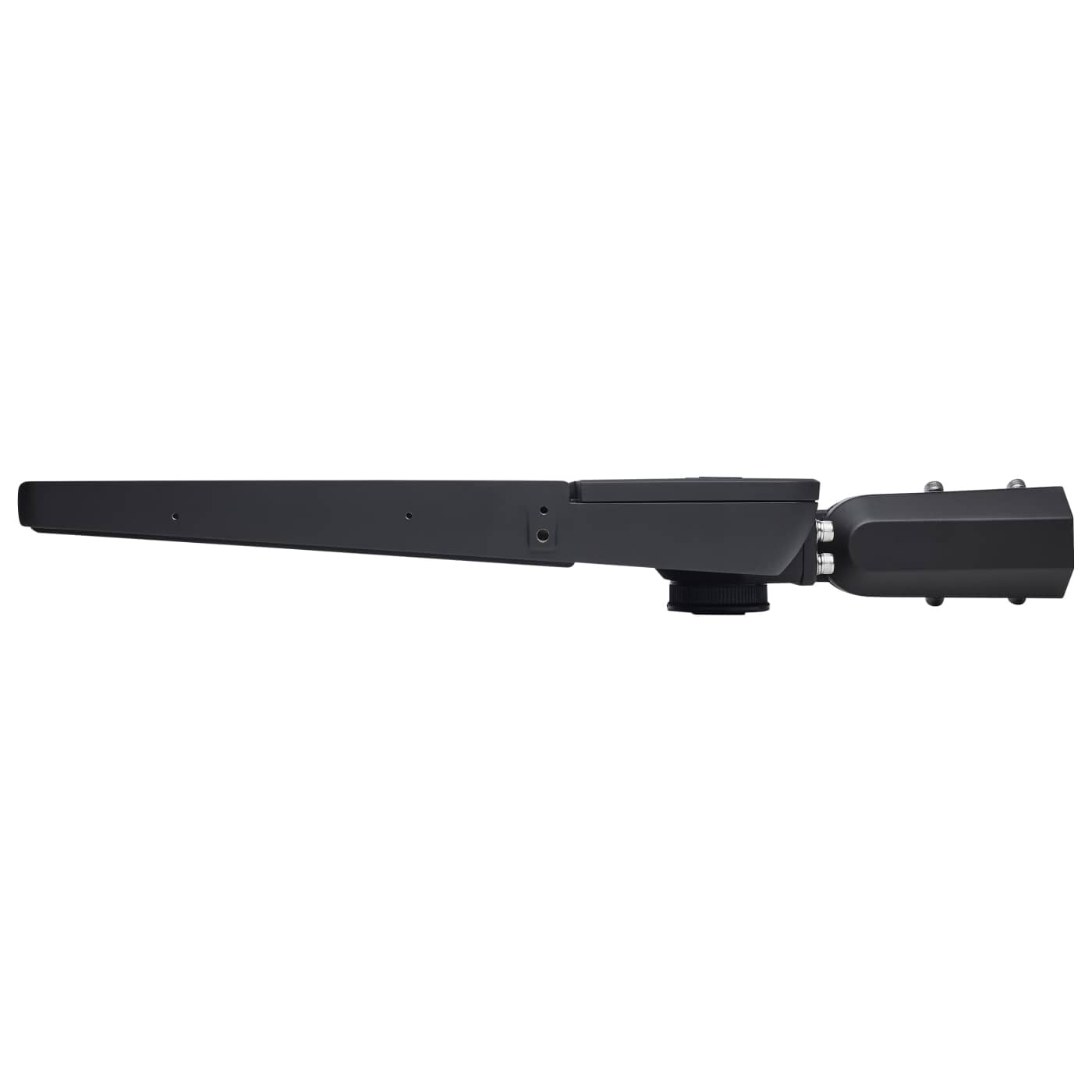

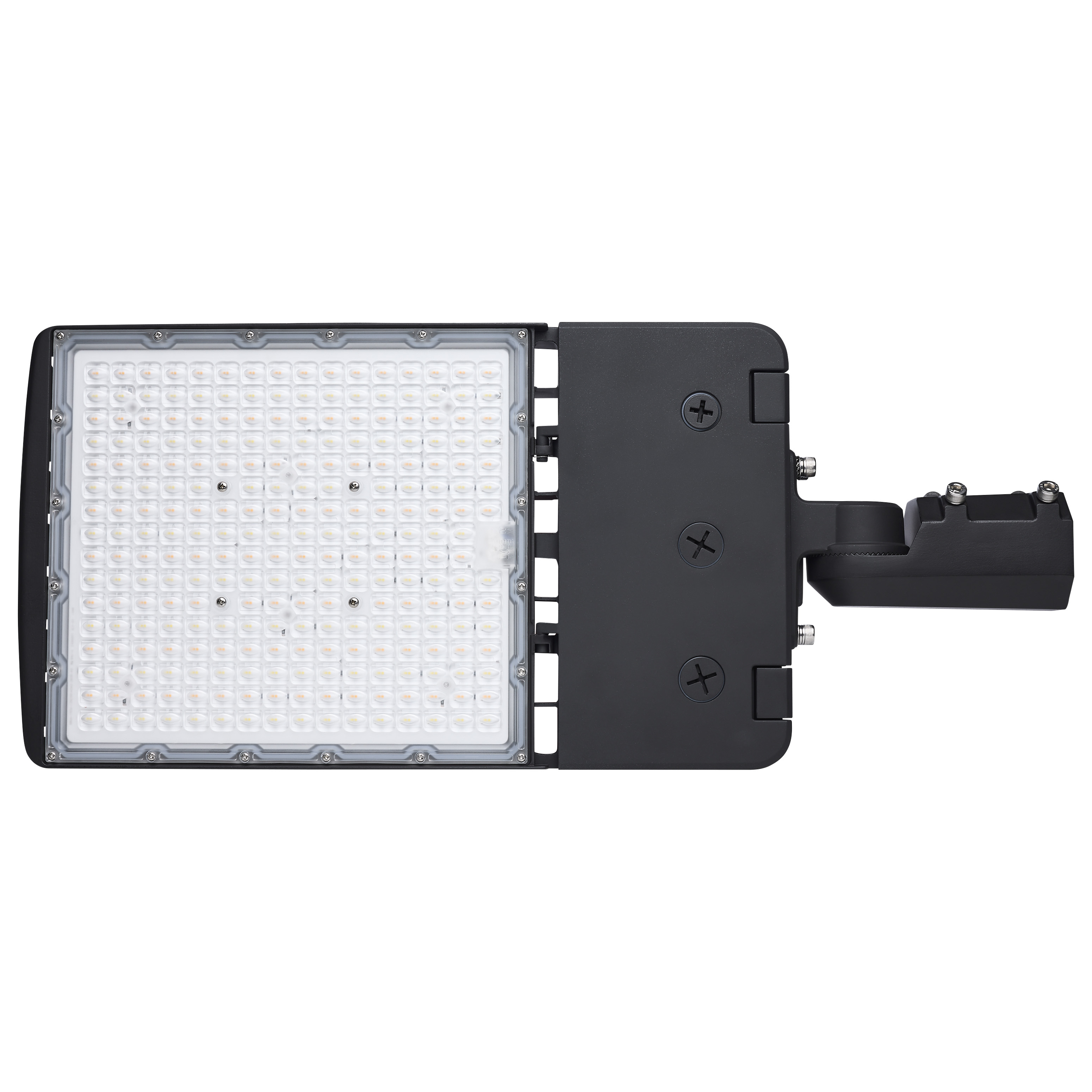

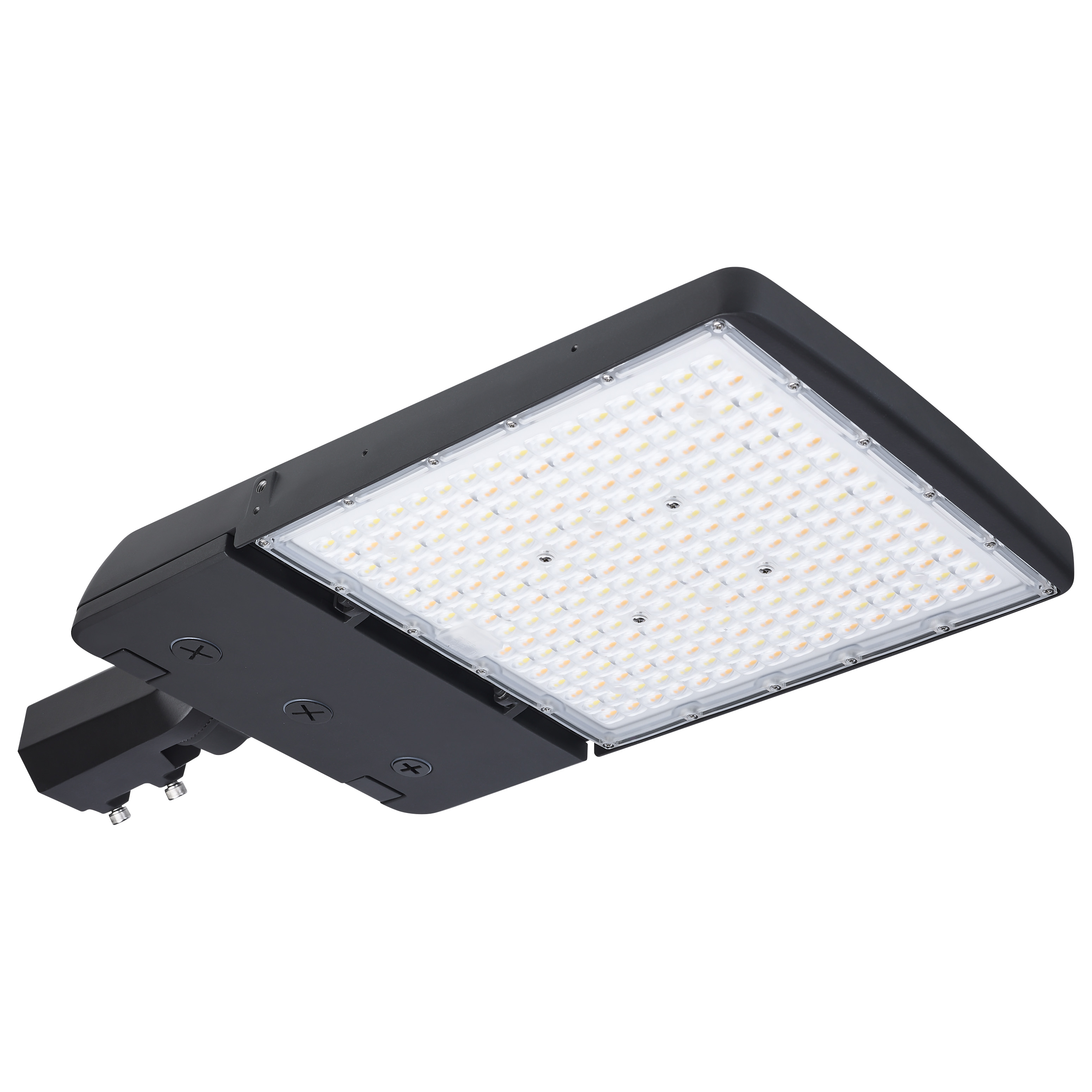

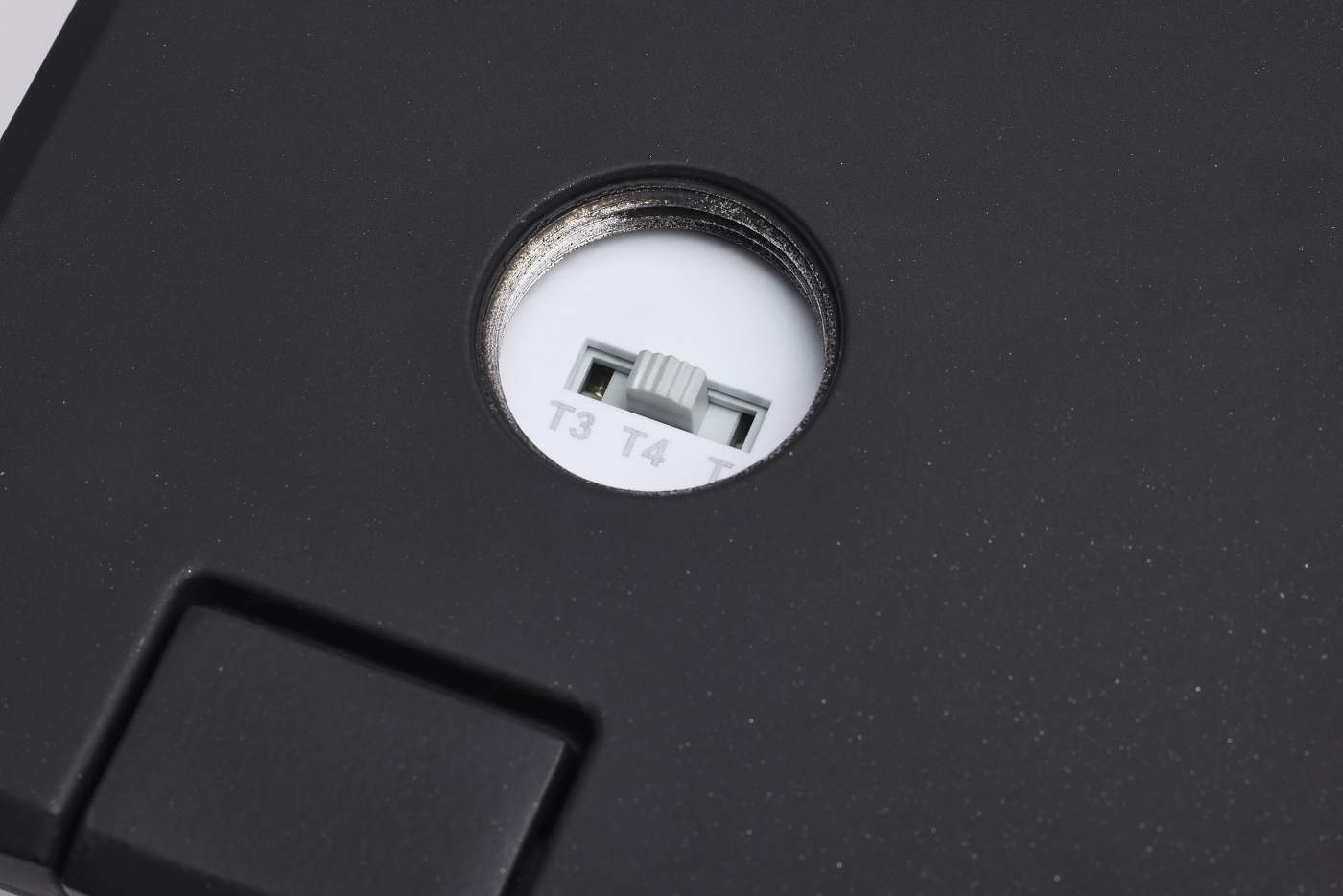

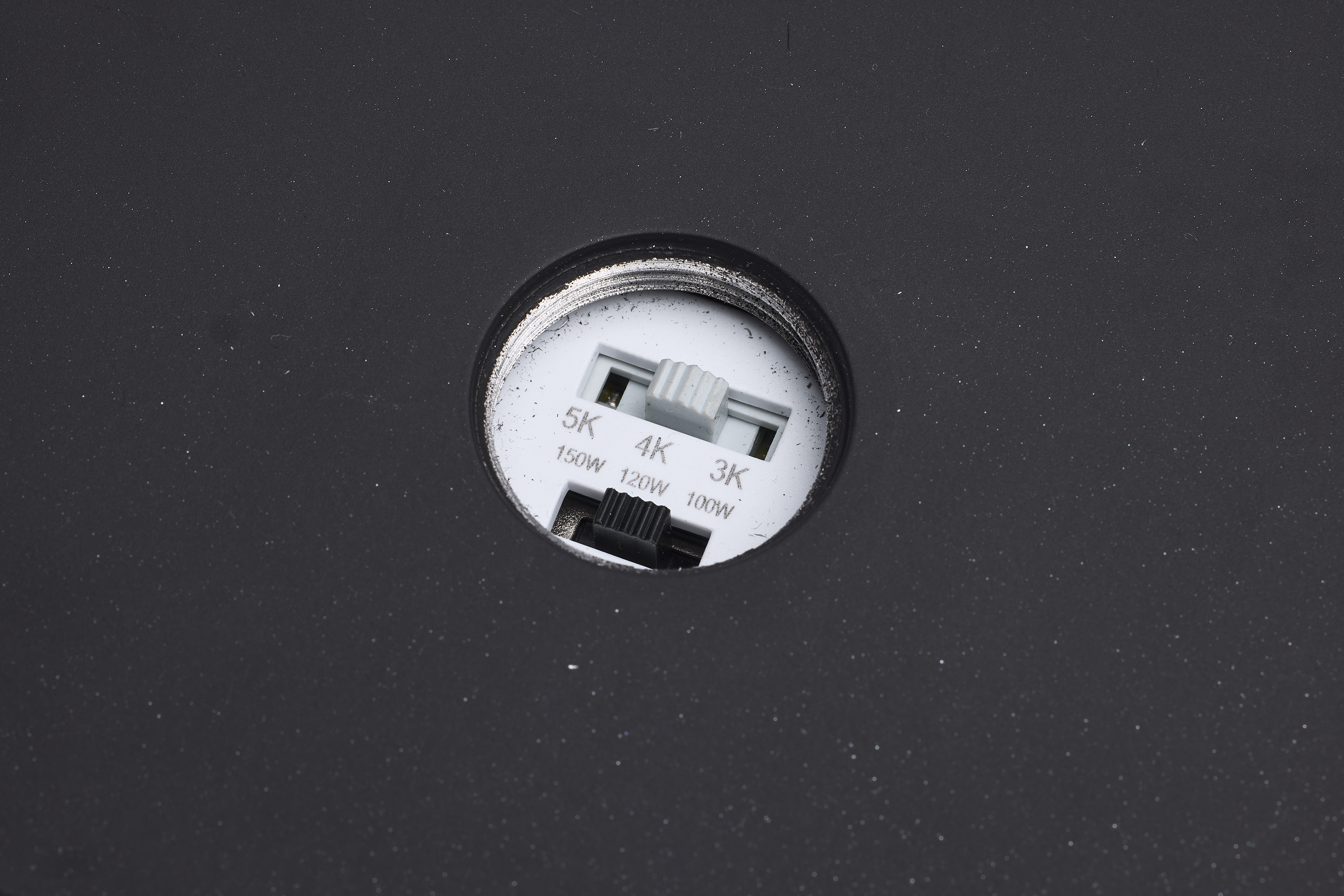

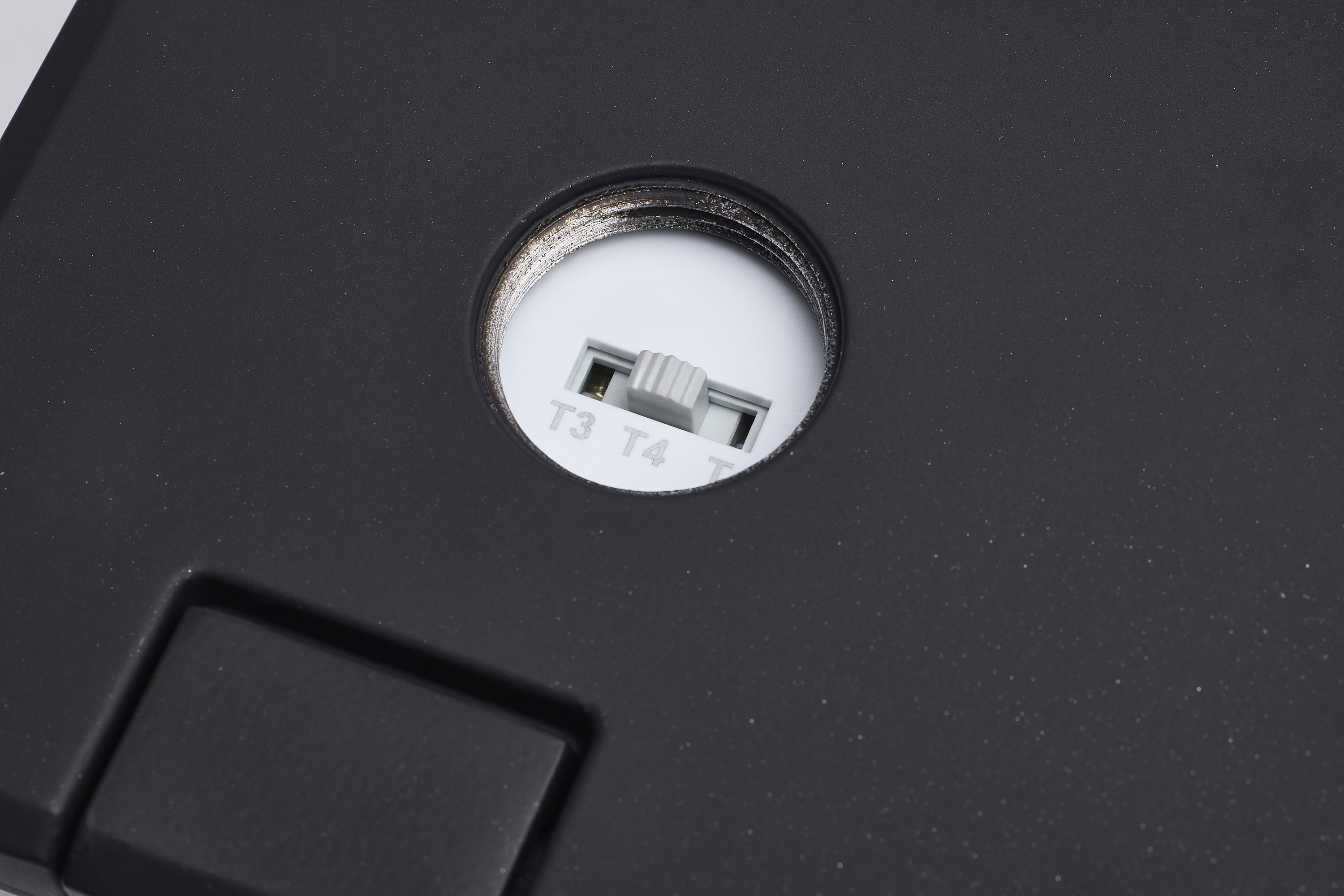

The SATCO NUVO 65-1525 LED Beam Selectable Area Light delivers high-performance outdoor illumination with precision-controlled distribution. Selectable Type III, Type IV, or Type V beams and selectable CCTs of 3000K, 4000K, and 5000K allow coverage to be tailored to site requirements. Field-selectable wattage options of 100W, 120W, or 150W produce 15,274 to 22,951 lumens with efficacy up to 153 LPW. Designed for 120–277V operation, the fixture features a die-cast aluminum housing with IK08-rated polycarbonate lens in a bronze finish and includes an integrated sensor port. IP65 rated, wet-location suitable, DLC 6.0 Listed, supplied with a standard 2-3/8" slip fitter mount, and backed by a 50,000-hour rated life.

Products Specs

General

Company	NUVO
Bulb Included	Integrated
Material	Die-cast Aluminum
Fixture Type	Area Light

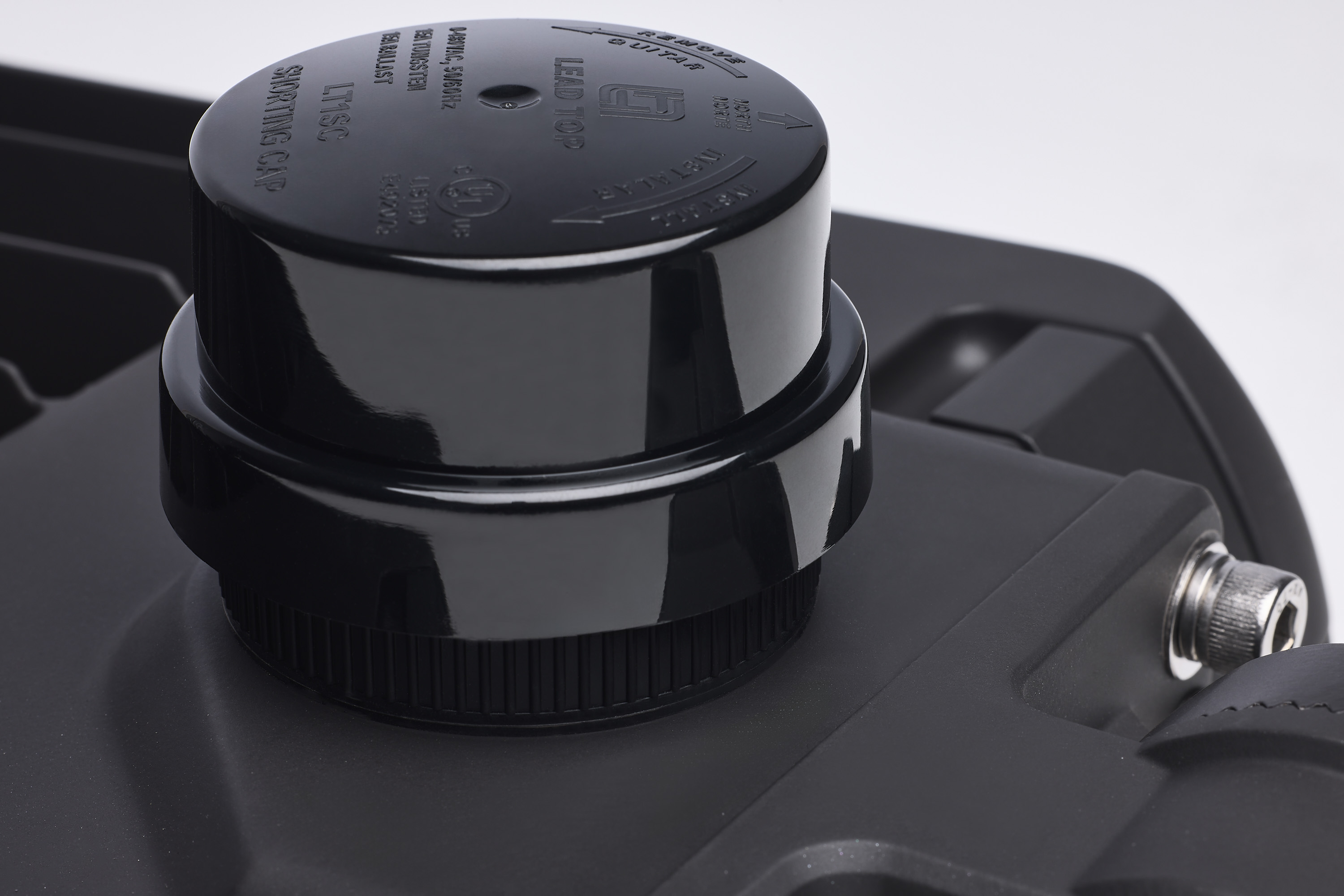

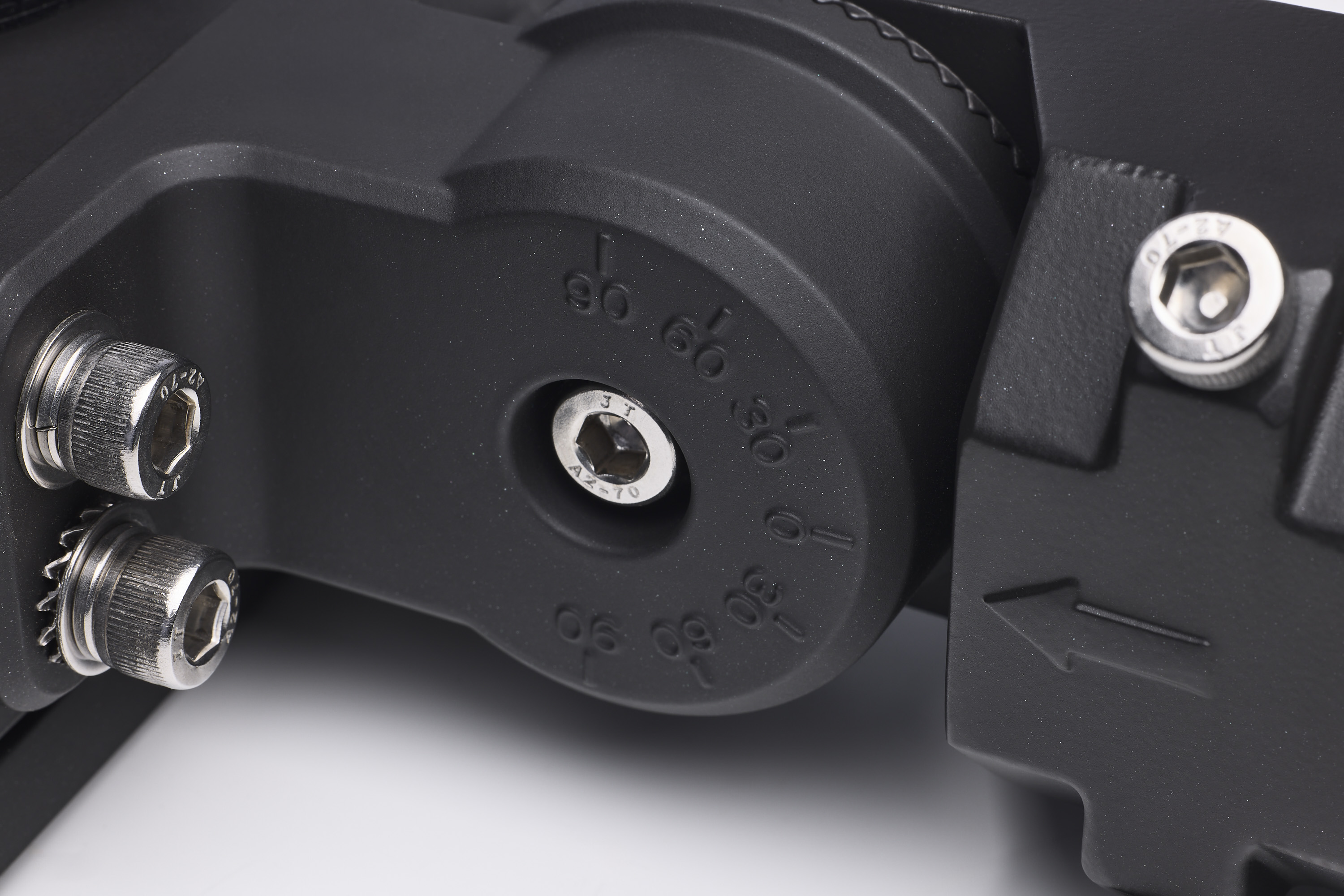

Includes	2 3/8-inch Slip Fitter Mount and Shorting Cap
Product Notes	Default Wattage: 150W; Type III/IV/V Light Distribution
Status	Active
Style	Utility
Surge Protection	Built-in surge protection - 6KV
Total Harmonic Distortion	<20%
Wire Color	Black
CCT Selectable	Yes
Wattage Selectable	Yes
Finish Family	Bronze
Amps	1.250-0.540/1.000-0.830/0.830-360A

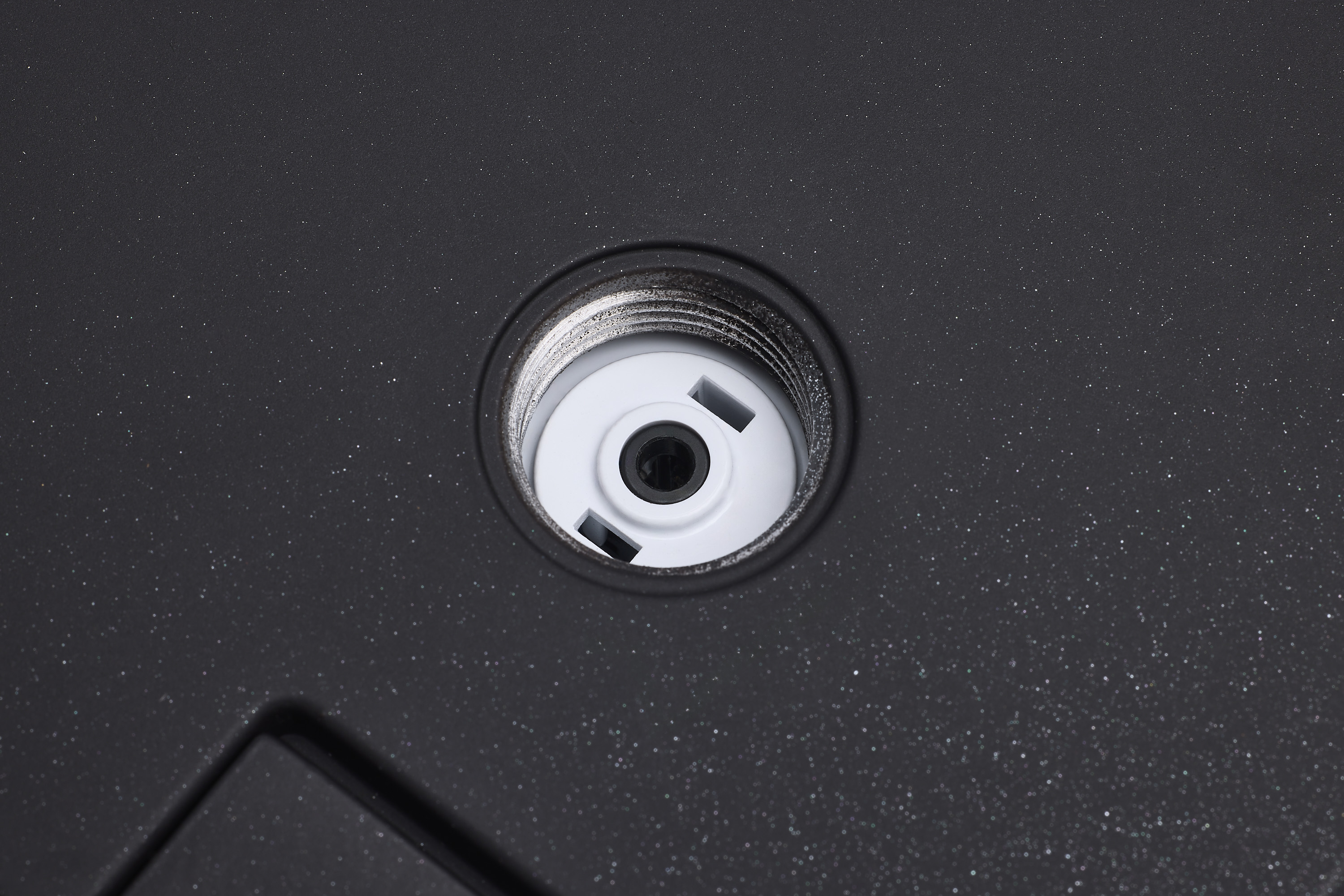

Integrated Features	Integrated Sensor Port
Lens Finish	Clear
Lens Material	Polycarbonate (PC)
Lensed	Yes
Starfish Operational Humidity	20% to 90% R.H.
Power Factor	>0.9
SDS Class	LED_Fixture
Indoor Outdoor	Outdoor
Product Technology	LED
Incandescent Equivalent	500W-1500W

Electrical

CCT (Kelvin Temp)	3000K/4000K/5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Beam Angle (degree)	155x80/155x120/155x145
Color Temp	Soft White to Natural Light
CRI	80+
Dimming Type	0-10V Dimming
Operating Frequency	50/60Hz
Operating Temp	-40F to +122F (-40C to +50C)
HID Equivalent	250W-400W
Lumens	15274L-22951L
Volts	120V-277V
Watts	150W/120W/100W
Max Lumens	22951L

Physical

Lamp Base	Integrated
Finish	BRONZE
ANSI Base	Integrated
Lamp Type	Integrated LED

Additional Info

Warranty	5-Years

Documents

LED AREA LIGHT BEAM SELECTABLE|FIELD SELECTABLE

65-1525 Specifications

65-1525_EPA_Rating_Report.pdf

65-1525_Instructions.pdf

65-1525_Spec_Chart.pdf

Compliance

Bug Rating	B3-U0-G3
CA Prop 65	Lead
DLC ID	S-1Z34M4; S-V35JFX
FCC Compliant	Yes
IP Rating	IP65
Location Rating	Wet
NSF Approved	No
ROHS Compliant	Yes
Safety Listing	cULus - Listed
California Ban	Lawful for sale
DLC Approved	Yes
Title 20	Exempt
T24/JA8 Compliant	No

Packaging

UPC	045923412547
Case Cube	0.8349
Case Height	4.61
Case Length	26.77
Case Quantity	1
Case UPC	10045923412544
Case Weight	12.28
Case Width	11.69
EA Cube	0.8349
EA Height	4.61
EA Length	26.77
EA Quantity	1
EA Weight	12.28
EA Width	11.69
Pack Type	Brown Box

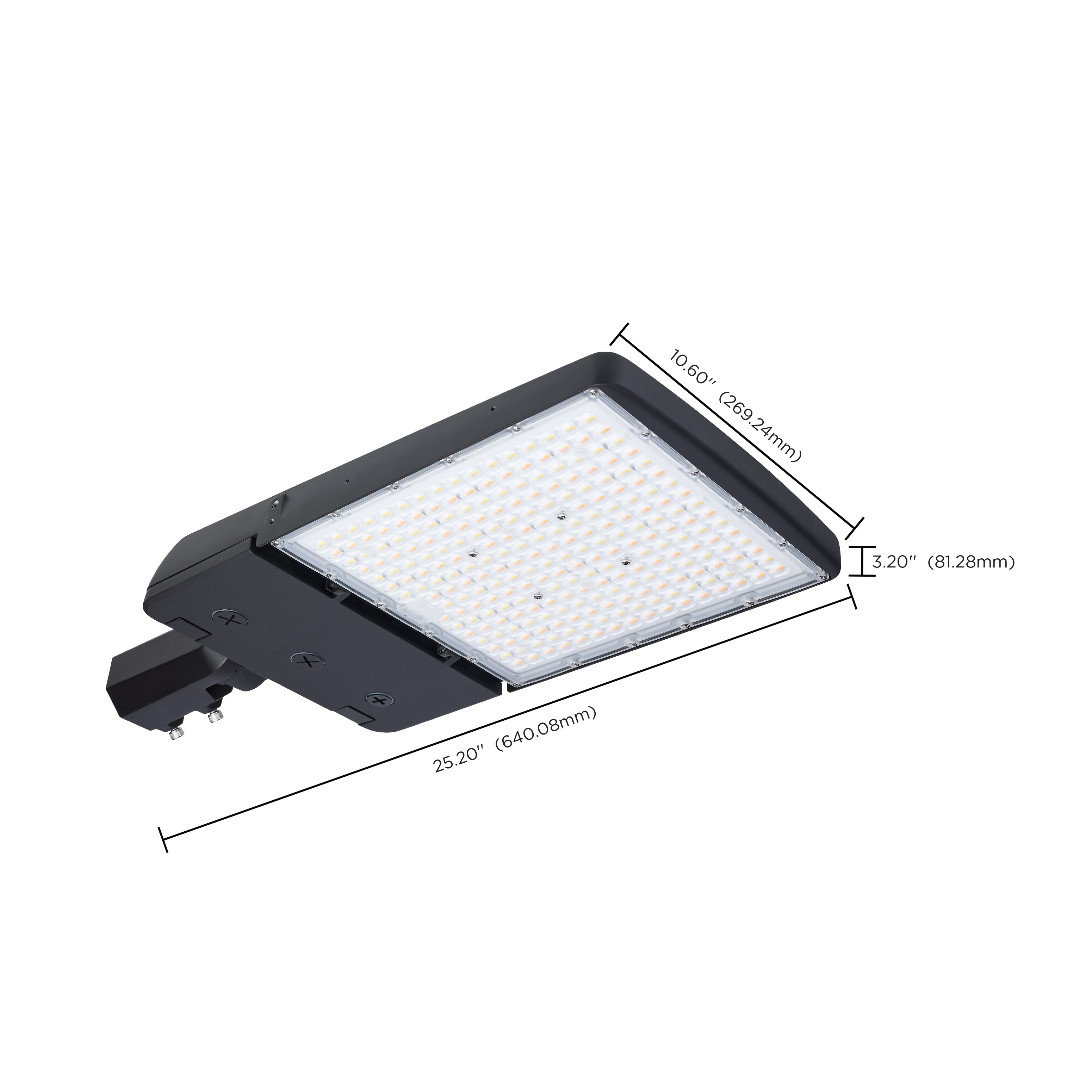

Web Height	3.2
Web Length	25.2
Web Width	10.6
