65-1527 150W SELECT AREA LT

Description

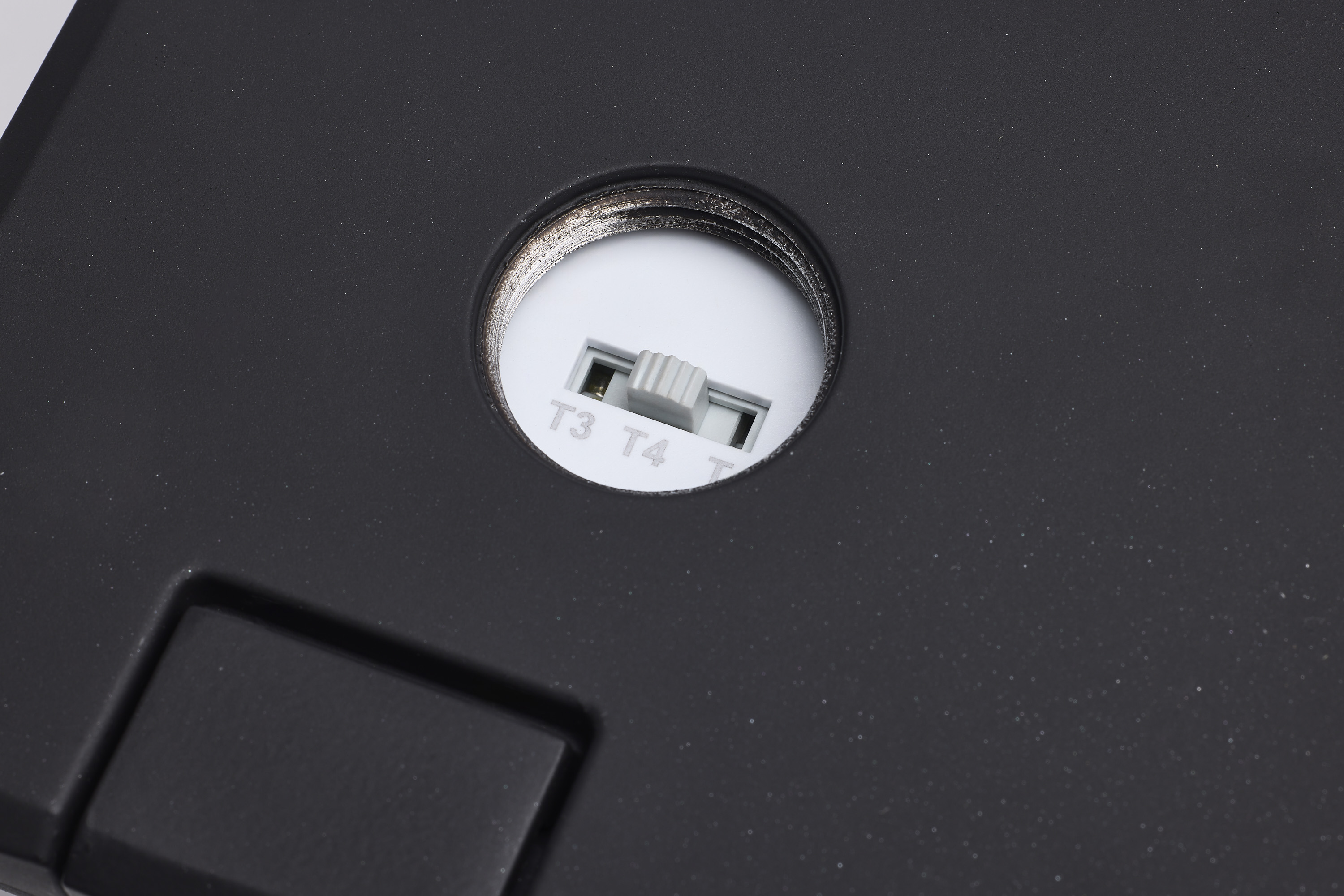

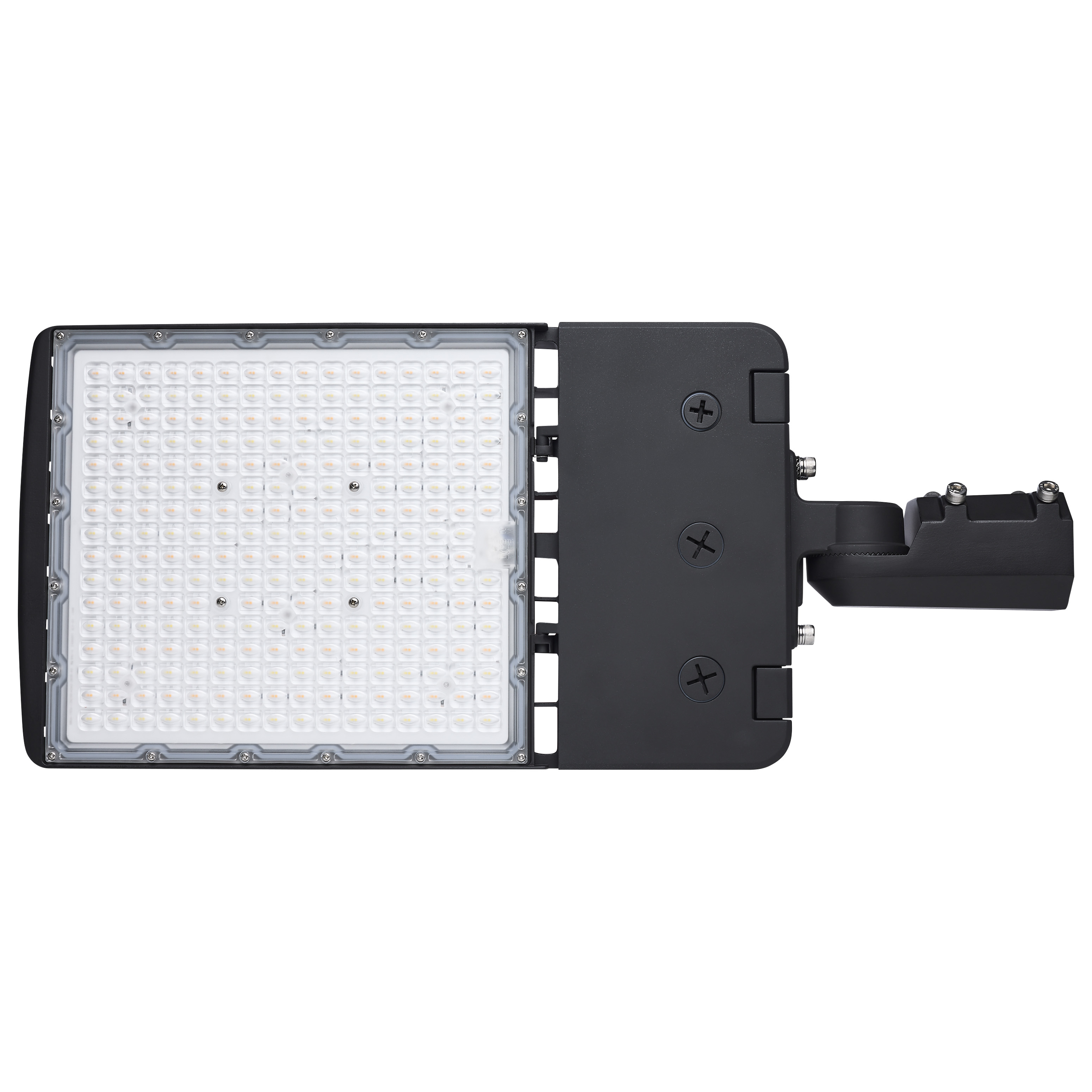

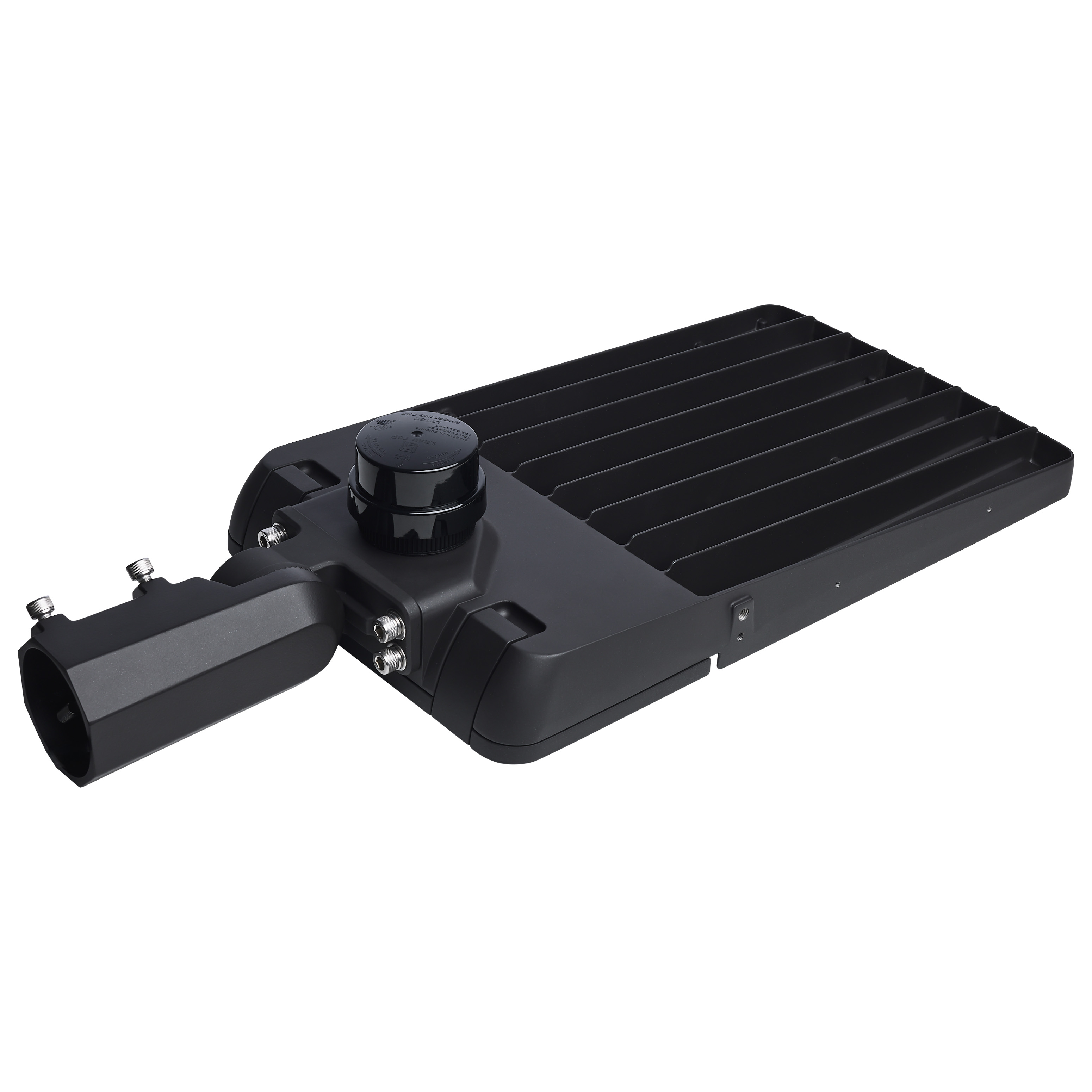

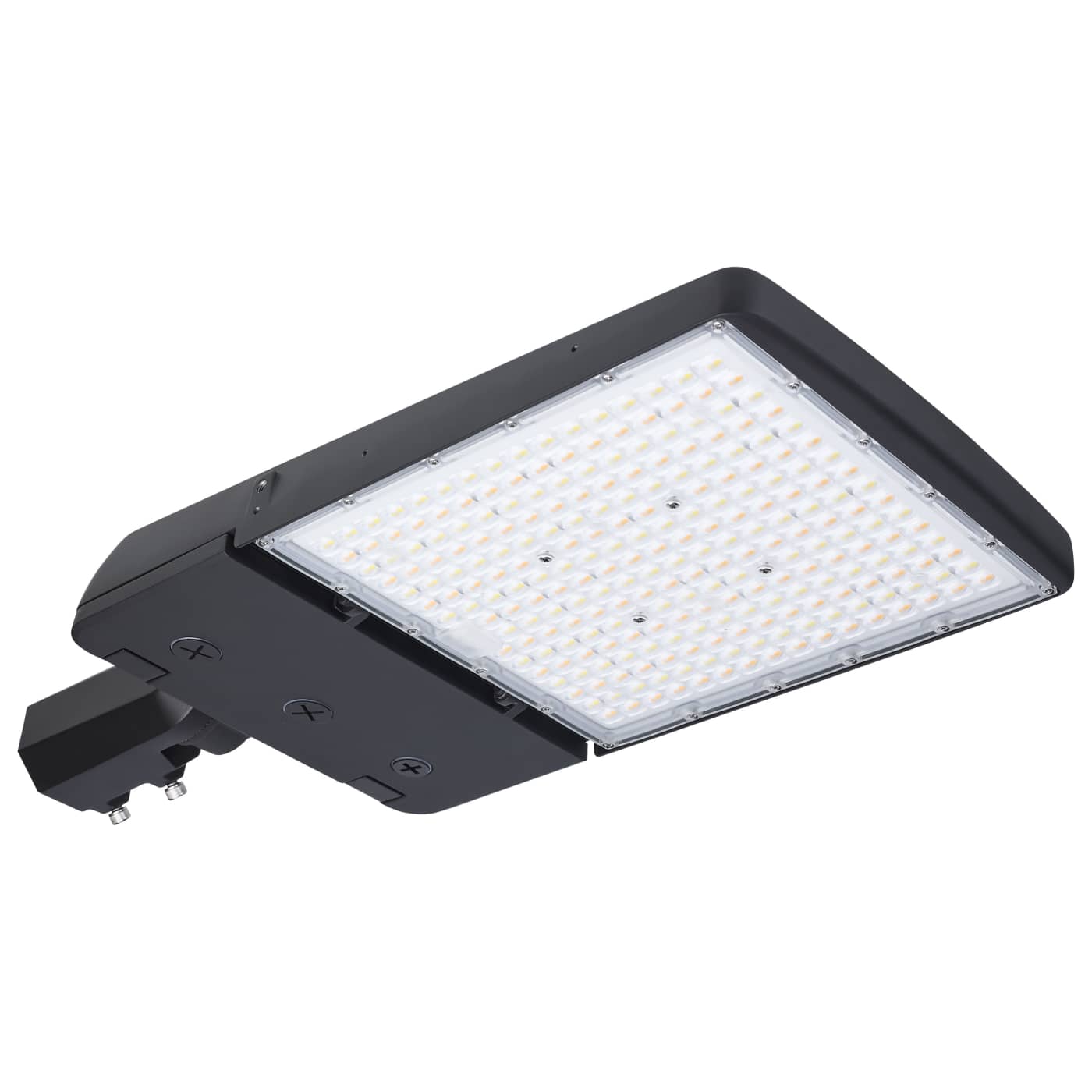

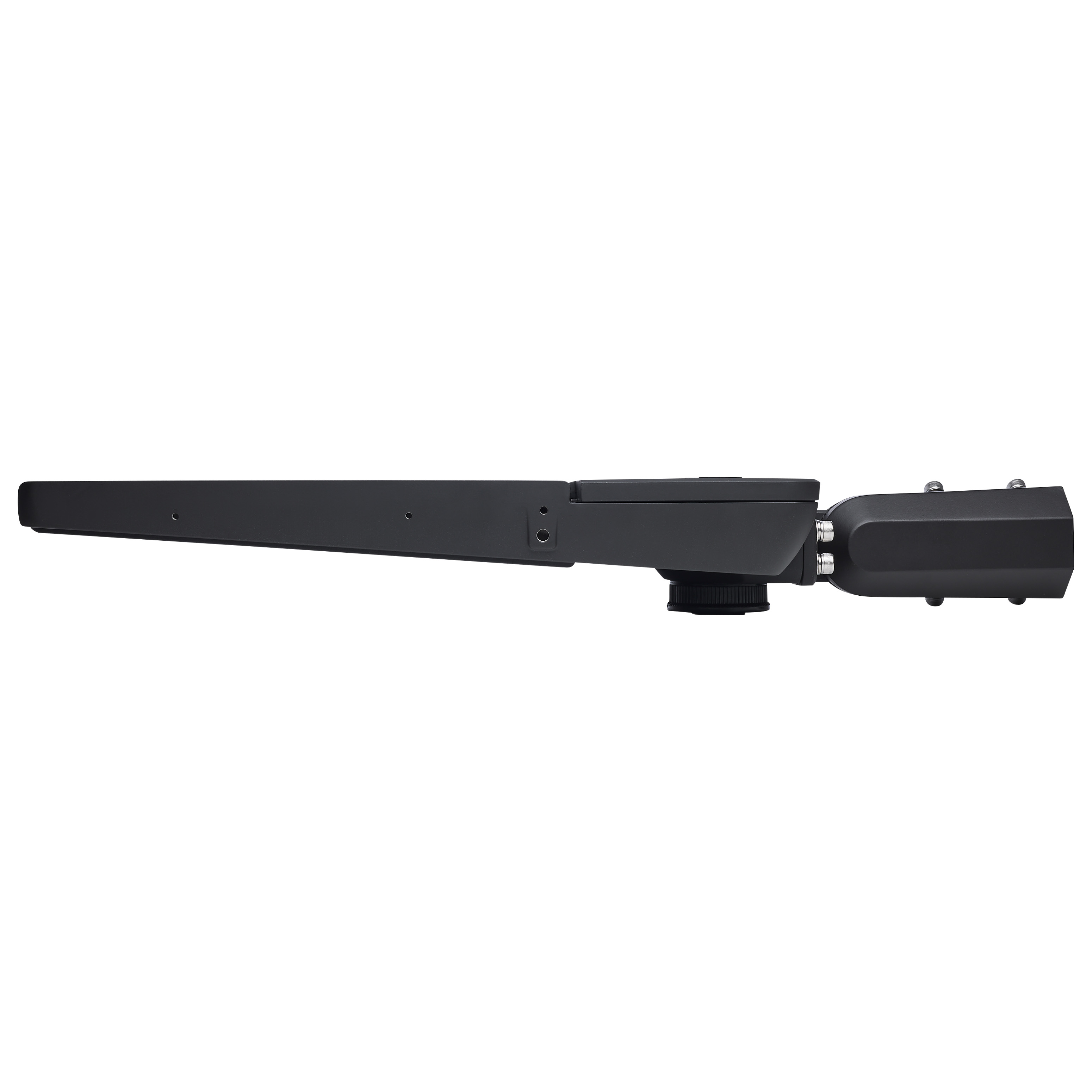

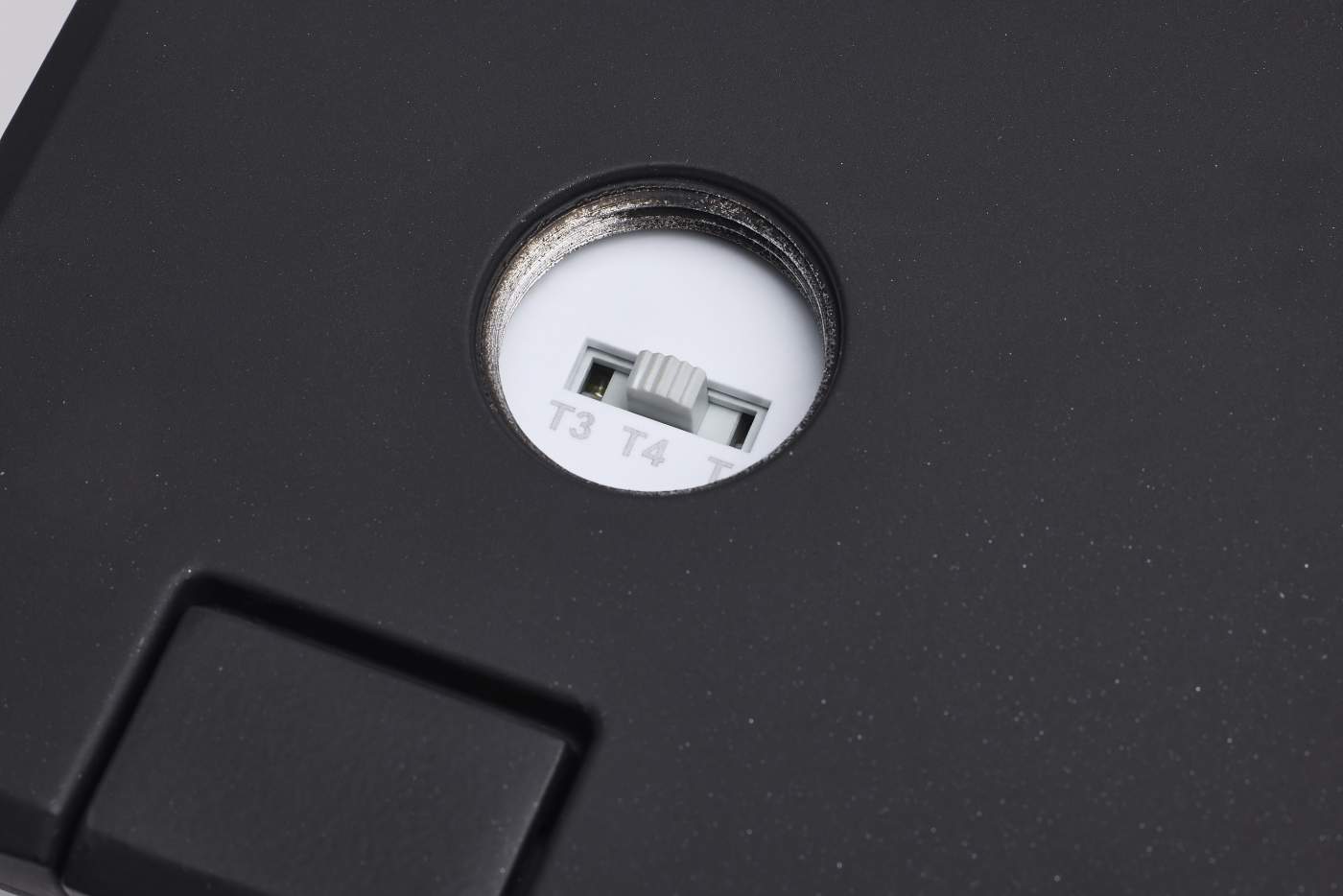

The SATCO NUVO 65-1527 LED Beam Selectable Area Light offers adaptable outdoor illumination for sites requiring higher-voltage operation. Selectable Type III, Type IV, or Type V beams and selectable CCTs of 3000K, 4000K, and 5000K allow tailored coverage and color temperature. Field-selectable wattage options of 100W, 120W, or 150W generate 15,488 to 22,855 lumens with efficacy up to 154 LPW. Designed for 277–480V operation, the fixture features a die-cast aluminum housing with IK08-rated polycarbonate lens in a bronze finish and includes an integrated sensor port. IP65 rated, wet-location suitable, DLC 6.0 Listed, supplied with a standard 2-3/8" slip fitter mount, and backed by a 50,000-hour rated life.

Products Specs

General

Company	NUVO
Bulb Included	Integrated
Material	Die-cast Aluminum
Fixture Type	Area Light

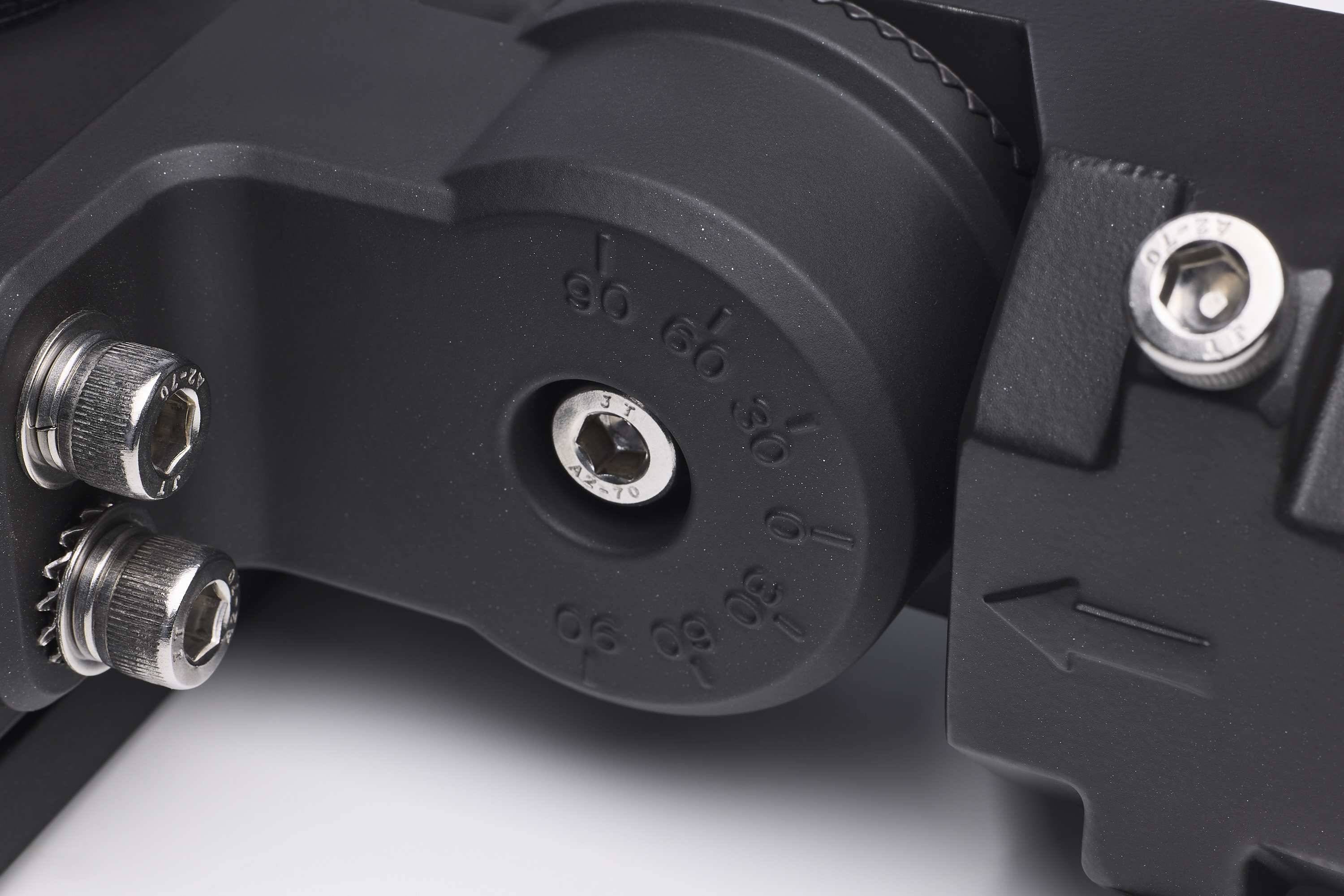

Includes	2 3/8-inch Slip Fitter Mount and Shorting Cap
Product Notes	Default Wattage: 150W; Type III/IV/V Light Distribution
Status	Active
Style	Utility
Surge Protection	Built-in surge protection - 6KV
Total Harmonic Distortion	<20%
Wire Color	Black

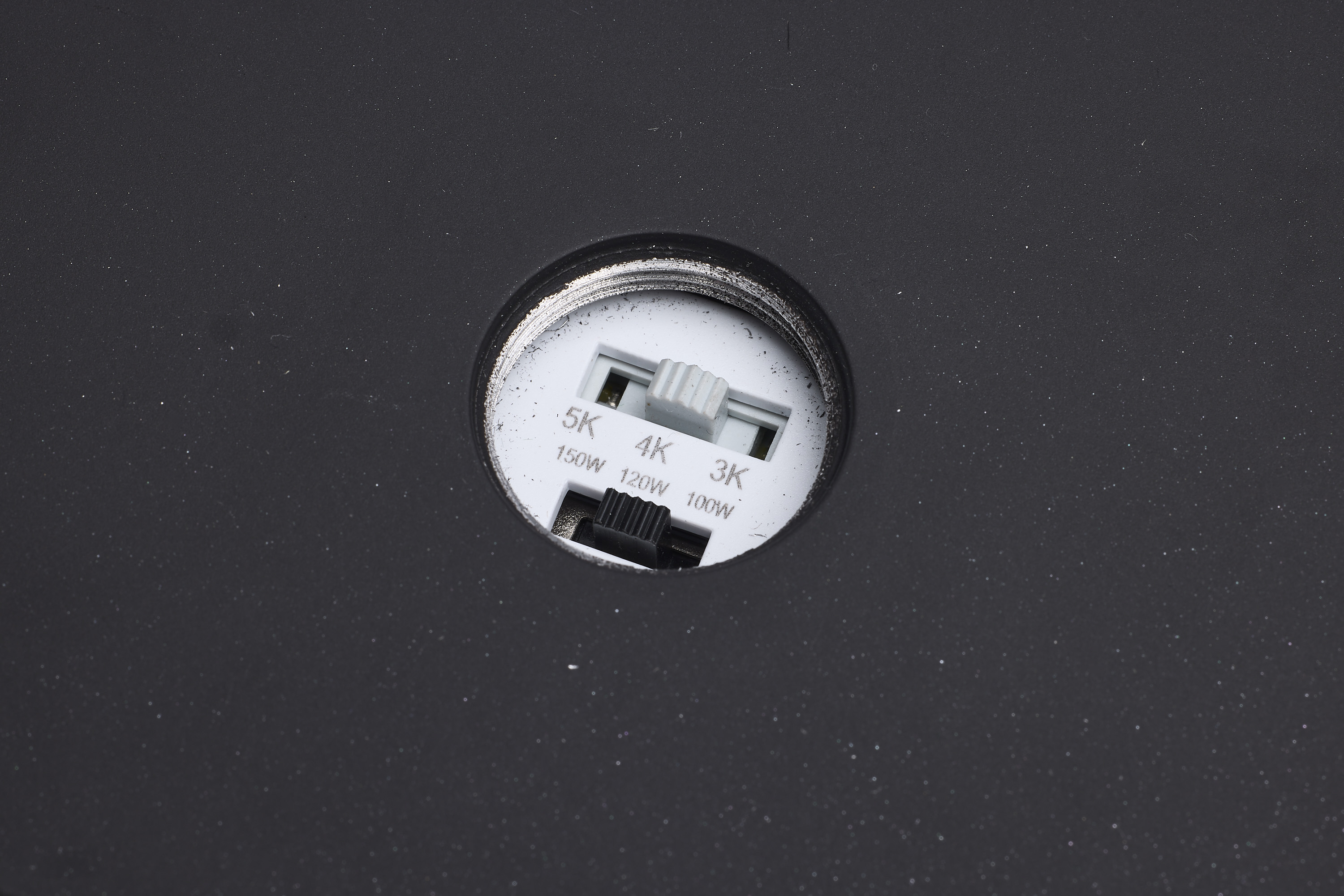

CCT Selectable	Yes
Wattage Selectable	Yes
Finish Family	Bronze
Amps	0.540-0.310/0.430-250/0.360-0.210A

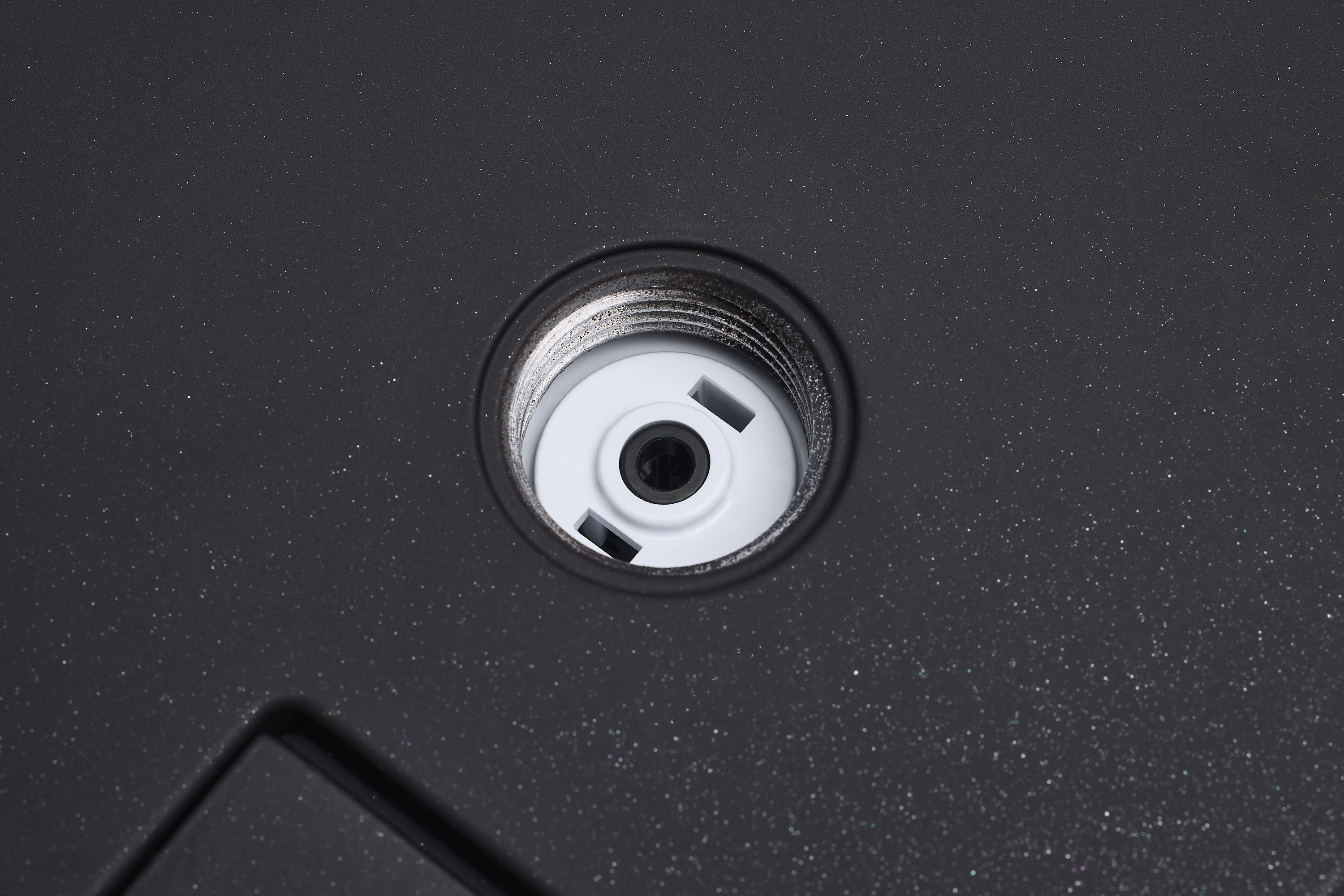

Integrated Features	Integrated Sensor Port
Lens Finish	Clear
Lens Material	Polycarbonate (PC)
Lensed	Yes
Starfish Operational Humidity	20% to 90% R.H.
Power Factor	>0.9
SDS Class	LED_Fixture
Indoor Outdoor	Outdoor
Product Technology	LED
Incandescent Equivalent	500W-1500W

Electrical

CCT (Kelvin Temp)	3000K/4000K/5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Beam Angle (degree)	155x80/155x/120/155x145
Color Temp	Soft White to Natural Light
CRI	80+
Dimming Type	0-10V Dimming
Operating Frequency	50/60Hz
Operating Temp	-40F to +122F (-40C to +50C)
HID Equivalent	250W-400W
Lumens	15488L-22855L
Volts	277V-480V
Watts	150W/120W/100W
Max Lumens	22855L

Physical

Lamp Base	Integrated
Finish	BRONZE
ANSI Base	Integrated
Lamp Type	Integrated LED

Additional Info

Warranty	5-Years

Documents

LED AREA LIGHT BEAM SELECTABLE|FIELD SELECTABLE

65-1527 Specifications

65-1527_EPA_Rating_Report.pdf

65-1527_Instructions.pdf

65-1527_Spec_Chart.pdf

Compliance

Bug Rating	B3-U0-G3
CA Prop 65	Lead
DLC ID	S-H3D6ZD; S-GP0L4W
FCC Compliant	Yes
IP Rating	IP65
Location Rating	Wet
NSF Approved	No
ROHS Compliant	Yes
Safety Listing	cULus - Listed
California Ban	Lawful for sale
DLC Approved	Yes
Title 20	Exempt
T24/JA8 Compliant	No

Packaging

UPC	045923412561
Case Cube	0.8349
Case Height	4.61
Case Length	26.77
Case Quantity	1
Case UPC	10045923412568
Case Weight	12.28
Case Width	11.69
EA Cube	0.8349
EA Height	4.61
EA Length	26.77
EA Quantity	1
EA Weight	12.28
EA Width	11.69
Pack Type	Brown Box

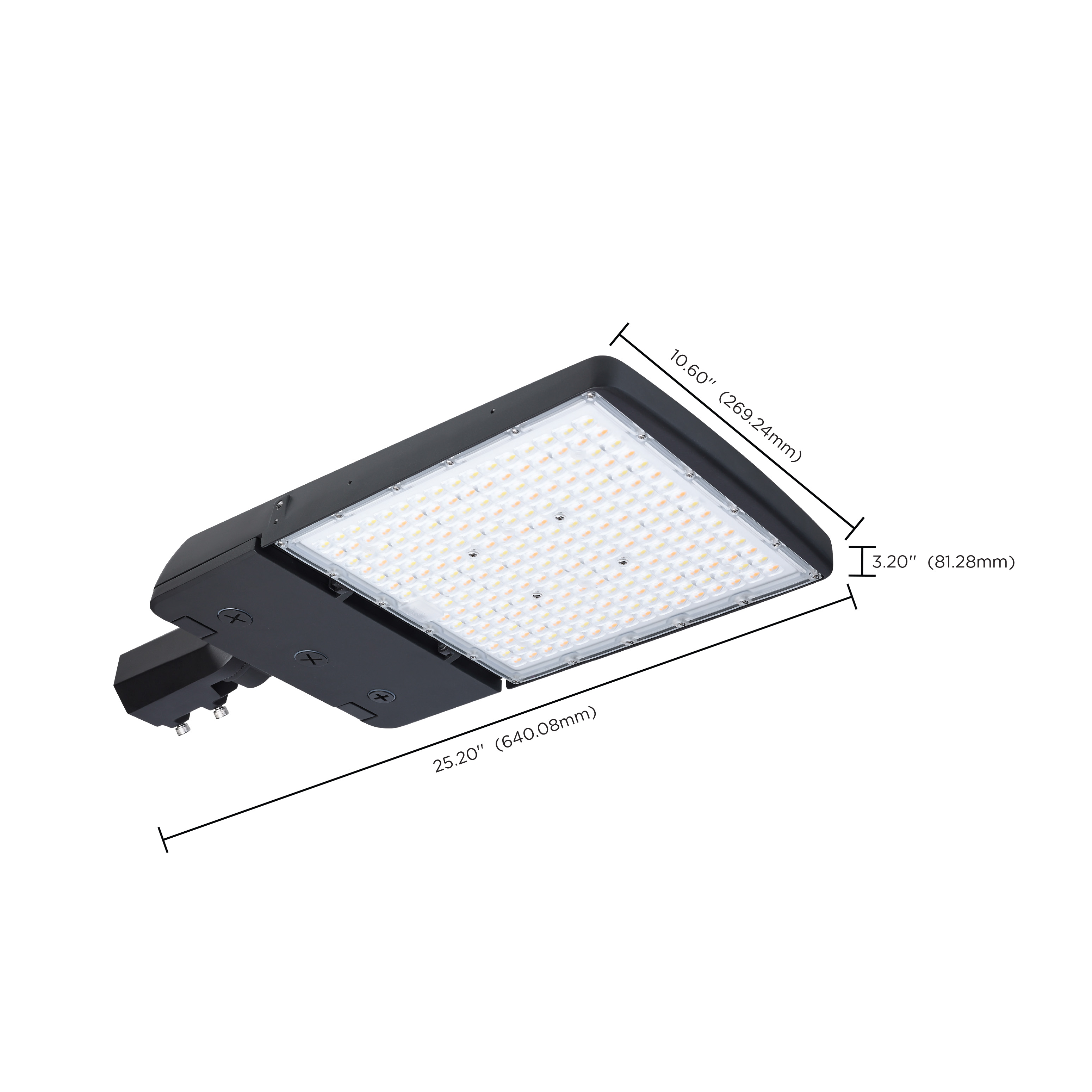

Web Height	3.2
Web Length	25.2
Web Width	10.6

150W SELECT AREA LT - 277-480V
