| Company | NUVO |
|---|---|
| Bulb Included | Integrated |
| Dimmable Text | 0-10V Dimming |
| Material | Die-cast Aluminum |

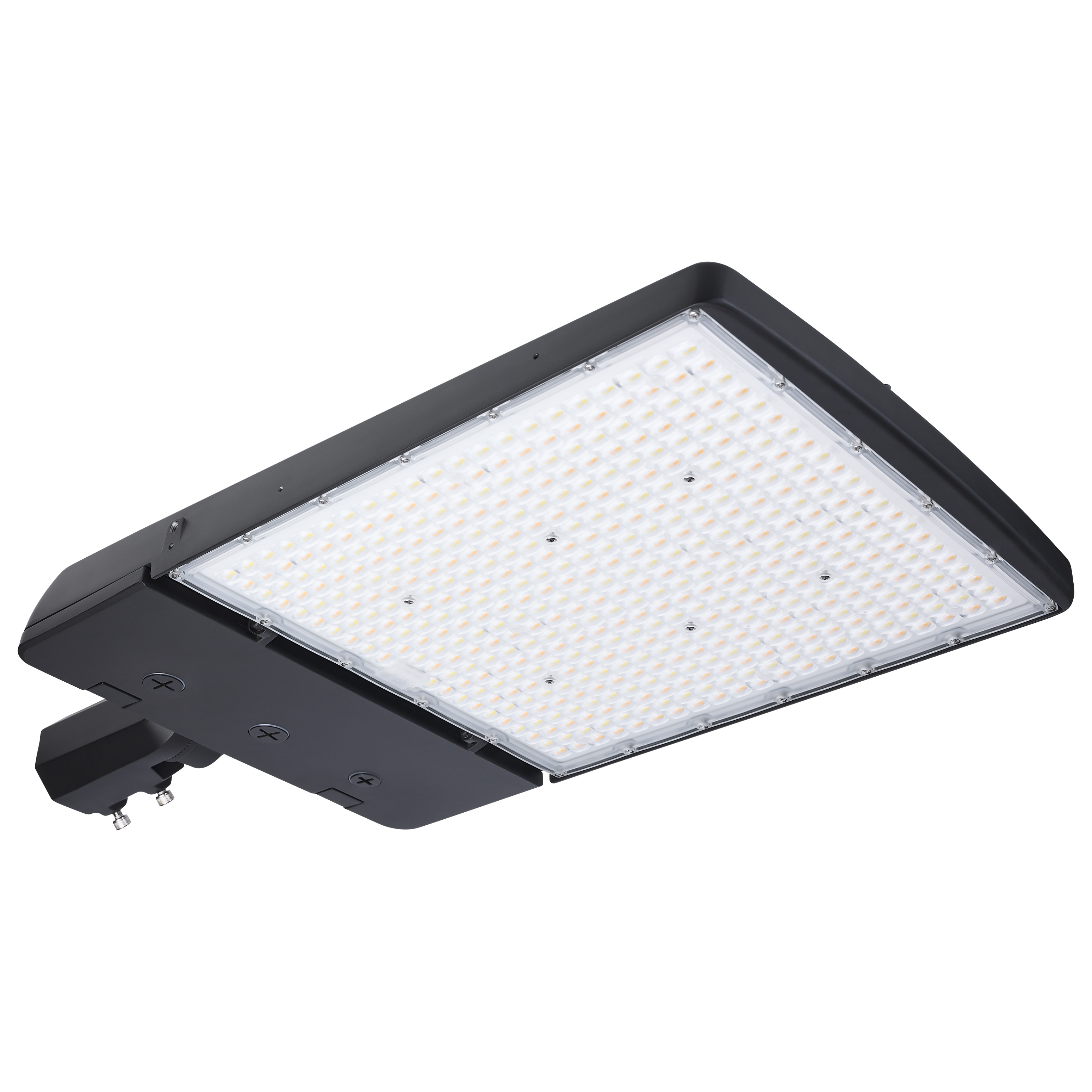

| Fixture Type | Area Light |

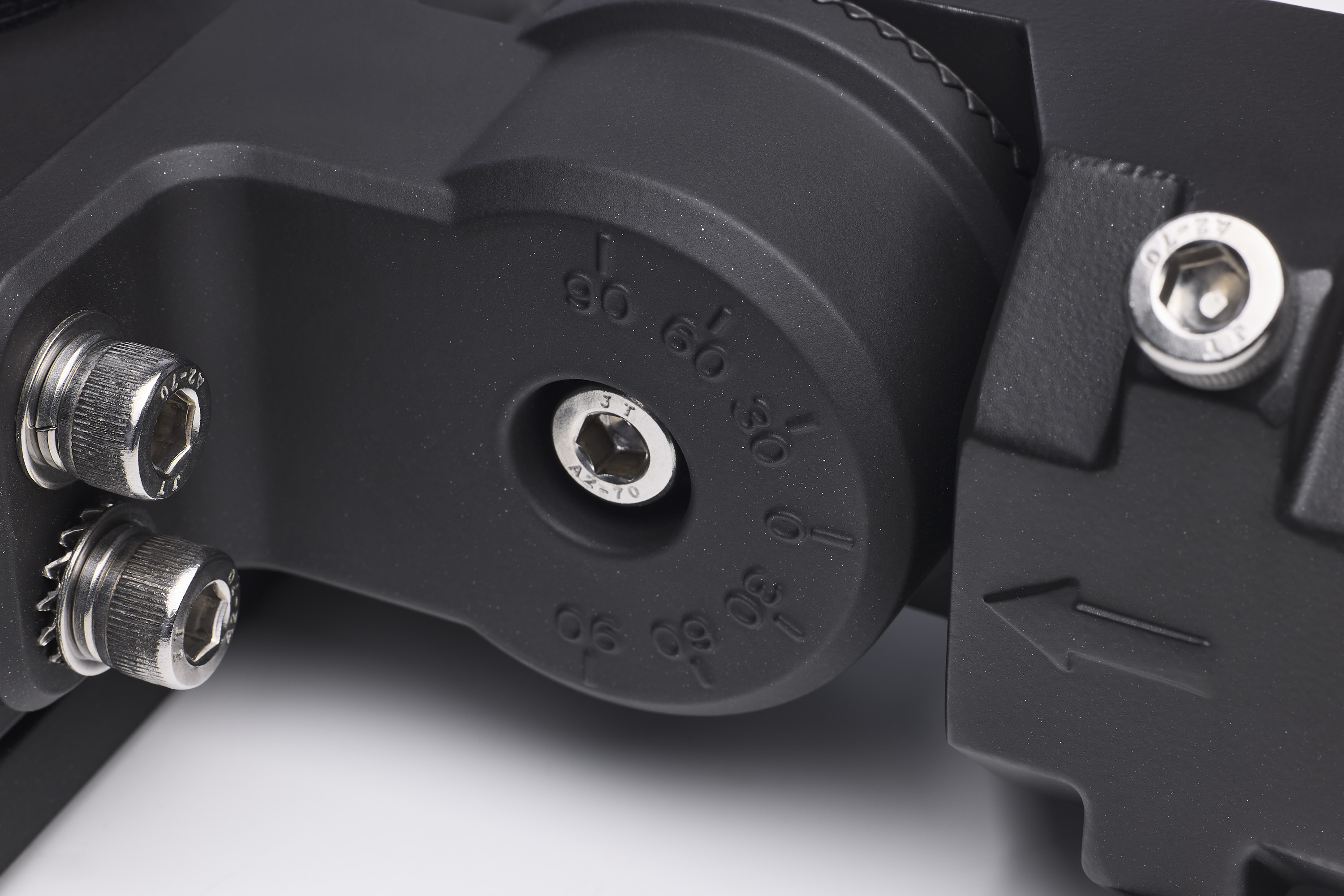

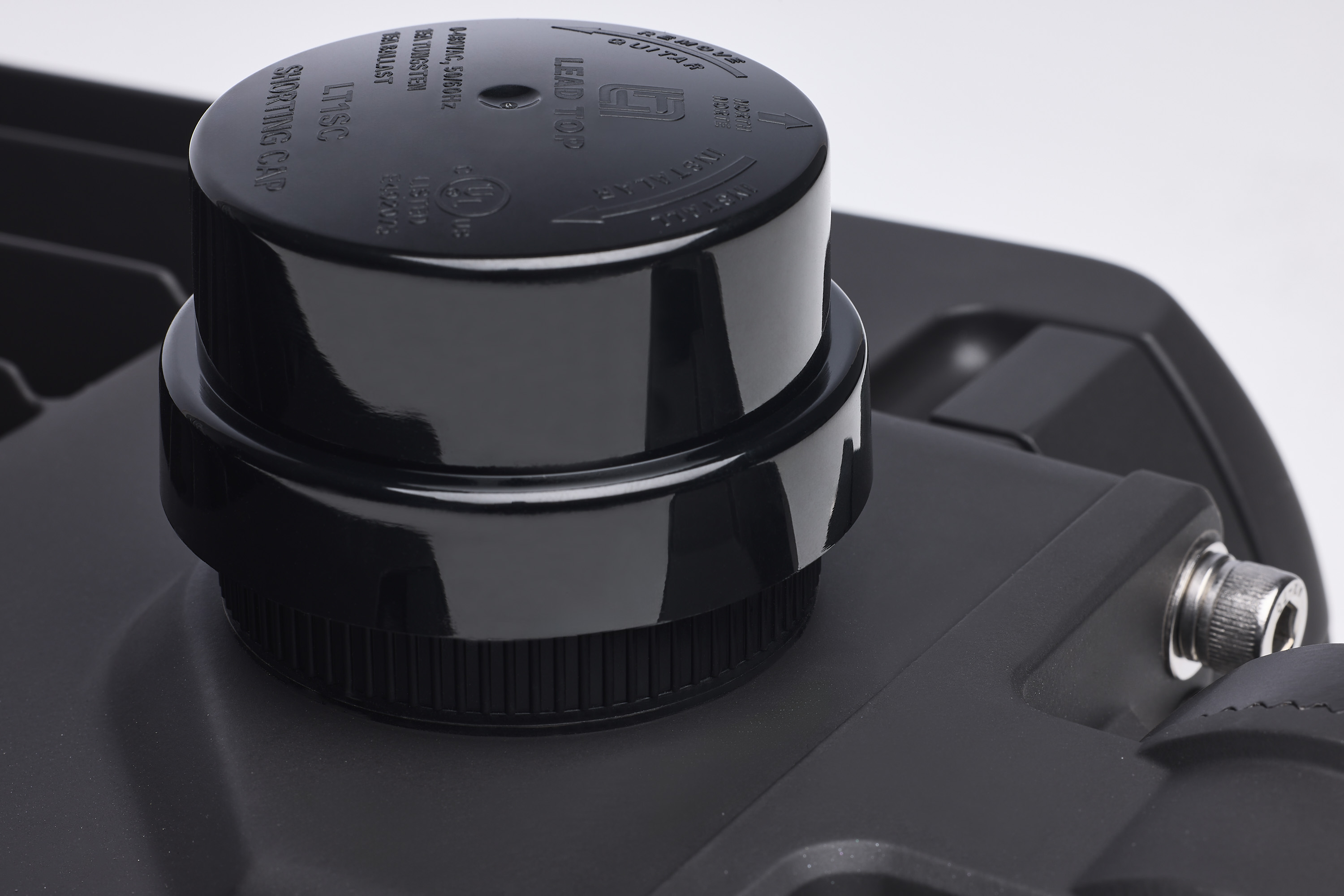

| Includes | 2 3/8-inch Slip Fitter Mount and Shorting Cap |

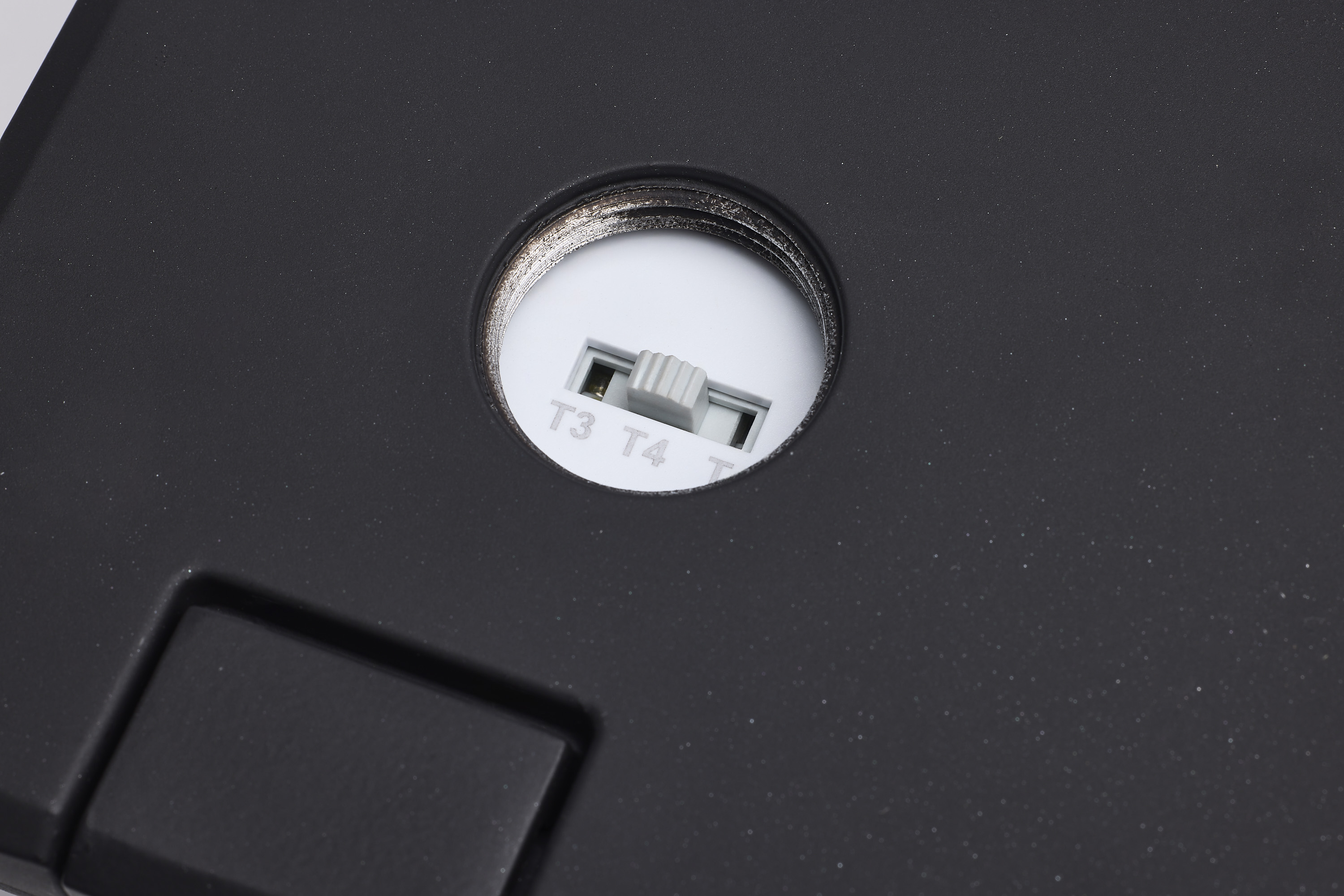

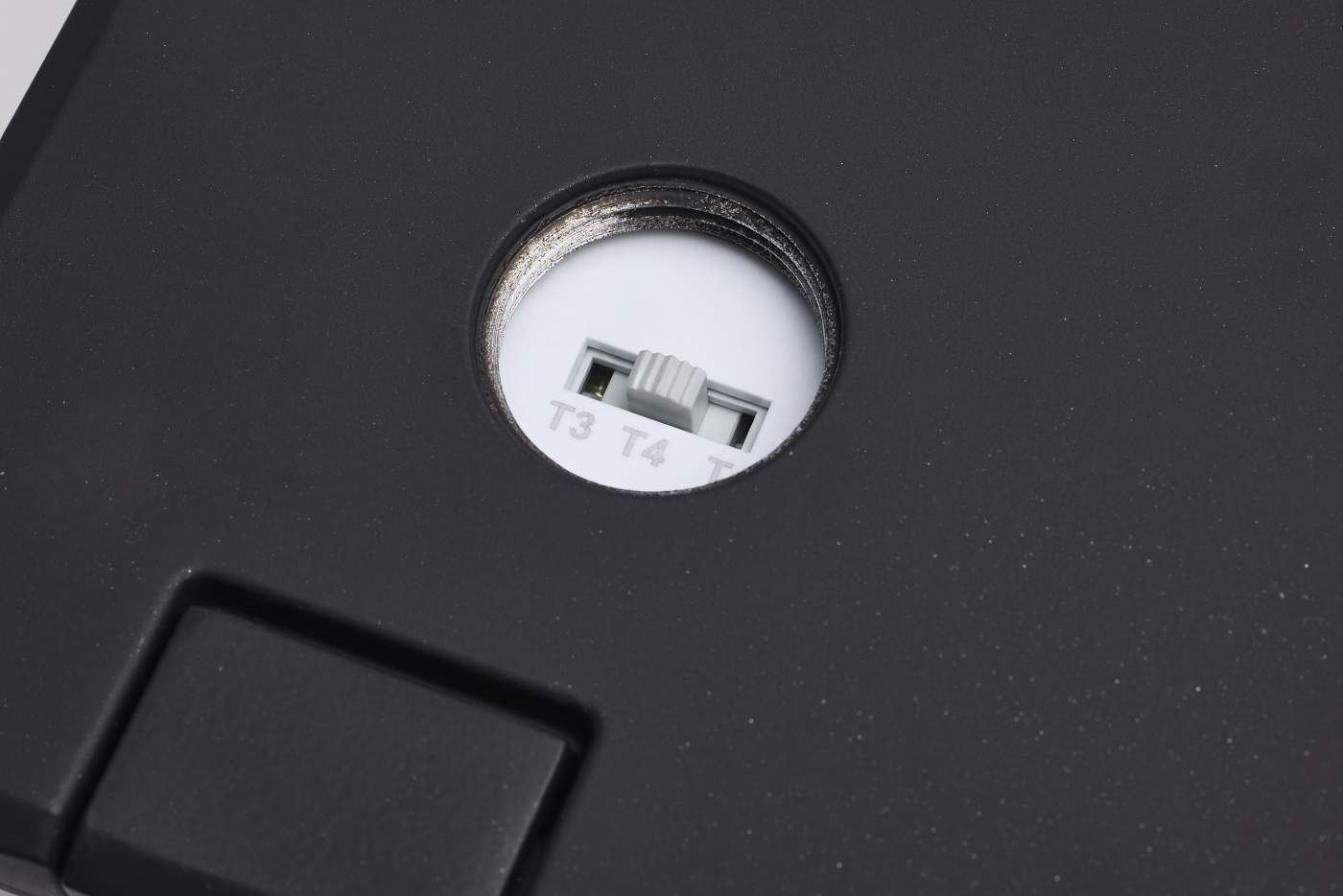

| Product Notes | Default Wattage: 300W; Type III/IV/V Light Distribution |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 6KV |
| Total Harmonic Distortion | <20% |
| Wire Color | Black |

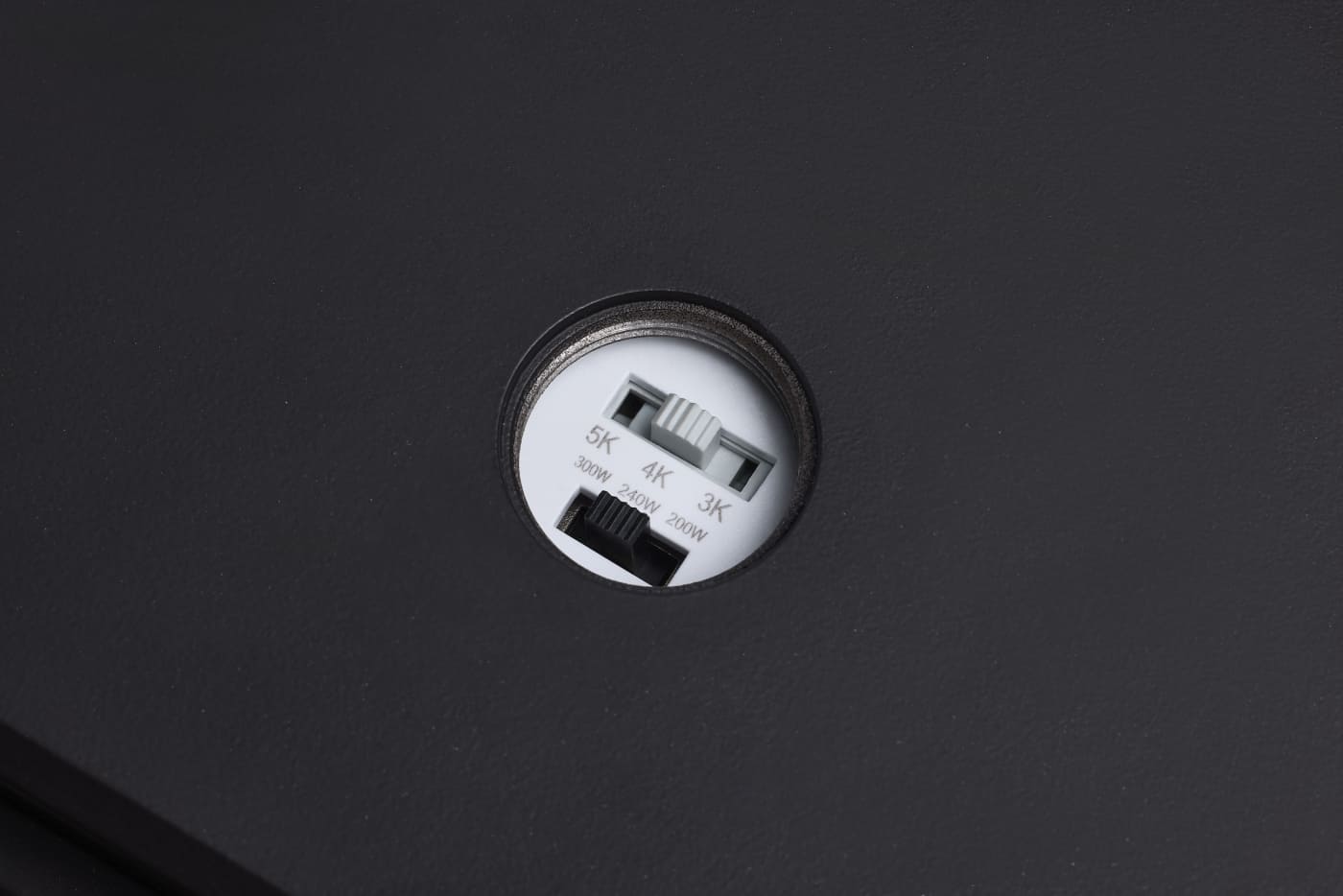

| CCT Selectable | True |
| Wattage Selectable | True |
| Amps | 1.080-0.630/0.870-0.500/0.720-0.420A |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lensed | True |
| Starfish Operational Humidity | 20% to 90% R.H. |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Indoor Outdoor | Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 1500W-2500W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 155x70/155x120/155x145 |
| Color Temp | Soft White to Natural Light |
| CRI | 80 |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +50C (+122F) |
| HID Equivalent | 250W-750W |
| Lumens | 31289L-47198L |
| Volts | 277V-480V |
| Watts | 300W/240W/200W |
| Lamp Base | Integrated |
|---|---|
| Finish | BRONZE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Warranty | 5-Years |
|---|
| Bug Rating | B4-U0-G4 |
|---|---|
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| DLC ID | S-8M9WQ2 |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923412578 |
|---|---|
| Case Cube | 1.2355 |
| Case Height | 4.61 |
| Case Length | 30.71 |
| Case Quantity | 1 |
| Case UPC | 10045923412575 |
| Case Weight | 16.53 |
| Case Width | 15.08 |
| EA Cube | 1.2355 |
| EA Height | 4.61 |
| EA Length | 30.71 |
| EA Quantity | 1 |
| EA Weight | 16.53 |
| EA Width | 15.08 |
| Inner Cube | 0.0 |
| Pack Type | Brown Box |

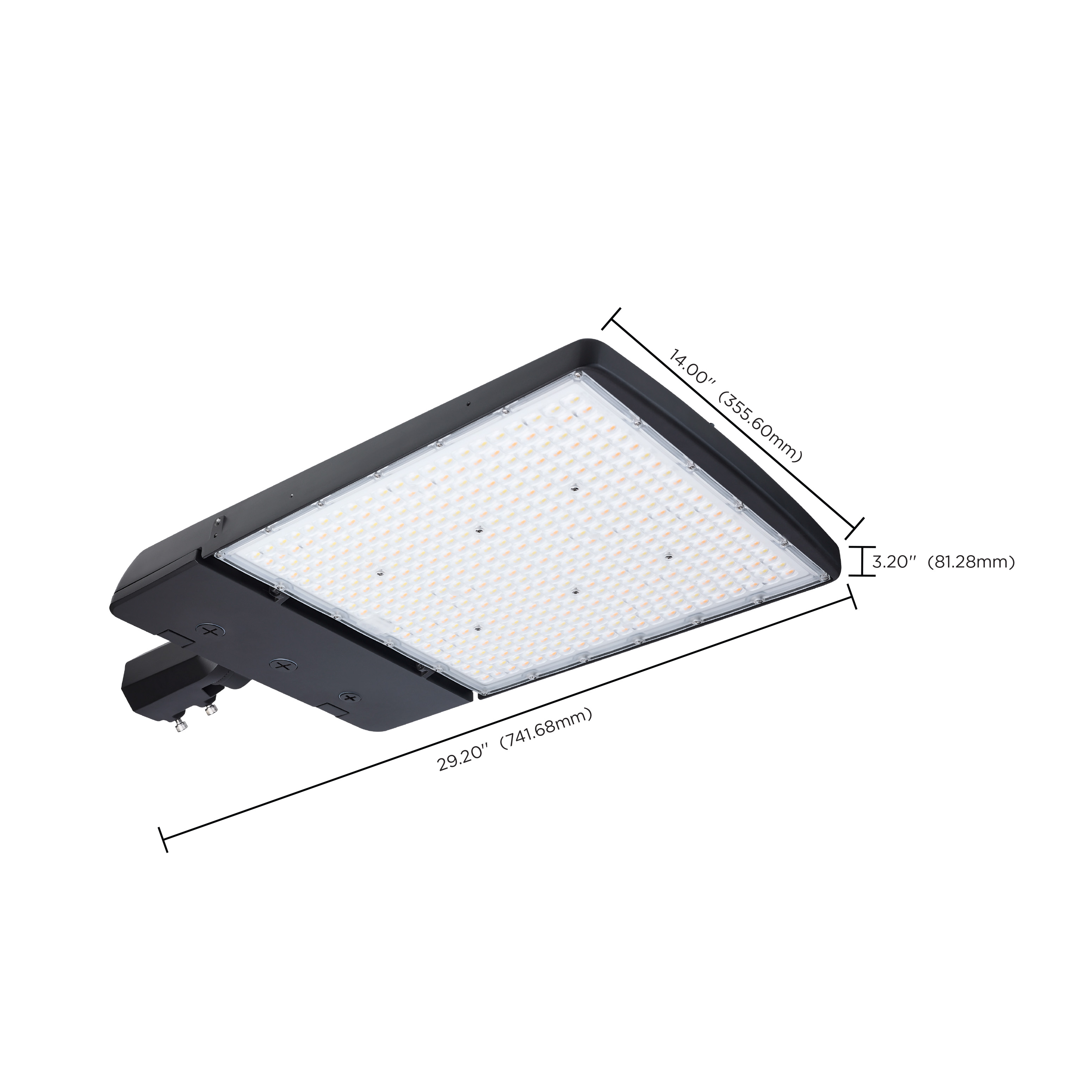

| Web Height | 3.2 |
| Web Length | 29.2 |
| Web Width | 14.0 |
